Spring MVC is a Web MVC Framework for building web applications. Creating your first view in Spring MVC involves setting up a controller to handle requests and returning a view name that maps to a template (like JSP or Thymeleaf). The framework uses a View Resolver to connect the controller’s response with the actual UI page.
- A controller method returns a view name, which is resolved to a UI template (JSP/Thymeleaf)
- View Resolver configuration determines how view names map to actual files
Prerequisites
- Eclipse (EE version)/STS IDE
- Spring JAR Files
- Tomcat Apache's latest version
Note: Views are nothing, they are just web pages.
Step-by-Step Implementation
Follow these steps to create and render your first view in Spring MVC by configuring a controller, view resolver, and template page.
Step 1: Create a Dynamic Web Project
- Create a new Dynamic Web Project in STS/Eclipse
- Configure project structure properly
Step 2: Adding Dependencies
- Add
spring-webmvcandjakarta.servlet-api - Use Maven/Gradle for dependency management
pom.xml:
<dependencies>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-webmvc</artifactId>
<version>5.3.23</version>
</dependency>
<dependency>
<groupId>jakarta.servlet</groupId>
<artifactId>jakarta.servlet-api</artifactId>
<version>5.0.0</version>
<scope>provided</scope>
</dependency>
</dependencies>
3. Configure Apache Tomcat Server
- Add and configure Tomcat server in IDE
- Deploy the project on the server
4. Configure DispatcherServlet (web.xml)
- Define DispatcherServlet in web.xml
- Map it to / to handle all incoming requests
web.xml:
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"
xmlns="http://www.oracle.com/webfolder/technetwork/jsc/xml/ns/javaee/index.html"
xsi:schemaLocation="http://www.oracle.com/webfolder/technetwork/jsc/xml/ns/javaee/index.html
http://www.oracle.com/webfolder/technetwork/jsc/xml/ns/javaee/index.html/web-app_4_0.xsd"
id="WebApp_ID" version="4.0">
<servlet>
<servlet-name>dispatcher</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>dispatcher</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>
Explanation: The DispatcherServlet is the entry point of the application. We can think of a DispatcherServlet as the gatekepper, it handles all the incoming requests. When a request comes, it passes to the DispatcherServlet and then it decides which controller should handle it.
5. Create Spring Configuration File
- Create dispatcher-servlet.xml inside WEB-INF
- Enable component scanning for controllers
- Configure InternalResourceViewResolver
dispatcher-servlet.xml:
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans/"
xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context/"
xsi:schemaLocation="http://www.springframework.org/schema/beans/
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context/
https://www.springframework.org/schema/context/spring-context.xsd">
<!-- Scans for @Controller annotations -->
<context:component-scan base-package="com.demo.controllers" />
<!-- Configures JSP ViewResolver -->
<bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
<property name="prefix" value="/WEB-INF/views/" />
<property name="suffix" value=".jsp" />
</bean>
</beans>
Explanation: The <context:component-scan> tells the spring to look through the com.demo.controllers package for any classes marked with @Controller. The classes will handle the requests. The <InternalResourceViewResolver> helps Spring find the right JSP file when a view name like "demo" is returned by a controller.
6. Create Controller Class
- Create a class annotated with @Controller
- Define request mapping using @RequestMapping or @GetMapping
- Return view name (e.g., "demo")
Now let us create a simple method inside the Controller class and use @GetMapping annotation before the method something like this.
// Annotation
@GetMapping("/hello")
// Method
public String helloWorld()
{
return "demo";
}
Now in the return statement, we have to return some views (web pages), so whenever the endpoint '/hello' is invoked we can see our result on the web page. So let's create our first View.
7. Create View (JSP Page)
- Create views folder inside WEB-INF
- Add JSP file (e.g., demo.jsp)
- Write basic HTML content
demo.jsp:
<!DOCTYPE html>
<html>
<body bgcolor="green">
<h1>Hello GeeksforGeeks!</h1>
</body>
</html>
Explanation: Here, we have created a jsp file, which contains a basic html code and outputs "Hello GeeksforGeeks" in the body with the green background.
Now go to the DemoController class and inside the helloWorld() method we have to return a value something like this and we are done.
return "demo";
DemoController.java:
package com.demo.controllers;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
@Controller
public class DemoController {
@RequestMapping("/hello")
public String helloWorld() {
return "demo";
}
}
Step 8: Run Spring MVC Application

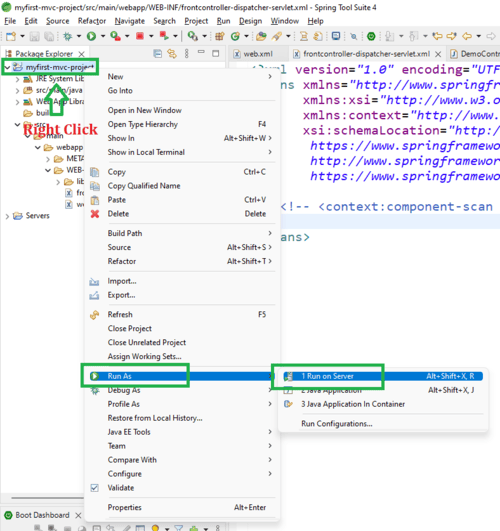

To run your Spring MVC Application right-click on your project > Run As > Run on Server and run your application as shown in the below image.
After that use the following URL to run your controller:
http://localhost:8080/springmvc-view-resolver/hello

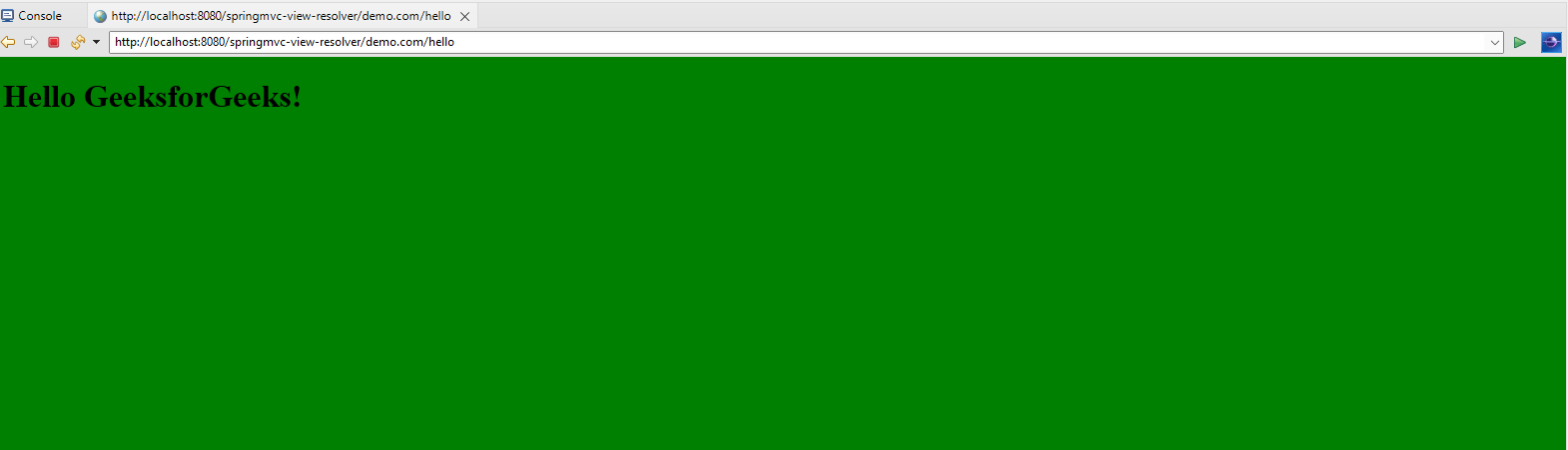

Output:
