Working of Top Down Parser

A top-down parser is a type of parser used in compiler design and language processing. It works by starting at the highest level of grammar (usually called the "start symbol") and breaking it down step by step into its components, trying to match the structure of the input. In this article, we are going to cover the working of a top-down parser and will see how we can take input and parse it and also cover some basics of top-down.

What is a Top Down Parser?

In the top-down technique, parse tree constructs from the top, and input will read from left to right. In a top-down parser, It will start the symbol to proceed to the string or input. It follows left most derivation. In a top-down parser, difficulty with top-down parser is if the variable contains more than one possibility selecting 1 is difficult.

Working of Top Down Parser

Let's consider an example where grammar is given and you need to construct a parse tree by using a top-down parser technique.

Example:

S -> aABe
A -> Abc | b
B -> d

Now, let's consider the input to read and construct a parse tree with top-down approach.

Input -

abbcde

Now, you will see how top-down approach works. Here, you will see how you can generate a input string from the grammar for top top-down approach.

• First, you can start with S -> a A B e and then you will see input string 'a' in the beginning and 'e' in the end.

• Now, you need to generate abbcde.

• Expand A-> Abc and Expand B-> d.

• Now, You have a string like aAbcde and your input string is abbcde.

• Expand A->b.

• Final string, you will get abbcde.

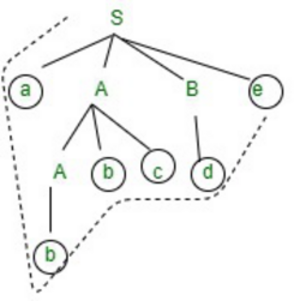

Given below is the Diagram explanation for constructing a top-down parse tree. You can see clearly in the diagram how you can generate the input string using grammar with top-down approach.

Conclusion

A top-down parser works by starting at the main structure of a language (like a sentence or a piece of code) and breaking it down step by step, following grammar rules. It checks if the input matches the expected pattern from the top to the bottom. If the input fits the rules, the parser moves forward; if not, it tries different options. This makes top-down parsing useful for analyzing and understanding structured inputs like programming languages or sentences.
