CSS Flexbox

The Flexible Box Layout module introduces a one-dimensional layout system that handles space distribution and item alignment effectively. It works seamlessly for horizontal (row) or vertical (column) arrangements, making it a go-to solution for responsive designs.

Flexbox eliminates the need for floats or complex positioning, enabling responsive and dynamic layouts.
It aligns items efficiently, distributing space within a container, even when their sizes are dynamic or unknown.
Flexbox is supported in all modern browsers, making it a reliable choice for creating flexible designs.

HTML

<html>
<head>
    <style>
        .flex-container {
            display: flex;
            background-color: #f2f2f2;
            padding: 10px;
        }
        .flex-item {
            background-color: #4CAF50;
            color: white;
            margin: 5px;
            padding: 20px;
            text-align: center;
            flex: 1;
        }
    </style>
</head>
<body>
    <div class="flex-container">
        <div class="flex-item">Item 1</div>
        <div class="flex-item">Item 2</div>
        <div class="flex-item">Item 3</div>
    </div>
</body>
</html>

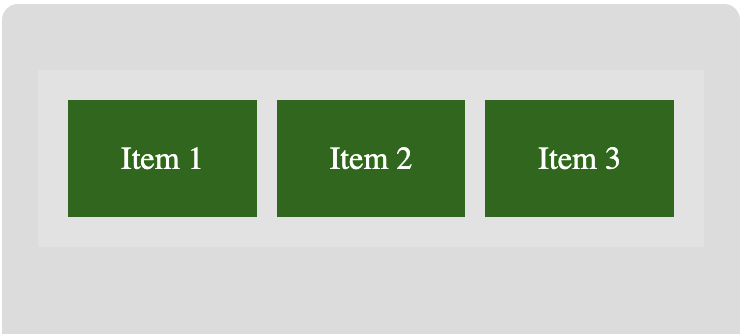

The .flex-container class applies display: flex;, designating the div as a flex container.
Each .flex-item is styled to have equal width within the container, with margins and padding for spacing.

Before the Flexbox Model

Block: Sections in web pages
Inline: Text
Table: Two-dimensional table data
Positioned: Explicit position of an element

Flexbox Components

Flex Container: The parent div containing various divisions.
Flex Items: The items inside the container div.

Flexbox Axes

Flexbox operates on two axes:

1. Main Axis:

Main Start: The start of the main axis.
Main Size: The length between Main Start and Main End.
Main End: The endpoint of the main axis.

2. Cross Axis:

The cross axis will be perpendicular to the main axis.

Cross Start: The start of the cross axis.
Cross Size: The length between Cross Start and Cross End.
Cross End: The endpoint of the cross axis.

For Row:-

For Column:-

Flex Direction Properties

Left to Right: flex-direction: row;
Right to Left: flex-direction: row-reverse;
Top to Bottom: flex-direction: column;
Bottom to Top: flex-direction: column-reverse;

Aligning and Justifying Content

Flexbox provides several properties for aligning and justifying content within the container:

justify-content: Aligns items along the main axis (e.g., flex-start, flex-end, center, space-between, space-around).
align-items: Aligns items along the cross axis (e.g., stretch, center, flex-start, flex-end).
align-content: Aligns rows within a flex container when there is extra space on the cross axis.

More Examples of CSS Flexbox

1. Responsive Design with Flexbox

Flexbox excels in creating responsive designs by adjusting items to fit various screen sizes. You can use media queries in combination with Flexbox properties to ensure your layout adapts seamlessly to different devices.

HTML

<html>
<head>
    <style>
    .flex-container {
        display: flex;
        flex-wrap: wrap;
        justify-content: space-around;
        background-color: #32a852;
    }
    .flex-container div {
        background-color: #c9d1cb;
        margin: 10px;
        padding: 20px;
        flex: 1 1 200px;
    }
    @media (max-width: 600px) {
        .flex-container {
            flex-direction: column;
        }
    }
    </style>
</head>
<body>
    <h2>Responsive Flexbox</h2>
    <div class="flex-container">
        <div>Item1</div>
        <div>Item2</div>
        <div>Item3</div>
    </div>
</body>
</html>

The .flex-container is a flexbox container with flex-wrap: wrap to allow items to wrap and justify-content: space-around for equal spacing between items.
Media queries ensure a responsive layout by changing the flex-direction to column for screens smaller than 600px.

HTML

<html>
<head>
    <style>
        .navbar {
            display: flex;
            justify-content: space-between;
            align-items: center;
            background-color: #4CAF50;
            padding: 10px;
        }
        .navbar a {
            color: white;
            text-decoration: none;
            padding: 10px 15px;
        }
        .navbar a:hover {
            background-color: #45a049;
        }
    </style>
</head>
<body>
    <div class="navbar">
        <a href="#home">Home</a>
        <a href="#services">Services</a>
        <a href="#contact">Contact</a>
    </div>
</body>
</html>

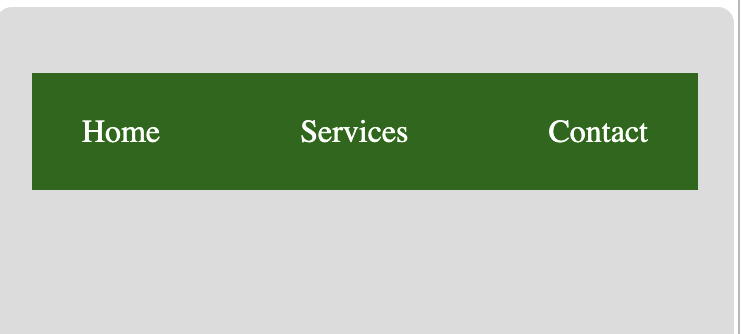

The .navbar uses display: flex with justify-content: space-between to spread navigation links evenly and align items horizontally.
Hover effects are added to each or better interactivity, creating a simple yet effective navigation bar.
