Dropout Regularization in Deep Learning

Training deep learning models for too long on the same data can lead to overfitting where the model performs well on training data but poorly on unseen data. Dropout Regularization helps overcome this by randomly deactivating a portion of neurons during training hence forcing the model to learn more robust and independent features.

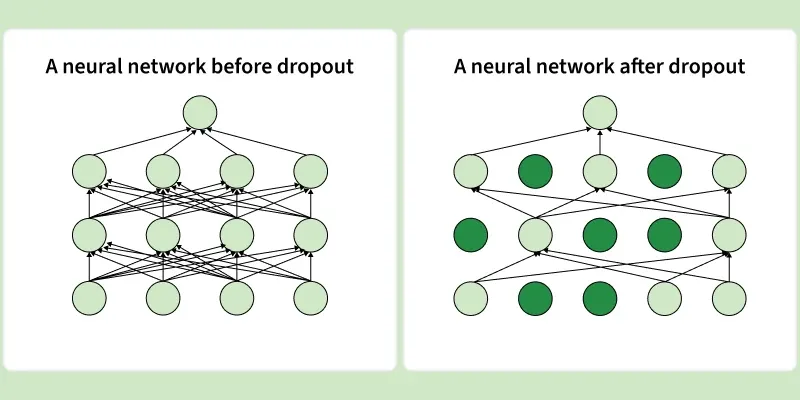

This image shows how dropout works by randomly deactivating neurons during training, forcing the network to rely on multiple paths and preventing overfitting

Why Dropout is needed

Dropout is needed because it prevents the network from relying too much on specific neurons, hence improving generalisation by training and reducing co-adaptation among neurons. Below are the key features of dropout:

Randomly deactivates a set percentage of neurons in each training step.
Works with dense, convolutional and recurrent layers.
Dropout rate controls how many neurons are dropped.
Remaining active neurons are scaled to maintain output stability.
Reduces co-dependency among neurons and improves generalization.

How it Works

Dropout works by randomly turning off a fraction of neurons during each training pass. When a neuron is dropped it sends no output and receives no weight updates for that batch. The dropout rate P determines the probability of removing a neuron. A neuron output h is modified as

h' = h \cdot m

where

m: Dropout mask randomly sampled for each neuron.
m=1: neuron is kept
m=0: neuron is dropped

To keep activation values consistent during training inverted dropout is used where active neurons are scaled as:

h' = \frac{h \cdot m}{1-P}

where

h: Original output of a neuron before dropout.
h': Output after applying dropout (scaled or zeroed out).

This ensures that the expected output remains stable even when some neurons are dropped.

Note: During testing dropout is disabled meaning all neurons remain active and no randomness is applied. The network uses its full capacity and activations are scaled appropriately to match the expected values from training.

Types of Dropout Regularization

Standard Dropout: Randomly removes individual neurons during training to reduce overfitting.
Spatial Dropout: Drops entire feature maps in CNNs to preserve spatial structure.
Dropout2D / Dropout3D: Applies dropout across 2D or 3D feature channels for images and volumetric data.
DropConnect: Randomly drops weights instead of neurons, offering stronger regularization.
Alpha Dropout: Maintains activation statistics and works best with SELU-based networks.
Variational Dropout: Uses the same dropout mask across time steps in RNNs for stable learning.
Monte Carlo Dropout: Keeps dropout active at inference to estimate prediction uncertainty.

Step-by-step implementation

Here we build and compare two CNNs on MNIST one without dropout and one with dropout train and validate both evaluate on test data and visualize accuracy and sample predictions to show the effect of dropout.

Step 1: Import Libraries

Here we will load Pytorch, Numpy and matplotlib libraries.

Python

import torch
import torch.nn as nn
import torch.optim as optim
import torchvision
import torchvision.transforms as transforms
from torch.utils.data import DataLoader, random_split
import matplotlib.pyplot as plt
import numpy as np

Step 2: Dataset & DataLoaders

Download MNIST and apply transforms using ToTensor() and Normalize().
Split the training set into train and validation.
Create DataLoaders for train, val and test.

Python

transform = transforms.Compose([
    transforms.ToTensor(),
    transforms.Normalize((0.5,), (0.5,))
])
train_full = torchvision.datasets.MNIST(root='./data', train=True, download=True, transform=transform)
test_set = torchvision.datasets.MNIST(root='./data', train=False, download=True, transform=transform)
train_size = int(0.8 * len(train_full))
val_size = len(train_full) - train_size
train_set, val_set = random_split(train_full, [train_size, val_size])

train_loader = DataLoader(train_set, batch_size=100, shuffle=True)
val_loader = DataLoader(val_set, batch_size=100, shuffle=False)
test_loader = DataLoader(test_set, batch_size=100, shuffle=False)

Step 3: Define Model Without Dropout

Uses Conv2d for feature extraction
MaxPool2d reduces spatial size
Linear layers perform classification
No regularization like dropout
ReLU used in forward pass

Python

class CNN_NoDropout(nn.Module):
    def __init__(self):
        super(CNN_NoDropout, self).__init__()
        self.conv1 = nn.Conv2d(1, 32, 3, padding=1)
        self.conv2 = nn.Conv2d(32, 64, 3, padding=1)
        self.pool = nn.MaxPool2d(2, 2)
        self.fc1 = nn.Linear(64 * 7 * 7, 128)
        self.fc2 = nn.Linear(128, 10)

    def forward(self, x):
        x = self.pool(torch.relu(self.conv1(x)))
        x = self.pool(torch.relu(self.conv2(x)))
        x = x.view(-1, 64 * 7 * 7)
        x = torch.relu(self.fc1(x))
        x = self.fc2(x)
        return x

Step 4: Define Model With Dropout

Adds nn.Dropout(p) for regularization
Dropout applied before final Fully Connected layers
Helps improve generalization

Python

class CNN_WithDropout(nn.Module):
    def __init__(self, p=0.5):
        super(CNN_WithDropout, self).__init__()
        self.conv1 = nn.Conv2d(1, 32, 3, padding=1)
        self.conv2 = nn.Conv2d(32, 64, 3, padding=1)
        self.pool = nn.MaxPool2d(2, 2)
        self.dropout = nn.Dropout(p=p)
        self.fc1 = nn.Linear(64 * 7 * 7, 128)
        self.fc2 = nn.Linear(128, 10)

    def forward(self, x):
        x = self.pool(torch.relu(self.conv1(x)))
        x = self.pool(torch.relu(self.conv2(x)))
        x = x.view(-1, 64 * 7 * 7)
        x = self.dropout(torch.relu(self.fc1(x)))
        x = self.fc2(x)
        return x

Step 5: Training and validation

model.train(): Enables training mode
model.eval(): Disables dropout batchnorm updates
optimizer.zero_grad() : Clears previous gradients
loss.backward(): Computes gradients
torch.no_grad(): Prevents gradient update during validation
Returns lists for train/val loss and accuracy

Python

def train_and_validate(model, train_loader, val_loader, optimizer, criterion, epochs=10, device='cpu'):
    train_losses, val_losses = [], []
    train_accs, val_accs = [], []
    model.to(device)
    for epoch in range(epochs):
        model.train()
        total, correct, running_loss = 0, 0, 0.0
        for images, labels in train_loader:
            images, labels = images.to(device), labels.to(device)
            outputs = model(images)
            loss = criterion(outputs, labels)

            optimizer.zero_grad()
            loss.backward()
            optimizer.step()

            running_loss += loss.item()
            _, preds = torch.max(outputs, 1)
            total += labels.size(0)
            correct += (preds == labels).sum().item()

        train_losses.append(running_loss / len(train_loader))
        train_accs.append(100 * correct / total)

        model.eval()
        total, correct, val_loss = 0, 0, 0.0
        with torch.no_grad():
            for images, labels in val_loader:
                images, labels = images.to(device), labels.to(device)
                outputs = model(images)
                loss = criterion(outputs, labels)
                val_loss += loss.item()
                _, preds = torch.max(outputs, 1)
                total += labels.size(0)
                correct += (preds == labels).sum().item()

        val_losses.append(val_loss / len(val_loader))
        val_accs.append(100 * correct / total)

        print(f"Epoch [{epoch+1}/{epochs}] Train Acc: {train_accs[-1]:.2f}% Val Acc: {val_accs[-1]:.2f}%")

    return train_losses, val_losses, train_accs, val_accs

Step 6: Instantiate models and train

Create model instances, set criterion and optimizers.
Run training for both models.
CrossEntropyLoss: Used for multi-class classification
SGD optimizer: Uses learning rate & momentum

Python

epochs = 10
device = 'cuda' if torch.cuda.is_available() else 'cpu'
criterion = nn.CrossEntropyLoss()

model_no = CNN_NoDropout().to(device)
opt_no = optim.SGD(model_no.parameters(), lr=0.01, momentum=0.9)
loss_no_train, loss_no_val, acc_no_train, acc_no_val = train_and_validate(
    model_no, train_loader, val_loader, opt_no, criterion, epochs, device
)

model_do = CNN_WithDropout(p=0.5).to(device)
opt_do = optim.SGD(model_do.parameters(), lr=0.01, momentum=0.9)
loss_do_train, loss_do_val, acc_do_train, acc_do_val = train_and_validate(
    model_do, train_loader, val_loader, opt_do, criterion, epochs, device
)

Step 7: Visualize training curves & sample predictions

Plot training and validation loss and accuracy curves for both models.

Python

plt.figure(figsize=(14,10))
plt.subplot(2,2,1); plt.plot(loss_no_train, label='No Dropout'); plt.plot(loss_do_train, label='With Dropout'); plt.title('Training Loss'); plt.legend()
plt.subplot(2,2,2); plt.plot(loss_no_val, label='No Dropout'); plt.plot(loss_do_val, label='With Dropout'); plt.title('Validation Loss'); plt.legend()
plt.subplot(2,2,3); plt.plot(acc_no_train, label='No Dropout'); plt.plot(acc_do_train, label='With Dropout'); plt.title('Training Accuracy'); plt.legend()
plt.subplot(2,2,4); plt.plot(acc_no_val, label='No Dropout'); plt.plot(acc_do_val, label='With Dropout'); plt.title('Validation Accuracy'); plt.legend()
plt.tight_layout(); plt.show()
def visualize_predictions(model, loader, title, device='cpu', n=6):
    model.to(device); model.eval()
    images, labels = next(iter(loader))
    images = images.to(device)
    with torch.no_grad():
        outputs = model(images)
        _, preds = torch.max(outputs, 1)

    plt.figure(figsize=(10,3))
    for i in range(n):
        plt.subplot(1, n, i+1)
        img = images[i].cpu().squeeze()
        plt.imshow(img, cmap='gray')
        plt.title(f"P:{preds[i].item()} / T:{labels[i].item()}")
        plt.axis('off')
    plt.suptitle(title)
    plt.show()

visualize_predictions(model_no, test_loader, "Without Dropout", device)
visualize_predictions(model_do, test_loader, "With Dropout", device)

Output:

Above graphs show that while the model without dropout achieves lower training loss and higher training accuracy it overfits quickly whereas the model with dropout maintains lower validation loss and higher validation accuracy, demonstrating better generalization.

You can download full code from here.

Applications

Image Classification: Helps CNNs avoid overfitting and learn cleaner visual features.
NLP Models: Used in embeddings, RNNs, LSTMs and Transformers to stabilize training.
Speech Recognition: Improves robustness to noise and variation in audio inputs.
Recommender Systems: Prevents models from memorizing user item patterns and improves diversity.
Time-Series Forecasting: Regularizes models like RNNs/GRUs to avoid learning unstable patterns.

Advantages

Prevents Overfitting: Reduces reliance on specific neurons and avoids memorizing training data.
Ensemble Effect: Behaves like training multiple smaller networks improving generalization.
Better Feature Learning: Encourages stronger and more meaningful representations.
Reduces Co adaptation: Forces neurons to work independently rather than depending on each other.
Improves Robustness: Makes the model less sensitive to noise and input fluctuations.
Easy Integration: Simple to apply and adds no additional parameters.

Limitations

Slower Training: Dropping neurons forces the network to learn redundant patterns hence increasing training time.
Not Ideal for CNNs: Can disturb spatial features since CNNs already use shared filters.
Needs Larger Models: Networks may require more neurons to compensate for frequent dropout.
Dropout Rate Sensitivity: Incorrect rates can cause underfitting or too much regularization.
Poor for Small Datasets: Dropping many neurons may remove essential information.
Limited Use in Modern Architectures: Models like ResNet, Mamba and Transformers often rely on better regularizers like BatchNorm or LayerNorm.

Other Regularization Techniques

L1 and L2 Regularization: Add penalties to model weights to reduce complexity.
Early Stopping: Stops training when validation loss stops improving to prevent overfitting.
Batch Normalization: Stabilizes activations and speeds up training by normalizing layer outputs.
