How To Use Kubernetes Taints and Tolerations?

In Kubernetes, taints and tolerations control which Pods can be scheduled on specific Nodes. Taints repel Pods from Nodes, while tolerations allow selected Pods to be scheduled on tainted Nodes.

• Node Restrictions (Taints) are applied to Nodes to repel Pods and consist of a key, value, and effect such as NoSchedule.
• Pod Exceptions (Tolerations) are defined in the Pod specification to allow Pods to be scheduled on Nodes with matching taints.
• Selective Admission ensures that specialized Nodes, such as GPU or high-security Nodes, can host only Pods with the required tolerations.
• Flexible Enforcement with effects such as NoExecute can also evict running Pods that do not tolerate a Node's taint.

Understanding Their Effects

A Taint is a label applied to a Node that instructs the scheduler to repel certain Pods. The Taint itself consists of three parts: a key, a value, and an effect.

key=value:Effect

The Effect is the most important part, as it defines what happens to Pods that do not tolerate the taint. There are three types of effects.

1. NoSchedule

• This is the most common effect. It tells the scheduler: "Do not place any new Pods on this Node unless they have a matching toleration."
• This effect only applies to new Pods during the scheduling phase. It does not affect any Pods that are already running on the Node.

2. PreferNoSchedule

• This is a "soft" or advisory version of NoSchedule. The scheduler will try to avoid placing a Pod without a matching toleration on the tainted Node.
• It's a preference, not a requirement. If the cluster is under pressure and there are no other available Nodes for the Pod, the scheduler may still place the Pod on the tainted Node.

3. NoExecute

• This is the most powerful and immediate effect. It not only prevents new Pods from being scheduled but also evicts any Pods that are already running on the Node if they do not tolerate the taint.
• This is often used for draining a Node for maintenance or in response to node-level problems (like the disk being full). You can also specify a tolerationSeconds field on a Pod's toleration, which gives it a grace period to continue running on the Node before it is evicted.ws

Use Cases

1. Tainting a set of nodes with powerful hardware (like GPUs or fast SSDs) ensures that only workloads that specifically tolerate those taints can run there, preventing them from being used by general-purpose applications.
2. Before performing maintenance on a node, an administrator can apply a NoExecute taint. This will safely drain all the Pods from the node (respecting their termination grace periods), and NoSchedule will prevent any new Pods from landing there while the work is being done.
3. Kubernetes itself uses this system. When a node becomes unreachable or its disk is full, the system automatically adds a NoExecute taint. This triggers the eviction of Pods from the unhealthy node after a default grace period.

Setup multi-node kind cluster

1. Create a multi-node-cluster.yaml manifest file

# three nodes (two workers) cluster config
apiVersion: kind.x-k8s.io/v1alpha4
kind: Cluster
nodes:
  - role: control-plane
  - role: worker
  - role: worker

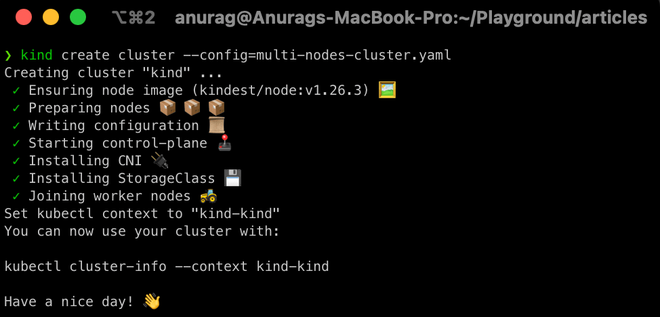

$ kind create cluster --config=multi-nodes-cluster.yaml

2. Set k as an alias to kubectl so that we've to type less (Optional)

$ alias k="kubectl"

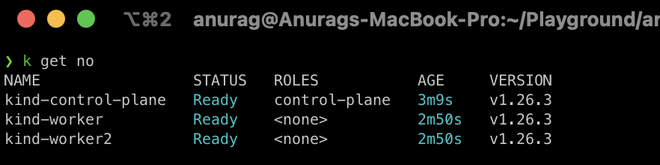

3. Check details of our cluster

$ k get no

(k is an alias to kubectl and no is shorthand for nodes)

As we can see above our cluster is ready

Taints and Tolerations

Let's dig deep into our control-plane details,

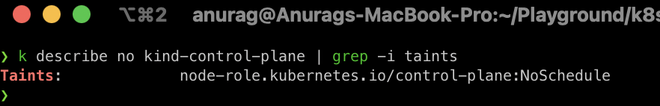

$ k describe no kind-control-plane | grep -i taints

As we can see that the control-plane node has a single taint with the effect of NoSchedule. This taint prevents pods from being scheduled on this node unless those pod(s) can tolerate this taint.

Now let's check taint on other worker nodes,

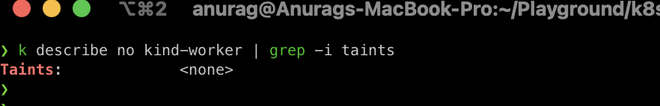

$ k describe no kind-worker | grep -i taints

The worker node has no taint which means any pod can schedule on it.

Adding custom taints to a node

Let's consider our first worker node as the production node so that only production deployment pods can schedule it. To do so we need to add a taint with key node-type, value production, and with NoSchedule effect.

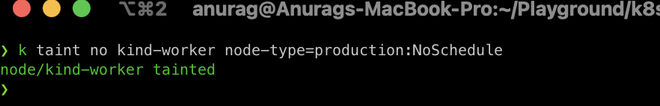

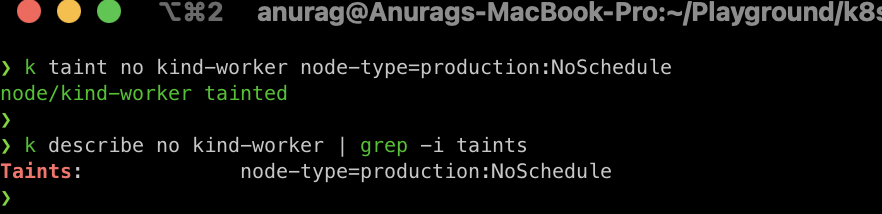

$ k taint no kind-worker node-type=production:NoSchedule

check the node's taint

$ k describe no kind-worker | grep -i taints

As we can see above our first node has been tainted with the NoSchedule effect which means only pods that can tolerate this taint can schedule on it.

Let's deploy a regular deployment with 5 replicas and see what will happen

$ k create deploy webserver --image=nginx:1.23-alpine --replicas=5

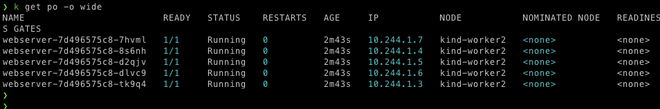

let's check where the pods get scheduled

$ k get po -o wide

We can see all the pods are scheduled on the worker2 node because of taint on the production node. Now let's see how we can deploy production pods on production nodes.

Adding Tolerations to Pods

To deploy production pods to production nodes they need to tolerate the production nodes' taint. Let's create a production deployment webserver-prod.yaml manifest file.

apiVersion: apps/v1
kind: Deployment
metadata:
  name: webserver-prod
  labels:
    env: prod
spec:
  replicas: 5
  selector:
    matchLabels:
      env: prod
  template:
    metadata:
      labels:
        env: prod
    spec:
      containers:
       - name: nginx
         image: nginx:1.23-alpine
         imagePullPolicy: IfNotPresent
      tolerations:
       - key: "node-type"
         value: "production"
         operator: "Equal"
         effect: "NoSchedule"

We add the toleration so that these production pods are scheduled on the production nodes. Let's create this workload,

$ k create -f webserver-prod.yaml

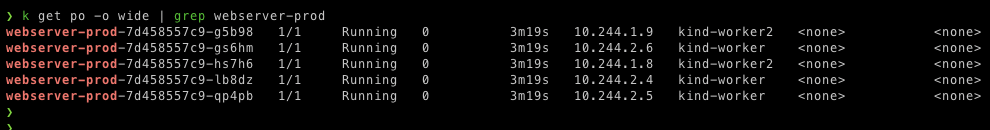

let's again check where the pods get scheduled

$ k get po -o wide | grep webserver-prod

As we can see that these production pods get scheduled to regular nodes as well. To make sure production pods are only scheduled to production nodes we've to taint the regular nodes to reject the production pods by adding key node-type, value non-production, and with NoSchedule effect.

$ k taint no kind-worker2 node-type=non-production:NoSchedule

again deploy our production deployment, before deploying Delete previous deployments

$ k delete deploy --all

$ k create -f webserver-prod.yaml

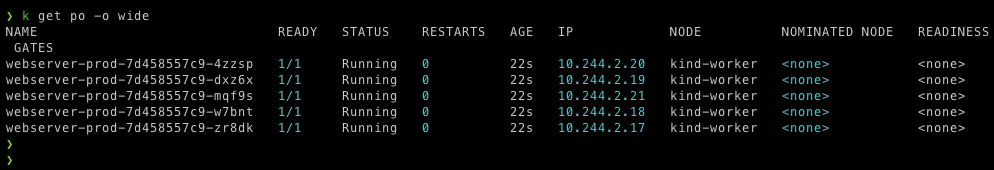

check where the pods get scheduled

$ k get po -o wide

this time all of our production pods are scheduled only on production workloads that are on a first worker node.

Remove Taints from Nodes

To remove the taint from a node we just need to append - (dash) with the effect and the taint will be removed from that node, but removing the taint from a node will not affect any running workloads it will affect only new workloads after that.

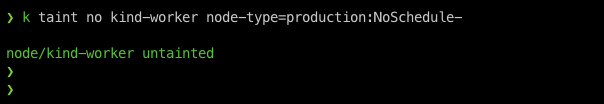

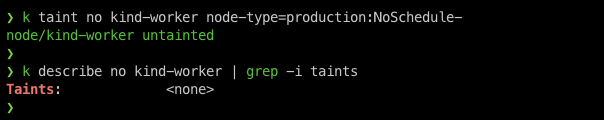

$ k taint no kind-worker node-type=production:NoSchedule-

again check the taint on the node.

$ k describe no kind-worker | grep -i taints

As we can see above the taint is removed from the node.
