Microsoft Azure - Enabling Logs for Troubleshooting the Azure Firewall Rules

Azure Firewall Diagnostic settings are used to configure logs and metrics for a resource to the destination of Log Analytics Workspace.

Pre-requisites:

• Azure Firewall Resource
• Log Analytics Workspace which is configured for monitoring your Azure resources.

Implementation:

Step 1: Login to Azure Portal

Step 2: Search for Firewalls from azure global search and select Firewall

Step 3: Select your Firewall resource from Azure Firewall resources

Step 4: Navigate to Monitoring >> Access Diagnostic setting

Step 5: Now, Click on 'Add Diagnostic setting' to configure the collection of the following data:

1. AzureFirewallApplicationRule
2. AzureFirewallNetworkRule
3. AzureFirewallDnsProxy

• Configure Firewall Logs:

• Configure Firewall resource logs and metrics to the destination of Log Analytics Workspace:

• Click on Save to update the changes.

Following are the azure KQL Query to test or to troubleshoot the firewall Logs:

AzureDiagnostics
| where Category == "AzureFirewallNetworkRule"
or Category == "AzureFirewallApplicationRule"
| where OperationName == "AzureFirewallNetworkRuleLog"

or OperationName == "AzureFirewallApplicationRuleLog"

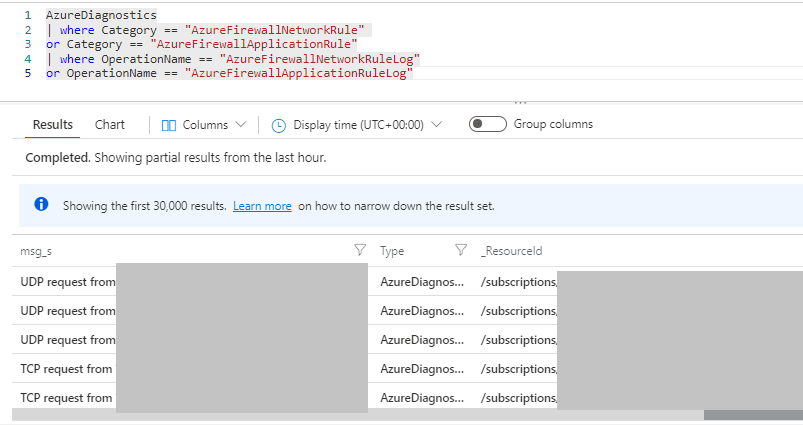

Output:
