A Graph is a non-linear data structure consisting of vertices and edges. The vertices are sometimes also referred to as nodes and the edges are lines or arcs that connect any two nodes in the graph. More formally a Graph is composed of a set of vertices(V) and a set of edges(E). The graph is denoted by G(V, E).
Representations of Graph
Here are the two most common ways to represent a graph : For simplicity, we are going to consider only unweighted graphs in this post.
- Adjacency Matrix
- Adjacency List

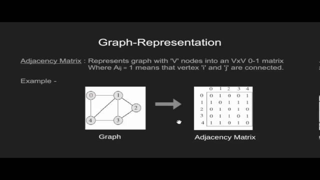

Adjacency Matrix Representation
An adjacency matrix is a way of representing a graph as a boolean matrix of (0's and 1's).
Let's assume there are n vertices in the graph So, create a 2D matrix adjMat[n][n] having dimension n x n.
- If there is an edge from vertex i to j, mark adjMat[i][j] as 1.
- If there is no edge from vertex i to j, mark adjMat[i][j] as 0.
Representation of Undirected Graph as Adjacency Matrix:
- We use an adjacency matrix to represent connections between vertices.
- Initially, the entire matrix is filled with 0s, meaning no edges exist.
- There is an edge between vertex 0 and vertex 1,so we set mat[0][1] = 1 and mat[1][0] = 1.
- There is an edge between vertex 0 and vertex 2,so we set mat[0][2] = 1 and mat[2][0] = 1.
- There is an edge between vertex 1 and vertex 2,so we set mat[1][2] = 1 and mat[2][1] = 1.
#include <iostream>
#include<vector>
using namespace std;
vector<vector<int>> createGraph(int V, vector<vector<int>> &edges) {
vector<vector<int>> mat(V, vector<int>(V, 0));
// Add each edge to the adjacency matrix
for (auto &it : edges) {
int u = it[0];
int v = it[1];
mat[u][v] = 1;
// since the graph is undirected
mat[v][u] = 1;
}
return mat;
}
int main() {
int V = 3;
// List of edges (u, v)
vector<vector<int>> edges = {{0, 1},{0, 2},{1, 2}};
// Build the graph using edges
vector<vector<int>> mat = createGraph(V, edges);
cout << "Adjacency Matrix Representation:" << endl;
for (int i = 0; i < V; i++) {
for (int j = 0; j < V; j++)
cout << mat[i][j] << " ";
cout << endl;
}
return 0;
}
import java.util.ArrayList;
import java.util.Collections;
public class GFG {
static ArrayList<ArrayList<Integer>> createGraph(int V, int[][] edges) {
ArrayList<ArrayList<Integer>> mat = new ArrayList<>();
// Initialize the matrix with 0
for (int i = 0; i < V; i++) {
ArrayList<Integer> row = new ArrayList<>(Collections.nCopies(V, 0));
mat.add(row);
}
// Add each edge to the adjacency matrix
for (int[] it : edges) {
int u = it[0];
int v = it[1];
mat.get(u).set(v, 1);
// since the graph is undirected
mat.get(v).set(u, 1);
}
return mat;
}
public static void main(String[] args) {
int V = 3;
// List of edges (u, v)
int[][] edges = {
{0, 1},
{0, 2},
{1, 2}
};
// Build the graph using edges
ArrayList<ArrayList<Integer>> mat = createGraph(V, edges);
System.out.println("Adjacency Matrix Representation:");
for (int i = 0; i < V; i++) {
for (int j = 0; j < V; j++)
System.out.print(mat.get(i).get(j) + " ");
System.out.println();
}
}
}
def createGraph(V, edges):
mat = [[0 for _ in range(V)] for _ in range(V)]
# Add each edge to the adjacency matrix
for it in edges:
u = it[0]
v = it[1]
mat[u][v] = 1
# since the graph is undirected
mat[v][u] = 1
return mat
if __name__ == "__main__":
V = 3
# List of edges (u, v)
edges = [[0, 1], [0, 2], [1, 2]]
# Build the graph using edges
mat = createGraph(V, edges)
print("Adjacency Matrix Representation:")
for i in range(V):
for j in range(V):
print(mat[i][j], end=" ")
print()
using System;
using System.Collections.Generic;
class GFG
{
static List<List<int>> createGraph(int V, int[,] edges)
{
List<List<int>> mat = new List<List<int>>();
// Initialize the matrix with 0
for (int i = 0; i < V; i++)
{
List<int> row = new List<int>(new int[V]);
mat.Add(row);
}
// Add each edge to the adjacency matrix
for (int i = 0; i < edges.GetLength(0); i++)
{
int u = edges[i, 0];
int v = edges[i, 1];
mat[u][v] = 1;
// since the graph is undirected
mat[v][u] = 1;
}
return mat;
}
static void Main()
{
int V = 3;
// List of edges (u, v)
int[,] edges = {{0, 1},{0, 2},{1, 2}};
// Build the graph using edges
List<List<int>> mat = createGraph(V, edges);
Console.WriteLine("Adjacency Matrix Representation:");
for (int i = 0; i < V; i++)
{
for (int j = 0; j < V; j++)
Console.Write(mat[i][j] + " ");
Console.WriteLine();
}
}
}
function createGraph(V, edges) {
let mat = Array.from({ length: V }, () => Array(V).fill(0));
// Add each edge to the adjacency matrix
for (let it of edges) {
let u = it[0];
let v = it[1];
mat[u][v] = 1;
// since the graph is undirected
mat[v][u] = 1;
}
return mat;
}
//Driver Code
let V = 3;
// List of edges (u, v)
let edges = [[0, 1],[0, 2],[1, 2]];
// Build the graph using edges
let mat = createGraph(V, edges);
console.log("Adjacency Matrix Representation:");
for (let i = 0; i < V; i++) {
let row = "";
for (let j = 0; j < V; j++)
row += mat[i][j] + " ";
console.log(row.trim());
}
Output
Adjacency Matrix Representation: 0 1 1 1 0 1 1 1 0
Representation of Directed Graph as Adjacency Matrix:
- Initially, the entire matrix is filled with 0s, meaning no edges exist.
- Unlike an undirected graph, we do not set mat[destination][source] because the edge goes in only one direction.
- There is an edge between vertex 1 and vertex 0,so we set mat[1][0] = 1.
- There is an edge between vertex 2 and vertex 0,so we set mat[2][0] = 1.
- There is an edge between vertex 1 and vertex 2,so we set mat[1][2] = 1.
#include <iostream>
#include<vector>
using namespace std;
vector<vector<int>> createGraph(int V, vector<vector<int>> &edges) {
vector<vector<int>> mat(V, vector<int>(V, 0));
// Add each edge to the adjacency matrix
for (auto &it : edges) {
int u = it[0];
int v = it[1];
mat[u][v] = 1;
}
return mat;
}
int main() {
int V = 3;
// List of edges (u, v)
vector<vector<int>> edges = {{1, 0},{2, 0},{1, 2}};
// Build the graph using edges
vector<vector<int>> mat = createGraph(V, edges);
cout << "Adjacency Matrix Representation:" << endl;
for (int i = 0; i < V; i++) {
for (int j = 0; j < V; j++)
cout << mat[i][j] << " ";
cout << endl;
}
return 0;
}
import java.util.ArrayList;
import java.util.Collections;
public class GFG {
static ArrayList<ArrayList<Integer>> createGraph(int V, int[][] edges) {
ArrayList<ArrayList<Integer>> mat = new ArrayList<>();
// Initialize the matrix with 0
for (int i = 0; i < V; i++) {
ArrayList<Integer> row = new ArrayList<>(Collections.nCopies(V, 0));
mat.add(row);
}
// Add each edge to the adjacency matrix
for (int[] it : edges) {
int u = it[0];
int v = it[1];
mat.get(u).set(v, 1);
}
return mat;
}
public static void main(String[] args) {
int V = 3;
// List of edges (u, v)
int[][] edges = {{1, 0},{2, 0},{1, 2}};
// Build the graph using edges
ArrayList<ArrayList<Integer>> mat = createGraph(V, edges);
System.out.println("Adjacency Matrix Representation:");
for (int i = 0; i < V; i++) {
for (int j = 0; j < V; j++)
System.out.print(mat.get(i).get(j) + " ");
System.out.println();
}
}
}
def createGraph(V, edges):
mat = [[0 for _ in range(V)] for _ in range(V)]
# Add each edge to the adjacency matrix
for it in edges:
u = it[0]
v = it[1]
mat[u][v] = 1
return mat
if __name__ == "__main__":
V = 3
# List of edges (u, v)
edges = [[1, 0], [2, 0], [1, 2]]
# Build the graph using edges
mat = createGraph(V, edges)
print("Adjacency Matrix Representation:")
for i in range(V):
for j in range(V):
print(mat[i][j], end=" ")
print()
using System;
using System.Collections.Generic;
class GFG
{
static List<List<int>> createGraph(int V, int[,] edges)
{
List<List<int>> mat = new List<List<int>>();
// Initialize the matrix with 0
for (int i = 0; i < V; i++)
{
List<int> row = new List<int>(new int[V]);
mat.Add(row);
}
// Add each edge to the adjacency matrix
for (int i = 0; i < edges.GetLength(0); i++)
{
int u = edges[i, 0];
int v = edges[i, 1];
mat[u][v] = 1;
}
return mat;
}
static void Main()
{
int V = 3;
// List of edges (u, v)
int[,] edges = {{1, 0},{2, 0},{1, 2}};
// Build the graph using edges
List<List<int>> mat = createGraph(V, edges);
Console.WriteLine("Adjacency Matrix Representation:");
for (int i = 0; i < V; i++)
{
for (int j = 0; j < V; j++)
Console.Write(mat[i][j] + " ");
Console.WriteLine();
}
}
}
function createGraph(V, edges) {
let mat = Array.from({ length: V }, () => Array(V).fill(0));
// Add each edge to the adjacency matrix
for (let it of edges) {
let u = it[0];
let v = it[1];
mat[u][v] = 1;
}
return mat;
}
//Driver Code
let V = 3;
// List of edges (u, v)
let edges = [[1, 0], [2, 0], [1, 2]];
// Build the graph using edges
let mat = createGraph(V, edges);
console.log("Adjacency Matrix Representation:");
for (let i = 0; i < V; i++) {
let row = "";
for (let j = 0; j < V; j++)
row += mat[i][j] + " ";
console.log(row.trim());
}
Output
Adjacency Matrix Representation: 0 0 0 1 0 1 1 0 0

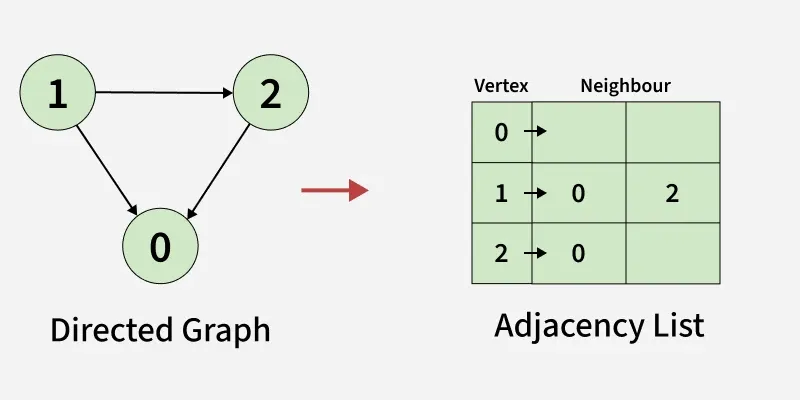

Adjacency List Representation
An array of Lists is used to store edges between two vertices. The size of array is equal to the number of vertices (i.e, n). Each index in this array represents a specific vertex in the graph. The entry at the index i of the array contains a linked list containing the vertices that are adjacent to vertex i. Let's assume there are n vertices in the graph So, create an array of list of size n as adjList[n].
- adjList[0] will have all the nodes which are connected (neighbour) to vertex 0.
- adjList[1] will have all the nodes which are connected (neighbour) to vertex 1 and so on.
Representation of Undirected Graph as Adjacency list:
- We use an array of lists (or vector of lists) to represent the graph.
- The size of the array is equal to the number of vertices (here, 3).
- Each index in the array represents a vertex.
- Vertex 0 has two neighbours (1 and 2).
- Vertex 1 has two neighbours (0 and 2).
- Vertex 2 has two neighbours (0 and 1).
#include <iostream>
#include <vector>
using namespace std;
vector<vector<int>> createGraph(int V, vector<vector<int>> &edges) {
vector<vector<int>> adj(V);
// Add each edge to the adjacency list
for (auto &it : edges) {
int u = it[0];
int v = it[1];
adj[u].push_back(v);
// since the graph is undirected
adj[v].push_back(u);
}
return adj;
}
int main() {
int V = 3;
// List of edges (u, v)
vector<vector<int>> edges = { {0, 1}, {0, 2}, {1, 2} };
// Build the graph using edges
vector<vector<int>> adj = createGraph(V, edges);
cout << "Adjacency List Representation:" << endl;
for (int i = 0; i < V; i++) {
// Print the vertex
cout << i << ": ";
for (int j : adj[i]) {
// Print its adjacent
cout << j << " ";
}
cout << endl;
}
return 0;
}
import java.util.ArrayList;
public class GFG {
static ArrayList<ArrayList<Integer>> createGraph(int V, int[][] edges) {
ArrayList<ArrayList<Integer>> adj = new ArrayList<>();
for (int i = 0; i < V; i++)
adj.add(new ArrayList<>());
// Add each edge to the adjacency list
for (int i = 0; i < edges.length; i++) {
int u = edges[i][0];
int v = edges[i][1];
adj.get(u).add(v);
// since the graph is undirected
adj.get(v).add(u);
}
return adj;
}
public static void main(String[] args) {
int V = 3;
// List of edges (u, v)
int[][] edges = { {0, 1}, {0, 2}, {1, 2} };
// Build the graph using edges
ArrayList<ArrayList<Integer>> adj = createGraph(V, edges);
System.out.println("Adjacency List Representation:");
for (int i = 0; i < V; i++) {
// Print the vertex
System.out.print(i + ": ");
for (int j : adj.get(i)) {
// Print its adjacent
System.out.print(j + " ");
}
System.out.println();
}
}
}
def createGraph(V, edges):
adj = [[] for _ in range(V)]
# Add each edge to the adjacency list
for it in edges:
u = it[0]
v = it[1]
adj[u].append(v)
# since the graph is undirected
adj[v].append(u)
return adj
if __name__ == "__main__":
V = 3
# List of edges (u, v)
edges = [[0, 1], [0, 2], [1, 2]]
# Build the graph using edges
adj = createGraph(V, edges)
print("Adjacency List Representation:")
for i in range(V):
# Print the vertex
print(f"{i}:", end=" ")
for j in adj[i]:
# Print its adjacent
print(j, end=" ")
print()
using System;
using System.Collections.Generic;
class GFG
{
static List<List<int>> createGraph(int V, int[,] edges)
{
List<List<int>> adj = new List<List<int>>();
for (int i = 0; i < V; i++)
adj.Add(new List<int>());
// Add each edge to the adjacency list
for (int i = 0; i < edges.GetLength(0); i++)
{
int u = edges[i, 0];
int v = edges[i, 1];
adj[u].Add(v);
// since the graph is undirected
adj[v].Add(u);
}
return adj;
}
static void Main()
{
int V = 3;
// List of edges (u, v)
int[,] edges = { { 0, 1 }, { 0, 2 }, { 1, 2 } };
// Build the graph using edges
List<List<int>> adj = createGraph(V, edges);
Console.WriteLine("Adjacency List Representation:");
for (int i = 0; i < V; i++)
{
// Print the vertex
Console.Write(i + ": ");
foreach (int j in adj[i])
{
// Print its adjacent
Console.Write(j + " ");
}
Console.WriteLine();
}
}
}
function createGraph(V, edges) {
let adj = Array.from({ length: V }, () => []);
// Add each edge to the adjacency list
for (let it of edges) {
let u = it[0];
let v = it[1];
adj[u].push(v);
// since the graph is undirected
adj[v].push(u);
}
return adj;
}
//Driver Code
let V = 3;
// List of edges (u, v)
let edges = [ [0, 1], [0, 2], [1, 2] ];
// Build the graph using edges
let adj = createGraph(V, edges);
console.log("Adjacency List Representation:");
for (let i = 0; i < V; i++) {
// Print the vertex
let row = i + ": ";
for (let j of adj[i]) {
// Print its adjacent
row += j + " ";
}
console.log(row.trim());
}
Output
Adjacency List Representation: 0: 1 2 1: 0 2 2: 0 1
Representation of Directed Graph as Adjacency list:
- We use an array of lists (or vector of lists) to represent the graph.
- The size of the array is equal to the number of vertices (here, 3).
- Each index in the array represents a vertex.
- Vertex 0 has no neighbours
- Vertex 1 has two neighbours (0 and 2).
- Vertex 2 has 1 neighbours (0).
#include <iostream>
#include <vector>
using namespace std;
vector<vector<int>> createGraph(int V, vector<vector<int>> &edges) {
vector<vector<int>> adj(V);
// Add each edge to the adjacency list
for (auto &it : edges) {
int u = it[0];
int v = it[1];
adj[u].push_back(v);
}
return adj;
}
int main() {
int V = 3;
// List of edges (u, v)
vector<vector<int>> edges = { {1, 0}, {1, 2}, {2, 0} };
// Build the graph using edges
vector<vector<int>> adj = createGraph(V, edges);
cout << "Adjacency List Representation:" << endl;
for (int i = 0; i < V; i++) {
// Print the vertex
cout << i << ": ";
for (int j : adj[i]) {
// Print its adjacent
cout << j << " ";
}
cout << endl;
}
return 0;
}
import java.util.ArrayList;
public class GFG {
static ArrayList<ArrayList<Integer>> createGraph(int V, int[][] edges) {
ArrayList<ArrayList<Integer>> adj = new ArrayList<>();
for (int i = 0; i < V; i++)
adj.add(new ArrayList<>());
// Add each edge to the adjacency list
for (int i = 0; i < edges.length; i++) {
int u = edges[i][0];
int v = edges[i][1];
adj.get(u).add(v);
}
return adj;
}
public static void main(String[] args) {
int V = 3;
// List of edges (u, v)
int[][] edges = { {1, 0}, {1, 2}, {2, 0} };
// Build the graph using edges
ArrayList<ArrayList<Integer>> adj = createGraph(V, edges);
System.out.println("Adjacency List Representation:");
for (int i = 0; i < V; i++) {
// Print the vertex
System.out.print(i + ": ");
for (int j : adj.get(i)) {
// Print its adjacent
System.out.print(j + " ");
}
System.out.println();
}
}
}
def createGraph(V, edges):
adj = [[] for _ in range(V)]
# Add each edge to the adjacency list
for it in edges:
u = it[0]
v = it[1]
adj[u].append(v)
return adj
if __name__ == "__main__":
V = 3
# List of edges (u, v)
edges = [[1, 0], [1, 2], [2, 0]]
# Build the graph using edges
adj = createGraph(V, edges)
print("Adjacency List Representation:")
for i in range(V):
# Print the vertex
print(f"{i}:", end=" ")
for j in adj[i]:
# Print its adjacent
print(j, end=" ")
print()
using System;
using System.Collections.Generic;
class GFG
{
static List<List<int>> createGraph(int V, int[,] edges)
{
List<List<int>> adj = new List<List<int>>();
for (int i = 0; i < V; i++)
adj.Add(new List<int>());
// Add each edge to the adjacency list
for (int i = 0; i < edges.GetLength(0); i++)
{
int u = edges[i, 0];
int v = edges[i, 1];
adj[u].Add(v);
}
return adj;
}
static void Main()
{
int V = 3;
// List of edges (u, v)
int[,] edges = { {1, 0}, {1, 2}, {2, 0} };
// Build the graph using edges
List<List<int>> adj = createGraph(V, edges);
Console.WriteLine("Adjacency List Representation:");
for (int i = 0; i < V; i++)
{
// Print the vertex
Console.Write(i + ": ");
foreach (int j in adj[i])
{
// Print its adjacent
Console.Write(j + " ");
}
Console.WriteLine();
}
}
}
function createGraph(V, edges) {
let adj = Array.from({ length: V }, () => []);
// Add each edge to the adjacency list
for (let it of edges) {
let u = it[0];
let v = it[1];
adj[u].push(v);
}
return adj;
}
//Driver Code
let V = 3;
// List of edges (u, v)
let edges = [ [1, 0], [1, 2], [2, 0] ];
// Build the graph using edges
let adj = createGraph(V, edges);
console.log("Adjacency List Representation:");
for (let i = 0; i < V; i++) {
// Print the vertex
let row = i + ": ";
for (let j of adj[i]) {
// Print its adjacent
row += j + " ";
}
console.log(row.trim());
}
Output
Adjacency List Representation: 0: 1: 0 2 2: 0
