Installation of Ubuntu on Windows using VMware

Last Updated : 8 May, 2026

VMware is a virtualization software that allows multiple operating systems to run on a single machine using virtual machines. Ubuntu is a popular open-source Linux operating system known for its simplicity, stability and wide usage in development and servers.

  • VMware enables you to create and manage virtual machines for running different OS environments
  • Ubuntu is user-friendly and widely used for development, cloud and server applications
  • VMware provides a safe environment to test Ubuntu without affecting the host system
  • Ubuntu offers strong community support and regular updates for security and performance

Installing VMware on Windows

Step 1: Click on the link provided below. Now select the version you want to download and click on "Go to downloads".

https://www.vmware.com/products/desktop-hypervisor/workstation-and-fusion

Downloading-vmware-workstation-player


Step 2: Now, Click on download now. (Check which OS you are selecting).

Downloading VMWare Software application_2


Step 3: Open the (.exe) file and install it.

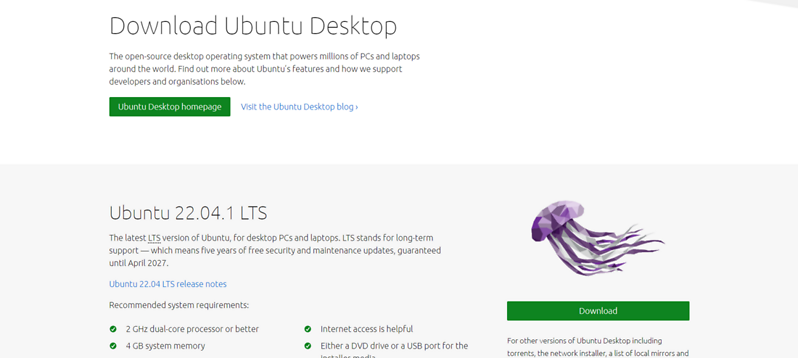

Step 4: Open the link below and download the Ubuntu ISO file.

https://ubuntu.com/download/desktop

Downloading-Ubuntu-ISO-file


Installing Ubuntu in VMWare

Step 5: Open the installed VMware application.

Creating-Virtual-Machine


Step 6: Click on "Create new virtual machine". Browse the ISO file that has been downloaded and select it.

Uploading-ISO-file


Step 7: Enter all the details >> click on next. Personalization of Virtual Machine.

personalizing-linux


Step 8: Enter Virtual machine name >> click on next.

Enter Virtual machine name


Step 9: Specify disk capacity >> click on next.

Specifying-disk-size


Step 10: If required, customize the hardware settings, then click “Finish.”

Customization-of-hardware


Step 11: Now open VMware and click on Ubuntu-64 bit which appears on the left panel. (If not directly opened). Select the language and click on next. Select the Normal or Minimal installation based on your requirements.

Customizing-installation


Step 12: Select Installation type >> Erase disk and install Ubuntu (This will not delete your windows data) >> Click on install now.

Selecting-installation-type
