Prime Spiral, commonly known as the Ulam Spiral, is a graphical representation of prime numbers arranged in a spiral format. The spiral consists of positive integers arranged in a square pattern, with prime numbers specially marked.
This unique visualization reveals unexpected patterns, notably prominent diagonal, horizontal, and vertical lines that contain a significant concentration of prime numbers​.
Construction of the Prime Spiral
To construct the prime spiral we can use the following steps:
Step 1: Start by placing the number 1 at the center of a square grid. Proceed to fill the grid in a spiral pattern with subsequent integers (2, 3, 4, etc.)
Step 2: Identify and mark the prime numbers in the spiral. This can be done by circling them or coloring them differently from the composite numbers.
Step 3: Upon marking the primes, striking diagonal lines become apparent, illustrating a non-random distribution of primes within the spiral.
Using these steps we will get, the spiral of numbers with highlighted primes as follows:
General Visual Representation
When visualizing the prime numbers using the Ulam Spiral (or Prime Spiral), if we extend this arrangement infinitely, intriguing patterns emerge, revealing that prime numbers tend to cluster along certain diagonal lines, although no clear formula or rule governs their exact distribution.

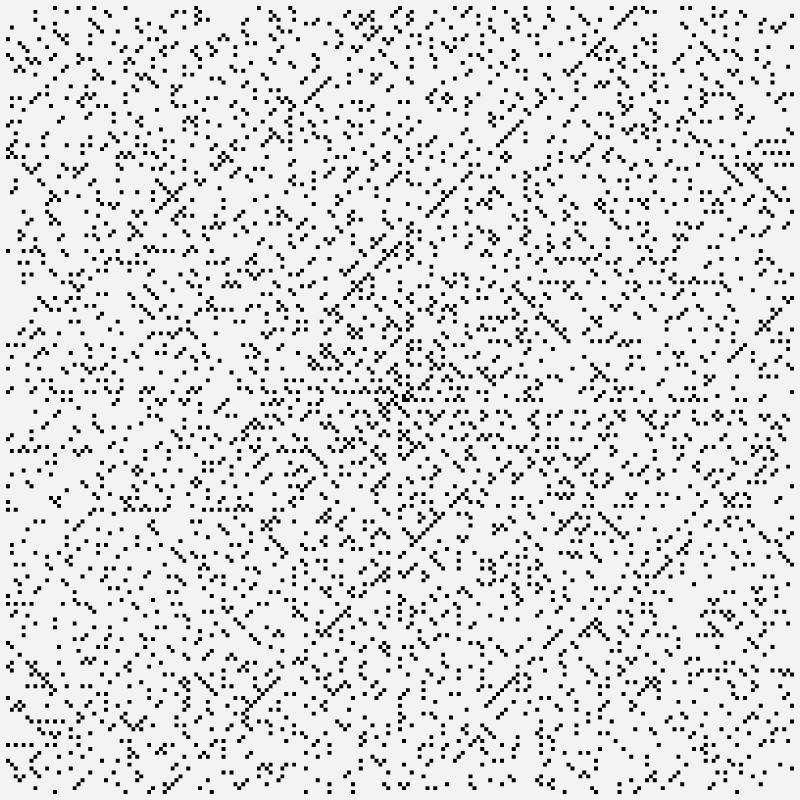

This can be seen in the following larger representation of Ulam spiral.
Prime Density in the Prime Spiral
| Quadratic Polynomial | Range | Prime Count |
|---|---|---|
| n2 - n + 41 | 0 to 40 | 40 |
| 4n2 - 2n + 41 | 0 to 40 | Approximately 6.6 times the density of random numbers |
Related Articles:
Conclusion
Ulam Spiral offers a fascinating visual representation of prime numbers, showcasing unexpected patterns that challenge the conventional view of their distribution. By marking the primes within this spiral, mathematicians can observe significant trends and relationships among numbers. The exploration of such patterns enhances our understanding of number theory and prime numbers.
