Configure AWS Lambda

When you create an AWS Lambda function, the default settings are rarely optimal for production. Configuring Lambda correctly is the difference between a cost-efficient, secure application and one that is slow, expensive, or vulnerable.

How Lambda Function and Serverless Architecture Works:

• Event Source triggers an Event: Something happens in the system (like an S3 upload, API call, or scheduled event), and that action generates an event.
• Event is sent to a Lambda Function: The event is passed to an AWS Lambda function, which automatically runs your code without needing any servers.
• Lambda processes the event: Lambda reads the event, performs logic (processing, validation, transformation, automation), and decides the next action.
• Lambda interacts with an AWS Service: After processing, Lambda calls or updates another AWS service (like DynamoDB, S3, SNS, SQS, Step Functions), completing the event-driven workflow.

Anatomy of Lambda Console

When you open a function in the AWS Lambda console, you are presented with a dashboard that serves as your central hub for configuration. We will explore the most critical sections.

1. Performance & Cost Configuration

These settings directly affect how fast your code runs and how much you pay. You find these under Configuration > General configuration.

Memory (RAM)

• What it is: The amount of RAM, in megabytes, allocated to your function's execution environment. You can set this from 128 MB to 10,240 MB.
• Why it matters: This is the primary lever for performance tuning. Lambda allocates CPU power proportionally to the amount of memory you configure. A function with 512 MB of memory will have roughly twice the CPU power of one with 256 MB. For CPU-bound tasks, increasing memory is the best way to decrease execution time.
• Best Practice: The default of 128 MB is fine for simple tasks, but for any real workload, you should test different memory settings. Use tools like the AWS Lambda Power Tuning tool to automatically find the most cost-effective memory allocation for your specific function.

Timeout

• What it is: The maximum amount of time your function is allowed to run per execution, up to a maximum of 900 seconds (15 minutes).
• Why it matters: This is a critical safety mechanism. It prevents a function with a bug (e.g., an infinite loop) from running indefinitely and incurring huge costs. The timeout should be set just long enough to accommodate your function's longest expected execution time, including any potential "cold start" delays.
• Best Practice: Set a realistic timeout. A 3-second default for a function that should take 500ms is a good starting point. Avoid setting it to the 15-minute maximum unless absolutely necessary.

Ephemeral Storage (/tmp)

• What it is: Temporary scratch space available to your function during execution. Defaults to 512 MB but can be increased to 10 GB.
• Use Case: Use this if your function needs to download large files (like unzipping a big archive) before processing them.
• Connecting Your Function: Triggers, Destinations, and Layers.

2. Security Configuration (IAM Roles)

Security in Lambda is handled via IAM Execution Roles. This is the most critical configuration for functionality. By default, a Lambda function cannot access anything not even logs. You must explicitly grant permissions. How to Configure:

1. Navigate to Configuration > Permissions.

2. Click the Role name to open IAM.

3. Add Policies:

• Basic: AWSLambdaBasicExecutionRole (Required for CloudWatch Logging).
• Specific: If your code reads from S3, attach a policy allowing s3:GetObject on that specific bucket.

Note: Never use AdministratorAccess for a Lambda role. Always follow the Principle of Least Privilege.

3. Integration

This is how your function connects to the outside world.

Triggers (Input)

A trigger is the event source that wakes up your function.

• Examples: An S3 upload, an API Gateway request, a DynamoDB update, or an EventBridge schedule (cron job).
• Configuration: Click + Add trigger in the function designer. You can often configure filters here (e.g., "Only trigger on .jpg files in S3").

Destinations (Output)

Destinations allow you to handle the result of an asynchronous function without writing extra code.

• Success: If the function works, send the result to another Lambda.
• Failure (Dead Letter Queue): If the function fails (after retries), send the error details to an SQS queue or SNS topic so you can debug it later.

Layers (Dependencies)

Layers are a way to manage external libraries (like pandas, numpy, or boto3) separately from your code.

• Use case: Instead of uploading a 50MB zip file every time you change one line of code, you put the heavy libraries in a Layer. This keeps your function code small and easy to edit in the console.

Configuring AWS Lambda

In order to configure AWS Lambda for the first time follow the below steps:

Step 1: Sign In to your AWS Account.

Step 2: Select Lambda from the services section of the homepage.

Step 3: Click on create a function and for the basic level choose to select a blueprint. A blueprint is simply a sample code for most commonly used cases that can be used directly.

Step 4: For the basic level, just search for a blueprint named hello-world-python. Select it and fill the necessary details which is generally just the name. Hit the create function button and your Lambda function is ready to be used.

Step 5: The created function's page looks like this:

Now add a trigger that will invoke the function. The trigger can be any supported AWS service such as API Gateway, DynamoDB, or S3. For example, adding a DynamoDB table trigger will cause the function to run whenever items in the table are created, modified, or deleted.

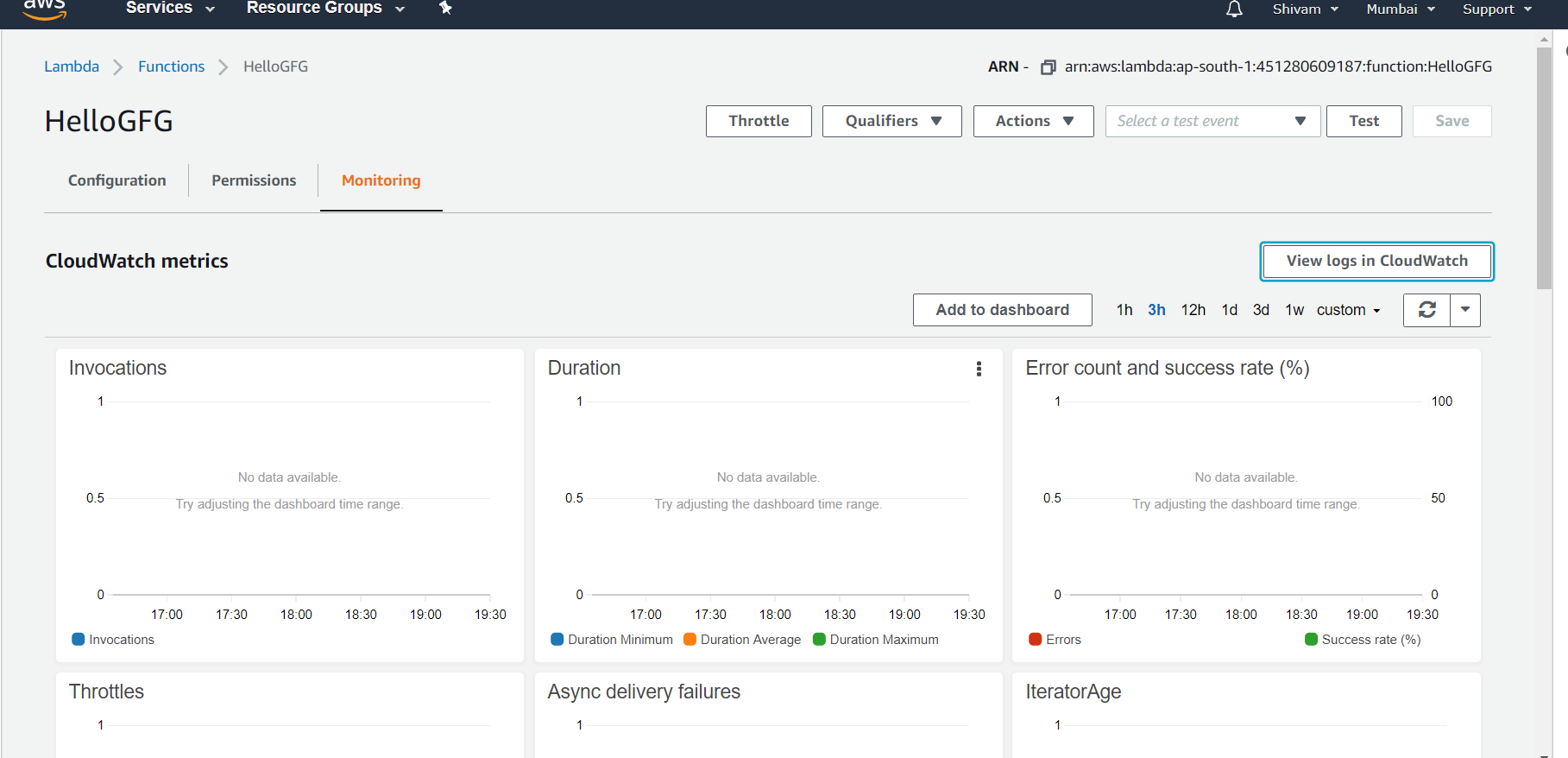

Step 6: To view the logs on the function select the monitoring tab from the lambda page. And then visit view logs in CloudWatch.

Benefits of AWS- Lambda

• No need to register lambda tasks like Amazon SWF activities.
• Existing Lambda functions can be reused in workflows.
• Lambda functions are called directly by Amazon SWF, there is no need to design a program to implement and execute them.
• Lambda provides the metrics and logs for tracking function executions.

Limits in AWS- Lambda

There are hard limits you cannot exceed. Knowing these helps you design better architectures.
