GATE CS 1996

The process state transition diagram in below figure is representative of

Quicksort is run on two inputs shown below to sort in ascending order taking the first element as pivot,

(i) 1, 2, 3,......., n
(ii) n, n-1, n-2,......, 2, 1

Let C₁ and C₂ be the number of comparisons made for the inputs (i) and (ii) respectively. Then,

Which of the following is false?

∀i, j ∈ [1...n−1], A[i][j] < A[i][j+1] and A[i][j] < A[i+1][j]

procedure insert (x: integer);
var i,j: integer;
begin
    i:=1; j:=1, A[i][j]:=x;
    while (x > ...... or x > ......) do
        if A[i+1][j] < A[i][j] ......... then begin
            A[i][j]:=A[i+1][j]; i:=i+1;
        end
        else begin
            ............
        end
    A[i][j]:= .............
end
.

A complete, undirected, weighted graph G is given on the vertex {0, 1,...., n−1} for any fixed ‘n’. Draw the minimum spanning tree of G if a) the weight of the edge (u,v) is ∣ u−v ∣ b) the weight of the edge (u,v) is u + v

Consider the following program that attempts to locate an element x in a sorted array a[ ] using binary search. Assume N>1. The program is erroneous. Under what conditions does the program fail?

#include <iostream>
#include <vector>
using namespace std;

int find(vector<int>a, int n) {
    int i = 1, j = n;
    int x;
    do {
        int k = (i + j) / 2;
        if (a[k] < x) i = k + 1;
        else j = k;
    } while (a[k] != x && i < j);

    if (a[k] == x)
        cout << "x is in the array" << endl;
    else
        cout << "x is not in the array" << endl;
    return 0;
}

#include <stdio.h>
#include <stdbool.h>

int find(int a[], int n, int x) {
    int i = 1, j = n;
    int k;
    do {
        k = (i + j) / 2;
        if (a[k] < x) i = k + 1;
        else j = k;
    } while (a[k] != x && i < j);

    if (a[k] == x)
        printf("x is in the array\n");
    else
        printf("x is not in the array\n");
    return 0;
}

import java.util.List;

public class Main {
    public static void find(int arr[], int n, int x) {
        int i = 0, j = n;
        int k;
        do {
            k = (i + j) / 2;
            if (arr[k] < x) i = k + 1;
            else j = k;
        } while (i < j && arr[k] != x);

        if (arr[k] == x)
            System.out.println("x is in the array");
        else
            System.out.println("x is not in the array");
    }
}

def find(a, n, x):
    i = 0
    j = n
    while i < j:
        k = (i + j) // 2
        if a[k] < x:
            i = k + 1
        else:
            j = k

    if i < len(a) and a[i] == x:
        print("x is in the array")
    else:
        print("x is not in the array")

function find(a, n, x) {
    let i = 0, j = n;
    let k;
    do {
        k = Math.floor((i + j) / 2);
        if (a[k] < x) i = k + 1;
        else j = k;
    } while (a[k] !== x && i < j);

    if (a[k] === x)
        console.log("x is in the array");
    else
        console.log("x is not in the array");
}

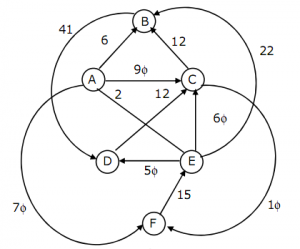

Let G be the directed, weighted graph shown in below figure We are interested in the shortest paths from A. (a) Output the sequence of vertices identified by the Dijkstra’s algorithm for single source shortest path when the algorithm is started at node A. (b) Write down sequence of vertices in the shortest path from A to E. (c) What is the cost of the shortest path from A to E?

 00FF, 010D, 10FF, 11B0

program Example (input, output)
var b: integer;
procedure test2:
begin b:=10; end
procedure test1 (a:integer):
begin 	a:=5;
        writeln ('point 1: ', a, b);
        test2;
        writeln ('point 2: ', a, b);
end
begin (*Example*)
b:=3; test1(b);
writeln('point3: ', b);
end
