GATE EC|| CONTROL SYSTEM || STEADY STATE ERROR|| PYQS(2000-2025)

Last Updated :
Discuss
Comments

Question 1

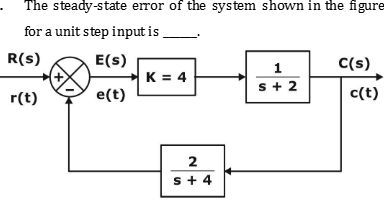

Screenshot-2025-08-23-150107


( GATE 2014 || EC || MCQ ||2 MARK)

  • 1

Question 2

For the unity feedback control system shown in the figure, the open-loop transfer function [Tex]G(s) = \frac{2}{s(s+1)} [/Tex] .

Screenshot-2025-08-23-150746

is given as The steady-state error eSS due to unit step input is

(GATE 2016 || EC || MCQ ||1 MARK)

  • 0

  • 0.5

  • 1.0

  •  ∞

Question 3

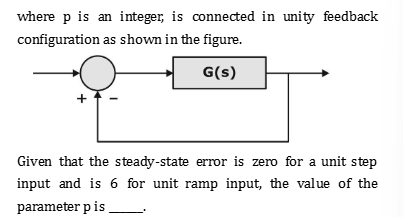

Screenshot-2025-08-23-151242
Screenshot-2025-08-23-151510

(GATE 2017 || EC || MCQ ||2 MARK)

  • 0.5

Question 4

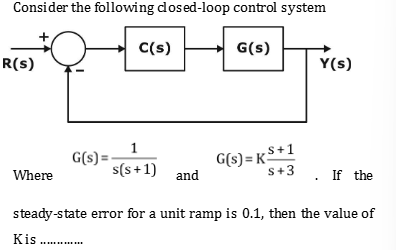

Screenshot-2025-08-23-151951


( GATE 2020 || EC || MCQ ||2 MARK)

  • 30
