ZeroCode is an automated testing framework used to test REST APIs in Spring Boot applications. It allows developers to write API test scenarios in JSON format and execute them automatically.
- Used for automated REST API testing.
- Test cases are written in JSON scenarios instead of Java code.
- Helps validate API request, response, and status codes.
Supported Testing Types
The ZeroCode framework supports multiple types of automated testing for modern applications.
- REST: Enables automated testing of RESTful APIs by sending HTTP requests and validating responses.
- SOAP: Allows testing of SOAP-based web services and their XML responses.
- Security: Helps validate authentication, authorization, and secure API interactions.
- Load/Stress: Supports performance testing to check how APIs behave under heavy traffic.
- Database: Enables verification of database operations such as inserts, updates, and queries.
- Apache Kafka: Allows testing of message-based systems and Kafka event streams.
- GraphQL: Supports testing of GraphQL APIs by validating queries and responses.
Steps for Implementation
Step 1: Create Spring Boot Maven Project
Create a Spring Boot Maven project that will contain the REST API and testing setup.
- Use Spring Initializr to create the project.
- Add Spring Boot Web dependency for REST APIs.
- Import the project into IDE.
Project Structure:
Add the ZeroCode dependency in the pom.xml file.
pom.xml
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="https://maven.apache.org/POM/4.0.0"
xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="https://maven.apache.org/POM/4.0.0
https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.gfg.zerocode</groupId>
<artifactId>zerocode</artifactId>
<packaging>jar</packaging>
<version>1.0-SNAPSHOT</version>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>${spring.boot.version}</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<version>${spring.boot.version}</version>
<scope>test</scope>
</dependency>
<dependency>
<groupId>org.jsmart</groupId>
<artifactId>zerocode-tdd</artifactId>
<version>${zerocode-tdd.version}</version>
<scope>test</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
<configuration>
<profiles>
<profile>it</profile>
</profiles>
</configuration>
<executions>
<execution>
<id>pre-integration-test</id>
<goals>
<goal>start</goal>
</goals>
<configuration>
<skip>${skip.it}</skip>
</configuration>
</execution>
<execution>
<id>post-integration-test</id>
<goals>
<goal>stop</goal>
</goals>
<configuration>
<skip>${skip.it}</skip>
</configuration>
</execution>
</executions>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-failsafe-plugin</artifactId>
<version>${maven-failsafe-plugin.version}</version>
<configuration>
<skip>${skip.it}</skip>
</configuration>
<dependencies>
<dependency>
<groupId>org.apache.maven.surefire</groupId>
<artifactId>surefire-junit47</artifactId>
<version>${surefire-junit47.version}</version>
</dependency>
</dependencies>
<executions>
<execution>
<goals>
<goal>integration-test</goal>
<goal>verify</goal>
</goals>
</execution>
</executions>
</plugin>
</plugins>
</build>
<properties>
<maven-failsafe-plugin.version>3.0.0-M5</maven-failsafe-plugin.version>
<surefire-junit47.version>3.0.0-M5</surefire-junit47.version>
<maven.compiler.source>8</maven.compiler.source>
<maven.compiler.target>8</maven.compiler.target>
<spring.boot.version>2.4.2</spring.boot.version>
<skip.it>true</skip.it>
<zerocode-tdd.version>1.3.27</zerocode-tdd.version>
</properties>
</project>
Step 3: Create Model Class
Create a model class GeekUser.java that represents the user data.
GeekUser.java
public class GeekUser {
private String id;
private String firstName;
private String lastName;
private String departmentName;
public String getDepartmentName() {
return departmentName;
}
public void setDepartmentName(String departmentName) {
this.departmentName = departmentName;
}
public float getSalary() {
return salary;
}
public void setSalary(float salary) {
this.salary = salary;
}
private float salary;
public String getId() {
return id;
}
public void setId(String id) {
this.id = id;
}
public String getFirstName() {
return firstName;
}
public void setFirstName(String firstName) {
this.firstName = firstName;
}
public String getLastName() {
return lastName;
}
public void setLastName(String lastName) {
this.lastName = lastName;
}
}
Step 3: Create Main Class
Create GeekUserZerocodeApplication class .
GeekUserZerocodeApplication.java
import java.util.ArrayList;
import java.util.List;
import java.util.UUID;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.util.StringUtils;
import org.springframework.web.bind.annotation.*;
@SpringBootApplication
@RestController
@RequestMapping("/api/users")
public class GeekUserZerocodeApplication {
private List<GeekUser> users = new ArrayList<>();
public static void main(String[] args) {
SpringApplication.run(GeekUserZerocodeApplication.class, args);
}
@PostMapping
public ResponseEntity create(@RequestBody GeekUser user) {
if (!StringUtils.hasText(user.getFirstName())) {
return new ResponseEntity("firstName can't be empty!", HttpStatus.BAD_REQUEST);
}
if (!StringUtils.hasText(user.getLastName())) {
return new ResponseEntity("lastName can't be empty!", HttpStatus.BAD_REQUEST);
}
if (!StringUtils.hasText(user.getDepartmentName())) {
return new ResponseEntity("DeparmentName can't be empty!", HttpStatus.BAD_REQUEST);
}
if (user.getSalary() < 0 ) {
return new ResponseEntity("Salary is not valid!", HttpStatus.BAD_REQUEST);
}
user.setId(UUID.randomUUID()
.toString());
users.add(user);
return new ResponseEntity(user, HttpStatus.CREATED);
}
}
We have to write a scenario to test the same->
{
"scenarioName": "geek test user creation endpoint",
"steps": [ // Array of JSON objects, as much we want we can store
{
"name": "geek_test_successful_creation",
"url": "/https/www.geeksforgeeks.org/api/users", // Relative URL
"method": "POST",
"request": {
"body": { // We have to specify whole bean class parameter and its values
"firstName": "Rachel",
"lastName": "Green",
"departmentName":"IT",
"salary":100000.0
}
},
"verify": { // expected part containing status and body
"status": 201, // status code for a given HTTP call
"body": { // Resultant body from the call
"id": "$NOT.NULL",
"firstName": "Rachel",
"lastName": "Green",
"departmentName":"IT",
"salary":100000.0
}
}
}
}
The above one is a success call that creates a user. Similarly, we can do for validation part as well
{
"name": "test_firstname_validation",
"url": "/https/www.geeksforgeeks.org/api/users",
"method": "POST",
"request": {
"body": {
"firstName": "",
"lastName": "Bing",
"departmentName":"IT",
"salary":100000.0
}
},
"assertions": {
"status": 400,
"rawBody": "firstName can't be empty!"
}
},
{
"name": "test_lastname_validation",
"url": "/https/www.geeksforgeeks.org/api/users",
"method": "POST",
"request": {
"body": {
"firstName": "Monica",
"lastName": "",
"departmentName":"Chef",
"salary":100000.0
}
},
"assertions": {
"status": 400,
"rawBody": "lastName can't be empty!"
}
},
{
"name": "test_departmentname_validation",
"url": "/https/www.geeksforgeeks.org/api/users",
"method": "POST",
"request": {
"body": {
"firstName": "Phoebe",
"lastName": "Buffe",
"departmentName":"",
"salary":50000.0
}
},
"assertions": {
"status": 400,
"rawBody": "DeparmentName can't be empty!"
}
}
We can combine everything together and keep it under the test/resources folder. Basically, it is a JSON file and combines all the entries that are getting tested. Now coming to the test file part
- @RunWith(ZeroCodeUnitRunner.class) - >eroCodeUnitRunner, as it is responsible for it.
- @TargetEnv – >Provide the property file that is required for running the scenario.
GeekUserEndpointIT.java
import org.jsmart.zerocode.core.domain.Scenario;
import org.jsmart.zerocode.core.domain.TargetEnv;
import org.jsmart.zerocode.core.runner.ZeroCodeUnitRunner;
import org.junit.Test;
import org.junit.runner.RunWith;
// Here in RunWith it has been specified
// as ZeroCodeUnitRunner, as it is responsible
@RunWith(ZeroCodeUnitRunner.class)
// @TargetEnv – this points to the property file
// that will be used when our scenario runs
@TargetEnv("rest_api.properties")
public class GeekUserEndpointIT {
@Test
@Scenario("rest/geek_user_create_test.json")
public void test_geekuser_creation_endpoint() {
}
}
rest_api.properties
web.application.endpoint.host=http://localhost/ # In case of changes they need to be modified appropriately web.application.endpoint.port=8080
web.application.endpoint.context=
For the execution of tests, in pom.xml necessary dependencies are added
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-failsafe-plugin</artifactId>
<version>3.0.0-M5</version>
<dependencies>
<dependency>
<groupId>org.apache.maven.surefire</groupId>
<artifactId>surefire-junit47</artifactId>
<version>3.0.0-M5</version>
</dependency>
</dependencies>
<executions>
<execution>
<goals>
<goal>integration-test</goal>
<goal>verify</goal>
</goals>
</execution>
</executions>
</plugin>
We can run the project in the command line by using
URL:
mvn verify -Dskip.it=false

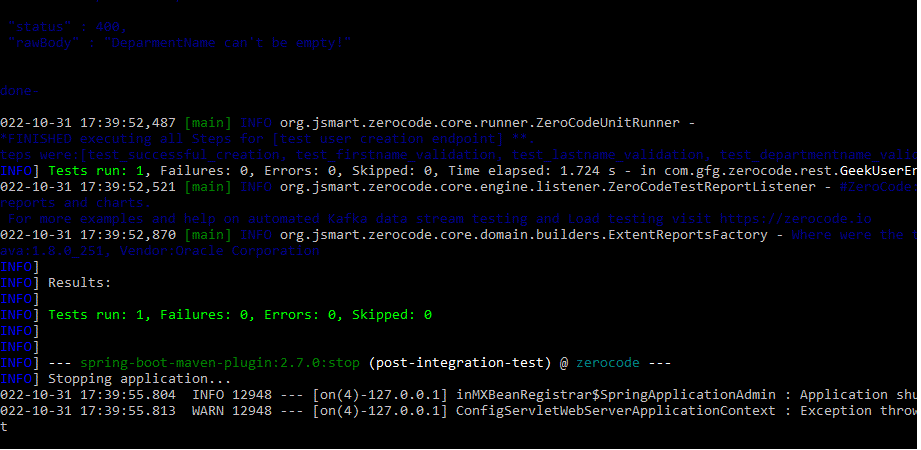

Under the target folder of the directory, we can see multiple files that help to understand different layers of testing
Similarly whatever testing scenarios given are validated against Zerocode.
