The Storage Spaces feature in Windows 11/10 lets you combine multiple physical drives into a single virtual disk for improved performance and data redundancy. This guide covers how to create, configure, and manage Storage Spaces efficiently for better storage management in Windows 11/10.
Features of Storage Spaces in Windows
Windows Storage Spaces lets you pool multiple drives into one in Windows 11 and 10. You can create virtual spaces from these pools, format them with your chosen resiliency, and use them as regular drives.
- Simple: A non-resilient space that’s useful for temporary data.
- Two-way mirror: Stores two copies of your data on two separate drives.
- Three-way mirror: Stores three copies for higher fault tolerance.
- Parity: Uses parity information to rebuild data in case of a drive failure.
Method 1: Create a storage pool and storage spaces in Windows
Creating a storage pool and space in Windows is akin to building a foundation for a house. It’s the initial step that allows you to consolidate various physical disks into a single virtual entity, providing a streamlined approach to managing diverse storage resources efficiently.

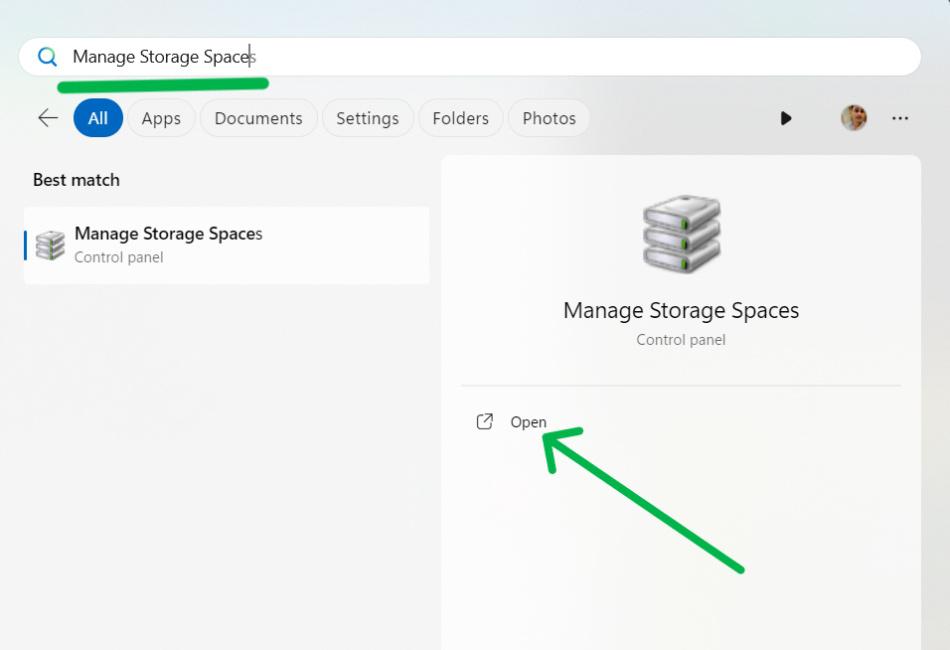

Step 1: Search for "Manage Storage Spaces" in the Start menu
Step 2: In the search bar input type "Manage Storage Space" and hit the enter button to open it.

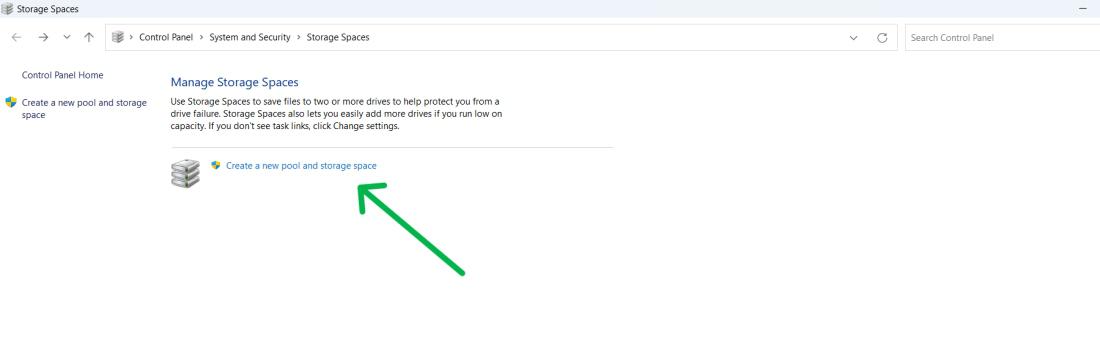

Step 3: Then, Click on the "Create a new pool and storage space"

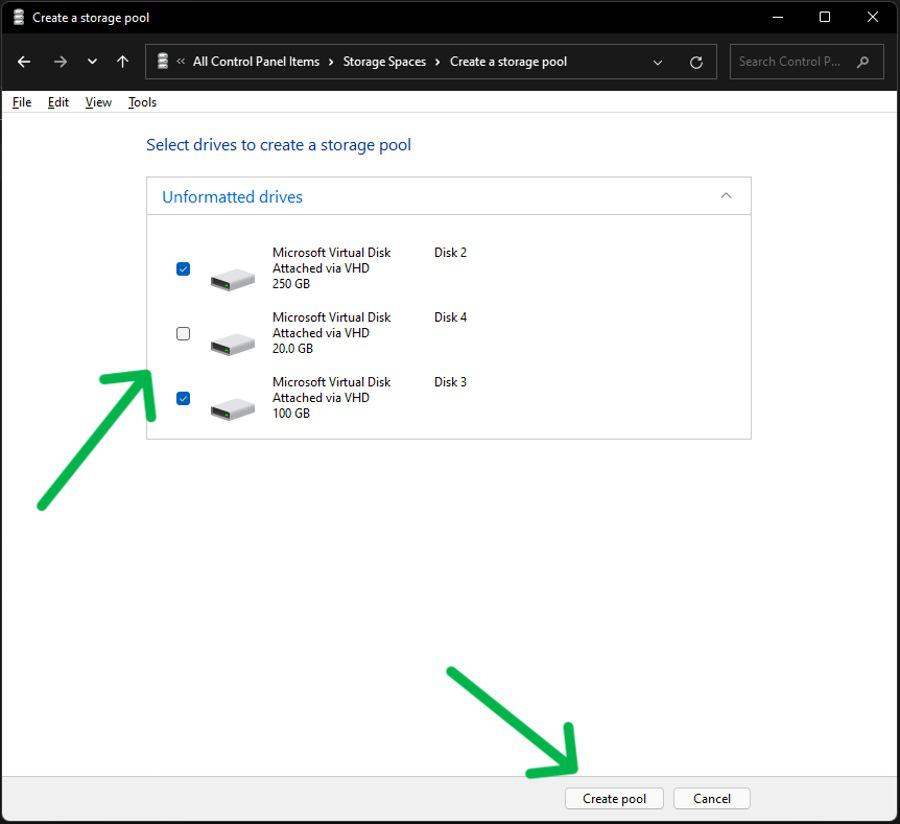

Step 4: Choose the drives for your pool and click ‘Create Pool’. Remember, this will erase all existing data on the drives.

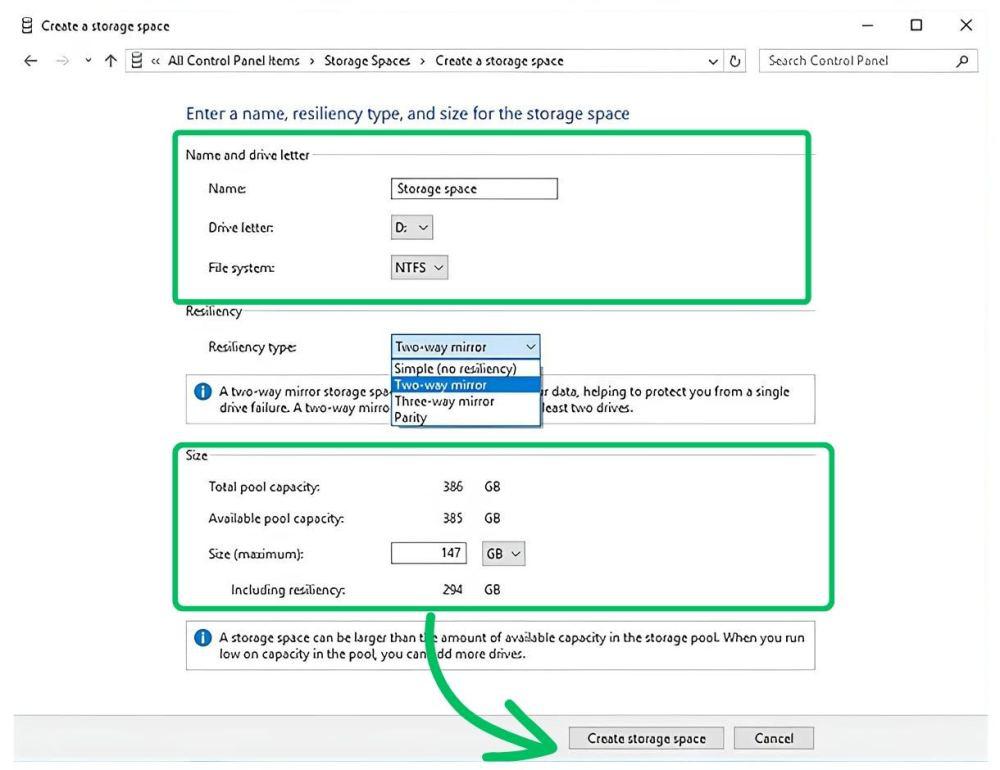

Step 5: Create the Storage Space in Windows
- Choose a descriptive name for the virtual drive.
- Select the drive letter and file system (NTFS or REFS).
- REFS (Resilient File System) maximizes data availability and protects against errors.
- Pick the resiliency type for the storage space.
Step 6: Allocate Size
- Select the size you want to allocate.
- You can choose any size, regardless of available physical space.
- Receive alerts when it's time to add more storage.
Step 7: Click the "Create storage space" button to complete the process.

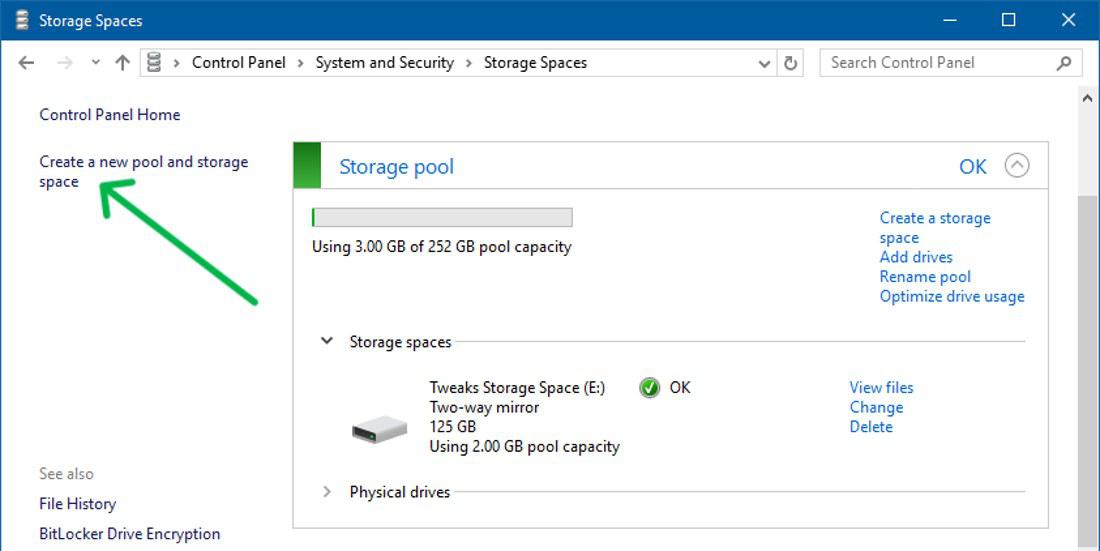

Method 2: Create multiple storage spaces in Windows
Creating multiple storage spaces in a single pool allows you to designate distinct areas for various data types, much like rooms in a house serve different purposes. This method provides the flexibility to sort and secure your data, customizing each space to fit specific storage needs and resiliency levels.
Step 1: Search for "Manage Storage Spaces" in the Start menu
Step 2: In the search bar input type "Manage Storage Space" and hit the enter button to open it
Step 3: Click on the "Create a storage space" on the left side pane

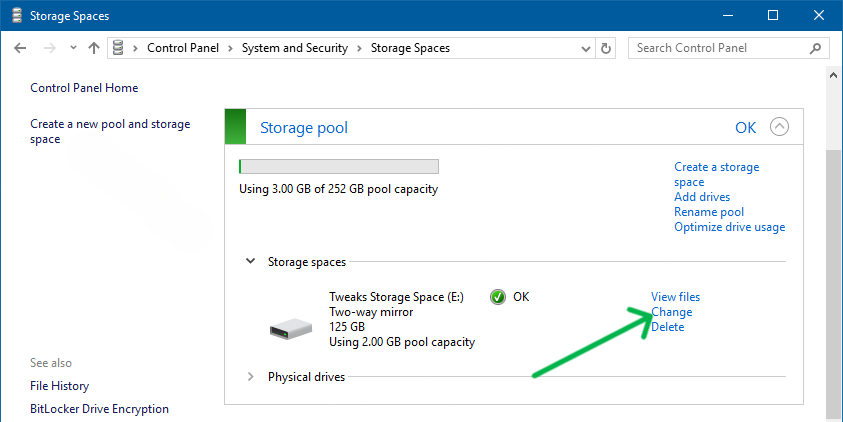

Method 3: Resize Storage Spaces Window
Resizing storage spaces lets you adjust the room’s size to meet your changing needs. This method gives you the flexibility to expand for new data or reduce capacity, all without interrupting the current setup.
Step 1: Search for "Manage Storage Spaces" in the Start menu
Step 2: In the search bar input type "Manage Storage Space" and hit the enter button to open it.
Step 3: Click "Change" under the storage space.
Step 4: Modify name, drive letter, or size.
Step 5: Click "Change storage space" to finish.

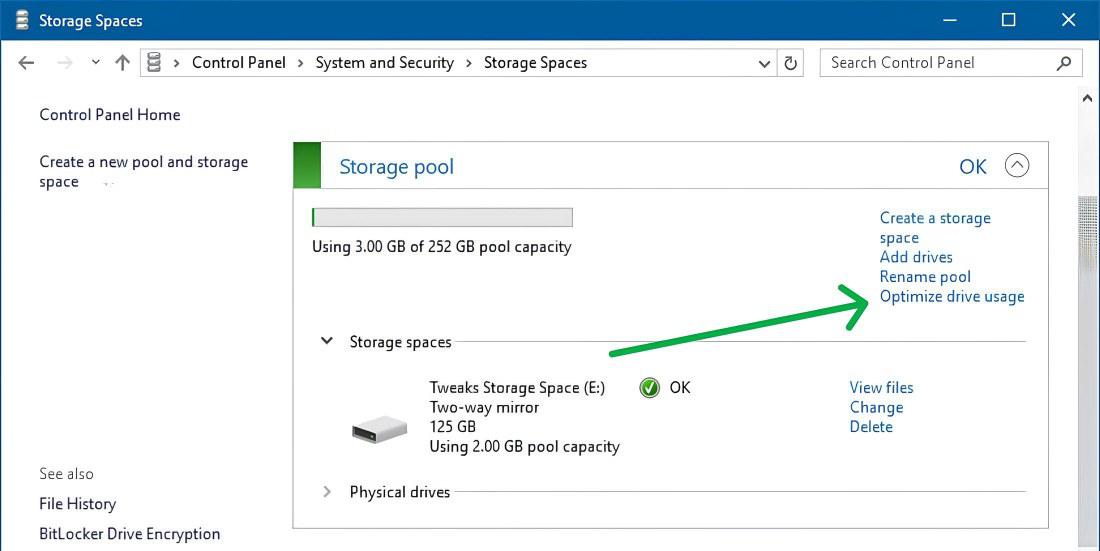

Steps to optimize drive usage
Optimizing drive usage ensures that your storage pool operates at peak efficiency, much like a well-organized home runs smoothly. This process redistributes data across all available drives, enhancing both performance and data protection.
Step 1: Search for "Manage Storage Spaces" in the Start menu
Step 2: In the search bar input type "Manage Storage Space" and hit the enter button to open it
Step 3: In Storage Spaces click the Optimize drive usage from the storage pool
Step 4: Then, On the bottom click on "Optimize drive usage"

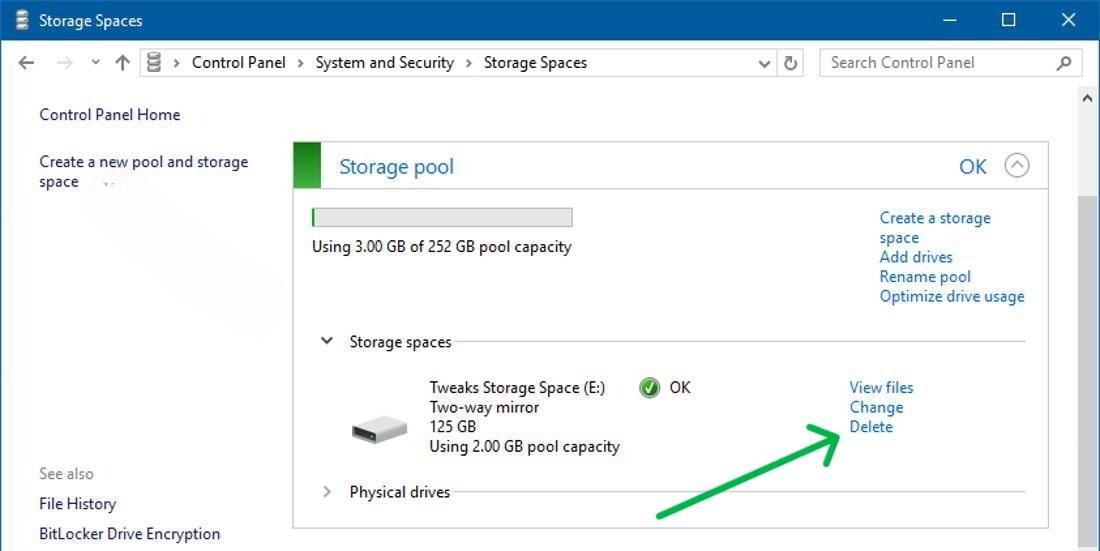

Steps to Delete Windows Storage Spaces
Deleting storage spaces in Windows can be necessary when it’s time to repurpose or decommission storage resources. This method is like clearing out a room before a renovation, allowing you to reclaim space and redirect it towards new uses or configurations.
Step 1: Search for "Manage Storage Spaces" in the Start menu
Step 2: In the search bar input type "Manage Storage Space" and hit the enter button to open it
Step 3: In Storage Spaces click the "Delete" from the storage pool
Step 4: Then, click the "Delete" to finish the process.
Troubleshooting Storage Spaces
Here are solutions to the most common Storage Spaces issues in Windows 11/10:
- Drives not appearing in pool creation: Ensure drives are connected, initialized in Disk Management, and not in use by any other program.
- Cannot create storage space: Run as Administrator and use the Hardware and Devices troubleshooter in Settings > System > Troubleshoot.
- Poor performance or slow speeds: Regularly use “Optimize drive usage” and prefer Two-way mirror with SSDs for better speed.
- Storage space shows Warning or Error: Check drive health using PowerShell command: Get-PhysicalDisk.
- Cannot delete or resize storage space: First ensure no files are in use, then restart your PC and try again.
- Drive failure in the pool: Go to the storage space and click Repair, then replace the failed drive as soon as possible.
