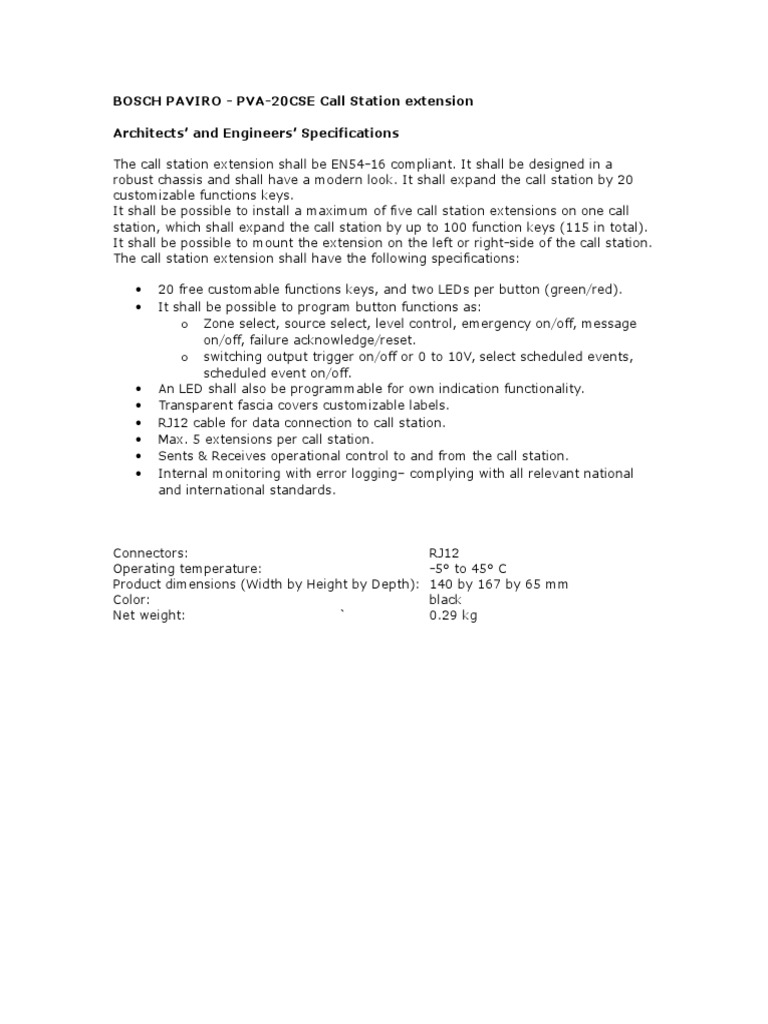

BOSCH PAVIRO - PVA-20CSE Call Station extension

Architects and Engineers Specifications


The call station extension shall be EN54-16 compliant. It shall be designed in a
robust chassis and shall have a modern look. It shall expand the call station by 20
customizable functions keys.
It shall be possible to install a maximum of five call station extensions on one call
station, which shall expand the call station by up to 100 function keys (115 in total).
It shall be possible to mount the extension on the left or right-side of the call station.
The call station extension shall have the following specifications:

20 free customable functions keys, and two LEDs per button (green/red).
It shall be possible to program button functions as:
o Zone select, source select, level control, emergency on/off, message
on/off, failure acknowledge/reset.
o switching output trigger on/off or 0 to 10V, select scheduled events,
scheduled event on/off.
An LED shall also be programmable for own indication functionality.
Transparent fascia covers customizable labels.
RJ12 cable for data connection to call station.
Max. 5 extensions per call station.
Sents & Receives operational control to and from the call station.
Internal monitoring with error logging complying with all relevant national
and international standards.

Connectors:
RJ12
Operating temperature:
-5 to 45 C
Product dimensions (Width by Height by Depth): 140 by 167 by 65 mm
Color:
black
Net weight:
`
0.29 kg
