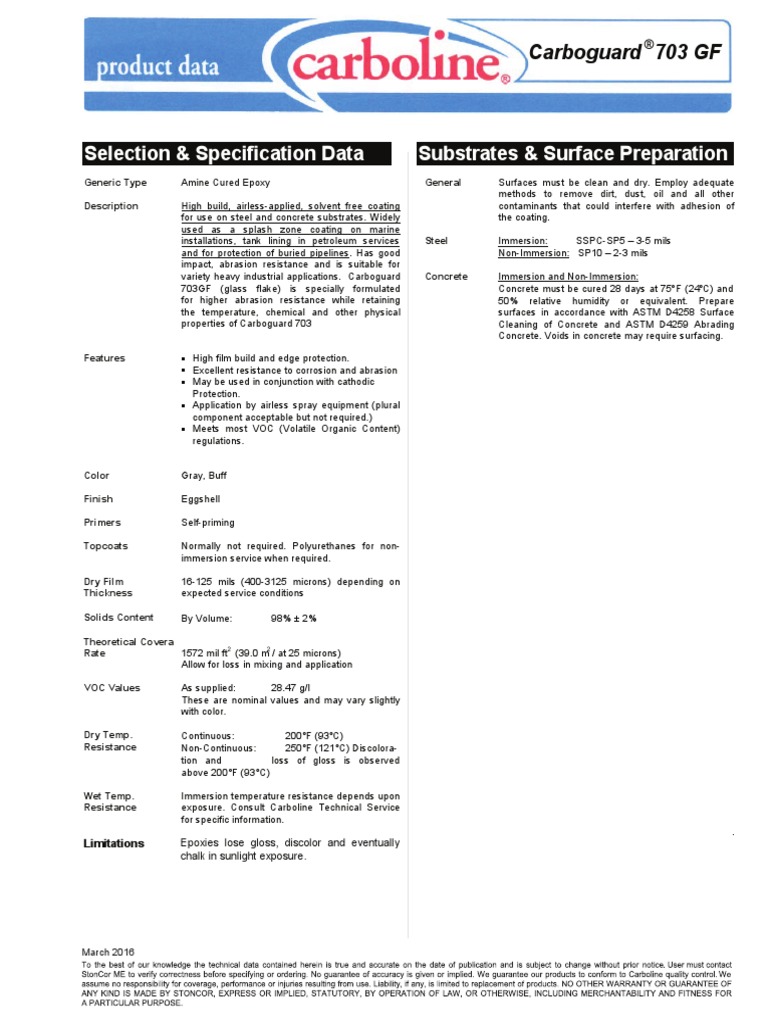

Carboguard 703 GF
Selection & Specification Data
Generic Type
Amine Cured Epoxy
Description
High build, airless-applied, solvent free coating
for use on steel and concrete substrates. Widely
used as a splash zone coating on marine
installations, tank lining in petroleum services
and for protection of buried pipelines. Has good
impact, abrasion resistance and is suitable for
variety heavy industrial applications. Carboguard
703GF (glass flake) is specially formulated
for higher abrasion resistance while retaining
the temperature, chemical and other physical
properties of Carboguard 703
Features
High film build and edge protection.
Excellent resistance to corrosion and abrasion
May be used in conjunction with cathodic
Protection.
Application by airless spray equipment (plural
component acceptable but not required.)
Meets most VOC (Volatile Organic Content)
regulations.
Color
Gray, Buff
Finish
Eggshell
Primers
Self-priming
Topcoats
Normally not required. Polyurethanes for nonimmersion service when required.
Dry Film
Thickness
16-125 mils (400-3125 microns) depending on
expected service conditions
Solids Content
By Volume:
98% 2%
Theoretical Covera
2
2
1572 mil ft (39.0 m / at 25 microns)
Rate
Allow for loss in mixing and application
VOC Values
As supplied:
28.47 g/l
These are nominal values and may vary slightly
with color.
Dry Temp.
Resistance
Continuous:
200F (93C)
Non-Continuous:
250F (121C) Discoloration and
loss of gloss is observed
above 200F (93C)
Wet Temp.
Resistance
Immersion temperature resistance depends upon
exposure. Consult Carboline Technical Service
for specific information.
Limitations
Epoxies lose gloss, discolor and eventually
chalk in sunlight exposure.
March 2016
Substrates & Surface Preparation
General
Surfaces must be clean and dry. Employ adequate
methods to remove dirt, dust, oil and all other
contaminants that could interfere with adhesion of
the coating.
Steel
SSPC-SP5 3-5 mils
Immersion:
Non-Immersion: SP10 2-3 mils
Concrete
Immersion and Non-Immersion:
Concrete must be cured 28 days at 75 F (24C) and
50% relative humidity or equivalent. Prepare
surfaces in accordance with ASTM D4258 Surface
Cleaning of Concrete and ASTM D4259 Abrading
Concrete. Voids in concrete may require surfacing.
Carboguard 703 GF
Application Equipment
Spray Application
(General)
Conventional
Spray
Recommended for application by single or plural
component airless spray. This is high solids coating and
may require adjustments in spray techniques. Wet film
thickness is easily and quickly achieved. The following
spray equipment has been found suitable and is
available from manufactures such as Binks, DeVilbiss
and Graco.
Not recommended
Application Conditions
Condition
Normal
Minimum
Maximum
Material
60 85F
(16-29C)
50F
(10C)
90F
(32C)
Surface
60 85F
(16-29C)
50F
(10C)
125F
(52C)
Ambient
60 90F
(16-32C)
50F
(10C)
110F
(43C)
Humidity
0.80%
0%
90%
This product simply requires the substrate temperature to be above the dew point.
Condensation due to substrate temperatures below the dew point can cause flash
rusting on prepared steel and interfere with proper adhesion to the substrate.
Special application techniques may be required above or below normal application
conditions. To reduce out gassing when applying to concrete substrates, do not
apply in direct sunlight or when surface temperatures are increasing. Best results
are obtained when ambient and surface temperatures are decreasing or constant.
Airless Spray
Curing Schedule
Brush & Roller
(General)
Not recommended for tank lining applications except
when striping welds.
Brush
For touch up and limited areas only.
Roller
For touch up and limited areas only.
Mixing & Thinning
Mixing
Power mix separately, then combine and power mix.
DO NOT MIX PARTIAL KITS.
Ratio
5:1 Ratio (A to B) + 1 bag Glass Flakes (3.125 kg) / 5 Gal. mix
Thinning
Not recommended. Thin only if necessary up to 10% of
Thinner 21 and for hot and windy conditions, use Thinner 33
up to 10%
Use of thinners other than those supplied or recommended by
Carboline may adversely affect product performance and void
product warranty, whether expressed or implied
Pot Life
Clean up & Safety
Cleanup
Use #2 Thinner or Acetone. In case of spillage, absorb
and dispose of in accordance with local applicable
regulations.
Safety
Read and follow all caution statements on this product
data sheet and on the MSDS for this product. Employ
normal workmanlike safety precautions. Hypersensitive
persons should wear protective clothing, gloves and use
protective cream on face, hands and all exposed areas.
Ventilation
Vapors and/or spray mist may cause explosion. When
used as a tank lining or in enclosed areas, thorough air
circulation must be used during and after application
until the coating is cured. The ventilation system should
be capable of preventing the solvent vapor
concentration from reaching the lower explosion limit for
the solvents used. In addition to ensuring proper
ventilation, appropriate respirators must be used by all
application personnel.
Surface Temp. &
50% Relative
Humidity
Dry or Recoat
Maximum
Recoat Time
Final Cure for
Immersion
Service
24 Hours
2 Days
14 Days
60F (16C)
8 Hours
1 Days
10 Days
75F (24C)
6 Hours
16 hours
7 Days
90F (32C)
Second coat or build-up coat may be applied as soon as the first coat is tacky.
These times are based on a 20 mil (500 micron) dry film thickness. Higher film
thickness, insufficient ventilation or cooler temperatures will require longer cure
times. Condensation on the surface or humidity above 25% during application and
curing will result in a surface haze or blush. Any haze or blush must be removed
by water washing before recoating. During high humidity conditions, it is
recommended that the application be done while temperatures are increasing. If
the maximum recoat times is exceeded, the surface must be washed with
detergent and water, then abraded by sweep blasting prior to the application of
additional coats. For force curing, contact Carboline Technical Service for
specific requirements. *Note: Final cure temperatures below 60F (16C) are
not recommended for tank linings.
Packaging, Handling & Storage
Shipping Weight
(Approximate)
5 Gallon Kit + 3.125 kg Glass Flakes
75.39 Lbs. (34.2 kg)
Flash Point (Setaflash)
Part A: >205F (96C)
Part B: >205F (96C)
Part C: Not applicable
Store Indoors.
Storage (General)
Storage Temperature
& Humidity
40 -110F (4-43C)
0-100% Relative Humidity
Shelf Life
18 months at 75F (24C)
SAUDI ARABIA LLC
March 2016
