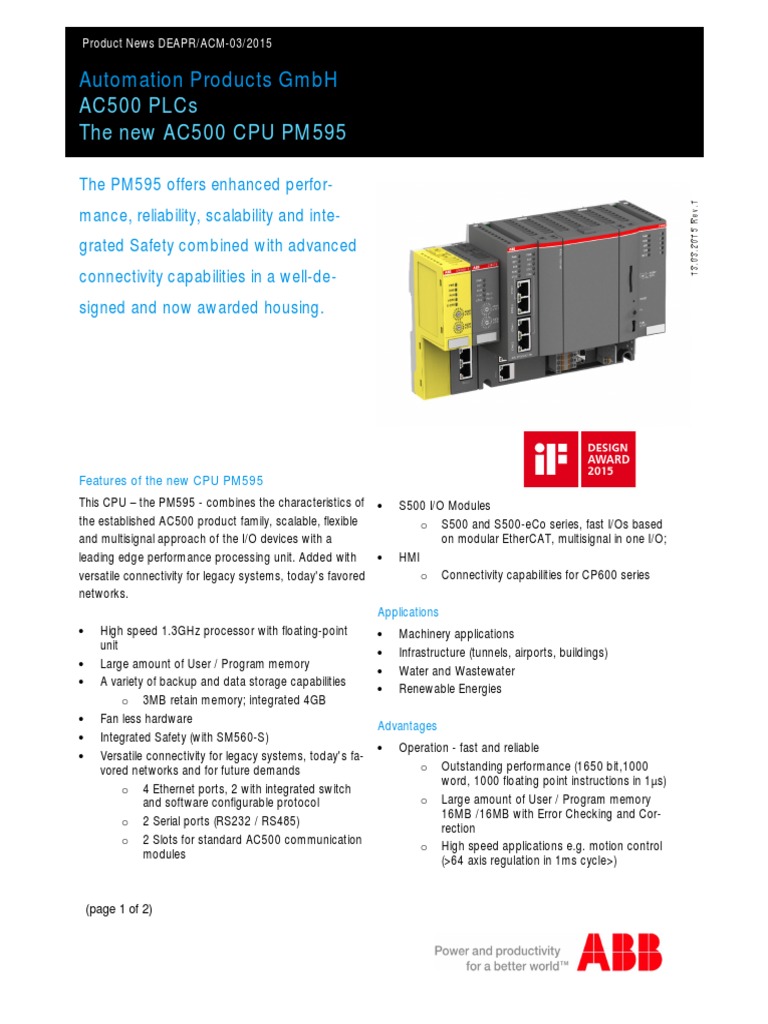

Product News DEAPR/ACM-03/2015
Automation Products GmbH
AC500 PLCs
The new AC500 CPU PM595
13.03.2015 Rev.1
PS563-WATEiesR
The
PM595 offers enhanced
Library performance, reliability, scalability and integrated Safety combined with advanced
connectivity capabilities in a well-designed and now awarded housing.
Features of the new CPU PM595
This CPU the PM595 - combines the characteristics of
the established AC500 product family, scalable, flexible
and multisignal approach of the I/O devices with a
leading edge performance processing unit. Added with
versatile connectivity for legacy systems, today's favored
networks.
S500 I/O Modules
o
S500 and S500-eCo series, fast I/Os based
on modular EtherCAT, multisignal in one I/O;
Connectivity capabilities for CP600 series
HMI
Applications
High speed 1.3GHz processor with floating-point
unit
Large amount of User / Program memory
A variety of backup and data storage capabilities
o 3MB retain memory; integrated 4GB
Fan less hardware
Integrated Safety (with SM560-S)
Versatile connectivity for legacy systems, today's favored networks and for future demands
o 4 Ethernet ports, 2 with integrated switch
and software configurable protocol
o 2 Serial ports (RS232 / RS485)
o 2 Slots for standard AC500 communication
modules
(page 1 of 2)
Machinery applications
Infrastructure (tunnels, airports, buildings)
Water and Wastewater
Renewable Energies
Advantages
Operation - fast and reliable
o Outstanding performance (1650 bit,1000
word, 1000 floating point instructions in 1s)
o
Large amount of User / Program memory
16MB /16MB with Error Checking and Correction
High speed applications e.g. motion control
(>64 axis regulation in 1ms cycle>)
Product News DEAPR/ACM-03/2015
Robustness
o
Outstanding performance (1650 bit,1000
word, 1000 floating point instructions in 1s)
Large amount of User / Program memory
16MB /16MB with Error Checking and Correction
o High speed applications e.g. motion control
(>64 axis regulation in 1ms cycle>)
Communication and fieldbus
o Versatile connectivity in various combinations, fieldbus independent approach
o
o
o
High amount of simultaneous connections
to online devices (IP sockets)
Security
Tested against intrusion (acc. Wurldtech,
member of ENCS European Network for
Cyber Security)
Compatible to the AC500 I/O family assortment
Integrated safety solution
o
Programming, Automation Builder one Engineering
Suite
Smooth migration, creating separate Networks with one Hardware
Providing a soft architecture for future demands with software configurable protocols
Ordering Information
Description
PM595-4ETH-F
PM595-4ETH-M-XC
Order Code
1SAP155500R0279
1SAP351500R0279
ABB Automation Products GmbH
Wallstadter Str. 59
68526 Ladenburg
Germany
Phone: +49 (0) 6221 701-1444
Fax: +49 (0) 6221 701-1382
Email:
[email protected]www.abb.com/plc
www.abb.com/drives
www.abb.com/automationbuilder
