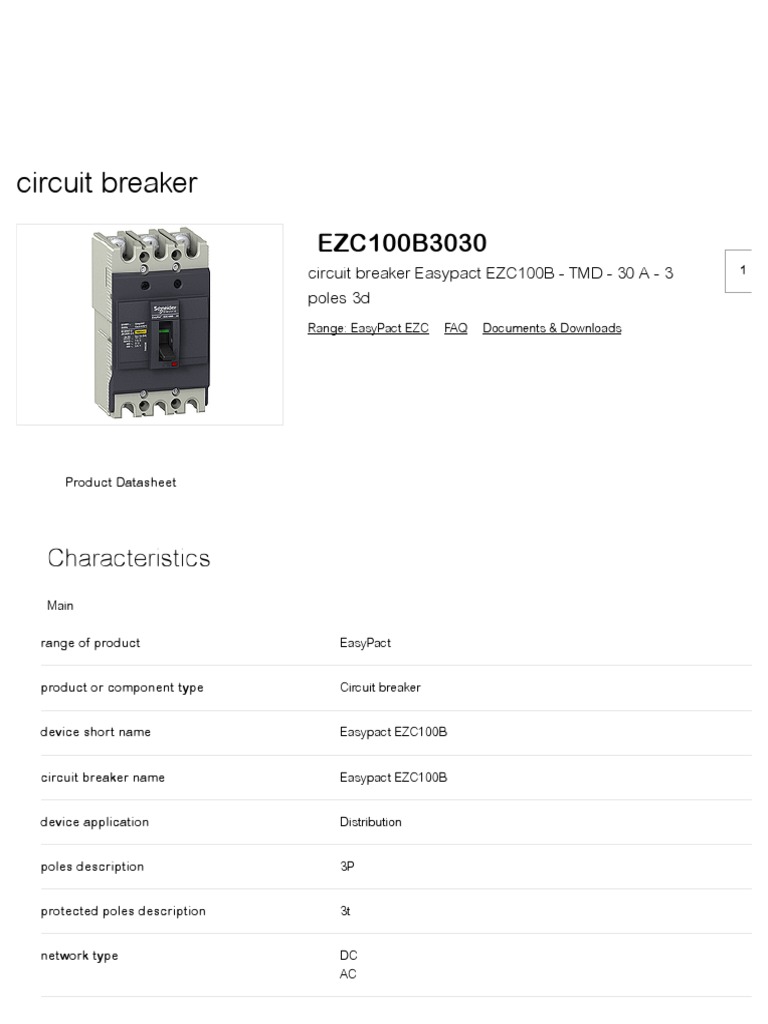

circuit breaker
EZC100B3030
circuit breaker Easypact EZC100B - TMD - 30 A - 3 1
poles 3d
Range: EasyPact EZC FAQ Documents & Downloads
Product Datasheet
Characteristics
Main
range of product EasyPact
product or component type Circuit breaker
device short name Easypact EZC100B
circuit breaker name Easypact EZC100B
device application Distribution
poles description 3P
protected poles description 3t
network type DC
AC
network frequency 50/60 Hz
[In] rated current 100 A ( 40 C )
[Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2
[Ue] rated operational voltage 550 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity code B
breaking capacity 10 kA Icu at 110...130 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
5 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
2.5 kA Icu at 550 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
7.5 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity Ics 0.625 kA 550 V AC 50/60 Hz conforming to IEC 60947-2
Ics 1.25 kA 440 V AC 50/60 Hz conforming to IEC 60947-2
Ics 1.875 kA 380 V AC 50/60 Hz conforming to IEC 60947-2
Ics 1.875 kA 400/415 V AC 50/60 Hz conforming to IEC 60947-2
Ics 2.5 kA 110/130 V AC 50/60 Hz conforming to IEC 60947-2
Ics 2.5 kA 220/230/240 V AC 50/60 Hz conforming to IEC 60947-2
suitability for isolation Yes conforming to IEC 60947-2
utilisation category Category A
trip unit name TM-D
trip unit technology Thermal-magnetic
trip unit rating 30 A ( 50 C )
protection type Short-circuit protection
Overload protection
pollution degree 3 conforming to IEC 60664-1
3 conforming to IEC 947-1
Complementary
control type Toggle
mounting mode Fixed
mounting support Backplate
upside connection Front
downside connection Front
mechanical durability 8500 cycles
electrical durability Category A : 1500 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
connection pitch 25 mm
local signalling Positive contact indication
neutral protection setting Without protection
earth-leakage protection Without
height 130 mm
width 75 mm
depth 60 mm
Environment
standards IEC 60947-2
NEMA AB1
JIS C8201-2-2
GB 14048.2
IP degree of protection IP20 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
ambient air temperature for operation -25...70 C
ambient air temperature for storage -35...85 C
Contractual warranty
Warranty period 18 months
