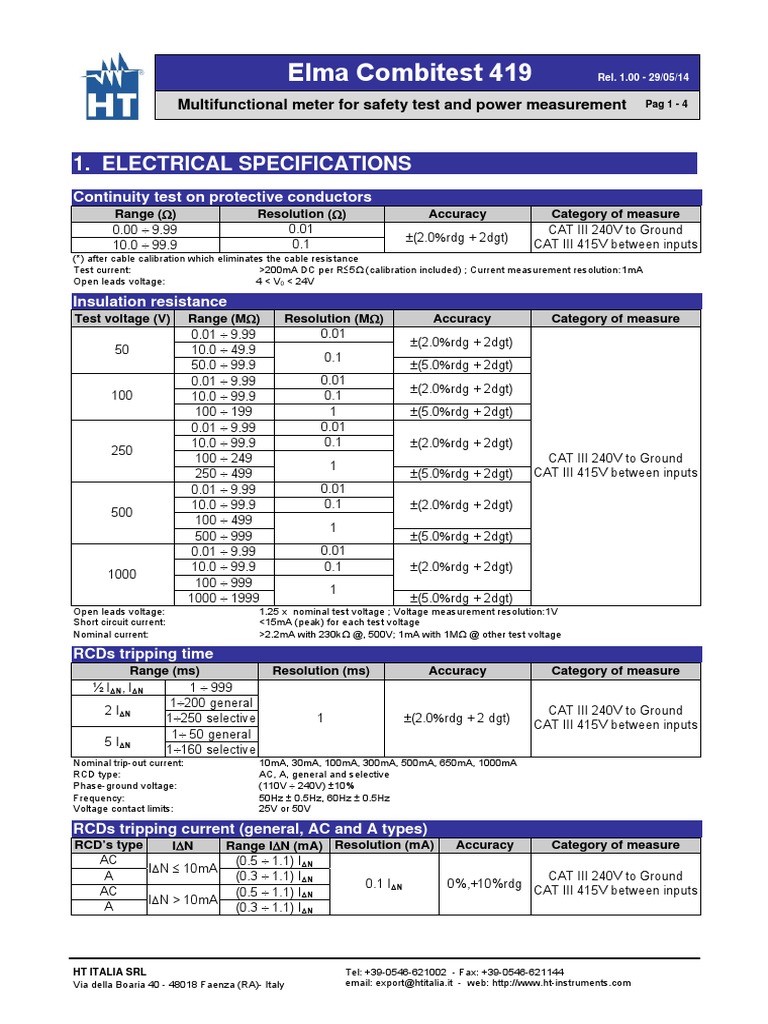

Elma Combitest 419

Elma Combitest 419 Rel. 1.00 - 29/05/14

Multifunctional meter for safety test and power measurement Pag 1 - 4

1. ELECTRICAL SPECIFICATIONS
Continuity test on protective conductors
Range () Resolution () Accuracy Category of measure
0.00  9.99 0.01 CAT III 240V to Ground
(2.0rdg + 2dgt)
10.0  99.9 0.1 CAT III 415V between inputs
(*) after cable calibration which eliminates the cable resistance
Test current: >200mA DC per R5 (calibration included) ; Current measurement resolution: 1mA
Open leads voltage: 4 < V0 < 24V

Insulation resistance
Test voltage (V) Range (M) Resolution (M) Accuracy Category of measure
0.01  9.99 0.01
(2.0rdg + 2dgt)
50 10.0  49.9
0.1
50.0  99.9 (5.0rdg + 2dgt)
0.01  9.99 0.01
(2.0rdg + 2dgt)
100 10.0  99.9 0.1
100  199 1 (5.0rdg + 2dgt)
0.01  9.99 0.01
10.0  99.9 0.1 (2.0rdg + 2dgt)
250
100  249 CAT III 240V to Ground
1
250  499 (5.0rdg + 2dgt) CAT III 415V between inputs
0.01  9.99 0.01
10.0  99.9 0.1 (2.0rdg + 2dgt)
500
100  499
1
500  999 (5.0rdg + 2dgt)
0.01  9.99 0.01
10.0  99.9 0.1 (2.0rdg + 2dgt)
1000
100  999
1
1000  1999 (5.0rdg + 2dgt)
Open leads voltage: 1.25 x nominal test voltage ; Voltage measurement resolution:1V
Short circuit current: <15mA (peak) for each test voltage
Nominal current: >2.2mA with 230k @, 500V; 1mA with 1M @ other test voltage

RCDs tripping time

Range (ms) Resolution (ms) Accuracy Category of measure
½ IN, IN 1  999
1200 general
2 IN CAT III 240V to Ground
1250 selective 1 (2.0rdg + 2 dgt)
CAT III 415V between inputs
1 50 general
5 IN
1160 selective
Nominal trip-out current: 10mA, 30mA, 100mA, 300mA, 500mA, 650mA, 1000mA
RCD type: AC, A, general and selective
Phase-ground voltage: (110V  240V) 10%
Frequency: 50Hz  0.5Hz, 60Hz  0.5Hz
Voltage contact limits: 25V or 50V

RCDs tripping current (general, AC and A types)

RCD’s type IN Range IN (mA) Resolution (mA) Accuracy Category of measure
AC (0.5  1.1) IN
IN  10mA
A (0.3  1.1) IN CAT III 240V to Ground
0.1 IN 0%,+10%rdg
AC (0.5  1.1) IN CAT III 415V between inputs
IN > 10mA
A (0.3  1.1) IN

HT ITALIA SRL Tel: +39-0546-621002 - Fax: +39-0546-621144

Via della Boaria 40 - 48018 Faenza (RA)- Italy email: [email protected] - web: http://www.ht-instruments.com
 COMBI421
Elma Combitest 419 Rel. 1.00 - 29/05/14

Multifunctional meter for safety test and power measurement Pag 2 - 4

Global Earth Resistance RA without RCD’s tripping

Range () Resolution (V) Accuracy Category of measure
CAT III 240V to Ground
1  1999 1  (5.0rdg + 3dgt)
CAT III 415V between inputs
RCD type: AC, A, general and selective
Range contact voltage Ut: 0  2Utlim, resolution: 0.1V, accurcacy: -0%, +(5%rdg + 3dgt)
Test current: < ½ Idn, accuracy: -10%, +0% IdN

Loop impedance P-P, P-N, P-PE TT/TN systems

Range () Resolution () (*) Accuracy Category of measure
0.01  9.99 0.01
CAT III 240V to Ground
10.0  199.9 0.1 (5.0rdg + 3dgt)
CAT III 415V between inputs
200  1999 (only P-PE) 1
(*) 0.1m in 0.0  199.9 m range (with option accessory IMP57)
Maximum peak current: 3A @ 127V, 6A @ 230V, 10A @ 400V
Test voltage: (110240V) 10% (P-N, P-PE) ; 50Hz  0.5Hz, 60Hz  0.5Hz
(110415V) 10% (P-P); 50Hz  0.5Hz, 60Hz  0.5Hz

Loop impedance P-P, P-N, P-PE - First fault current IT systems

Range (mA) Resolution (mA) Accuracy Category of measure
CAT III 240V to Ground
5  999 1 (5.0rdg + 3dgt)
CAT III 415V between inputs
Utlim (Ul): 25V , 50V

Global Earth Resistance RA

Range () Resolution () Accuracy Category of measure
0.01  9.99 0.01
CAT III 240V to Ground
10.0  199.9 0.1 (5.0rdg+ 1.0)
CAT III 415V between inputs
200  1999 (solo F-PE) 1
Test current @ 265V: <15 mA
Test voltage: (110240V) 10% (phase-neutral/PE); 50Hz  0.5Hz, 60Hz  0.5Hz
Utlim (Ul): 25V , 50V

Phase sequence with 1 or 2 wires

Range (V) Results displayed Category of measure
“123”  correct phase sequence
CAT III 240V to Ground
(100  240) 10% “132”  wrong phase sequence
CAT III 415V between inputs
“11-“  phase coincidence
The instrument detects the phase sequence by touching the hot wire. The detection is not performed on insulated cables.
Frequency: 50Hz  0.5Hz, 60Hz  0.5Hz

AC TRMS Voltage
Range (V) Frequency (Hz) Resolution (V) Accuracy Category of measure
CAT III 240V to Ground
5.0  265.0 47  63 0.1 (0.5%rdg + 2dgt)
CAT III 415V between inputs
Max crest factor: <1.5 ; Voltage indicated it’s the Max TRMS value considered between any couple of inputs

Frequency
Range (Hz) Resolution (Hz) Accuracy Category of measure
CAT III 240V to Ground
47.0  63.0 0.1  (2rdg + 2dgt)
CAT III 415V between inputs
Voltage range: 15V  460Vrms

Voltage harmonics
Range Resolution (V) Accuracy Category of measure
2a  15a  (2 rdg + 5dgt) CAT III 240V to Ground
0.1
16a  49a  (5rdg + 10dgt) CAT III 415V between inputs
Voltage range: 0.0V  265Vrms
Fundamental frequency range : 47  63Hz

HT ITALIA SRL Tel: +39-0546-621002 - Fax: +39-0546-621144

Via della Boaria 40 - 48018 Faenza (RA)- Italy email: [email protected] - web: http://www.ht-instruments.com
 COMBI421
Elma Combitest 419 Rel. 1.00 - 29/05/14

Multifunctional meter for safety test and power measurement Pag 3 - 4

AC TRMS Current (In1 input)

Range (A) Resolution (A) Accuracy Category of measure
CAT I 30V to Ground
0.005  1.2 x FS See table (1.0%rdg + 2dgt) and between inputs
Frequency range : 47Hz  63Hz

Current harmonics (In1 input)

Range Resolution (A) Accuracy Category of measure
2a  15a  (2 rdg + 5dgt) CAT I 30V to Ground
See table
16a  49a  (5rdg + 10dgt) and between inputs
Frequency range: 47Hz  63Hz ; Current range:  0.020 x FS

Full scale FS [A] Resolution [A] Full scale FS [A] Resolution [A]
1 0.001 300 0.1
10 0.01 400 0.1
30 0.01 1000 1
100 0.1 2000 1
200 0.1 3000 1

Active, Reactive, Apparent power @ Vmis>60V, cos=1, f=50.0Hz

Range (W, VAR, VA) Resolution (W,VAR, VA) FS Clamp (A) Accuracy
0.0  999.9 0.1
FS ≤ 1
1.000  9.999 k 0.001 k
0.000  9.999 k 0.001 k
1 < FS ≤ 10
10.00  99.99 k 0.01 k
 (1.0rdg + 6dgt)
0.00  99.99 k 0.01 k
10 < FS ≤ 100
100.0  999.9 k 0.1 k
0.0  999.9 k 0.1 k
100 < FS ≤ 3000
1000  9999 k 1k

Power factor (cos) @ Vmis>60V, f=50.0Hz

Current range (A) Range Resolution Accuracy
0.005  0.1 x FS  2°
0.80c  1.00  0.80i 0.01
0.1  1.2 x FS  1°

Leakage current AC TRMS (In1 input)

Range (mV) Resolution (mV) Accuracy Category of measure
CAT I 30V to Ground
1  1200 0.1 (1.0%rdg + 2dgt) and between inputs
Frequency range: 50Hz  60Hz

Environmental parameters
Feature Range Resolution Transduced signal Accuracy
-20.0  80.0°C 0.1°C -20  +80mV
Temperature
-4.0  176.0°F 0.1°F -4  +176mV
Humidity 0.0  100.0% RH 0.1% RH 0  +100mV
DC Voltage (0.0  999.9mV) 0.1mV (0.2  999.9mV) (2.0%rdg + 2dgt)
0.001  20.00Lux 0.001  0.02Lux
Illuminance 0.1  2000Lux 0.1  2Lux 0  +100mV
1  20000Lux 0.1  2Lux

HT ITALIA SRL Tel: +39-0546-621002 - Fax: +39-0546-621144

Via della Boaria 40 - 48018 Faenza (RA)- Italy email: [email protected] - web: http://www.ht-instruments.com
 COMBI421
Elma Combitest 419 Rel. 1.00 - 29/05/14

Multifunctional meter for safety test and power measurement Pag 4 - 4

2. GENERAL SPECIFICATIONS
MECHANICAL FEATURES
Dimensions (L x W x H): 235 x 165 x 75mm
Weight (batteries included): 1.2kg

MEMORY AND SERIAL INTERFACE

Each measurement can be stored
Memory: 500 locations
PC communication port: optical / USB

DISPLAY:
Features: graphic LCD with backlight

POWER SUPPLY:
Batteries: 6x 1.5V type LR6, AA, AM3, MN 1500
Battery life: > 600 measurements (without using the timer)

ENVIRONMENTAL CONDITIONS:
Reference temperature of calibration: 23°C  5°C
Working temperature: 0°  40°C
Working humidity: < 80%HR
Storage temperature (batteries not included): -10  60°C
Storage humidity: < 80%HR

GENERAL REFERENCE STANDARDS:

Safety: IEC/EN61010-1, IEC/EN61557-1, -2, -3, -4, -6, -7
Technical literature: IEC/EN61187
Safety of accessories: IEC/EN61010-031, IEC/EN61010-2-032
LOW (200mA): IEC/EN61557-4
M: IEC/EN61557-2
RCD: IEC/EN61557-6
LOOP P-P, P-N, P-PE: IEC/EN61557-3
Ra 15mA IEC/EN61557-3
123: IEC/EN61557-7
Insulation: double insulation
Pollution degree: 2
Max altitude: 2000m
Overvoltage category: CAT III 240V to ground, max 415V among inputs

This instrument complies with the requirements of the European Low Voltage Directives 2006/95/EEC
(LVD) and EMC 2004/108/EEC
