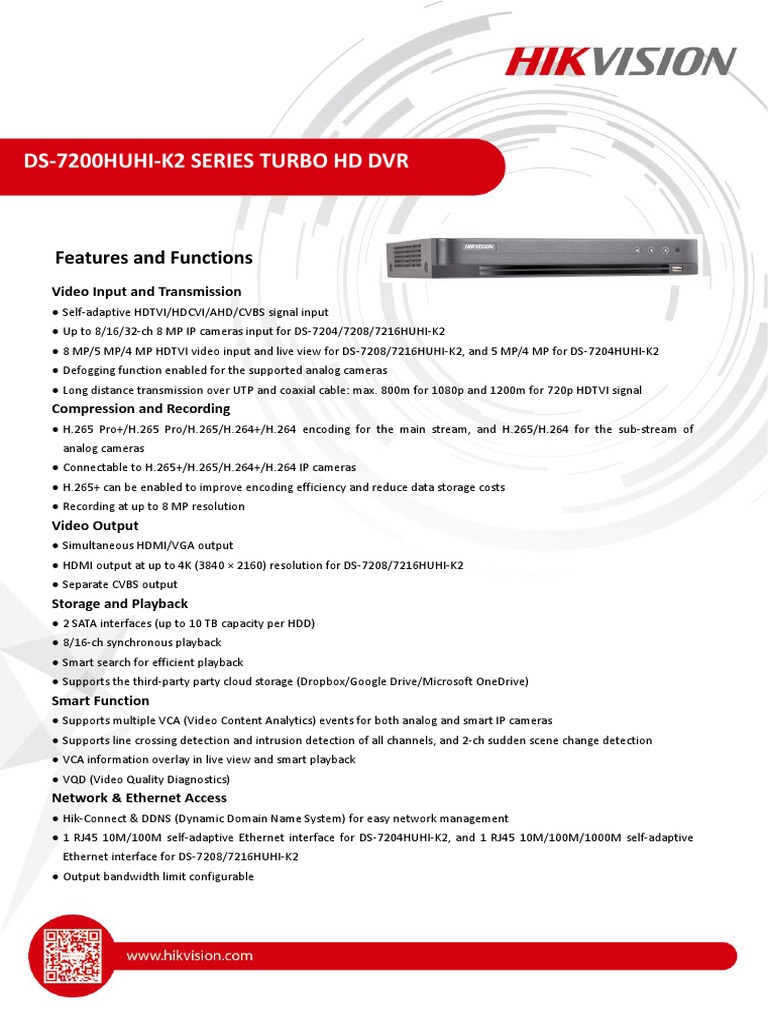

DS-7200HUHI-K2 SERIES TURBO HD DVR
Features and Functions
Video Input and Transmission
Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
Up to 8/16/32-ch 8 MP IP cameras input for DS-7204/7208/7216HUHI-K2
8 MP/5 MP/4 MP HDTVI video input and live view for DS-7208/7216HUHI-K2, and 5 MP/4 MP for DS-7204HUHI-K2
Defogging function enabled for the supported analog cameras
Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal
Compression and Recording
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of
analog cameras
Connectable to H.265+/H.265/H.264+/H.264 IP cameras
H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
Recording at up to 8 MP resolution
Video Output
Simultaneous HDMI/VGA output
HDMI output at up to 4K (3840 × 2160) resolution for DS-7208/7216HUHI-K2
Separate CVBS output
Storage and Playback
2 SATA interfaces (up to 10 TB capacity per HDD)
8/16-ch synchronous playback
Smart search for efficient playback
Supports the third-party party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)
Smart Function
Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
VCA information overlay in live view and smart playback
VQD (Video Quality Diagnostics)
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
1 RJ45 10M/100M self-adaptive Ethernet interface for DS-7204HUHI-K2, and 1 RJ45 10M/100M/1000M self-adaptive
Ethernet interface for DS-7208/7216HUHI-K2
Output bandwidth limit configurable
Specifications
Model DS-7204HUHI-K2 DS-7208HUHI-K2 DS-7216HUHI-K2
Video
compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video 4-ch 8-ch 16-ch
input BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
5 MP, 4 MP, 3 MP, 1080p30, 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50,
HDTVI input 1080p25, 720p60, 720p50, 720p30, 720p30, 720p25
720p25
AHD input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
Video/Audio HDCVI input 4 MP, 1080p25, 1080p30, 720p25, 720p30
input
CVBS input PAL/NTSC
4-ch (up to 8-ch) 8-ch (up to 16-ch) 16-ch (up to 32-ch)
IP video input Up to 8 MP resolution
Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio
compression G.711u
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,
1-ch, 1920 × 1080/60Hz, 1280 ×
HDMI/VGA 1024 × 768/60Hz
output 1024/60Hz, 1280 × 720/60Hz, 1024
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×
× 768/60Hz
1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
5 MP/4 MP/3
Encoding MP/1080p/720p/WD1/4CIF/VGA/CI 8 MP/5 MP/4 MP/
resolution F 3 MP/1080p/720p/WD1/4CIF/VGA/CIF
Main stream:
Video/Audio 5 MP@12fps/4 MP@15fps/3 Main stream:
output MP@18fps 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps
Frame rate 1080p/720p/WD1/4CIF/VGA/CIF@2 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
5fps (P)/30fps (N)
Sub-stream:
WD1/4CIF/CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 10 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous
playback 4-ch 8-ch 16-ch
Incoming 32 Mbps 64 Mbps 128 Mbps
bandwidth
Network Remote 32 64 128
management connections
Network TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
protocols
SATA 2 SATA interfaces
Hard disk
Capacity Up to 10 TB capacity for each disk
Two-way audio
input 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)
Network 1, RJ45 10M/100M self-adaptive
interface Ethernet interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
External Front panel: 1 × USB 2.0
interface USB interface 2 × USB 2.0 Rear panel: 1 × USB 3.0
Serial interface RS-485 (half-duplex)
Alarm in/out 4/1 8/4 16/4
Power supply 12 VDC
Consumption
(without HDD) ≤ 10 W ≤ 20 W ≤ 25 W
Working -10 °C to +55 °C (+14 °F to +131 °F)
temperature
General Working 10% to 90%
humidity
Dimensions 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
(W × D × H)
Weight ≤ 1.16 kg (2.6 lb) ≤ 1.78 kg (3.9 lb) ≤ 2 kg (4.4 lb)
(without HDD)
Physical Interfaces
The rear panel of DS-7204/7216HUHI-K2 provides 4/16 video input interfaces.
Index Description Index Description
1 VIDEO IN 8 RS-485 Serial Interface
2 AUDIO IN, RCA Connector 9 12 VDC Power Input
3 AUDIO OUT, RCA Connector 10 Power Switch
4 VGA Interface 11 GND
5 HDMI Interface 12 VIDEO OUT
6 USB Interface 13 Alarm In/Out
7 LAN Network Interface
Available Models
DS-7204HUHI-K2, DS-7208HUHI-K2, DS-7216HUHI-K2
