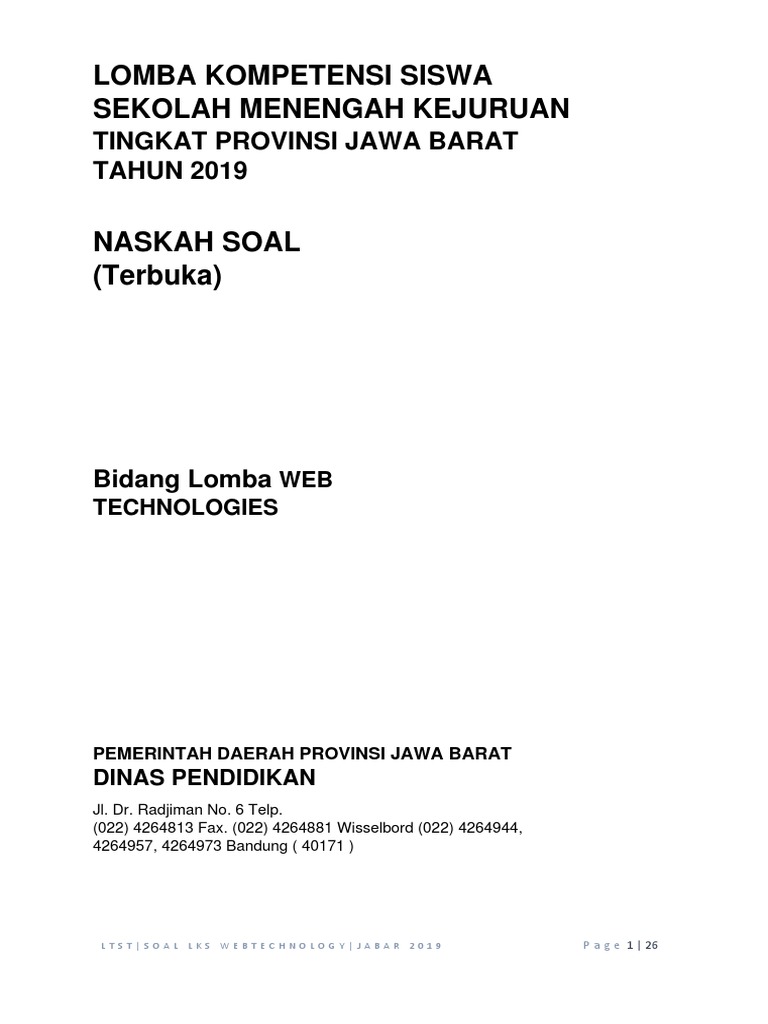

LOMBA KOMPETENSI SISWA

SEKOLAH MENENGAH KEJURUAN

TINGKAT PROVINSI JAWA BARAT
TAHUN 2019

NASKAH SOAL
(Terbuka)

Bidang Lomba WEB

TECHNOLOGIES

PEMERINTAH DAERAH PROVINSI JAWA BARAT

DINAS PENDIDIKAN
Jl. Dr. Radjiman No. 6 Telp.
(022) 4264813 Fax. (022) 4264881 Wisselbord (022) 4264944,
4264957, 4264973 Bandung ( 40171 )

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 1 | 26

 LOMBA KOMPETENSI SISWA
SEKOLAH MENENGAH
KEJURUAN
TINGKAT PROVINSI
JAWA BARAT TAHUN 2019

SPEED TEST MODULE

INTRODUCTION

In this module, you are given 4 hours to complete mini tasks. There are 5 parts of
mini tasks, they are design, layout, front-end development, back-end development
and content management system.

PART A: WEBSITE DESIGN

A1: Blur Picture Image (Easy)
Given a picture image, please use graphical software to make this on greyscale, put
a blur effect, and save as a1.jpg.

A2: Transparent Background (Easy)

Given an image on format jpg. Please use graphical software to turn the background
into transparent, and save as a2.png.

A3: Pattern (Easy)

Make a background image with any line pattern that repeat every 100x100 pixels,
and save with 1920x1080 px as result.jpg.

A4: Loading GIF (Normal)

Create a GIF animation with a word “Loading” that appears on the left edge of image
and moves outside of the right edge of image. The animation should be within 3
seconds to complete.

A5: Walking Gif (Normal)

Create a GIF animation from the given walk.gif file, so that the character moves in
from the left edge of image and moves right and moves out of the right edge of
screen.
A7: Messenger (Difficult)
Draw 2 screen mockups for a messenger app with size 360x640.
1 screen - a list of dialogs (avatar, full name, message preview).
2 screen - chat with the user (avatar, full name, menu (three points), messages, text
field, send button)
All elements should exist.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 2 | 26

 LOMBA KOMPETENSI SISWA
SEKOLAH MENENGAH
KEJURUAN
TINGKAT PROVINSI
JAWA BARAT TAHUN 2019

PART B: LAYOUT
B1: HTML tags (Easy)
A customer wants you to make his writings into HTML so that it displays well in web
browser. He has written the text. Your job is to use HTML to define the content for web
browser to properly display it. Please consider semantic tags and accessibility

B2: CSS Grid (Normal)

Please implement the following layout in CSS grid.

B3 Loading Screen (Normal)

Create an animated loader using only HTML and CSS same as video.mp4. The
loader animation should be looped. 4 different colors (#19A68C, #F63D3A,
#FDA543, #193B48) should be used.
Screen shots:

B5 Yellow Square (Easy)

Make an animation that starts with a big yellow square, and this square turns a small
red circle, the animation needs to be centered on the view and the animation needs to loop;

B8 Jumper Ball (Easy)

- Make a loop animation of a jumper ball respecting all states from a animation (only
css);

B9: HTML/CSS – Contact Form (Normal)

An HTML and CSS implementation of a not yet finished form are given.
Modify the CSS and HTML so that the form looks as depicted in the screenshot in
the media files. It’s responsive behaviour should follow the screencast in the media
files.
The use of JavaScript is NOT allowed.

B13: Gradient animation (Easy)

By using HTML and CSS, create a gradient shift animation on the page. The
gradient may move into any direction.
B14: Modern layout (Easy)
Your task is to create the following layout, the posts’ width is 1⁄3 of the container’s on
desktop screen size (>=1440px) and full width below this.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 3 | 26

PART C: FRONT-END DEVELOPMENT
C2: Loading Animation (Normal)
We want to create the following CSS loading animation.

C3: Drawing Canvas (Normal)

Please try to use canvas to build a drawing pad with the following features:
• Basic drawing with mouse down and move
• 3 color switching

C5: JS – Calculation (Easy)

Implement the function that calculate the sum of the squares of the odd numbers in a
given array.

C10: Simple Image Filter (Difficult)

For this speed Project you must create a function that allows you to add a filter in a
certain image using canvas. This speed Project is divided into two parts.
Part 1
● Develop the following design:
● The size of the canvas should be 460 pixels wide and 320 pixels high.
● Create a drop-down list, with the image options: Athena.jpg, theKiss.jpg,
youngpearl.jpg and mona-lisa.jpg. There must be a first option called image.
● Load the images on the canvas depending on the option chosen in the dropdown list.
● The image of athena.jpg is loaded by default.

Part 2
● Create a drop-down list, called filter with the options: Darken and Lighten. There
must be a first option called filter.
● When choosing a specific image in the dropdown list and applying a filter, the result
should appear on the right side of the canvas according to the chosen option.

C11: Canvas Animation (Easy)

Draw a circular figure in a container of 320px height and 400px width using
canvas. When the browser window reloads, the circular object must move
from left to right continuously.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 4 | 26

PART D: PHP LARAVEL

D3: PHP Array (Easy)

Given the code with some PHP arrays in media files, please implement a PHP
function that compare the given two arrays and return a new array that contains the
common elements from both given arrays.

D4: PHP Verification captcha (Difficult)

Please use PHP to produce verification code image (captcha), which must comply
the following rules (please see the provided images):
a. It randomly generates four characters, consisting of English Alphabet (A-Z) or digit
numbers (0-9).
b. The four characters must be slightly rotated.
c. The four characters must not be located at the same row.
d. The image contains at least 3 random lines. e.
At least 3 mixed noise points.

D5: Watermark (Easy)

Put a watermark (png file) on the image provided. The watermark should be in the
lower right corner.

D11: A Pagination Code (Nromal)

After reading data.json, the data in the current page must be shown..
5 data must be shown in one page.
5 page links to move to another page must be shown in one page
Create buttons to move 5 pages at once, previous and next.
Page link of current page must be located in the center
Take a look at the provided screen shots and data.json.
You can only use HTML & CSS & PHP, but for reading json data and the pagination
code must use only PHP. You can use bootstrap and JavaScript is not allowed.
Screen shots:

D13: Remove duplicates (Easy)

Given an array, remove the duplicate values, and show the new array;

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 5 | 26

PART E: CONTENT MANAGEMENT SYSTEMS (WORDPRESS)
E1: Animated Social Button Plugin (Normal)

Create social buttons plugin for Wordpress using Fontawesome icons and add
hover
effects for the buttons.
When the plugin activated, social buttons must be shown in the footer area.
There should be 4 social buttons and the icon fonts are below.
facebook - <i class="fab fa-facebook-f"></i>
pinterest - <i class="fab fa-pinterest"></i>
twitter - <i class="fab fa-twitter"></i>
thumblr - <i class="fab fa-tumblr"></i>
The color of hover effects are below.
facebook - #3d5998
pinterest - #e50122
twitter - #54acec
thumblr - #314258
The effects should be same with thie example video but you can change the
duration
time of the hover effects.
You can only use HTML and CSS, no JS(including Libries and Framewors) are
allowed.
Screen Shots(See the video.mp4 in folder named “2”)
E2: Dropdown menu plugin (Difficult)
Create a Plugin that shows the menu. It must be able to be used in the theme
through shortcode. Admin can add/delete menus. When mouse is over one of the
menu items, delete icon or button should be shown so that admin can delete the
menu. The menus should not be static.
Menus shown in the CMS main page

E3: CountDown Kazan WorldSkills plugin (Normal)

Create a plugin that tells the time left until 22d of August.
When the plugin is activated, widget is created.
If widget is added in sidebar, remaining time must be shown.
The date should not a static data.

E4: Plugin works (Easy)

- Make a plugin that when activated, insert a new menu item on admin, and when
accessed, shows a Title: "Plugin works!";

E7: Widget (Easy)

- Make a widget that list of title of all pages created, with their permalinks;

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 6 | 26

INSTRUCTIONS TO THE COMPETITOR
You do not need to implement all the tasks. There will be instruction on C1 to clarify
which tasks are selected to be implemented.
MARKING SCHEMESECTIONUDGEMENTARKS
A1 Design 0 4 4
A2 Layout 0 4 4
A3 Front-end 0 4 4
A4 Back-end 0 4 4
A5 CMS 0 4 4

CMS MODULE
INTRODUCTION
You are a freelancer working in the field of Web Technologies and you have been asked to
develop the brand-new website for Kazan’s most beautiful museums. Your client has heard
that you are good at building content management system.

DESCRIPTION OF PROJECT AND TASKS

This module involves knowledge about website design, website layout techniques, client-
side
scripting, and server-side scripting, all combined in one CMS project. You will be using one
of
the most popular content management systems - WordPress.
Your job is to develop a website backed by content management system. Please create your
own theme as a child-theme of a given starter WordPress theme. Please name your theme

Kazan_MuseumTour.
The goal of this website is to present museums in Kazan, with some selected meseums that
contain extra news information. It also gives a list of upcoming events. The goal of this
website
is to present an overview of all available museums in Kazan and to give a list of upcoming
events, which could be of interest to all tourists visiting Kazan. The target audience for this
page are tourists visiting Kazan. This can be a wide range, therefore you will define your
interpretation of the target audience (based on “tourists visiting Kazan”). Also please make
sure
you have the title and slogan deinfed in the content management system.
The admin and editor need to have the possibility to add and modify every entry for each
museum to either update existing information or add new museums to the list.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 7 | 26

Content Management System
For administration tasks, we need two user profiles, Admin and Editor:
• The Admin user - access to the complete WordPress main dashboard.
o Username: admin
o Password: admin
• The Editor user – access as editor role in the CMS.
o Username: editor
o Password: editor
We want the CMS login page to be white-label. That
means the login page should not show the CMS default logo. The background
should be a
fullscreen museum photo from one of the museums.
Also the login page should not include any “wp” wordings for white-label reasons.
Please
make the backend admin URL as following: <host>/admin/
LKS SMK Tingkat Jawa Barat Bidang Lomba Web Design Tahun 2019 Page 14 of 42

Managing Museums and pages

The client wants to be able to add, edit, update, delete museums records. There are
selected museums to have custom museum page.
Selected (highlighted) Museums
The client wants to highlight the following selected museums. This list is static. In the future,
the client may want to add or remove museums from the selected list. But this is not in the
current scope of work.
- Soviet Lifestyle Museum
- National Museum of the Republic of Tatarstan
- Museum of National Culture
- Chak-Chak Museum
For museum pages that are listed above, they have different layout than general pages. The
client would like to have large full-page background with the meseum photo. This photo is
selected by featured photo of the page.
Also, we need news posts from this specific museum to be displayed in the page.
All other museums
For museum pages that are not on the selected list, general page template is enough. There
is no need to show museum specific news post in these museum pages. This general page
should have a large photo banner as header. This photo is selected by featured photo of the
page.

News Blog Post

From time to time, there will be news from the website as well as from specific museum.
These blog posts should be categorized.
The client wants to show news posts from all categories in the home page. While in the
specific museum page, the client wants to show news posts from only the category for the
museum.
Post Categories
- Site Updates
- Seasonal Events

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 8 | 26

- Each selected museums

Pages and URL Strategy

Accessibility is very important to our website. We would like to lavarage different
levels of
accessibility optimization.
URL level of accessibility
All museums page should have its own URL permalink. For example, the page for
museum of
national culture may have URL: <host>/museum-of-national-culture/
News posts should have following URL structure:
• All news: <host>/news/
• News from a category: <host>/news/<category name>

Dashboard Configuration
The client wants to have At a Glance, Activity, Quick Draft in the dashboard. Please
configure these dashboard widgets and remove all others in the dashboard.

Contact Form
The client does not have budget to build a contact form right now. We choose to use
free static
form to email service for the contact form. This is done by a static form with action
pointing to
the following URL. Please configure to send the email to [email protected].
POST https://formspree.io/[email protected]
The form should have the following input field: name, email, content.
You may find a form example code in the media file.

Menus
The menu should stick to the top when scrolling down the page. The menu has the
following
items.
- Home
- Museums (Drop down menu)
- Seasonal Events (List posts from categories "seasonal events" from all museums)

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 9 | 26

Front-end Requirement
You will need to create your own theme, based on the given starter themes. You will
need to
implement the following elements for your web page:
- A footer with copyrights and social media links
o “Copyright © 2019 - All rights reserved” where the year should be the
current year dynamically based on server time.
o Footer plugins should be used for footer links to Twitter, Facebook and
Instagram. User is able to change the social links. Feel free to add and change
as many elements as you like, but the elements in the list need to be present and
your design
should blend in with the given design.
The client does not like refreshing the whole page. Page transition should be loaded
via
JavaScript with animated transition effect. (This does not apply to admin area)

Home Page Layout Columns strategy and mockup

The layout should be responsive for different screens including mobile and desktop.
Home page in desktop screen should have a multiple columns layout. Left half is the
news
and right half is some kinds of cover and images.
Home page in mobile screen should have a top-down layout strategy. Each column
take the
full width of the screen, except for the list of selected museum. They should have a
left and
right 2 columns layout.

Further optimization tasks

The page needs to be optimized for search engines.
You can choose one of the provided plugins or implement your own SEO.
Remember to optimize certain parts of your website (e.g. urls, sitemap, ...).
Secure your page by installing and configuring a security plugin.
Note: If the plugin you would like to choose is broken or does not work as expected,
you
need to choose another one or feel free to fix this plugin.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 10 | 26

INSTRUCTIONS TO THE COMPETITOR
The page should follow the Web Content Accessibility Guide.
Publish the finished website on: http://localhost/XX_lksp2019_cms_module
XX is your competitor number.
EQUIPMENT, MACHINERY, INSTALLATIONS, AND MATERIALS
REQUIRED
ITEM DESCRIPTION
advanced-custom-fields.5.8.0.zip Plugin
all-in-one-wp-security-and-firewall.zip Plugin
autodescription.3.2.4.zip Plugin
blankslate.2019.1.zip Theme
contact-form-7.5.1.3.zip Plugin
contact-form-plugin.4.1.5.zip Plugin
contact-forms-builder.1.5.2.zip Plugin
elegant-responsive-content-slider.1.0.1.zip Plugin
jetpack-6.9.zip Plugin
sample_underscores.zip Theme
seo-by-rank-math.1.0.24.zip Plugin
wonderplugin-carousel-free.zip Plugin
wordfence.7.3.2.zip Plugin
wordpress-seo.11.2.1.zip Plugin
wp-responsive-jquery-slider.1.7.zip Plugin
LKS SMK Tingkat Jawa Barat Bidang Lomba Web Design Tahun 2019 Page 18 of 42

LOMBA KOMPETENSI SISWA SEKOLAH MENENGAH KEJURUAN

TINGKAT
PROVINSI JAWA BARAT TAHUN 2019
MARKING SCHEME

B1 CMS Theme 0 3.0 3.0

B2 CMS
Configuration
0 3.75 3.75
B3 CMS Design 1.5 1.5 3
B4 CMS Layout 3.0 3.5 6.5
B5 CMS Category 0.5 3.25 3.75
B6 CMS Admin 0.25 2.25 2.5

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 11 | 26

 LOMBA KOMPETENSI SISWA
SEKOLAH MENENGAH
KEJURUAN TINGKAT PROVINSI
JAWA BARAT TAHUN 2019
FRONTEND WEB TECHNOLOGIES

INTRODUCTION
Our world has changed a lot over the past 10 years, the borders of country are blurred, it
becomes easier to travel, people learn new worlds and become travellers. But this leads to
an
increase in the information processed and may be the reason for the loss of the most
important
and interesting aspects of the life of the studied worlds for travellers.
This problem is solved by various electronic helpers, simple and affordable Internet services
that help to systematize the data, follow the notes of other travelers, create new resources
and
databases about interesting places and things.
Your task will be to develop a working prototype of one of these services – Interactive
Presenter. And a one-page marketing site for this presentation on the Internet.
The main idea of that service is to create a huge database of everything. And to give
everyone
the opportunity to get acquainted with it in an interactive way, allowing you to concentrate
only
on this interesting information.
But the company understands that this is a voluminous task, so it suggested that you
develop a
prototype of a web application for one narrow area - tourist company of Kazan, whose goal
is to
acquaint visitors of the city with the history, culture and atmosphere of the thousand-year-
old
capital of Tatarstan in an interactive presentation format. The visitor can choose the route of
acquaintance and receipt of information in accordance with his contextual choice on each
slide.
In the future, it is planned to open for everyone to create their own interactive routes and
publish them on the company's website. Therefore, special attention is paid to the route
editor in
terms of convenience and ease of use for the mass user.

DESCRIPTION OF PROJECT AND TASKS

This task is to be completed in 4 hours. The result should work in modern browsers.
You will create the worked prototype of application using JavaScript ensuring the app works
correctly in different web browsers, following the requirements described below.
The main feature of the application is its work in two modes: “Route Editor” for those who
want
to create and share their impressions of Kazan tourist information and “View Mode” those
who
study new tourist material. This feature should be reflected in the design of the website.
Because the service will be used as presentation tools to promote tourism in Kazan the

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 12 | 26

users of
the route editor can be segmented as adult aged 25 - 40 years old. But, for the presentation
format it will be targeted for all ages, so that both children and adults can understand about
history of Kazan easily.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 13 | 26

 LOMBA KOMPETENSI SISWA
SEKOLAH MENENGAH
KEJURUAN TINGKAT PROVINSI
JAWA BARAT TAHUN 2019

Glossary
• Route Editor - a mode in the service that can be used to link different element using links
visually and can be controlled using mouse and keyboard
• View Mode - a mode in the service that can be used to see the end result of all linked
elements and their transition (like a presentation of slides)
• Element - a node in the route editor that is used to store the content and link it with other
element (like a slide)
• Link - a line in the route editor that is used to store information about the next element to
transition and the transition property itself
• Transition - an animation that runs in view mode between moving from one element into
other element
• Content – it is user input data to be demonstrated.

Front-end programming module

Route editor The editor should work on desktop. In this scope of work, we don’t consider
supporting touch devices for editor mode.
You need to make the route editor that can be used by the user to link several created
elements
into a sequence. The functionality of the route editor that you need to make is listed below:
1. When creating a new presentation or clearing the editor, one root element initially
appears in the center of the screen. An element can be look like anything (circle, square,
star, blob, etc.).
2. The element has 4 interaction areas, (1, 2, 3, 4), which are hidden by
default and are
displayed only after hovering on the element.
3. When you click on one of the areas, a related element should appear on the side of the
areas node on which the click was made. Link between the elements should be created
as well.
4. Alongside the 4-interactive-areas, there should be “edit” button and “delete” button for the
element which are shown only when element is on hover.
5. The following features should be implemented for the elements:
a. Editing the content of the element (slide). To edit you need to use one of the
wysiwyg editors, which will be given to you.

b. Editing captions for each of the sections (1,2,3,4), which will be shown in view
mode.
c. Deleting an element by clicking the delete button.
6. When deleting an element, all links of this element must also be deleted.
7. The user can delete a link by clicking on the link and pressing the Delete/Back Space
key.
LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 14 | 26
8. Elements can be moved around the editor by mouse drag. Links should also follow the
element.
9. To link two unrelated elements (for example, after removing a connection), with the Shift
key held down, move a section of one element to a section of another element.
10. The possibility of looping routes is allowed.

11. Any changes done inside slide editor is saved automatically and will be restored upon
refresh.

The presented examples are only a sketch, you have to choose the appearance, size,
animation, reaction time to user actions and other characteristics to improve the usability of
the
application. It is expected that you will create additional interface elements and or user
interaction mechanism to improve the convenience of the specified functionality.
View mode The view mode should work in both desktop and tablet.

1. You need to create a view mode that open the preview of the slides starting from the
root element with an option for moving between content based on linked section that is
already
modified in the route editor.
2. You also need to implement a transition when there is a
movement between element.
3. The animation of transition must correspond to the direction of
movement and movement
along the main path or an additional one (For example, left, right, down, up, in a circle).
4.The view mode needs to be seen in full screen mode.
5. The user should be able to understand where he is at the moment and go to the
desired element.
6. For navigation, this mode should provide movement controls that should be
easy to use, including on touchscreen devices. And show the title of that control, which
helps the user with the choice of the next step to move.
7. For navigation in desktop, the viewer allows using number keys (1,2,3,4) on keyboard
to navigate to corresponding linked element.
You need to consider the user experience and design the apps accordingly to be as
easy as
possible when used and as clear as possible when viewed. Even if you cannot
implement a full
application, you may implement a view mode as a proof-of-concept to show the client
how it
works.
Your viewer should follow the design that you created at design module and correspond
to Web
Content Accessibility Guidelines (WCAG) 2.0.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 15 | 26

 LOMBA KOMPETENSI SISWA SEKOLAH MENENGAH
KEJURUAN TINGKAT
PROVINSI JAWA BARAT TAHUN 2019
INSTRUCTIONS TO THE COMPETITOR
Please follow the following instructions to deliver your work.
1. The media files are available in the ZIP file. You can modify the supplied files
and
create new media files to ensure the correct functionality and improve the
application. You can
use any supplied JavaScript framework if you find it necessary.
2. Save the working apps in a directory on the server named “XX_
lksp2019_front_end_module”. Be sure that your main file is called index.html.
* XX is your country code

MARKING SCHEMEAS. MARKS TOTAL

E1 Editor functionality for
Element 0 3.75 3.75
E2 Editor functionality for Connections
123
E3 Viewer requirements 0 4 4
E4 Animation 1.5 0.75 2.25
E5 Code Quality 3.5 0 3.5

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 16 | 26

 LOMBA KOMPETENSI SISWA
SEKOLAH MENENGAH
KEJURUAN TINGKAT PROVINSI
JAWA BARAT TAHUN 2019
SERVER MODULE
INTRODUCTION

Trilu, task management website, ask you to make their minimum viable product.
Your task is to
implement the backend with Laravel PHP Framework and frontend with JavaScript
Framework
(VueJS, AngularJS, or ReactJS). The front-end design skeleton is provided. The
detail
description and tools that you can use will be described below.

DESCRIPTION OF PROJECT AND TASKS

API List:
Use provided ERD to make your database. Create dummy users on users table
(password is hashed using bcrypt): username password First name Last name
john.doe 12345 John Doe richard.roe 12345
Richard Roe
jane.poe 12345 Jane Poe
These are the list of web service endpoint that requested by Trilu:
1. Authentication
a. Register
URL: [domain]/v1/auth/register
Description: For client to register new user
Method: POST
Request Parameter:
• Body: o First Name o
Last Name o Username
o Password Validation:
• First Name must be alphabet only, length between 2 – 20
• Last name must be alphabet only, length between 2 – 20
• Username only consist of alphanumeric, underscore ‘_’, or dot ‘.’,
length between 5 – 12
• Username must be unique
• Password length between 5 - 12 Response:
• If register success, registered user automatically logged in:
Header: response status: 200
Body: o Token (authorization token generated by the system from
logged in user id with bcrypt hashing method) o Role
• If input validation failed: Header:
response status: 422
LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 17 | 26
 Body: message: invalid field
b. Login
URL: [domain]/v1/auth/login
Description: For client to generate and get login token using username and
password. Username and password must be valid.
Method: POST
Request Parameter:
• Body: o Username o
Password
Response:
• If login success: Header: response
status: 200
Body: o Token (authorization token generated by the system from
logged in user id with bcrypt hashing method) o Role
• If login failed (username or password do not match or empty):
Header: response status: 401
Body: message: invalid login
c. Logout
URL: [domain]/v1/auth/logout?token={AUTHORIZATION_TOKEN}
Description: For server to make token invalid
Method: GET
Response:
• If logout success: Header:
response status: 200
Body: o message: logout success
• If logout failed (token invalid):
Header: response status: 401
Body: message: unauthorized user
2. Board
a. Create new board
URL: [domain]/v1/board?token={AUTHORIZATION_TOKEN}
Description: For client to create new board. Assign creator as team member
when board created.
Method: POST
Request Parameter:
• Body: o Name Validation:
• name must be filled Response:
• If success: Header: response
status: 200
Body: message: create board success
• If input validation failed: Header:
response status: 422
Body: message: invalid field
• If unauthorized user access it (only logged in user can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
b. Update board
LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 18 | 26
 URL: [domain]/v1/board/{board_id}?token={AUTHORIZATION_TOKEN}
Description: For client to update existing board by id
Method: PUT
Request Parameter:
• Body: o Name Validation:
• name must be filled Response:
• If success: Header: response
status: 200
Body: message: update board success
• If input validation failed: Header:
response status: 422
Body: message: invalid field
• If unauthorized user access it (only team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
c. Delete board
URL: [domain]/v1/board/{board_id}?token={AUTHORIZATION_TOKEN}
Description: For client to delete existing board by id
Method: DELETE
Response:
• If success: Header: response
status: 200
Body: message: delete board success
• If unauthorized user access it (only creator can access this endpoint):
Header: response status: 401
Body: message: unauthorized user
d. Get all boards
URL: [domain]/v1/board?token={AUTHORIZATION_TOKEN}
Description: For client to get all boards data based on logged in user, as a
member or creator.
Method: GET
Response:
• If success: Header: response
status: 200
Body: all board data in json (consists of id, name, creator_id)
• If unauthorized user access it (only logged in user can access this
endpoint): Header: response status: 401
e. Open board
URL: [domain]/v1/board/{board_id}?token={AUTHORIZATION_TOKEN}
Description: For client to get board detail based on board_id. Lists and cards
sorted by column order.
Method: GET
Response:
• If success: Header: response
status: 200
Body: eager load all board data in json (consists of all team members, all
lists of board and cards inside list)

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 19 | 26

 Format:
{
“id”: [board_id],
“name”: [board_name],
creator_id: [creator_id],
“members”: [
{
“id”: [user_id],
“first_name”: [first name],
“last_name”: [last name],
“initial”: [generated from first name and last name]
},
...
], “lists”: [
{
“id”: [list_id],
“name”: [list_name],
“order”: [order],
“cards”: [
{
“card_id”: [card_id],
“task”: [card_task],
“order”, [order]
},
...]
},
...
]
}
• If unauthorized user access it (only team member can access this
endpoint): Header: response status: 401
f. Add team member
URL:
[domain]/v1/board/{board_id}/member?token={AUTHORIZATION_TOKEN}
Description: For client to add team member to the board.
Method: POST
Request Parameter:
• Body: o Username Validation:
• username must be existing in user table Response:
• If success: Header: response
status: 200
Body: message: add member success
• If input validation failed: Header:
response status: 422
Body: message: user did not exist
• If unauthorized user access it (only team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 20 | 26
 g. Remove team member
URL:
[domain]/v1/board/{board_id}/member/{user_id}?token={AUTHORIZATION_T
OKEN
}
Description: For client to delete team member from the board using user id.
Method: DELETE
Response:
• If success: Header: response
status: 200
Body: me ssage: remove member success
• If unauthorized user access it (only team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
3. List
a. Create new list
URL: [domain]/v1/board/{board_id}/list?token={AUTHORIZATION_TOKEN}
Description: For client to create new list to the board
Method: POST
Request Parameter:
• Body: o Name Validation:
• name must be filled Response:
• If success: Header: response
status: 200
Body: message: create list success

• If input validation failed: Header:

response status: 422
Body: message: invalid field
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
b. Update list
URL:
[domain]/v1/board/{board_id}/list/{list_id}?token={AUTHORIZATION_TOKEN}
Description: For client to update existing list by id
Method: PUT
Request Parameter:
• Body: o Name Validation:
• name must be filled Response:
• If success: Header: response
status: 200
Body: message: update list success
• If input validation failed: Header:
response status: 422
Body: message: invalid field
• If unauthorized user access it (only board team member can access this

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 21 | 26

 endpoint): Header: response status: 401
Body: message: unauthorized user
c. Delete list
URL:
[domain]/v1/board/{board_id}/list/{list_id}?token={AUTHORIZATION_TOKEN}
Description: For client to delete existing list by id
Method: DELETE
Response:
• If success: Header: response
status: 200
Body: message: delete list success
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
d. Move list to right
URL:
[domain]/v1/board/{board_id}/list/{list_id}/right?token={AUTHORIZATION_TO
KEN
}
Description: For client to switch the order of the selected list with the list on
the right
Method: POST
Response:
• If success: Header: response
status: 200
Body: message: move success
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
e. Move list to left
URL:
[domain]/v1/board/{board_id}/list/{list_id}/left?token={AUTHORIZATION_TOK
EN
}
Description: For client to switch the order of the selected list with the list on
the left
Method: POST
Response:
• If success: Header: response
status: 200
Body: message: move success
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
4. Card
a. Create new card URL:
[domain]/v1/board/{board_id}/list/{list_id}/card?token={AUTHORIZATION_TO KEN}

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 22 | 26

 Description: For client to create new card to the list
Method: POST
Request Parameter:
• Body: o Task Validation:
• Task must be filled Response:
• If success: Header: response
status: 200
Body: message: create card success
• If input validation failed: Header:
response status: 422
Body: message: invalid field
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
b. Update card
URL:
[domain]/v1/board/{board_id}/list/{list_id}/card/{card_id}?token={AUTHORIZA
TION_TOKEN
}
Description: For client to update existing card by id
Method: PUT
Request Parameter:
• Body: o Task Validation:
• Task must be filled Response:
• If success: Header: response
status: 200
Body: message: update card success
• If input validation failed: Header:
response status: 422
Body: message: invalid field
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
c. Delete card
URL:
[domain]/v1/board/{board_id}/list/{list_id}/card/{card_id}?token={AUTHORIZA
TION_TOKEN
}
Description: For client to delete existing card by id
Method: DELETE
Response:
• If success: Header: response
status: 200
Body: message: delete card success
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
d. Move up card
LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 23 | 26
 URL: [domain]/v1/card/{card_id}/up?token={AUTHORIZATION_TOKEN}
Description: For client to switch the order of the selected card with the card
above
Method: POST
Response:
• If success: Header: response
status: 200
Body: message: move success
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
e. Move down card
URL: [domain]/v1/card/{card_id}/down?token={AUTHORIZATION_TOKEN}
Description: For client to switch the order of the selected card with the card
below
Method: POST
Response:
• If success: Header: response
status: 200
Body: message: move success
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
f. Move card to another list
URL:
[domain]/v1/card/{card_id}/move/{list_id}?token={AUTHORIZATION_TOKEN}
Description: For client to move card to another list. List must be in the same
board.
Method: POST
Response:
• If success: Header: response
status: 200
Body: message: move success
• If list id is not in the same board:
Header: response status: 422
Body: message: move list invalid
• If unauthorized user access it (only board team member can access this
endpoint): Header: response status: 401
Body: message: unauthorized user
The complete minimum viable product for Trilu system should cover the following
requirement:
Menu Detail
Login &
Register
out) into the system on the start page of the
d to “home” menu
LKS SMK Tingkat Jawa Barat Bidang Lomba Web Design Tahun 2019 Page 40 of 42

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 24 | 26

 • User can register into the system on the register page
• Links to the Home and Logout are always visible on the top part of the
page while the user is logged in
Home
• On “home” menu, user can add new board or access board if the user is the
team member
date board’s name by clicking the board name, type new
ress Enter to submit
he board can delete a board by deleting its entire name, then
o submit
• Make sure your system is preventing users to view and access
unauthorized board
Board
y deleting its entire name, then press Enter to
• On “board” menu, user can manage board: members, lists, and cards
Member
• User can add new member using username
• User can remove member by clicking its initial then click confirmation
button
List
• User can add new list to the board
• User can update list’s name by clicking the list name, type new name, then
press Enter to submit
• User can move list left and right
Card
• User can add new card to a list
• User can update card’s task by clicking the card, type new task, then
press Enter to submit
• User can delete a card by deleting its entire task, then press Enter to
submit
• User can move card up and down in the list
• User can move card to another list by click the card, then click another list.
You can use and improve ERD below:

INSTRUCTIONS TO THE COMPETITOR

• Save your files in your root directory on the server called
"XX_LKSP2019_SERVER_MODULE" where XX is your computer number.
• Generate your database dump called XX_LKSP2019_DB_DUMP.sql and
store in your
root application folder,
• Create/generate a db-diagram named “db-diagram.xxx” (xxx is the extension/type of the
file eg. Pdf or jpg) and put it into the directory mentioned above. Example:
• For this module, you must use one of the three available frameworks provided.
Applications developed without use of any of these frameworks will not be considered.
You
should take advantage of the framework as much as possible.

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 25 | 26

 LOMBA KOMPETENSI SISWA
SEKOLAH MENENGAH
KEJURUAN TINGKAT PROVINSI
JAWA BARAT TAHUN 2019
SECTION CRITERION JUDG. MARKS MEAS. MARKS TOTAL
C1 Server API Framework 1.5 0 1.5
C2 Server API Database 0 3.5 3.5
C3 Server API Login 0 2.5 2.5
C4 Server API Board 0 4.5 4.5
C5 Server API Board Member 0 1.5 1.5
C6 Server API List 0 3.0 3.0
C7 Server API Card 0 4.0 4.0
SECTION CRITERION JUDG. MARKS MEAS. MARKS TOTAL
D1 Server Front End Framework 1.5 1 2.5
D2 Server Front End Template 2.0 0 2.0
D3 Server Front End
Authentication
3.0 0 3.0
LKS SMK Tingkat Jawa Barat Bidang Lomba Web Design Tahun 2019 Page 42 of 42
D4 Server Front End Board 0 4.0 4.0
D5 Server Front End List 0 4.0 4.0
D6 Server Front End Card 0 5.0 5.0

LTST|SOAL LKS WEBTECHNOLOGY|JABAR 2019 P a g e 26 | 26
