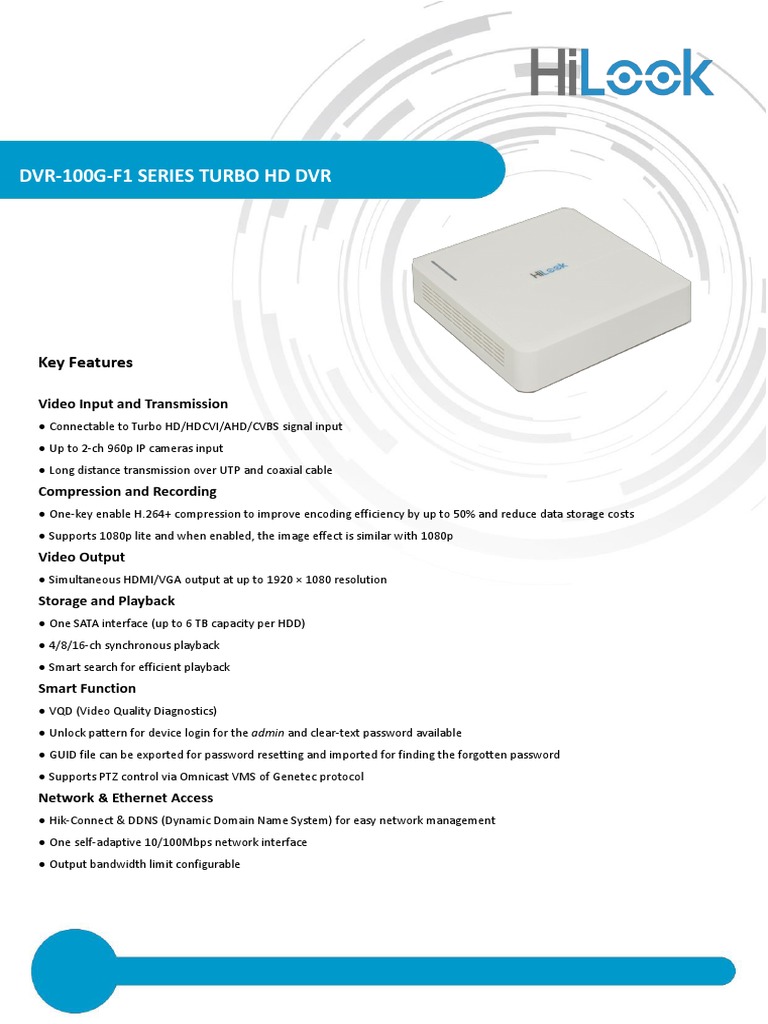

DVR-100G-F1 SERIES TURBO HD DVR

Key Features

Video Input and Transmission

 Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
 Up to 2-ch 960p IP cameras input
 Long distance transmission over UTP and coaxial cable
Compression and Recording
 One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
 Supports 1080p lite and when enabled, the image effect is similar with 1080p
Video Output
 Simultaneous HDMI/VGA output at up to 1920 × 1080 resolution
Storage and Playback
 One SATA interface (up to 6 TB capacity per HDD)
 4/8/16-ch synchronous playback
 Smart search for efficient playback
Smart Function
 VQD (Video Quality Diagnostics)
 Unlock pattern for device login for the admin and clear-text password available
 GUID file can be exported for password resetting and imported for finding the forgotten password
 Supports PTZ control via Omnicast VMS of Genetec protocol
Network & Ethernet Access
 Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
 One self-adaptive 10/100Mbps network interface
 Output bandwidth limit configurable
Dimensions

The rear panel of DVR-108G/116G-F1 provides 8/16 video input interfaces.

Index Description Index Description

1 VIDEO IN 6 LAN Network Interface
2 HDMI Interface 7 USB Interfaces
3 VGA Interface 8 GND
4 AUDIO OUT, RCA Connector 9 12 VDC Power Input

5 AUDIO IN, RCA Connector

Specifications

Model DVR-104G-F1 DVR-108G-F1 DVR-116G-F1

Video compression H.264+/H.264
4-ch 8-ch 16-ch
Analog video input
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Turbo HD input 1080p25, 1080p30, 720p25, 720p30
AHD input 1080p25, 1080p30, 720p25, 720p30
Video/Audio HDCVI input 1080p25, 1080p30, 720p25, 720p30
input CVBS input Support
1-ch 2-ch
IP video input
Up to 960p resolution
Audio compression G.711u
Audio input/Two-way
1-ch, RCA (2.0 Vp-p, 1 KΩ)
audio input
HDMI/VGA output 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
Encoding resolution
When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Main stream:
When 1080p lite mode
enabled:
Main stream:
1080p lite/HD 720p
When 1080p lite mode enabled:
lite/WD1/4CIF/VGA/CIF@25f
1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps;
ps (P)/30fps (N)
CIF@25fps (P)/30fps (N)
When 1080p lite mode not
When 1080p lite mode not enabled:
enabled:
Frame rate For 720p stream access:
For 720p stream access:
720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)
Video/Audio 720p/WD1/4CIF/VGA/CIF@25
For SD stream access:
output fps (P)/30fps (N)
WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
For SD stream access:
WD1/4CIF/VGA/CIF@25fps
(P)/30fps (N)
Sub-stream:
CIF/QVGA/QCIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 4 Mbps
Audio output 1-ch, RCA (Linear, 1 KΩ)
Audio bit rate 64 Kbps
Dual stream Support
Stream type Video, Video & Audio
Synchronous playback 4-ch 8-ch 16-ch
Remote connections 32 128
Network
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,
management Network protocols
HTTPS
SATA 1 SATA interface
Hard disk
Capacity Up to 6 TB capacity for each disk
External Network interface 1, RJ45 10M/100M self-adaptive Ethernet interface
interface USB interface Rear panel: 2 × USB 2.0
Power supply 12 VDC
Consumption
≤8W ≤ 12 W ≤ 20 W
(without HDD)
Working temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
General Working humidity 10% to 90%
Dimensions 285 × 210 × 45 mm (11.2 ×
200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
(W × D × H) 8.3 × 1.8 inch)
Weight
≤ 0.8 kg (1.8 lb) ≤ 1.2 kg (2.6 lb)
(without HDD)
Applicable Models

DVR-104G-F1, DVR-108G-F1, DVR-116G-F1
