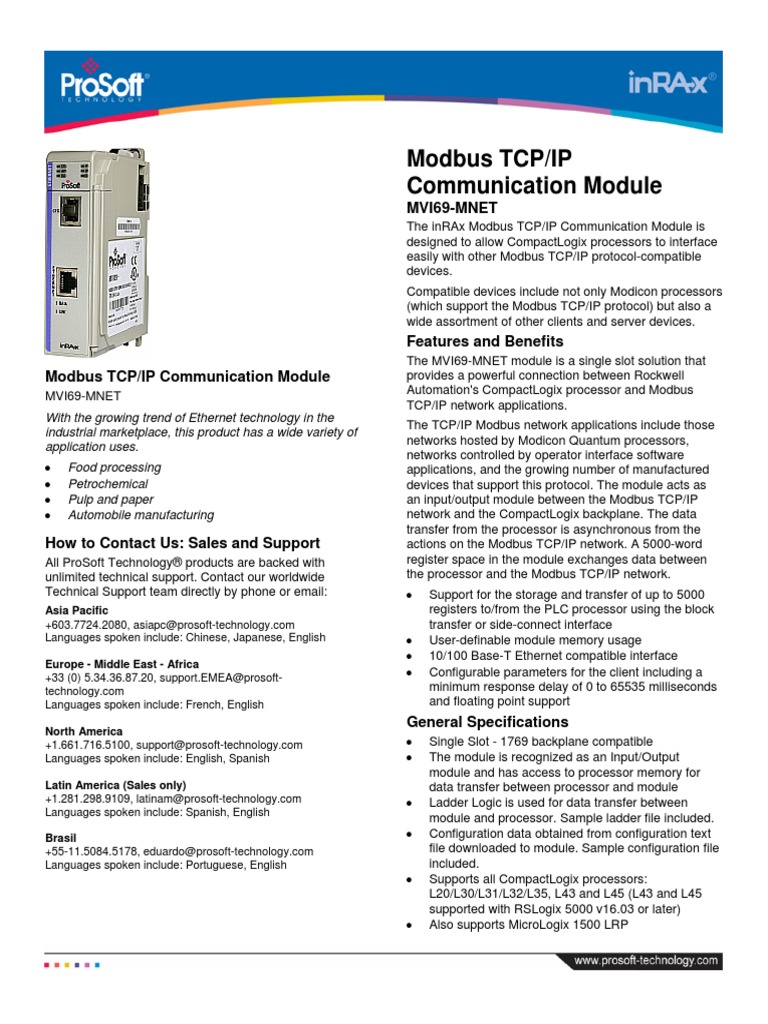

Modbus TCP/IP
Communication Module
MVI69-MNET
The inRAx Modbus TCP/IP Communication Module is
designed to allow CompactLogix processors to interface
easily with other Modbus TCP/IP protocol-compatible
devices.
Compatible devices include not only Modicon processors
(which support the Modbus TCP/IP protocol) but also a
wide assortment of other clients and server devices.
Features and Benefits
The MVI69-MNET module is a single slot solution that
Modbus TCP/IP Communication Module provides a powerful connection between Rockwell
MVI69-MNET Automation's CompactLogix processor and Modbus
TCP/IP network applications.
With the growing trend of Ethernet technology in the
The TCP/IP Modbus network applications include those
industrial marketplace, this product has a wide variety of
networks hosted by Modicon Quantum processors,
application uses.
networks controlled by operator interface software
• Food processing applications, and the growing number of manufactured
• Petrochemical devices that support this protocol. The module acts as
• Pulp and paper an input/output module between the Modbus TCP/IP
• Automobile manufacturing network and the CompactLogix backplane. The data
transfer from the processor is asynchronous from the
How to Contact Us: Sales and Support actions on the Modbus TCP/IP network. A 5000-word
All ProSoft Technology® products are backed with register space in the module exchanges data between
unlimited technical support. Contact our worldwide the processor and the Modbus TCP/IP network.
Technical Support team directly by phone or email: • Support for the storage and transfer of up to 5000
Asia Pacific registers to/from the PLC processor using the block
+603.7724.2080, [email protected] transfer or side-connect interface
Languages spoken include: Chinese, Japanese, English • User-definable module memory usage
• 10/100 Base-T Ethernet compatible interface
Europe - Middle East - Africa
+33 (0) 5.34.36.87.20, support.EMEA@prosoft-
• Configurable parameters for the client including a
technology.com minimum response delay of 0 to 65535 milliseconds
Languages spoken include: French, English and floating point support
General Specifications
North America
+1.661.716.5100, [email protected] • Single Slot - 1769 backplane compatible
Languages spoken include: English, Spanish • The module is recognized as an Input/Output
module and has access to processor memory for
Latin America (Sales only) data transfer between processor and module
+1.281.298.9109, [email protected] • Ladder Logic is used for data transfer between
Languages spoken include: Spanish, English
module and processor. Sample ladder file included.
Brasil • Configuration data obtained from configuration text
+55-11.5084.5178, [email protected] file downloaded to module. Sample configuration file
Languages spoken include: Portuguese, English included.
• Supports all CompactLogix processors:
L20/L30/L31/L32/L35, L43 and L45 (L43 and L45
supported with RSLogix 5000 v16.03 or later)
• Also supports MicroLogix 1500 LRP
Hardware Specifications Modbus Function Codes
Specification Description Code Description
Dimensions Standard 1769 Single-slot module 1: Read Output Status
Current Load 800 mA max@ 5 VDC 2: Read Input Status
Power supply distance rating of 2
3: Read Multiple Data Registers
Operating Temp. 0 to 60°C (32 to 140°F)
4: Read Input Registers
Storage Temp. -40 to 85°C (-40 to 185°F)
5: Write Single Bit
Relative Humidity 5 to 95% (non-condensing)
6: Write Single Data Register
LED Indicators Power and Module Status
Application Status 15: Write Multiple Bits
CFG Port Activity 16: Write Multiple Data Register
Ethernet Port Activity
Error Status Modbus TCP/IP Client
CFG Port (CFG) RJ45 (DB-9M with supplied cable) The client driver supports the active reading and writing
RS-232 only of data with Modbus TCP/IP compatible devices.
No hardware handshaking
One client connection available (connect up to 100
App Port (Ethernet 10/100 Base-T Ethernet compatible servers/devices with 100 commands).
modules) interface
Electrical Isolation 1500 V rms at
50 Hz to 60 Hz for 60 s, applied as Additional Products
specified in section 5.3.2 of IEC ProSoft Technology offers a full complement of
60950: 1991 hardware and software solutions for a wide variety of
Ethernet Broadcast Storm industrial communication platforms.
Resiliency = less than or equal to Compatible products in the inRAx product line also
5000 [ARP] frames-per-second and include:
less than or equal to 5 minutes
duration Modbus Master/Slave Communication Module for
Shipped with Unit RJ45 to DB-9M cables for each
CompactLogix / MicroLogix (MVI69-MCM)
port Modbus TCP/IP Client Communication Module for
6-foot RS-232 configuration Cable CompactLogix / MicroLogix (MVI69-MNETC)
Visit our web site at http://www.prosoft-technology.com
Functional Specifications for a complete list of products.
General Protocol specifications
Floating point data movement supported, including Ordering Information
configurable support for Enron/Daniel implementation. To order this product, please use the following:
Modbus Server Protocol Specifications MVI69-MNET Modbus TCP/IP Communication Module
The server driver supports connections to Modbus To place an order, please contact your local ProSoft
TCP/IP clients supporting Service Port 502 using the Technology distributor. For a list of ProSoft distributors
standard MBAP protocol, and clients supporting Modbus near you, go to http://www.prosoft-technology.com
on Service Port 2000. Distributors:
Place your order by email or fax to:
General
• Supports five independent server connections for North American / Latin American / Asia Pacific
Service Port 502 [email protected],
fax to +1 661.716.5101
• Supports five independent server connections for
Service Port 2000 Europe
• All data mapping begins at Modbus register 40001 [email protected],
fax to +33 (0) 5.61.78.40.52
Status Data Copyright © ProSoft Technology, Inc. 2000 - 2008. All Rights Reserved.
Error codes, counters, and port status available May 16, 2008
