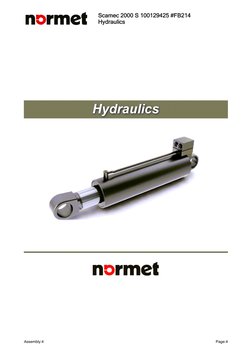

Scamec 2000 S 100129425 #FB214

Hydraulics

Assembly:4 Page:4
 Scamec 2000 S 100129425 #FB214
Hydraulics

Item Part No. Description Standard designation Qty Units

Schematics manual
100024499 Hydraulic pump fittings
46143940 Hydraulic pump fittings
100049331 Pressure filter fittings
100006270 Emergency stop valve fittings
100028121 Emergency stop valve
45884880 Engine end connector fittings
45884770 Load end connector fittings
45886570 Non-return valve fittings
45885190 Hydraulic oil tank fittings
46041060 Adapter kit for hydraulic pump
100114980 Diagram / piping, Brakes
100006127 Safety brake valve fittings
56076380 Safety brake valve
100006123 Charging valve fittings
56076410 Charging valve
100006217 Brake valve fittings
100007387 Axle fittings, Load end
100006132 Pressure measuring points
100006141 Shuttle valve fittings
100106034 Brake release hand pump fittings
100111167 Diagram / piping, Steering
45670860 Steering device fittings
56001753 Steering hydraulic motor
100111216 Fluid control valve fittings
45981620 Diagram / piping, Support legs + push blade
45883960 4/2 Control valve fittings
45981610 Support leg / push blade valve fittings
45884060 Diagram / piping, Cabin lifting + tilting
45884070 Cabin lifting / tilting control valve fittings
45884010 Pressure reducing valve fittings
45884090 Cabin lifting cylinder fittings
100004094 Diagram / piping, By pass filter
45884670 By pass filter connections
100009372 Diagram / piping, LS-signal block and shuttle valve
100009296 LS-signal valve fittings
56075559 LS-signal valve
100009343 Shuttle valve fittings
100111281 Diagram / piping, Pumps and filters
45883890 Suction / drain line fittings
46046760 Transmission oil piping
46045510 Connector assembly
45980790 Connector assembly
45880270 Transmission filter fittings

Assembly:4 Page:4
 Scamec 2000 S 100129425 #FB214
Hydraulic pump fittings

11

13

12

17 16

1
2.1
1.1
2 1.2

3
7
10 9
6 4 8 14 15
Assembly:100024499 Page:4_3
 Scamec 2000 S 100129425 #FB214
Hydraulic pump fittings

Item Part No. Description Standard designation Qty Units

1 56060100 HYDRAULIC PUMP COMPLETE 1
1.1 100079255 REGULATOR 1
1.2 100049022 SEAL KIT 1
2 56072812 NON-RETURN VALVE 1
2.1 57952624 O-RING 2
3 52427689 SAE-FLANGE 1
4 56610983 FLANGE COUPLING 1
5 52427630 SAE-FLANGE 2
6 52302619 O-RING OD63.8X3.53MM 1
7 52450103 STRAIGHT THREAD CONNECTOR 16F42EDMXS 1
8 52452323 L-FITTING 16R6MXS 1
9 52455003 MEASURING PLUG 1
10 52449162 MEASURE QUICK COUPLING 1
11 52450871 ANGLE COUPLING 12-10C5OMXS 1
12 52450186 STRAIGHT THREAD CONNECTOR 4F5OMXS 1
13 52451432 ANGLE COUPLING 4C6MXS 1
14 52004300 HEX SOCKET BOLT ST12.9 UNC 3/8"X83, DIN912 4
15 52214251 LOCK WASHER 4
16 52064599 HEX SCREW ST8.8ZN, UNC 1/2"X38, NA 4
17 52214269 LOCK WASHER M12X19MM, DIN25201 4

Assembly:100024499 Page:4_3

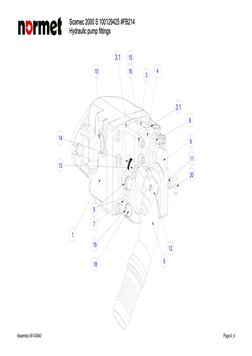

 Scamec 2000 S 100129425 #FB214
Hydraulic pump fittings

3.1 15

10 16 4
3

3.1
8

14 9

11
13
20

7
1
19
12
6
18

Assembly:46143940 Page:4_4
 Scamec 2000 S 100129425 #FB214
Hydraulic pump fittings

Item Part No. Description Standard designation

Qty Units
1 56060110 HYDRAULIC PUMP 1
3 56072812 NON-RETURN VALVE 1
3.1 57952624 O-RING 2
4 52427689 FLANGE 1
5 52427630 FASTENER 2
6 56610751 COUPLING 1
7 52302619 O-RING 56,74X3,53 90SHORE 1
8 52450079 COUPLING 12-16F42EDMXS 1
9 52451440 ANGLE COUPLING 12C6MXS 1
10 52450871 ANGLE COUPLING 12-10C50MXS 1
11 52450186 COUPLING 4F5OMXS 1
12 52452331 L-FITTING 12R6MXS 1
13 52453990 METERING PLUG 12TT4XS 1
14 52449162 METERING FITTING 1
15 52004300 HEX SOCKET SCREW UNC 3/8X83 12.9 4
16 52214251 LOCK WASHER M10 NORD-LOCK 4
18 52064599 HEX SCREW UNC 1/2X38 8.8 6
19 52214269 LOCK WASHER M12 NORD-LOCK 6
20 52451432 ANGLE COUPLING 4C6MXS 1

Assembly:46143940 Page:4_4
 Scamec 2000 S 100129425 #FB214
Pressure filter fittings

3 4

8
8

5 9

7
10

1.1

Assembly:100049331 Page:4_6

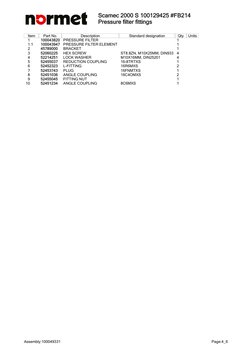

 Scamec 2000 S 100129425 #FB214
Pressure filter fittings

Item Part No. Description Standard designation Qty Units

1 100043820 PRESSURE FILTER 1
1.1 100043947 PRESSURE FILTER ELEMENT 1
2 45789000 BRACKET 1
3 52060225 HEX SCREW ST8.8ZN, M10X25MM, DIN933 4
4 52214251 LOCK WASHER M10X16MM, DIN25201 4
5 52455037 REDUCTION COUPLING 16-8TRTXS 1
6 52452323 L-FITTING 16R6MXS 2
7 52453743 PLUG 16FNMTXS 1
8 52451036 ANGLE COUPLING 16C4OMXS 2
9 52455045 FITTING NUT 1
10 52451234 ANGLE COUPLING 8C6MXS 1

Assembly:100049331 Page:4_6
 Scamec 2000 S 100129425 #FB214
Emergency stop valve fittings

10 11
9

8 7

6 4
5 7

Assembly:100006270 Page:4_7
 Scamec 2000 S 100129425 #FB214
Emergency stop valve fittings

Item Part No. Description Standard designationQty Units

1 100028121 EMERGENCY STOP VALVE 1
2 46178280 FASTENER 8X184X235 1
3 52450350 COUPLING 16-12F42EDMXS 3
4 52450046 COUPLING 8-8F42EDMXS 1
5 52450012 COUPLING 4-4F42EDMXS 2
6 52451234 ANGLE COUPLING 8C6MXS 1
7 52451432 COUPLING 4C6MXS 3
8 52452042 L-FITTING 4R6MXS 1
9 52449162 METERING FITTING 2103-01-18.0 2
10 52060514 HEX SCREW M10X20 DIN933 8.8ZN 3
11 52214251 LOCK WASHER M10 NORD-LOCK 3

Assembly:100006270 Page:4_7
 Scamec 2000 S 100129425 #FB214
Emergency stop valve

Assembly:100028121 Page:4_8
 Scamec 2000 S 100129425 #FB214
Emergency stop valve

Item Part No. Description Standard designation Qty Units

1 100028121 EMERGENCY STOP VALVE COMPLETE INCLUDE ITEMS 2-6 1
2 57991130 SOLENOID COIL 1
3 100015083 PRESSURE RELIEF VALVE 1
4 100029271 VALVE CARTRIDGE 1
5 100029272 DIRECTIONAL VALVE 1
6 100015084 PRESSURE RELIEF VALVE 1

Assembly:100028121 Page:4_8
 Scamec 2000 S 100129425 #FB214
Engine end connector fittings

7 12 6 8 2

1
6 6 10 9

11

10 5 6 5 6 4 3
Assembly:45884880 Page:4_9
 Scamec 2000 S 100129425 #FB214
Engine end connector fittings

Item Part No. Description Standard designation

Qty Units
1 56620727 COUPLING X1 3/4 L55 3
2 45709100 FASTENER 1
3 52117082 LOCK NUT M8 DIN985 8.8ZN 2
4 52070301 HEX SCREW M8X180 DIN931 8.8ZN 2
5 52450350 COUPLING 16-12F42EDMXS 2
6 52450343 COUPLING 8-12F42EDMXS 5
7 52451127 ANGLE COUPLING 16-12C4OMXS 1
8 52451119 ANGLE COUPLING 12C40MXS 1
9 52434412 REDUCTION FITTING 3/4-R1/2 2
10 52450483 COUPLING 6-8F42EDMXS 2
11 52450061 COUPLING 12F42EDMXS 1
12 52452125 T-COUPLING 8S6MXS 1

Assembly:45884880 Page:4_9
 Scamec 2000 S 100129425 #FB214
Load end connector fittings

18 17

4 8

10 9 6

2 15 2 7 5 21

7 5 11
1

11
16
13 14
20 19

12
4 8

Assembly:45884770 Page:4_10
 Scamec 2000 S 100129425 #FB214
Load end connector fittings

Item Part No. Description Standard designation Qty Units

1 56620727 COUPLING X1 3
2 52450350 STRAIGHT THREAD CONNECTOR 16-12F42EDMXS 2
3 52450061 STRAIGHT THREAD CONNECTOR 12F42EDMXS 3
4 52450343 STRAIGHT THREAD CONNECTOR 8-12F42EDMXS 3
5 52450012 STRAIGHT THREAD CONNECTOR 4-4F42EDMXS 2
6 52434255 REDUCTION FITTING 24-RSI-12-06 2
7 52436300 REDUCTION FITTING 24-RSI-12-04 2
8 52452125 T-COUPLING 8S6MXS 3
9 52450467 STRAIGHT THREAD CONNECTOR 6-6F42EDMXS 1
10 52452307 L-FITTING 6R6MXS 1
11 52452034 T-COUPLING 4S6MXS 2
12 52451002 ANGLE COUPLING 8C4OMXS 1
13 52453974 FITTING NUT ST, ID10 1
14 52453396 REDUCTION COUPLING 6-4TRTXS 1
15 52453529 PLUG 8FNMTXS 1
16 45709100 FASTENER 1
17 52453180 REDUCTION COUPLING 8-4TRTXS 1
18 52453438 FITTING NUT 3/4-16" 1
19 52070301 HEX SCREW ST8.8ZN, M8X180MM, DIN931 2
20 52117082 LOCK NUT ST8.8ZN, M8, DIN985 2
21 52451432 ANGLE COUPLING 4C6MXS 1

Assembly:45884770 Page:4_10
 Scamec 2000 S 100129425 #FB214
Non-return valve fittings

3 1 4 5

Assembly:45886570 Page:4_11
 Scamec 2000 S 100129425 #FB214
Non-return valve fittings

Item Part No. Description Standard designation Qty Units

1 56043730 NON-RETURN VALVE 1
2 56620511 COUPLING T1 3/4 L55 1
3 52450103 STRAIGHT THREAD CONNECTOR 16F42EDMXS 1
4 52450079 STRAIGHT THREAD CONNECTOR 12-16F42EDMXS 1
5 52453321 STRAIGHT THREAD CONNECTOR 12F640MXS 1
6 52451127 ANGLE COUPLING 16-12C4OMXS 2

Assembly:45886570 Page:4_11
 Scamec 2000 S 100129425 #FB214
Hydraulic oil tank fittings

Assembly:45885190 Page:4_12
 Scamec 2000 S 100129425 #FB214
Hydraulic oil tank fittings

Item Part No. Description Standard designation Qty Units

1 52454238 COUPLING 20-16F42EDMXS 1
2 52452323 L-FITTING 16R6MXS 1
3 52451457 ANGLE COUPLING 16C6MXS 2
4 52454337 REDUCTION FITTING 16-12TRTXS 1
5 52455045 NUT 16BTXS 1
6 52451440 ANGLE COUPLING 12C6MXS 1

Assembly:45885190 Page:4_12
 Scamec 2000 S 100129425 #FB214
Adapter kit for hydraulic pump

3 5
2

Assembly:46041060 Page:4_14
 Scamec 2000 S 100129425 #FB214
Adapter kit for hydraulic pump

Item Part No. Description Standard designation Qty Units

1 54842521 ADAPTER SAE C-SAE B 1
2 54842513 BUSHING Z14/13 L=50 1
3 52230372 CIRCLIP 32X1,5 DIN471 1
5 52304508 O-RING 101,19X3,53 70SHORE 1

Assembly:46041060 Page:4_14
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Brakes

5
51

55 61 66

66

1
50
66
58

10 9 11
8 69
54 56 59
59
70
57 32

30 68 65
30
3 3 4
2 57
6 63 59
63 62

57 58 64
60
31
31

60 6
53 4
31

63

67 69 52 56 66 58 64

50

Assembly:100114980 Page:4_16
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Brakes

Item Part No. Description Standard designation Qty Units

1 100006127 SAFETY BRAKE VALVE FITTINGS 1
2 100006123 CHARGING VALVE FITTINGS 1
3 100006217 BRAKE VALVE FITTINGS 2
4 100007387 AXLE FITTINGS 2
5 100006132 PRESSURE MEASURING POINTS 1
6 100006141 SHUTTLE VALVE FITTINGS 1
8 100106034 BRAKE RELEASE HAND PUMP FITTINGS 1
9 56019904 PRESSURE GAUGE 1
10 52449865 MEASURE CONNECTOR 1
11 41018550 SYMBOL-PARKING BRAKE PRESSURE 1
30 52452307 L-FITTING 6R6MXS 2
31 52453917 STRAIGHT COUPLING 6HMTXS 3
32 52450566 STRAIGHT COUPLING 8HMTXS 1
50 56716079 HOSE ASSEMBLY S 1/4" S L=0.6M 2
51 56716111 HOSE ASSEMBLY S 1/4" S L=0.8M 1
52 56716152 HOSE ASSEMBLY S 1/4" S L=1.0M 1
53 56716178 HOSE ASSEMBLY S 1/4" S L=1.2M 1
54 56716236 HOSE ASSEMBLY S 1/4" S L=1.8M 3
55 56716277 HOSE ASSEMBLY S 1/4" S L=2.2M 1
56 56716350 HOSE ASSEMBLY S 1/4" S L=3.0M 3
57 56786031 HOSE ASSEMBLY S 3/8" S L=0.4M 3
58 56786114 HOSE ASSEMBLY S 3/8" S L=0.8M 3
59 56786155 HOSE ASSEMBLY S 3/8" S L=1.0M 4
60 56786213 HOSE ASSEMBLY S 3/8" S L=1.6M 2
61 56786254 HOSE ASSEMBLY S 3/8" S L=2.0M 1
62 56786338 HOSE ASSEMBLY S 3/8" S L=2.8M 2
63 56786353 HOSE ASSEMBLY S 3/8" S L=3.0M 4
64 56789118 HOSE ASSEMBLY S 1/2" S L=0.8M 2
65 56789175 HOSE ASSEMBLY S 1/2" S L=1.2M 1
66 56789191 HOSE ASSEMBLY S 1/2" S L=1.4M 4
67 56789316 HOSE ASSEMBLY S 1/2" S L=2.6M 1
68 56789332 HOSE ASSEMBLY S 1/2" S L=2.8M 1
69 56789357 HOSE ASSEMBLY S 1/2" S L=3.0M 2
70 100017539 MEASURE HOSE 1

Assembly:100114980 Page:4_16
 Scamec 2000 S 100129425 #FB214
Safety brake valve fittings

5 3 7

4 3 4

5 3 2 2

Assembly:100006127 Page:4_17
 Scamec 2000 S 100129425 #FB214
Safety brake valve fittings

Item Part No. Description Standard designation Qty Units

1 56076380 SAFETY BRAKE VALVE 1
2 52450152 COUPLING 8F42EDMXS 2
3 52450467 COUPLING 6-6F42EDMXS 3
4 52449162 METERING FITTING 2103-01-18.0 2
5 52451226 ANGLE COUPLING 6C6MXS 2
6 52450723 PLUG 6FNMTXS 1
7 52450012 COUPLING 4-4F42EDMXS 1

Assembly:100006127 Page:4_17
 Scamec 2000 S 100129425 #FB214
Safety brake valve

5
6

7 4
2
3

Assembly:56076380 Page:4_18
 Scamec 2000 S 100129425 #FB214
Safety brake valve

Item Part No. Description Standard designation Qty Units

1 56076380 SAFETY BRAKE VALVE COMPLETE INCLUDE ITEMS 2-7 1
2 57702560 2/2-VALVE 1
3 57701880 SOLENOID COIL Y75 2
4 100015076 3/2-VALVE 1
5 57701880 SOLENOID COIL Y2 1
6 100015075 CHECK VALVE 1
7 100000283 PRESSURE REDUCING VALVE 1

Assembly:56076380 Page:4_18
 Scamec 2000 S 100129425 #FB214
Charging valve fittings

2 3

3
4
5
1
7

Assembly:100006123 Page:4_19
 Scamec 2000 S 100129425 #FB214
Charging valve fittings

Item Part No. Description Standard designation Qty Units

1 56076410 CHARGING VALVE COMPLETE 1
2 52450046 COUPLING 8-8F42EDMXS 1
3 52450467 COUPLING 6-6F42EDMXS 3
4 52450012 COUPLING 4-4F42EDMXS 5
5 52451226 ANGLE COUPLING 6C6MXS 3
6 52451234 ANGLE COUPLING 8C6MXS 1
7 52451432 ANGLE COUPLING 4C6MXS 2

Assembly:100006123 Page:4_19
 Scamec 2000 S 100129425 #FB214
Charging valve

Assembly:56076410 Page:4_20
 Scamec 2000 S 100129425 #FB214
Charging valve

Item Part No. Description Standard designation Qty Units

1 56076410 CHARGING VALVE COMPLETE INCLUDE ITEMS 2-7 1
2 57991700 PRESSURE ACCUMULATOR 2
3 100016006 NON-RETURN VALVE 3
4 100014072 CHARGING VALVE 1
5 100016008 ORIFICE 1
6 100016009 ORIFICE 1
7 57812331 FILTER 1

Assembly:56076410 Page:4_20
 Scamec 2000 S 100129425 #FB214
Brake valve fittings

1.1

1.2

4 3

5 5

6
1

Assembly:100006217 Page:4_21
 Scamec 2000 S 100129425 #FB214
Brake valve fittings

Item Part No. Description Standard designation Qty Units

1 100049911 BRAKE PEDAL VALVE WITH PEDAL IINCLUDE TEMS 1.1-1.2 1
1.1 100013248 BRAKE PEDAL 1
1.2 100019518 RUBBER COVER 1
2 100006006 ADAPTER PLATE 1
3 52060118 HEX SCREW M8X16 DIN933 88ZN 4
4 52114311 LOCK WASHER M8 NORD-LOCK 4
5 52450475 COUPLING 6-M14F82EDMXS 3
6 52454253 ANGLE COUPLING 6M14C87OMXS 2

Assembly:100006217 Page:4_21
 Scamec 2000 S 100129425 #FB214
Axle fittings, Load end

4
9 8 5 5

6
9
3
7
4 1 2
2 1

16 18

14
13 12 10 11 18 17
15

Assembly:100007387 Page:4_22
 Scamec 2000 S 100129425 #FB214
Axle fittings, Load end

Item Part No. Description Standard designation Qty Units

1 52450897 COUPLING 8-M14F80MXS 2
2 52450475 COUPLING 6-M14F82EDMXS 2
3 52450368 COUPLING 4-M10F82EDMXS 1
4 52452125 T-COUPLING 8S6MXS 2
5 52452265 T-COUPLING 6S6MXS 2
6 52451432 ANGLE COUPLING 4C6MXS 1
7 52453982 METERING PLUG 8TT4MXS 1
8 52450848 METERING PLUG 6TT4MXS 1
9 52449162 METERING FITTING 2
10 45904890 FITTING M22X1,5/M14X1,5 1
11 52390143 COPPER RING 22X27X1,5 1
12 100063900 TEMPERATURE SWITCH, S35B 1
13 52390366 COPPER RING 14X18X1,0 1
14 56620420 COUPLING 1
15 52450012 COUPLING 1
16 45366250 REDUCTION FITTING R1/4"-M10X1 1
17 52080777 PLUG R1/4 DIN910 1
18 52391034 SEAL RING 2

Assembly:100007387 Page:4_22
 Scamec 2000 S 100129425 #FB214
Pressure measuring points

7
3
12 13 2 5 11 6 1 2
10 4

9 4
11 10 10 11

8 4
Assembly:100006132 Page:4_23
 Scamec 2000 S 100129425 #FB214
Pressure measuring points

Item Part No. Description Standard designation Qty Units

1 56620446 COUPLING T4 1/4 L140 1
2 56620420 COUPLING T1 1/4 L35 4
3 52449162 METERING FITTING 8
4 52442399 ANGLE COUPLING RK1/4-R1/4 SK 90° 3
5 52450012 COUPLING 4-4F42EDMXS 8
6 45366250 REDUCTION FITTING R1/4"-M10X1 1
7 100003747 PRESSURE SWITCH 1
8 55121636 PRESSURE SWITCH 1
9 55121701 PRESSURE SWITCH 1
10 52080777 PLUG R1/4" DIN910 58, ZN 5
11 52391034 SEAL RING 1/4" U13,5X18,7X1 5
12 52060449 HEX SCREW M6X80 DIN931 88ZN 4
13 52214012 LOCK WASHER M6 NORD-LOCK 4

Assembly:100006132 Page:4_23
 Scamec 2000 S 100129425 #FB214
Shuttle valve fittings

9 3 1

13 14 15 16

2 6 7
5
8

10 11 17 12
Assembly:100006141 Page:4_24
 Scamec 2000 S 100129425 #FB214
Shuttle valve fittings

Item Part No. Description Standard designation

Qty Units
1 56043110 SHUTTLE VALVE 2
2 56620693 COUPLING X1 1/2 L45 1
3 45677920 FASTENER 1
4 52450327 COUPLING 6F42EDMXS 6
5 52452265 T- COUPLING 6S6MXS 2
6 52453974 NUT 6BMTXS 2
7 52453396 REDUCTION FITTING 6-4TRTXS 2
8 52450483 STRAIGHT THREAD CONNECTOR 6-8F42EDMXS 3
9 52451010 ANGLE COUPLING 8-8C4OMXS 1
10 52450723 PLUG 6FNMTXS 1
11 52060167 HEX SCREW M8X60 DIN933 88ZN 2
12 52117082 NUT M8 DIN985 88ZN 2
13 52117066 NUT M6 DIN985 A4-80 2
14 52060449 HEX SCREW M6X80 DIN931 A4-80 2
15 52214012 WASHER M6X10 DIN25201 2
16 52110020 NUT M6 DIN934 A4-80 2
17 100017298 WASHER M8X16 DIN25201 2

Assembly:100006141 Page:4_24
 Scamec 2000 S 100129425 #FB214
Brake release hand pump fittings

15 16 17 18
22
19 14
21
20

25 24 23

7
6
3
7 2

10
8
9
3

5
7 2
4
1
1.1 11 12 13

Assembly:100106034 Page:4_24_1
 Scamec 2000 S 100129425 #FB214
Brake release hand pump fittings

Item Part No. Description Standard designation Qty Units

1 100102972 BLOCK 1
1.1 100106323 HAND PUMP 1
2 52450376 STRAIGHT THREAD CONNECTOR 8M18F82EDMXS 5
3 52451267 ANGLE COUPLING 8M18C8OMXS 1
4 52450319 STRAIGHT THREAD CONNECTOR 4M12F82EDMXS 1
5 52451432 ANGLE COUPLING 4C6MXS 1
6 52452315 L-FITTING 8R6MXS 1
7 52451234 ANGLE COUPLING 8C6MXS 6
8 52453180 REDUCTION COUPLING 8-4TRTXS 1
9 52453982 MEASURING PLUG 1/4-19 BSPP / 3/4-16 UNF SK 1
10 52449162 MEASURE QUICK COUPLING 1
11 52001377 HEX SOCKET BOLT ST8.8ZN, M8X65, DIN912 2
12 52200037 WASHER STZN, M8, DIN125 2
13 52117082 LOCK NUT ST8.8ZN, M8, DIN985 2
14 100106138 SHELTER 1
15 54916069 PIPE HOLDER 2
16 52001583 HEX SOCKET BOLT M6X45MM, DIN912 4
17 52200029 WASHER M6, DIN125 4
18 52117066 LOCK NUT M6, DIN985 4
19 100106048 HANDLE 1
20 54922596 COVERING PLUG 1
21 55141352 SHRINK SOCK L=0.13M
22 52842135 HAIR PIN COTTER 4X80MM, DIN11024 2
23 52060233 HEX SCREW ST8.8ZN, M10X30MM, DIN933 4
24 52200045 WASHER STZN, M10, DIN125 8
25 52117108 LOCK NUT ST8.8ZN, M10, DIN985 4

Assembly:100106034 Page:4_24_1
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Steering

59 31
30
58

58

30
31

32

55 51

55 51

2
32

57 53 57
3 32

33
56 52 55

54

34

35 50

36 37

Assembly:100111167 Page:4_25
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Steering

Item Part No. Description Standard designation Qty Units

1 100060021 STEERING VALVE COMPLETE 1
2 45670860 STEERING DEVICE FITTINGS 1
3 100111216 FLUID CONTROL VALVE FITTINGS 1
30 52452000 T-COUPLING 8S40MXS 2
31 52451010 ANGLE COUPLING 8-8C4OMXS 2
32 52453594 STRAIGHT COUPLING 4HMTXS 4
33 100075555 PLUG FNMLS 1
34 52451234 ANGLE COUPLING 8C6MXS 1
35 52452315 L-FITTING 8R6MXS 1
36 52452042 L-FITTING 4R6MXS 1
37 52451432 ANGLE COUPLING 4C6MXS 1
50 56716210 HOSE ASSEMBLY S 1/4" S L=1.6M 1
51 56716236 HOSE ASSEMBLY S 1/4" S L=1.8M 2
52 56716251 HOSE ASSEMBLY S 1/4" S L=2.0M 1
53 56716319 HOSE ASSEMBLY S 1/4" S L=2.6M 1
54 05884860 HOSE 1
55 05884890 HOSE 3
56 56789159 HOSE ASSEMBLY S 1/2" S L=1.0M 1
57 56789217 HOSE ASSEMBLY S 1/2" S L=1.6M 2
58 56789233 HOSE ASSEMBLY S 1/2" S L=1.8M 2
59 56789258 HOSE ASSEMBLY S 1/2" S L=2.0M 1

Assembly:100111167 Page:4_25
 Scamec 2000 S 100129425 #FB214
Steering device fittings

15
10 13

16
12 2
4 3
7
11

6 14 5 11
8 1
9

Assembly:45670860 Page:4_26
 Scamec 2000 S 100129425 #FB214
Steering device fittings

Item Part No. Description Standard designation

Qty Units
1 45576390 SHAFT 1
2 35576410 FASTENER 1
3 45576550 BUSHING 1
4 56072572 STEERING VALVE 1
5 56001753 STEERING HYDRAULIC MOTOR 1
6 52091535 HEX SOCKET SCREW M10X90 12,9 4
7 52001997 HEX SOCKET SCREW M6X20 DIN912 10.9 3
8 56072580 STEERING VALVE BLOCK 1
9 52450012 COUPLING 4-4F42EDMXS 1
10 52451093 ANGLE COUPLING 6C40MXS 1
11 52450251 COUPLING 4-6F42EDMXS 2
12 52450046 COUPLING 8-8F42EDMXS 4
13 52449162 METERING FITTING 1
14 52214251 SPRING WASHER M10 DIN127 ZN 4
15 52450848 METERING PLUG 6TT4MXS 1
16 52214012 LOCK WAHER M6x10MM DIN25201 3

Assembly:45670860 Page:4_26
 Scamec 2000 S 100129425 #FB214
Steering hydraulic motor

12 21 22 14 2 4 5 23 7 10 29

11 24 8 25 44 9 26 28
27

Assembly:56001753 Page:4_27
 Scamec 2000 S 100129425 #FB214
Steering hydraulic motor

Item Part No. Description Standard designation Qty Units

2 57618050 SHAFT SEAL 17X28X5,5 1
4 57618068 BEARING RACE 1
5 57618076 NEEDLE BEARING 1
7 57618084 O-RING 54X1,5 4
8 57618092 DISTRIBUTOR PLATE 1
9 57618100 INTERMEDIATE PLATE 1
10 57618118 CHECK VALVE 2
11 57609182 WASHER 3
12 57609216 SCREW 2
14 57618126 DUST SEAL RING 17X23,5 1
21 57618134 PARALLEL KEY A16X5,5 DIN6885 1
22 - OUTPUT SHAFT 1
23 - HOUSING 1
24 57618142 CARDAN SHAFT 1
25 57618159 GEAR WHEEL SET 1
26 57618167 END COVER 1
27 57618175 SCREW M8 L=55MM 3
28 57947244 DRAIN PLUG 1
29 57609505 SEAL PLUG 2
44 57618183 SPACER 1

Assembly:56001753 Page:4_27
 Scamec 2000 S 100129425 #FB214
Fluid control valve fittings

5 1
9
4
8

2 6 7
2
13 3
11

12

10 11

Assembly:100111216 Page:4_28
 Scamec 2000 S 100129425 #FB214
Fluid control valve fittings

Item Part No. Description Standard designation Qty Units

1 56076520 PRESSURE REDUCING VALVE 1
2 52450152 STRAIGHT THREAD CONNECTOR 8F42EDMXS 2
3 52451234 ANGLE COUPLING 8C6MXS 1
4 52450251 STRAIGHT THREAD CONNECTOR 4-6F42EDMXS 1
5 52451432 ANGLE COUPLING 4C6MXS 1
6 52452315 L-FITTING 8R6MXS 1
7 52453180 REDUCTION COUPLING 8-4TRTXS 1
8 52453982 MEASURING PLUG 1/4-19 BSPP / 3/4-16 UNF SK 1
9 52449162 MEASURE QUICK COUPLING 1
10 52060142 HEX SCREW ST8.8ZN, M8X40MM, DIN931 2
11 52114311 LOCK WASHER M8X13MM, DIN25201 4
12 54923420 VIBRATION DAMPER 2
13 52060118 HEX SCREW ST8.8ZN, M8X16MM, DIN933 2

Assembly:100111216 Page:4_28
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Support legs + push blade

51

54 53 52 56 51 55

55 51

32

32 31 30 30 31

31 30 30 31

Assembly:45981620 Page:4_30
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Support legs + push blade

Item Part No. Description Standard designation Qty Units

1 45883960 4/2 CONTROL VALVE FITTINGS 1
2 45981610 SUPPORT LEG / PUSH BLADE VALVE FITTINGS 1
30 52450343 STRAIGHT THREAD CONNECTOR 8-12F42EDMXS 4
31 52451234 ANGLE COUPLING 8C6MXS 4
32 52450975 ANGLE COUPLING 8V6MXS 4
51 56789175 HOSE ASSEMBLY S 1/2" S L=1.2M 6
52 56789191 HOSE ASSEMBLY S 1/2" S L=1.4M 2
53 56789233 HOSE ASSEMBLY S 1/2" S L=1.8M 2
54 56789258 HOSE ASSEMBLY S 1/2" S L=2.0M 2
55 56789316 HOSE ASSEMBLY S 1/2" S L=2.6M 2
56 56789332 HOSE ASSEMBLY S 1/2" S L=2.8M 2

Assembly:45981620 Page:4_30
 Scamec 2000 S 100129425 #FB214
4/2 Control valve fittings

1.1

8 10 9
1.1
2

3
4
6
6
5
5
Assembly:45883960 Page:4_31
 Scamec 2000 S 100129425 #FB214
4/2 Control valve fittings

Item Part No. Description Standard designation

Qty Units
1 100066011 MAGNETIC VALVE 1
1.1 100066027 SOLENOID COIL, Y45, Y46 2
2 100066019 BOTTOM PLATE 1
3 45709110 PLATE 1
4 52450152 COUPLING 8F42EDMXS 4
5 52452315 L-FITTING 8R6MXS 2
6 52451234 ANGLE COUPLING 8C6MXS 2
7 52001724 HEX SOCKET SCREW M5X50 DIN912 12.9 4
8 52060043 HEX SCREW M6X25 DIN933 8.8ZN 2
9 52117066 NUT M6 DIN985 8.8ZN 2
10 52200029 WASHER M6 DIN125 2

Assembly:45883960 Page:4_31
 Scamec 2000 S 100129425 #FB214
Support leg / push blade valve fittings

5 7
1.1

5
3 5 7

6 8
4
Assembly:45981610 Page:4_32
 Scamec 2000 S 100129425 #FB214
Support leg / push blade valve fittings

Item Part No. Description Standard designation Qty Units

1 56074156 DIRECTIONAL CONTROL VALVE 3
1.1 57620411 SOLENOID COIL, Y37, Y38, Y39, Y40, Y72, Y73 6
3 56073646 BOTTOM PLATE 1
4 52450152 COUPLING 8F42EDMXS 6
5 52450046 COUPLING 8-8F42EDMXS 4
6 52435047 EXTENSION FITTING R 3/8" 15
7 52453529 PLUG 8FNMTXS 2
8 52390556 SEAL RING 3/8" U17,4X24,0X1,5 15
9 52001724 HEX SOCKET SCREW M5X50 DIN912 12.9 12

Assembly:45981610 Page:4_32
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Cabin lifting + tilting

2 33 34
32
51 56 53

53
32 56
51 35 30 30
55

56

54 30 30 35

51
3 3

50

51 52

52 52

30 31 31 30

Assembly:45884060 Page:4_35
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Cabin lifting + tilting

Item Part No. Description Standard designation Qty Units

1 45884070 CABIN LIFTING / TILTING CONTROL VALVE FITTINGS 1
2 45884010 PRESSURE REDUCING VALVE FITTINGS 1
3 45884090 CABIN LIFTING CYLINDER FITTINGS 1
30 52450251 COUPLING 4-6F42EDMXS 8
31 52451432 ANGLE COUPLING 4C6MXS 4
32 52453594 COUPLING 4HMTXS 2
33 52453396 REDUCING FITTING 6-4TRTXS 1
34 52453487 NUT 4BMTXS 1
35 52451697 ANGLE COUPLING 4V6MXS 2
50 56716038 HOSE ASSEMBLY S 1/4 S L=0,4M JIC 1
51 56716079 HOSE ASSEMBLY S 1/4 S L=0,6M JIC 4
52 56716111 HOSE ASSEMBLY S 1/4 S L=0,8M JIC 3
53 56716152 HOSE ASSEMBLY S 1/4 S L=1,0M JIC 2
54 56716178 HOSE ASSEMBLY S 1/4 S L=1,2M JIC 2
55 56716277 HOSE ASSEMBLY S 1/4 S L=2,2M JIC 2
56 56716350 HOSE ASSEMBLY S 1/4 S L=3,0M JIC 4

Assembly:45884060 Page:4_35
 Scamec 2000 S 100129425 #FB214
Cabin lifting / tilting control valve fittings

4 4

8 7 5
6 8

7 5 6 8

1.1 1.1
1 1

2 2

10 11

7 5 6 9 12 10 11
Assembly:45884070 Page:4_36
 Scamec 2000 S 100129425 #FB214
Cabin lifting / tilting control valve fittings

Item Part No. Description Standard designationQty Units

1 56074156 MAGNETIC VALVE 2
1.1 57620411 SOLENOID COIL, Y16,Y17,Y106A,Y106B 4
2 56073091 DOUBLE THROTTLE/CHECK VALVE 2
3 56073000 SUBPLATE 1
4 52090958 HEX SOCKET SCREW M5X90 12.9 DIN912 8
5 52450038 COUPLING 4-8F42EDMXS 2
6 52450251 COUPLING 4-6F42EDMXS 4
7 52451432 ANGLE COUPLING 4C6MXS 2
8 52452042 L-FITTING 4R6MXS 3
9 52435047 EXTENSION FITTING R3/8" 2
10 52080819 PLUG R1/2 DIN910 58 ZN 2
11 52390200 SEAL RING 1/2" U21,5X28,7X2,5 2
12 52390556 SEAL RING 3/8" U17,4X24,0X1,5 2

Assembly:45884070 Page:4_36
 Scamec 2000 S 100129425 #FB214
Pressure reducing valve fittings

1 7
5
9
8
3 4

10

Assembly:45884010 Page:4_37
 Scamec 2000 S 100129425 #FB214
Pressure reducing valve fittings

Item Part No. Description Standard designation Qty Units

1 56075740 PRESSURE REDUCING VALVE 1
2 52450251 COUPLING 4-6F42EDMXS 1
3 52451044 ANGLE COUPLING 4-4C4OMXS 1
4 52434230 REDUCTION FITTING R3/8-R1/4 1
5 52452307 L-FITTING 6R6MXS 1
6 52450848 METERING PLUG 6TT4MXS 1
7 52450467 COUPLING 6-6F42EDMXS 1
8 52453396 REDUCTION FITTING 6-4TRTXS 1
9 52453974 NUT 6BMTXS 1
10 52449162 METERING FITTING 1

Assembly:45884010 Page:4_37
 Scamec 2000 S 100129425 #FB214
Cabin lifting cylinder fittings

4 6 6
6 4 1

2 2

7 5
5 2

5 2

Assembly:45884090 Page:4_38
 Scamec 2000 S 100129425 #FB214
Cabin lifting cylinder fittings

Item Part No. Description Standard designation Qty Units

1 56075708 LOAD LOWERING VALVE 2
2 52450038 COUPLING 4-8F42EDMXS 4
4 52450012 COUPLING 4-4F42EDMXS 2
5 52451432 ANGLE COUPLING 4C6MXS 3
6 52452042 L-FITTING 4R6MXS 3
7 52452034 T-COUPLING 4S6MXS 1

Assembly:45884090 Page:4_38
 Scamec 2000 S 100129425 #FB214
Diagram / piping, By pass filter

50 30

51
3

1
1.1

50

Assembly:100004094 Page:4_39
 Scamec 2000 S 100129425 #FB214
Diagram / piping, By pass filter

Item Part No. Description Standard designation Qty Units

1 100004093 BYPASS FILTER COMPLETE 1
1.1 100004142 BYPASS FILTER ELEMENT 1
2 45884670 BYPASS FILTER CONNECTIONS 1
3 56011158 BALL VALVE G1/2" 1
30 52453917 COUPLING 6HMTXS 1
50 56786353 HOSE ASSEMBLY S 3/8 S L=3,0M JIC 2
51 56786155 HOSE ASSEMBLY S 3/8 S L=1,0M JIC 1

Assembly:100004094 Page:4_39
 Scamec 2000 S 100129425 #FB214
By pass filter connections

1 3 2 4 5

Assembly:45884670 Page:4_40
 Scamec 2000 S 100129425 #FB214
By pass filter connections

Item Part No. Description Standard designation Qty Units

1 52452323 L-FITTING 16R6MXS 1
2 52455037 REDUCTION FITTING 16-8TRTXS 1
3 52455045 NUT 16BTXS 1
4 52453727 REDUCTION FITTING 8-6TRTXS 1
5 52453438 NUT 8BMTXS 1
6 52453925 ANGLE COUPLING 6V6MXS 1

Assembly:45884670 Page:4_40
 Scamec 2000 S 100129425 #FB214
Diagram / piping, LS-signal block and shuttle valve

50 2

51 50 2 53

54

53 52

30

53

Assembly:100009372 Page:4_41
 Scamec 2000 S 100129425 #FB214
Diagram / piping, LS-signal block and shuttle
valve

Item Part No. Description Standard designation Qty Units

1 100009296 LS-SIGNAL VALVE FITTINGS 1
2 100009343 SHUTTLE VALVE FITTINGS 1
30 52453594 COUPLING 4HMTXS 1
50 56716038 HOSE ASSEMBLY S 1/4 S L=0,4M JIC 2
51 56716152 HOSE ASSEMBLY S 1/4 S L=1,0M JIC 1
52 56716251 HOSE ASSEMBLY S 1/4 S L=2,0M JIC 1
53 56716277 HOSE ASSEMBLY S 1/4 S L=2,2M JIC 3
54 56716293 HOSE ASSEMBLY S 1/4 S L=2,4M JIC 1

Assembly:100009372 Page:4_41
 Scamec 2000 S 100129425 #FB214
LS-signal valve fittings

3 3

2
2

2
1

2
Assembly:100009296 Page:4_42
 Scamec 2000 S 100129425 #FB214
LS-signal valve fittings

Item Part No. Description Standard designation Qty Units

1 56075559 LS-SIGNAL VALVE 1
2 52450012 STRAIGHT THREAD CONNECTOR 4-4F42EDMXS 6
3 52451432 ANGLE COUPLING 4C6MXS 2

Assembly:100009296 Page:4_42
 Scamec 2000 S 100129425 #FB214
LS-signal valve

Assembly:56075559 Page:4_43
 Scamec 2000 S 100129425 #FB214
LS-signal valve

Item Part No. Description Standard designation Qty Units

1 56075559 LS-SIGNAL VALVE COMPLETE INCLUDE ITEMS 2-4 1
2 57701880 SOLENOID COIL Y19 1
3 57702620 DIRECTIONAL VALVE WITHOUT COIL 1
4 100015086 SHUTTLE VALVE 3

Assembly:56075559 Page:4_43
 Scamec 2000 S 100129425 #FB214
Shuttle valve fittings

3
1
2
2
2

2 2

2
2

3 2
4 2
Assembly:100009343 Page:4_44
 Scamec 2000 S 100129425 #FB214
Shuttle valve fittings

Item Part No. Description Standard designation Qty Units

1 56043110 SHUTTLE VALVE 3
2 52450012 COUPLING 4-4F42EDMXS 9
3 52451432 ANGLE COUPLING 4C6MXS 2
4 52452034 T-COUPLING 4S6MXS 1

Assembly:100009343 Page:4_44
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Pumps and filters

6
7

59

50

54

57 53

56

52
8

51
55 58 4

52

10 1
2 3

Assembly:100111281 Page:4_45
 Scamec 2000 S 100129425 #FB214
Diagram / piping, Pumps and filters

Item Part No. Description Standard designation Qty Units

1 100024499 HYDRAULIC PUMP FITTINGS 1
2 46143940 HYDRAULIC PUMP FITTINGS 1
3 46041060 ADAPTER KIT FOR HYDRAULIC PUMP 1
4 100049331 PRESSURE FILTER FITTINGS 1
5 100006270 EMERGENCY STOP VALVE FITTINGS 1
6 45884880 ENGINE END CONNECTOR FITTINGS 1
7 45884770 LOAD END CONNECTOR FITTINGS 1
8 45886570 NON-RETURN VALVE FITTINGS 1
9 45883890 SUCTION / DRAIN LINE 1
10 45885190 HYDRAULIC OIL TANK FITTINGS 1
50 56737680 HOSE ASSEMBLY S 1" S L=1.2M 1
51 56737530 HOSE ASSEMBLY S 1" S L=1.4M 1
52 56737640 HOSE ASSEMBLY S 1" S L=1.6M 2
53 56737670 HOSE ASSEMBLY S 1" S L=2.2M 1
54 56737580 HOSE ASSEMBLY S 1" S L=2.8M 1
55 56700156 HOSE ASSEMBLY S 1" S L=1.0M 1
56 56700271 HOSE ASSEMBLY S 1" S L=2.2M 1
57 56700354 HOSE ASSEMBLY S 1" S L=3.0M 1
58 56732175 HOSE ASSEMBLY S 3/4" S L=1.2M 1
59 56732357 HOSE ASSEMBLY S 3/4" S L=3.0M 1

Assembly:100111281 Page:4_45
 Scamec 2000 S 100129425 #FB214
Suction / drain line fittings

30 29 28 27
1 8
7 14
8

18 19 20 21 22

7 14
6 5 4 3 2
50 51 53 51

31
11 10 9
25 26

19 19 21
24 12 16 17 23

Assembly:45883890 Page:4_46
 Scamec 2000 S 100129425 #FB214
Suction / drain line fittings

Item Part No. Description Standard designation

Qty Units
1 52427770 FLANGE 1
2 52302619 O-RING 74X3 53 90SHORE 2
3 52427630 FASTENER 4
4 52064425 O-RING UNC1/2X1 1/4 8
5 100003587 COUPLING 1
6 54917505 HOSE CLAMP 2
7 52450756 COUPLING 12-10F5OMXS 1
8 52450418 COUPLING 4-6F5OMXS 1
9 52436698 DOUBLE FITTING 1
10 52445160 ANGLE COUPLING 1
11 45787850 HOSE FITTING R 2 1/2 1
12 52434289 REDUCTION FITTING R1 1/2-R1 2
14 52451119 ANGLE COUPLING 12C4OMXS 1
16 52452091 T-COUPLING 16S4OMXS 2
17 52454337 REDUCTION FITTING 16-12TRTXS 2
18 52302197 O-RING 47,0X3 5 70SHORE 2
19 52427630 FASTENER 4
20 52064425 O-RING UNC1/2X1 1/4 4
21 56610751 COUPLING 2
22 54917711 HOSE CLAMP 2
23 52455045 NUT 16BTXS 2
24 52453743 PLUG 16FNMTXS 2
25 45789530 EXTENSION BUSHING 2
26 52091451 HEX SOCKET SCREW M12X25 12.9 DIN912 4
27 52450103 COUPLING 16F42EDMXS 1
28 52452323 L-FITTING 16R6MXS 1
29 52455003 METERING PLUG 16TT4XS 1
30 52449162 METERING FITTING 1
31 52436623 REDUCTION FITTING R2 1/2-R2 1
50 56541063 SUCTION HOSE L=0,6M
51 56732118 HOSE ASSEMBLY S 3/4 S L=0,8M JIC 2
53 54919055 SUCTION HOSE L=3M

Assembly:45883890 Page:4_46
 Scamec 2000 S 100129425 #FB214
Transmission oil piping

39 40 37

7 50

31 43

33
32
30 32
37 40 42

41 35 36
51
52

3
38
37 35 34 6
53

Assembly:46046760 Page:4_47
 Scamec 2000 S 100129425 #FB214
Transmission oil piping

Item Part No. Description Standard designationQty Units

1 46045510 CONNECTOR ASSEMBLY 1
3 45980790 CONNECTOR ASSEMBLY 1
6 45431190 COUPLING 1
7 100039100 PROTECTION SLEEVE 1
8 45880270 TRANSMISSION FILTER FITTINGS 1
30 52450376 STRAIGHT THREAD CONNECTOR 8M18F82EDMXS 1
31 52450418 STRAIGHT THREAD CONNECTOR 4-6F5OMXS 1
32 52390366 COPPER SEAL 14X18X1MM 2
33 52081056 HEX SOCKET PLUG 1
34 52450103 STRAIGHT THREAD CONNECTOR 16F42EDMXS 1
35 52450178 STRAIGHT THREAD CONNECTOR 16-12F5OMXS 2
36 52453339 STRAIGHT COUPLING 16F640MXS 1
37 52451457 ANGLE COUPLING 16C6MXS 3
38 52449162 MEASURE QUICK COUPLING 1
39 52435104 EXTENSION COUPLING 1
40 52450350 STRAIGHT THREAD CONNECTOR 16-12F42EDMXS 2
41 52390556 SEAL RING R3/8" 17.4X24X1.5MM 1
42 41953340 FITTING 1
43 52451432 ANGLE COUPLING 4C6MXS 1
50 56716178 HOSE ASSEMBLY S 1/4" S L=1.2M 1
51 56789159 HOSE ASSEMBLY S 1/2" S L=1.0M 1
52 56700214 HOSE ASSEMBLY S 1" S L=1.6M 1
53 56700339 HOSE ASSEMBLY S 1" S L=2.8M 1

Assembly:46046760 Page:4_47
 Scamec 2000 S 100129425 #FB214
Connector assembly

Assembly:46045510 Page:4_48
 Scamec 2000 S 100129425 #FB214
Connector assembly

Item Part No. Description Standard designation Qty Units

1 46043850 JUNCTION 1
2 52060167 HEX SCREW ST8.8ZN, M8X60MM, DIN933 2
3 52114311 LOCK WASHER M8X13MM, DIN25201 2
4 52200037 WASHER STZN, M8, DIN125 2
5 52110038 HEX NUT ST8ZN, M8, DIN934 2
6 52451044 ANGLE COUPLING 4-4C4OMXS 1
7 52449162 MEASURE QUICK COUPLING 1
8 52391034 USIT SEAL RING 13.74XS2.03MM 4
9 52080777 HEX PLUG R1/4" / 13MM 3
10 52081056 HEX SOCKET PLUG 1
11 52390366 SEAL 14X18X1MM 2

Assembly:46045510 Page:4_48
 Scamec 2000 S 100129425 #FB214
Connector assembly

Assembly:45980790 Page:4_49
 Scamec 2000 S 100129425 #FB214
Connector assembly

Item Part No. Description Standard designation Qty Units

2 56620487 COUPLING T1 1/2 L45 1
3 52080819 PLUG R1/2 DIN910 58, ZN 2
4 52390200 SEAL RING U21,5X28,7X2,5 2
5 52450046 COUPLING 8-8F42EDMXS 1

Assembly:45980790 Page:4_49
 Scamec 2000 S 100129425 #FB214
Transmission filter fittings

Assembly:45880270 Page:4_50
 Scamec 2000 S 100129425 #FB214
Transmission filter fittings

Item Part No. Description Standard designation Qty Units

1 52450178 COUPLING 16-12F5OMXS 2
2 52451457 ANGLE COUPLING 16C6MXS 2
3 52450160 COUPLING 16F50MXS 2
4 52450418 COUPLING 4-6F5OMXS 1
5 52451432 ANGLE COUPLING 4C6MXS 1
6 56700073 HOSEASSEMBLY S 1 S L=0,6M JIC 2
7 56716178 HOSE ASSEMBLY S 1/4 S L=1,2M JIC 1
8 46068510 SUPPORT 1

Assembly:45880270 Page:4_50
