<Euro3 NOVUS>

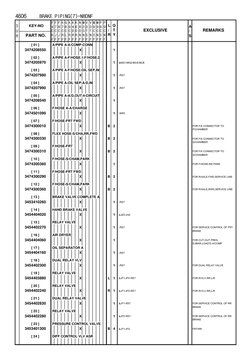

FIG. 4606 BRAKE PIPING(7)-N8DNF

4606 BRAKE PIPING(7)-N8DNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:CONN
3474208550 X 1

[ 02 ] A/PIPE A-F/HOSE.1:F/HOSE.2
3474205970 X 1 &MG1/MG2/MU5/MU8.

[ 03 ] A/PIPE A-F/HOSE:OIL SEP,IN

3474207980 X 1 -RS7.

[ 04 ] A/PIPE A-OIL SEP:A/D,IN

3474207990 X 1 -RS7.

[ 05 ] A/PIPE A-A/D,OUT:4-CIRCUIT
3474208540 X 1

[ 06 ] F/HOSE A-A/CHARGE
3474501090 X 1 -MA5.

[ 07 ] F/HOSE-FRT FWD
3474300010 X B 2 FOR FIX CONNECTOR TO
P/CHAMBER
[ 08 ] FLEX HOSE-S/CHA,RR,FWD
3474300330 X B 2 FOR FIX CONNECTOR TO
S/CHAMBER
[ 09 ] F/HOSE-FRT
3474300310 X B 2 FOR FIX CONNECTOR TO
S/CHAMBER
[ 10 ] F/HOSE-S/CHAM,PARK
3474300360 X 1 FOR F/HOSE-RR PARK

[ 11 ] F/HOSE-FRT FWD
3474300290 X B 2 FOR R/AXLE,FWD,SERVICE LINE

[ 12 ] F/HOSE-S/CHAM,PARK
3474300360 X B 2 FOR R/AXLE,RWD,SERVICE LINE

[ 13 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7.

[ 14 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2.

[ 15 ] RELAY VALVE
3454402270 X 1 -RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 16 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 17 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 18 ] DUAL RELAY VLV

3454402300 X 1 -RS7. FOR DUAL RELAY VALVE

[ 19 ] RELAY VALVE
3454403880 X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 20 ] RELAY VALVE
3454402240 X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 21 ] DUAL RELAY VALVE

3454402830 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 22 ] RELAY VALVE
3454402280 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 23 ] PRESSURE CONTROL VALVE
3453401300 X B 4 &JF1/JF5. FRT/RR

[ 24 ] DIFF CONTROL VLV ASR

4606 BRAKE PIPING(7)-N8DNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] DIFF CONTROL VLV ASR
3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 25 ] QUICK RELEASE VALVE
3453301970 X B 2 &JF1/JF5-RS7. FOR
S/CHAMBER-FRT,RWD,SERVICE
[ 26 ] SENDER A-AIR PRESSURE
3862000180 X 1

[ 27 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 3

[ 28 ] CHECK VALVE-FEMALE
3474707070 X 4

[ 29 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5.

[ 30 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 31 ] SAFETY VALVE A
3454402600 X 1 FOR FITTING FIX TO A/T,MAIN

[ 32 ] POWER CHAMBER,30
3454601790 X L 1 FOR F/AXLE:1ST,HANKUK AIR
BRAKE
[ 33 ] POWER CHAMBER,30
3454601800 X R 1 FOR F/AXLE:1ST,HANKUK AIR
BRAKE
[ 34 ] SPRING CHAMBER,3030
3454601760 X L 1 FOR F/AXLE:2ND,HANKUK AIR
BRAKE
[ 35 ] SPRING CHAMBER,3030
3454601770 X R 1 FOR F/AXLE:2ND,HANKUK AIR
BRAKE
[ 36 ] SPRING CHAMBER,3030
3454601710 X L 1 FOR SPRING CHAMBER-H.A.B

[ 37 ] SPRING CHAMBER,3030
3454601700 X R 1 FOR SPRING CHAMBER-H.A.B

[ 38 ] POWER CHAMBER,30
3454602060 X B 2 FOR POWER CHAMBER-H.A.B
 <Euro3 NOVUS>

FIG. 4607 BRAKE PIPING(8)-M2SNF

4607 BRAKE PIPING(8)-M2SNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:CONN
3474208550 X 1

[ 02 ] A/PIPE A-A/PIPE:F/HOSE
3474212000 X 1 &MG1/MG2/MU5/MU8.

[ 03 ] A/PIPE A-F/HOSE:UN,2W
3474207660 X 1

[ 04 ] A/PIPE A-UN,2W:A/D,IN
3474210360 X 1

[ 05 ] A/PIPE A-A/D,OUT:A/T,MAIN
3474210380 X 1 -RS7.

[ 06 ] F/HOSE A-A/CHARGE
3474501310 X 1

[ 07 ] F/HOSE-P/CHAM
3474300370 X B 2 -GA3. FOR F/HOSE FRT BRAKE

[ 08 ] F/HOSE-FRT
3474300310 X 2 FOR F/HOSE FIX TO SPRING
CHAMBER
[ 09 ] F/HOSE-P/CHAM
3474300370 X 2 FOR F/HOSE FIX TO SPRING
CHAMBER
[ 10 ] BRAKE VALVE COMPLETE A
3453410260 X 1 -RE2/RS7. FOR DUAL SEALING BRAKE VLV

[ 11 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 12 ] RELAY VALVE
3454402280 X 1 FOR SERVICE CONTROL OF FRT
BRAKE
[ 13 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 14 ] TRAILER HAND BRAKE VLV
3454401320 X 1 &TH1. FOR EURO-TRAILER BRAKE PARK

[ 15 ] CONTROL VALVE-TRAILER
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 16 ] DUAL RELAY VLV
3454402290 X 1 -RS7. FOR PARKING CONTROL OF RR
BRAKE
[ 17 ] A.L.S.V A
3454400290 X 1 &JH3. FOR A.L.S.V

[ 18 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 19 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 20 ] POWER CHAMBER,24
3454601650 X L 1 -GA3/RC3/RN2/RS5/RS6/RS7. FRT

[ 21 ] POWER CHAMBER,24
3454601660 X R 1 -GA3/RC3/RN2/RS5/RS6/RS7. FRT

[ 22 ] SPRING CHAMBER,3030
3454601700 X L 1 &GH8/GH9/GK6/GK7. RR

[ 23 ] SPRING CHAMBER,3030
3454601710 X R 1 &GH8/GH9/GK6/GK7. RR

[ 24 ] SENDER A-AIR PRESSURE

4607 BRAKE PIPING(8)-M2SNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] SENDER A-AIR PRESSURE
3862000180 X 2 FOR FRT/RR TANK

[ 25 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 26 ] CHECK VALVE-FEMALE
3474701370 X 3 -RS5/RS6/RS7.

[ 27 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 28 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 29 ] SWITCH A-LOW PRESS,0.3BAR

3863500230 X 1 &TH1. FOR TRAILER CONTROL V/V

[ 30 ] DOUBLE CHECK VLV

3453301980 X 1 &JH2&TH1. FOR T.C.V SIGNAL
 <Euro3 NOVUS>

FIG. 4608A BRAKE PIPING(9)-V3TSF;LHD(W/ABS,WO/RUSSIA)

4608A BRAKE PIPING(9)-V3TSF;LHD(W/ABS,WO/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:OIL SEP,IN

3474208000 X 1 -GK7/MA6/RS7.

[ 03 ] A/PIPE A-OIL SEP:A/D,IN

3474208010 X 1 -GK7/RS7.

[ 04 ] A/PIPE A-A/D,OUT:F.C.P.V
3474207180 X 1

[ 05 ] F/HOSE A-A/CHARGE
3474501010 X 1 &MG1/MU5.

[ 06 ] F/HOSE-S/CHAM,PARK
3474300360 X 1 &SB2. FOR F/HOSE FRT BRAKE

[ 07 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7. FOR DUAL SEALING BRAKE VLV

[ 08 ] HAND BRAKE VALVE

3454404030 X 1 &JE5&JH2. FOR GRADUAL PARKING BRAKE

[ 09 ] RELAY VALVE
3454402260 X 1 -RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 10 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 11 ] PURGE TANK A
3454401640 X 1 FOR A/DRYER REGENERATION

[ 12 ] 4-CIRCUIT PROTECTION VALVE

3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 13 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 14 ] CONTROL VALVE-TRAILER
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 15 ] DUAL RELAY VLV
3454402290 X 1 -RS7. FOR DUAL RELAY VALVE

[ 16 ] DUAL RELAY VLV

3454402510 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 17 ] RELAY VALVE
3454402240 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 18 ] RELAY VALVE
3454402240 X B 2 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 19 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 20 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 21 ] POWER CHAMBER,24
3454601650 X L 1 -RS7. FRT

[ 22 ] POWER CHAMBER,24
3454601660 X R 1 -RS7. FRT

[ 23 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 24 ] SPRING CHAMBER,3030
4608A BRAKE PIPING(9)-V3TSF;LHD(W/ABS,WO/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 25 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 26 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 27 ] SENDER A-AIR PRESSURE

3862000180 X 1 FOR FRT/RR TANK

[ 28 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 29 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 3 FOR PARK TANK

[ 30 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 31 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 32 ] CHECK VALVE-FEMALE
3474707070 X 1 &JE5. FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4608B BRAKE PIPING(9)-V3TSF;LHD(W/RUSSIA)

4608B BRAKE PIPING(9)-V3TSF;LHD(W/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:A/D,IN
3474210170 X 1 &RS7.

[ 03 ] A/PIPE A-A/D,OUT:F.C.P.V
3474207180 X 1

[ 04 ] F/HOSE A-A/CHARGE
3474501010 X 1 &MG1/MU5.

[ 05 ] F/HOSE-S/CHAM,PARK
3474300360 X 1 &SB2. FOR F/HOSE FRT BRAKE

[ 06 ] BRAKE VALVE COMPLETE A

3453401440 X 1 &RS7. FOR DUAL SEALING BRAKE VLV

[ 07 ] HAND BRAKE VALVE

3454404030 X 1 &JE5&JH2. FOR GRADUAL PARKING BRAKE

[ 08 ] RELAY VALVE
3454403290 X 1 &RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 09 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 10 ] PURGE TANK A
3454401640 X 1 FOR A/DRYER REGENERATION

[ 11 ] 4-CIRCUIT PROTECTION VALVE

3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 12 ] CONTROL VALVE-TRAILER
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 13 ] A.L.S.V A
3454401160 X 1 &JH3. FOR REAR SERVICE LINE

[ 14 ] DUAL RELAY VLV

3454403330 X 1 &RS7. FOR PARKING CONTROL VLV

[ 15 ] RELAY VALVE
3454403280 X B 2 &JF1/JF5&RS7. FOR R/VLV,RR,L/R

[ 16 ] SILENCER-VALVE,EXH
3454403390 X 6 &RS7.

[ 17 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 18 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 19 ] DOUBLE CHECK VLV
3453301980 X 1 &JH2&TH1. FOR T.C.V SIGNAL

[ 20 ] POWER CHAMBER,24
3454601720 X L 1 &RS7. FRT

[ 21 ] POWER CHAMBER,24
3454601730 X R 1 &RS7. FRT

[ 22 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 23 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 24 ] SPRING CHAMBER,3030
4608B BRAKE PIPING(9)-V3TSF;LHD(W/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 25 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 26 ] SENDER A-AIR PRESSURE

3862000180 X 2 FOR FRT/RR TANK

[ 27 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 28 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 29 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 30 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 31 ] CHECK VALVE-FEMALE
3474707070 X 1 &JE5. FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4608C BRAKE PIPING(9)-V3TSF;RHD(WO/ABS)

4608C BRAKE PIPING(9)-V3TSF;RHD(WO/ABS)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:A/D,IN
3474210170 X 1

[ 03 ] A/PIPE A-A/D,OUT:F.C.P.V
3474207180 X 1

[ 04 ] F/HOSE A-A/CHARGE
3474501010 X 1 &MG1/MU5.

[ 05 ] F/HOSE-S/CHAM,PARK
3474300360 X 1 &SB2. FOR F/HOSE FRT BRAKE

[ 06 ] BRAKE VLV COMPLETE A

3453401360 X 1 FOR DUAL SEALING BRAKE
VALVE
[ 07 ] PARKING VALVE
3454402310 X 1 &JE4&JH2. FOR AIR PARKING CONTROL

[ 08 ] RELAY VALVE
3454402260 X 1 FOR SERVICE CONTROL OF FRT
BRAKE
[ 09 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 10 ] PURGE TANK A
3454401640 X 1 FOR A/DRYER REGENERATION

[ 11 ] 4-CIRCUIT PROTECTION VALVE

3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 12 ] CONTROL VALVE-TRAILER
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 13 ] DUAL RELAY VLV
3454402290 X 1 -RS7. FOR DUAL RELAY VALVE

[ 14 ] RELAY VALVE
3454402240 X 1 -JF1. FOR SERVICE CONTROL OF RR
BRAKE
[ 15 ] POWER CHAMBER,24
3454601650 X L 1 -RS7. FRT

[ 16 ] POWER CHAMBER,24
3454601660 X R 1 -RS7. FRT

[ 17 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 18 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 19 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 20 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 21 ] SENDER A-AIR PRESSURE

3862000180 X 2 FOR FRT/RR TANK

[ 22 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 23 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 24 ] SWITCH A-LOW PRESS,2BAR

4608C BRAKE PIPING(9)-V3TSF;RHD(WO/ABS)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] SWITCH A-LOW PRESS,2BAR
3863500340 X 1 &JE5. FOR PARKING SW

[ 25 ] SWITCH A-LOW PRESS,0.3BAR

3863500230 X 1
 <Euro3 NOVUS>

FIG. 4608D BRAKE PIPING(9)-V3TSF;RHD(W/ABS)

4608D BRAKE PIPING(9)-V3TSF;RHD(W/ABS)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:A/D,IN
3474210170 X 1

[ 03 ] A/PIPE A-A/D,OUT:F.C.P.V
3474207180 X 1

[ 04 ] F/HOSE A-A/CHARGE
3474501010 X 1 &MG1/MU5.

[ 05 ] F/HOSE-S/CHAM,PARK
3474300360 X 1 &SB2. FOR F/HOSE FRT BRAKE

[ 06 ] BRAKE VLV COMPLETE A

3453401360 X 1 FOR DUAL SEALING BRAKE
VALVE
[ 07 ] PARKING VALVE
3454402310 X 1 &JE4&JH2. FOR AIR PARKING CONTROL

[ 08 ] RELAY VALVE
3454402260 X 1 FOR SERVICE CONTROL OF FRT
BRAKE
[ 09 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 10 ] PURGE TANK A
3454401640 X 1 FOR A/DRYER REGENERATION

[ 11 ] 4-CIRCUIT PROTECTION VALVE

3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 12 ] CONTROL VALVE-TRAILER
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 13 ] DUAL RELAY VLV
3454402290 X 1 -RS7. FOR DUAL RELAY VALVE

[ 14 ] RELAY VALVE
3454402240 X 1 -JF1. FOR SERVICE CONTROL OF RR
BRAKE
[ 15 ] DUAL RELAY VLV
3454402510 X 1 &JF1. FOR SERVICE CONTROL OF RR
BRAKE
[ 16 ] RELAY VALVE
3454402240 X B 2 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 17 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 18 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 19 ] CONTROL VALVE-TRAILER
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 20 ] TRAILER HAND BRAKE VLV
3454401320 X 1 &TH1. FOR EURO-TRAILER BRAKE PARK

[ 21 ] POWER CHAMBER,24
3454601650 X L 1 -RS7. FRT

[ 22 ] POWER CHAMBER,24
3454601660 X R 1 -RS7. FRT

[ 23 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 24 ] SPRING CHAMBER,3030
4608D BRAKE PIPING(9)-V3TSF;RHD(W/ABS)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 25 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 26 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 27 ] SENDER A-AIR PRESSURE

3862000180 X 2 FOR FRT/RR TANK

[ 28 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 29 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 30 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 31 ] SWITCH A-LOW PRESS,0.3BAR

3863500230 X 1

[ 32 ] DOUBLE CHECK VLV

3453301980 X 1 &JH2&TH1. FOR T.C.V SIGNAL
 <Euro3 NOVUS>

FIG. 4609 BRAKE PIPING(10)-V3TNF

4609 BRAKE PIPING(10)-V3TNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:CONN
3474208550 X 1

[ 02 ] A/PIPE A-UN,2W:F/HOSE
3474211980 X 1 &MG2.

[ 03 ] A/PIPE A-F/HOSE:OIL SEP,IN

3474208000 X 1 -GK7/MA6/RS7.

[ 04 ] A/PIPE A-OIL SEP:A/D,IN

3474208010 X 1 -GK7/RS7.

[ 05 ] A/PIPE A-A/D,OUT:F.C.P.V
3474207180 X 1

[ 06 ] F/HOSE A-A/CHARGE
3474501330 X 1 &MG2.

[ 07 ] F/HOSE-S/CHAM,PARK
3474300360 X B 2 &SB2. FOR F/HOSE FRT BRAKE

[ 08 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7.

[ 09 ] HAND BRAKE VALVE

3454404030 X 1 &JE5&JH2.

[ 10 ] RELAY VALVE
3454402260 X 1 -RS7.

[ 11 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 12 ] PURGE TANK A
3454401640 X 1 FOR A/DRYER REGENERATION

[ 13 ] 4-CIRCUIT PROTECTION VALVE

3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 14 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 15 ] CONTROL VALVE-TRAILER
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 16 ] DUAL RELAY VLV
3454402290 X 1 -RS7. FOR DUAL RELAY VALVE

[ 17 ] DUAL RELAY VLV

3454402510 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 18 ] RELAY VALVE
3454402240 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 19 ] RELAY VALVE
3454402240 X B 2 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 20 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 21 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 22 ] POWER CHAMBER,24
3454601650 X L 1 -RS7. FRT

[ 23 ] POWER CHAMBER,24
3454601660 X R 1 -RS7. FRT

[ 24 ] SPRING CHAMBER,3030
4609 BRAKE PIPING(10)-V3TNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 25 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 26 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 27 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 28 ] SENDER A-AIR PRESSURE

3862000180 X 2 FOR FRT/RR TANK

[ 29 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 30 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 31 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 32 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 33 ] CHECK VALVE-FEMALE
3474707070 X 1 &JE5. FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4610A BRAKE PIPING(11)-M9CSF(LAYOUT:GENERAL,WO/RUSSIA)

4610A BRAKE PIPING(11)-M9CSF(LAYOUT:GENERAL,WO/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:UNION-2W
3474206130 X 1 &LY1-MA6/RS7.

[ 03 ] A/PIPE A-UN,2W:UN,2W
3474211500 X 1 &LY1-RS7.

[ 04 ] A/PIPE A-UN,2W:UN,ELB
3474211510 X 1 &LY1-RS7.

[ 05 ] A/PIPE A-UN,ELB:A/D,IN
3474205800 X 1 &LY1/LY3-RS7.

[ 06 ] A/PIPE A-A/D OUT:CONN-3W

3474205810 X 1 &LY1/LY3-RS7.

[ 07 ] F/HOSE A-A/CHARGE
3474501010 X 1 &MG1/MU5.

[ 08 ] FLEX HOSE-S/CHA,RR,FWD
3474300350 X L 1 FOR F/HOSE-FRT,FWD

[ 09 ] F/HOSE-S/CHAM,PARK
3474300360 X R 1 FOR F/HOSE-FRT,FWD

[ 10 ] F/HOSE-FRT RWD
3474300300 X B 2 FOR F/HOSE-FRT,RWD

[ 11 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7. FOR DUAL SEALING BRAKE VLV

[ 12 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 13 ] RELAY VALVE
3454402270 X 1 &LY1-RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 14 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 15 ] 4-CIRCUIT PROTECTION VALVE
3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 16 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 17 ] DUAL RELAY VLV

3454402510 X 1 -RS7. FOR PARKING CONTROL OF
FRT&RR BRAKE
[ 18 ] DUAL RELAY VALVE
3454402830 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 19 ] RELAY VALVE
3454402270 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 20 ] RELAY VALVE
3454403880 X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 21 ] RELAY VALVE
3454402240 X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 22 ] QUICK RELEASE VALVE

3453301970 X B 2 &JF1/JF5-RS7. FOR FRT ABS

[ 23 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 24 ] DIFF CONTROL VLV ASR

4610A BRAKE PIPING(11)-M9CSF(LAYOUT:GENERAL,WO/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] DIFF CONTROL VLV ASR
3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 25 ] POWER CHAMBER,24
3454601650 X L 1 -RS7. FRT

[ 26 ] POWER CHAMBER,24
3454601660 X R 1 -RS7. FRT

[ 27 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 28 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 29 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 30 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 31 ] SENDER A-AIR PRESSURE

3862000180 X 1 FOR FRT/RR TANK

[ 32 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 33 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 3 FOR PARK TANK

[ 34 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 35 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 36 ] CHECK VALVE-FEMALE
3474707070 X 1 &JE5. FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4610B BRAKE PIPING(11)-M9CSF(LAYOUT:CRANE,WO/RUSSIA)

4610B BRAKE PIPING(11)-M9CSF(LAYOUT:CRANE,WO/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:OIL SEP,IN

3474208140 X 1 &LY2-RS7.

[ 03 ] A/PIPE A-OIL SEP:UN,2W

3474208150 X 1 &LY2-RS7.

[ 04 ] A/PIPE A-UN,2W:UN,ELB
3474207470 X 1 &LY2-RS7.

[ 05 ] A/PIPE A-UN,ELB:A/D,IN
3474207030 X 1 &LY2-RS7.

[ 06 ] A/PIPE A-A/D:4-CIRCUIT
3474207040 X 1 &LY2-RS7.

[ 07 ] F/HOSE A-A/CHARGE
3474501010 X 1 &MG1/MU5.

[ 08 ] UNION-STRAIGHT LONG
3089800060 X 1 &LY2-RS7.

[ 09 ] UNION-ELBOW
3434500200 X 1 &LY2-RS7. FRT BRAKE

[ 10 ] FLEX HOSE-S/CHA,RR,FWD
3474300350 X L 1 FOR F/HOSE-FRT,FWD

[ 11 ] F/HOSE-S/CHAM,PARK
3474300360 X R 1 FOR F/HOSE-FRT,FWD

[ 12 ] F/HOSE-FRT RWD
3474300300 X B 2 FOR F/HOSE-FRT,RWD

[ 13 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7. FOR DUAL SEALING BRAKE VLV

[ 14 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 15 ] RELAY VALVE
3454402280 X 1 &LY2/LY3-RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 16 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 17 ] 4-CIRCUIT PROTECTION VALVE
3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 18 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 19 ] DUAL RELAY VLV

3454402510 X 1 -RS7. FOR PARKING CONTROL OF
FRT&RR BRAKE
[ 20 ] DUAL RELAY VALVE
3454402830 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 21 ] RELAY VALVE
3454402270 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 22 ] RELAY VALVE
3454403880 X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 23 ] RELAY VALVE
3454402240 X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 24 ] QUICK RELEASE VALVE

4610B BRAKE PIPING(11)-M9CSF(LAYOUT:CRANE,WO/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] QUICK RELEASE VALVE
3453301970 X B 2 &JF1/JF5-RS7. FOR FRT ABS

[ 25 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 26 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 27 ] POWER CHAMBER,24
3454601650 X L 1 -RS7. FRT

[ 28 ] POWER CHAMBER,24
3454601660 X R 1 -RS7. FRT

[ 29 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 30 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 31 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 32 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 33 ] SENDER A-AIR PRESSURE

3862000180 X 1 FOR FRT/RR TANK

[ 34 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 35 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 3 FOR PARK TANK

[ 36 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 37 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 38 ] CHECK VALVE-FEMALE
3474707070 X 1 &JE5. FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4610C BRAKE PIPING(11)-M9CSF(LAYOUT:CRANE,W/RUSSIA)

4610C BRAKE PIPING(11)-M9CSF(LAYOUT:CRANE,W/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:UN,2W
3474210390 X 1 &LY2&RS7.

[ 03 ] A/PIPE A-UN,2W:UN,ELB
3474207470 X 1 &LY2&RS7.

[ 04 ] A/PIPE A-UN,ELB:A/D,IN
3474207030 X 1 &LY2&RS7.

[ 05 ] A/PIPE A-A/D:4-CIRCUIT
3474207040 X 1 &LY2&RS7.

[ 06 ] F/HOSE A-A/CHARGE
3474501010 X 1 &MG1/MU5.

[ 07 ] UNION-STRAIGHT LONG
3089800060 X 1 &LY2&RS7.

[ 08 ] UNION-ELBOW
3434500200 X 1 &LY2&RS7.

[ 09 ] FLEX HOSE-S/CHA,RR,FWD
3474300350 X L 1 FOR F/HOSE-FRT,FWD

[ 10 ] F/HOSE-S/CHAM,PARK
3474300360 X R 1 FOR F/HOSE-FRT,FWD

[ 11 ] F/HOSE-FRT RWD
3474300300 X B 2 FOR F/HOSE-FRT,RWD

[ 12 ] BRAKE VALVE COMPLETE A

3453401440 X 1 &RS7. FOR DUAL SEALING BRAKE VLV

[ 13 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 14 ] RELAY VALVE
3454403310 X 1 &LY2&RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 15 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 16 ] 4-CIRCUIT PROTECTION VALVE
3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 17 ] DUAL RELAY VLV
3454403350 X 1 &RS7. FOR PARKING CONTROL VLV

[ 18 ] A.L.S.V A
3454401160 X 1 &JH3. FOR REAR SERVICE LINE

[ 19 ] DOUBLE CHECK VLV

3453301980 X 1 &JF1&RS7. FOR ASR FUNCTION,RR

[ 20 ] RELAY VALVE
3454403890 X L 1 &JF1/JF5&RS7. FOR R/VLV,RR,L/R

[ 21 ] RELAY VALVE
3454403280 X R 1 &JF1/JF5&RS7. FOR R/VLV,RR,L/R

[ 22 ] QUICK RELEASE VALVE A

3454403360 X B 2 &JF1/JF5&RS7. FOR FRT AXLE,2ND NOISE
CONTROL
[ 23 ] PRESSURE CONTROL VALVE
3453401300 X B 4 &JF1/JF5. FRT/RR

[ 24 ] DIFF CONTROL VLV ASR

4610C BRAKE PIPING(11)-M9CSF(LAYOUT:CRANE,W/RUSSIA)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] DIFF CONTROL VLV ASR
3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 25 ] SILENCER-VALVE,EXH
3454403390 X 6 &RS7.

[ 26 ] POWER CHAMBER,24
3454601720 X L 1 &RS7. FRT

[ 27 ] POWER CHAMBER,24
3454601730 X R 1 &RS7. FRT

[ 28 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 29 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 30 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 31 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 32 ] SENDER A-AIR PRESSURE

3862000180 X 2 FOR FRT/RR TANK

[ 33 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 34 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 35 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 36 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 37 ] CHECK VALVE-FEMALE
3474707070 X 1 &JE5. FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4611A BRAKE PIPING(12)-M9CNF(LAYOUT:GENERAL)

4611A BRAKE PIPING(12)-M9CNF(LAYOUT:GENERAL)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:CONN
3474208550 X 1

[ 02 ] A/PIPE A-F/HOSE.1:F/HOSE.2
3474205970 X 1 &MG1/MG2/MU5/MU8.

[ 03 ] A/PIPE A-F/HOSE:UNION-2W
3474206130 X 1 &LY1.

[ 04 ] A/PIPE A-UN,2W:UN,2W
3474211500 X 1 &LY1-RS7.

[ 05 ] A/PIPE A-UN,2W:UN,ELB
3474211510 X 1 &LY1-RS7.

[ 06 ] A/PIPE A-UN,ELB:A/D,IN
3474205800 X 1 &LY1/LY3-RS7.

[ 07 ] A/PIPE A-A/D OUT:CONN-3W

3474205810 X 1 &LY1/LY3-RS7.

[ 08 ] F/HOSE A-A/CHARGE
3474501070 X 1 &MU5.

[ 09 ] F/HOSE-S/CHAM,PARK
3474300360 X B 2 FOR F/HOSE-FRT,FWD

[ 10 ] F/HOSE-FRT RWD
3474300300 X B 2 FOR F/HOSE-FRT,RWD

[ 11 ] UNION-STRAIGHT LONG
3089800060 X 1 FOR A/PIPE & F/HOSE FIX TO
BRKT
[ 12 ] UNION-FLARE,M22
9092230150 X 1 &LY1/LY3-RS7. FOR A/PIPE FIX TO BRKT

[ 13 ] UNION-ELBOW
3434500200 X 1 &LY1/LY3-RS7. FOR AIR CHARGE PIPE FIX TO
FRAME
[ 14 ] BRAKE VALVE COMPLETE A
3453410260 X 1 -RS7. FOR DUAL SEALING BRAKE VLV

[ 15 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 16 ] RELAY VALVE
3454402270 X 1 &LY1-RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 17 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 18 ] 4-CIRCUIT PROTECTION VALVE
3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 19 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 20 ] DUAL RELAY VLV

3454402510 X 1 -RS7. FOR PARKING CONTROL OF
FRT&RR BRAKE
[ 21 ] DUAL RELAY VALVE
3454402830 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 22 ] RELAY VALVE
3454402270 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 23 ] RELAY VALVE
3454403880 X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 24 ] RELAY VALVE
4611A BRAKE PIPING(12)-M9CNF(LAYOUT:GENERAL)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] RELAY VALVE
3454402240 X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 25 ] QUICK RELEASE VALVE

3453301970 X B 2 &JF1/JF5-RS7. FOR FRT ABS

[ 26 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 27 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 28 ] POWER CHAMBER,24
3454601650 X L 2 -RS7. FRT

[ 29 ] POWER CHAMBER,24
3454601660 X R 2 -RS7. FRT

[ 30 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 31 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 32 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 33 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 35 ] SENDER A-AIR PRESSURE

3862000180 X 1 FOR FRT/RR TANK

[ 36 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 37 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 3 FOR PARK TANK

[ 38 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 39 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 40 ] CHECK VALVE-FEMALE
3474707070 X 1 &JE5. FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4611B BRAKE PIPING(12)-M9CNF(LAYOUT:CRANE)

4611B BRAKE PIPING(12)-M9CNF(LAYOUT:CRANE)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:CONN
3474208550 X 1

[ 02 ] A/PIPE A-F/HOSE.1:F/HOSE.2
3474205970 X 1 &MG1/MG2/MU5/MU8.

[ 03 ] A/PIPE A-F/HOSE:OIL SEP,IN

3474208140 X 1 &LY2-RS7.

[ 04 ] A/PIPE A-OIL SEP:UN,2W

3474208150 X 1 &LY2-RS7.

[ 05 ] A/PIPE A-UN,2W:UN,ELB
3474207470 X 1 &LY2-RS7.

[ 06 ] A/PIPE A-UN,ELB:A/D,IN
3474207030 X 1 &LY2-RS7.

[ 07 ] A/PIPE A-A/D:4-CIRCUIT
3474207040 X 1 &LY2-RS7.

[ 08 ] F/HOSE A-A/CHARGE
3474501070 X 1 &MU5.

[ 09 ] F/HOSE-S/CHAM,PARK
3474300360 X B 2 FOR F/HOSE-FRT,FWD

[ 10 ] F/HOSE-FRT RWD
3474300300 X B 2 FOR F/HOSE-FRT,RWD

[ 11 ] UNION-STRAIGHT LONG
3089800060 X 2 &LY2-RS7.

[ 12 ] UNION-ELBOW
3434500200 X 1 &LY2-RS7. FOR A/PIPE FIX TO S/MBR-FRAME

[ 13 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7. FOR DUAL SEALING BRAKE VLV

[ 14 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 15 ] RELAY VALVE
3454402280 X 1 &LY2/LY3-RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 16 ] AIR DRYER
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
[ 17 ] 4-CIRCUIT PROTECTION VALVE
3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 18 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 19 ] DUAL RELAY VLV

3454402510 X 1 -RS7. FOR PARKING CONTROL OF
FRT&RR BRAKE
[ 20 ] DUAL RELAY VALVE
3454402830 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 21 ] RELAY VALVE
3454402270 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 22 ] RELAY VALVE
3454403880 X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 23 ] RELAY VALVE
3454402240 X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 24 ] QUICK RELEASE VALVE

4611B BRAKE PIPING(12)-M9CNF(LAYOUT:CRANE)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] QUICK RELEASE VALVE
3453301970 X B 2 &JF1/JF5-RS7. FOR FRT ABS

[ 25 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 26 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 27 ] POWER CHAMBER,24
3454601650 X L 2 -RS7. FRT

[ 28 ] POWER CHAMBER,24
3454601660 X R 2 -RS7. FRT

[ 29 ] SPRING CHAMBER,3030
3454602040 X L 1 RR FWD

[ 30 ] SPRING CHAMBER,3030
3454602050 X R 1 RR FWD

[ 31 ] SPRING CHAMBER,3030
3454602050 X L 1 RR RWD

[ 32 ] SPRING CHAMBER,3030
3454602040 X R 1 RR RWD

[ 33 ] SENDER A-AIR PRESSURE

3862000180 X 1 FOR FRT/RR TANK

[ 34 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 35 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 3 FOR PARK TANK

[ 36 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 37 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 38 ] CHECK VALVE-FEMALE
3474707070 X 1 FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4612 BRAKE PIPING(13)-P9CSF

4612 BRAKE PIPING(13)-P9CSF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:F/HOSE
3474205580 X 1 &MG1/MU5.

[ 02 ] A/PIPE A-F/HOSE:UNION-2W
3474206130 X 1 &LY1-MA6/RS7.

[ 03 ] A/PIPE A-UN,2W:UN,2W
3474211500 X 1 &LY1-RS7.

[ 04 ] A/PIPE A-UN,2W:UN,ELB
3474211510 X 1 &LY1-RS7.

[ 05 ] A/PIPE A-UN,ELB:A/D,IN
3474205800 X 1 &LY1/LY3-RS7.

[ 06 ] A/PIPE A-A/D OUT:CONN-3W

3474205810 X 1 &LY1/LY3-RS7.

[ 07 ] F/HOSE A-A/CHARGE
3474501050 X 1 &MG1/MU5.

[ 08 ] UNION-FLARE,M22
9092230150 X B 2 &LY1/LY3-RS7. FOR A/PIPE CONNECT

[ 09 ] UNION-ELBOW
3434500200 X 1 &LY1/LY3-RS7. FOR AIR CHARGE PIPE FIX TO
FRAME
[ 10 ] FLEX HOSE-S/CHA,RR,FWD
3474300350 X L 1 FRT,FWD

[ 11 ] F/HOSE-S/CHAM,PARK
3474300360 X R 1 FRT,FWD

[ 12 ] F/HOSE-FRT RWD
3474300300 X B 2 FRT,RWD

[ 13 ] FLEX HOSE-S/CHA,RR,FWD
3474300320 X B 2 FOR F/HOSE PUSHER BRAKE

[ 14 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7. FOR DUAL SEALING BRAKE VLV

[ 15 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 16 ] RELAY VALVE
3454402270 X 1 FOR SERVICE CONTROL OF FRT
BRAKE
[ 17 ] AIR DRYER
3454402430 X 1 FOR CUT-OUT
PRES.12.0BAR,UNLOAD'G
[ 18 ] PRESSURE LIMITING VALVE
3454402440 X 1 FOR BRAKE AIR [Link]
8.5 BAR
[ 19 ] 4-CIRCUIT PROTECTION VALVE
3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 20 ] RELAY VALVE
3454402270 X 1 FOR P/AXLE BRAKE CONTROL

[ 21 ] DUAL RELAY VLV

3454402510 X 1 -RS7. FOR PARKING CONTROL OF
FRT&RR BRAKE
[ 22 ] DUAL RELAY VALVE
3454402830 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 23 ] RELAY VALVE
3454402270 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 24 ] RELAY VALVE
4612 BRAKE PIPING(13)-P9CSF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] RELAY VALVE
3454403880 X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 25 ] RELAY VALVE
3454402240 X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 26 ] QUICK RELEASE VALVE

3453301970 X B 2 &JF1/JF5-RS7. FOR FRT ABS

[ 27 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 28 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 29 ] POWER CHAMBER,24
3454601650 X L 2 -RS7. FRT

[ 30 ] POWER CHAMBER,24
3454601660 X R 2 -RS7. FRT

[ 31 ] POWER CHAMBER,24
3454601670 X L 1 PUSHER

[ 32 ] POWER CHAMBER,24
3454601680 X R 1 PUSHER

[ 33 ] SPRING CHAMBER,3030
3454601940 X L 1 RR FWD

[ 34 ] SPRING CHAMBER,3030
3454601950 X R 1 RR FWD

[ 35 ] SPRING CHAMBER,3030
3454601950 X L 1 RR RWD

[ 36 ] SPRING CHAMBER,3030
3454601940 X R 1 RR RWD

[ 37 ] SENDER A-AIR PRESSURE

3862000180 X 2 FOR FRT/RR TANK

[ 38 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 39 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 40 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 41 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 42 ] CHECK VALVE-FEMALE
3474707070 X 1 FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4613 BRAKE PIPING(14)-P9CNF

4613 BRAKE PIPING(14)-P9CNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A/PIPE A-A/COMP:CONN
3474208550 X 1

[ 02 ] A/PIPE A-F/HOSE.1:F/HOSE.2
3474205970 X 1 &MG1/MG2/MU5/MU8.

[ 03 ] A/PIPE A-F/HOSE:UNION-2W
3474206130 X 1 &LY1.

[ 04 ] A/PIPE A-UN,2W:UN,2W
3474211500 X 1 &LY1-RS7.

[ 05 ] A/PIPE A-UN,2W:UN,ELB
3474211510 X 1 &LY1-RS7.

[ 06 ] A/PIPE A-UN,ELB:A/D,IN
3474205800 X 1 &LY1/LY3-RS7.

[ 07 ] A/PIPE A-A/D OUT:CONN-3W

3474205810 X 1 &LY1/LY3-RS7.

[ 08 ] F/HOSE A-A/CHARGE
3474501070 X 1 &MU5.

[ 09 ] UNION-STRAIGHT LONG
3089800060 X 1 FOR A/PIPE & F/HOSE FIX TO
BRKT
[ 10 ] UNION-FLARE,M22
9092230150 X 1 &LY1/LY3-RS7.

[ 11 ] UNION-ELBOW
3434500200 X 1 &LY1/LY3-RS7.

[ 12 ] F/HOSE-S/CHAM,PARK
3474300360 X B 2 FRT,FWD

[ 13 ] F/HOSE-FRT RWD
3474300300 X B 2 FRT,RWD

[ 14 ] FLEX HOSE-S/CHA,RR,FWD
3474300320 X B 2 FOR F/HOSE PUSHER BRAKE

[ 15 ] BRAKE VALVE COMPLETE A

3453410260 X 1 -RS7. FOR DUAL SEALING BRAKE VLV

[ 16 ] HAND BRAKE VALVE

3454404020 X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

[ 17 ] RELAY VALVE
3454402270 X 1 FOR SERVICE CONTROL OF FRT
BRAKE
[ 18 ] AIR DRYER
3454402430 X 1 FOR CUT-OUT
PRES.12.0BAR,UNLOAD'G
[ 19 ] PRESSURE LIMITING VALVE
3454402440 X 1 FOR BRAKE AIR [Link]
8.5 BAR
[ 20 ] 4-CIRCUIT PROTECTION VALVE
3454404050 X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 21 ] OIL SEPARATOR A
3454404160 X 1 -RS7.

[ 22 ] RELAY VALVE
3454402270 X 1 FOR P/AXLE BRAKE CONTROL

[ 23 ] DUAL RELAY VLV

3454402510 X 1 -RS7. FOR PARKING CONTROL OF
FRT&RR BRAKE
[ 24 ] DUAL RELAY VALVE
4613 BRAKE PIPING(14)-P9CNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 24 ] DUAL RELAY VALVE
3454402830 X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 25 ] RELAY VALVE
3454402270 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
[ 26 ] RELAY VALVE
3454403880 X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 27 ] RELAY VALVE
3454402240 X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

[ 28 ] QUICK RELEASE VALVE

3453301970 X B 2 &JF1/JF5-RS7. FOR FRT ABS

[ 29 ] PRESSURE CONTROL VALVE

3453401300 X B 4 &JF1/JF5. FRT/RR

[ 30 ] DIFF CONTROL VLV ASR

3453401310 X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 31 ] POWER CHAMBER,24
3454601650 X L 2 -RS7. FRT

[ 32 ] POWER CHAMBER,24
3454601660 X R 2 -RS7. FRT

[ 33 ] POWER CHAMBER,24
3454601670 X L 1 PUSHER

[ 34 ] POWER CHAMBER,24
3454601680 X R 1 PUSHER

[ 35 ] SPRING CHAMBER,3030
3454601940 X L 1 RR FWD

[ 36 ] SPRING CHAMBER,3030
3454601950 X R 1 RR FWD

[ 37 ] SPRING CHAMBER,3030
3454601950 X L 1 RR RWD

[ 38 ] SPRING CHAMBER,3030
3454601940 X R 1 RR RWD

[ 39 ] SENDER A-AIR PRESSURE

3862000180 X 2 FOR FRT/RR TANK

[ 40 ] SAFETY VALVE A
3454402600 X 1 FOR AIR TANK-MAIN,UPR

[ 41 ] SWITCH A-LOW PRESS,5.3BAR

3863500350 X 1 FOR PARK TANK

[ 42 ] SWITCH A-LOW PRESS,2BAR

3863500340 X 1 &JE5. FOR PARKING SW

[ 43 ] SWITCH A-LOW PRESS,6BAR

3863500360 X 1 &JE5. FOR GRADUAL PARK BRAKE

[ 44 ] CHECK VALVE-FEMALE
3474707070 X 1 FOR FITTING FIX TO D,R/V
 <Euro3 NOVUS>

FIG. 4620 BRAKE VALVE COMPLETE

4620 BRAKE VALVE COMPLETE
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] BRAKE VALVE COMPLETE A
A 3453410260 X XX X X X X X X X X X X XX X 1 -RE2/RS7. LHD(incl.2A,3~6)

B 3453401440 X XXX X X 1 &RS7. LHD(incl.2B,3~6)

[ 02 ] BRAKE VALVE-BODY MAIN

A 3453401330 X XX X X X X X X X X X X XX X 1 -RE2/RS7. LHD

B 3453401450 X XXX X X 1 &RS7. LHD

[ 03 ] BRKT-BRAKE VLV MTG

3453510010 X XX X X X X X X X X X X XX X 1 N LHD

[ 04 ] MALE ELBOW 12-PT3/8

3474709510 X XX X X X X X X X X X X XX X 2 LHD

[ 05 ] MALE ELBOW 10-PT3/8

3474709490 X XX X X X X X X X X X X XX X 2 LHD

[ 06 ] SWITCH A-STOP LAMP

3854700070 X XX X X X X X X X X X X XX X 1 LHD

[ 07 ] GASKET-BRAKE VLV BRKT

3453400340 X XX X X X X X X X X X X XX X 1 LHD

[ 08 ] BRAKE VALVE COMPLETE A

3453401360 XX XX 1 RHD

[ 09 ] GASKET-B/VLV A
3453401030 XX XX 1 RHD

[ 10 ] MALE ELBOW 10-PT3/8

3474709490 XX XX 1 RHD,(FOR DELIVERY,LWR OF
B/VLV)
[ 11 ] MALE CONNECTOR 10-PT3/8
3474709730 XX XX 1 RHD,(FOR DELIVERY,UPR OF
B/VLV)
[ 12 ] MALE CONNECTOR 12-PT3/8
3474709750 XX XX 2 RHD,(FOR SUPPLY OF B/VLV)

[ 13 ] CONN-3W,PT1/4,2-PT3/8,UPR
3473703350 X XX X X X X X X X X X X XX X 1 RHD,(FOR DELIVERY,UPR OF
B/VLV)
 <Euro3 NOVUS>

FIG. 4640 BRAKE AIR TANK(1)

4640 BRAKE AIR TANK(1)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] AIR TANK A-MAIN
3454304150 X 1 MAIN

AIR TANK A-RR,UPR

3454304140 XX 1 MAIN

AIR TANK A-REAR

3454303390 X 1 &LY2. MAIN

[ 02 ] AIR TANK A-MAIN

3454303290 X 2 FRONT,REAR

AIR TANK A-FRONT,RR

3454303470 XX 2 FRONT,REAR

3454303470 X 2 &LY2. FRONT,REAR

[ 03 ] AIR TANK A-F.R.P

3454303300 X 1 PARK

AIR TANK A-REAR

3454303390 XX 1 PARK(LHD)

AIR TANK A-PARK & PURGE

3454303960 XX 1 PARK(RHD)

AIR TANK A-REAR

3454303390 X 1 &LY2. PARK

[ 04 ] DRAIN COCK A
3453302010 X XX X 4

[ 05 ] BRKT-A/TANK
3454302670 X XX X 1 &FGK/LY1-RS7.

3454303200 X XX X 1 &LY2/LY3-RS7.

[ 06 ] BRKT ASM; WELD BOLT

3454302680 X XX X 2

[ 07 ] SPACER "A"-AIR TANK

3454302840 X XX X 16

[ 08 ] CLAMP A-A/TANK,LWR
3454302980 X XX X 4

[ 09 ] TENSIONER
3454300450 X XX X 4

[ 10 ] HEX BOLT M8X1.25

3081000160 X XX X 4

[ 11 ] FLANGE NUT M8X1.25

9091152080 X XX X 4
 <Euro3 NOVUS>

FIG. 4641 BRAKE AIR TANK(2)

4641 BRAKE AIR TANK(2)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] AL AIR TANK A-22L
3454304720 X XX XX 3 -RS7. MAIN,RR-FWD,PARK(LHD)

AIR TANK A-MAIN

3454304150 X XX X 3 &RS7. MAIN,RR-FWD,PARK

AIR TANK A-RR,UPR

3454304140 X 3 MAIN,RR-FWD,PARK(RHD)

[ 02 ] AL AIR TANK A-30L

3454304780 X XX XX 1 -RS7. FRT(LHD)

AIR TANK A-MAIN

3454303290 X XX X 1 &RS7. FRT

AIR TANK A-MAIN,FRT

3454303380 X 1 FRT(RHD)

[ 03 ] AL AIR TANK A-30L

3454304780 X XX XX 1 -RS7. RR-RWD(LHD)

AIR TANK A-FRONT,RR

3454303470 X XX X 1 &RS7. RR-RWD

3454303470 X 1 RR-RWD(RHD)

[ 04 ] DRAIN COCK A
3453302010 X XX XX 5

[ 05 ] BRKT A-AIR TANK

A 3454302050 X X 1 &LY1/LY5-RS7.

B 3454302780 X X 1 &LY2-RS7.

B 3454302780 X X 1 &RS7.

A 3454302050 X XX 1

[ 06 ] SPACER "A"-AIR TANK

3454302840 X XX XX 20

[ 07 ] BAND A-A/TANK,SHORT
3454302970 X XX 2 -RS7.

3454302700 X XX 2 &RS7.

3454302970 XX 2 -W5F.

3454302700 X 2 &W5F.

[ 08 ] FLANGE NUT M8X1.25

9091151080 X XX XX 4

[ 09 ] PLAIN WASHER
9091645080 X XX XX 4

[ 10 ] CLAMP A-A/TANK,LWR
3454302980 X XX XX 4

[ 11 ] TENSIONER
3454300450 X XX XX 4

[ 12 ] HEX BOLT M8X1.25

3081000160 X XX XX 4

[ 14 ] FLANGE NUT M8X1.25

9091152080 X XX XX 4

[ 15 ] BRKT ASM; WELD BOLT

3454302680 X XX XX 2
 <Euro3 NOVUS>

FIG. 4642 BRAKE AIR TANK(3)-K6DRF

4642 BRAKE AIR TANK(3)-K6DRF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] AIR TANK A-F.R.P
3454303300 X 2 &JH4. MAIN,RR UPR

[ 02 ] AIR TANK ASM-PARK & PURGE

3454304560 X 1 &JH4. PARK & PURGE

[ 03 ] AIR TANK A-MAIN

3454303290 X 1 &JH4. FRT

[ 04 ] AIR TANK A-MAIN,FRT

3454303380 X 1 &JH4. REAR

[ 05 ] DRAIN COCK A
3453302010 X 5

[ 06 ] BRKT-A/TANK
3454300350 X 1

[ 07 ] BAND A-A/TANK,SHORT
3454302970 X 2

[ 08 ] FLANGE NUT M8X1.25

9091151080 X 4

[ 09 ] PLAIN WASHER
9091645080 X 4

[ 10 ] CLAMP A-A/TANK,LWR
3454302980 X 4

[ 11 ] TENSIONER
3454300450 X 4

[ 12 ] HEX BOLT M8X1.25

3081000160 X 4

[ 13 ] PLAIN WASHER
9091648100 X 4

[ 14 ] FLANGE NUT M8X1.25

9091152080 X 4

[ 15 ] BRKT A-WELD BOLT

3454300470 X 2

[ 16 ] SPACER "A"-AIR TANK

3454302840 X 20
 <Euro3 NOVUS>

FIG. 4643 BRAKE AIR TANK(4)-N8DNF

4643 BRAKE AIR TANK(4)-N8DNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] AL AIR TANK A-22L/8L
3454304670 X 1 FRT & MAIN

[ 02 ] AL AIR TANK A-22L/8L

3454304840 X 1 FRT & PURGE

[ 03 ] AL AIR TANK A-22L

3454304700 X 3 PARK,REAR

[ 04 ] DRAIN COCK A
3453302010 X 5

[ 05 ] BRKT A-A/TANK,MAIN
3454303030 X 4

[ 06 ] CLAMP A-A/TANK,MAIN
3454303000 X 4

[ 07 ] CLAMP A-A/TANK,LWR
3454302980 X 2 -RS7.

[ 08 ] AIR TANK BAND A-SHORT

3454302970 X 2

[ 09 ] TENSIONER
3454300450 X 2

[ 10 ] HEX BOLT M8X1.25

3081000160 X 2

[ 11 ] PLAIN WASHER
9091648100 X 2

[ 12 ] FLANGE NUT M8X1.25

9091152080 X 2

[ 13 ] SPACER "A"-AIR TANK

3454302840 X 12
 <Euro3 NOVUS>

FIG. 4644 BRAKE AIR TANK(5)-M2SNF

4644 BRAKE AIR TANK(5)-M2SNF
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] AIR TANK A-MAIN,FRT
3454303380 X 1 -FT8/RS5/RS6/RS7. FOR AIR TANK-MAIN

[ 02 ] AIR TANK A-PARK

3454303410 X 2 -FT8/RS5/RS6/RS7. FOR AIR TANK-FRT,RR

[ 03 ] AIR TANK A-PARK & PURGE

3454303960 X 1 -RS5/RS6/RS7. FOR AIR TANK-PARK&PURGE

[ 04 ] DRAIN COCK A
3453302010 X 4

[ 05 ] BRACKET-AIR TANK
3454300370 X 1 -FT8.

[ 06 ] CLAMP-AIR TANK
3454300440 X 2 -FT8.

[ 07 ] TENSIONER
3454300450 X 2 -FT8.

[ 08 ] HEX BOLT M8X1.25

3081000160 X 2 -FT8.

[ 09 ] FLANGE NUT M8X1.25

9091152080 X 2 -FT8.

[ 10 ] BAND A-AIR TANK,SHORT

3454300300 X 4 -FT8.

[ 11 ] FLANGE NUT M10X1.25

9091151100 X 4 -FT8.

[ 12 ] BRACKET A-WELD BOLT

3454300480 X 1
 <Euro3 NOVUS>

FIG. 4645 BRAKE AIR TANK(6)-M9C/P9C(LY1)

4645 BRAKE AIR TANK(6)-M9C/P9C(LY1)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] AIR TANK A-MAIN & FRT
3454304210 X XX X 1 &LY1-RS7. FRT & MAIN

[ 02 ] AIR TANK A-FRT & PURGE

3454304200 X XX X 1 &LY1-RS7. FRT & PURGE

[ 03 ] AIR TANK A-MAIN

3454303290 X XX X 2 &LY1-RS7. REAR

[ 04 ] AIR TANK A-PARK

3454304180 X XX X 1 &LY1-RS7. PARK

[ 05 ] DRAIN COCK A
3453302010 X XX X 5 &LY1-RS7.

[ 06 ] BRKT-AIR TANK,MAIN
3454300640 X XX X 4 &LY1-RS7.

[ 07 ] CLAMP A-A/TANK,MAIN
3454303000 X XX X 4 &LY1-RS7.

[ 08 ] CLAMP A-A/TANK,LWR
3454302980 X XX X 2 &LY1-RS7.

[ 09 ] AIR TANK BAND A-SHORT

3454302970 X XX X 2 &LY1-RS7.

[ 10 ] TENSIONER
3454300450 X XX X 2 &LY1-RS7.

[ 11 ] HEX BOLT M8X1.25

3081000160 X XX X 2 &LY1-RS7.

[ 12 ] PLAIN WASHER
9091648100 X XX X 2 &LY1-RS7.

[ 13 ] FLANGE NUT M8X1.25

9091152080 X XX X 2 &LY1-RS7.

[ 14 ] SPACER "A"-AIR TANK

3454302840 X XX X 12 &LY1-RS7.
 <Euro3 NOVUS>

FIG. 4646 BRAKE AIR TANK(7)-M9C(LY2)

4646 BRAKE AIR TANK(7)-M9C(LY2)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] AL AIR TANK A-22L
3454304720 XX 2 &LY2-RS7. FRT

AIR TANK A-MAIN

3454304150 X 1 &LY2&RS7. FRT,FWD

AIR TANK A-RR,UPR

3454304140 X 1 &LY2&RS7. FRT,RWD

[ 02 ] AL AIR TANK A-30L

3454304780 XX 2 &LY2-RS7. REAR

AIR TANK A-MAIN

3454303290 X 1 &LY2&RS7. RR,FWD

AIR TANK ASM-FRONT,RR

3454303470 X 1 &LY2&RS7. RR,RWD

[ 03 ] AL AIR TANK A-14L/8L

3454304760 XX 1 &LY2-RS7. MAIN & PURGE

AIR TANK ASM-MAIN,PURGE

3454304240 X 1 &LY2&RS7. MAIN & PURGE

[ 04 ] AL AIR TANK A-22L

3454304630 XX 1 &LY2-RS7. PARK

AIR TANK ASM-PARK

3454304280 X 1 &LY2&RS7. PARK

[ 05 ] DRAIN COCK A
3453302010 XX 6 &LY2.

[ 06 ] BRKT-A/TANK
3454303200 XX 1 &LY2.

[ 07 ] CLAMP A-A/TANK,LWR
3454302980 XX 4 &LY2.

[ 08 ] TENSIONER
3454300450 XX 4 &LY2.

[ 09 ] HEX BOLT M8X1.25

3081000160 XX 4 &LY2.

[ 10 ] PLAIN WASHER
9091648100 XX 4 &LY2.

[ 11 ] FLANGE NUT M8X1.25

9091152080 XX 4 &LY2.

[ 12 ] BRKT ASM; WELD BOLT

3454302680 XX 2 &LY2.

[ 13 ] BRKT A-A/TANK,MAIN
3454303030 XX 4 &LY2.

[ 14 ] CLAMP A-A/TANK,MAIN
3454303000 XX 4 &LY2.

[ 15 ] SPACER "A"-AIR TANK

3454302840 XX 16 &LY2.
 <Euro3 NOVUS>

FIG. 4670 ABS SENSOR

4670 ABS SENSOR
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] SENSOR A-FRT,RR AXLE
A 3879500540 X XX X X X X X X X X X X XX X B 2 &JF1/JF5. FRONT

B 3879500290 X XX X X X X X X X X X X XX X B 2 &JF1/JF5. REAR

[ 02 ] SENSOR BUSH
3473703510 X XX X X X X X X X X X X XX X B 4 &JF1/JF5. FRONT&REAR

[ 03 ] BUSHING-FRT AXLE
3473703090 X XX X X X X X X X X X X XX X B 2 &JF1/JF5. FRONT

[ 04 ] HOLDER UPR-ABS SENSOR

3454206850 X XX X X X X X X X X X X XX X B 2 &JF1/JF5. REAR

[ 05 ] BOLT-HOLDER
3454206860 X XX X X X X X X X X X X XX X B 4 &JF1/JF5. REAR

[ 06 ] IMPULSE RING-FRT AXLE

3454105760 X XX X B 2 &JF1/JF5-XM3. FRONT

3454105760 XX XX XX X XX X B 2 &JF1/JF5. FRONT

3454105770 X B 2 &GA3&JF1/JF5&PD3/PD4/PD7/PE9. FRONT

3454105780 X B 2 &JF1/JF5. FRONT

[ 07 ] IMPULSE RING-RR AXLE

3454207370 X XX X X X X X X X X X XX X B 2 &JF1/JF5. REAR

3454204490 X B 2 &JF1/JF5. REAR

 <Euro3 NOVUS>

FIG. 4680 BRAKE RELATION PARTS

4680 BRAKE RELATION PARTS
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] HAND BRAKE VALVE
A 3454404020 X XX X X X X X X X XX X 1 &JE5-JH2. FOR GRADUAL PARKING VALVE

B 3454404030 XX 1 &JE5&JH2. FOR GRADUAL PARKING VALVE

B 3454404030 X 1 &JE5&JH2. FOR GRADUAL PARKING VALVE

[ 02 ] BRKT-HAND BRAKE VALVE

3474705680 X XX X X X X X X X X X X XX X 1 &JE5. FOR HAND BRAKE VLV MTG(LHD)

3474705680 X 1 &JE4&TH1. FOR HAND BRAKE VLV MTG

[ 03 ] TRAILER HAND BRAKE VLV

3454401320 X 1 &TH1. FOR EURO-TRAILER BRAKE

3454401320 X 1 &TH1. FOR EURO-TRAILER BRAKE

PARK(LHD)
[ 04 ] CONTROL VALVE-TRAILER
3454401390 XX 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
3454401390 X 1 &JH2. FOR TRAILER PREDOMINANCE
THAN TRACTOR
[ 05 ] DUAL RELAY VALVE
A 3454402510 X 1 &JF1. FOR SERVICE CONTROL OF RR
BRAKE(RHD)
A 3454402510 XX 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE(LHD)
A 3454402510 X XX 1 -RS7. FOR PARKING CONTROL OF RR
BRAKE
A 3454402510 XXXX X XX X 1 -RS7. FOR PARKING CONTROL OF
FRT&RR BRAKE
B 3454402830 X XX 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE(LHD)
B 3454402830 XX 1 &FGK. FOR SERVICE CONTROL OF RR
BRAKE(RHD)
B 3454402830 XXXX X X XX X 1 &JF1-RS7. FOR SERVICE CONTROL OF RR
BRAKE
C 3454402290 XX 1 -RS7. FOR DUAL RELAY VALVE

C 3454402290 X 1 -RS7. FOR PARKING CONTROL OF RR

BRAKE
C 3454402300 X 1 -RS7. FOR DUAL RELAY VALVE

D 3454403350 X XX 1 &RS7. FOR PARKING CONTROL OF

FRT&RR BRAKE
D 3454403350 X 1 &RS7. FOR PARKING CONTROL VLV

E 3454403330 X 1 &RS7. FOR PARKING CONTROL VLV

E 3454403330 X X 1 &RS7. FOR PARKING CONTROL OF RR

BRAKE
[ 06 ] RELAY VALVE
A 3454402240 X 1 -JF1. FOR SERVICE CONTROL OF RR
BRAKE(RHD)
A 3454402240 XX 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE(LHD)
A 3454402240 XXXX X X XX X R 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

A 3454402240 XX B 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

A 3454403880 XXXX X X XX X L 1 &JF1/JF5-RS7. FOR R/VLV,RR,L/R

B 3454402270 X 1 -RS7. FOR SERVICE CONTROL OF FRT

BRAKE
B 3454402270 X X 1 FOR SERVICE CONTROL OF FRT
BRAKE
B 3454402270 XX 1 &LY1-RS7. FOR SERVICE CONTROL OF FRT
BRAKE
B 3454402270 X XX 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE(LHD)
B 3454402270 XXXX X XX X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
B 3454402270 XX 1 &FGK. FOR SERVICE CONTROL OF RR
BRAKE(RHD)
B 3454402270 X X 1 FOR P/AXLE BRAKE CONTROL
4680 BRAKE RELATION PARTS
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 06 ] RELAY VALVE
B 3454402280 X XX 1 -RS7. FOR SERVICE CONTROL OF FRT
BRAKE(LHD)
B 3454402280 XXXX 1 -RS7. FOR SERVICE CONTROL OF FRT
BRAKE
B 3454402280 XX 1 &FGK. FOR SERVICE CONTROL OF FRT
BRAKE(RHD)
B 3454402280 XX 1 &LY2/LY3-RS7. FOR SERVICE CONTROL OF FRT
BRAKE
B 3454402280 X 1 FOR SERVICE CONTROL OF FRT
BRAKE
B 3454402280 X 1 &JF5-RS7. FOR SERVICE CONTROL OF RR
BRAKE
C 3454402260 XX 1 -RS7. FOR SERVICE CONTROL OF FRT
BRAKE(LHD)
C 3454402260 X 1 FOR SERVICE CONTROL OF FRT
BRAKE(RHD)
D 3454403280 X XX X R 1 &JF1/JF5&RS7. FOR R/VLV,RR,L/R

D 3454403280 X X B 2 &JF1/JF5&RS7. FOR R/VLV,RR,L/R

D 3454403890 X XX X L 1 &JF1/JF5&RS7. FOR R/VLV,RR,L/R

E 3454403310 X XXX 1 &RS7. FOR SERVICE CONTROL OF FRT

BRAKE
E 3454403310 X 1 &LY2&RS7. FOR SERVICE CONTROL OF FRT
BRAKE
F 3454403290 X 1 &RS7. FOR SERVICE CONTROL OF FRT
BRAKE
[ 07 ] SENDER A-AIR PRESSURE
3862000180 X XX X X X X X X X X X X XX X 2 FOR FRT/RR TANK

3862000180 XX X 1 FOR LIFT AXLE TANK

SWITCH A-LOW PRESS,5.3BAR

3863500350 X XX X X X X X X X X X X XX X 1 FOR PARK TANK

SWITCH A-LOW PRESS,2BAR

3863500340 X XX X X X X X X X X X X XX X 1 &JE5. FOR PARKING SW

SWITCH A-LOW PRESS,6BAR

3863500360 X XX X X X X X X X X X X XX X 1 &JE5. FOR GRADUAL PARK BRAKE

SWITCH A-LOW PRESS,0.3BAR

3863500230 X XX X X X X X X X X X X XX X 2 FOR STOP LAMP SW(RHD)

3863500230 X XX X X X X X X X X X X XX X 1 &TH1. FOR TRAILER CONTROL V/V

[ 08 ] SAFETY VALVE A
3454402600 X XX 1 FOR FITTING FIX TO A/T,MAIN,RR

3454402600 X XX 1 -RS7. FOR FITTING FIX TO NIPPLE-4W

3454402600 XX 1 -RS7. FOR FITTING FIX TO

NIPPLE-4W(LHD)
3454402600 X XX X 1 &RS7. FOR AIR TANK-MAIN,RR

3454402600 X 1 FOR AIR TANK-MAIN,RR(RHD)

3454402600 X 1 &JH4. FOR AIR TANK-MAIN

3454402600 X 1 FOR A/TANK,MAIN,UPR

3454402600 X 1 FOR FITTING FIX TO A/T,MAIN

3454402600 X 1 -RS7. FOR AIR TANK-MAIN,UPR

3454402600 X XX X 1 &LY1-RS7. FOR FITTING FIX TO NIPPLE-4W

3454402600 XX 1 &LY2/LY3-RS7. FOR AIR TANK MAIN,UPR

3454402600 X 1 &LY2&RS7. FOR A/T,MAIN,UPR PORT

[ 09 ] CHECK VALVE-FEMALE
3474707070 X XX 1 -RS7. FOR FITTING FIX TO D,R/V
4680 BRAKE RELATION PARTS
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 09 ] CHECK VALVE-FEMALE
3474707070 XXXX X X XX X 1 FOR FITTING FIX TO D,R/V

3474707070 XX 1 &JE5. FOR FITTING FIX TO D,R/V

3474707070 X X 1 &JE5. FOR FITTING FIX TO

D,R/V,SUPPLY
3474707070 X 1 -JH4/RS7. FOR AIR TANK-FRONT

3474707070 X 1 -JH4/RS7. FOR AIR TANK-REAR,LWR

3474707070 X 1 -JH4/RS7. FOR AIR TANK-PARK

3474707070 X 1 -RS7. FOR FITTING FIX TO A/T,FRT,LH

3474707070 X 1 -RS7. FOR FITTING FIX TO A/T,RR,FWD

3474707070 X 1 -RS7. FOR FITTING FIX TO NIPPLE-3W

3474701370 X 1 -RS5/RS6/RS7. FOR AIR TANK-REAR,UPR

3474701370 X 1 -RS5/RS6/RS7. FOR AIR TANK-FRT,UPR

3474701370 X 1 -RS5/RS6/RS7. FOR AIR TANK-PARK,UPR

[ 10 ] DOUBLE CHECK VLV

3453301980 X 1 &JH2&TH1. FOR T.C.V SIGNAL

3453301980 X 1 &JH2&TH1. FOR T.C.V SIGNAL

3453301980 X 1 &JF1&JH3. FOR ASR FUNCTION,RR

3453301980 X XX X X 1 &JF1&RS7. FOR ASR FUNCTION,RR

3453301980 X 2 &JF1. FOR ASR FUNCTION

[ 11 ] AIR DRYER
3454404060 X XXXX X XXXX 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
3454404060 XX 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
3454404060 X 1 FOR CUT-OUT PRES.
8.5BAR,LOAD'G A/COMP
3454402430 X X 1 FOR CUT-OUT
PRES.12.0BAR,UNLOAD'G
[ 12 ] PURGE TANK A
3454401640 X XX X X X X XX 1 FOR A/DRYER REGENERATION

[ 13 ] 4-CIRCUIT PROTECTION VALVE

3454404050 X XX X X X X X X X X X XX X 1 &JH4. FOR A/SUPPLY CONTROL TO
A/T-FRT,RR,PARK
[ 14 ] OIL SEPARATOR A
3454404160 XX 1 -RS7. FOR OIL SEPERATING(LHD)

3454404160 X 1 &W5E-RS7. FOR OIL SEPERATING

3454404160 XXX 1 -LY2/RS7. FOR OIL SEPERATING

3454404160 X XX X 1 -RS7. FOR OIL SEPERATING

3454402880 X 1 -RS7. FOR OIL SEPERATING

[ 15 ] SILENCER-VALVE,EXH
3454403390 X XX X X X X X X X X XX X 1 FOR A/DRYER EXH

3454403390 X XX 1 &RS7. FOR VALVE NOISE CONTROL

3454403390 X XX X 1 &JH3&RS7. FOR VALVE NOISE CONTROL

3454403390 X XXX X X 1 &RS7. FOR VALVE NOISE CONTROL

3454403390 X XXX X X 2 &JF1/JF5&RS7. FOR VALVE NOISE CONTROL

4680 BRAKE RELATION PARTS
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 15 ] SILENCER-VALVE,EXH
3454403390 X 2 &RS7. FOR VALVE NOISE CONTROL

3454403390 X 2 &JH3&RS7. FOR VALVE NOISE CONTROL

[ 16 ] PARKING VALVE
3454402320 XX 1 &JE4-JH2. FOR PARKING VALVE

3454402310 XX 1 &JE4&JH2. FOR AIR PARKING CONTROL

[ 17 ] RELAY A-1M,1T(W/BRKT)
3871300290 X XX X X X X X X X X 1 FOR PARK BRAKE S/GNAL

3871300290 X XX X X X X X X X X X X XX X 1 &JE5. FOR GRADUAL PARK BRAKE

3871300290 X XX X X X X X X X X X X XX X 1 &JF5. FOR DBR RELAY

[ 18 ] PRESSURE CONTROL VALVE

3453401300 X XX X X X X X X X X X X XX X 4 &JF1/JF5. FRT/RR

[ 19 ] DIFF CONTROL VLV ASR

3453401310 X XX X X X X X X X X X X XX X 1 &JF1. FOR ASR DIFF CONTROL
FUNCTION
[ 20 ] PRESSURE LIMITING VALVE
3454402440 X X 1 FOR BRAKE AIR [Link]
8.5 BAR
[ 21 ] QUICK RELEASE VALVE
A 3453301970 X B 2 &JF1/JF5-RS7. FOR
S/CHAMBER-FRT,RWD,SERVICE
A 3453301970 X XX X B 2 &JF1/JF5-RS7. FOR FRT ABS

QUICK RELEASE VALVE A

B 3454403360 X B 2 &JF1/JF5&RS7. FOR FRT AXLE,2ND NOISE
CONTROL
B 3454403360 X 1 &RS7. FOR PARKING A/LINE ON 1ST
AXLE
[ 99 ] SUB HARNESS-AMP 4PIN (2)
3815306240 X XX X X X X X X X X X X XX X 1 &JF1. FOR ASR VALVE
 <Euro3 NOVUS>

FIG. 4690 AUTO LOAD SENSING VALVE

4690 AUTO LOAD SENSING VALVE
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] A.L.S.V A
3454401160 X XXX X X 1 &JH3.

3454400290 X 1 &JH3.

[ 02 ] BRKT-A.L.S.V
A 3474708450 X XX X 1 &JH3.

B 3474708570 X 1 &JH3.

C 3454400120 X 1 &JH3.

BRKT-L.S.P.V
D 3454400370 X 1 &JH3-RS7.

BRKT-A.L.S.V
E 3474708690 X 1 &JH3&RS7.

[ 03 ] HEX BOLT M12X1.25

9920512350 X XXX XX X 2 &JH3. FOR L.S.P.V FIX TO FRAME

[ 04 ] SPRING WASHER
9091505120 X XXX XX X 2 &JH3. FOR L.S.P.V FIX TO FRAME

[ 05 ] ROD-OD8
3454400380 X 1 &JH3. L=350

3454403230 X X 1 &JH3. L=410

3454402910 X XXX 1 &JH3. L=315

[ 06 ] HEX NUT M12X1.25

9991105120 X XXX XX X 2 &JH3. FOR L.S.P.V FIX TO FRAME

[ 07 ] ROD A-A.L.S.V
3454403210 X 1 &JH3.

3454403220 X X 1 &JH3.

3454403240 X X X 1 &JH3.

[ 08 ] ISOLATOR-A.L.S.V
3454401240 X XX X X 2 &JH3. FOR FIX TO BRKT-ROD

3454401240 X 2 &JH3-GH9/GK6/GL7/GL8. FOR FIX TO BRKT-ROD

[ 09 ] BRKT-ROD A,RWD
3454401070 X XX X X 1 &JH3. FOR FIX TO BRKT-ROD

3454401070 X 1 &JH3-GH9/GK6/GL7/GL8. FOR FIX TO BRKT-ROD

[ 10 ] DAMPER A
3454401170 X XXX X X 1 &JH3.

3454400300 X 1 &GH8/GK7&JH3.

[ 11 ] SPRING WASHER
9091505120 X XXX X X 1 &JH3. FOR DAMPER FIX TO
BRKT-DAMPER
9091505120 X 1 &GH8/GK7&JH3. FOR DAMPER FIX TO R/AXLE

[ 12 ] BOLT-IDLER FIX
9915512250 X XXX X X 1 &JH3. FOR DAMPER FIX TO
BRKT-DAMPER
9915512250 X 1 &GH8/GK7&JH3. FOR DAMPER FIX TO R/AXLE
 <Euro3 NOVUS>

FIG. 4810 AUXILARY BRAKE(EXHAUST BRAKE)

4810 AUXILARY BRAKE(EXHAUST BRAKE)
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] EXH BRAKE A
3247601200 X XX X 1 &JG2. INCL.2~3

3247601180 X XXX 1 &JG2. INCL.2~3

[ 02 ] BRKT A-EXH BRAKE

3247601100 X XX X X X X X 1 &JG2.

[ 03 ] CYLINDER A
3247601330 X XX X X X X X 1 &JG2.

[ 04 ] AT TUBE A-EXH BRAKE

3247600950 X XX X X X X X 1 &JG2. EXH BRAKE,RH

[ 05 ] INSERT-6
3474700110 X XX X X X X X 1 &JG2.

[ 06 ] SLEEVE-6
3474700060 X XX X X X X X 1 &JG2.

[ 07 ] NUT-6
3474700010 X XX X X X X X 1 &JG2.
 <Euro3 NOVUS>

FIG. 4910 TOOL SET & BOX

4910 TOOL SET & BOX
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] TOOL BOX A
A 3414000220 X X X X X 1 &VC1. LATERAL TYPE

A 3414000220 X 1 &VC1. LATERAL TYPE(RHD)

A 3414000220 X X 1 &LY2&VC1. LATERAL TYPE

B 3414000130 XX XX X X 1 &VC1. LONGITUDINAL TYPE(LHD)

B 3414000130 X 1 &VC1-CNA/KAB/KAC/KGA/KGB/KLD/KTB. LONGITUDINAL TYPE

B 3414000130 XXX 1 &VC1-MJG. LONGITUDINAL TYPE

B 3414000130 X 1 &LY1/LY3&VC1. LONGITUDINAL TYPE

[ 02 ] PATCH-TOOL BOX
3414000170 XX XX X X 2 &VC1. LHD

3414000170 XX 2 &VC1-MJG.

3414000170 X 2 &VC1-CNA/KAB/KAC/KGA/KGB/KLD/KTB.

3414000170 X X 2 &LY1/LY3&VC1.

[ 03 ] BRKT-TOOL BOX,FRT
A 3414000420 X X X X X 1 &VC1.

A 3414000420 X X 1 &LY2&VC1.

B 3414000450 XX XX X 1 &VC1. LHD

B 3414000450 X 1 &VC1-CNA/KAB/KAC/KGA/KGB/KLD/KTB. LHD

B 3414000450 X X 1 &LY1/LY3&VC1.

STAY A-T/BOX MTG

C 3414000350 X 1 &VC1. RHD

[ 04 ] BRKT-TOOL BOX,RR
A 3414000430 X X X X X 1 &VC1.

A 3414000430 X X 1 &LY2&VC1.

B 3414000460 XX XX X 1 &VC1. LHD

B 3414000460 X 1 &VC1-CNA/KAB/KAC/KGA/KGB/KLD/KTB.

B 3414000460 X X 1 &LY1/LY3&VC1.

STAY A-T/BOX MTG

C 3414000360 X 1 &VC1. RHD

[ 05 ] CUSHION PLATE-T/BOX
A 3414000240 X X X X X 1 &VC1-LE1/T94.

A 3414000240 X X 1 &LY2&VC1-LE1/T94.

A 3414000240 X 1 &VC1. RHD

B 3414000190 XX XX XX X 1 &VC1-LE1/T94. LHD

B 3414000190 X 1 &VC1.

B 3414000190 X 1 &VC1-CNA/KAB/KAC/KGA/KGB/KLD/KTB.

B 3414000190 X X 1 &LY1/LY3&VC1-LE1/T94.

[ 06 ] BRKT A-T/BOX
3414000340 X 2 &VC1. RHD

[ 07 ] HEX BOLT M14X1.5

9920514350 X XX X X X X X X X XX X 4 &VC1. FOR FIX BRKT:T/BOX TO FRAME

[ 08 ] SPRING WASHER
4910 TOOL SET & BOX
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 08 ] SPRING WASHER
9091505140 X XX X X X X X X X XX X 4 &VC1. FOR FIX BRKT:T/BOX TO FRAME

[ 09 ] HEX NUT M14X1.5

9991105140 X XX X X X X X X X XX X 4 &VC1. FOR FIX BRKT:T/BOX TO FRAME

[ 10 ] TOOL SET
3414100600 X XX X X X X X X X X X X XX X 1

[ 11 ] TOOL BAG
3414100040 X XX X X X X X X X X X X XX X 1

[ 12 ] PLIER-200 MM
3414100050 X XX X X X X X X X X X X XX X 1

[ 13 ] WRENCH MONKEY-250 MM
3414100060 X XX X X X X X X X X X X XX X 1

[ 14 ] SPANNER SET
3414100090 X XX X X X X X X X X X X XX X 1

[ 15 ] SPANNER 7 X 8
3414100100 X XX X X X X X X X X X X XX X 1

[ 16 ] SPANNER 10X12
3414100110 X XX X X X X X X X X X X XX X 1

[ 17 ] SPANNER 14X17
3414100120 X XX X X X X X X X X X X XX X 1

[ 18 ] SPANNER 19 X 22
3414100130 X XX X X X X X X X X X X XX X 1

[ 19 ] SCREW DRIVER A
3414100150 X XX X X X X X X X X X X XX X 1

[ 20 ] DRIVER-SCREW+/:150MM
3414100160 X XX X X X X X X X X X X XX X 1
 <Euro3 NOVUS>

FIG. 4920 FRT & REAR HOOK

4920 FRT & REAR HOOK
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] HOOK
A 3411300440 X XX X X X X X X X X XX X 1 -VT3. FOR FRT HOOK

B 3411300030 X X 1 -VT3. FOR FRT HOOK

[ 02 ] SPACER FRT HOOK

3411300450 X XX X X X X X X X X XX X 1 -VT3. FOR FRT HOOK

[ 03 ] LOCK PLATE
3411300190 X XX X X X X X X X X X X XX X 1 -VT3. FOR FRT HOOK

[ 04 ] HOOK
3411300030 X 1 -FGA/KGB/T92/VR2. FOR RR HOOK

3411300030 X XX X X X X X XX X 1 -T92/T93/VR2. FOR RR HOOK

3411300030 X 1 -LY2. FOR RR HOOK

[ 05 ] LOCK PLATE
3411300190 X 1 -FGA/KGB/T92/VR2. FOR RR HOOK

3411300190 X XX X X X X X XX X 1 -T92/T93/VR2. FOR RR HOOK

3411300190 X 1 -LY2. FOR RR HOOK

[ 06 ] PINTLE HOOK-2.5TON
3412300010 X XX X X 1 &T92.
 <Euro3 NOVUS>

FIG. 4930 REAR PROTECTOR & REFLECTOR

4930 REAR PROTECTOR & REFLECTOR
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] REAR PROTECTOR ASM
A 3414400870 X XX X XXX X XX X 1 &PS2-RC1. with 2A

B 3414400640 X 1 &PS2. with 2B

PROTECTOR A-RR
C 3414400570 X 1 -PS2/RS7. with 2C

D 3414400530 XX 1 -PS2/RS7. with 2C

[ 02 ] COVER-RR PROTECTOR
A 3414400900 X XX X XXX X XX X 2 &PS2.

B 3414400580 X 2 &PS2.

C 3414400550 XXX 2 -PS2/RS7.

[ 03 ] STAY-REFLECTOR ASM MTG

3414400160 XX 1 &PS2.

3414400190 X 1 &PS2/PS7-RS2.

[ 04 ] REFLECTOR ASM
3414400810 XXX 1 &PS2.

[ 05 ] REFLECTOR ASM,LH
3414400680 X XX X X X X X X X XX X L 1 &PS2.

[ 06 ] REFLECTOR ASM,RH
3414400690 X XX X X X X X X X XX X R 1 &PS2.

[ 99 ] RIVET-REFLECTIVE SHEET
3081001160 X XX X X X X X X X X X X XX X AR FOR FIX COVER
PROTECTOR-RR/FOR FIX
 <Euro3 NOVUS>

FIG. 4940 CHASSIS ACCESSORY

4940 CHASSIS ACCESSORY
F F F K G K K K N M V V M M P P
S KEY-NO 4 7 8 7 8 9 4 6 8 2 3 3 9 9 9 9 L Q A
U C C C C C C D D D S T T C C C C / T EXCLUSIVE / REMARKS
B PART NO. K J J R L R R R N N S N S N S N R Y S
F F F F F F F F F F F F F F F F
[ 01 ] WHEEL STOPPER ASM
3414100200 X X 2 &Z23.

[ 02 ] COVER BOX A
3414000380 X X XX X 1 &EA6.

[ 03 ] BRKT-COVER BOX
3414000390 X X XX X 2 &EA6.

[ 04 ] HANDLE-S/TIRE CARRIER
3414100010 X X 1 &P15/P17.

3414100010 X XX X X X X XX X 1

[ 05 ] WRENCH-10 WHEEL NUT

3414100670 X XX X X X X X X X X X XX X 1

WRENCH-WHEEL NUT 32X30

3414100680 X 1

[ 06 ] HANDLE-WRENCH
3414100080 X XX X X X X X X X X X X XX X 1

[ 07 ] CAB TILT LEVER

3414100370 X X XX X 1

[ 08 ] VALVE EXTENSION RR-INR

3441000510 X X 1

[ 09 ] OIL JACK A-16TON W/LEVER

3414100980 X XX X X X X X X X X X X XX X 1 -LE1/T94.

[ 10 ] REFLECTOR A-WARNING TRI

3414100640 X X 1 &DB9. LHD

[ 11 ] COUPLER-A/GUN
3473405340 X XX X X X X X X X X X X XX X 1

[ 12 ] AIR GUN & HOSE A

3414100820 X 1 &RS4/RS8.
