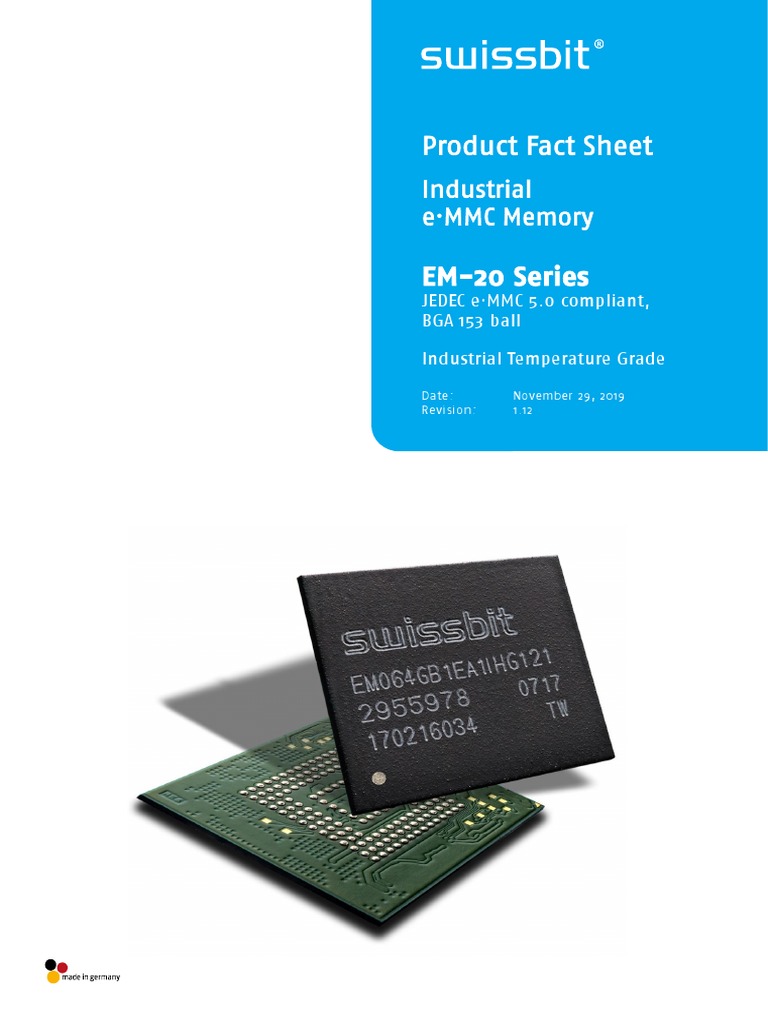

Product Fact Sheet

Industrial
eMMC Memory

EM-20 Series
JEDEC eMMC 5.0 compliant,
BGA 153 ball

Industrial Temperature Grade

Date: November 29, 2019

Revision: 1.12
Embedded MMC 5.0
EM-20 Industrial eMMC Memory 4GB to 64GB
Main Features
 Fully compliant with JEDEC eMMC 5.0 Standard (JESD84-B50)
 153-ball BGA, 0.5mm pitch
11.5 x 13mm, RoHS compliant
 MLC NAND base technology
 Multiple MLC or enhanced/reliable mode partitions user configurable according to eMMC Spec 5.0
 High performance eMMC 5.0 specification
o Eleven-wire bus (clock, Data Strobe, 1 bit command, 8 bit data bus) and a hardware reset
o Three different data bus width modes: 1-bit (default), 4-bit, and 8-bit
o Clock frequencies 0-200MHz, High Speed Mode HS400
o Up to 250MB/s sequential read and up to 90MB/s sequential write in MLC mode
 Power Supply: (Low-power CMOS technology)
o VCCQ 1.7V…1.95V or 2.7V…3.6V eMMC supply
o VCC 2.7V…3.6V NAND Flash supply
 Optimized FW algorithms
o Power-fail data loss protection
o Wear Leveling technology
Equal wear leveling of static and dynamic data. The wear leveling assures that dynamic data as
well as static data is balanced evenly across the memory. With that the maximum write
endurance of the device is guaranteed
o Read Disturb Management
The read commands per region are monitored and the content is conditionally refreshed when
critical levels have occurred
o Auto Read Refresh
The interruptible background process maintains the user data for Read Disturb effects or Retention
degradation due to high temperature effects
o Diagnostic features with Device Health Report according to eMMC Spec 5.0, and new Firmware
FW2 with detailed Lifetime Monitor data.
o Field Firmware update according to eMMC Spec 5.0
o Discard and Sanitize, Trim
o Boot Operation Mode and Alternative Boot Operation Mode
o Replay Protected Memory Block (RPMB)
 High reliability
o Designed with sophisticated firmware architecture for industrial and embedded markets.
o Ideal for application like POS/POI, PLC, IoT, gaming, medical and use as general boot medium for
embedded applications.
o The product is optimized for long life cycle that requires superior data retention as well as power
fail safety.
o Intensive write applications should use the enhanced/reliable mode
o Industrial Temperature range, -40° up to 85°C
 Controlled BOM & PCN process

Swissbit AG Revision: 1.12

Industriestrasse 4
CH-9552 Bronschhofen www.swissbit.com EM-20_Fact_Sheet_Rev112
Switzerland [email protected] Page 2 of 3
Order Information for EM-20
Density Part Number Temp. Range Firmware Flash Technology
4GB SFEM4096B1EA1TO-I-GE-111-STD
8GB SFEM008GB1EA1TO-I-GE-111-STD
16GB SFEM016GB1EA1TO-I-GE-111-STD -40°C to 85°C FW1: default MLC NAND Flash
32GB SFEM032GB1EA1TO-I-LF-111-STD
64GB SFEM064GB1EA1TO-I-HG-111-STD
4GB SFEM4096B1EA1TO-I-GE-121-STD
8GB SFEM008GB1EA1TO-I-GE-121-STD
FW2: detailed
16GB SFEM016GB1EA1TO-I-GE-121-STD -40°C to 85°C Lifetime Monitor MLC NAND Flash
data
32GB SFEM032GB1EA1TO-I-LF-121-STD
64GB SFEM064GB1EA1TO-I-HG-121-STD

System Performance
Max. reliable
System Performance Typ. Sustained Max. MLC Unit
mode
Burst Data transfer Rate HS400 (max clock 200MHz) 400
Sequential Read 175 up to 250 up to 270 MB/s
Sequential Write 21 up to 90 up to 160

Typ. ICCQ current Typ. ICC current

Current Consumption, 64GB device, HS400 Unit
@ VCCQ 1.8V @ VCC 3.3V
Write 105 80
Read 180 38 mA
Idle - 0.2

Physical Dimensions
Physical Dimensions Value Unit
Length 13±0.1
Width 11.5±0.1 mm
Thickness 1.0 max.

Recommended Temperature Conditions

Parameter Min. Typ. Max. Unit
Industrial Operating Temperature -40 25 85*) °C
Storage Temperature -40 25 85*) °C
* High temperature storage without operation reduces the data retention, in operation the data will be refreshed, if data error issues
were detected

For more information on eMMC interface, please visit JEDEC homepage (www.jedec.org)
