Benzopinacolone Synthesis via Rearrangement
Uploaded by
Bryan Gerard GuillermoBenzopinacolone Synthesis via Rearrangement
Uploaded by
Bryan Gerard Guillermo- Objectives
- Introduction
- Abstract
- Background
- Mechanism
- Chemicals and Class Wears
- Procedure
- Data and Calculation
- Discussion
- Conclusion
- References
- Errors
Common questions

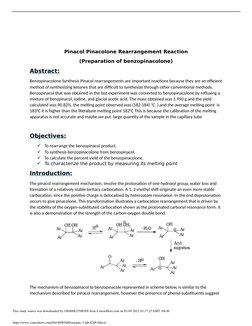

Powered by AIThe pinacol rearrangement is particularly effective for synthesizing complex ketones such as benzopinacolone due to its ability to involve the migration of substituents like phenyl groups from one carbon to another, creating a more stable carbocation intermediate. The rearrangement is driven by the stabilization of the carbocation through aromatic and resonance effects, enabling the synthesis of compounds that would be challenging to construct through other conventional synthetic methods .
Protonation of the hydroxyl group in the pinacol rearrangement facilitates a faster and more efficient reaction by converting the hydroxyl group into a better leaving group (water), allowing for smoother elimination. It minimizes the energy barrier compared to other pathways by enabling the formation of a stable carbocation. This promotes the rapid migration of a substituent group, like a phenyl or methide, maximizing reaction efficiency through rapid and favorable carbocation rearrangement to a more stable intermediate .
The synthesis of benzopinacolone from benzopinacol involves several key steps: addition of glacial acetic acid and iodine to benzopinacol in a flask, refluxing the mixture, cooling it to room temperature followed by an ice bath, filtering and weighing the crystalline product, and determining its melting point. These steps facilitate the rearrangement reaction by promoting the formation and stabilization of the carbocation intermediate and ensure the elimination of water and proper crystallization of the product, which are essential for a successful yield and purity in the reaction .
In the benzopinacol rearrangement to benzopinacolone, the catalyst plays a crucial role in facilitating the reaction. Iodine acts as a mild acid catalyst and is integral in the activation of the hydroxyl group to promote the elimination of water, forming a stable carbocation. An alternate way to achieve this reaction in the absence of iodine is using very strong acids to catalyze the reaction instead .
The stability of the carbocation intermediate during the benzopinacol to benzopinacolone rearrangement is primarily due to the resonance stabilization provided by the oxygen-substituted carbon. When the hydroxyl group is protonated and water is eliminated, a stable tertiary carbocation is formed as the positive charge is delocalized through resonance with the adjacent carbonyl formation. Additionally, the transfer of a phenyl group leads to a stable phenonium ion due to hyperconjugation and resonance with the aromatic phenyl rings .

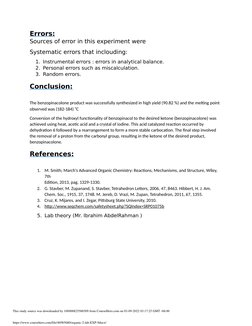

Systematic errors in the experiment include instrumental errors, such as inaccuracies in the analytical balance, and personal errors, such as miscalculations during measurement or calculation phases. These errors can result in consistent deviations in experimental data, affecting precision and overall accuracy. Random errors can occur due to uncontrollable variables that cause variations in measurements; these might distort the reproducibility of the experiment .

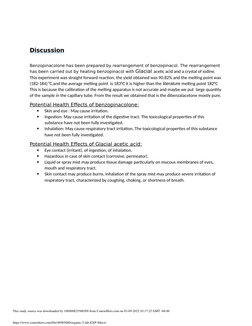

The synthesized benzopinacolone showed a slightly higher melting point than the literature value, likely due to calibration errors in the melting point apparatus or the use of an excessive amount of sample in the capillary tube. Such instrumental errors can introduce systematic deviations, leading to a higher observed melting point .
In pinacol rearrangements, the requirement for the migrating group to be trans to the leaving hydroxyl group is crucial as it allows for a concerted mechanism. The concerted movement ensures that the bulky migrating group, like a phenyl group, can properly transition to the carbocation formation site without significant steric hindrance. This spatial orientation helps the stabilization of the carbocation and the proper alignment for the formation of a carbonyl group, facilitating the overall success of the rearrangement .
The concept of the Lowest Unoccupied Molecular Orbital (LUMO) is relevant in the mechanistic understanding of the pinacol rearrangement since it explains the electronic favorability of bond formation and rearrangement processes. In the pinacol rearrangement, the carbon involved in the C-O bond has a lower LUMO due to electronic withdrawal by the oxygen atom. When the positive charge from the carbocation intermediate transfers to this carbon, it favors electron stabilization with the already slightly positive carbon due to the low energy vacant orbital, promoting the rearrangement process .
When handling benzopinacolone, potential health effects include irritation of the skin, eyes, and digestive tract, though its toxicological properties have not been fully investigated. Glacial acetic acid can cause eye and skin irritation, and may result in burns and severe respiratory irritation if inhaled. Therefore, appropriate safety precautions such as using protective clothing and working in a ventilated area are necessary .
