GENERAL DESCRIPTION
ENGINE CONSTRUCTION DESCRIPTION

The engine is water-cooled, in line 4 cylinders, 4 stroke cycle gasoline unit with its DOHC (Double overhead
camshaft) valve mechanism arranged for "V" type valve configuration consisting of 16 valves (4 valves/one
cylinder). The double overhead camshaft is mounted over the cylinder head; it is driven from crankshaft
through timing chains, and no push rods are provided in the valve train system.

miércoles, 24 de febrero de 2021 [Link]

[Link] p. m. Page 1 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 1: Identifying Engine Constructional Diagram

Courtesy of SUZUKI OF AMERICA CORP.

AIR CLEANER ELEMENT INTRODUCTION

This air cleaner element is dry type. Remember that it needs cleaning .

DIAGNOSTIC INFORMATION AND PROCEDURES

COMPRESSION CHECK

Check compression pressure on all 4 cylinders as follows:

1. Warm up engine.
2. Stop engine after warming up.

NOTE: After warming up engine, place transmission gear shift lever in

"Neutral" (shift selector lever to "P" range for A/T model), and set parking
brake and block drive wheels.

3. Remove engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".

4. Disconnect ignition coil couplers.
5. Disconnect ignition coils (1).
6. Remove all spark plugs (2).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 2 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 2: Removing Spark Plugs

Courtesy of SUZUKI OF AMERICA CORP.

7. Disconnect fuel injector wire harness at the coupler.

8. Install special tool (Compression gauge) into spark plug hole.

Special tool

(A): 09915-64510-001

(B): 09915-64510-002

(C): 09915-64530

(D): 09915-67010

miércoles, 24 de febrero de 2021 [Link] p. m. Page 3 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 3: Installing Special Tool (Compression Gauge) Into Spark Plug Hole
Courtesy of SUZUKI OF AMERICA CORP.

9. Disengage clutch (to lighten starting load on engine) for M/T vehicle, and depress accelerator pedal all
the way to make throttle fully open.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 4 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

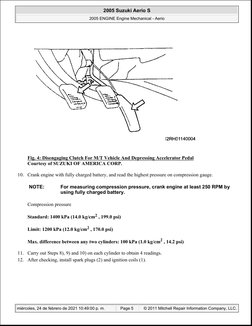

Fig. 4: Disengaging Clutch For M/T Vehicle And Depressing Accelerator Pedal
Courtesy of SUZUKI OF AMERICA CORP.

10. Crank engine with fully charged battery, and read the highest pressure on compression gauge.

NOTE: For measuring compression pressure, crank engine at least 250 RPM by
using fully charged battery.

Compression pressure

Standard: 1400 kPa (14.0 kg/cm2 , 199.0 psi)

Limit: 1200 kPa (12.0 kg/cm2 , 170.0 psi)

Max. difference between any two cylinders: 100 kPa (1.0 kg/cm2 , 14.2 psi)

11. Carry out Steps 8), 9) and 10) on each cylinder to obtain 4 readings.
12. After checking, install spark plugs (2) and ignition coils (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 5 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 5: Installing Spark Plugs And Ignition Coils

Courtesy of SUZUKI OF AMERICA CORP.

13. Install ignition coil couplers.

14. Connect injector wire harness at coupler.
15. Install engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".

ENGINE VACUUM CHECK

The engine vacuum that develops in the intake line is a good indicator of the condition of the engine. The
vacuum checking procedure is as follows:

1. Warm up engine to normal operating temperature and make sure that engine idle speed is within
specification.

NOTE: After warming up engine, place transmission gear shift lever in

"Neutral" (shift selector lever to "P" range for A/T model), and set parking
brake and block drive wheels.

2. Stop engine and remove engine cover referring to "ENGINE COVER REMOVAL AND
INSTALLATION:".

miércoles, 24 de febrero de 2021 [Link] p. m. Page 6 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

3. Disconnect vacuum hose between vacuum pipe (2) and intake manifold (1) from vacuum pipe.
4. Connect special tools (vacuum gauge and hose joint) to vacuum hose of intake manifold side.

Special tool

(A): 09915-67311

(B): 09918-08210

(C): 09355-35754-600 (Hose, SUZUKI GENUINE PARTS)

(D): 09367-04002 (3-way joint, SUZUKI GENUINE PARTS)

Fig. 6: Connecting Special Tools (Vacuum Gauge And Hose Joint) To Vacuum Hose Of Intake
Manifold Side
Courtesy of SUZUKI OF AMERICA CORP.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 7 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

5. Start engine and run engine at specified idle speed (Refer to IDLE AIR CONTROL (IAC) VALVE
OPERATION CHECK ), and read vacuum gauge. Vacuum should be within specification.

Vacuum specification

52.6 - 65.8 kPa (40 - 50 cmHg, 15.7 - 19.7 [Link]) at specified idle speed

6. After checking, remove special tools.

7. Connect vacuum hose to vacuum pipe.
8. Install engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".

REPAIR INSTRUCTIONS
VALVE LASH ADJUSTER NOISE DIAGNOSIS

In case of the following, valve lash adjuster noise may be caused by air trapped into valve lash adjusters.

Vehicle is left for 24 hours or more.

Engine oil is changed.
Hydraulic lash adjuster is replaced or reinstalled.
Engine is overhauled.

If noise from valve lash adjusters is suspected, perform the following checks.

1. Check engine oil for the following.

Oil level in oil pan

If oil level is low, add oil up to Full level hole on oil level gauge.

Oil quality

If oil is discolored, or deteriorated, change it. For particular oil to be used, refer to ENGINE OIL
AND FILTER CHANGE .

Oil leaks

If leak is found, repair it.

Oil pressure (refer to ENGINE LUBRICATION SYSTEM -- AERIO .

If defective pressure is found, repair it.

2. Run engine for about half an hour at about 2,000 to 3,000 RPM, and then air will be purge and tapping
sound will cease.
3. Should tapping sound not cease, it is possible that hydraulic valve lash adjuster is defective. Replace it if

miércoles, 24 de febrero de 2021 [Link] p. m. Page 8 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

defective.

If defective adjuster can't be located by hearing among 16 of them, check as follows.

a. Stop engine and remove cylinder head cover referring to "CYLINDER HEAD COVER
REMOVAL AND INSTALLATION:".
b. Push adjuster downward by hand (with less than 20 kg or 44 lbs. force) when cam crest is not on
adjuster to check if clearance exists between cam and adjuster.

If it does, adjuster is defective and needs replacement.

AIR CLEANER ELEMENT REMOVAL AND INSTALLATION

Removal

1. Disconnect MAF sensor coupler (3) and air cleaner outlet hose (4) from air cleaner upper case (1).
2. Remove air cleaner upper case (1) from lower case after hooking clamps (2) from upper case.
3. Remove air cleaner element.

Fig. 7: Removing Air Cleaner Upper Case From Lower Case

Courtesy of SUZUKI OF AMERICA CORP.

Installation

miércoles, 24 de febrero de 2021 [Link] p. m. Page 9 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Reverse removal procedure for installation.

AIR CLEANER ELEMENT INSPECTION AND CLEANING

Inspection

Check air cleaner element for dirt.

Cleaning

Blow off dust by compressed air from air outlet side of element.

Fig. 8: Cleaning Dust By Compressed Air From Air Outlet Side Of Element
Courtesy of SUZUKI OF AMERICA CORP.

AIR CLEANER OUTLET HOSE REMOVAL AND INSTALLATION

Removal

1. Remove air cleaner outlet hose (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 10 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 9: Removing Air Cleaner Outlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

Installation

Reverse removal procedure for installation.

1. Install air cleaner outlet hose (1) by aligning match marks (2) as shown in figure.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 11 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 10: Installing Air Cleaner Outlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

ENGINE COVER REMOVAL AND INSTALLATION

Removal

1. Remove engine cover bolts (1).

2. Remove engine cover (2) from cylinder head cover.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 12 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 11: Removing Engine Cover From Cylinder Head Cover

Courtesy of SUZUKI OF AMERICA CORP.

Installation

1. Install engine cover (2) from cylinder head cover.

2. Install engine cover bolts (1).

Tightening torque

Engine cover bolt (a): 8 N.m (0.8 kg-m, 5.8 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 13 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 12: Installing Engine Cover To Cylinder Head Cover

Courtesy of SUZUKI OF AMERICA CORP.

ACCELERATOR CABLE ADJUSTMENT

With accelerator pedal depressed fully, check clearance between throttle lever (2) and lever stopper (1) (throttle
body) which should be within the following specification.

Clearance between throttle lever and lever stopper (with pedal depressed fully) "b"

0.5 - 2.0 mm (0.02 - 0.07 in.)

If measured value is out of specification, adjust it to specification with cable adjusting nut (4).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 14 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 13: Checking Clearance Between Throttle Lever And Lever Stopper
Courtesy of SUZUKI OF AMERICA CORP.

THROTTLE BODY AND INTAKE MANIFOLD COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 15 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 14: Identifying Throttle Body And Intake Manifold Components

Courtesy of SUZUKI OF AMERICA CORP.

THROTTLE BODY ON-VEHICLE INSPECTION

Check that throttle valve lever (2) moves smoothly.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 16 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 15: Checking Throttle Valve Lever

Courtesy of SUZUKI OF AMERICA CORP.

THROTTLE BODY REMOVAL AND INSTALLATION

Removal

1. Disconnect negative cable at battery.

2. Drain coolant.

WARNING: To help avoid danger of being burned, do not remove drain plug (1)
and radiator cap while engine and radiator are still hot. Scalding
fluid and steam can be blown out under pressure if plug and cap are
taken off too soon.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 17 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 16: Identifying Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

3. Remove engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".

4. Remove air cleaner outlet hose (referring to "AIR CLEANER OUTLET HOSE REMOVAL AND
INSTALLATION:").
5. Remove generator drive belt referring to GENERATOR DRIVE BELT REMOVAL AND
INSTALLATION .
6. With hose connected, detach P/S pump from its bracket.
7. Disconnect accelerator cable (1) from throttle valve lever (2).
8. Disconnect couplers of TP sensor (3), IAC valve (4) and ground connector (5).
9. Disconnect coolant hoses (6) and breather hose (7) from throttle body.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 18 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 17: Disconnecting Coolant Hoses And Breather Hose From Throttle Body
Courtesy of SUZUKI OF AMERICA CORP.

10. Remove throttle body from intake manifold.

Installation

1. Clean mating surfaces and install throttle body gasket to intake manifold.

Use new gasket.

2. Install throttle body to intake manifold and tighten bolts and nuts.
3. Connect coolant hoses (6) and breather hose (7).
4. Connect couplers of TP sensor (3), IAC sensor (4) and ground terminal (5).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 19 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 18: Connecting Couplers Of TP Sensor, IAC Sensor And Ground Terminal
Courtesy of SUZUKI OF AMERICA CORP.

5. Connect accelerator cable (1) to throttle valve lever (2).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 20 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 19: Connecting Accelerator Cable To Throttle Valve Lever

Courtesy of SUZUKI OF AMERICA CORP.

6. Install P/S pump to its bracket referring to P/S PUMP REMOVAL AND INSTALLATION .
7. Install generator drive belt referring to GENERATOR DRIVE BELT REMOVAL AND
INSTALLATION .
8. Install air cleaner outlet hose referring to "AIR CLEANER OUTLET HOSE REMOVAL AND
INSTALLATION:".

miércoles, 24 de febrero de 2021 [Link] p. m. Page 21 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 20: Installing Air Cleaner Outlet Hose

Courtesy of SUZUKI OF AMERICA CORP.

9. Install engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".

10. Refill cooling system referring to COOLING SYSTEM FLUSH AND REFILL .
11. Connect negative cable at battery.
12. Start engine and check for engine coolant leakage.

THROTTLE BODY CLEANING

Clean passages by blowing compressed air.

CAUTION: IAC valve, TP sensor, or other components containing rubber must

not be placed in a solvent or cleaner both. A chemical reaction will
cause these parts to swell, harden or get distorted.
Don't put drills or wires into passages for cleaning. It causes
damages in passages.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 22 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 21: Identifying Idle Air Control Valve Passage

Courtesy of SUZUKI OF AMERICA CORP.

INTAKE MANIFOLD REMOVAL AND INSTALLATION

Removal

1. Disconnect negative cable at battery.

2. Drain cooling system.

WARNING: To help avoid danger of being burned, do not remove drain plug (1)
and radiator cap while engine and radiator are still hot. Scalding
fluid and steam can be blown out under pressure if plug and cap are
taken off too soon.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 23 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 22: Identifying Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

3. Remove engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".

4. Remove air cleaner outlet hose referring to "AIR CLEANER OUTLET HOSE REMOVAL AND
INSTALLATION:".
5. Disconnect accelerator cable (2) from throttle valve lever (1).
6. Disconnect accelerator cable (2) with cable bracket (3) from intake manifold.
7. Disconnect the following electric lead wires:
IAC valve coupler (4)
TP sensor coupler (5)
EGR valve coupler (6)
EVAP canister purge valve coupler (7)
MAP sensor coupler (8)
Ground terminal (9) from throttle body
8. Disconnect the following hoses:
Brake booster hose (10) from intake manifold
PCV hose (11) from PCV valve
Fuel pressure regulator vacuum hose (12) from intake manifold
Coolant hoses from (13) throttle
Breather hose (14) from throttle body
Vacuum hose (15) from EVAP canister purge valve
9. Remove intake manifold front stiffener (16).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 24 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 23: Disconnecting Electric Lead Wires And Hoses

Courtesy of SUZUKI OF AMERICA CORP.

10. Remove rear stiffener (17), and disconnect coolant pipe (18) from intake manifold.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 25 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 24: Removing Rear Stiffener And Coolant Pipe From Intake Manifold
Courtesy of SUZUKI OF AMERICA CORP.

11. Remove intake manifold (2) with throttle body from cylinder head, and then its gasket (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 26 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 25: Removing Intake Manifold

Courtesy of SUZUKI OF AMERICA CORP.

Installation

1. Install new intake manifold gasket (1) to cylinder head.

2. Install intake manifold (2) with throttle body. Tighten bolts and nuts to specified torque.

Tightening torque

Intake manifold bolt and nut (a): 25 N.m (2.5 kg-m, 18.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 27 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 26: Installing Intake Manifold

Courtesy of SUZUKI OF AMERICA CORP.

3. Connect coolant pipe (1) to intake manifold and install rear stiffener (2). Tighten bolts to specified torque.

Tightening torque

Intake manifold rear stiffener bolt (a): 25 N.m (2.5 kg-m, 18.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 28 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 27: Tightening Intake Manifold Rear Stiffener Bolt

Courtesy of SUZUKI OF AMERICA CORP.

4. Install intake manifold front stiffener (1). Tighten bolts to specified torque.

Tightening torque

Intake manifold front stiffener bolt (a): 55 N.m (5.5 kg-m, 40.0 lb-ft)

5. Connect the following hoses:

Brake booster hose (2) to intake manifold
PCV hose (3) to PCV valve
Fuel pressure regulator vacuum hose (4) to intake manifold
Coolant hoses (5) to throttle body
Breather hose (6) to throttle body
Vacuum hose (7) to EVAP canister purge valve
6. Connect the following electric lead wires:
IAC valve (8)
TP sensor (9)
EGR valve (10)
EVAP canister purge valve (11)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 29 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

MAP sensor (12)

Ground terminal (13) to throttle body
7. Connect accelerator cable (14) to throttle valve lever (15) and install its bracket (16) to intake manifold.
Adjust accelerator cable play, referring to "ACCELERATOR CABLE ADJUSTMENT:".

Fig. 28: Connecting Electric Lead Wires And Hoses

miércoles, 24 de febrero de 2021 [Link] p. m. Page 30 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Courtesy of SUZUKI OF AMERICA CORP.

8. Install air cleaner outlet hose referring to "AIR CLEANER OUTLET HOSE REMOVAL AND
INSTALLATION:".
9. Install engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".
10. Check to ensure that all removed parts are back in place.

Reinstall any necessary parts which have not been reinstalled.

11. Refill cooling system referring to COOLING SYSTEM FLUSH AND REFILL .
12. Connect negative cable at battery.
13. Start engine and check for engine coolant leaks.

CYLINDER HEAD COVER REMOVAL AND INSTALLATION

Removal

1. Disconnect negative cable at battery.

2. Remove engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".
3. Disconnect ignition coil couplers.
4. Remove ignition coils.
5. Remove oil level gauge.
6. Disconnect breather hose (2) and PCV hose (3) from cylinder head cover (4).
7. Remove cylinder head cover (4).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 31 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 29: Removing Cylinder Head Cover

Courtesy of SUZUKI OF AMERICA CORP.

8. Remove PCV valve (1) from cylinder head cover (4), if equipped.

Installation

1. Install PCV valve to cylinder head cover referring to PCV VALVE REMOVAL AND
INSTALLATION .
2. Remove oil, old sealant and dust from sealing surfaces on cylinder head and cover. After cleaning, apply
sealant "A" to cylinder head sealing surface area as shown in figure.

"A": Sealant 99000-31250

miércoles, 24 de febrero de 2021 [Link] p. m. Page 32 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 30: Applying Sealant To Cylinder Head Sealing Surface Area

Courtesy of SUZUKI OF AMERICA CORP.

3. Install new O-rings (3) and new cylinder head cover gasket (2) to cylinder head cover (1).

NOTE: Be sure to check each of these parts for deterioration or any damage
before installation and replace if found defective.

4. Install new cylinder head side seal (4) and cylinder head cover to cylinder head.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 33 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 31: Installing New Cylinder Head Side Seal And Cylinder Head Cover To Cylinder Head
Courtesy of SUZUKI OF AMERICA CORP.

5. Tighten nuts (2) to specified torque.

Use new seal washers (1).

Tightening torque

Cylinder head cover nut (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

6. Install oil level gauge (3).

7. Connect breather hose (4) and PCV hose (5) to cylinder head cover.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 34 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 32: Connecting Breather Hose And PCV Hose To Cylinder Head Cover
Courtesy of SUZUKI OF AMERICA CORP.

8. Install ignition coils and connect ignition coil couplers.

9. Install engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".
10. Connect negative cable at battery.

CYLINDER BLOCK HEATER (IF EQUIPPED) COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 35 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 33: Identifying Cylinder Block Heater Components

Courtesy of SUZUKI OF AMERICA CORP.

CYLINDER BLOCK HEATER (IF EQUIPPED) REMOVAL AND INSTALLATION

Removal

1. Disconnect negative (-) cable battery.

2. Drain coolant.

WARNING: To help avoid danger of being burned, do not remove drain plug (1)
and radiator cap while engine and radiator are still hot. Scalding
fluid and steam can be blown out under pressure if plug and cap are
taken off too soon.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 36 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 34: Identifying Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

3. Disconnect cylinder block heater connector and remove cylinder block heater (1).

Installation

Reverse removal procedure for installation noting the following.

Install cylinder block heater (1) in the direction as shown in the figure.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 37 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 35: Installing Cylinder Block Heater

Courtesy of SUZUKI OF AMERICA CORP.

Apply thread lock cement to block heater bolts (1).

"A": Thread lock cement 99000-32020

Tighten cylinder block heater bolts (1) to specified torque.

Tightening torque

Cylinder block heater bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 38 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 36: Tightening Cylinder Block Heater Bolt

Courtesy of SUZUKI OF AMERICA CORP.

CYLINDER BLOCK HEATER (IF EQUIPPED) INSPECTION

1. Check continuity between terminal "a" and "c" by using ohmmeter.

If there is no continuity, replace cylinder block heater.

2. Check that there is no continuity between terminal "a" and "b" or "c" and "b".

If there is continuity, replace cylinder block heater.

3. Check no continuity between "c" and block heater body.

If there is continuity, replace cylinder block heater.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 39 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 37: Identifying Cylinder Block Heater Terminals

Courtesy of SUZUKI OF AMERICA CORP.

CYLINDER BLOCK HEATER HARNESS (IF EQUIPPED) REMOVAL AND INSTALLATION

Removal

1. Disconnect cylinder block heater connector (1) from block heater.

2. Unclamp cylinder block heater harness (2) and then remove it.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 40 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 38: Disconnecting Cylinder Block Heater Connector From Block Heater
Courtesy of SUZUKI OF AMERICA CORP.

Installation

1. Connect cylinder block heater connector to block heater.

2. Install clips (1) with open end facing left side and clip (2) with open end facing upward and clamp (7) to
body.
3. Fix cylinder block heater harness with clips (1 and 2) and clamp (7) securely.
4. Fix cylinder block heater harness to engine harness (3) with clamps (4) at white tape parts (5).
5. Check to make sure that harness protector (6) is installed as shown and its open end faces downward.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 41 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 39: Connecting Cylinder Block Heater Connector To Block Heater

Courtesy of SUZUKI OF AMERICA CORP.

CYLINDER BLOCK HEATER HARNESS (IF EQUIPPED) INSPECTION

miércoles, 24 de febrero de 2021 [Link] p. m. Page 42 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Check cylinder block heater harness for damage.

ENGINE MOUNTINGS COMPONENTS

WARNING: "A": Tighten mounting member to suspension frame nuts or bolts

first, and tighten mounting member to body bolts with specified
torque.
"B": Tighten engine right mounting No.1 bracket bolts first, and
tighten engine left mounting bolts with specified torque.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 43 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 40: Identifying Engine Mountings Components

Courtesy of SUZUKI OF AMERICA CORP.

ENGINE ASSEMBLY REMOVAL AND INSTALLATION

miércoles, 24 de febrero de 2021 [Link] p. m. Page 44 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Removal

1. Release fuel pressure in fuel feed line by referring to FUEL PRESSURE RELIEF PROCEDURE .
2. Disconnect negative cable at battery.
3. Remove engine hood after disconnecting windshield washer hose.
4. Drain cooling system.

WARNING: To help avoid danger of being burned, do not remove drain plug (1)
and radiator cap while engine and radiator are still hot. Scalding
fluid and steam can be blown out under pressure if plug and cap are
taken off too soon.

Fig. 41: Identifying Drain Plug

Courtesy of SUZUKI OF AMERICA CORP.

5. Remove radiator referring to RADIATOR REMOVAL AND INSTALLATION .

6. Remove engine cover referring to "ENGINE COVER REMOVAL AND INSTALLATION:".
7. Remove air cleaner outlet hose referring to "AIR CLEANER OUTLET HOSE REMOVAL AND
INSTALLATION:".
8. Disconnect MAF sensor coupler (1).
9. Remove air cleaner case assembly (2).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 45 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 42: Removing Air Cleaner Case Assembly

Courtesy of SUZUKI OF AMERICA CORP.

10. Disconnect the following cables.

Accelerator cable (1) from throttle valve lever (2).
Shift and select cable from transaxle (for M/T model)
Gear select cable from transaxle (for A/T model)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 46 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 43: Disconnecting Accelerator Cable From Throttle Valve Lever

Courtesy of SUZUKI OF AMERICA CORP.

11. Remove accelerator cable with its bracket from intake manifold.
12. Disconnect the following hoses:

DISCONNECTED HOSES DESCRIPTION

Brake booster hose (1) from intake
Heater outlet hose (5) from heater outlet pipe
manifold
Fuel feed hose (2) from delivery pipe Vacuum hose (6) from EVAP canister purge valve
P/S suction hose (7) and high pressure pipe (8) from P/S
Fuel return hose (3) from return pipe
pump
Heater inlet hose (4) from water outlet cap

miércoles, 24 de febrero de 2021 [Link] p. m. Page 47 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 44: Disconnecting Hoses

Courtesy of SUZUKI OF AMERICA CORP.

13. Disconnect the following electric wires:

DISCONNECTED ELECTRIC WIRES DESCRIPTION

Injector wire (1) Cylinder block heater connector (15) (if equipped)
CMP sensor coupler (2) Heated oxygen sensor wire (16)
Ignition coil wire (3) Starter wires (17)
TP sensor coupler (4) Generator wires (18)
IAC valve coupler (5) A/C magnetic switch wire (19) (if equipped)
IAC valve coupler (6) Power steering pressure switch coupler (20)
MAP sensor coupler (6) Vehicle speed sensor (21)
CKP sensor coupler (7) Battery negative cable from transmission (22)
Ground terminals from cylinder head (8)
Input shaft speed sensor (23) (A/T)
and throttle body (9)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 48 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

EVAP canister purge valve coupler (10) Output shaft speed sensor (24) (A/T)
EGR valve coupler (11) Transmission range switch (25) (for A/T model)
Valve body and transmission fluid temperature sensor
ECT sensor coupler (12)
connector (26) (for A/T model)
Knock sensor coupler (13) Back-up light switch (for M/T model)
Oil pressure switch wire (14)

14. Release the wire harness from clamps.

Fig. 45: Disconnecting Electric Wires

Courtesy of SUZUKI OF AMERICA CORP.

15. Remove clutch operating cylinder (1) from transmission with hose still attached (for M/T model).

NOTE: Suspend removed clutch operating cylinder at a place free from any
possible damage during removal and installation of engine assembly.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 49 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 46: Removing Clutch Operating Cylinder From Transmission

Courtesy of SUZUKI OF AMERICA CORP.

16. Remove right and left engine under covers.

17. Remove generator belt (Power steering pump drive belt) for equipped with A/C referring to
GENERATOR DRIVE BELT REMOVAL AND INSTALLATION .
18. Remove exhaust No.1 pipe and No. 2 pipe referring to EXHAUST PIPE REMOVAL AND
INSTALLATION .
19. Drain engine oil, transaxle oil for M/T vehicle or A/T fluid for A/T vehicle and transfer oil for 4WD
vehicle.
20. Remove drive shafts referring to FRONT DRIVE SHAFT ASSEMBLY REMOVAL AND
INSTALLATION .
21. Separate propeller shaft front end from transfer output flange for 4WD vehicle.
22. Remove A/C compressor from compressor bracket with hoses still attached, if equipped with A/C.

NOTE: Suspend removed compressor at a place free from any possible damage
during removal and installation of engine assembly.

23. Remove intake manifold rear stiffener.

24. Install lifting device.
25. Remove mounting member (1) from front member and suspension frame (7).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 50 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

26. Remove suspension frame (7) with stabilizer bar and suspension control arms referring to FRONT
SUSPENSION FRAME REMOVAL AND INSTALLATION .
27. Remove engine left mounting bolts (9).
28. Remove engine right mounting No. 1 bracket (8).

Fig. 47: Removing Engine Left Mounting Bolts

Courtesy of SUZUKI OF AMERICA CORP.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 51 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

29. Before removing engine with transaxle and transfer (for 4WD model) from vehicle body, recheck to make
sure all hoses, electric wires and cables are disconnected from engine and transaxle.
30. Lower engine with transaxle and transfer (for 4WD model) from vehicle body.

NOTE: Before lowering engine, to avoid damage to A/C compressor, raise it

through clearance made on engine crankshaft pulley side. At this time, use
care so that no excessive force is applied to hoses.

Fig. 48: Lowering Engine With Transaxle And Transfer (For 4WD Model) From Vehicle Body
Courtesy of SUZUKI OF AMERICA CORP.

31. Disconnect transfer from transaxle referring to TRANSFER DISMOUNTING AND REMOUNTING .
32. Disconnect transaxle from engine referring to MANUAL TRANSAXLE UNIT DISMOUNTING AND
REMOUNTING or AUTOMATIC TRANSAXLE UNIT DISMOUNTING AND REMOUNTING .
33. Remove clutch cover and clutch disk referring to CLUTCH COVER, CLUTCH DISC AND
FLYWHEEL REMOVAL AND INSTALLATION .

Installation

1. Install clutch cover and clutch disk referring to CLUTCH COVER, CLUTCH DISC AND
FLYWHEEL REMOVAL AND INSTALLATION ).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 52 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

2. Connect transaxle to engine referring to MANUAL TRANSAXLE UNIT DISMOUNTING AND

REMOUNTING or AUTOMATIC TRANSAXLE UNIT DISMOUNTING AND REMOUNTING .
3. Connect transfer to transaxle referring to TRANSFER DISMOUNTING AND REMOUNTING .
4. Lift engine with transaxle and transfer (for 4WD model) into engine compartment, but do not remove
lifting device.
5. Install engine right mounting No. 1 bracket (8) to right mounting bracket (4), generator & P/S bracket and
engine right mounting (3) with temporal tightening its bolts.
6. Install engine left mounting bolts (9) with temporal tightening its nut.
7. Install mounting member (1) to front member and suspension frame (7).
8. Install suspension frame (7) with stabilizer bar and suspension control arms referring to FRONT
SUSPENSION FRAME REMOVAL AND INSTALLATION .
9. Tighten bolts and nuts of all parts installed in steps 5), 6) and 7) to specified torque.

NOTE: Be sure to tighten engine right mounting No.1 bracket bolt (10)
previously, and tighten engine left mounting bolts (9).
Be sure to tighten mounting member to suspension frame bolts (12)
or nuts (12) previously, and tighten mounting member to body bolts
(11).

Tightening torque

Engine mounting bolts and nut (a): 55 N.m (5.5 kg-m, 40.0 lb-ft)

Engine front and rear mounting nut (b): 45 N.m (4.5 kg-m, 32.5 lb-ft)

10. Remove lifting device.

11. Reverse removal procedures for installation of reminder.
Push in each drive shaft joint fully so that snap ring engages with differential gear or center bearing
support. Use care not to damage oil seal lip when inserting.
Clamp electric wire securely.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 53 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 49: Tightening Engine Mounting Bolts And Nut

Courtesy of SUZUKI OF AMERICA CORP.

12. For 4WD model, connect propeller shaft referring to PROPELLER SHAFT REMOVAL AND
INSTALLATION .
13. Adjust gear shift control cable, referring to GEAR SHIFT LEVER AND CABLE REMOVAL AND
INSTALLATION .

miércoles, 24 de febrero de 2021 [Link] p. m. Page 54 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

14. Install generator belt (Power steering pump drive belt) referring to GENERATOR DRIVE BELT
REMOVAL AND INSTALLATION .
15. Refill transaxle with A/T fluid or gear oil, referring to AUTOMATIC TRANSAXLE FLUID
REPLACEMENT or MANUAL TRANSAXLE OIL REPLACEMENT .
16. For 4WD model, refill transfer with transfer oil referring to TRANSFER OIL CHANGE .
17. Refill engine with engine oil, referring to ENGINE OIL AND FILTER CHANGE .
18. Refill cooling system, referring to COOLING SYSTEM FLUSH AND REFILL .
19. Upon completion of installation, check to make sure that there is no fuel leakage, coolant leakage,
transaxle oil leakage, transfer oil leakage or exhaust gas leakage at each connection.
20. Adjust accelerator cable play, referring to "ACCELERATOR CABLE ADJUSTMENT:".

TIMING CHAIN COVER COMPONENTS

Fig. 50: Identifying Timing Chain Cover Components

miércoles, 24 de febrero de 2021 [Link] p. m. Page 55 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Courtesy of SUZUKI OF AMERICA CORP.

TIMING CHAIN COVER REMOVAL AND INSTALLATION

Removal

1. Remove engine assembly from vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".
2. Remove oil pan referring to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
3. Remove cylinder head cover referring to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:".
4. Remove crankshaft pulley bolt.

To lock crankshaft pulley (1), use special tool (camshaft pulley holder) with it as shown in figure.

Special tool

(a): 09917-68221

NOTE: Be sure to use the following bolts instead of pins for fixing special tool to
crankshaft pulley.

Bolt size: M8, P1.25 L = 25 mm (0.98 in.)

Strength: 7T

miércoles, 24 de febrero de 2021 [Link] p. m. Page 56 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 51: Removing Crankshaft Pulley Bolt

Courtesy of SUZUKI OF AMERICA CORP.

5. Remove crankshaft pulley (1).

To remove crankshaft pulley, use special tools (Steering wheel remover, Bearing puller attachment) with
it as shown in figure.

Special tool

(A): 09944-36011

(B): 09926-58010

miércoles, 24 de febrero de 2021 [Link] p. m. Page 57 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 52: Removing Crankshaft Pulley

Courtesy of SUZUKI OF AMERICA CORP.

6. Remove A/C compressor bracket (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 58 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 53: Removing A/C Compressor Bracket

Courtesy of SUZUKI OF AMERICA CORP.

7. Remove generator belt idler pulley (1), water pump pulley (2) and generator belt tensioner (3).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 59 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 54: Removing Generator Belt Idler Pulley, Water Pump Pulley And Generator Belt Tensioner
Courtesy of SUZUKI OF AMERICA CORP.

8. Remove timing chain cover (1) bolts (3) and nut (2).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 60 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 55: Removing Timing Chain Cover

Courtesy of SUZUKI OF AMERICA CORP.

Installation

Reverse removal sequence to install timing chain cover (1) noting the following points.

1. Apply sealant "A" and "B" to area as shown in figure.

"A": Sealant 99000-31250

"B": Sealant 99000-31140

Sealant amount for timing chain cover

"a": 3 mm (0.12 in.)

"b": 2 mm (0.08 in.)

"c": 6 mm (0.24 in.)

"d": 16 mm (0.63 in.)

"e": 14 mm (0.55 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 61 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

"f": 65 mm (2.56 in.)

"g": 73 mm (2.87 in.)

"h": 4 mm (0.16 in.)

Fig. 56: Applying Sealant To Timing Chain Cover

Courtesy of SUZUKI OF AMERICA CORP.

2. Apply engine oil to oil seal lip, then install timing chain cover (1). Tighten bolts and nut to specified
torque.

NOTE: Before installing timing chain cover, check that pin is securely fitted.

Tightening torque

Timing chain cover bolt and nut (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 62 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 57: Installing Timing Chain Cover

Courtesy of SUZUKI OF AMERICA CORP.

3. Install generator belt idler pulley (1). Tighten nut to specified torque.

Tightening torque

Generator belt idler pulley nut (a): 42 N.m (4.2 kg-m, 30.5 lb-ft)

4. Install generator belt tensioner (2). Tighten bolts to specified torque.

Tightening torque

Generator belt tensioner bolt (b): 25 N.m (2.5 kg-m, 18.5 lb-ft)

5. Install water pump pulley (3).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 63 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 58: Tightening Timing Chain Cover Bolt And Generator Belt Tensioner Bolt
Courtesy of SUZUKI OF AMERICA CORP.

6. Install A/C compressor bracket (1) if equipped. Tighten bracket bolts to specified torque.

Tightening torque

A/C compressor bracket bolt (a): 55 N.m (5.5 kg-m, 40.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 64 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 59: Tightening A/C Compressor Bracket Bolts

Courtesy of SUZUKI OF AMERICA CORP.

7. Install cylinder head cover referring to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:".
8. Install oil pan. Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
9. Install crankshaft pulley. To lock crankshaft pulley (1), use special tool (camshaft pulley holder) with it as
shown in figure.

Special tool

(A): 09917-68221

NOTE: Be sure to use the following bolts instead of pins for fixing special tool to
crank pulley. Bolt size: M8, P1.25 L = 25 mm (0.98 in.) Strength: 7T

Tightening torque

Crankshaft pulley bolt (a): 150 N.m (15.0 kg-m, 108.5 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 65 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 60: Installing Crankshaft Pulley

Courtesy of SUZUKI OF AMERICA CORP.

10. Install engine assembly to vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".

TIMING CHAIN COVER CLEANING AND INSPECTION

Clean

Clean sealing surface on timing chain cover, crank case, cylinder block and cylinder head.

Remove oil, old sealant, and dust from sealing surface.

Inspection

Check oil seal lip for fault or other damage. Replace as necessary.

NOTE: When installing new oil seal (2), drive it in until its surface is flash with edge of
timing chain cover (1).

To install oil seal, use special tool (bearing installer).

Special tool

miércoles, 24 de febrero de 2021 [Link] p. m. Page 66 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

(A): 09913-75510

Fig. 61: Installing New Oil Seal

Courtesy of SUZUKI OF AMERICA CORP.

2ND TIMING CHAIN AND CHAIN TENSIONER COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 67 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 62: Identifying 2Nd Timing Chain And Chain Tensioner Components
Courtesy of SUZUKI OF AMERICA CORP.

2ND TIMING CHAIN AND CHAIN TENSIONER REMOVAL AND INSTALLATION

Removal

1. Remove engine assembly from vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".
2. Remove oil pan. Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
3. Remove cylinder head cover. Refer to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:" for removal.
4. Remove timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND
INSTALLATION:" for removal.
5. Turn crankshaft to meet following conditions.
Key (I) on crankshaft is positioned as shown.
Arrow mark on idler sprocket (II) points upward.
Marks on sprockets (III) match with marks on cylinder head.

Note that this step must be followed for reinstallation of timing chain.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 68 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 63: Aligning Marks On Sprockets With Marks On Cylinder Head

Courtesy of SUZUKI OF AMERICA CORP.

6. Remove timing chain tensioner adjuster No.2 (1) and gasket. To remove them, slacken 2nd timing chain
by turning intake camshaft counterclockwise a little while pushing back pad.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 69 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 64: Removing Timing Chain Tensioner Adjuster No 2

Courtesy of SUZUKI OF AMERICA CORP.

7. Remove intake (1) and exhaust (2) camshaft timing sprocket bolts. To remove them, fit a spanner to
hexagonal part (3) at the center of camshaft to hold it stationary.
8. Remove camshaft timing sprockets and 2nd timing chain (4).

CAUTION: After 2nd timing chain is removed, never turn intake camshaft, exhaust
camshaft and crankshaft independently more than such an extent as
shown. If turned, interference may occur between piston and valves and
valves themselves, and parts related to piston and valves may be
damaged.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 70 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 65: Removing Intake And Exhaust Camshaft Timing Sprocket Bolts
Courtesy of SUZUKI OF AMERICA CORP.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 71 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 66: Removing Camshaft Timing Sprockets And 2Nd Timing Chain
Courtesy of SUZUKI OF AMERICA CORP.

Installation

miércoles, 24 de febrero de 2021 [Link] p. m. Page 72 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

1. Check that match mark (1) on crank timing sprocket is in match with timing mark (2) on lower crankcase
as shown in figure.

Fig. 67: Aligning Match Mark On Crank Timing Sprocket With Timing Mark On Lower
Crankcase
Courtesy of SUZUKI OF AMERICA CORP.

2. Check that arrow mark (1) on idler sprocket faces upward as shown in figure.
3. Check that knock pins of intake (2) and exhaust (3) camshafts are aligned with timing marks on cylinder
head as shown in figure.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 73 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 68: Aligning Knock Pins Of Intake And Exhaust Camshafts With Timing Marks On Cylinder
Head
Courtesy of SUZUKI OF AMERICA CORP.

4. Install 2nd timing chain by aligning yellow plate (1) of 2nd timing chain and match marks on idler
sprocket.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 74 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 69: Installing 2nd Timing Chain By Matching Marks On Idler Sprocket
Courtesy of SUZUKI OF AMERICA CORP.

5. Install sprockets to intake and exhaust camshafts by aligning dark blue plate of 2nd timing chain, match
marks on intake sprocket and exhaust sprocket respectively.

CAUTION: Do not turn more than allowable turning range.

If turned excessively, valve and piston may get damaged.

NOTE: As an arrow mark is provided on both sides, camshaft timing sprocket has
no specific installation direction.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 75 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 70: Aligning Dark Blue Plate Of 2nd Timing Chain With Match Marks On Intake And
Exhaust Sprocket
Courtesy of SUZUKI OF AMERICA CORP.

6. Install intake (1) and exhaust (2) camshaft timing sprocket bolts. To install it, fit a spanner to hexagonal
part (3) at the center of camshaft to hold it stationary.

Tightening torque

Camshaft timing sprocket bolt (a): 80 N.m (8.0 kg-m, 57.5 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 76 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 71: Installing Intake And Exhaust Camshaft Timing Sprocket Bolts
Courtesy of SUZUKI OF AMERICA CORP.

7. Push back plunger (1) into tensioner body (2) and hold it at the position by inserting stopper (3) into
body.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 77 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 72: Inserting Stopper Into Tensioner Body

Courtesy of SUZUKI OF AMERICA CORP.

8. Install timing chain tensioner adjuster No.2 (1) with new gasket.

Tightening torque

Timing chain tensioner adjuster No.2 bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

Timing chain tensioner adjuster No.2 nut (b): 45 N.m (4.5 kg-m, 33.0 lb-ft)

9. Pull out stopper (2) from timing chain tensioner adjuster No.2.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 78 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 73: Installing Timing Chain Tensioner Adjuster No 2

Courtesy of SUZUKI OF AMERICA CORP.

10. Turn crankshaft two rotations clockwise then align timing mark on crankshaft and timing mark on
cylinder block as shown in figure. Check that timing marks of cylinder head and cylinder block are in
match with match marks on sprockets respectively.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 79 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 74: Aligning Timing Mark On Crankshaft And Timing Mark On Cylinder Block
Courtesy of SUZUKI OF AMERICA CORP.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 80 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

11. Apply oil to timing chains, tensioner, tensioner adjusters, sprockets, and guides.
12. Install timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND INSTALLATION:"
for installation.
13. Install cylinder head cover. Refer to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:" for installation.
14. Install oil pan. Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
15. Install engine assembly to vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".

2ND TIMING CHAIN AND CHAIN TENSIONER INSPECTION

Timing Chain Guide No.2

Check shoe for wear or damage.

Fig. 75: Identifying Timing Chain Guide No 2 Shoe

Courtesy of SUZUKI OF AMERICA CORP.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 81 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Camshaft Sprocket

Check teeth of sprocket for wear or damage.

Fig. 76: Identifying Camshaft Sprocket Teeth

Courtesy of SUZUKI OF AMERICA CORP.

Timing Chain

Check timing chain for wear or damage.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 82 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 77: Identifying Timing Chain

Courtesy of SUZUKI OF AMERICA CORP.

Tensioner Adjuster No.2

Check shoe (1) for wear or damage and latch functions properly.

Fig. 78: Identifying Tensioner Adjuster No 2 Shoe

Courtesy of SUZUKI OF AMERICA CORP.

1ST TIMING CHAIN AND CHAIN TENSIONER COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 83 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 79: Identifying 1St Timing Chain And Chain Tensioner Components
Courtesy of SUZUKI OF AMERICA CORP.

1ST TIMING CHAIN AND CHAIN TENSIONER REMOVAL AND INSTALLATION

Removal

1. Remove engine assembly from vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".
2. Remove oil pan. Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
3. Remove cylinder head cover. Refer to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:" for removal.
4. Remove timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND
INSTALLATION:" for removal.
5. For reinstallation of timing chain, turn crankshaft so that timing marks on cylinder head and lower
crankcase match with those on sprockets as shown in figure.
6. Remove 2nd timing chain. Refer to "2ND TIMING CHAIN AND CHAIN TENSIONER REMOVAL

miércoles, 24 de febrero de 2021 [Link] p. m. Page 84 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

AND INSTALLATION:" for removal.

Fig. 80: Aligning Timing Marks On Cylinder Head And Lower Crankcase With Sprockets
Courtesy of SUZUKI OF AMERICA CORP.

7. Remove timing chain guide No.1 (1).

8. Remove timing chain tensioner adjuster No.1 (2).
9. Remove timing chain tensioner (3).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 85 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

10. Remove idler sprocket (4) and 1st timing chain (5).
11. Remove crankshaft timing sprocket (6).

Fig. 81: Removing Crankshaft Timing Sprocket

Courtesy of SUZUKI OF AMERICA CORP.

Installation

1. Check that match mark (1) on crankshaft timing sprocket is in match with timing mark (2) on lower
crankcase.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 86 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 82: Aligning Match Mark On Crankshaft Timing Sprocket With Timing Mark On Lower
Crankcase
Courtesy of SUZUKI OF AMERICA CORP.

2. Install crankshaft timing sprocket (2) as shown in figure.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 87 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 83: Installing Crankshaft Timing Sprocket

Courtesy of SUZUKI OF AMERICA CORP.

3. Apply oil to bush of idler sprocket (1).

4. Install idler sprocket and sprocket shaft.
5. Install 1st timing chain by aligning dark blue plate (4) of 1st timing chain (3) and match mark (2) on idler
sprocket (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 88 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 84: Installing 1st Timing Chain By Matching Mark On Idler Sprocket
Courtesy of SUZUKI OF AMERICA CORP.

6. Bring yellow plate (4) of 1st timing chain (3) into match with match mark (2) on crankshaft timing
sprocket (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 89 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 85: Aligning Yellow Plate Of 1st Timing Chain With Match Mark On Crankshaft Timing
Sprocket
Courtesy of SUZUKI OF AMERICA CORP.

7. Apply engine oil to sliding surface of timing chain tensioner (1) and then install it as shown in figure.
Tighten tensioner nut to specified torque.

Tightening torque

Timing chain tensioner nut (a): 25 N.m (2.5 kg-m, 18.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 90 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 86: Tightening Timing Chain Tensioner Nut

Courtesy of SUZUKI OF AMERICA CORP.

8. With latch of tensioner adjuster No.1 returned and plunger (1) pushed back into body, insert stopper (4)
into latch (2) and body (3).

After inserting it, check to make sure that plunger will not come out.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 91 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 87: Inserting Stopper Into Latch And Body

Courtesy of SUZUKI OF AMERICA CORP.

9. Install timing chain tensioner (2) adjuster No.1 (1).

Tightening torque

Timing chain tensioner adjuster No.1 bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

10. Pull out stopper (3) from adjuster No.1.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 92 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 88: Pulling Out Stopper From Adjuster No 1

Courtesy of SUZUKI OF AMERICA CORP.

11. Apply engine oil to sliding surface of timing chain guide No.1 (1) and then install it. Tighten guide bolts
to specified torque.

Tightening torque

Timing chain guide No.1 bolt (a): 9 N.m (0.9 kg-m, 6.5 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 93 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 89: Tightening Timing Chain Guide No 1 Bolt

Courtesy of SUZUKI OF AMERICA CORP.

12. Check that dark blue and yellow plates of 1st timing chain are in match with match marks on sprockets
respectively.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 94 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 90: Aligning Dark Blue And Yellow Plates Of 1st Timing Chain With Match Marks On
Sprockets
Courtesy of SUZUKI OF AMERICA CORP.

13. Install 2nd timing chain. Refer to "2ND TIMING CHAIN AND CHAIN TENSIONER REMOVAL
AND INSTALLATION:" for installation.
14. Install timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND INSTALLATION:"
for installation.
15. Install cylinder head cover. Refer to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:" for installation.
16. Install oil pan. Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
17. Install engine assembly to vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".

miércoles, 24 de febrero de 2021 [Link] p. m. Page 95 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

1ST TIMING CHAIN AND CHAIN TENSIONER INSPECTION

Timing Chain Guide No.1

Check shoe for wear or damage.

Fig. 91: Identifying Timing Chain Guide No 1 Shoe

Courtesy of SUZUKI OF AMERICA CORP.

Timing Chain Tensioner

Check shoe (1) for wear or damage.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 96 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 92: Identifying Timing Chain Tensioner Shoe

Courtesy of SUZUKI OF AMERICA CORP.

Crankshaft Timing Sprocket

Check teeth of sprocket for wear or damage.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 97 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 93: Identifying Crankshaft Timing Sprocket Teeth

Courtesy of SUZUKI OF AMERICA CORP.

Idler Sprocket

Check teeth and bush (1) of sprocket for wear or damage.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 98 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 94: Identifying Idler Sprocket Teeth

Courtesy of SUZUKI OF AMERICA CORP.

1st Timing Chain

Check timing chain for wear or damage.

Fig. 95: Identifying 1st Timing Chain

Courtesy of SUZUKI OF AMERICA CORP.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 99 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Timing Chain Tensioner Adjuster No.1

Check that latch (1) and tooth surface (2) are free from damage and latch functions properly.

Fig. 96: Identifying Latch And Tooth Surface Timing Chain Tensioner Adjuster No 1
Courtesy of SUZUKI OF AMERICA CORP.

CAMSHAFTS AND VALVE LASH ADJUSTERS COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 100 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 97: Identifying Camshafts And Valve Lash Adjusters Components

Courtesy of SUZUKI OF AMERICA CORP.

CAMSHAFTS AND VALVE LASH ADJUSTERS REMOVAL AND INSTALLATION

Removal

1. Remove engine assembly from vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".
2. Remove oil pan. Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
3. Remove cylinder head cover. Refer to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:" for removal.
4. Remove timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND
INSTALLATION:" for removal.
5. Remove 2nd timing chain. Refer to "2ND TIMING CHAIN AND CHAIN TENSIONER REMOVAL
AND INSTALLATION:" for removal.
6. Remove CMP sensor. Refer to CMP (CAMSHAFT POSITION) SENSOR REMOVAL AND
INSTALLATION .
7. To secure work in the following steps, reinstall mounting member, engine front torque bush, rear
mounting and rear mounting No.2 bracket.
8. Set key on crankshaft in position as shown by turning crankshaft. This is to prevent interference between
valves and piston.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 101 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 98: Setting Key On Crankshaft In Position

Courtesy of SUZUKI OF AMERICA CORP.

9. Loosen camshaft housing bolts in such order as indicated in figure and remove them.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 102 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 99: Loosening Camshaft Housing Bolts

Courtesy of SUZUKI OF AMERICA CORP.

10. Remove camshaft housings.

11. Remove camshafts.
12. Remove valve lash adjusters (2).

NOTE: Never disassemble hydraulic valve lash adjuster.

Don't apply force (1) to body of adjuster, oil in high pressure chamber in
adjuster will leak.

Fig. 100: Removing Valve Lash Adjusters

Courtesy of SUZUKI OF AMERICA CORP.

Immerse removed adjuster (2) in clean engine oil (1) and keep it there till
reinstalling it so as to prevent oil leakage. If it is left in air, place it with its
bucket body facing down. Don't place on its side or with bucket body

miércoles, 24 de febrero de 2021 [Link] p. m. Page 103 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

facing up.

Fig. 101: Immersing Removed Adjuster In Clean Engine Oil

Courtesy of SUZUKI OF AMERICA CORP.

Installation

1. Before installing valve lash adjuster to cylinder head (1), fill oil passage of cylinder head with engine oil
according to following procedure.

Pour engine oil through oil holes (2) and check that oil comes out from oil holes in sliding part of valve
lash adjuster.

Perform this check on both intake and exhaust sides.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 104 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 102: Pouring Engine Oil Through Oil Holes

Courtesy of SUZUKI OF AMERICA CORP.

2. Install valve lash adjusters to cylinder head.

Apply engine oil around valve lash adjuster and then install it to cylinder head.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 105 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 103: Installing Valve Lash Adjusters To Cylinder Head

Courtesy of SUZUKI OF AMERICA CORP.

3. Match match mark (1) on crank timing sprocket and mating surface of cylinder block and lower
crankcase (2).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 106 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 104: Matching Match Mark On Crank Timing Sprocket And Mating Surface Of Cylinder
Block
Courtesy of SUZUKI OF AMERICA CORP.

4. Install camshafts.

Apply oil to sliding surface of each camshaft and camshaft journal then install them by aligning match
marks on cylinder head and camshafts as shown in figure.

NOTE: Install camshaft in such direction that its end with groove for CMP sensor
installation comes to exhaust side.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 107 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 105: Aligning Match Marks On Cylinder Head And Camshafts

Courtesy of SUZUKI OF AMERICA CORP.

5. Install camshaft housing pins (3) as shown in figure.

Fig. 106: Installing Camshaft Housing Pins

Courtesy of SUZUKI OF AMERICA CORP.

6. Check position of camshaft housings.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 108 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Embossed marks are provided on each camshaft housing, indicating position and direction for
installation. Install housings as indicated by these marks.

Fig. 107: [Identifying Embossed Marks Provided On Each Camshaft Housing]

Courtesy of SUZUKI OF AMERICA CORP.

7. Apply sealant "A" to exhaust camshaft end housing (1) sealing surface area as shown in figure.

"A": Sealant 99000-31250

miércoles, 24 de febrero de 2021 [Link] p. m. Page 109 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 108: Applying Sealant To Exhaust Camshaft End Housing Sealing Surface Area
Courtesy of SUZUKI OF AMERICA CORP.

8. After applying oil to housing bolts, tighten them temporarily first. Then tighten them by following
numerical order in figure.

Tighten a little at a time and evenly among bolts and repeat tightening sequence two or three times before
they are tightened to specified torque.

Tightening torque

Camshaft housing bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 110 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 109: Identifying Tightening Sequence Of Camshaft Housing Bolts

Courtesy of SUZUKI OF AMERICA CORP.

9. Install CMP sensor. Refer to CMP (CAMSHAFT POSITION) SENSOR REMOVAL AND
INSTALLATION .
10. Install 2nd timing chain. Refer to "2ND TIMING CHAIN AND CHAIN TENSIONER REMOVAL
AND INSTALLATION:" for installation.
11. Install timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND INSTALLATION:"
for installation.
12. Install cylinder head cover. Refer to "CYLINDER HEAD COVER REMOVAL AND
INSTALLATION:" for installation.
13. Install oil pan. Refer to OIL PAN AND OIL PUMP STRAINER REMOVAL AND
INSTALLATION .
14. Install engine assembly to vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".

CAUTION: Don't turn camshafts or start engine (i.e., valves should not be
operated) for about half an hour after reinstalling hydraulic valve lash
adjusters and camshafts. As it takes time for valves to settle in place,
operating engine within half an hour after their installation may cause
interference to occur between valves themselves or valves and
piston.
If air is trapped in valve lash adjuster, valve may make tapping sound
when engine is operated after valve lash adjuster is installed. In such
a case, run engine for about half an hour at about 2,000 to 3,000 RPM,
and then air will be purged and tapping sound will cease. Should
tapping sound not cease, it is possible that valve lash adjuster is
defective. Replace it if defective. If defective adjuster can't be located
by hearing among 16 of them, check as follows.
Stop engine and remove cylinder head cover.
Push adjuster downward by hand (with less than 20 kg or 44 lbs
force) when cam crest is not on adjuster to be checked and
check if clearance exists between cam and adjuster. If it does,
adjuster is defective and needs replacement.

CAMSHAFT AND VALVE LASH ADJUSTER INSPECTION

Cam Wear

Using a micrometer, measure cam height. If measured height is below its limit, replace camshaft.

Cam height

CAM HEIGHT SPECIFICATION

Cam height Standard Limit

miércoles, 24 de febrero de 2021 [Link] p. m. Page 111 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Intake cam 40.410--40.570 mm (1.5910--1.5972 in.) 40.210 mm (1.5831 in.)

Exhaust cam 39.917--40.077 mm (1.5716--1.5778 in.) 39.725 mm (1.5640 in.)

Fig. 110: Measuring Cam Height

Courtesy of SUZUKI OF AMERICA CORP.

Camshaft Runout

Set camshaft between two "V" blocks, and measure its runout by using a dial gauge.

If measured runout exceeds the specified limit, replace camshaft.

Runout limit

0.03 mm (0.0012 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 112 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 111: Checking Camshaft Runout

Courtesy of SUZUKI OF AMERICA CORP.

Camshaft Journal Wear

Check camshaft journals and camshaft housings for pitting, scratches, wear or damage.

If any malcondition is found, replace camshaft or cylinder head with housing. Never replace cylinder head
without replacing housings.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 113 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 112: Identifying Camshaft Journal

Courtesy of SUZUKI OF AMERICA CORP.

Check clearance by using gauging plastic. Checking procedure is as follows.

1. Clean housings and camshaft journals.

2. Make sure that all valve lash adjusters are removed and install camshaft to cylinder head.
3. Place a piece of gauging plastic to full width of journal of camshaft (parallel to camshaft).
4. Install camshaft housing.
5. Tighten camshaft housing bolts in such order as indicated in figure a little at a time till they are tightened
to specified torque.

NOTE: Do not rotate camshaft while gauging plastic is installed.

Tightening torque

Camshaft housing bolt (a): 11 N.m (1.1 kg-m, 8.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 114 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 113: Identifying Tightening Sequence Of Camshaft Housing Bolts

Courtesy of SUZUKI OF AMERICA CORP.

6. Remove housing, and using scale (2) on gauging plastic envelop (1), measure gauging plastic width at its
widest point.

Journal clearance

JOURNAL CLEARANCE SPECIFICATION

Standard Limit
0.020 - 0.074 mm (0.0008 - 0.0029 in.) 0.12 mm (0.0047 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 115 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 114: Measuring Gauging Plastic Width At Its Widest Point

Courtesy of SUZUKI OF AMERICA CORP.

If measured camshaft journal clearance exceeds limit, measure journal (housing) bore and outside diameter of
camshaft journal. Replace camshaft or cylinder head assembly whichever the difference from specification is
greater.

Camshaft journal

CAMSHAFT JOURNAL SPECIFICATION

Item Standard
Camshaft journal bore diameter. (IN & EX) 26.000--26.033 mm (1.0236--1.0249 in.)
Camshaft journal O.D. (IN & EX) 25.959--25.980 mm (1.0221 - 1.0228 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 116 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 115: Checking Journal (Housing) Bore And Outside Diameter Of Camshaft Journal
Courtesy of SUZUKI OF AMERICA CORP.

Wear of Hydraulic Valve Lash Adjuster

Check adjuster for pitting, scratches, or damage. If any malcondition is found, replace.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 117 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 116: Identifying Hydraulic Valve Lash Adjuster

Courtesy of SUZUKI OF AMERICA CORP.

Measure cylinder head bore and adjuster outside diameter to determine cylinder head-to-adjuster clearance. If
clearance exceeds limit, replace adjuster or cylinder head.

Cylinder head bore and adjuster outside diameter

CYLINDER HEAD BORE AND ADJUSTER OUTSIDE DIAMETER SPECIFICATION

Item Standard Limit
Hydraulic valve lash adjuster 30.959--30.975 mm (1.2189--1.2194 in.) -
Cylinder head bore 31.000--31.025 mm (1.2205--1.2214 in.) -
Cylinder head to adjuster clearance 0.025 - 0.066 mm (0.0010--0.0025 in.) 0.15 mm (0.0059 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 118 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 117: Checking Cylinder Head Bore And Adjuster Outside Diameter
Courtesy of SUZUKI OF AMERICA CORP.

Oil Relief Valve

Check oil relief valve for clogging and ball for being stuck.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 119 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 118: Identifying Oil Relief Valve

Courtesy of SUZUKI OF AMERICA CORP.

VALVES AND CYLINDER HEAD COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 120 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 119: Identifying Valves And Cylinder Head Components

Courtesy of SUZUKI OF AMERICA CORP.

VALVES AND CYLINDER HEAD REMOVAL AND INSTALLATION

Removal

1. Remove engine assembly from vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".
2. Remove timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND
INSTALLATION:" for removal.
3. Remove 2nd timing chain and 1st timing chain. Refer to "2ND TIMING CHAIN AND CHAIN
TENSIONER REMOVAL AND INSTALLATION:" and 1ST TIMING CHAIN AND CHAIN
TENSIONER REMOVAL AND INSTALLATION for removal.
4. Remove camshafts and valve lash adjuster. Refer to "CAMSHAFTS AND VALVE LASH
ADJUSTERS REMOVAL AND INSTALLATION:" for removal.
5. Remove intake manifold rear stiffener (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 121 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 120: Removing Intake Manifold Rear Stiffener

Courtesy of SUZUKI OF AMERICA CORP.

6. Disconnect coolant pipe (1) from intake manifold.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 122 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 121: Disconnecting Coolant Pipe From Intake Manifold

Courtesy of SUZUKI OF AMERICA CORP.

7. Remove engine RH mounting bracket (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 123 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 122: Removing Engine RH Mounting Bracket

Courtesy of SUZUKI OF AMERICA CORP.

8. Remove P/S pump bracket (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 124 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 123: Removing P/S Pump Bracket

Courtesy of SUZUKI OF AMERICA CORP.

9. Loosen cylinder head bolts in such order as numbered in figure and remove them.

NOTE: Don't forget to remove bolt (M6) (3) as shown in figure.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 125 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 124: Loosening Cylinder Head Bolts

Courtesy of SUZUKI OF AMERICA CORP.

10. Check all around cylinder head for any other parts required to be removed or disconnected and remove or
disconnect whatever necessary.
11. Remove cylinder head with intake manifold, exhaust manifold and water outlet cap. Use lifting device, if
necessary.

Installation

1. Match match mark (1) on crank timing sprocket and mating surface (2) of cylinder block and lower
crankcase.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 126 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 125: Matching Match Mark On Crank Timing Sprocket And Mating Surface Of Cylinder
Block
Courtesy of SUZUKI OF AMERICA CORP.

2. Clean mating surface of cylinder head and cylinder block (2). Remove oil, old gasket and dust from
mating surface.
3. Install knock pins (3) to cylinder block.
4. Install new cylinder head gasket (1) to cylinder block. Top mark (6) provided on gasket comes to
crankshaft pulley side (4), facing up (toward cylinder head side).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 127 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 126: Installing New Cylinder Head Gasket To Cylinder Block

Courtesy of SUZUKI OF AMERICA CORP.

5. Install cylinder head to cylinder block.

Apply engine oil to cylinder head bolts and tighten them gradually as follows.

a. Tighten all bolts to 53 N.m (5.3 kg-m, 38.5 lb-ft) according to numerical order in figure.
b. In the same manner as in step a), retighten them to 84 N.m (8.4 kg-m, 61.0 lb-ft).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 128 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 127: Tightening Cylinder Head Bolts (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

c. Loosen all bolts until tightening torque is reduced to 0 according to numerical order in figure.

Fig. 128: Tightening Cylinder Head Bolts (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

d. Tighten all bolts to 53 N.m (5.3 kg-m, 38.5 lb-ft) according to numerical order in figure.
e. In the same manner as in step b), retighten them to specified torque.

Tightening torque

Cylinder head bolt (a): 105 N.m (10.5 kg-m, 76.0 lb-ft)

Cylinder head bolt (hex hole bolt) (b): 11 N.m (1.1 kg-m, 8.0 lb-ft)

NOTE: Be sure to tighten M6 bolt (3) after securing other bolts.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 129 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 129: Tightening Cylinder Head Bolts (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

6. Install engine RH mounting bracket (1) using new bracket bolts. Tighten bracket bolts to specified torque.

Tightening torque

Engine RH mounting bracket bolt (a): 55 N.m (5.5 kg-m, 40.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 130 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 130: Installing Engine RH Mounting Bracket

Courtesy of SUZUKI OF AMERICA CORP.

7. Install P/S pump bracket.

8. Install camshafts and valve lash adjuster. Refer to "CAMSHAFTS AND VALVE LASH ADJUSTERS
REMOVAL AND INSTALLATION:" for installation.
9. Install 1st timing chain. Refer to "1ST TIMING CHAIN AND CHAIN TENSIONER REMOVAL
AND INSTALLATION:" for installation.
10. Install 2nd timing chain. Refer to "2ND TIMING CHAIN AND CHAIN TENSIONER REMOVAL
AND INSTALLATION:" for installation.
11. Install timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND INSTALLATION:"
for installation.
12. Install engine assembly to vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".

VALVES AND CYLINDER HEAD DISASSEMBLY AND ASSEMBLY

Disassembly

1. When servicing cylinder head, remove intake manifold, injectors, exhaust manifold and water outlet cap
from cylinder head.
2. Using special tools, compress valve springs and then remove valve cotters (1) also by using special tool.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 131 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Special tool

(A): 09916-14510

(B): 09916-16510

(C): 09919-28610

(D): 09916-84511

miércoles, 24 de febrero de 2021 [Link] p. m. Page 132 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 131: Compressing Valve Springs And Removing Valve Cotters

Courtesy of SUZUKI OF AMERICA CORP.

3. Release special tool, and remove spring retainers and valve springs.
4. Remove valve from combustion chamber side.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 133 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

5. Remove valve stem seal (1) from valve guide, and then valve spring seat (2).

NOTE: Do not reuse seal once disassembled. Be sure to use new seal when
assembling.

Fig. 132: Removing Valve Stem Seal From Valve Guide

Courtesy of SUZUKI OF AMERICA CORP.

6. Using special tool (Valve guide remover), drive valve guide out from combustion chamber side to valve
spring side.

Special tool

(A): 09916-46020

NOTE: Do not reuse valve guide once disassembled. Be sure to use new valve
guide (oversize) when assembling.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 134 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 133: Removing Valve Guide

Courtesy of SUZUKI OF AMERICA CORP.

7. Place disassembled parts except valve stem seal and valve guide in order so that they can be installed in
their original positions.

Assembly

1. Before installing valve guide into cylinder head, ream guide hole with special tool (11 mm reamer) so as
to remove burrs and make it truly round.

Special tool

(A): 09916-34542

(B): 09916-38210

miércoles, 24 de febrero de 2021 [Link] p. m. Page 135 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 134: Reaming Guide Hole With Special Tool

Courtesy of SUZUKI OF AMERICA CORP.

2. Install valve guide to cylinder head.

Heat cylinder head uniformly at a temperature of 80 to 100°C (176 to 212°F) so that head will not be
distorted, and drive new valve guide into hole with special tools.

Drive in new valve guide until special tool (Valve guide installer) contacts cylinder head.

After installing, make sure that valve guide protrudes by 13.5 mm (0.53 in.) from cylinder head.

Special tool

(A): 09916-57350

(B): 09916-57340

NOTE: Do not reuse valve guide once disassembled. Install new valve guide

miércoles, 24 de febrero de 2021 [Link] p. m. Page 136 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

(Oversize).
Intake and exhaust valve guides are identical.

Valve guide oversize

0.03 mm (0.0012 in.)

Valve guide protrusion "a" (In and Ex)

13.0 mm (0.51 in.)

Fig. 135: Identifying Valve Guide Protrusion

Courtesy of SUZUKI OF AMERICA CORP.

3. Ream valve guide bore with special tool (6.0 mm reamer). After reaming, clean bore.

Special tool

(A): 09916-34542

(B): 09916-37810

miércoles, 24 de febrero de 2021 [Link] p. m. Page 137 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 136: Reaming Valve Guide Bore With Special Tool

Courtesy of SUZUKI OF AMERICA CORP.

4. Install valve spring seat to cylinder head.

5. Install new valve stem seal (1) to valve guide. After applying engine oil to seal and spindle of special tool
(Valve guide installer handle), fit oil seal to spindle, and then install seal to valve guide by pushing
special tool by hand.

After installing, check to be sure that seal is properly fixed to valve guide.

Special tool

(A): 09917-98221

(B): 09916-57350

NOTE: Do not reuse seal once disassembled. Be sure to install new seal.
When installing, never tap or hit special tool with a hammer or else.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 138 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Install seal to guide only by pushing special tool by hand. Tapping or

hitting special tool may cause damage to seal.

Fig. 137: Installing New Valve Stem Seal To Valve Guide

Courtesy of SUZUKI OF AMERICA CORP.

6. Install valve to valve guide.

Before installing valve to valve guide, apply engine oil to stem seal, valve guide bore, and valve stem.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 139 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 138: Installing Valve To Valve Guide

Courtesy of SUZUKI OF AMERICA CORP.

7. Install valve spring and spring retainer.

8. Using special tool (Valve lifter), compress valve spring and fit two valve cotters (1) into groove in valve
stem.

Special tool

(A): 09916-14510

(B): 09916-16510

(C): 09919-28610

(D): 09916-84511

miércoles, 24 de febrero de 2021 [Link] p. m. Page 140 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 139: Installing Valve Cotters Into Groove In Valve Stem

Courtesy of SUZUKI OF AMERICA CORP.

9. Install intake manifold, injectors, exhaust manifold and water outlet cap to cylinder head.

VALVES AND CYLINDER HEAD INSPECTION

Valve Guides

Using a micrometer and bore gauge, take diameter readings on valve stems and guides to check stem-to-guide
clearance.

Be sure to take reading at more than one place along the length of each stem and guide.

If clearance exceeds limit, replace valve and valve guide.

Valve stem and valve guide

VALVE STEM DIAMETER SPECIFICATION

Item Standard Limit
Valve stem diameter In 5.965 - 5.980 mm -
(0.2348 - 0.2354 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 141 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Ex 5.940 - 5.955 mm -
(0.2339 - 0.2344 in.)
Valve guide I.D. In & Ex 6.000--6.012 mm -
(0.2362 - 0.2366 in.)
Stem-to-guide clearance In 0.020 - 0.047 mm 0.07 mm
(0.0008--0.0018 in.) (0.0027 in.)
Ex 0.045 - 0.072 mm 0.09 mm
(0.0018--0.0028 in.) (0.0035 in.)

Fig. 140: Checking Valve Stem Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Valves

Remove all carbon from valves.

Inspect each valve for wear, burn or distortion at its face and stem and, as necessary, replace it.
Measure thickness (1) of valve head. If measured thickness exceeds limit, replace valve.

Valve specification

VALVE SPECIFICATION
Item Standard Limit
In 1.0 mm (0.039 in.) 0.6 mm (0.024 in.)
Ex 1.2 mm (0.047 in.) 0.7 mm (0.028 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 142 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 141: Identifying Thickness Of Valve Head

Courtesy of SUZUKI OF AMERICA CORP.

Inspect valve stem end face for pitting and wear. If pitting or wear is found there, valve stem end may be
resurfaced, but not so much as to grind off its chamber. When it is worn out so much that its chamber is
gone, replace valve.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 143 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 142: Identifying Valve Stem End Face

Courtesy of SUZUKI OF AMERICA CORP.

Check each valve for radial runout with a dial gauge and "V" block. To check runout, rotate valve slowly.
If runout exceeds its limit, replace valve.

Limit on valve head radial runout

0.08 mm (0.003 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 144 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 143: Checking Valve Radial Runout

Courtesy of SUZUKI OF AMERICA CORP.

Seating contact width:

Create contact pattern on each valve in the usual manner, i.e., by giving uniform coat of marking
compound to valve seat and by rotatingly tapping seat with valve head. Valve lapper (tool used in valve
lapping) must be used.

Pattern produced on seating face of valve must be a continuous ring without any break, and the width of
pattern must be within specified range.

Standard seating width revealed by contact pattern on valve face

Intake: 0.9 - 1.1 mm (0.0355 - 0.0433 in.)

Exhaust: 1.1 - 1.3 mm (0.0433 - 0.0512 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 145 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 144: Identifying Valve Seat Width

Courtesy of SUZUKI OF AMERICA CORP.

Valve seat repair:

A valve seat not producing a uniform contact with its valve or showing width of seating contact that is out of
specified range must be repaired by regrinding or by cutting and regrinding and finished by lapping.

a. VALVE SEAT: Use valve seat cutters (1) to make three cuts as illustrated in figure. Three cutters must be
used: the 1st for making 30° angle, the 2nd for making 60° angle, and 3rd for making 45° angle. The 3rd
cut (45°) must be made to produce desired seat width.

Seat width for intake valve seat

0.9 - 1.1 mm (0.0355 - 0.0433 in.)

Seat width for exhaust valve seat

1.1 - 1.3 mm (0.0433 - 0.0512 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 146 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 145: Repairing Valve Seat Width

Courtesy of SUZUKI OF AMERICA CORP.

b. VALVE LAPPING: Lap valve on seat in two steps, first with coarse size lapping compound applied to
face and the second with fine-size compound, each time using valve lapper according to usual lapping
method.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 147 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 146: Identifying Valve Lapping Angles

Courtesy of SUZUKI OF AMERICA CORP.

Cylinder Head

Remove all carbon from combustion chambers.

NOTE: Do not use any sharp-edged tool to scrape off carbon. Be careful not to
scuff or nick metal surfaces when decarbonizing. The same applies to
valves and valve seats, too.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 148 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 147: Removing All Carbon From Combustion Chambers

Courtesy of SUZUKI OF AMERICA CORP.

Check cylinder head for cracks in intake and exhaust ports, combustion chambers, and head surface at a
total of 6 locations. If distortion limit is exceeded, correct gasketed surface with a surface plate and
abrasive paper of about #400 (Waterproof silicon carbide abrasive paper):

Place paper on and over surface plate, and rub gasketed surface against paper to grind off high spots.
Should this fail to reduce thickness gauge readings to within limit, replace cylinder head.

Leakage of combustion gases from this gasketed joint is often due to warped gasketed surface: such
leakage results in reduced power output.

Limit of distortion

0.05 mm (0.002 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 149 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 148: Checking Cylinder Head For Cracks In Intake And Exhaust Ports, Combustion
Chambers And Head Surface
Courtesy of SUZUKI OF AMERICA CORP.

Distortion of manifold seating faces:

Check seating faces of cylinder head for manifolds, using a straightedge and thickness gauge, in order to
determine whether these faces should be corrected or cylinder head replaced.

Limit of distortion

0.10 mm (0.004 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 150 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 149: Checking Seating Faces Of Cylinder Head For Manifolds Using Thickness Gauge
Courtesy of SUZUKI OF AMERICA CORP.

Valve Springs

Referring to data, check to be sure that each spring is in standard condition, free of any evidence of
breakage or weakening. Remember, weakened valve springs can cause chatter, not to mention possibility
of reducing power output due to gas leakage caused by decreased seating pressure.

Valve spring free length

miércoles, 24 de febrero de 2021 [Link] p. m. Page 151 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

VALVE SPRING FREE LENGTH SPECIFICATION

Standard Limit
44.29 mm (1.7437 in.) 42.60 mm (1.6772 in.)

Valve spring preload

VALVE SPRING PRELOAD SPECIFICATION

Standard Limit
22.3 - 25.6 kg for 33.8 mm (49.2 - 56.4 lb/1.33 in.) 24.0 kg for 33.8 mm (52.91 lb/1.33 in.)

Fig. 150: Checking Valve Spring Free Length

Courtesy of SUZUKI OF AMERICA CORP.

Spring squareness:

Use a square and surface plate to check each spring for squareness in terms of clearance between end of
valve spring and square. Valve springs found to exhibit a larger clearance than limit must be replaced.

Valve spring squareness limit

2.0 mm (0.079 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 152 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 151: Checking Clearance Between End Of Valve Spring And Square
Courtesy of SUZUKI OF AMERICA CORP.

PISTONS, PISTON RINGS, CONNECTING RODS AND CYLINDERS COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 153 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 152: Identifying Pistons, Piston Rings, Connecting Rods And Cylinders Components
Courtesy of SUZUKI OF AMERICA CORP.

PISTONS, PISTON RINGS, CONNECTING RODS AND CYLINDERS REMOVAL AND

INSTALLATION

Removal

1. Remove engine assembly from vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".
2. Remove oil pump with oil pump strainer. Refer to OIL PUMP REMOVAL AND INSTALLATION for
removal.
3. Remove cylinder head. Refer to "VALVES AND CYLINDER HEAD REMOVAL AND
INSTALLATION:" for removal.
4. Mark cylinder number on all pistons, connecting rods and connecting rod caps.
5. Remove connecting rod bearing caps.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 154 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

6. Clean carbon from top of cylinder bore before removing piston from cylinder.
7. Push piston and connecting rod assembly out through the top of cylinder bore.

Installation

1. Apply engine oil to pistons, rings, cylinder walls, connecting rod bearings and crank pins.

NOTE: Do not apply oil between connecting rod and bearing or between bearing
cap and bearing.

2. When installing piston and connecting rod assembly into cylinder bore, point front mark (3) on piston
head to crankshaft pulley side (1).

Fig. 153: Identifying Front Mark On Piston Head To Crankshaft Pulley Side
Courtesy of SUZUKI OF AMERICA CORP.

3. Install piston and connecting rod assembly into cylinder bore. Use special tool (Piston ring compressor) to
compress rings. Guide connecting rod into place on crankshaft.

Using a hammer handle, tap piston head to install piston into bore. Hold ring compressor firmly against
cylinder block until all piston rings have entered cylinder bore.

Special tool

(A): 09916-77310

miércoles, 24 de febrero de 2021 [Link] p. m. Page 155 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 154: Installing Piston And Connecting Rod Assembly Into Cylinder Bore
Courtesy of SUZUKI OF AMERICA CORP.

4. Install connecting rod bearing cap (1) as follows.

a. Point arrow mark (2) on cap to crankshaft pulley side.
b. Apply engine oil to connecting rod bolts (3).
c. Tighten all connecting rod bolts to 15 N.m (1.5 kg-m, 11.0 lb-ft).
d. Retighten them by turning through 45°.
e. Repeat step d) once again.

Tightening torque

Connecting rod bolt (a): 15 N.m (1.5 kg-m, 11.0 lb-ft) (45° and 45° by the specified procedure)

NOTE: If connecting rod bolt is reused, make sure to check connecting rod bolt
for deformation referring to "Connecting Rod Bolt Deformation (Plastic
Deformation Tightening Bolt)" under "PISTONS, PISTON RINGS,
CONNECTING RODS AND CYLINDERS INSPECTION AND CLEANING:".

miércoles, 24 de febrero de 2021 [Link] p. m. Page 156 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 155: Tightening Connecting Rod Bearing Cap Bolts

Courtesy of SUZUKI OF AMERICA CORP.

5. Install cylinder head. Refer to "VALVES AND CYLINDER HEAD REMOVAL AND
INSTALLATION:" for installation.
6. Install oil pan. Refer to OIL PUMP REMOVAL AND INSTALLATION for installation.
7. Install engine assembly to vehicle referring to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".

PISTONS, PISTON RINGS, CONNECTING RODS AND CYLINDERS DISASSEMBLY AND

ASSEMBLY

Disassembly

1. Using piston ring expander, remove two compression rings (Top and 2nd) and oil ring from piston.
2. Remove piston pin from connecting rod.
Ease out piston pin circlips (1), as shown.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 157 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 156: Removing Piston Pin Circlip

Courtesy of SUZUKI OF AMERICA CORP.

Force piston pin out.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 158 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 157: Removing Piston Pin

Courtesy of SUZUKI OF AMERICA CORP.

Assembly

NOTE: Two sizes of piston are available as standard size spare part so as to ensure
proper piston-to-cylinder clearance. When installing a standard size piston,
make sure to match piston with cylinder as follows.

1. Each piston (1) has stamped number 1 or 2 as shown. It represents outer diameter of piston.
2. There are also painted color (3) of red and blue on cylinder block (2) as shown.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 159 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 158: Identifying Outer Diameter Of Piston Stamped On Piston

Courtesy of SUZUKI OF AMERICA CORP.

3. Stamped number on piston and stamped mark on cylinder block should correspond. That is, install
number 2 stamped piston to cylinder which is identified with mark blue and a number 1 piston to cylinder
with mark red. Also, a letter A or B is stamped on piston head but ordinarily it is not necessary to
discriminate each piston by this letter.

Piston and cylinder specifications

miércoles, 24 de febrero de 2021 [Link] p. m. Page 160 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

PISTON AND CYLINDER SPECIFICATIONS

Piston Cylinder Piston-to-
Number at the Outer cylinder
top (mark) diameter Mark Bore diameter clearance>
1 89.98 - 89.99 Red 90.01 - 90.02 0.02 - 0.04 mm
mm (3.5426 - mm (3.5438 - (0.0008--
3.5429 in.) 3.5440 in.) 0.0015 in.)
2 89.97 - 89.98 Blue 90.00 - 90.01 0.02 - 0.04 mm
mm (3.5422 - mm (3.5434 - (0.0008--
3.5425 in.) 3.5437 in.) 0.0015 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 161 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 159: Aligning Stamped Number On Piston And Stamped Mark On Cylinder Block
Courtesy of SUZUKI OF AMERICA CORP.

4. Install piston pin to piston (1) and connecting rod (3): After applying engine oil to piston pin and piston
pin holes in piston and connecting rod, fit connecting rod to piston as shown in figure and insert piston
pin to piston and connecting rod, and install piston pin circlips.

NOTE: Oil hole (4) come on intake side.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 162 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 160: Installing Connecting Rod To Piston

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Circlip (4) should be installed so that circlip end gap comes within such
range as indicated by arrow.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 163 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 161: Installing Piston Pin Circlip

Courtesy of SUZUKI OF AMERICA CORP.

5. Install piston rings to piston:

As indicated in figure at the left, 1st and 2nd rings have "RN" or "R" mark respectively. When
installing these piston rings to piston, direct marked side of each ring toward top of piston.
1st ring (1) differs from 2nd ring (2) in thickness, shape and color of surface contacting cylinder
wall.

Distinguish 1st ring from 2nd ring by referring to figure.

When installing oil ring (3), install spacer first and then two rails.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 164 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 162: Identifying Piston Ring

Courtesy of SUZUKI OF AMERICA CORP.

6. After installing three rings (1st, 2nd and oil rings), distribute their end gaps as shown in figure.

Fig. 163: Identifying Piston Rings End Gap

miércoles, 24 de febrero de 2021 [Link] p. m. Page 165 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Courtesy of SUZUKI OF AMERICA CORP.

PISTONS, PISTON RINGS, CONNECTING RODS AND CYLINDERS INSPECTION AND

CLEANING

Inspection

Cylinder

Inspect cylinder walls for scratches, roughness, or ridges which indicate excessive wear. If cylinder bore
is very rough or deeply scratched, or ridged, rebore cylinder and use over size piston.
Using a cylinder gauge, measure cylinder bore in thrust and axial directions at two positions as shown in
figure.

If any of following conditions is noted, rebore cylinder.

1. Cylinder bore diameter exceeds limit.

2. Difference of measurements at two positions exceeds taper limit.
3. Difference between thrust and axial measurements exceeds out-of-round limit.

Cylinder bore diameter limit

90.050 mm (3.5433 in.)

Taper and out-of-round limit

0.10 mm (0.004 in.)

NOTE: If any one of four cylinders has to be rebored, rebore all four to the
same next oversize. This is necessary for the sake of uniformity and
balance.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 166 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 164: Checking Cylinder Bore Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Pistons

Inspect piston for faults, cracks or other damages. Damaged or faulty piston should be replaced.
Piston diameter:

As indicated in figure, piston diameter should be measured at a position 27.5 mm (1.08 in.) ("a") from
piston skirt end in the direction perpendicular to piston pin.

Piston diameter

miércoles, 24 de febrero de 2021 [Link] p. m. Page 167 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

PISTON DIAMETER SPECIFICATION

Standard 89.970 - 89.990 mm (3.5422 - 3.5429 in.)
Oversize: 0.50 mm (0.0196 in.) 90.470 - 90.490 mm (3.5619--3.5626 in.)

Fig. 165: Checking Piston Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Piston clearance:

Measure cylinder bore diameter and piston diameter to find their difference which is piston clearance.
Piston clearance should be within specification as follows. If it is out of specification, rebore cylinder and
use oversize piston.

Piston clearance

0.02 - 0.04 mm (0.0008 - 0.0015 in.)

NOTE: Cylinder bore diameters used here are measured in thrust direction at two
positions.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 168 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 166: Checking Cylinder Bore Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Ring groove clearance:

Before checking, piston grooves must be clean, dry and free of carbon.

Fit new piston ring (1) into piston groove, and measure clearance between ring and ring land by using
thickness gauge (2).

If clearance is out of specification, replace piston.

Ring groove clearance

Top: 0.03 - 0.07 mm (0.0012 - 0.0027 in.)

2nd: 0.02 - 0.06 mm (0.0008 - 0.0023 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 169 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 167: Checking Piston Ring Groove Clearance

Courtesy of SUZUKI OF AMERICA CORP.

Piston pin

Check piston pin, connecting rod small end bore and piston bore for wear or damage, paying particular
attention to condition of small end bore bush. If pin, connecting rod small end bore or piston bore is badly
worn or damaged, replace pin, connecting rod or piston.
Piston pin clearance: Check piston pin clearance in small end.

Replace connecting rod if its small end is badly worn or damaged or if measured clearance exceeds limit.

Piston pin clearance in small end (standard)

0.003 - 0.014 mm (0.0001 - 0.0005 in.)

Small-end bore

21.003 - 21.011 mm (0.8269 - 0.8272 in.)

Piston pin diameter

20.997 - 21.000 mm (0.8267 - 0.8268 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 170 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 168: Checking Piston Pin Clearance In Small End And Piston Pin Diameter
Courtesy of SUZUKI OF AMERICA CORP.

Piston rings

miércoles, 24 de febrero de 2021 [Link] p. m. Page 171 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

To measure end gap, insert piston ring (2) into cylinder bore and then measure the gap by using thickness gauge
(1). If measured gap is out of specification, replace ring.

NOTE: Clean carbon and any other dirt from top of cylinder bore before inserting
piston ring.

Piston ring end gap

PISTON RING END GAP SPECIFICATION

Item Standard Limit
Top ring 0.20 - 0.32 mm (0.0079--0.0125 in.) 0.7 mm (0.0276 in.)
2nd ring 0.32 - 0.47 mm (0.0126--0.0185 in.) 0.7 mm (0.0276 in.)
Oil ring 0.20--0.50 mm (0.0079--0.0196 in.) 1.8 mm (0.0709 in.)

Piston rings end gap

"a": 120 mm (4.72 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 172 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 169: Checking Piston Ring End Gap

Courtesy of SUZUKI OF AMERICA CORP.

Connecting rod

Big-end side clearance:

Check big-end of connecting rod for side clearance, with rod fitted and connected to its crank pin in the
normal manner. If measured clearance is found to exceed its limit, replace connecting rod.

Big-end side clearance

BIG-END SIDE CLEARANCE SPECIFICATION

Standard Limit
0.25 - 0.40 mm (0.0099--0.0150 in.) 0.45 mm (0.0177 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 173 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 170: Checking Big-End Of Connecting Rod For Side Clearance

Courtesy of SUZUKI OF AMERICA CORP.

Connecting rod alignment:

Mount connecting rod on aligner to check it for bow and twist. If limit is exceeded, replace it.

Limit on bow

0.05 mm (0.0020 in.)

Limit on twist

0.10 mm (0.0039 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 174 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 171: Aligning Connecting Rod

Courtesy of SUZUKI OF AMERICA CORP.

Crank pin and connecting rod bearings

Inspect crank pin for uneven wear or damage. Measure crank pin for out-of-round or taper with a
micrometer. If crank pin is damaged, or out-of round or taper is out of limit, replace crankshaft or regrind
crank pin referring to the following step 6).

Connecting rod bearing and crank pin

CONNECTING ROD BEARING AND CRANK PIN SPECIFICATION

Item Standard
Crank pin diameter 49.982 - 50.000 mm (1.9768-1.9685 in.)

Out-of-round

"A" - "R"

Taper

"a" - "b"

Out-of-round and taper limits

0.01 mm (0.0004 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 175 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 172: Measuring Crank Pin For Out-Of-Round Or Taper With Micrometer
Courtesy of SUZUKI OF AMERICA CORP.

Connecting rod bearing general information:

Inspect bearing shells for signs of fusion, pitting, burn or flaking and observe contact pattern. Bearing
shells found in defective condition must be replaced. Two kinds of connecting rod bearings are available;
standard size bearing and 0.25 mm (0.0098 in.) undersize bearing. For identification of undersize bearing,
it is painted red (1) at the position as indicated in the figure, undersize bearing thickness is 1.605 - 1.615
mm (0.0632--0.0635 in.) at the center of it.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 176 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 173: Identifying Connecting Rod Bearing

Courtesy of SUZUKI OF AMERICA CORP.

Connecting rod bearing clearance:

a. Before checking bearing clearance, clean bearing and crank pin.
b. Install bearing in connecting rod and bearing cap.
c. Place a piece of gauging plastic (1) to full width of crank pin as contacted by bearing (parallel to
crankshaft), avoiding oil hole.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 177 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 174: Placing Piece Of Gauging Plastic To Full Width Of Crank Pin
Courtesy of SUZUKI OF AMERICA CORP.

d. Install connecting rod bearing cap (1) as follows.

i. Point arrow mark (2) on cap to crankshaft pulley side.
ii. Apply engine oil to connecting rod bolts (3).
iii. Tighten all connecting rod bolts to 15 N.m (1.5 kg-m, 11.0 lb-ft).
iv. Retighten them by turning through 45°.
v. Repeat step d) once again.

Tightening torque

Connecting rod bolt (a): 15 N.m (1.5 kg-m, 11.0 lb-ft) (45° and 45° by the specified
procedure)

NOTE: DO NOT turn crankshaft with gauging plastic installed.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 178 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 175: Tightening Connecting Rod Cap Bolts

Courtesy of SUZUKI OF AMERICA CORP.

e. Remove connecting rod bearing cap, and using a scale (2) on gauging plastic envelope, measure
gauging plastic (1) width at the widest point (clearance).

If clearance exceeds its limit, select connecting rod bearing referring to "PISTONS, PISTON
RINGS, CONNECTING RODS AND CYLINDERS INSPECTION AND CLEANING:"
below mentioned item.

After selecting new bearing, recheck clearance.

Bearing clearance

BEARING CLEARANCE SPECIFICATION

Standard Limit
0.045 - 0.063 mm (0.0018--0.0025 in.) 0.08 mm (0.0031 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 179 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 176: Measure Gauging Plastic Width At Widest Point

Courtesy of SUZUKI OF AMERICA CORP.

f. If clearance can not be brought to within its limit even by using a new standard size bearing,
replace crankshaft or regrind crankpin to undersize as follows.
Install 0.25 mm undersize bearing to connecting rod big end.
Measure bore diameter of connecting rod big end.
Regrind crankpin to the following finished diameter.

Finished crankpin diameter = Measured big end bore diameter (including undersize bearing - 0.054
mm (0.0021 in.)

Confirm that bearing clearance is within the standard value.

NOTE: After checking the connecting rod bearing clearance, make sure that
checking for "Connecting rod bolt deformation".

Selection of connecting rod bearings:

NOTE: If bearing is in malcondition or bearing clearance is out of

specification, select a new standard bearing according to the
following procedure and install it.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 180 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

When replacing crankshaft or connecting rod and its bearing

due to any reason, select new standard bearings to be installed
referring to numbers stamped on connecting rod and its cap
and/or alphabets stamped on crank web of No. 3 cylinder.

a. Check stamped numbers on connecting rod and its cap as shown.

Three kinds of numbers ("1", "2" and "3") represent the following connecting rod big end
inside diameters.

For example, stamped number "1" indicates that corresponding connecting rod big-end inside
diameter is 53.0000 - 53.0060 mm (2.0867 - 2.0868 in.).

Connecting rod big-end inside diameter

CONNECTING ROD BIG-END INSIDE DIAMETER SPECIFICATION

Stamped numbers Connecting rod big-end inside diameter
1 53.0000 - 53.0060 mm (2.0867 - 2.0868 in.)
2 53.0061 - 53.0120 mm (2.0869 - 2.0870 in.)
3 53.0121--53.0180 mm (2.0871--2.0873 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 181 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 177: Identifying Connecting Rod Big-End Inside Diameter Number

Courtesy of SUZUKI OF AMERICA CORP.

b. Next, check crank pin diameter. On crank web of No. 3 cylinder, four alphabets are stamped
as shown in the figure.

Three kinds of alphabet ("A", "B" and "C") represent the following crank pin diameter
respectively.

For example, stamped "A" indicates that corresponding crank pin diameter is 49.9940 -
50.0000 mm (1.9683 - 1.9685 in.).

Crank pin diameter

CRANK PIN DIAMETER SPECIFICATION

miércoles, 24 de febrero de 2021 [Link] p. m. Page 182 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Stamped alphabet Crank pin diameter (without bearing)>

A 49.9940 - 50.0000 mm (1.9683--1.9685 in.)
B 49.9880 - 49.9939 mm (1.9681--1.9682 in.)
C 49.9820 - 49.9879 mm (1.9677--1.9680 in.)

Fig. 178: Identifying Crank Pin Diameter Measuring Location

Courtesy of SUZUKI OF AMERICA CORP.

c. There are 5 kinds of standard bearings differing in thickness. To distinguish them, they are
painted in the following colors at the position as indicated in the figure.

Each color indicated the following thickness at the center of bearing.

Standard size of connecting rod bearing thickness

CONNECTING ROD BEARING STANDARD SIZE THICKNESS SPECIFICATION

Color painted Bearing thickness>

miércoles, 24 de febrero de 2021 [Link] p. m. Page 183 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Blue 1.494--1.497 mm (0.05882 - 0.05893 in.)

Yellow 1.491 - 1.494 mm (0.05871 - 0.05881 in.)
Nothing 1.488--1.491 mm (0.05859 - 0.05870 in.)
Black 1.485--1.488 mm (0.05847 - 0.05858 in.)
Green 1.482--1.485 mm (0.05835 - 0.05846 in.)

Fig. 179: Identifying Paint On Bearing Represent Thickness

Courtesy of SUZUKI OF AMERICA CORP.

d. From number stamped on connecting rod and its cap and alphabet stamped on crank web No.
3 cylinder, determine new standard bearing to be installed to connecting rod big-end inside,
by referring to the table.

For example, if number stamped on connecting rod and its cap is "1" and alphabet stamped
on crank web No. 3 cylinder is "B", install a new standard bearing painted in "Black" to its
connecting rod big-end inside.

Specifications of new standard connecting rod bearing size

CONNECTING ROD BEARING STANDARD SIZE SPECIFICATION

Number stamped on connecting rod and its cap
(Connecting rod big end inside diameter)>
1 2 3
Alphabet stamped on crank web A Green Black Nothing
of No. 3 cylinder (Crank pin B Black Nothing Yellow
diameter) C Nothing Yellow Blue
New standard bearing to be installed.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 184 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

e. Check bearing clearance with newly selected standard bearing referring to "CRANK PIN
AND CONNECTING ROD BEARINGS:".

If clearance still exceeds its limit, use next thicker bearing and recheck clearance.

Connecting rod bolt deformation

Measure each thread diameter of connecting rod bolts (1) at "A" on 28.5 mm (1.12 in.) from bolt
mounting surface and "B" on 42.0 mm (1.65 in.) from bolt mounting surface by using a micrometer (2).
Calculate difference in diameters ("A" - "B"). If it exceeds limit, replace connecting rod.

Connecting rod bolt measurement points

"a": 28.5 mm (1.12 in.)

"b": 42.0 mm (1.65 in.)

Connecting rod bolt diameter difference

limit ("A" - "B"): 0.1 mm (0.004 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 185 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 180: Identifying Thread Diameter Of Connecting Rod Bolts

Courtesy of SUZUKI OF AMERICA CORP.

Cleaning

Clean carbon from piston head and ring grooves, using a suitable tool.

MAIN BEARINGS, CRANKSHAFT AND CYLINDER BLOCK COMPONENTS

miércoles, 24 de febrero de 2021 [Link] p. m. Page 186 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 181: Identifying Main Bearings, Crankshaft And Cylinder Block Components
Courtesy of SUZUKI OF AMERICA CORP.

MAIN BEARINGS, CRANKSHAFT AND CYLINDER BLOCK REMOVAL AND INSTALLATION

miércoles, 24 de febrero de 2021 [Link] p. m. Page 187 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Removal

1. Remove engine assembly from vehicle. Refer to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".
2. Remove clutch and flywheel (M/T) or drive plate (A/ T). For clutch removal, refer to CLUTCH
COVER, CLUTCH DISC AND FLYWHEEL REMOVAL AND INSTALLATION .

Special tool

(A): 09924-17810

Fig. 182: Removing Flywheel Bolts

Courtesy of SUZUKI OF AMERICA CORP.

3. Remove throttle body, intake manifold, exhaust manifold.

4. Remove oil pan.
5. Remove oil pump with oil pump strainer.
6. Remove cylinder head cover.
7. Remove timing chain cover. Refer to "TIMING CHAIN COVER REMOVAL AND
INSTALLATION:" for removal.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 188 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

8. Remove timing chain guide, chain tensioner, tensioner adjusters, 2nd timing chain and 1st timing chain.
9. Remove cylinder head assembly.
10. Remove pistons and connecting rods.
11. Remove CKP sensor (1).

Fig. 183: Removing CKP Sensor

Courtesy of SUZUKI OF AMERICA CORP.

12. Remove water pump (1) and heater outlet pipe.

13. Remove engine front mounting bracket (2).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 189 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 184: Removing Engine Front Mounting Bracket

Courtesy of SUZUKI OF AMERICA CORP.

14. Loosen crankcase bolts, in sequence shown in figure and remove them.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 190 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 185: Identifying Removal Sequence Of Crankcase Bolts

Courtesy of SUZUKI OF AMERICA CORP.

15. Remove crankshaft from cylinder block.

Installation

NOTE: All parts to be installed must be perfectly clean.

Be sure to oil crankshaft journals, journal bearings, thrust bearings,
crankpins, connecting rod bearings, pistons, piston rings and cylinder
bores.
Journal bearings, crankcase (bearings caps), connecting rods, rod
bearings, rod bearing caps, pistons and piston rings are in combination
sets. Do not disturb combination and try to see that each part goes back to
where it came from, when installing.
Clean mating surface of cylinder block and lower crankcase, remove oil,
old sealant and dust from mating surface.

1. Fit main bearings to cylinder block (1).

One of two halves of main bearing (4) has oil groove (3).

Install this half with oil groove to cylinder block and another half without oil groove to lower crankcase.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 191 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Make sure that two halves are painted in the same color.

2. Install new O-ring (2) to cylinder block.

3. Install knock pins (5) to cylinder block.

Fig. 186: Installing Knock Pins To Cylinder Block

Courtesy of SUZUKI OF AMERICA CORP.

4. Fit thrust bearings (1) to cylinder block between No.2 and No.3 cylinders. Face oil groove (2) sides to
crank webs.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 192 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 187: Installing Thrust Bearings To Cylinder Block Between No 2 And No 3 Cylinders
Courtesy of SUZUKI OF AMERICA CORP.

5. Put crankshaft (1) with oil pump chain to cylinder block.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 193 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 188: Putting Crankshaft To Cylinder Block

Courtesy of SUZUKI OF AMERICA CORP.

6. Apply sealant "A" to lower crankcase (1) mating surface area as shown in figure.

"A": Sealant 99000-31250

Sealant amount for lower crankcase

Width "a": 3 mm (0.12 in.)

Height "b": 2 mm (0.08 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 194 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 189: Applying Sealant To Lower Crankcase Mating Surface Area

Courtesy of SUZUKI OF AMERICA CORP.

7. Install lower crankcase (1) to cylinder block.

After applying engine oil to all crankcase bolts ((1) -(22)), tighten them gradually as follows.

a. Tighten bolts ((1) - (10)) to 40 N.m (4.0 kg-m, 29.0 lb-ft) according to numerical order as shown.
b. Loosen bolts ((1) - (10)) until tightening torque is reduced to 0 (zero) in reverse order of tightening.
c. In the same manner as in step a), tighten them to 40 N.m (4.0 kg-m, 29.0 lb-ft).
d. In the same manner as in step a), tighten them to the specified torque.
e. Tighten bolts ((11)- (22)) to the specified torque according to numerical order as shown.

Tightening torque

Crankcase bolt with 10 mm thread diameter ((1) - (10)): 58 N.m (5.8 kg-m, 42.0 lb-ft)
Crankcase bolt with 8 mm thread diameter ((11) - (22)): 25 N.m (2.5 kg-m, 18.0 lb-ft)

NOTE: After tightening crankcase bolts, check to be sure that crankshaft rotates
smoothly when turned by hand.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 195 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 190: Identifying Tightening Sequence Of Crankcase Bolts

Courtesy of SUZUKI OF AMERICA CORP.

8. Pull out dowel pin (2) from crankshaft (1) and then install rear oil seal (3) by using special tools and
plastic hammer.

Special tool

(A): 09911-97710

(B): 09911-97810

9. Install dowel pin.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 196 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 191: Installing Rear Oil Seal

Courtesy of SUZUKI OF AMERICA CORP.

10. Install CKP sensor (1) and fix its wire harness with bracket.

Tightening torque

CKP sensor bolt (a): 6 N.m (0.6 kg-m, 4.5 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 197 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 192: Installing CKP Sensor

Courtesy of SUZUKI OF AMERICA CORP.

11. Install flywheel or drive plate.

Using special tool, lock flywheel or drive plate, and tighten flywheel or drive plate bolts (1) applied with
sealant to specification.

"A": Sealant 99000-31110

Special tool

(A): 09924-17810

Tightening torque

Flywheel or drive plate bolt (a): 70 N.m (7.0 kg-m, 51.0 lb-ft)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 198 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 193: Tightening Flywheel Or Drive Plate Bolts

Courtesy of SUZUKI OF AMERICA CORP.

12. Install engine front mounting bracket (1). Tighten bracket bolts to specified torque.

Tightening torque

Engine front mounting bracket bolt (a): 55 N.m (5.5 kg-m, 40.0 lb-ft)

13. Install water pump (2) and heater outlet pipe (3). Refer to WATER PUMP REMOVAL AND
INSTALLATION .

miércoles, 24 de febrero de 2021 [Link] p. m. Page 199 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 194: Installing Water Pump And Heater Outlet Pipe

Courtesy of SUZUKI OF AMERICA CORP.

14. Install pistons and connecting rods. Refer to "PISTONS, PISTON RINGS, CONNECTING RODS
AND CYLINDERS REMOVAL AND INSTALLATION:".
15. Install oil pump. Refer to OIL PUMP REMOVAL AND INSTALLATION .
16. Install cylinder head assembly to cylinder. Refer to "VALVES AND CYLINDER HEAD REMOVAL
AND INSTALLATION:".
17. Install, timing chain sprockets, timing chains, timing chain tensioners, tensioner adjusters, timing chain
guides, timing chain cover, crankshaft pulley, water pump pulley. Refer to "TIMING CHAIN COVER
REMOVAL AND INSTALLATION:", "2ND TIMING CHAIN AND CHAIN TENSIONER
REMOVAL AND INSTALLATION:" and "1ST TIMING CHAIN AND CHAIN TENSIONER
REMOVAL AND INSTALLATION:".
18. Install oil pump strainer and oil pan.
19. Install clutch to flywheel (for M/T vehicle). For clutch installation, refer to CLUTCH COVER,
CLUTCH DISC AND FLYWHEEL REMOVAL AND INSTALLATION .
20. Install engine assembly to vehicle. Refer to "ENGINE ASSEMBLY REMOVAL AND
INSTALLATION:".

MAIN BEARINGS, CRANKSHAFT AND CYLINDER BLOCK INSPECTION

Crankshaft

Crankshaft runout

miércoles, 24 de febrero de 2021 [Link] p. m. Page 200 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Using a dial gauge, measure runout at center journal. Rotate crankshaft slowly. If runout exceeds its limit,
replace crankshaft.

Limit on runout

0.06 mm (0.0023 in.)

Fig. 195: Checking Crankshaft Runout

Courtesy of SUZUKI OF AMERICA CORP.

Crankshaft thrust play

Measure this play with crankshaft set in cylinder block in the normal manner, that is, with thrust bearing and
lower crankcase installed. Tighten crankcase bolts referring to "MAIN BEARINGS, CRANKSHAFT AND
CYLINDER BLOCK REMOVAL AND INSTALLATION:".

Use a dial gauge to read displacement in axial (thrust) direction of crankshaft.

If its limit is exceeded, replace thrust bearing with new standard one or oversize one to obtain standard thrust
play.

Crankshaft Thrust Play

Standard: 0.10 - 0.35 mm (0.0039 - 0.0138 in.)

Limit: 0.42 mm (0.0149 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 201 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 196: Checking Crankshaft Thrust Play

Courtesy of SUZUKI OF AMERICA CORP.

Thickness of crankshaft thrust bearing

CRANKSHAFT THRUST BEARING THICKNESS SPECIFICATION

Standard 2.425 - 2.475 mm (0.0955 - 0.0974 in.)
Oversize: 0.125 mm (0.0049 in.) 2.488 - 2.538 mm (0.0980 - 0.0999 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 202 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 197: Installing Thrust Bearing

Courtesy of SUZUKI OF AMERICA CORP.

Out-of-round and taper (uneven wear) of journals

An unevenly worn crankshaft journal shows up as a difference in diameter at a cross section or along its length
(or both). This difference, if any, is determined by taking micrometer readings. If any one of journals is badly
damaged or if amount of uneven wear in the sense exceeds its limit, regrind or replace crankshaft.

Limit on out-of-round and taper

0.01 mm (0.0004 in.)

Out-of-round

"A" - "B"

Taper

"a" - "b"

miércoles, 24 de febrero de 2021 [Link] p. m. Page 203 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 198: Checking Out-Of-Round And Taper Diameter Of Journals

Courtesy of SUZUKI OF AMERICA CORP.

Main Bearings

Main bearings general information

Service main bearings are available in standard size and 0.25 mm (0.0098 in.) undersize, and standard
size has 5 kinds of bearings differing in tolerance.
Upper half of bearing (1) has oil groove (2) as shown in figure.

Install this half with oil groove to cylinder block.

Lower half of bearing does not have oil groove.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 204 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 199: Identifying Oil Groove Of Bearing

Courtesy of SUZUKI OF AMERICA CORP.

Main bearings inspection

Check bearings for pitting, scratches, wear or damage. If any malcondition is found, replace both upper and
lower halves. Never replace either half without replacing the other half.

Main bearing clearance

Check clearance by using gauging plastic according to the following procedure.

1. Remove lower crankcase.

2. Clean bearings and main journals.
3. Place a piece of gauging plastic (1) to full width of bearing (parallel to crankshaft) on journal, avoiding
oil hole.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 205 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 200: Placing Piece Of Gauging Plastic To Full Width Of Bearing On Journal
Courtesy of SUZUKI OF AMERICA CORP.

4. Install lower crankcase to cylinder block referring to "MAIN BEARINGS, CRANKSHAFT AND
CYLINDER BLOCK REMOVAL AND INSTALLATION:".

NOTE: Do not rotate crankshaft while gauging plastic is installed.

5. Remove lower crankcase and using scale (2) on gauging plastic envelop (1), measure gauging plastic
width at its widest point. If clearance exceeds its limit, replace bearing. Always replace both upper and
lower inserts as a unit.

A new standard bearing may produce proper clearance. If not, it will be necessary to regrind crankshaft
journal for use of 0.25 mm undersize bearing.

After selecting new bearing, recheck clearance.

Main Bearing Clearance

Standard: 0.032 - 0.050 mm (0.0013 - 0.0019 in.)

Limit: 0.060 mm (0.0023 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 206 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 201: Measuring Gauging Plastic Width At Its Widest Point

Courtesy of SUZUKI OF AMERICA CORP.

Selection of main bearings

STANDARD BEARING:

If bearing is in malcondition, or bearing clearance is out of specification, select a new standard bearing
according to the following procedure and install it.

1. First check journal diameter. As shown in figure, crank web No.2 has stamped numbers. Three kinds of
numbers ("1", "2" and "3") represent following journal diameters.

Journal diameter

JOURNAL DIAMETER SPECIFICATION

Stamped numbers Journal diameter>
1 58.0000 - 58.0060 mm (2.2835--2.2837 in.)
2 57.9940 - 57.9999 mm (2.2832 - 2.2834 in.)
3 57.9880 - 57.9939 mm (2.2830 - 2.2832 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 207 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Stamped numbers on crank web No.2 (3) represent journal diameters marked with an arrow in figure
respectively. For example, stamped number "1" indicates that corresponding journal diameter is 58.0000 -
58.0060 mm (2.2835 - 2.2837 in.).

Fig. 202: Checking Journal Diameter

Courtesy of SUZUKI OF AMERICA CORP.

2. Next, check crankcase (bearing cap) bore diameter without bearing. On lower crankcase five alphabets
are stamped as shown in figure.

Three kinds of alphabets ("A", "B" and "C") represent the following cap bore diameters.

Bore diameter for bearing cap

BEARING CAP BORE DIAMETER SPECIFICATION

A 61.9940--62.0000 mm (2.4407 - 2.4409 in.)
Stamped alphabet B 62.0001 - 62.0060 mm (2.4410--2.4411 in.)
C 62.0061 - 62.0120 mm (2.4412--2.4414 in.)

Stamped alphabets on lower crankcase represent crankcase bore diameter marked with an arrow in figure
respectively.

For example, stamped alphabet "A" at bearing cap No.2 indicates that bearing cap bore diameter of
bearing cap No.2 is 61.9940 - 62.0000 mm (2.4407 - 2.4409 in.).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 208 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 203: Identifying Bearing Caps

Courtesy of SUZUKI OF AMERICA CORP.

3. There are 5 kinds of standard bearings differing in thickness. To distinguish them, they are painted (1) in
the following colors at the position as indicated in figure.

Each color indicates the following thickness at the center of bearing.

Standard size main bearing thickness

STANDARD SIZE MAIN BEARING THICKNESS SPECIFICATION

Color painted Bearing thickness
Green 1.991--1.994 mm (0.0784 - 0.0785 in.)
Black 1.994--1.997 mm (0.0785--0.0786 in.)
Colorless (no paint) 1.997--2.000 mm (0.0786--0.0787 in.)
Yellow 2.000 - 2.003 mm (0.0787 - 0.0788 in.)
Blue 2.003 - 2.006 mm (0.0788 - 0.0789 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 209 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 204: Identifying Paint Mark On Bearing

Courtesy of SUZUKI OF AMERICA CORP.

4. From number stamped on crank web No.2 and alphabets stamped on lower crankcase, determine new
standard bearing to be installed to journal, by referring to table shown.

For example, if number stamped on crank web No.2 is "1" and alphabet stamped on lower crankcase is
"B", install a new standard bearing painted in "Black" to its journal.

New standard size bearing specification

STANDARD SIZE BEARING SPECIFICATION

Number stamped on connecting rod and its cap (Connecting
rod big end inside diameter)>
1 2 3
A Green Black Colorless
Alphabet stamped on lower
B Black Colorless Yellow
crankcase (Cap bore diameter)
C Colorless Yellow Blue

5. Using gauging plastic (1) and scale (2), check bearing clearance with newly selected standard bearing.

If clearance still exceeds its limit, use next thicker bearing and recheck clearance.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 210 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 205: Checking Bearing Clearance

Courtesy of SUZUKI OF AMERICA CORP.

6. When replacing crankshaft or cylinder block and lower crank case due to any reason, select new standard
bearings to be installed by referring to number stamped on new crankshaft or alphabets stamped on new
lower crankcase.

UNDERSIZE BEARING (0.25 mm):

0.25 mm undersize bearing is available, in five kinds varying in thickness.

To distinguish them, each bearing is painted (1) in the following colors at such position as indicated in
figure.

Each color represents the following thickness at the center of bearing.

Undersize main bearing thickness

UNDERSIZE MAIN BEARING THICKNESS SPECIFICATION

Color painted Bearing thickness>
Green & Red 2.116--2.119 mm (0.0833 - 0.0834 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 211 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Black & Red 2.119--2.122 mm (0.0834 - 0.0835 in.)

Red only 2.122--2.125 mm (0.0835 - 0.0836 in.)
Yellow & Red 2.125--2.128 mm (0.0836 - 0.0837 in.)
Blue & Red 2.128--2.131 mm (0.0837 - 0.0838 in.)

Fig. 206: Identifying Paint Mark On Bearing

Courtesy of SUZUKI OF AMERICA CORP.

If necessary, regrind crankshaft journal and select under-size bearing to use with it as follows.
a. Regrind journal to the following finished diameter.

Finished journal diameter

57.7380 - 57.7506 mm (2.2731 - 2.2738 in.)

b. Using micrometer, measure reground journal diameter.

Measurement should be taken in two directions perpendicular to each other in order to check for
out-of-round.

c. Using journal diameter measured and alphabets stamped on lower crankcase, select an undersize

miércoles, 24 de febrero de 2021 [Link] p. m. Page 212 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

bearing by referring to the following table. Check bearing clearance with newly selected undersize
bearing.

Fig. 207: Checking Reground Journal Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Undersize bearing specification

JOURNAL DIAMETER SPECIFICATION

Measured journal diameter>
57.7500 - 57.7506 mm 57.7440 - 57.7499 mm 57.7380 - 57.7439 mm
(2.2737 - 2.2738 in.) (2.2734 - 2.2736 in.) (2.2731 - 2.2733 in.)
A Green & Red Black & Red Red only
Alphabets stamped on
B Black & Red Red only Yellow & Red
lower crankcase
C Red only Yellow & Red Blue & Red

Crankshaft Position Sensor Plate

Check teeth of plate for damage.

If any damage is found, replace crankshaft (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 213 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 208: Identifying Crankshaft Position Sensor Plate Teeth

Courtesy of SUZUKI OF AMERICA CORP.

Oil Pump Sprocket

Check teeth of sprocket for wear or damage.

If any damage or wear is found, replace crankshaft (1).

miércoles, 24 de febrero de 2021 [Link] p. m. Page 214 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 209: Identifying Oil Pump Sprocket Teeth

Courtesy of SUZUKI OF AMERICA CORP.

Oil Pump Chain

Check oil pump chain for wear or damage.

Fig. 210: Identifying Oil Pump Chain

Courtesy of SUZUKI OF AMERICA CORP.

Flywheel

If ring gear is damaged, cracked or worn, replace flywheel.

If the surface contacting clutch disc is damaged, or excessively worn, replace flywheel.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 215 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Check flywheel for face runout with a dial gauge. If runout exceeds its limit, replace flywheel.

Limit on runout

0.2 mm (0.0078 in.)

Fig. 211: Checking Flywheel Runout

Courtesy of SUZUKI OF AMERICA CORP.

Cylinder Block

Distortion of gasketed surface

Using straightedge and thickness gauge, check gasketed surface for distortion and, if flatness exceeds its
limit, correct It.

Flatness Limit

0.06 mm (0.0024 in.)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 216 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 212: Checking Cylinder Block For Distortion And Flatness

Courtesy of SUZUKI OF AMERICA CORP.

Honing or reboring cylinders

1. When any cylinder needs reboring, all other cylinders must also be rebored at the same time.

Oversize piston specification

OVERSIZE PISTON SPECIFICATION

Size Piston diameter>
STD 89.970 - 89.990 mm (3.5422 - 3.5429 in.)
O/S 0.50 90.470 - 90.490 mm (3.5619--3.5626 in.)

2. Using micrometer, measure piston diameter.

3. Calculate cylinder bore diameter to be rebored as follows.

D = A+B-C

D: Cylinder bore diameter to be rebored.

A: Piston diameter as measured.

B: Piston clearance = 0.02 - 0.04 mm (0.0008 - 0.0015 in.)

C: Allowance for honing = 0.02 mm (0.0008 in.)

4. Rebore and hone cylinder to calculated dimension.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 217 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

NOTE: Before reboring, install lower crankcase and tighten to specification to

avoid distortion of bearing bores.

5. Measure piston clearance after honing.

miércoles, 24 de febrero de 2021 [Link] p. m. Page 218 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Fig. 213: Measuring Piston Diameter

Courtesy of SUZUKI OF AMERICA CORP.

Check Valve

Check check valve for clogging and ball for being stuck.

Fig. 214: Identifying Check Valve

Courtesy of SUZUKI OF AMERICA CORP.

SPECIFICATIONS
TIGHTENING TORQUE SPECIFICATIONS

TIGHTENING TORQUE SPECIFICATIONS

Tightening torque
Fastening part N.m kg-m lb-ft
Engine cover bolt 8 0.8 5.8
Intake manifold bolt and nut 25 2.5 18.0
Intake manifold rear stiffener bolt 25 2.5 18.0
Intake manifold front stiffener bolt 55 5.5 40.0
Cylinder head cover nut 11 1.1 8.0
Cylinder block heater bolt 11 1.1 8.0

miércoles, 24 de febrero de 2021 [Link] p. m. Page 219 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Engine mounting bolts and nut 55 5.5 40.0

Engine front and rear mounting nut 45 4.5 32.5
Timing chain cover bolt and nut 11 1.1 8.0
Generator belt idler pulley nut 42 4.2 30.5
Generator belt tensioner bolt 25 2.5 18.5
A/C compressor bracket bolt 55 5.5 40.0
Crankshaft pulley bolt 150 15.0 108.5
Camshaft timing sprocket bolt 80 8.0 57.5
Timing chain tensioner adjuster No.2 bolt 11 1.1 8.0
Timing chain tensioner adjuster No.2 nut 45 4.5 33.0
Timing chain tensioner nut 25 2.5 18.0
Timing chain tensioner adjuster No.1 bolt 11 1.1 8.0
Timing chain guide No.1 bolt 9 0.9 6.5
Camshaft housing bolt 11 1.1 8.0
Cylinder head bolt 105 10.5 76.0
Cylinder head bolt (hex hole bolt) 11 1.1 8.0
Engine RH mounting bracket bolt 55 5.5 40.0
Connecting rod bolt 15 (45° and 1.5 (45° and 45° 11.0 (45° and
45° by the by the specified 45° by the
specified procedure) specified
procedure) procedure)
Crankcase bolt with 10 mm thread diameter ((1) - (10)) 58 5.8 42.0
Crankcase bolt with 8 mm thread diameter ((11) - (22)) 25 2.5 18.0
CKP sensor bolt 6 0.6 4.5
Flywheel or drive plate bolt 70 7.0 51.0
Engine front mounting bracket bolt 55 5.5 40.0

SPECIAL TOOLS AND EQUIPMENT

RECOMMENDED SERVICE MATERIAL

RECOMMENDED SERVICE MATERIAL SPECIFICATION

Material SUZUKI recommended product or Specification
Sealant SUZUKI Bond No.1215 P/No.: 99000-31110
SUZUKI Bond No.1207B P/No.: 99000-31140
SUZUKI Bond No.1207F P/No.: 99000-31250
Thread lock Thread Lock Cement Super 1333B P/No.: 99000-32020
cement

SPECIAL TOOL

SPECIAL TOOLS DESCRIPTION

miércoles, 24 de febrero de 2021 [Link] p. m. Page 220 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

09367-04002 3-way
09355-35754-600 Hose
joint

09911-97710 Oil seal 09911-97810 Oil seal

guide installer

09915-64510-001
09913-75510 Bearing Compression gauge (0-
installer
20 kg/cm2 )

09915-64510-002 09915-64530

miércoles, 24 de febrero de 2021 [Link] p. m. Page 221 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

Connector Compression gauge

hose

09915-67010
09915-67311 Vacuum
Compression gauge
gauge
attachment (C)

09916-14510 Valve 09916-16510 Valve

lifter / lifter attachment /

09916-34542 Reamer 09916-37810 Valve

handle / guide reamer (6 mm)

miércoles, 24 de febrero de 2021 [Link] p. m. Page 222 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

09916-38210 Valve 09916-46020 Valve

guide reamer (11 mm) guide remover

09916-57340 Valve 09916-57350 Valve

guide installer guide installer handle (6
attachment mm) /

09916-77310 Piston

miércoles, 24 de febrero de 2021 [Link] p. m. Page 223 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

ring compressor (50-

125 mm)

09916-84511 Forceps /

09917-68221 Camshaft 09917-98221 Valve

pulley holder / guide stem attachment

09918-08210 Vacuum 09919-28610 Protector

gauge hose joint sleeve /

09924-17810 Flywheel
09926-58010 Bearing
holder (drive plate
remover attachment
stopper) /

miércoles, 24 de febrero de 2021 [Link] p. m. Page 224 © 2011 Mitchell Repair Information Company, LLC.
 2005 Suzuki Aerio S
2005 ENGINE Engine Mechanical - Aerio

09944-36011 Steering
wheel remover

miércoles, 24 de febrero de 2021 [Link] p. m. Page 225 © 2011 Mitchell Repair Information Company, LLC.
