YAMAHA OUTBOARD MOTORS
Note
• This document is designed for import agencies.
• The contents are subject to change without notice.
• This document was compiled in Japan in December 2020.
• Reprinting or unauthorized use of this document without permission of Yamaha Motor Co., Ltd. is expressly prohibited.
YAMAHA OUTBOARD MOTORS
Updated Yamaha V6 Offshore Combines
New Benefits with Reliable Performance Legacy.
– New F300F/F250N –
F300FST2X
F300FSTX
COPY PLATFORM 1
YAMAHA OUTBOARD MOTORS

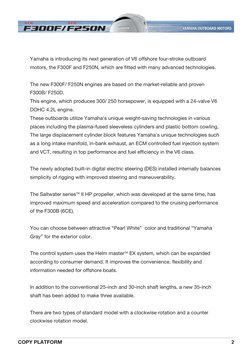

Yamaha is introducing its next generation of V6 offshore four-stroke outboard
motors, the F300F and F250N, which are fitted with many advanced technologies.
The new F300F/ F250N engines are based on the market-reliable and proven
F300B/ F250D.
This engine, which produces 300/ 250 horsepower, is equipped with a 24-valve V6
DOHC 4.2L engine.
These outboards utilize Yamaha's unique weight-saving technologies in various
places including the plasma-fused sleeveless cylinders and plastic bottom cowling,
The large displacement cylinder block features Yamaha's unique technologies such
as a long intake manifold, in-bank exhaust, an ECM controlled fuel injection system
and VCT, resulting in top performance and fuel efficiency in the V6 class.
The newly adopted built-in digital electric steering (DES) installed internally balances
simplicity of rigging with improved steering and maneuverability.
The Saltwater seriesTM II HP propeller, which was developed at the same time, has
improved maximum speed and acceleration compared to the cruising performance
of the F300B (6CE).
You can choose between attractive “Pearl White” color and traditional “Yamaha
Gray” for the exterior color.
The control system uses the Helm masterTM EX system, which can be expanded
according to consumer demand. It improves the convenience, flexibility and
information needed for offshore boats.
In addition to the conventional 25-inch and 30-inch shaft lengths, a new 35-inch
shaft has been added to make three available.
There are two types of standard model with a clockwise rotation and a counter
clockwise rotation model.
COPY PLATFORM 2
YAMAHA OUTBOARD MOTORS
All these models also have the reliability, durability, operability and drivability that
are suitable for offshore models.
With regard to exhaust emission, exceed 2010 US Federal EPA emissions
standards as well as complies with 2008 US CARB emissions standards and EU
marine emissions regulations.
The F300F/ F250N is scheduled to start selling in February 2021.
COPY PLATFORM 3
YAMAHA OUTBOARD MOTORS
PRODUCT PERFORMANCE
Performance F300F (6KA)
• Top speed F300B (6CE)
(with SWS II HP propeller)
Maintainability Comfortability
• Electric steering • Fuel economy
(with SWS II HP propeller)
• Noise/ Vibration
Rigging Durability/ Reliability
• Electric steering • Lower gear
Compatibility Advanced
• Size • Electric steering
• Transom design • Maneuverability at low speed
• Weight • Tilt operability
• Styling
COPY PLATFORM 4
YAMAHA OUTBOARD MOTORS
BASIC SPECIFICATIONS
Models
Model name F300F FL300F F250N FL250N
* Worldwide F300FST/ ST2 FL300FST/ ST2 F250NST/ ST2 FL250NST/ ST2
* Integrated Area F300XSB/ SB2 LF300XSB/ SB2 F250XSB/ SB2 LF250XSB/ SB2
Model code (Approved code) 6KA 6KB 6KD 6KE
Shaft length X (25-inch), U (30-inch), E (35-inch)
Dry weight *with stainless steel prop X: 288 kg, U: 294 kg, E: 299 kg
Performance
Max. propeller shaft output 220.6 kW (300 HP) @5500 r/min 183.8 kW (250 HP) @5500 r/min
Full throttle operating range 5000–6000 r/min
Idling speed 650–750 r/min
Variable trolling speed range 600–1000 r/min (50 r/min step)
Maximum fuel consumption (96.6 L/h @5500 r/min) (83.9 L/h @5500 r/min)
Power unit
Engine type 4-Stroke, DOHC, 24-valve, 60-deg. V6
Displacement 4169 cm3
Bore × stroke 96.0 × 96.0 mm
Compression ratio 10.3:1
Control system Digital Electronic Control (DEC)
Starting system Electric starter
Starting device Fuel injection
Fuel induction system Fuel injection
Lubrication system Wet sump
Engine oil capacity 6.3 L/ 6.0 L *with/without oil filter exchange
Ignition system TCI
Advance type Microcomputer
Spark plug LFR6A-11
Alternator 70 A (battery charging: 34 A)
Cooling system Raw-water, thermostatically controlled
Exhaust system Through propeller boss
The dimensions are subject to change without notice.
COPY PLATFORM 5
YAMAHA OUTBOARD MOTORS
BASIC SPECIFICATIONS
Bracket unit
Trim and tilt Power trim and tilt
Full tilt-up angle 69 degree
Trim angle -3 – +16 degree
Steering system Digital Electric Steering (DES)
Steering angle 32 degree each direction
Lower unit
Gear shift positions Foward-Neutral-Reverse
Gear ratio 1.75 (21/12)
Propeller fitting mechanism Spline
Propeller series M/T (F300F, F250N) ML/TL (FL300F, FL250N)
Propeller direcyion (rear view) Clockwise (F300F, F250N) Counter clockwise (FL300F, FL250N)
Note
Recommended fuel Premium unleaded gasoline (F300F, FL300F)
Regular unleaded gasoline (F250N, FL250N)
Emission rating US/Canada models: EPA 2010/CARB 2008 3-star, EU models: RCD
Recommended engine oil SAE: 5W-30, 10W-30, 10W-40 ··· API: SE, SF, SG, SH, SJ, SL
SAE: 15W-40, 20W-40, 20W-50 ··· API: SH, SJ, SL
The dimensions are subject to change without notice.
COPY PLATFORM 6
YAMAHA OUTBOARD MOTORS
DIMENSIONS
724 (28.5)
32 ˚
634 (25.0)
32 ˚
1026 (40.4)
U: 2091 (82.4)
X: 1964 (77.4)
E: 2218 (87.4)
U: 767 (30.2)
X: 640 (25.2)
E: 894 (35.2)
12 ˚
˚
69
3˚
Unit : mm (inch)
The dimensions are subject to change without notice.
COPY PLATFORM 7
YAMAHA OUTBOARD MOTORS
ENGINE LAYOUT
Starboard side
Fuse box
Intake manifold
Intake silencer
Oil level gauge Oil filter
Port side
Oil filler cap
Multi-point electronic
fuel injector/
Delivery pipe
COPY PLATFORM 8
YAMAHA OUTBOARD MOTORS
ENGINE LAYOUT
Front
Starter motor Electronic throttle body
YDIS connection port
Water separator
Rear
VCT
Ignition coil
ECM
COPY PLATFORM 9
YAMAHA OUTBOARD MOTORS
SYSTEM
Vapor shut-off
valve
Vapor Water
separator
Low-pressure Fuel
fuel pump
Canister
Vapor separator/
Fuel injector High-pressure fuel pump
Oil control valve
IG coil
Air
IG coil
Shift
Oil control valve actuator
Electric Steering
actuator
Fuel injector
Throttle position sensor
Water detection switch
Throttle Valve Control Cam position sensor (IN/EX)
Crank position sensor
Shift Control
Intake air pressure sender
Digital Ignition Control Intake air temperature sensor
Thrmo sensor
Valve Control
ECM Engine temperature sensor
Fuel Injedtion Control Shift position sensor
Oil pressure sender
Thermo switch (P/S)
Trim tilt sensor
Water pressure sensor
Speed sensor (OP)
Battery
Helm and Tilt unit CL5 Display Helm MasterTM EX
to Fuel tank
Power SW
6X9 Start stop
DEC Key fob SW
Emergency
stop SW
EKS
Multi-hub receiver
ECM
COPY PLATFORM 10
YAMAHA OUTBOARD MOTORS
FEATURE MAP
24-valve, DOHC,
ECM control system 2 factory colors
60-deg. V6 4.2L
Elegant, sleek, Multi-point electronic
Variable trolling RPM
lightweight design fuel injection
Digital Electronic Plastic lightweight
Direct ignition
Control (DEC) bottom cowling
70 Amp high output Intake air draining Variable Camshaft
alternator system Timing (VCT)
Water cooled rectifier Plasma-fused
regulator sleeveless cylinders
Closed fuel vapor Long intake manifold/
system Electronic throttle
Compact
Built-in Digital Electric in-bank exhaust
Steering (DES) Blow-by gas reburning
TotalTilt function with
TM system
integrated tilt limit
Engine mounting Labyrinth exhaust
system system
Water-sealed
outer wall
Lower unit
Thrust Enhancing
Reverse Exhaust (TERE)
Intermediate drive
shaft and shift rod Side exhaust outlet
Saltwater series TM
II cover
HP
Counter rotation
system
Rigging Accessories
Helm MasterTM EX Engine mount prop.
compatibility light (optional)
Warning & Protection
Over-heat Low oil pressure
Over-rev limiter Knock control
Warning Warning
YAMAHA
Fail-safe system YDIS
immobilizer
YAMAHA Ideal Anti-Corrosion System
Electrodeposited Anodized Dual flush
Self-sacrificing inside/outside
anodes paint process treatment system
COPY PLATFORM 11
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
24-valve, DOHC, 60-deg. V6 4.2L
Performance Reliability
The DOHC system provides more precise
valve timing control, and the use of four
valves per cylinder exchanges intake air and
exhaust gases more effi ciently for responsive
power and increased fuel efficiency.
The 4.2-liter V-type 6-cylinder inherited from
the F300B (6CE) has a proven track record
and further improved reliability.
COPY PLATFORM 12
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
Built-in Digital Electric Steering (DES)
Advenced Convenience Reliability
The same smooth, fast, and precise Digital
Electric Steering that was introduced on the
F425A is now built-in to F300F/F250N.
The result is significantly easier rigging and an
uncluttered bilge - with no steering pumps,
hoses, hydraulic lines or connections, no
bleeding procedure, less complexity and
straightforward serviceability.
Both use the latest in boat steering
technology to provide smooth, fast steering
and, unlike some conventional steering
systems, draw battery amperage only when
actively in use.
32° 32°
Diagram example (Triple engine installation, single station)
SCU link
6X9 triple DEC harness
S
Helm/tilt unit
Helm harness P
COPY PLATFORM 13
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
New Engine Mounting System
Comfortability Durability Reliability
Optimized the position of the upper motor
mount and the hardness of the damper. When
used in combination with a long span mount
system, it significantly minimizes vibrations
transmitted to the boat, allowing for a more
compact design.
New Intermediate Drive Shaft and Shif Rod
Compatibility Reliability
The lower unit is available in three transom lengths.
When an F300F/ F250N is received by a dealer or boat builder the gear case will not be part of the
assembly. Instead, the technician must choose (and order) three different shaft lengths (25", 30",
or 35") .
The selected lower unit is then assembled to the motor with any rigging parts or hardware
ordered separately. (USA, CAN, OCE, EUR, NME only)
Shift
actuator
to Crankshaft
to
Crankshaft
to
Crankshaft
Intermediate
drive shaft Extension Intermediate Extension
(for 25 inch) shift rod drive shaft shift rod
(for 30 inch) Intermediate drive shaft
(for 30 inch) (for 35 inch) (for 35 inch)
Transom height: X Transom height: U Transom height: E
COPY PLATFORM 14
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
Thrust Enhancing Reverse Exhaust (TERE)
Maneuverability Comfortability
Thrust Enhancing Reverse Exhaust (TERE)
keeps exhaust bubbles above the anti-
ventilation plate and out of the propeller
below 2500 r/min when in reverse.
This means the prop bites only clean water,
resulting in outstanding reverse thrust and
control to back down on fish.
It's especially effective when combined with
the fast precision of Digital Electric Steering
and the Helm MasterTM EX Full Maneuverabil-
ity joystick . very helpful around docks and
confined spaces.
Side exhaust outlet : Exhaust
Side Exhaust Outlet Cover cover : Water
Maintainability
The new side exhaust outlet cover to help
prevent inadvertent paint discoloration with-
out sacrificing performance.
COPY PLATFORM 15
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
New Lower Unit
Durability Reliability Performance
The new design of the gear tooth profile has
improved tooth contact (reduced surface
pressure).
In addition, the durability has been improved
by changing the oil flow inside the lower case
and the bearings that support the gears.
New Saltwater SeriesTM II HP Propeller
Performance Comfortability
Compatible with Yamaha's new Saltwater
Series IITM HP propeller, faster top speed
without sacrificing acceleration is possible for
lighter weight new F300F/ F250N applications
where the propeller rides fully submerged,
while the built-in Shift Dampener System
(SDS) helps keeps shifting smooth and quiet.
Mark Diameter Pitch Part number
15 1/4 18 6KA-45970-00
15 1/4 19 6KA-45972-00
T
15 20 20 6KA-45974-00
15 21 21 6KA-45976-00
15 1/4 18 6KB-45970-00
15 1/4 19 6KB-45972-00
TL
15 20 20 6KB-45974-00
15 21 21 6KB-45976-00
COPY PLATFORM 16
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
TotalTiltTM Function
Operability Advenced
TotalTilt function allows complete tilt up
TM
(except when the tilt limit is not set) from any
position with a simple double-push of the
"UP" trim/tilt button，or full tilt down (until trim
ram contact) by the same double push of the
"DOWN" trim/tilt button.
Auto UP
For safety，a warning horn will sound just Tilt range
before and during these operations.
Movement and the horn can be stopped Auto Down
Tilt range
anywhere in between by pressing the tilt
button again. Manual
Trim range
No more holding the trim button makes for
effortless trailering and convenience when
complete up or down tilt is desired.
There's also a new built-in integrated tilt
limiter to help prevent inadvertent damage.
Plus，built-in DES models tilt higher out of the
water than previous models，which helps
lessen the potential for corrosion. Trim and tilt
switch
Trim and tilt
sensor that
detects tilt angle
COPY PLATFORM 17
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
Completely New Shape of Cowling
Advenced Reliability
The styling of the new generation is a bold expression that expresses power and thrust with
absolute elegance.
The surface lines and style lines are imbued with a sense of unity that expresses elegance.
Looking at the boat from a rear view, the two style lines that start at the top and continue down
vertically give an overall slim impression.
Factory Color
Convenience
The color of the outboard motor is selectable.
• The customer can select a very attractive
“Pearl White” color.
• Or perhaps choose the classic and
traditional “Yamaha Gray” .
• As another option, if an aftermarket color is
desired, the motor can be ordered with just
a base coat of primer, which makes the final
“custom” painting job easier and more
convenient. (USA only)
Note
• Motors that are sold in the “the part of
general marketplace” (thru YMC), only the
traditional “Yamaha Grey” color will be
available.
COPY PLATFORM 18
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
Engine Mount Prop Light (optional)
Convenience Reliability
Optional for boats featuring the new F300F/ F250N with Helm
MasterTM EX Full Maneuver ability, there is an available Integrated
Blinks
Helm Master Light. The light mounts directly in the rear apron of
the outboard(s) rather than requiring
independent lights on the transom. These clearly indicate the boat
is actively in Set point mode to anyone approaching from abaft.
Engine mount prop light kit
Cover, tail light LED assy Grommet Screw
Cover, bottom (prop light)
Part name Part number Q’ty Remarks
Engine Mount Prop Light Kit 6KA-762A0-00-8D 6KA-762A0-00-CE
6KA-42723-10-8D – 1 Gray
. Cover, bottom
– 6KA-42723-10-CE 1 White
. Cover, tail light 6KA-84516-00 6KA-84516-00 1
. LED assy (prop light) 6KA-83720-00 6KA-83720-00 1
. Grommet 90480-20006 90480-20006 1
. Screw 97780-40112 97780-40112 4
COPY PLATFORM 19
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
Dual Flush System (optional)
Convenience Maintainability
to cylinder
One available option (for single engine flush- water jacket
ing) is the way that installs to the readily
to cylinder
accessible flushing device at the side of the water jacket
motor. (Flushing device)
Or the flushing hose can be plumbed
to flush multiple engines.
(Aftermarket optional) Water
This enables flushing to be
performed efficiently.
Flushing kit
Part number 6KA-762Y0-00 To another engine
Flushing hose Fuel hose
Battery cable
Isolator cable
Analog speedometer
hose Main-harness (16P)
SCU harness
COPY PLATFORM 20
YAMAHA OUTBOARD MOTORS
DETAILED FEATURES
Helm MasterTM EX compatibility
Comfortability Operability
The Helm Master EX is essential to operate
the F300F/ F250N.
Helm and Tilt unit
Helm Master EX consists of four primary CL5 Display
levels, each with varying options. This allows
6X9 Triple DEC
the dealer to offer their consumers different Joystick
levels of benefits at different price points. to Fuel tank
Regardless of which levels are selected, a
significant time savings and less inventory Individual Autopilot
Power start/stop Emergency panel
management than previous Yamaha and SW SW stop SW Multi-hub
competitive systems will be noticed.
ECM
Base Function Key fob EKS
receiver
LEVEL 1 LEVEL 2
Digital Electronic Digital Electric
Control (DEC) Steering (DES) Heading
sensor
Expand LEVEL 3
BCU
Autopilot
GPS
Expand LEVEL 4
Joystick Full
Maneuverability
ECM ECM ECM
Prop light Prop light
P C S
COPY PLATFORM 21
