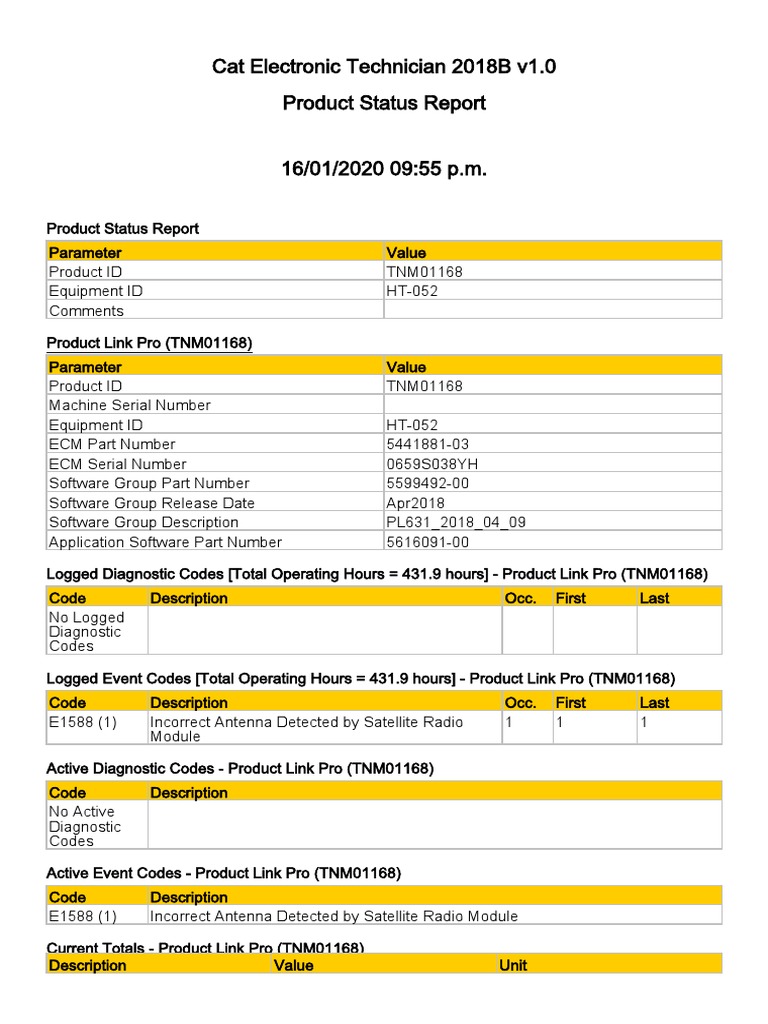

Cat Electronic Technician 2018B v1.

0
Product Status Report

16/01/2020 09:55 p.m.

Product Status Report

Parameter Value
Product ID TNM01168
Equipment ID HT-052
Comments

Product Link Pro (TNM01168)

Parameter Value
Product ID TNM01168
Machine Serial Number
Equipment ID HT-052
ECM Part Number 5441881-03
ECM Serial Number 0659S038YH
Software Group Part Number 5599492-00
Software Group Release Date Apr2018
Software Group Description PL631_2018_04_09
Application Software Part Number 5616091-00

Logged Diagnostic Codes [Total Operating Hours = 431.9 hours] - Product Link Pro (TNM01168)
Code Description Occ. First Last
No Logged
Diagnostic
Codes

Logged Event Codes [Total Operating Hours = 431.9 hours] - Product Link Pro (TNM01168)
Code Description Occ. First Last
E1588 (1) Incorrect Antenna Detected by Satellite Radio 1 1 1
Module

Active Diagnostic Codes - Product Link Pro (TNM01168)

Code Description
No Active
Diagnostic
Codes

Active Event Codes - Product Link Pro (TNM01168)

Code Description
E1588 (1) Incorrect Antenna Detected by Satellite Radio Module

Current Totals - Product Link Pro (TNM01168)

Description Value Unit
Total Operating Hours 431.9 hours
Total Distance 1969.20 km

Configuration - Product Link Pro (TNM01168)

Description Value Unit
Product ID TNM01168
Equipment ID HT-052
Machine Serial Number
Maintenance Mode Off
Security System Machine Normal Disabled or Not Installed
Operation Restore
Security System Tamper Resistant Not Installed
Configuration

VIMS Application Module (TNM01168)

Parameter Value
Product ID TNM01168
Equipment ID TH-052
ECM Part Number 2851142-05
ECM Serial Number 1239B105HD
Software Group Part Number 5334116-00
Software Group Release Date MAR17
Software Group Description VIMSAPP_2016D_PROD_1.0
Application Software Part Number 5335998-00

Logged Diagnostic Codes [Diagnostic Clock = 431.9503 hours] - VIMS Application Module
(TNM01168)
Code Description Occ. First Last
No Logged
Diagnostic
Codes

Logged Event Codes [Diagnostic Clock = 431.9503 hours] - VIMS Application Module
(TNM01168)
Code Description Occ. First Last
No Logged
Event Codes

Active Diagnostic Codes - VIMS Application Module (TNM01168)

Code Description
No Active
Diagnostic
Codes

Active Event Codes - VIMS Application Module (TNM01168)

Code Description
No Active
Event Codes

Current Totals - VIMS Application Module (TNM01168)

Description Value Unit
Total Operating Hours 432 hours
Lifetime Total Payload Weight 156374 tonne
Machine Loaded Travel Hours 75 hours
Machine Loaded Distance 757 km
Traveled
Total Load Count 1961

Configuration - VIMS Application Module (TNM01168)

Description Value Unit
Product ID TNM01168
Equipment ID TH-052
Ethernet Media Access Control (MAC) 00:0A:75:15:F5:AD
Address
Internet Protocol Host Name VIMS3G
Internet Protocol (IPv4) Address 165.26.79.226
Internet Protocol (IPv4) Network Mask 255.255.255.252
Network Default Gateway Internet Protocol 165.26.79.224
(IPv4) Address
Web Server Administrator Password admin
Dynamic Host Configuration Protocol Disabled
(DHCP) Enable Status
Machine Payload Control System Installed
Installation Status
Target Payload 91.0 tonne
Payload Overload Limit 120.0 %
Green TPMS Lamp Installation Not Installed
Configuration
Red TPMS Lamp Installation Configuration Not Installed
Truck Payload Last Pass Indicator Enable Disabled
Status
External Payload Indicator Configuration Count Up - Short Message
OHT Payload Re-weigh Speed
Front Axle Strut Pressure to Payload 3386
Weight Ratio Configuration
Road Analysis System Installation Status Not Installed
Road Analysis Severity Selection 1
Tire Analysis System Installation Status Installed
Tire Analysis System Temporary Unavailable
Installation Status
Tire Analysis System Customer Enable Enabled
Status
Tire Analysis System Temporary 0 min
Installation Time Remaining
Machine Weight-Speed Averaging Duration 4 hours
Empty Machine Weight 73 tonne
Empty Machine Rear Axle Weight 55.0 %
Distribution
Loaded Machine Rear Axle Weight 67.0 %
Distribution
Machine Speed Limit Activation Front Tires 385.0 TKPH
Weight-Speed Threshold
Machine Speed Limit Deactivation Front 360.0 TKPH
Tires Weight-Speed Threshold
Machine Speed Limit Activation Rear Tires 385.0 TKPH
Weight-Speed Threshold
Machine Speed Limit Deactivation Rear 360.0 TKPH
Tires Weight-Speed Threshold
Machine Tire Weight-Speed Machine 15 km/h
Speed Limit

C32 777 (FZS01427)

Parameter Value
Equipment ID HT-052
Engine Serial Number FZS01427
ECM Serial Number 09986059VA
Software Group Part Number 4745766-00
Software Group Release Date AUG14
Software Group Description C32-777

Logged Diagnostic Codes [Diagnostic Clock = 431.9478 hours] - C32 777 (FZS01427)
Code Description Occ. First Last
No Logged
Diagnostic
Codes

Logged Event Codes [Diagnostic Clock = 431.9478 hours] - C32 777 (FZS01427)
Code Description Occ. First Last
No Logged
Event Codes

Active Diagnostic Codes - C32 777 (FZS01427)

Code Description
No Active
Diagnostic
Codes

Active Event Codes - C32 777 (FZS01427)

Code Description
No Active
Event Codes

Current Totals - C32 777 (FZS01427)

Description Value Unit
Total Idle Time 244:18 hours
Total Fuel 12127 L
Total Idle Fuel 2471 L
Total Max Fuel 82735 L
Engine Lifetime Hours 432.4 hours
Average Load Factor 12 %
Engine Starts 418
Lifetime Total Engine 25598772 rev
Revolutions
Total Operating Hours 432 hours
Total Engine Idle Shutdown 0
Count
Total Engine Idle Shutdown 0
Overrides Count
Total Delayed Engine 33
Shutdown Count
Total Delayed Engine 3
Shutdown Overrides Count
Starts/Hour 0.97
Average RPM 986.71 rpm
Percentage Idle Time 56.43 %
Average Fuel Rate 28.05 L/h
Overall Load Factor 14 %

Configuration - C32 777 (FZS01427)

Description Value Unit
Equipment ID HT-052
Engine Serial Number FZS01427
ECM Serial Number 09986059VA
Software Group Part Number 4745766-00
Software Group Release Date AUG14
Software Group Description C32-777
Rated Power 762 kW at 1800 rpm
Rated Peak Torque 5274 N-m at 1200 rpm
Low Idle Speed 700 rpm
High Idle Speed 2000 rpm
Ether Solenoid Configuration Not Installed
Engine Retarder Enable Command Disabled
Low System Battery Voltage Elevated Idle Enabled
Engine Warm Up Elevated Idle Feature Enabled
Enable Status
Oil Renewal Rate 0
Engine Idle Shutdown Enable Status Disabled
Engine Idle Shutdown Delay Time 5.0 min
Delayed Engine Shutdown Enable Status Enabled
Delayed Engine Shutdown Maximum Time 5.0 min
Engine Fan Type Configuration Viscous Clutch
FLS 53
FTS -53
CAN Communication Protocol Write Seed and Key Access
Security
CAN Communication Protocol Read Seed and Key Access
Security
Total Tattletale 859

Lifetime:Accumulated Time vs Intake Manifold Pressure - C32 777 (FZS01427)

Intake Manifold Pressure( kPa ) hours %
<80.00 0.00 0.00
80.00-89.99 0.05 0.36
90.00-99.99 0.10 0.72
100.00-109.99 0.25 1.81
110.00-119.99 0.50 3.61
120.00-129.99 2.00 14.44
130.00-139.99 3.15 22.74
140.00-149.99 3.95 28.52
150.00-159.99 3.05 22.02
160.00-169.99 0.80 5.78
170.00-179.99 0.00 0.00
180.00-189.99 0.00 0.00
190.00-199.99 0.00 0.00
200.00-209.99 0.00 0.00
210.00-219.99 0.00 0.00
220.00-229.99 0.00 0.00
230.00-239.99 0.00 0.00
240.00-249.99 0.00 0.00
250.00-259.99 0.00 0.00
260.00-269.99 0.00 0.00
270.00-279.99 0.00 0.00
280.00-289.99 0.00 0.00
290.00-299.99 0.00 0.00
300.00-309.99 0.00 0.00
310.00-319.99 0.00 0.00
320.00-329.99 0.00 0.00
330.00-339.99 0.00 0.00
340.00-349.99 0.00 0.00
350.00-359.99 0.00 0.00
360.00-369.99 0.00 0.00
370.00-379.99 0.00 0.00
380.00-389.99 0.00 0.00
390.00-399.99 0.00 0.00
400.00-409.99 0.00 0.00
410.00-419.99 0.00 0.00
420.00-429.99 0.00 0.00
430.00-439.99 0.00 0.00
440.00-449.99 0.00 0.00
450.00-459.99 0.00 0.00
460.00-469.99 0.00 0.00
470.00-479.99 0.00 0.00
480.00-489.99 0.00 0.00
490.00-499.99 0.00 0.00
500.00-509.99 0.00 0.00
510.00-519.99 0.00 0.00
520.00-529.99 0.00 0.00
530.00-539.99 0.00 0.00
540.00-549.99 0.00 0.00
550.00-559.99 0.00 0.00
560.00-569.99 0.00 0.00
570.00-579.99 0.00 0.00
580.00-589.99 0.00 0.00
590.00-600.00 0.00 0.00
>600.00 0.00 0.00

Engine Overspeed Histogram: Accumulated Time (sec) vs Engine Speed - C32 777 (FZS01427)
Engine Speed( rpm ) %
2500.0-2599.9 1.00 50.00
2600.0-2699.9 1.00 50.00
2700.0-2799.9 0.00 0.00
2800.0-2899.9 0.00 0.00
2900.0-2999.9 0.00 0.00
3000.0-3099.9 0.00 0.00
3100.0-3199.9 0.00 0.00
3200.0-3299.9 0.00 0.00
3300.0-3400.0 0.00 0.00
>3400.0 0.00 0.00

Lifetime:Accumulated Time vs Engine Speed And Percent Engine Load at Current Engine Speed -
C32 777 (FZS01427)
rpm <600.0 600.0- 650.0- 700.0- 750.0- 800.0- 850.0- 900.0- 950.0-
649.9 699.9 749.9 799.9 849.9 899.9 949.9 999.9
%
<0.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
0.0-9.9 0.30 0.90 76.85 97.30 1.70 1.25 1.15 1.15 1.15
10.0- 0.05 0.60 1.90 2.90 0.70 0.40 0.30 0.25 0.25
19.9
20.0- 0.15 1.25 14.00 10.65 0.75 0.45 0.35 0.30 0.35
29.9
30.0- 0.05 0.25 1.20 0.45 0.35 0.40 0.40 0.35 0.30
39.9
40.0- 0.00 0.00 0.05 0.10 0.15 0.15 0.20 0.25 0.40
49.9
50.0- 0.00 0.00 0.00 0.05 0.20 0.55 0.90 1.15 1.25
59.9
60.0- 0.00 0.00 0.05 0.15 0.30 0.20 0.05 0.00 0.00
69.9
70.0- 0.20 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
79.9
80.0- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
89.9
90.0- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
100.0
>100.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 0.75 3.00 94.05 111.60 4.15 3.40 3.35 3.45 3.70

Lifetime:Accumulated Time vs Engine Speed And Percent Engine Load at Current Engine Speed -
C32 777 (FZS01427)
rpm 1000.0- 1050.0- 1100.0- 1150.0- 1200.0- 1250.0- 1300.0- 1350.0- 1400.0-
1049.9 1099.9 1149.9 1199.9 1249.9 1299.9 1349.9 1399.9 1449.9
%
<0.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
0.0-9.9 1.10 1.15 1.25 1.60 1.95 2.10 2.30 2.40 2.45
10.0- 0.25 0.25 0.25 0.40 0.50 0.55 0.65 0.70 0.75
19.9
20.0- 0.30 0.30 0.40 0.60 0.75 0.95 1.05 1.20 1.25
29.9
30.0- 0.25 0.25 0.30 0.40 0.50 0.55 0.65 0.80 0.85
39.9
40.0- 0.40 0.35 0.50 0.50 0.50 0.55 0.55 0.65 0.65
49.9
50.0- 1.20 0.80 0.45 0.40 0.35 0.35 0.40 0.45 0.55
59.9
60.0- 0.00 0.00 0.00 0.05 0.15 0.25 0.35 0.45 0.50
69.9
70.0- 0.00 0.00 0.00 0.00 0.05 0.10 0.20 0.35 0.40
79.9
80.0- 0.00 0.00 0.00 0.00 0.05 0.10 0.20 0.40 0.55
89.9
90.0- 0.00 0.00 0.00 0.05 0.25 0.40 0.65 1.05 1.30
100.0
>100.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 3.50 3.10 3.15 4.00 5.05 5.90 7.00 8.45 9.25

Lifetime:Accumulated Time vs Engine Speed And Percent Engine Load at Current Engine Speed -
C32 777 (FZS01427)
rpm 1450.0- 1500.0- 1550.0- 1600.0- 1650.0- 1700.0- 1750.0- 1800.0- 1850.0-
1499.9 1549.9 1599.9 1649.9 1699.9 1749.9 1799.9 1849.9 1899.9
%
<0.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
0.0-9.9 2.35 2.25 2.15 2.20 2.20 2.15 1.95 4.55 3.35
10.0- 0.75 0.70 0.65 0.65 0.75 0.90 0.50 0.10 0.05
19.9
20.0- 1.30 1.25 1.10 1.05 1.00 0.90 0.60 0.35 0.25
29.9
30.0- 0.85 0.75 0.65 0.60 0.55 0.60 0.55 0.25 0.10
39.9
40.0- 0.60 0.55 0.50 0.45 0.40 0.35 0.25 0.10 0.10
49.9
50.0- 0.60 0.55 0.50 0.45 0.40 0.35 0.20 0.05 0.05
59.9
60.0- 0.50 0.50 0.45 0.45 0.40 0.35 0.20 0.05 0.05
69.9
70.0- 0.45 0.50 0.45 0.40 0.45 0.40 0.25 0.10 0.05
79.9
80.0- 0.60 0.70 0.90 0.85 0.55 0.50 0.25 0.10 0.05
89.9
90.0- 1.55 1.70 1.45 1.35 1.15 1.25 1.15 0.55 0.20
100.0
>100.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 9.55 9.45 8.80 8.45 7.85 7.75 5.90 6.20 4.25

Lifetime:Accumulated Time vs Engine Speed And Percent Engine Load at Current Engine Speed -
C32 777 (FZS01427)
rpm 1900.0- 1950.0- 2000.0- 2050.0- 2100.0- 2150.0- 2200.0- 2250.0- 2300.0-
1949.9 1999.9 2049.9 2099.9 2149.9 2199.9 2249.9 2299.9 2349.9
%
<0.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
0.0-9.9 1.35 2.60 1.70 0.50 0.10 0.00 0.00 0.00 0.00
10.0- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
19.9
20.0- 0.20 0.25 0.35 0.00 0.00 0.00 0.00 0.00 0.00
29.9
30.0- 0.10 0.25 0.40 0.00 0.00 0.00 0.00 0.00 0.00
39.9
40.0- 0.05 0.05 0.05 0.00 0.00 0.00 0.00 0.00 0.00
49.9
50.0- 0.05 0.05 0.05 0.00 0.00 0.00 0.00 0.00 0.00
59.9
60.0- 0.00 0.05 0.00 0.00 0.00 0.00 0.00 0.00 0.00
69.9
70.0- 0.05 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
79.9
80.0- 0.05 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
89.9
90.0- 0.15 0.05 0.00 0.00 0.00 0.00 0.00 0.00 0.00
100.0
>100.0 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 2.00 3.30 2.55 0.50 0.10 0.00 0.00 0.00 0.00

Lifetime:Accumulated Time vs Engine Speed And Percent Engine Load at Current Engine Speed -
C32 777 (FZS01427)
rpm 2350.0-2400.0 >2400.0 Total
%
<0.0 0.00 0.00 0.00
0.0-9.9 0.00 0.00 227.45
10.0-19.9 0.00 0.00 16.70
20.0-29.9 0.00 0.00 43.65
30.0-39.9 0.00 0.00 13.95
40.0-49.9 0.00 0.00 9.40
50.0-59.9 0.00 0.00 12.35
60.0-69.9 0.00 0.00 5.50
70.0-79.9 0.00 0.00 4.40
80.0-89.9 0.00 0.00 5.85
90.0-100.0 0.00 0.00 14.25
>100.0 0.00 0.00 0.00
Total 0.00 0.00 353.50

Lifetime:Accumulated Time vs Intake Manifold Air Temperature - C32 777 (FZS01427)

Intake Manifold Air hours %
Temperature( Deg C )
<0.00 0.00 0.00
0.00-4.99 0.00 0.00
5.00-9.99 0.00 0.00
10.00-14.99 6.30 1.57
15.00-19.99 19.15 4.76
20.00-24.99 77.75 19.32
25.00-29.99 147.15 36.56
30.00-34.99 79.25 19.69
35.00-39.99 34.85 8.66
40.00-44.99 21.45 5.33
45.00-49.99 9.45 2.35
50.00-54.99 4.55 1.13
55.00-59.99 2.50 0.62
60.00-64.99 0.10 0.02
65.00-69.99 0.00 0.00
70.00-74.99 0.00 0.00
75.00-79.99 0.00 0.00
80.00-84.99 0.00 0.00
85.00-89.99 0.00 0.00
90.00-94.99 0.00 0.00
95.00-99.99 0.00 0.00
100.00-104.99 0.00 0.00
105.00-109.99 0.00 0.00
110.00-114.99 0.00 0.00
115.00-120.00 0.00 0.00
>120.00 0.00 0.00

Lifetime:Accumulated Time vs Engine Speed - C32 777 (FZS01427)

Engine Speed( rpm ) hours %
<550.0 0.30 0.07
550.0-599.9 0.60 0.15
600.0-649.9 3.15 0.79
650.0-699.9 108.85 27.17
700.0-749.9 129.20 32.25
750.0-799.9 4.55 1.14
800.0-849.9 3.85 0.96
850.0-899.9 3.75 0.94
900.0-949.9 3.85 0.96
950.0-999.9 4.70 1.17
1000.0-1049.9 4.80 1.20
1050.0-1099.9 3.45 0.86
1100.0-1149.9 3.55 0.89
1150.0-1199.9 4.40 1.10
1200.0-1249.9 5.60 1.40
1250.0-1299.9 6.55 1.64
1300.0-1349.9 7.75 1.93
1350.0-1399.9 9.10 2.27
1400.0-1449.9 9.90 2.47
1450.0-1499.9 10.30 2.57
1500.0-1549.9 10.20 2.55
1550.0-1599.9 9.45 2.36
1600.0-1649.9 9.05 2.26
1650.0-1699.9 8.45 2.11
1700.0-1749.9 8.30 2.07
1750.0-1799.9 6.25 1.56
1800.0-1849.9 6.60 1.65
1850.0-1899.9 4.45 1.11
1900.0-1949.9 2.15 0.54
1950.0-1999.9 3.85 0.96
2000.0-2049.9 3.05 0.76
2050.0-2099.9 0.50 0.12
2100.0-2149.9 0.10 0.02
2150.0-2199.9 0.00 0.00
2200.0-2249.9 0.00 0.00
2250.0-2299.9 0.00 0.00
2300.0-2349.9 0.00 0.00
2350.0-2399.9 0.00 0.00
2400.0-2449.9 0.00 0.00
2450.0-2499.9 0.00 0.00
2500.0-2549.9 0.00 0.00
2550.0-2599.9 0.00 0.00
2600.0-2649.9 0.00 0.00
2650.0-2699.9 0.00 0.00
2700.0-2749.9 0.00 0.00
2750.0-2799.9 0.00 0.00
2800.0-2849.9 0.00 0.00
2850.0-2899.9 0.00 0.00
2900.0-2949.9 0.00 0.00
2950.0-2999.9 0.00 0.00
3000.0-3049.9 0.00 0.00
3050.0-3099.9 0.00 0.00
3100.0-3149.9 0.00 0.00
3150.0-3199.9 0.00 0.00
3200.0-3249.9 0.00 0.00
3250.0-3299.9 0.00 0.00
3300.0-3349.9 0.00 0.00
3350.0-3400.0 0.00 0.00
>3400.0 0.00 0.00

Lifetime:Accumulated Time vs Air Inlet Temperature - C32 777 (FZS01427)

Air Inlet Temperature( Deg C ) hours %
<(-20.00) 0.00 0.00
(-20.00)-(-15.01) 0.00 0.00
(-15.00)-(-10.01) 0.00 0.00
(-10.00)-(-5.01) 0.00 0.00
(-5.00)-(-0.01) 0.00 0.00
0.00-4.99 0.10 0.02
5.00-9.99 9.35 2.32
10.00-14.99 128.30 31.90
15.00-19.99 203.70 50.65
20.00-24.99 56.40 14.02
25.00-29.99 4.30 1.07
30.00-34.99 0.05 0.01
35.00-39.99 0.00 0.00
40.00-44.99 0.00 0.00
45.00-49.99 0.00 0.00
50.00-54.99 0.00 0.00
55.00-59.99 0.00 0.00
60.00-64.99 0.00 0.00
65.00-69.99 0.00 0.00
70.00-74.99 0.00 0.00
75.00-80.00 0.00 0.00
>80.00 0.00 0.00

High Exhaust Temperature Prevention Derate Time - C32 777 (FZS01427)

Deg C <40.00 40.00- 45.00- 50.00- 55.00- 60.00- 65.00- 70.00- 75.00-
44.99 49.99 54.99 59.99 64.99 69.99 74.99 79.99
kPa
<60.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
60.00- 0.10 0.45 1.05 1.45 1.25 0.10 0.00 0.00 0.00
67.99
68.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
75.99
76.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
83.99
84.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
91.99
92.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
100.00
>100.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 0.10 0.45 1.05 1.45 1.25 0.10 0.00 0.00 0.00

High Exhaust Temperature Prevention Derate Time - C32 777 (FZS01427)

Deg C 80.00-84.99 85.00-89.99 90.00-94.99 95.00-100.00 >100.00 Total
kPa
<60.00 0.00 0.00 0.00 0.00 0.00 0.00
60.00-67.99 0.00 0.00 0.00 0.00 0.00 4.40
68.00-75.99 0.00 0.00 0.00 0.00 0.00 0.00
76.00-83.99 0.00 0.00 0.00 0.00 0.00 0.00
84.00-91.99 0.00 0.00 0.00 0.00 0.00 0.00
92.00-100.00 0.00 0.00 0.00 0.00 0.00 0.00
>100.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 0.00 0.00 0.00 0.00 0.00 4.40

High Turbo Speed Prevention Derate Time - C32 777 (FZS01427)

Deg C <5.00 5.00- 15.00- 25.00- 35.00- 45.00- 55.00- >65.00 Total
14.99 24.99 34.99 44.99 54.99 65.00
kPa
<60.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
60.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
67.99
68.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
75.99
76.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
83.99
84.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
91.99
92.00- 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
100.00
>100.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

Lifetime:Accumulated Time vs Engine Coolant Temperature - C32 777 (FZS01427)

Engine Coolant Temperature( hours %
Deg C )
<0.00 0.00 0.00
0.00-4.99 0.00 0.00
5.00-9.99 0.00 0.00
10.00-14.99 0.00 0.00
15.00-19.99 0.15 0.04
20.00-24.99 0.90 0.22
25.00-29.99 1.95 0.48
30.00-34.99 3.40 0.84
35.00-39.99 4.05 1.01
40.00-44.99 3.70 0.92
45.00-49.99 4.35 1.08
50.00-54.99 4.80 1.19
55.00-59.99 6.20 1.54
60.00-64.99 7.75 1.93
65.00-69.99 9.30 2.31
70.00-74.99 14.20 3.53
75.00-79.99 16.90 4.20
80.00-84.99 324.10 80.51
85.00-89.99 0.70 0.17
90.00-94.99 0.05 0.01
95.00-99.99 0.05 0.01
100.00-104.99 0.00 0.00
105.00-109.99 0.00 0.00
110.00-114.99 0.00 0.00
115.00-119.99 0.00 0.00
120.00-124.99 0.00 0.00
125.00-129.99 0.00 0.00
130.00-134.99 0.00 0.00
135.00-139.99 0.00 0.00
140.00-144.99 0.00 0.00
145.00-150.00 0.00 0.00
>150.00 0.00 0.00
Lifetime:Accumulated Occurrences vs Engine Speed And Engine Retarder Status - C32 777
(FZS01427)
rpm <1000.0 1000.0- 1300.0- 1600.0- 1900.0- 2200.0- 2500.0- >2800.0 Total
1299.9 1599.9 1899.9 2199.9 2499.9 2800.0
Engine
Retarder
Status
1-1 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
2-2 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
3-4 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00

Lifetime:Accumulated Time vs Left #1 Exhaust Temperature - C32 777 (FZS01427)

Left #1 Exhaust Temperature( hours %
Deg C )
<450.00 349.60 86.86
450.00-464.99 5.65 1.40
465.00-479.99 5.50 1.37
480.00-494.99 4.35 1.08
495.00-509.99 3.60 0.89
510.00-524.99 3.50 0.87
525.00-539.99 3.35 0.83
540.00-554.99 3.50 0.87
555.00-569.99 3.85 0.96
570.00-584.99 4.35 1.08
585.00-599.99 4.65 1.16
600.00-614.99 3.70 0.92
615.00-629.99 3.80 0.94
630.00-644.99 1.75 0.43
645.00-659.99 0.90 0.22
660.00-674.99 0.35 0.09
675.00-689.99 0.10 0.02
690.00-704.99 0.00 0.00
705.00-719.99 0.00 0.00
720.00-734.99 0.00 0.00
735.00-749.99 0.00 0.00
750.00-764.99 0.00 0.00
765.00-779.99 0.00 0.00
780.00-795.00 0.00 0.00
>795.00 0.00 0.00

Lifetime:Accumulated Time vs Left #2 Exhaust Temperature - C32 777 (FZS01427)

Left #2 Exhaust Temperature( hours %
Deg C )
<450.00 347.25 86.29
450.00-464.99 5.70 1.42
465.00-479.99 5.10 1.27
480.00-494.99 4.75 1.18
495.00-509.99 4.35 1.08
510.00-524.99 3.75 0.93
525.00-539.99 3.35 0.83
540.00-554.99 3.55 0.88
555.00-569.99 3.50 0.87
570.00-584.99 4.00 0.99
585.00-599.99 4.65 1.16
600.00-614.99 4.15 1.03
615.00-629.99 4.15 1.03
630.00-644.99 2.35 0.58
645.00-659.99 1.20 0.30
660.00-674.99 0.50 0.12
675.00-689.99 0.10 0.02
690.00-704.99 0.00 0.00
705.00-719.99 0.00 0.00
720.00-734.99 0.00 0.00
735.00-749.99 0.00 0.00
750.00-764.99 0.00 0.00
765.00-779.99 0.00 0.00
780.00-795.00 0.00 0.00
>795.00 0.00 0.00

Lifetime:Accumulated Time vs Right #1 Exhaust Temperature - C32 777 (FZS01427)

Right #1 Exhaust Temperature( hours %
Deg C )
<450.00 348.90 86.72
450.00-464.99 5.55 1.38
465.00-479.99 5.10 1.27
480.00-494.99 4.80 1.19
495.00-509.99 4.20 1.04
510.00-524.99 3.80 0.94
525.00-539.99 3.45 0.86
540.00-554.99 3.70 0.92
555.00-569.99 4.05 1.01
570.00-584.99 4.55 1.13
585.00-599.99 4.45 1.11
600.00-614.99 3.65 0.91
615.00-629.99 3.50 0.87
630.00-644.99 1.55 0.39
645.00-659.99 0.80 0.20
660.00-674.99 0.20 0.05
675.00-689.99 0.10 0.02
690.00-704.99 0.00 0.00
705.00-719.99 0.00 0.00
720.00-734.99 0.00 0.00
735.00-749.99 0.00 0.00
750.00-764.99 0.00 0.00
765.00-779.99 0.00 0.00
780.00-795.00 0.00 0.00
>795.00 0.00 0.00

Lifetime:Accumulated Time vs Right #2 Exhaust Temperature - C32 777 (FZS01427)

Right #2 Exhaust Temperature( hours %
Deg C )
<450.00 348.95 86.73
450.00-464.99 5.75 1.43
465.00-479.99 5.35 1.33
480.00-494.99 4.80 1.19
495.00-509.99 3.95 0.98
510.00-524.99 3.65 0.91
525.00-539.99 3.40 0.85
540.00-554.99 3.50 0.87
555.00-569.99 3.80 0.94
570.00-584.99 4.25 1.06
585.00-599.99 4.55 1.13
600.00-614.99 3.55 0.88
615.00-629.99 3.75 0.93
630.00-644.99 1.75 0.43
645.00-659.99 0.80 0.20
660.00-674.99 0.45 0.11
675.00-689.99 0.10 0.02
690.00-704.99 0.00 0.00
705.00-719.99 0.00 0.00
720.00-734.99 0.00 0.00
735.00-749.99 0.00 0.00
750.00-764.99 0.00 0.00
765.00-779.99 0.00 0.00
780.00-795.00 0.00 0.00
>795.00 0.00 0.00

Injector Trim Calibration - C32 777 (FZS01427)

Injector Serial Number File Version
Injector1 000000005A5362929022 0
Injector2 000000005A5362929125 0
Injector3 000000005A536293679F 0
Injector4 000000005A53629310E1 0
Injector5 000000005A53629306E6 0
Injector6 000000005A536293864E 0
Injector7 000000005A5362936383 0
Injector8 000000005A536292943E 0
Injector9 000000005A53629315FA 0
Injector10 000000005A53629313E8 0
Injector11 000000005A5362937291 0
Injector12 000000005A53629379A0 0

Monitoring System - C32 777 (FZS01427)

Description State Trip Point Delay Time
Engine Overspeed
Least Severe (1) Always On 2600 rpm 0 sec
High Air Inlet #1
Differential Pressure
Least Severe (1) Always On 6.5 kPa 0 sec
Moderate Severity (2) Always On 6.5 kPa 0 sec
High Air Inlet #2
Differential Pressure
Least Severe (1) Always On 6.5 kPa 0 sec
Moderate Severity (2) Always On 6.5 kPa 0 sec
High Engine Coolant
Temperature
Least Severe (1) Always On 110 Deg C 10 sec
Moderate Severity (2) On 111 Deg C 20 sec
High Engine Cooling
Fan Speed
Least Severe (1) Always On 1288 rpm 10 sec
High Fuel Filter
Pressure Restriction
Least Severe (1) Always On None 0 sec
High Fuel Temperature
Least Severe (1) Always On 90.0 Deg C 30 sec
Moderate Severity (2) Always On 91.0 Deg C 30 sec
High Fuel/Water
Separator Water Level
Least Severe (1) Always On None 40 sec
Moderate Severity (2) Always On None 3600 sec
High Intake Manifold
Air Temperature
Least Severe (1) Always On 82.0 Deg C 8 sec
Moderate Severity (2) Always On 86.0 Deg C 8 sec
High Left Exhaust #2
Temperature
Moderate Severity (2) Always On 760 Deg C 5 sec
Most Severe (3) Always On 805 Deg C 5 sec
High Left Exhaust
Temperature
Moderate Severity (2) Always On 760 Deg C 5 sec
Most Severe (3) Always On 805 Deg C 5 sec
High Right Exhaust #2
Temperature
Moderate Severity (2) Always On 760 Deg C 5 sec
Most Severe (3) Always On 805 Deg C 5 sec
High Right Exhaust
Temperature
Moderate Severity (2) Always On 760 Deg C 5 sec
Most Severe (3) Always On 805 Deg C 5 sec
Low Coolant Level
Moderate Severity (2) On None 3 sec
Most Severe (3) On None 12 sec
Low Engine Oil
Pressure
Least Severe (1) Always On None 8 sec
Most Severe (3) Always On None 8 sec

Chassis 777 (TNM01168)

Parameter Value
Product ID TNM01168
Equipment ID HT-052
Transmission Serial Number GGG02034
ECM Part Number 3045687-03
ECM Serial Number 02697538MS
Software Group Part Number 5551704-00
Software Group Release Date DEC2017
Software Group Description 777 (TNM1-up)

Logged Diagnostic Codes [Diagnostic Clock = 431.9420 hours] - Chassis 777 (TNM01168)
Code Description Occ. First Last
379- 3 Machine Auto Lube Pressure Sensor : Voltage 3 392 431
Above Normal

Logged Event Codes [Diagnostic Clock = 431.9420 hours] - Chassis 777 (TNM01168)
Code Description Occ. First Last
No Logged
Event Codes

Active Diagnostic Codes - Chassis 777 (TNM01168)

Code Description
No Active
Diagnostic
Codes

Active Event Codes - Chassis 777 (TNM01168)

Code Description
No Active
Event Codes

Current Totals - Chassis 777 (TNM01168)

Description Value Unit
Total Operating Hours 432 hours
Total Distance 1980.10 km

Configuration - Chassis 777 (TNM01168)

Description Value Unit
Equipment ID HT-052
Product ID TNM01168
Transmission Serial Number GGG02034
Transmission Maximum Forward Gear 7
Machine Body Up Speed Limit 10 km/h
Machine Overload Speed Limit Enable On
Status
Loaded Machine Speed Limit 0.0 km/h
Maximum Reverse Ground Speed 60.0 km/h
Maximum Forward Ground Speed 0.0 km/h
Machine Speed Correction Factor 0.0000 %
Throttle Lock Enable Gear Limit 7
Transmission Second Forward Gear Start Disabled
Feature Enable Status
Transmission Neutral Idle Enable Status Enabled
Hoist System Enable Status Enabled
Hoist Lower Valve Adjustment Status 0
Auto Lube System Installation Status Installed
Auto Lube System Configuration Code 1
Auto Lube Interval 60 min
Auto Lube Duration 240 sec
Operator Seat Belt Monitor Installation Not Installed
Status
Forced Fuel Economy Mode Configuration Not Forced
Automatic Economy Mode Minimum Fuel- 100.00 %
Speed Ratio Percentage
Automatic Economy Mode Maximum 10.00 %
Speed Loss Percentage
Manual Economy Mode Machine Power 10.00 %
Reduction Percentage
Heated Side Rear View Mirrors Installation Installed
Status
Ambient Air Temperature Sensor Installed
Installation Status
Fluid Level Additional Monitoring System Installed
Installation Status
Fast Fill System Installation Status Installed
VIMS Main Module Installation Status Installed
VIMS Analysis Control Module Installation Installed
Status
Tire Monitoring System Installation Status Not Installed
Left Front Tire Pressure/Temperature Unavailable
Sensor Installation
Right Front Tire Pressure/Temperature Unavailable
Sensor Installation
Left Rear Outer Tire Pressure/Temperature Unavailable
Sensor Installation
Left Rear Inner Tire Pressure/Temperature Unavailable
Sensor Installation
Right Rear Inner Tire Unavailable
Pressure/Temperature Sensor Installation
Right Rear Outer Tire Unavailable
Pressure/Temperature Sensor Installation
Left Front Tire Pressure/Temperature Unavailable
Sensor Identification Number
Right Front Tire Pressure/Temperature Unavailable
Sensor Identification Number
Left Rear Outer Tire Pressure/Temperature Unavailable
Sensor Identification Number
Left Rear Inner Tire Pressure/Temperature Unavailable
Sensor Identification Number
Right Rear Inner Tire Unavailable
Pressure/Temperature Sensor
Identification Number
Right Rear Outer Tire Unavailable
Pressure/Temperature Sensor
Identification Number
Front Axle Tire Cold Inflation Pressure Unavailable kPa
Rear Axle Tire Cold Inflation Pressure Unavailable kPa
Tire Monitoring System Barometric Unavailable
Pressure Compensation Enable Status
Tire Monitoring System First Alert Unavailable
Temperature Compensation Enable Status
Tire Monitoring System Second Alert Unavailable
Temperature Compensation Enable Status
Tire Monitoring System First Alert Pressure Unavailable %
Percentage Threshold
Tire Monitoring System Second Alert Unavailable %
Pressure Percentage Threshold
Tire Monitoring System High Temperature Unavailable Deg C
Threshold
Tire Monitoring System High Temperature Unavailable
Warning Level
Tire Monitoring System High Pressure First Unavailable
Alert Warning Level
Engine Oil Renewal System Installation Installed
Status
Engine Oil Renewal System Enable Status Enabled
Total Tattletale 0

Lifetime:Time vs Actual Gear - Chassis 777 (TNM01168)

Actual Gear( ) hours %
1R 33.25 6.65
2R 0.00 0.00
1R L 0.00 0.00
2R L 0.00 0.00
Neutral 302.05 60.39
1F 36.30 7.26
2F 17.45 3.49
3F 0.00 0.00
4F 0.00 0.00
5F 0.00 0.00
6F 0.00 0.00
7F 0.00 0.00
1F L 14.75 2.95
2F L 30.90 6.18
3F L 38.45 7.69
4F L 21.75 4.35
5F L 4.95 0.99
6F L 0.30 0.06
7F L 0.00 0.00

Transmission Filter Bypass Count vs Transmission Oil Temperature - Chassis 777 (TNM01168)
Transmission Oil Temperature( %
Deg C )
<(-10.0) 0.00 0.00
(-10.0)-(-0.1) 0.00 0.00
0.0-9.9 2.00 6.45
10.0-19.9 25.00 80.65
20.0-29.9 4.00 12.90
30.0-39.9 0.00 0.00
40.0-50.0 0.00 0.00
>50.0 0.00 0.00

Transmission Filter Bypass Time vs Transmission Oil Temperature - Chassis 777 (TNM01168)
Transmission Oil Temperature( hours %
Deg C )
<(-10.0) 0.00 0.00
(-10.0)-(-0.1) 0.00 0.00
0.0-9.9 0.00 0.00
10.0-19.9 0.15 100.00
20.0-29.9 0.00 0.00
30.0-39.9 0.00 0.00
40.0-50.0 0.00 0.00
>50.0 0.00 0.00

Lifetime:Time vs Torque Converter Outlet Temperature And Transmission Oil Temperature -

Chassis 777 (TNM01168)
Deg C <50 50-69 70-89 90-99 100-109 110-119 120-129 130-139 140-150
Deg C
<(-10) 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
(-10)-39 13.55 0.10 0.00 0.00 0.00 0.00 0.00 0.00 0.00
40-59 7.60 13.75 0.65 0.00 0.00 0.00 0.00 0.00 0.00
60-69 0.00 17.45 3.50 0.15 0.00 0.00 0.00 0.00 0.00
70-79 0.00 0.00 36.50 0.30 0.05 0.00 0.00 0.00 0.00
80-89 0.00 0.00 336.90 0.75 0.05 0.00 0.00 0.00 0.00
90-99 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
100-109 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
110-120 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
>120 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
Total 21.15 31.30 377.55 1.20 0.10 0.00 0.00 0.00 0.00

Lifetime:Time vs Torque Converter Outlet Temperature And Transmission Oil Temperature -

Chassis 777 (TNM01168)
Deg C >150 Total
Deg C
<(-10) 0.00 0.00
(-10)-39 0.00 13.65
40-59 0.00 22.00
60-69 0.00 21.10
70-79 0.00 36.85
80-89 0.00 337.70
90-99 0.00 0.00
100-109 0.00 0.00
110-120 0.00 0.00
>120 0.00 0.00
Total 0.00 431.30

Shift Count Matrix [Transmission Shift Counts Start Time = 0 hours] - Chassis 777 (TNM01168)
To N R1 R2 1 2 3 4 5 6 7
From
N --- 4077 0 6135 2431 1 0 0 0 1
R1 4624 --- 0 300 263 0 0 0 0 0
R2 0 0 --- 0 0 0 0 0 0 0
1 5819 560 0 --- 4726 0 0 0 0 0
2 2198 550 0 4645 --- 5408 0 0 0 0
3 0 0 0 24 5375 --- 3136 0 0 0
4 1 0 0 3 6 3126 --- 888 0 0
5 0 0 0 0 0 0 888 --- 110 0
6 0 0 0 0 0 0 0 110 --- 1
7 1 0 0 0 0 0 0 0 1 ---

Counters - Chassis 777 (TNM01168)

Description Value
Lockup Clutch Count 7753
Load Count 2060
Total Load Count 2060

Brake 777 (TNM01168)

Parameter Value
Product ID TNM01168
Equipment ID TH-052
ECM Part Number 3045687-03
ECM Serial Number 02697596MS
Software Group Part Number 5551707-00
Software Group Release Date DEC2017
Software Group Description 777 (TNM1-up)

Logged Diagnostic Codes [Diagnostic Clock = 431.9420 hours] - Brake 777 (TNM01168)
Code Description Occ. First Last
No Logged
Diagnostic
Codes

Logged Event Codes [Diagnostic Clock = 431.9420 hours] - Brake 777 (TNM01168)
Code Description Occ. First Last
No Logged
Event Codes

Active Diagnostic Codes - Brake 777 (TNM01168)

Code Description
No Active
Diagnostic
Codes

Active Event Codes - Brake 777 (TNM01168)

Code Description
No Active
Event Codes

Configuration - Brake 777 (TNM01168)

Description Value Unit
Product ID TNM01168
Equipment ID TH-052
Desired Engine Retard Speed 1850 rpm
Oil Cooled Front Brake Installation Status Installed
Rear Axle Lubrication System Installation Installed
Status
Automatic Traction Control Enable Status Enabled
Brake Response Setting Configuration Unavailable
Code
Total Tattletale 0

Object Detection System 777

Parameter Value
Equipment ID TNM01168
ECM Part Number 4592220-03
ECM Serial Number 0729G021ZU
Software Group Part Number 5008801-00
Software Group Release Date Dec2015
Software Group Description OBJECT DETECTION SYSTEM

Logged Diagnostic Codes [Diagnostic Clock = 431.9509 hours] - Object Detection System 777
Code Description Occ. First Last
No Logged
Diagnostic
Codes

Logged Event Codes [Diagnostic Clock = 431.9509 hours] - Object Detection System 777
Code Description Occ. First Last
E1144 (1) Medium Range Object Detection Sensor #2 26 258 422
Blockage Detected
E1148 (1) Medium Range Object Detection Sensor #6 4 300 304
Blockage Detected

Active Diagnostic Codes - Object Detection System 777

Code Description
No Active
Diagnostic
Codes

Active Event Codes - Object Detection System 777

Code Description
No Active
Event Codes

Configuration - Object Detection System 777

Description Value Unit
Equipment ID TNM01168
Camera #1 Location Front
Camera #2 Location Right
Camera #3 Location Rear
Camera #4 Location Left
Automatic Camera View Dimming Enable Enabled
Status
Object Detection System Activation Delay 0.0 sec
Time
Radar Profile Configuration Code 0
Object Detection Alarm Mode Discrete
Medium Range Object Detection Sensor #3 Installed
Installation Status
Medium Range Object Detection Sensor #4 Installed
Installation Status

VIMS Main Module (TNM01168)

Parameter Value
Product ID TNM01168
Equipment ID TH-052
ECM Part Number 2851142-05
ECM Serial Number 1239B017HD
Software Group Part Number 5273546-00
Software Group Release Date JAN17
Software Group Description PLVIMS 2016B PROD 1.0
Application Software Part Number 4954296-00
Dealer Identification Code Unavailable
DBS Machine Make Code Unavailable
Wireless Transmission Device Serial Number Unavailable

Logged Diagnostic Codes [Diagnostic Clock = 431.9503 hours] - VIMS Main Module (TNM01168)
Code Description Occ. First Last
No Logged
Diagnostic
Codes

Logged Event Codes [Diagnostic Clock = 431.9503 hours] - VIMS Main Module (TNM01168)
Code Description Occ. First Last
E558 (1) Snapshot Stored 2 13 319
E2139 (1) Snapshot Memory Full 1 13 13
Active Diagnostic Codes - VIMS Main Module (TNM01168)
Code Description
No Active
Diagnostic
Codes

Active Event Codes - VIMS Main Module (TNM01168)

Code Description
No Active
Event Codes

Current Totals - VIMS Main Module (TNM01168)

Description Value Unit
Total Operating Hours 432 hours

Configuration - VIMS Main Module (TNM01168)

Description Value Unit
Data Acquisition System Installation Status Installed
Data Acquisition System Temporary Unavailable
Installation Status
Data Acquisition System Customer Enable Enabled
Status
Data Acquisition System Temporary 0 min
Installation Time Remaining
Customer Password #1 ****************
Customer Password #2 ****************
Product ID TNM01168
Equipment ID TH-052
External Service Lamp Installation Installed
Configuration
External Service Lamp Display Mode Damage Events Only
Setting
Telemetry Port Selection Disabled
TMAC Protocol Port Selection Unavailable
Ethernet Media Access Control (MAC) 00:0A:75:15:F6:25
Address
Internet Protocol Host Name VIMS3G
Internet Protocol (IPv4) Address 165.26.79.218
Internet Protocol (IPv4) Network Mask 255.255.255.252
Network Default Gateway Internet Protocol 165.26.79.216
(IPv4) Address
Web Server Administrator Password admin
Dynamic Host Configuration Protocol Disabled
(DHCP) Enable Status
Fleet Management System (FMS) Unavailable
Installation Status
Fleet Management System (FMS) Enable Unavailable
Status
Maintenance Mode Off
Machine Serial Number Unavailable
DBS Machine Make Code Unavailable
Dealer Identification Code Unavailable
Registration E-Mail Address Username Unavailable
Registration E-Mail Address Domain Unavailable
Event/Diagnostic Report Interval (SMU) Unavailable hours
Event/Diagnostic Message Interval (RT) Unavailable hours
Report Start Time Unavailable
Warning Level 3 Report Configuration Unavailable
Warning Level 2 Report Configuration Unavailable
Warning Level 1 Report Configuration Unavailable
Diagnostic Report Configuration Unavailable
Operating Hours Report Configuration Unavailable
Number of Daily Machine Location Unavailable
Messages Configuration
Position Report Minimum Location Change Unavailable meters
Global Gram Enable Status Unavailable
GPS Fix Validity Time Duration Unavailable min
Preferred Wireless Service Configuration Unavailable
Digital Sensor Input #1 Type Configuration Unavailable
Digital Input #1 Monitoring Condition Unavailable
Digital Sensor Input #1 Description Unavailable
Digital Sensor Input #1 Delay Time Unavailable sec
Digital Sensor Input #2 Type Configuration Unavailable
Digital Input #2 Monitoring Condition Unavailable
Digital Sensor Input #2 Description Unavailable
Digital Sensor Input #2 Delay Time Unavailable sec
Digital Sensor Input #3 Type Configuration Unavailable
Digital Input #3 Monitoring Condition Unavailable
Digital Sensor Input #3 Description Unavailable
Digital Sensor Input #3 Delay Time Unavailable sec
Digital Sensor Input #4 Type Configuration Unavailable
Digital Input #4 Monitoring Condition Unavailable
Digital Sensor Input #4 Description Unavailable
Digital Sensor Input #4 Delay Time Unavailable sec
Embedded Communication Adapter Unavailable
Installation Status

Monitor 777G (TNM01168)

Parameter Value
Product ID TNM01168
Equipment ID TH-052
ECM Part Number 2848905-03
ECM Serial Number 0609B192HX
Software Group Part Number 5551732-00
Software Group Release Date DEC17
Software Group Description QCT 770G-777G

Logged Diagnostic Codes [Diagnostic Clock = 431.9509 hours] - Monitor 777G (TNM01168)
Code Description Occ. First Last
No Logged
Diagnostic
Codes

Logged Event Codes [Diagnostic Clock = 431.9509 hours] - Monitor 777G (TNM01168)
Code Description Occ. First Last
No Logged
Event Codes

Active Diagnostic Codes - Monitor 777G (TNM01168)

Code Description
No Active
Diagnostic
Codes

Active Event Codes - Monitor 777G (TNM01168)

Code Description
No Active
Event Codes

Configuration - Monitor 777G (TNM01168)

Description Value Unit
Equipment ID TH-052
Product ID TNM01168
Information Units Status Metric
Display Language Status Spanish
Service Mode Enable Code 1168
