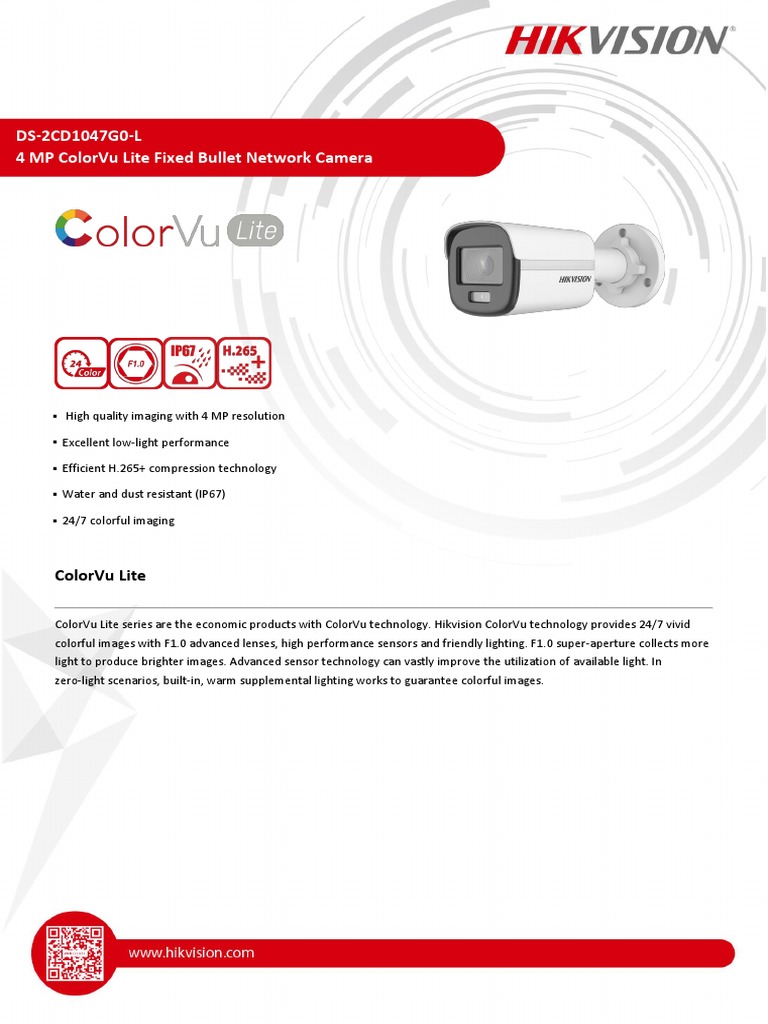

DS-2CD1047G0-L

4 MP ColorVu Lite Fixed Bullet Network Camera

 High quality imaging with 4 MP resolution

ColorVu Lite

ColorVu Lite series are the economic products with ColorVu technology. Hikvision ColorVu technology provides 24/7 vivid
colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting. F1.0 super-aperture collects more
light to produce brighter images. Advanced sensor technology can vastly improve the utilization of available light. In
zero-light scenarios, built-in, warm supplemental lighting works to guarantee colorful images.

Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Lens
2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121°
Lens Type & FOV
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 95°
Aperture F1.0
Lens Mount M12
Aperture Type Fixed
2.8 mm: 3.1 m to ∞
Depth of Focus
4 mm: 3.6 m to ∞
Illuminator
Smart Supplement Light Yes
Supplement Light White
White Light Range Up to 30 m
Video
50Hz: 20 fps (2560 × 1440)
25 fps (2304 × 1296，1920 × 1080, 1280 × 720)
Main Stream
60Hz: 20 fps (2560 × 1440)
30 fps (2304 × 1296，1920 × 1080, 1280 × 720)
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Sub Stream
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of
the current main stream.
Main stream: H.265+/H.265/H.264+/H.264
Video Compression
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Network
Simultaneous Live View Up to 6 channels
API ONVIF (PROFILE S), ISAPI, SDK
TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
Protocols
QoS, IPv6, UDP, Bonjour, SSL/TLS
User/Host Up to 32 users. 3 user levels: administrator, operator and user
 Password protection, complicated password, HTTPS encryption, IP address filter,
Security security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and
digest authentication for ONVIF
Client iVMS-4200, Hik-Connect, Hik-Central
Plug-in required live view: IE 10, IE 11
Web Browser
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
Image Settings
adjustable by client software or web browser
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Basic Event Motion detection, exception (illegal login)
General
Upload to FTP/NAS, notify surveillance center, send email, trigger recording, trigger
Linkage Method
capture
2 languages
Web Client Language
English and Ukraine
General Function Anti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail
Software Reset Reset via web browser and client software
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Conditions
Power Supply 12 VDC ± 25%, PoE: 802.3af, Type 1 Class 3, reverse polarity protection
Power Consumption and 12 VDC, 0.37 A, max. 4.5 W
Current PoE (802.3af, 36 V to 57 V), 0.20 A to 0.10 A, max. 4.5W
Power Interface Ø 5.5 mm coaxial power plug
Material Metal
Camera Dimension 68.4 × 65.2 × 161.1 mm (2.7" × 2.6" × 6.3")
Package Dimension 172 × 104 × 80 mm (6.8" × 4.1" × 3.1")
Camera Weight Approx. 430 g (0.9 lb.)
With Package Weight Approx. 520 g (1.1 lb.)
Approval
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
EMC 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
Safety CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS
13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingression protection: IP67 (IEC 60529-2013)


Available Model
DS-2CD1047G0-L(2.8 mm, 4 mm)

Dimension


Accessory

DS-1280ZJ-XS
Junction Box
