1 4 7 10 13

2 5 8 11 14

6 9 12 15

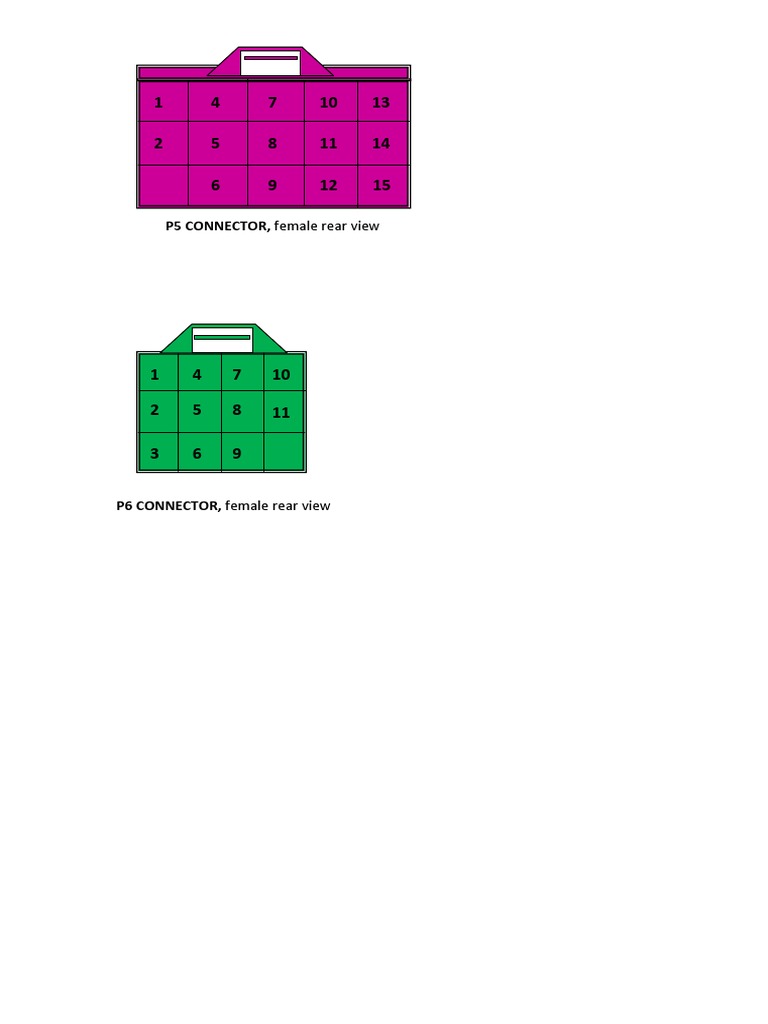

P5 CONNECTOR, female rear view

1 4 7 10

2 5 8 11

3 6 9

P6 CONNECTOR, female rear view
