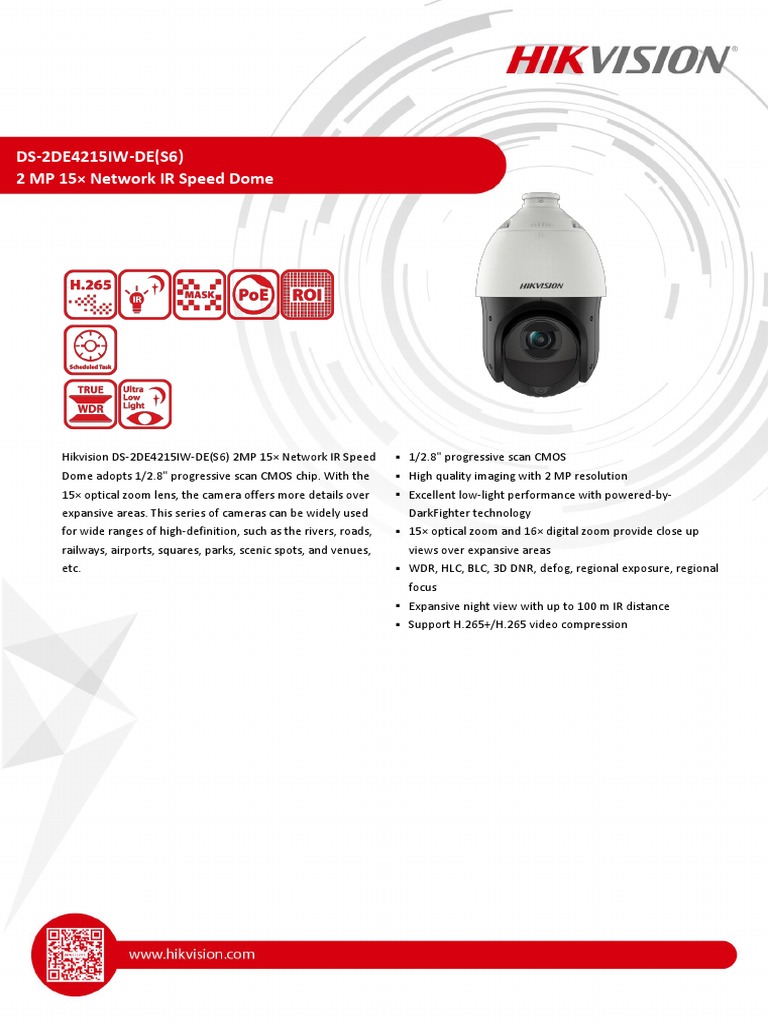

DS-2DE4215IW-DE(S6)

2 MP 15× Network IR Speed Dome

Hikvision DS-2DE4215IW-DE(S6) 2MP 15× Network IR Speed  1/2.8" progressive scan CMOS
Dome adopts 1/2.8" progressive scan CMOS chip. With the  High quality imaging with 2 MP resolution
15× optical zoom lens, the camera offers more details over  Excellent low-light performance with powered-by-
expansive areas. This series of cameras can be widely used DarkFighter technology
for wide ranges of high-definition, such as the rivers, roads,  15× optical zoom and 16× digital zoom provide close up
railways, airports, squares, parks, scenic spots, and venues, views over expansive areas
etc.  WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional
focus
 Expansive night view with up to 100 m IR distance
 Support H.265+/H.265 video compression

DORI
The DORI (detect, observe, recognize, identify) distance gives the general idea of the camera ability to distinguish persons or
objects within its field of view.
It is calculated based on the camera sensor specification and the criteria given by EN 62676-4: 2015.

DORI Detect Observe Recognize Identify


Specification
Camera Module
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.005Lux @ (F1.6, AGC ON), B/W: 0.001Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/30,000 s
Slow Shutter yes
Focus semi-auto, manual, auto
Day & Night ICR
Day/Night Switch day, night, auto, scheduled-switch
BLC yes
WDR 120 dB WDR
HLC yes
3D DNR yes
Defog yes
Regional Exposure yes
Regional Focus yes
Image Settings saturation, brightness, contrast, sharpness
Image Parameters Switch yes
White Balance auto, ATW, sodium lamp, fluorescent lamp, indoor, outdoor, MWB, Locked WB
Digital Zoom 16x
Optical Zoom 15×
Privacy Mask up to 24 masks,mask color configurable
SNR > 52dB
Lens
Focal Length 5 mm to 75 mm, 15× Optical
Zoom Speed Approx. 2.3 s
Horizontal field of view: 57.6° to 4° (wide-tele),
FOV Vertical field of view: 34.4° to 2.3° (wide-tele),
Diagonal field of view: 64.5° to 4.6° (wide-tele)
Aperture F1.6
PTZ
Movement Range (Pan) 360°
Movement Range (Tilt) -15° to 90° (auto flip)
Pan Speed pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
Tilt Speed tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
Proportional Zoom yes
Presets 300
Patrol Scan 8 patrols, up to 32 presets for each patrol
Pattern Scan 4 pattern scans
Power-off Memory yes
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
Park Action
panorama scan
3D Positioning yes
PTZ Status Display yes
Preset Freezing yes
preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan,
Scheduled Task
panorama scan, dome reboot, dome adjust, aux output
Video
Max. Resolution 1920 × 1080
Stream Type main stream, sub-stream, third stream
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Main Stream
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
Sub-Stream
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
Third Stream
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Compression H.265, H.264, MJPEG
Video Bit Rate 32 kbps to 16384 kbps
H.264 Type baseline profile, main profile, high profile
H.265 Type main profile
H.264+ yes
H.265+ yes
SVC yes
fixed region, main stream, sub-stream and third stream respectively support eight
ROI
fixed areas
Audio
Audio Compression G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128
Audio Bit rate
kbps, 144 kbps, 160 kbps, 192 kbps
Audio Sampling Rate MP2L2: 16 kHz, 32 kHz, 48 kHz,PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz
Environment Noise Filtering yes
Smart Features
Basic Event motion detection, alarm input, alarm output, video tampering alarm, exception
face detection, intrusion detection, line crossing detection, region entrance detection,
Smart Event region exiting detection, unattended baggage detection, object removal detection,
audio exception detection
Smart Record ANR, Dual-VCA
memory card video recording, alarm output, sending email, notify surveillance center,
Alarm Linkage
upload to FTP, NAS video recording
Network
Network Storage NAS (NFS, SMB/ CIFS)
 IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP,
Protocols RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, ISUP, WebSocket,
WebSockets
Open-ended API, ISAPI, Hikvision SDK, Third-party management platform, Hik-Connect,
API
ISUP, Open Network Video Interface, CGI
Simultaneous Live View 20
User/Host 32
Authenticated username and password, MAC address binding, HTTPS encryption,
Security Measures
802.1X authenticated access, IP address filter
Client iVMS-4200, Hik-Connect
Web Browser IE10-11, Chrome 57+, Firefox 52+, Safari 12+
Interface
Communication Interface RJ45, self-adaptive 10M/100M Ethernet port
On-board Storage support microSD/microSDHC/microSDXC cards, up to 256 GB
Alarm Input 1 alarm input
Alarm Output 1 alarm output
Audio Input 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output 1 audio output, line level, impedance: 600 Ω
Supplement Light
IR Distance 100 m
General
Power 12 VDC,PoE (802.3at)
Power Consumption and Current Max. 18 W, including max. 1.6 W for heater and 9 W for IR
Operating Conditions -30°C to 65°C (-22°F to 149°F), humidity lower than 90%RH
Reset yes
Demist yes
Material ADC12
Dimensions Ø 164.5 mm × 290 mm (Ø 6.48" × 11.42")
Weight Approx. 2 kg (4.41 lb.)
Approval
IP66 Standard, 6000V Lightning Protection, Surge Protection and Voltage Transient
Protection
Protection


Available Model
DS-2DE4215IW-DE(S6)(B)


Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
 protection is a must. Typical application scenarios include coastlines, docks, chemical plants,
and more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles)
away from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.


Dimension


Accessory
 Included
ASW0081-
DS-1618ZJ
1220002W
 Optional
DS-1667ZJ DS-1661ZJ DS-1662ZJ DS-1619ZJ DS-1602ZJ

DS-1604ZJ-BOX-
DS-1604ZJ-corner DS-1005KI DS-1673ZJ DS-1604ZJ-pole
CORNER

DS-1681ZJ DS-1100KI(B) DS-1660ZJ DS-1671ZJ-SDM9 DS-1663ZJ

DS-1604ZJ-BOX-
DS-1604ZJ DS-1682ZJ DS-1604ZJ-box
POLE

*DS-1673ZJ should be used with DS-1661ZJ or DS-1662ZJ.
