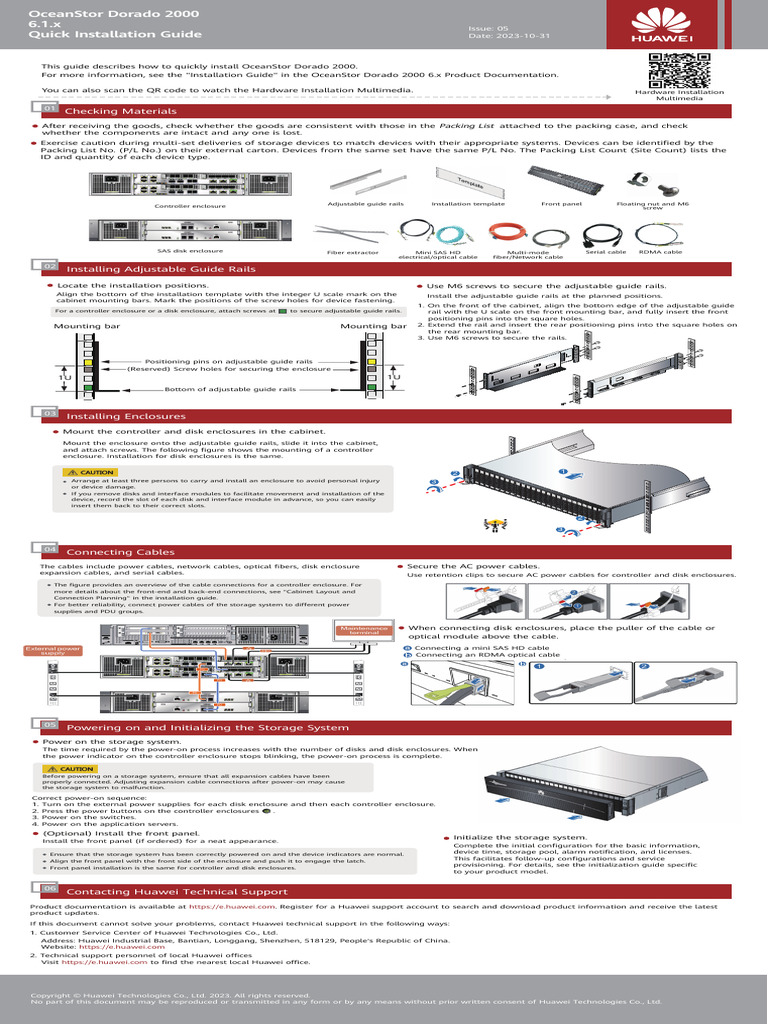

OceanStor Dorado 2000

6.1.x Issue: 05
Quick Installation Guide Date: 2023-10-31

This guide describes how to quickly install OceanStor Dorado 2000.

For more information, see the "Installation Guide" in the OceanStor Dorado 2000 6.x Product Documentation.

You can also scan the QR code to watch the Hardware Installation Multimedia. Hardware Installation
Multimedia

01
Checking Materials
After receiving the goods, check whether the goods are consistent with those in the Packing List attached to the packing case, and check
whether the components are intact and any one is lost.
Exercise caution during multi-set deliveries of storage devices to match devices with their appropriate systems. Devices can be identified by the
Packing List No. (P/L No.) on their external carton. Devices from the same set have the same P/L No. The Packing List Count (Site Count) lists the
ID and quantity of each device type.

Adjustable guide rails Installation template Front panel Floating nut and M6
Controller enclosure screw

SAS disk enclosure Fiber extractor Mini SAS HD Multi-mode Serial cable RDMA cable
electrical/optical cable fiber/Network cable

02
Installing Adjustable Guide Rails

Locate the installation positions. Use M6 screws to secure the adjustable guide rails.
Align the bottom of the installation template with the integer U scale mark on the Install the adjustable guide rails at the planned positions.
cabinet mounting bars. Mark the positions of the screw holes for device fastening.
1. On the front of the cabinet, align the bottom edge of the adjustable guide
For a controller enclosure or a disk enclosure, attach screws at to secure adjustable guide rails. rail with the U scale on the front mounting bar, and fully insert the front
positioning pins into the square holes.
Mounting bar Mounting bar 2. Extend the rail and insert the rear positioning pins into the square holes on
the rear mounting bar.
3. Use M6 screws to secure the rails.

Positioning pins on adjustable guide rails

(Reserved) Screw holes for securing the enclosure
1U 1U

Bottom of adjustable guide rails

03
Installing Enclosures

Mount the controller and disk enclosures in the cabinet.

Mount the enclosure onto the adjustable guide rails, slide it into the cabinet,
and attach screws. The following figure shows the mounting of a controller
enclosure. Installation for disk enclosures is the same.

1
0

2
2

Arrange at least three persons to carry and install an enclosure to avoid personal injury 3
7

or device damage.
10

11

12

13

If you remove disks and interface modules to facilitate movement and installation of the
14

15

16

17

device, record the slot of each disk and interface module in advance, so you can easily
18

19

20

insert them back to their correct slots.

21

22

23

24

04
Connecting Cables
The cables include power cables, network cables, optical fibers, disk enclosure Secure the AC power cables.
expansion cables, and serial cables. Use retention clips to secure AC power cables for controller and disk enclosures.
The figure provides an overview of the cable connections for a controller enclosure. For
more details about the front-end and back-end connections, see "Cabinet Layout and
Connection Planning" in the installation guide.
For better reliability, connect power cables of the storage system to different power
supplies and PDU groups.

When connecting disk enclosures, place the puller of the cable or

optical module above the cable.
Connecting a mini SAS HD cable
Connecting an RDMA optical cable

05
Powering on and Initializing the Storage System
Power on the storage system.
The time required by the power-on process increases with the number of disks and disk enclosures. When
the power indicator on the controller enclosure stops blinking, the power-on process is complete.

Before powering on a storage system, ensure that all expansion cables have been
properly connected. Adjusting expansion cable connections after power-on may cause
the storage system to malfunction.

Correct power-on sequence:

1. Turn on the external power supplies for each disk enclosure and then each controller enclosure.
2. Press the power buttons on the controller enclosures .
3. Power on the switches.
4. Power on the application servers.
(Optional) Install the front panel.
Initialize the storage system.
Install the front panel (if ordered) for a neat appearance.
Complete the initial configuration for the basic information,
Ensure that the storage system has been correctly powered on and the device indicators are normal.
device time, storage pool, alarm notification, and licenses.
This facilitates follow-up configurations and service
Align the front panel with the front side of the enclosure and push it to engage the latch.
provisioning. For details, see the initialization guide specific
Front panel installation is the same for controller and disk enclosures.
to your product model.

06
Contacting Huawei Technical Support
Product documentation is available at https://e.huawei.com. Register for a Huawei support account to search and download product information and receive the latest
product updates.

If this document cannot solve your problems, contact Huawei technical support in the following ways:
1. Customer Service Center of Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base, Bantian, Longgang, Shenzhen, 518129, People's Republic of China.
Website: https://e.huawei.com
2. Technical support personnel of local Huawei offices
Visit https://e.huawei.com to find the nearest local Huawei office.
