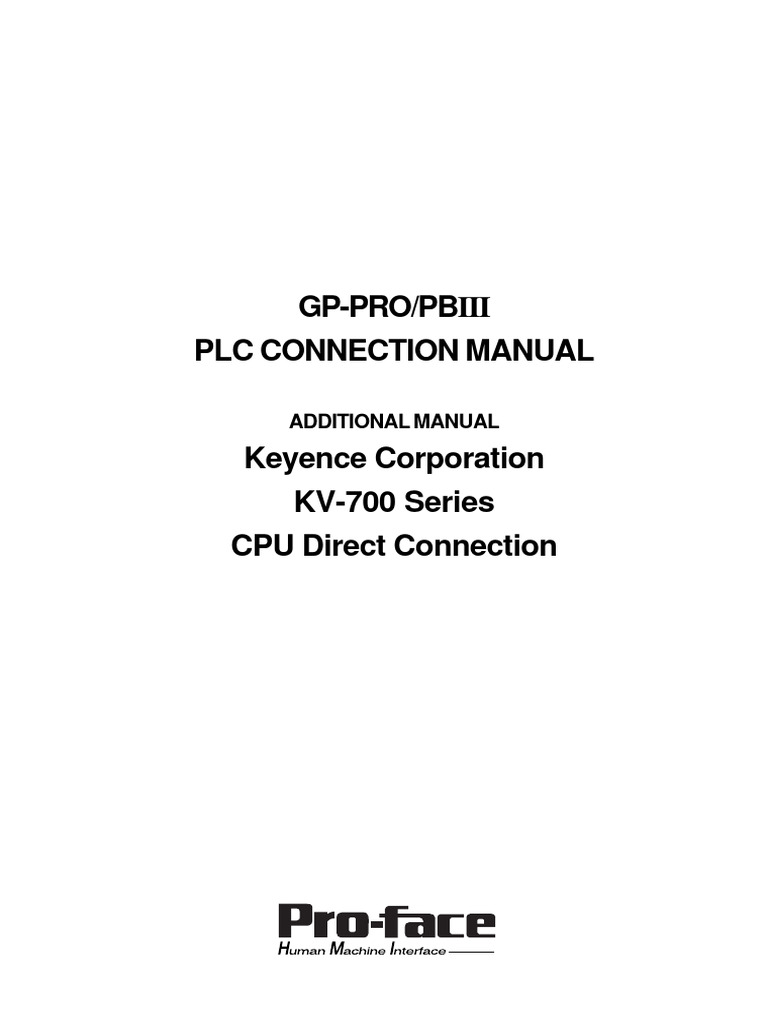

GP-PRO/PBIII

PLC CONNECTION MANUAL

ADDITIONAL MANUAL

Keyence Corporation
KV-700 Series
CPU Direct Connection
Reading the GP-PRO/PBIII Device/PLC Connection Manual
This document is designed as an addition to the latest GP-PRO/PBIII Device/PLC
Connection manual. It covers the Keyence Corporation’s KV700 Series unit (CPU
Direct Connection) information.
Please be aware that:
• Page numbers are not sequential
• Chapter numbers do not agree.
• No introduction is included.
• Titles have been omitted.

This document is intended to be used together with the latest version of your Device/
PLC Connection manual.
Please read the KV-700 Series (CPU Direct Connection) items.

The information in this document will be included in the next version of the Device/PLC
Connection manual. Therefore, please consider this a provisional document.
Installation
This CD-ROM includes all the protocol files required by the GP/GLC to communicate
with a KEYENCE Corporation PLC. Also, you will need to have the GP Screen
Editor software (GP-PRO/PBIII for Windows95 version 2.1 or higher) installed on
your personal computer's hard disk. For information about the installation of the GP
Screen Editor software, refer to that software's Operation Manual.

1) Be sure to Confirm that the GP Screen Editor software is installed in your PC prior
to starting this driver installation.
2) To install the Keyence protocol files, click on this CD-ROM’s “kv700p.exe” file
icon.
3) Once the setup program starts, follow the instructions given to install the protocol
files.

When using the KV-700 Series (CPU Direct Connection) unit, select [KEYENCE
KV-700 SERIES (CPU)] for the “PLC Type”.
Chapter 2 - PLC-GP Connection 2.18 Keyence

2.18 Keyence

2.18.1 System Structure

The following describes the system structure for connecting the GP to Keyence
PLCs.
Reference The Cable Diagrams mentioned in the following tables are
listed in the section titled "2.18.2 Cable Diagrams".

KZ-300/KZ-350 Series (using Link I/F)

CPU Link I/F Cable Diagram GP

PC Link
Unit
KZ-300 KZ-L2 RS-232C
KZ-350 Port 1 Connection
(Cable Diagram 1)

RS-232C
Port 2 Connection GP Series
(Cable Diagram 2)

RS-422
Port 2 Connection
(Cable Diagram 3)

Port 1 and Port 2 can be connected at the same time on the GP. When con-
Note: nected at the same time, the Communication Setup for Port 1 and Port 2
must be the same.

KZ-A500 Series (using Link I/F)

CPU Link I/F Cable Diagram GP

RS-232C, connected to Port 1.

KZ-A500 KZ-L10 (Cable Diagram 4)

RS-232C ,connected to Port 2. GP Series

(Cable Diagram 2)
RS-232C ,connected to Port 2.
(Cable Diagram 3)

! Port 1 (RS232C), Port 2 (RS232-C or RS422) and the modular

Important controller on CPU unit can be used at the same time.

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-1

2.18 Keyence Chapter 2 - PLC-GP Connection

KZ-A500 (CPU Direct Connection)

CPU Cables Connector GP

Modular
Modular

KZ-A500 Keyence Corp.'s Keyence Corp.'s

GP Series
OP-26487 OP-26485

KV Series (CPU Direct Connection)

CPU Cables Connector GP/GLC

Modular
Socket
Modular
Socket

KV-10 Keyence Corp.'s Keyence Corp.'s

KV-16 OP-26487 OP-26485 GP Series
KV-24 GLC Series
KV-40

KV-700 Series (using Link I/F)

CPU Link I/F Cable Diagram GP/GLC
PC Link Unit

KV-700 KV-L20 RS-232C

(Communication Port 1)
<Cable Diagram 5>
RS-232C
GP Series
(Communication Port 2)
GLC Series
<Cable Diagram 6>
RS-422
(Communication Port 2)
<Cable Diagram 7>

KV-700 Series (CPU Direct Connection)

CPU Cables Connector GP/GLC

Modular
Modular

KV-700 Keyence Corp.'s Keyence Corp.'s GP Series

OP-26487 OP-26485 GLC Series

2-18-2 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

2.18.2 Cable Diagrams

The cable diagrams illustrated below and the cable diagrams recommended by
Keyence may differ, however, using these cables for your PLC operations will
not cause any problems.

Careful! • Connect the FG line of the Shield cable to the GP.

• For the RS-232C connection, use a cable length less than 15m.
• If a communications cable is used, it must be connected to the SG
(signal ground).
• For the RS-422 connection, refer to Keyence's PLC manual for the
cable length.
Cable Diagram 1 (RS-232C)

NC

CD

Cable Diagram 2 (RS-232C)

NC

CD

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-3

2.18 Keyence Chapter 2 - PLC-GP Connection

Cable Diagram 3 (RS-422)

Careful! Turn the PLC's Termination Resistor switch ON.

! The reading of the A and B signals is reversed on the GP and PLC.

Important

• When using Digital's RS-422 connector terminal adapter, GP070-CN10-0

• When using Digital's RS-422 Cable, GP230-IS11-0

• When making your own cable connections

• Hirakawa Densen's H-9293A (C0-HC-ESV-3P*7/0.2) is the recommended

Note: cable.
• When connecting the #9 and #10 pins in the GP Serial I/F, a termination
Ω is added between RDA and RDB.
resistance of 100Ω
• When using RS-422 connection, please check the cable length with Keyence
PLC users manual.

2-18-4 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

Cable Diagram 4 (RS-232C) port1

Note: • When using an RS-232C cable, the cable must be no longer than 15meters.
• When using an RS-422 cable, the cable must be no longer than 500meters.

GP Unit PLC
(25P) Shield (25P)

1 FG 2 SD
2 SD 3 RD
3 RD 4 RS
4 RS 5 CS
5 CS 7 SG
7 SG

Cable Diagram 5 (RS-232C) port 1

GP Unit (D-sub PLC (D-sub
25P Male) Shield 25P Female)

1 FG 2 RD
2 SD 3 SD
3 RD 7 RS
4 RS 8 CS
5 CS 5 SG
6 NC
7 SG
8 CD
20 ER

Cable Diagram 6 (RS-232C) port 2

GP Unit (D-sub Terminal for
25P Male) Shield communication

1 FG 1 SG
2 SD 3 SD
3 RD 5 RD
4 RS
5 CS
6 NC
7 SG
8 CD
20 ER

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-5

2.18 Keyence Chapter 2 - PLC-GP Connection

Cable Diagram 7 (RS-422) 4-wire type

Careful! • The termination resistance on the PLC side becomes active when
the Terminator Select switch on the unit is turned ON.
• The names of poles A and B are inverted between the GP and the
PLC.
• The cable length should be within 500 meters.

• When using Digital's RS-422 connector terminal adapter, GP070-CN10-0

Terminal for
Termination resistance
GP Unit Shield communication
1/2W, 470Ω
RDA 1 SG
REB 2 REA
GP070-CN10-0
SDA 3 SDA
SDB 4 RDB
TERM 5 SDB
Termination resistance SG
1/2W, 470Ω FG

• When using Digital's RS-422 Cable, GP230-IS11-0 Terminal for

GP Unit communication
RDA 1 SG
REB 2 RDA
SDA 3 SDA
SDB 4 RDB
GP230-IS11-0 SG 5 SDB
FG
Ground

• When making your own cable connections

Terminal for
GP Unit Shield communication

1 FG 1 SG
7 SG 2 RDA
Termination resistance
9 TRMX 3 SDA
1/2W, 470Ω
10 RDA 4 RDB
Termination resistance 11 SDA 5 SDB
1/2W, 470Ω 15 SDB
16 RDB
18 CSB
19 ERB
21 CSA
22 ERA

2-18-6 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

2.18.3 Supported Devices

The following describes the range of devices supported by the GP.

KZ-300/KZ-350 Series Set up System Area here.

Device Bit Address Word Address Particulars

Input Relay 00000 ~ 0009 00 ~ 00
*1
7000 ~ 17415 70 ~ 174
Output Relay 0500 ~ 0503 05 ~ 05
*2
7500 ~ 17915 75 ~ 179

Help Relay 0504 ~ 0915 ---

Internal Help Relay 1000 ~ 6915 10 ~ 69

Special Help Relay 2000 ~ 2915 20 ~ 29 L/H

Timer (contact) T000 ~ T249 ---

Counter (contact) C000 ~ C249 ---

Timer (current value) --- T000 ~ T249

Counter (current value) --- C000 ~ C249

Data Memory --- DM0000 ~ DM9999

Temporary Data Memory --- TM00 ~ TM31

* 1 Address numbers *000~*400 are available for the bit device addresses,and *0~*4
are available for the word addresses displayed.

Bit Address Word Address

addr 7000 70
addr 7001 to addr 7400 71 to 74
addr 8000 80
addr 8100 to addr 8400 81 to 84
addr 17000 to addr 17400 170 to 174

* 2 Address numbers *500~*900 are available for the bit device addresses, and *5~*9
are available for the word addresses displayed.

Bit Address Word Address

addr 7500 75
addr 7600 to addr 7900 76 to 79
addr 8500 85
addr 8600 to addr 8900 86 to 89
addr 17500 to addr 17900 175 to 179

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-7

2.18 Keyence Chapter 2 - PLC-GP Connection

KZ-A500 (CPU Direct Connection)

Set up System Area here.
Device Bit Address Word Address Particulars

Input Relay X0000 ~ X07FF X0000 ~ X07F0

Output Relay Y0000 ~ Y07FF Y0000 ~ Y07F0

Internal Relay M0000 ~ M8191 M000 ~ M8176

Latch Relay L0000 ~ L8191 ---

Special Relay M9000 ~ M9255 M9000 ~ M9240

Annunciator F0000 ~ F2047 F0000 ~ F2032

Link Relay B0000 ~ B0FFF ---

Timer (contact) TS0000 ~ TS2047 ---

Timer (coil) TC0000 ~ TC2047 --- L/H

Counter (contact) CS0000 ~ CS1023 ---

Counter (coil) CC0000 ~ CC1023 ---

Timer (current value) --- TN0000 ~ TN2047

Counter (current value) --- CN0000 ~ CN1023

Data Register --- D0000 ~ D6143

Special Register --- D9000 ~ D9255

Link Register --- W0000 ~ W0FFF

File Register --- R0000 ~ R8191

2-18-8 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

KZ-A500 (using Link I/F)

Set up System Area here.
Device Bit Address Word Address Particulars

Input Relay X0000 ~ X07FF X0000 ~ X07F0

Output Relay Y0000 ~ Y07FF Y0000 ~ Y07F0
Internal Relay M0000 ~ M8191 M0000 ~ M8176
Latch Relay L0000 ~ L8191 L0000 ~ L8176
Link Relay B0000 ~ B0FFF
Annunciator Relay F0000 ~ F2047 F0000 ~ F2032
Special Relay M9000 ~ M9255 M9000 ~ M9240
Timer (connect) TS0000 ~ TS2047
Timer (coil) TC0000 ~ TC2047 L/H

Counter (connect) CS0000 ~ CS1023

Counter (coil) CC0000 ~ CC1023
Timer (current value) TN0000 ~ TN2047
Counter (current value) CN0000 ~ CN1023
Data Register D0000 ~ D6143
Link Register W0000 ~ W0FFF
File Register R0000 ~ R8191
Special Register D9000 ~ D9255

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-9

2.18 Keyence Chapter 2 - PLC-GP Connection

KV Series (KV-10/KV-16/KV-24/KV-40)
Set up System Area here.
Device Bit Address Word Address Particulars

00000 ~ 00915 000 ~ 009

Input/Output Relay
07000 ~ 17915 070 ~ 179

01000 ~ 01915 010 ~ 019

Internal AUX Relay
03000 ~ 06915 030 ~ 069

Special AUX Relay 02000 ~ 02915 020 ~ 029 *1

Timer (contact) T000 ~ T249

Counter (contact) C000 ~ C249

High-Speed Counter *2
CTC0 ~ CTC3
Comparator (contact)
Timer (set value) TS000 ~ TS249 L/H
Counter (set value) CS000 ~ CS249

Timer (current value) TC000 ~ TC249

Counter (current value) CC000 ~ CC249

Data Memory DM0000 ~ DM1999

Temporary Data Memory TM00 ~ TM31

*2
Digital Trimmer AT0 ~ AT1
High-Speed Counter
CTH0 ~ CTH1
(current value)
High-Speed Counter
CTC0 ~ CTC3
Comparator (set value)

*1 Some addresses are not available for writes.

*2 Not available for writes

2-18-10 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

KV-700 Series (using the KZ-300 series protocol)

Set up System Area here.
Device Bit Address Word Address Particulars
*1
Input Relay 00000 ~ 00009 000 ~ 000

Output Relay 00500 ~ 00503 005 ~ 005

Internal AUX Relay 00504 ~ 00915 005 ~ 009

Extended Input/Output Relay
01000 ~ 59915 010 ~ 599
Internal AUX Relay
*2
Control Relay 60000 ~ 63915 600 ~ 639
*3
Timer (contact) T000 ~ T511
L/H
*3
Counter (contact) C000 ~ C511
*3
Timer (current value) T000 ~ T511

Counter (current value) C000 ~ C511 *3

Data Memory DM0000 ~ DM9999 *4

Temporary Data Memory TM000 ~ TM511

*5
Control Memory TM0520 ~ TM4519

*1 PLC or GP data writing is not possible.

*2 GP cannot write data to any address.
*3 Only available when the timer command and the counter command exist in
the ladder program.
*4 The device range for the PLC is between DM0000 and DM19999, but ad-
dresses up to DM9999 are only accessible to the GP.
*5 Some addresses are not available for writes.

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-11

2.18 Keyence Chapter 2 - PLC-GP Connection

KV-700 Series (using the KZ-A500 (link) protocol)

Set up System Area here.
Device Bit Address Word Address Particulars

Input Relay X000 ~ X009 X00 ~ X00 *1*2

*2
Output Relay X050 ~ X053 X05 ~ X05

Internal AUX Relay X054 ~ X09F X05 ~ X09 *2

*3*4
Control Relay M0000 ~ M3915 M0000 ~ M3904

Timer (contact) TS000 ~ TS511 *5

*5
Counter (contact) CS000 ~ CS511
High-Speed Counter *5*6 L/H
CS512 ~ CS515
Comparator (contact)
*5
Timer (current value) TN000 ~ TN511
*5
Counter (current value) CN000 ~ CN511
High-Speed Counter *5
CN512 ~ CN513
(current value)
*7*8
Data Memory D00000 ~ D19999

Control Memory D50000 ~ D53999 *7*3

*1 PLC or GP data writing are not available for writes.

*2 Addresses must be specified using hexadecimal numbers.
*3 Some addresses are not available for writes.
*4 For addresses, only multiples of 16 may be specified.
*5 Only available when the timer command, the counter command, and the high-
speed timer command exist in the ladder program.
*6 GP cannot write data to any address.
*7 Even if the file registers are registered as R50000 to R539999, similar device
addresses can be used, e.g., R51111 = D51111.

2-18-12 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

KV-700 Series (CPU Direct Connection)

Set up System Area here.

Device Bit Address Word Address Particulars

Input/Output Relay
00000~59915 000~599
Internal AUX Relay

Control Relay CR0000~CR3915 CR00~CR39

Timer (contact) T000~T511

Counter (contact) C000~C511

High-Speed Counter
CTC0~CTC3 *1
Comparator (contact)
Timer (set value) TS000~TS511 *2

Counter (set value) CS000~CS511 *2

L/H
Timer (current value) TC000~TC511 *2

Counter (current value) CC000~CC511 *2

Data Memory DM00000~DM39999

Temporary Data Memory TM000~TM511

Control Memory CM0000~CM3999

Digital Trimmer TRM0~TRM7 *2

High-Speed Counter
CTH0~CTH1 *2
(current value)
High-Speed Counter
CTC0~CTC3 *2
Comparator (set value)

*1 Not available for writes.

*2 32-bit device

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-13

2.18 Keyence Chapter 2 - PLC-GP Connection

2.18.4 Environment Setup

The following lists Digital's recommended PLC and GP communication setups.

KZ-300/KZ-350 Series
GP Setup PC Link Unit Setup

Baud Rate 19200 bps Baud Rate 19200 bps

Data Length 7 bits Data Bit 7 bits

Stop Bit 2 bits Stop Bit 2 bits

Parity Bit Even Parity Bit Even

Data Flow Control ER Control ---

Communication Format Port 2 Toggle Switch
RS-232C *1 RS-232C
(RS-232C) (RS-232C)
Communication Format Port 2 Toggle Switch
4-wire type *1 RS-422A
(RS-422) (RS-422)
--- RUN Mode Link Mode

Unit No. 0 Station Number 0

*1 Setup not necessary when using Port1.

KZ-A500 (CPU Direct Connection)

GP Setup PLC Setup

Baud Rate 9600 bps ---

Data Length 8 bits (fixed) ---

Stop Bit 1 bit (fixed) ---

Parity Bit Odd (fixed) ---

Data Flow Control ER Control ---

Communication Format
RS-232C ---
(RS-232C)
Unit No. 0 (fixed) ---

Effect of PLC program on cycle time

! If the KZ-A500 is connected directly to the CPU, the
Caution cycle time of the PLC program is delayed by about 8%
after communication with the GP begins.

2-18-14 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

KZ-A500 (using Link I/F)

GP Setup PLC Setup
*1
Baud Rate 19200bps Baud Rate 19200bps

Data Length 7 Data Length 7

Stop Bit 1 Stop Bit 1

Parity Bit None Parity Bit None

Data Flow Control ER

Communication Format *2
RS-232C RS-232C Communication Port Port 1 or Port 2
(RS-232C)
Communication Format *3
4-Wire Type RS-422 Communication Port Port 2
(RS-422)
Communication Type Normal

Changing device data during RUN Possible

Checksum Yes

Operation Mode Protocol Mode 4

Unit No. 0 STATION No. 0

*1 The maximum baud rate is 38400bps.

*2 When using an RS-232C cable on port 2, be sure to set the INTERFACE switch to
“232C”(right side setting.) Also, set the TERMINATOR switch to OFF, since it
will not be used.
*3 When using an RS-422 cable, set the INTERFACE switch to “422”( left side
setting,) and the TERMINATOR switch to ON.

KV/KV-700 Series (CPU Direct Connection)

GP Setup PLC Setup

Baud Rate 19200bps

Data Length 8 bits (fixed)

Stop Bit 1 bit (fixed)

Parity Bit Even (fixed)

Data Flow Control ER Control

Communication Format RS-232C

Unit No. 0

Note: • The baud rate can be from 9600 to 57600 bps.

• The PLC requires no setup due to its automatic recognition of settings.

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-15

2.18 Keyence Chapter 2 - PLC-GP Connection

KZ-700 Series (using the KZ-300 series protocol)

GP Setup PLC Setup
*1
Baud Rate 19200bps Baud Rate 19200bps

Data Length 7 bits Data Length 7 bits

Stop Bit 2 bits Stop Bit 2 bits

Parity Bit Even Parity Bit Even

Data Flow Control ER Control RS, CS Flow Control No

Communication Port 1 Fixed to 232C

Communication Format
RS-232C Communication Port 2
(RS-232C) 232C
Selector Switch
Communication Format Communication Port 2
4-Wire Type 422A
(RS-422) Selector Switch
Operation Mode Link Mode

Unit No. 0 Station No. 0

*1 The maximum baud rate is 115,200 bps.

KZ-700 Series (using the KZ-A500 series protocol)

GP Setup PLC Setup
*1
Baud Rate 19200bps Baud Rate 19200bps

Data Length 7 bits Data Length 7 bits

Stop Bit 2 bits Stop Bit 2 bits

Parity Bit None Parity Bit None

Data Flow Control ER Control

Communication Port 1 Fixed to 232C

Communication Format
RS-232C Communication Port 2
(RS-232C) 232C
Selector Switch
Communication Format Communication Port 2
4-Wire Type 422A
(RS-422) Selector Switch
Operation Mode Protocol Mode 4

Checksum Yes

Unit No. 0 Station No. 0

*1 The maximum baud rate is 115,200 bps.

2-18-16 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Chapter 2 - PLC-GP Connection 2.18 Keyence

2.18.5 Error Codes

„ PLC Error Codes

‹KV/KV-700 Series (CPU Direct Connection)
Controller error codes are represented by the "Host communication error (02:**)",
and indicated in the left lower corner of the GP screen. (** stands for an error
code.)
Host Communication Error (02:**)

PLC Error Code

Error Code Description

Occurs when you write to a device that cannot be written to.
02
(High Speed Counter Comparator (contact))
04 Occurs when the PLC uses an unsupported baud rate to send data.
*1
31 Occurs when an undefined device is accessed.

*1 When writing to a Timer (contact/current value/set value), Counter (contact/

current value/set value), High Speed Counter, High Speed Counter Com-
parator (set value), these values must be set in advance using a Ladder Pro-
gram.

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual 2-18-17

2.18 Keyence Chapter 2 - PLC-GP Connection

1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901

MEMO
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901
1234567890123456789012345678901212345678901

2-18-18 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual

Appendix

A1 Maximum Number of Consecutive PLC Addresses

The following lists the maximum number of consecutive addresses that can be read by
each PLC. Refer to these tables to utilize Block Transfer.

KV-700 Series (CPU Direct Connection)

Max No. of Consecutive
Device
Address
Input/Output Relay
124 Words
Internal AUX Relay

Control Relay 40 Words

Timer (contact)
28 Bits
Counter (contact)
High-Speed Counter
4 Bits
Comparator (contact)
Timer (set value)

Counter (set value)

Timer (current value)

124 Words
Counter (current value)

Data Memory

Temporary Data Memory

Control Memory 40 Words

Digital Trimmer 16 Words

High-Speed Counter
4 Words
(current value)
High-Speed Counter
8 Words
Comparator (set value)

GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual Appendix-1

 Appendix

A2 Device Codes and Address Codes

Device codes and address codes are used to specify indirect addresses for E-tags and K-
tags.

KV-700 Series (CPU Direct Connection)

Device Word Address Device Code Address Code

Input/Output Relay
Bit 0000 ~ 9000
Internal AUX Relay Word Address
Device
Control Relay CR000 ~ 9200
Timer (set value) TS000 ~ 6000 Double Word Address
Counter (set value) CS000 ~ 7000 Double Word Address
Timer (current value) TC000 ~ 6800 Double Word Address
Counter (current value) CC000 ~ 7800 Double Word Address
Data Memory DM0000 ~ 0000 Word Address

Word Temporary Data Memory TM00 ~ 4800 Word Address

Device Control Memory CM0000 ~ 3800 Word Address
Digital Trimmer TRM0 ~ 5800 Double Word Address
High-Speed Counter
CTH0 ~ 2000 Double Word Address
(current value)
High-Speed Counter
CTC0 ~ 1000 Double Word Address
Comparator (set value)
LS area LS0000 ~ 4000 Word Address

Appendix-2 GP-PRO/PBIII for Windows Ver.6.0 PLC Connection Manual
