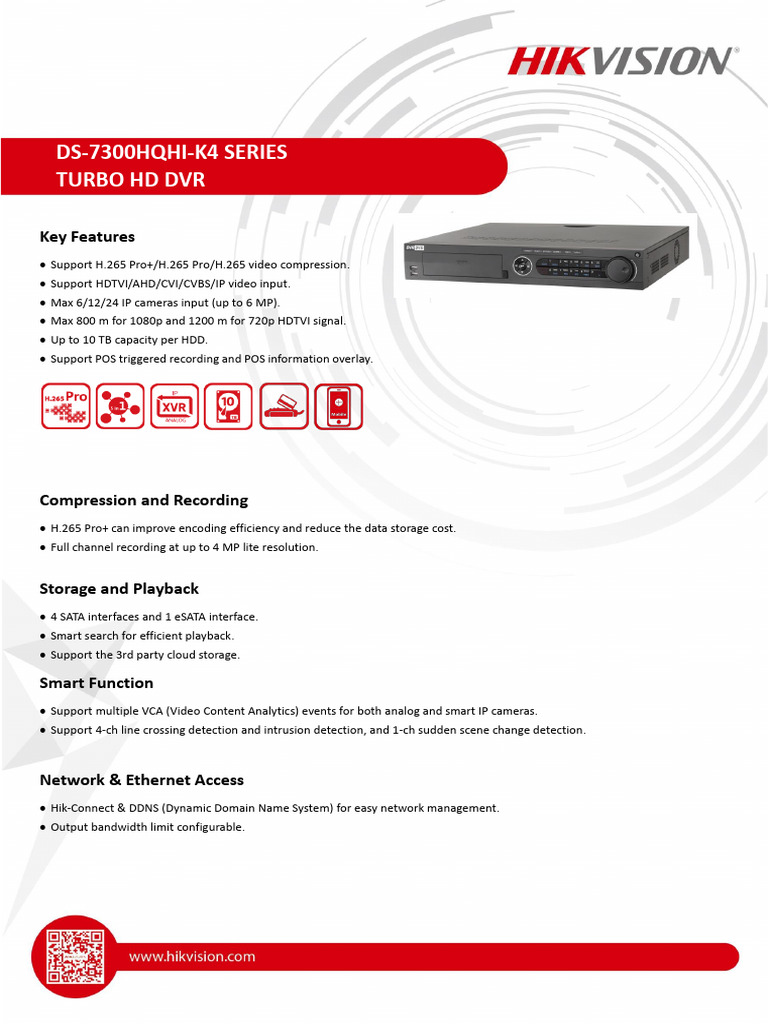

DS-7300HQHI-K4 SERIES
TURBO HD DVR
Key Features
Support H.265 Pro+/H.265 Pro/H.265 video compression.
Support HDTVI/AHD/CVI/CVBS/IP video input.
Max 6/12/24 IP cameras input (up to 6 MP).
Max 800 m for 1080p and 1200 m for 720p HDTVI signal.
Up to 10 TB capacity per HDD.
Support POS triggered recording and POS information overlay.
Compression and Recording
H.265 Pro+ can improve encoding efficiency and reduce the data storage cost.
Full channel recording at up to 4 MP lite resolution.
Storage and Playback
4 SATA interfaces and 1 eSATA interface.
Smart search for efficient playback.
Support the 3rd party cloud storage.
Smart Function
Support multiple VCA (Video Content Analytics) events for both analog and smart IP cameras.
Support 4-ch line crossing detection and intrusion detection, and 1-ch sudden scene change detection.
Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management.
Output bandwidth limit configurable.
Specifications
Model DS-7304HQHI-K4 DS-7308HQHI-K4 DS-7316HQHI-K4
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
When 1080p Lite mode is not enabled:
4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;
Encoding resolution
When 1080p Lite mode is enabled:
4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/
CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)
Frame rate /30fps (N)
For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/ 30fps
(N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
2-ch (up to 6-ch) 4-ch (up to 12-ch) 8-ch (up to 24-ch)
IP video input Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
4-ch 8-ch 16-ch
Analog video input
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
HDTVI input *: The 3 MP signal input is only available for channel 1 of DS-7304HQHI-K4,
channel 1/2 of DS-7308HQHI-K4, and channel 1/2/3/4 of DS-7316HQHI-K4.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×
768/60Hz
VGA/HDMI output
HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz,
1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output 2-ch, RCA (Linear, 1 KΩ)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous playback 4-ch 8-ch 16-ch
Network
Remote connections 128
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™,
Network protocols
HTTPS, ONVIF, SNMP
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary interface
SATA 4 SATA interfaces
eSATA Support
Capacity Up to 10 TB capacity for each disk
Serial interface RS-232, RS-485 (full-duplex), Keyboard
Front panel: 2 × USB 2.0
USB interface
Rear panel: 1 × USB 3.0
Alarm in/out 16/4
General
Power supply 100 to 240 VAC, 50 to 60 Hz, 1.5 A
Consumption
≤ 30 W ≤ 40 W ≤ 55 W
(without HDD)
Working temperature -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity 10% to 90%
Dimensions (W × D × H) 445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
Weights (without HDD) ≤ 5 kg (11.0 lb)
Physical Interfaces
The rear panel of DS-7304/7308HQHI-K4 provides 4/8 video input interfaces.
Index Description Index Description
RS-485 Serial Interface, Keyboard Interface,
1 VIDEO IN 9
ALARM IN and ALARM OUT
2 VIDEO OUT 10 100 to 240 VAC Power Input
3 AUDIO IN, RCA Connector 11 Power Switch
4 USB Interface 12 GND
5 HDMI Interface 13 LINE IN
6 VGA Interface 14 eSATA Interface
7 CVBS AUDIO OUT and VGA AUDIO OUT 15 RS-232 Serial Interface
8 LAN Network Interface
Available Models
DS-7304HQHI-K4, DS-7308HQHI-K4, DS-7316HQHI-K4
