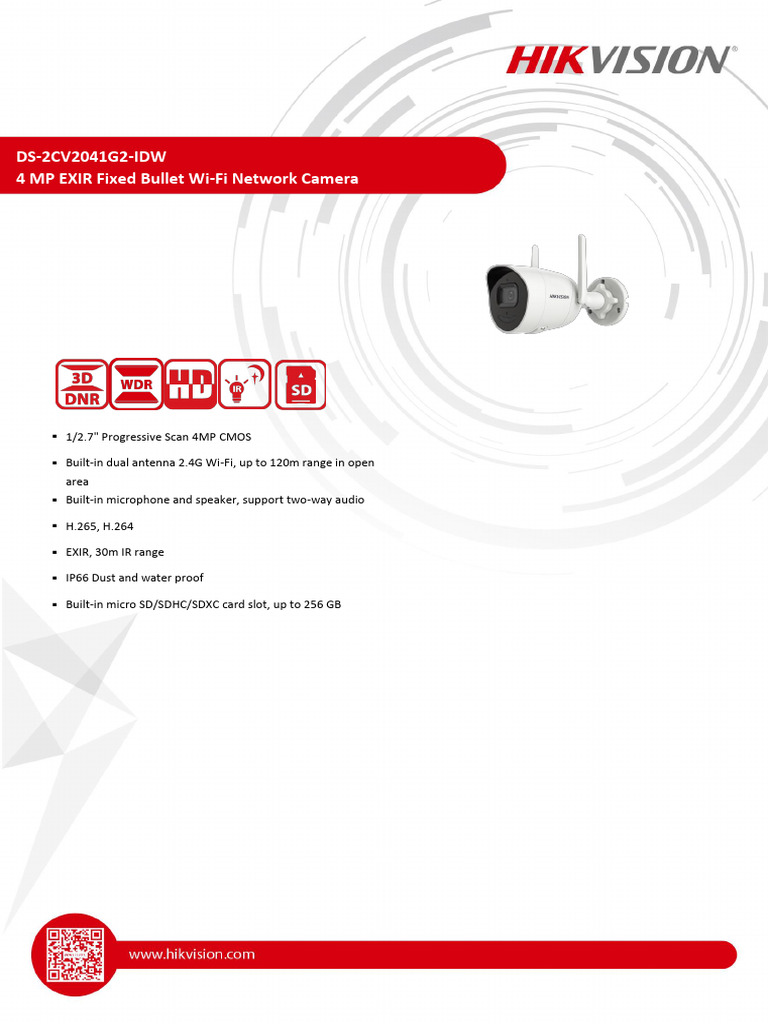

DS-2CV2041G2-IDW
4 MP EXIR Fixed Bullet Wi-Fi Network Camera
1/2.7" Progressive Scan 4MP CMOS
Built-in dual antenna 2.4G Wi-Fi, up to 120m range in open
area
Built-in microphone and speaker, support two-way audio
H.265, H.264
EXIR, 30m IR range
IP66 Dust and water proof
Built-in micro SD/SDHC/SDXC card slot, up to 256 GB
Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
2.8 mm: horizontal FOV: 97°, vertical FOV: 52°, diagonal FOV: 114°
Lens Type & FOV
4 mm: horizontal FOV: 79°, vertical FOV 42°, diagonal FOV 93°
Aperture F1.6
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 2560 × 1440
50Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Main Stream
60Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
50Hz: 25 fps (640 × 360)
Sub Stream
60Hz: 30 fps (640 × 360)
Video Compression Main stream/Sub-stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
Stream Type Main stream and sub-stream
Region of Interest (ROI) 1 fixed region for main stream
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
Network
Simultaneous Live View Up to 6 channels
API ISAPI, SDK
TCP/IP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP,R TCP, NTP, UPnP, SMTP, IGMP,
Protocols
QoS, IPv6, UDP, Bonjour, SSL/TLS
Up to 32 users
User/Host
3 levels: administrator, operator and user
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
Security
authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP
OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage NAS (NFS, SMB/CIFS)
Wired network: Hik-Connect, iVMS-4200
Client Wi-Fi: iVMS-4200
*Wi-Fi connection with Hik-Connect directly is not possible.
Plug-in required live view: IE8+, Chrome41.0-44, Firefox30.0-51, Safari8.0-11;
Web Browser
Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Wi-Fi
Encryption Mode 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA4-PSK
Wi-Fi Protocol IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40 MHz
Modulation 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Wireless Range Up to 120 m (The performance varies based on actual environment)
Day/Night Switch Day/Night/Auto/Schedule
Image Enhancement BLC, HLC, 3D DNR
Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by
Image Settings
client software or web browser
Interface
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Hardware Reset Yes
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Intelligent (Traditional Algorithm)
Motion detection, audible alarm output, exception (network disconnected, IP address
Basic Event
conflict, illegal login, HDD full, HDD error)
General
Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture,
Linkage Method
audiable warning
Online Upgrade Yes
Firmware Version V5.5.132
One-key reset, anti-flicker, heartbeat, mirror, password protection, watermark, IP
General Function
address filter, flash log, pixel counter
Software Reset Yes
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F)
Startup and Operating
-30 °C to 60 °C (-22 °F to 140 °F)
Conditions
Power Supply 12 VDC ± 25%, reverse polarity protection
Power Consumption and Current 12 VDC, 0.6 A, 7.2 W
Power Interface Ø 5.5 mm coaxial power plug
Material Front cover: metal, back cover: plastic
Camera Dimension 175.6× 73.0 × 89.1 mm (6.91" × 2.87" × 3.51")
Package Dimension 260 × 125 × 125 mm (10.24" × 4.92" × 4.92")
Camera Weight Approx. 450 g (0.99 lb.)
With Package Weight Approx. 770 g (1.70 lb.)
Approval
FCC ID (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014);
EMC
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
FCC ID (FCC Part 15.247(BT or 2.4G));
IC ID (RSS-247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328
V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
WPC (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328
V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014;
RF
EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
KC (KN 32:2015; KN 35: 2015; KN 301489-1; KN 301489-17);
ICASA (EN 301 489-1 V2.1.1(BT or 2.4G); EN 301 489-17 V3.1.1(BT or 2.4G); EN 300 328
V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014;
EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014; EN 60950-1:2005 + Am 1:2009 + Am
2:2013)
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
Safety CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015);
LOA (IEC/EN 60950-1)
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Environment
Reach Regulation (EC) No 1907/2006
Protection Ingress protection: IP66 (IEC 60529-2013)
Available Model
DS-2CV2041G2-IDW(2.8/4 mm)
Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.
This model has NO SPECIFIC PROTECTION.
Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.
Dimension
Accessory
Optional
DS-1280ZJ-XS
Junction box
050513220220304
