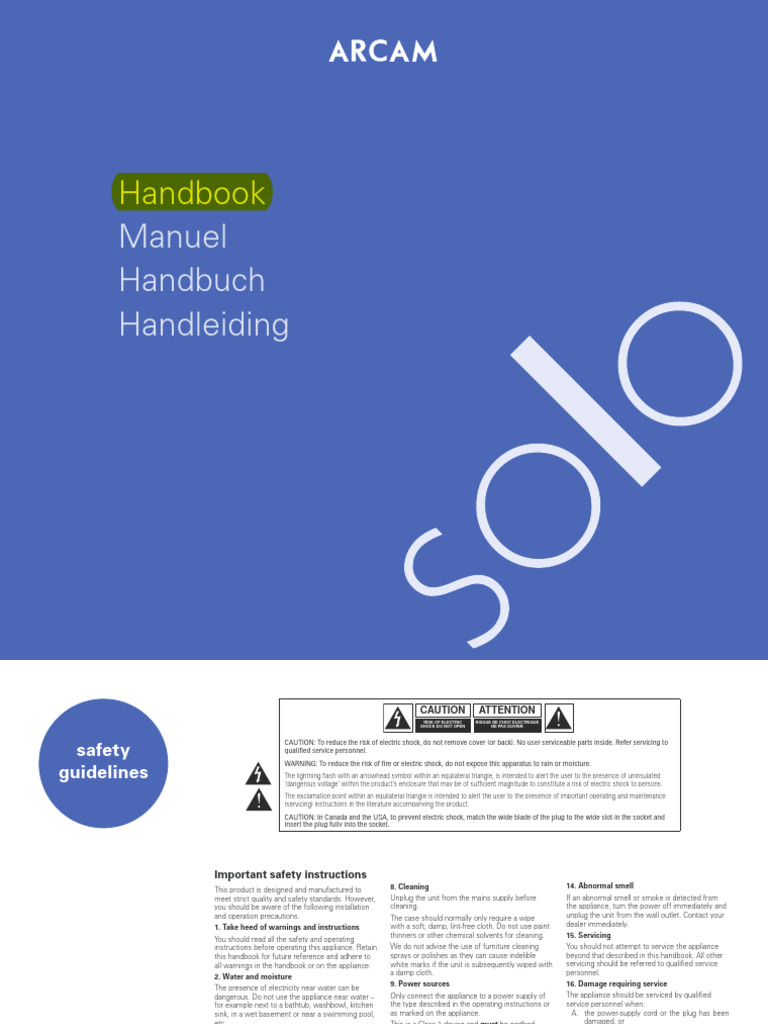

Handbook

Manuel
Handbuch
Handleiding
 CAUTION ATTENTION
RISK OF ELECTRIC RISQUE DE CHOC ELECTRIQUE
SHOCK DO NOT OPEN NE PAS OUVRIR

safety
CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to
qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
guidelines The lightning flash with an arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated
‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the product.

CAUTION: In Canada and the USA, to prevent electric shock, match the wide blade of the plug to the wide slot in the socket and
insert the plug fully into the socket.

Important safety instructions

8. Cleaning 14. Abnormal smell
This product is designed and manufactured to
meet strict quality and safety standards. However, Unplug the unit from the mains supply before If an abnormal smell or smoke is detected from
you should be aware of the following installation cleaning. the appliance, turn the power off immediately and
and operation precautions. The case should normally only require a wipe unplug the unit from the wall outlet. Contact your
with a soft, damp, lint-free cloth. Do not use paint dealer immediately.
1. Take heed of warnings and instructions
thinners or other chemical solvents for cleaning. 15. Servicing
You should read all the safety and operating
instructions before operating this appliance. Retain We do not advise the use of furniture cleaning You should not attempt to service the appliance
this handbook for future reference and adhere to sprays or polishes as they can cause indelible beyond that described in this handbook. All other
all warnings in the handbook or on the appliance. white marks if the unit is subsequently wiped with servicing should be referred to qualified service
a damp cloth. personnel.
2. Water and moisture
9. Power sources 16. Damage requiring service
The presence of electricity near water can be
dangerous. Do not use the appliance near water – Only connect the appliance to a power supply of The appliance should be serviced by qualified
for example next to a bathtub, washbowl, kitchen the type described in the operating instructions or service personnel when:
sink, in a wet basement or near a swimming pool, as marked on the appliance. A. the power-supply cord or the plug has been
etc. This is a Class 1 device and must be earthed. damaged, or
3. Object or liquid entry The primary method of isolating Solo from the B. objects have fallen, or liquid has spilled into
mains supply is to use the switch on the rear of the appliance, or
Take care that objects do not fall and liquids
are not spilled into the enclosure through any Solo. Solo must be installed in manner that makes C. the appliance has been exposed to rain, or
openings. Liquid-filled objects such as vases disconnection possible. D. the appliance does not appear to operate
should not be placed on the equipment. 10. Power-cord protection normally or exhibits a marked change in
4. Ventilation Power supply cords should be routed so that they performance, or
Do not place the equipment on a bed, sofa, rug or are not likely to be walked on or pinched by items E. the appliance has been dropped or the
similar soft surface, or in an enclosed bookcase placed upon or against them, paying particular enclosure damaged.
or cabinet, since ventilation may be impeded. We attention to cords and plugs, and the point where
17. Speaker connections
recommend a minimum distance of 50mm around they exit from the appliance.
the sides and top of the appliance to provide Any speakers must be connected to Solo using
11. Grounding
adequate ventilation. Class 2 wire (i.e., no connection to earth should
Ensure that the grounding means of the appliance be made). Failure to observe this precaution may
5. Heat is not defeated. cause Solo to be damaged.
Locate the appliance away from naked flames 12. Power lines
or heat producing equipment such as radiators,
Locate any outdoor antenna/aerial away from Safety compliance
stoves or other appliances (including other
power lines. This product has been designed to meet the IEC
amplifiers) that produce heat.
13. Non-use periods 60065 international electrical safety standard.
6. Climate
If the unit has a stand-by function, a small amount
The appliance has been designed for use in
of current will continue to flow into the equipment
moderate climates.
in this mode. Unplug the power cord of the
7. Racks and stands appliance from the outlet if left unused for a long
Only use a rack or stand that is recommended for period of time.
use with audio equipment. If the equipment is on
a portable rack it should be moved with great care,
to avoid overturning the combination.

E2
 English
welcome… … and thank you for purchasing the Arcam Solo music system.
Contents
Arcam has been producing high-quality audio components for nearly thirty years. safety guidelines ..................................................... E2
During that time we have amassed a wealth of knowledge on both the design and
welcome…............................................................... E3
construction of audio components in order to give the best sound performance for
the price. The design of Solo is a distillation of this knowledge into an easy-to-use making connections................................................ E4

package that is intended to give you years of listening enjoyment while taking just a making music .......................................................... E5
few minutes to learn how to use. remote control......................................................... E6

using the radio ........................................................ E7

This handbook is intended to give you a detailed guide of the use of the Solo music
system. Overleaf, you will find a ‘quick start’ guide that should be sufficient for most installation guidelines ............................................ E8
users; further into the handbook you will find additional information on the more advanced features................................................. E11
advanced features. technical specification .......................................... E13

We hope that your Solo music system will give you years of trouble-free operation. product guarantee ................................................ E14
In the unlikely event of any fault, or if you simply require further information
about Arcam products, our network of dealers will be happy to help you. Further
information can be found on the Arcam web-site at www.arcam.co.uk.
Safety
Safety guidelines are set out on page 2 of this
The Solo development team handbook.
Many of these items are common sense
precautions but, for your own safety and to
ensure that you do not damage the unit, we
recommend that you read them.
This product requires an earth connection.

Turn to pages 4 & 5 for a quick-start guide to Solo…

E3
 Introduction
This page gives a quick overview of the installation process for Solo. For more detailed instructions on
each of the items below, please see the “Installation Guidelines” section of this handbook, starting on
page 8.

making
Radio aerial
connections In Europe and Canada, Solo is usually fitted with a combined FM/DAB (digital radio) receiver module; in
the USA and the Far East, an AM/FM receiver module is usually supplied. In order to use either of these
modules, you must connect an aerial to the unit – a suitable aerial is supplied as an accessory.
The FM/DAB aerial connector is an F-type (screw) connector. The aerial should be connected to this
input by pushing the pin into the hole in the centre of the connector, then screwing the sleeve onto the
outside. The AM aerial should be connected as described on page 9.
Remote control connectors To use the supplied ‘T’ shaped wire aerial, mount it as high up as possible on a wall with the elements
These connections are intended for use in multi- positioned vertically. If accessable, try each usable wall of the room to see which gives the best
room installations and are unlikely to be used in reception. Use tacks or adhesive tape to secure the aerial to the wall, but ensure that tacks do not come
most cases. Further information can be found on into contact with the internal wire of the aerial.
page 9. For optimal reception, the use of a roof-mounted (external) aerial is recommended (see page 10).

REMOTE RS232 FM
PROGRAM
L
OUT IN IN GND AM
12V
TRIGGER ZONE 2 LOCAL
230V ZONE 2 PRE OUT TAPE OUT TAPE IN GAME TV AV IN
SPEAKER
~ OUTPUT
50 – 60HZ CD OUT L
xxW
MAX
R
R

SERIAL NO.

Power Speakers Audio outputs Audio inputs

Solo is supplied with a moulded mains plug In order to hear any sound from Solo, you must If you wish, Solo can be used as a high-quality
Pre-out
already fitted to the lead. Check that the plug connect speakers to it. Solo is designed to drive amplifier for other audio sources. Five audio inputs
supplied fits your supply – should you require a a single pair of speakers, rated between 4 and These connectors carry the output of the pre-amp. are provided for this purpose (one is on the front-
new mains lead, please contact your Arcam dealer. 8 ohms, and is fitted with speaker terminals that stage of Solo. If you wish to use an external power panel).
can accept either spade terminals or bare wires. amp. with Solo, connect these outputs to the
Push the IEC (kettle-style) plug end of the power Use a stereo phono lead to connect the audio
inputs of your power amp.
cable into the socket on the back of Solo, making To connect the left speaker, unscrew the terminals output of the source to one of the audio inputs
See page 9 for further details.
sure that it is pushed in firmly. Put the plug on on the back of Solo labelled L, insert the speaker of Solo. The labels above the inputs on Solo give
the other end of the cable into your power supply wire (or spade) and screw the terminals back up. Zone 2 suggested uses, but all the inputs have the same
socket and, if necessary, switch the socket on. Make sure that the red (positive/+) terminal of the characteristics (all are line-level inputs) and any
These connectors carry the output of the pre-amp.
Solo is fitted with a power switch on the rear of speaker is connected to the red terminal on Solo suitable device may be connected to any input.
for Zone 2. For more information on using Zone 2,
the product, next to the power inlet. To use Solo, and the black (negative/–) terminal of the speaker Note, however, that the name of the input cannot
please turn to page 8.
make sure that this is switched on. is connected to the black terminal on Solo. Repeat be changed on the front-panel display.
the above to connect the right speaker to the CD out
terminals labelled R. Tape loop
Solo is fitted with a transformer designed to This is an optical connection that carries the digital
It is important that no stray strands of wire from A tape loop is provided to allow connection of an
accept the mains voltage in the region that the audio stream from a CD or from the DAB radio
these connections are allowed to touch another external cassette deck to Solo.
product was shipped to. If your mains supply (where fitted). It is intended to allow recording of
voltage does not match this specification (as cable or the product casing. Failure to ensure this CDs/DAB to MiniDisc, or similar. TAPE OUT – Connect these outputs to the input
shown on the rear panel), you wish to take the can cause a short circuit, and damage to your Solo. sockets of your cassette deck (usually labelled
Connect this output to the optical input of your
unit to a region with a different main voltage, RECORD).
recording device. Further details can be found on
or the mains plug is incorrect, please consult Do not over-tighten the loudspeaker terminals, page 9. TAPE IN – Connect the output sockets of your
your Arcam dealer. or use a wrench, pliers, etc., as this could cassette deck (usually labelled PLAY) to these
This product must be earthed. cause damage to the terminals which will not inputs.
be covered under warranty. Note that the TAPE OUT output is muted when
Tape is selected as the music source.
