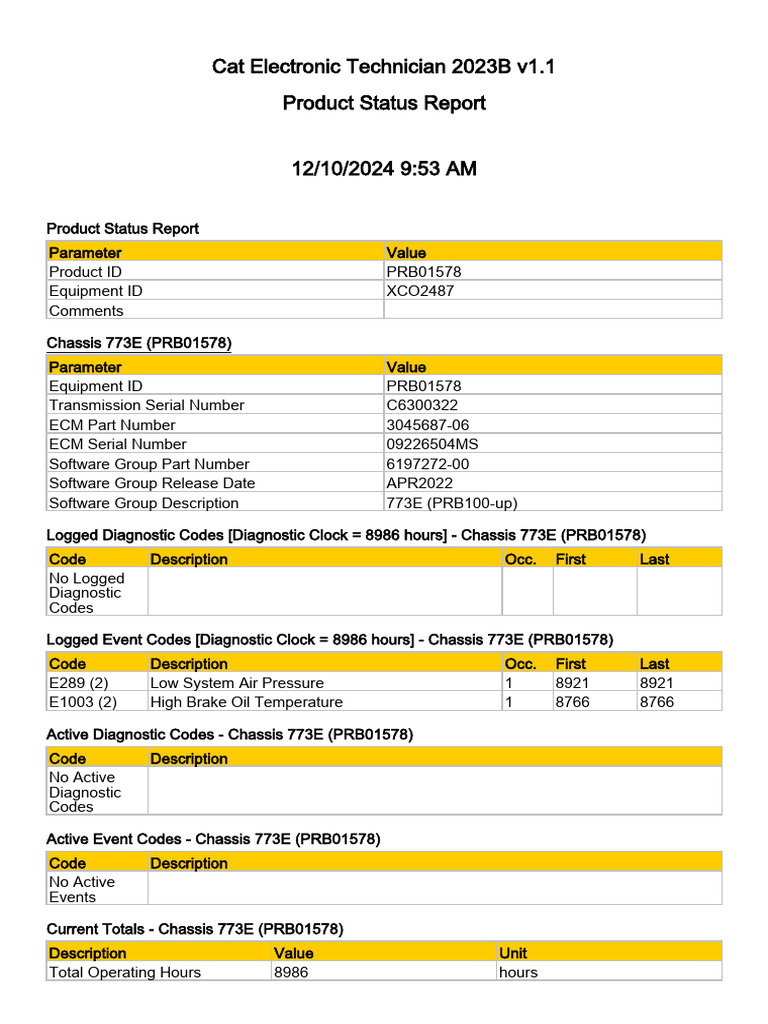

Cat Electronic Technician 2023B v1.
1
Product Status Report
12/10/2024 9:53 AM
Product Status Report
Parameter Value
Product ID PRB01578
Equipment ID XCO2487
Comments
Chassis 773E (PRB01578)
Parameter Value
Equipment ID PRB01578
Transmission Serial Number C6300322
ECM Part Number 3045687-06
ECM Serial Number 09226504MS
Software Group Part Number 6197272-00
Software Group Release Date APR2022
Software Group Description 773E (PRB100-up)
Logged Diagnostic Codes [Diagnostic Clock = 8986 hours] - Chassis 773E (PRB01578)
Code Description Occ. First Last
No Logged
Diagnostic
Codes
Logged Event Codes [Diagnostic Clock = 8986 hours] - Chassis 773E (PRB01578)
Code Description Occ. First Last
E289 (2) Low System Air Pressure 1 8921 8921
E1003 (2) High Brake Oil Temperature 1 8766 8766
Active Diagnostic Codes - Chassis 773E (PRB01578)
Code Description
No Active
Diagnostic
Codes
Active Event Codes - Chassis 773E (PRB01578)
Code Description
No Active
Events
Current Totals - Chassis 773E (PRB01578)
Description Value Unit
Total Operating Hours 8986 hours
Total Distance 81775.65 Miles
Configuration - Chassis 773E (PRB01578)
Description Value Unit
Equipment ID PRB01578
Product ID PRB01578
Transmission Serial Number C6300322
Operator Seat Belt Monitor Installation Installed
Status
Forced Fuel Economy Mode Configuration On
Heated Side Rear View Mirrors Installation Not Installed
Status
Ambient Air Temperature Sensor Installed
Installation Status
Third Party Collision Avoidance System Not Installed
Installation Status
Third Party Collision Avoidance System Disabled or Not Installed
Enable Status
Transmission Maximum Forward Gear 6
Body Up Gear Limit 1
Machine Overload Speed Limit Enable On
Status
Loaded Machine Speed Limit 0.0 mph
Machine Speed Limit 30 mph
Machine Speed Correction Factor 0.0000 %
Throttle Lock Enable Gear Limit 7
Sound Reduction Engine Speed Limit Enabled
Enable Status
Hoist System Enable Status Enabled
Hoist Lower Valve Adjustment Status 0
Auto Lube System Installation Status Not Installed
Auto Lube Interval Unavailable min
Auto Lube Duration Unavailable sec
Total Tattletale 0
Park Brake Status Disabled or Not Installed %
VIMS Main Install Installed
Shift Count Matrix [Diagnostic Clock = 8986.0761 hours] - Chassis 773E (PRB01578)
To N R 1 2 3 4 5 6 7
From
N --- 31391 48261 2 0 0 0 0 2
R 33642 --- 1157 0 0 0 0 0 0
1 46005 3407 --- 79931 8 1 0 0 0
2 0 0 78350 --- 99081 14 0 0 0
3 0 0 1392 97162 --- 105774 53 3 0
4 1 0 161 347 105169 --- 90551 3 0
5 0 0 32 3 125 90425 --- 40059 0
6 0 0 4 1 2 18 40040 --- 2113
7 2 0 0 0 0 0 0 2113 ---
Counters - Chassis 773E (PRB01578)
Description Value
Lockup Clutch Count 1521086
Load Count 23266
Total Load Count 23266
Indication Display
Parameter Value
ECM Part Number 4690894-05
ECM Serial Number 2252D023DT
Software Group Part Number 5962842-00
Software Group Release Date APR2020
Software Group Description Indication Display
Monitor 773E (PRB01578)
Parameter Value
Product ID PRB01578
Equipment ID PRB01578
ECM Part Number 2848905-05
ECM Serial Number 3342B092HX
Software Group Part Number 6197346-00
Software Group Release Date APR22
Software Group Description SOHT 777E Retrofit
Logged Diagnostic Codes [Diagnostic Clock = 8986 hours] - Monitor 773E (PRB01578)
Code Description Occ. First Last
No Logged
Diagnostic
Codes
Logged Event Codes [Diagnostic Clock = 8986 hours] - Monitor 773E (PRB01578)
Code Description Occ. First Last
No Logged
Event Codes
Active Diagnostic Codes - Monitor 773E (PRB01578)
Code Description
No Active
Diagnostic
Codes
Active Event Codes - Monitor 773E (PRB01578)
Code Description
No Active
Events
Configuration - Monitor 773E (PRB01578)
Description Value Unit
Equipment ID PRB01578
Product ID PRB01578
Information Units Status Metric
Display Language Status Indonesian
Service Mode Enable Code 0
Brake 773E (PRB01578)
Parameter Value
Equipment ID PRB01578
ECM Part Number 3045687-06
ECM Serial Number 15429483MS
Software Group Part Number 6109613-00
Software Group Release Date JUN2021
Software Group Description 773E (PRB100-up)
Logged Diagnostic Codes [Diagnostic Clock = 8986 hours] - Brake 773E (PRB01578)
Code Description Occ. First Last
714- 3 Auto Retarder Pressure Switch : Voltage Above 1 8926 8926
Normal
Logged Event Codes [Diagnostic Clock = 8986 hours] - Brake 773E (PRB01578)
Code Description Occ. First Last
No Logged
Event Codes
Active Diagnostic Codes - Brake 773E (PRB01578)
Code Description
No Active
Diagnostic
Codes
Active Event Codes - Brake 773E (PRB01578)
Code Description
No Active
Events
Configuration - Brake 773E (PRB01578)
Description Value Unit
Product ID PRB01578
Equipment ID PRB01578
Desired Engine Retard Speed 2299 rpm
Auto Retarder Control System Installation Installed
Status
Traction Control System Installation Status Installed
Automatic Traction Control Enable Status Enabled
Oil Cooled Front Brake Installation Status Not Installed
Total Tattletale 0
Counters - Brake 773E (PRB01578)
Description Value
Retarder Control Valve Cycles Abnormal/Incorrect Data
Retarder Supply Valve Cycles Abnormal/Incorrect Data
Product Link Elite (PRB01578)
Parameter Value
Product ID PRB01578
Machine Serial Number
Equipment ID XCO2487
ECM Part Number 4590786-05
ECM Serial Number 3192F502TR
Software Group Part Number 6288087-00
Software Group Release Date Nov2022
Software Group Description VIMS_TELEMATICS_2022_11_17
Application Software Part Number 6109615-00
Cellular Device ECM Serial Number NA
Cellular Device ECM Hardware Part Number NA
Cellular Radio Module Software Part Number NA
Satellite Device ECM Serial Number 0203V126YH
Satellite Device ECM Hardware Part Number 5441881-09
Satellite Radio Module Software Part Number 5599492-00
Logged Diagnostic Codes [Total Operating Hours = 8986 hours] - Product Link Elite (PRB01578)
Code Description Occ. First Last
838- 3 Left Front Strut Pressure Sensor : Voltage Above 1 8926 8926
Normal
840- 3 Left Rear Strut Pressure Sensor : Voltage Above 1 8926 8926
Normal
841- 3 Right Rear Strut Pressure Sensor : Voltage Above 1 8926 8926
Normal
5242- 9 TMAC System : Abnormal Update Rate 3 8925 8925
Logged Event Codes [Total Operating Hours = 8986 hours] - Product Link Elite (PRB01578)
Code Description Occ. First Last
E2126 (1) Payload Overload Limit Exceeded 6 8819 8975
Active Diagnostic Codes - Product Link Elite (PRB01578)
Code Description
No Active
Diagnostic
Codes
Active Event Codes - Product Link Elite (PRB01578)
Code Description
No Active
Events
Current Totals - Product Link Elite (PRB01578)
Description Value Unit
Total Operating Hours 8986.1 hours
Total Distance 81775.65 Miles
Configuration - Product Link Elite (PRB01578)
Description Value Unit
Product ID PRB01578
Equipment ID XCO2487
External Service Lamp Installation Installed
Configuration
External Service Lamp Display Mode Disabled
Setting
Telemetry Feature Installation Status Not Installed
Telemetry Feature Enable Status Disabled
TMAC Protocol Port Selection Ethernet
Tire Monitoring System Installation Status Unavailable
CAT Data Link Module Identifier Gateway #1
Configuration
Machine Serial Number
Mining Aftermarket System Installation Unavailable
Status
Maintenance Mode Off
Data Acquisition System Installation Status Installed
Data Acquisition System Customer Enable Enabled
Status
Basic Payload Control System Installation Unavailable
Status
Basic Payload Control System Enable Unavailable
Status
Basic Payload Control System Temporary Unavailable
Installation Status
Basic Payload Control System Temporary Unavailable min
Installation Time Remaining
Target Payload 71.7 ton
Payload Overload Limit 120.0 %
Green TPMS Lamp Installation LED
Configuration
Red TPMS Lamp Installation Configuration LED
Truck Payload Last Pass Indicator Enable Enabled
Status
External Payload Indicator Configuration Disabled
OHT Payload Re-weigh Speed
Front Axle Strut Pressure to Payload 2827
Weight Ratio Configuration
Machine Payload Control System Installed
Installation Status
Machine Payload Control System Enable Enabled
Status
Road Analysis System Installation Status Not Installed
Tire Analysis System Installation Status Not Installed
Tire Analysis System Temporary Not Installed
Installation Status
Tire Analysis System Customer Enable Disabled
Status
Tire Analysis System Temporary 15000 min
Installation Time Remaining
3412 773E (NTE01791)
Parameter Value
Equipment ID PRB01578
Engine Serial Number NTE01791
ECM Serial Number 29426029VA
Software Group Part Number 6329559-00
Software Group Release Date SEP2022
Software Group Description A0-3412
Logged Diagnostic Codes [Diagnostic Clock = 8986 hours] - 3412 773E (NTE01791)
Code Description Occ. First Last
No Logged
Diagnostic
Codes
Logged Event Codes [Diagnostic Clock = 8986 hours] - 3412 773E (NTE01791)
Code Description Occ. First Last
E362 (1) Engine Overspeed 33 3194 8980
Active Diagnostic Codes - 3412 773E (NTE01791)
Code Description
No Active
Diagnostic
Codes
Active Event Codes - 3412 773E (NTE01791)
Code Description
No Active
Events
Current Totals - 3412 773E (NTE01791)
Description Value Unit
Total Idle Time 2242:33 hours
Total Fuel 122756 gal
Engine Lifetime Hours 9003.6 hours
Engine Starts 7734
Lifetime Total Engine 782819424 rev
Revolutions
Total Operating Hours 8986 hours
Total Engine Idle Shutdown 0
Count
Total Engine Idle Shutdown 0
Overrides Count
Total Delayed Engine 6234
Shutdown Count
Total Delayed Engine 2194
Shutdown Overrides Count
Starts/Hour 0.86
Average RPM 1449.09 rpm
Percentage Idle Time 24.90 %
Average Fuel Rate 13.63 gal/h
Configuration - 3412 773E (NTE01791)
Description Value Unit
Equipment ID PRB01578
Engine Serial Number NTE01791
ECM Part Number 4884875-01
ECM Serial Number 29426029VA
Software Group Part Number 6329559-00
Software Group Release Date SEP2022
Software Group Description A0-3412
Rating Number 1
Rated Power 760 hp at 2000 rpm
Rated Peak Torque 2597 lb-ft at 1300 rpm
Low Idle Speed 650 rpm
High Idle Speed 2285 rpm
Ether Solenoid Configuration Not Installed
Idle Cylinder Cutout Enable Status Enabled
Fuel Correction Factor 0 %
Engine Warm Up Elevated Idle Feature Enabled
Enable Status
Engine Idle Shutdown Enable Status Disabled
Engine Idle Shutdown Delay Time 5.0 min
Delayed Engine Shutdown Enable Status Enabled
Delayed Engine Shutdown Maximum Time 5.0 min
FLS 27
FTS -2
CAN Communication Protocol Write Seed and Key Access
Security
CAN Communication Protocol Read Seed and Key Access
Security
Total Tattletale 14749
Monitoring System - 3412 773E (NTE01791)
Description State Trip Point Delay Time
Engine Overspeed
Least Severe (1) Always On 2600 rpm 0 sec
High Air Inlet #1
Differential Pressure
Least Severe (1) Always On 1.1 psi 0 sec
Moderate Severity (2) Always On 1.1 psi 0 sec
High Engine Coolant
Temperature
Least Severe (1) Always On 228 Deg F 10 sec
Moderate Severity (2) On 232 Deg F 20 sec
High Intake Manifold
Air Temperature
Least Severe (1) Always On 167.0 Deg F 4 sec
Moderate Severity (2) Always On 176.0 Deg F 4 sec
Low Engine Oil
Pressure
Least Severe (1) Always On None 4 sec
Most Severe (3) Always On None 8 sec
