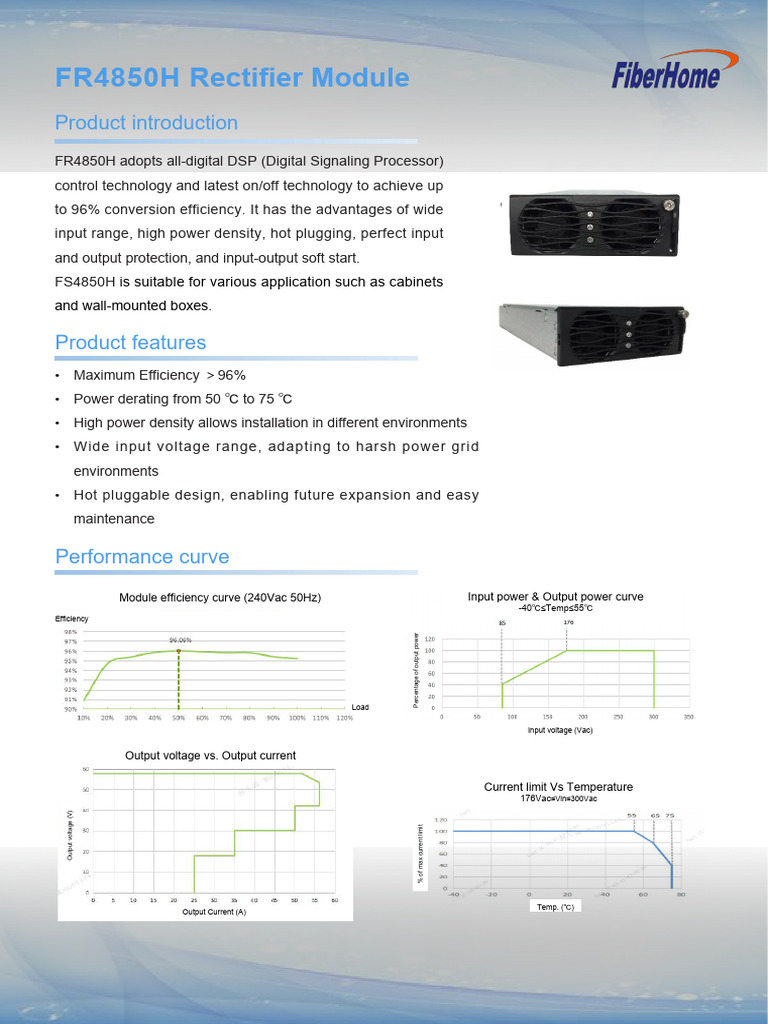

FR4850H Rectifier Module
Product introduction
FR4850H adopts all-digital DSP (Digital Signaling Processor)
control technology and latest on/off technology to achieve up
to 96% conversion efficiency. It has the advantages of wide
input range, high power density, hot plugging, perfect input
and output protection, and input-output soft start.
FS4850H is suitable for various application such as cabinets
and wall-mounted boxes.
Product features
• Maximum Efficiency ＞96%
• Power derating from 50 ℃ to 75 ℃
• High power density allows installation in different environments
• Wide input voltage range, adapting to harsh power grid
environments
• Hot pluggable design, enabling future expansion and easy
maintenance
Performance curve
Module efficiency curve (240Vac 50Hz) Input power & Output power curve
-40℃≤Temp≤55℃
Efficiency
Percentage of output power
Load
Input voltage (Vac)
Output voltage vs. Output current
Current limit Vs Temperature
176Vac≤Vin≤300Vac
Output voltage (V)
% of max current limit
Temp. (℃)
Output Current (A)
FR4850H Rectifier Module ™
Product specifications
Item Description
Input voltage (Nominal) 220Vac, 200Vac to 250Vac
Input voltage range 85~300Vac
Input frequency 45~66Hz
AC input Max input current 17A
Power Factor ≥0.99 220Vac / 50% to 100% load
<5%@ 100% Load
THD (Total Harmonic Distortion)
<8%@ 50% Load
Output voltage range 42~58Vdc
3000W maximum (derated with input voltage, see the
Output Power
voltage power diagram on the previous page)
DC output
Output Current 56.1A @53.5Vdc
Output Current Limit Set Point 0 to 56.1A
Peak Efficiency 96%
Communicate with system monitoring unit via CAN
Control and Rectifier alarm and signal
communication port
monitoring
Indicator light Green: normal operation; yellow: alarm; red: failure
Operating temperature range -40°C to +75°C (see the temperatur curve)
Storage temperature range -40°C to +75°C
Relative humidity 5~95% (no condensing)
Altitude 3000m/ 9842ft, full power
Environment ETSI EN300 386: 2005, Class B Other telecom centers
FCC CFR 47 Part 15, Class B Conduction and radiation
EMC EN55022, Class B Conduction and radiation
CISPR22, Class B Conduction and radiation
Telcordia GR-1089-CORE issue 6 Conduction and radiation
Environment protection Meeting ROHS 6, REACH, WEEE
Safety Meeting UL 60950-1; EN60950-1; IEC60950
Dimension Dimensions (H × W × D) 41.5 × 106.4 × 291 (mm)
and weight Weight ＜2kg
FiberHome Telecommunication Technologies Co., Ltd.
No. 67 Guanggu Chuangye Jie, Wuhan, Hubei, China
www.fiberhome.com
