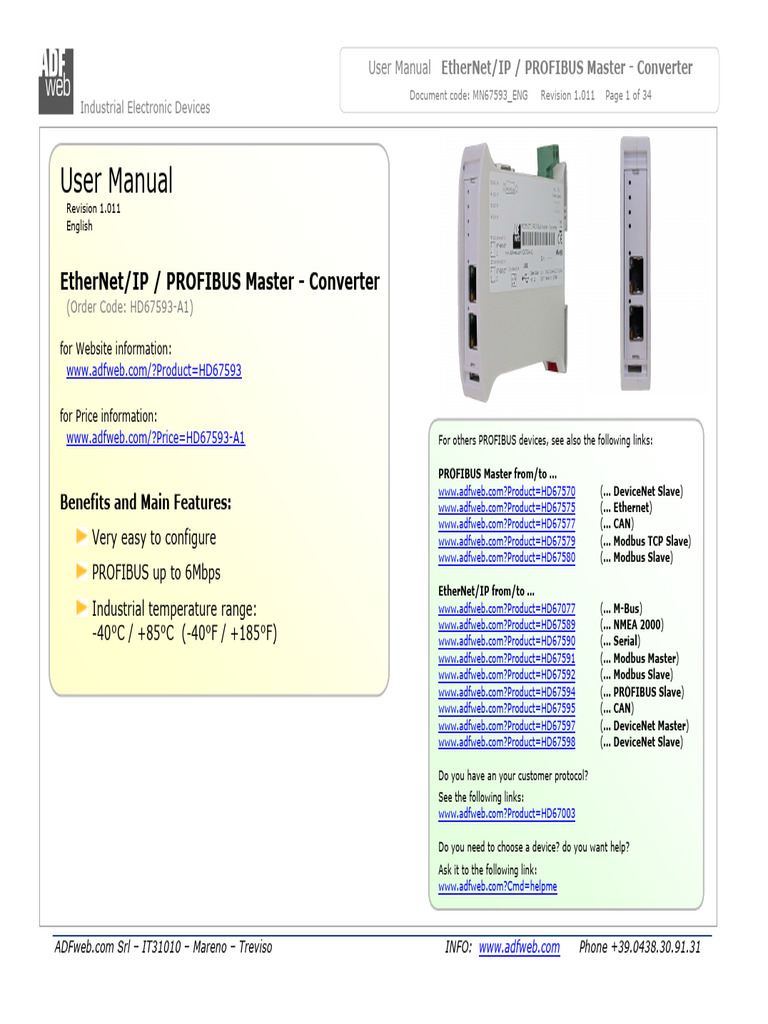

User Manual EtherNet/IP / PROFIBUS Master - Converter

Document code: MN67593_ENG Revision 1.011 Page 1 of 34

Industrial Electronic Devices

User Manual
Revision 1.011
English

EtherNet/IP / PROFIBUS Master - Converter

(Order Code: HD67593-A1)

for Website information:

www.adfweb.com/?Product=HD67593

for Price information:

www.adfweb.com/?Price=HD67593-A1 For others PROFIBUS devices, see also the following links:

PROFIBUS Master from/to …

www.adfweb.com?Product=HD67570 (… DeviceNet Slave)
Benefits and Main Features: www.adfweb.com?Product=HD67575 (… Ethernet)
www.adfweb.com?Product=HD67577 (… CAN)
Very easy to configure www.adfweb.com?Product=HD67579 (… Modbus TCP Slave)
www.adfweb.com?Product=HD67580 (… Modbus Slave)
PROFIBUS up to 6Mbps
EtherNet/IP from/to …
Industrial temperature range: www.adfweb.com?Product=HD67077 (… M-Bus)
www.adfweb.com?Product=HD67589 (… NMEA 2000)
-40°C / +85°C (-40°F / +185°F) www.adfweb.com?Product=HD67590 (… Serial)
www.adfweb.com?Product=HD67591 (… Modbus Master)
www.adfweb.com?Product=HD67592 (… Modbus Slave)
www.adfweb.com?Product=HD67594 (… PROFIBUS Slave)
www.adfweb.com?Product=HD67595 (… CAN)
www.adfweb.com?Product=HD67597 (… DeviceNet Master)
www.adfweb.com?Product=HD67598 (… DeviceNet Slave)

Do you have an your customer protocol?

See the following links:
www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the following link:
www.adfweb.com?Cmd=helpme

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 2 of 34
Industrial Electronic Devices

INDEX: UPDATED DOCUMENTATION:

Page
INDEX 2 Dear customer, we thank you for your attention and we remind you that
UPDATED DOCUMENTATION 2 you need to check that the following document is:
REVISION LIST 2 Updated;
WARNING 2
Related to the product you own.
TRADEMARKS 2
SECURITY ALERT 3
To obtain the most recently updated document, note the “document code”
EXAMPLE OF CONNECTION 4
that appears at the top right-hand corner of each page of this document.
CONNECTION SCHEME 5
CHARACTERISTICS 6
With this “Document Code” go to web page www.adfweb.com/download/
CONFIGURATION 6
and search for the corresponding code on the page. Click on the proper
POWER SUPPLY 7
“Document Code” and download the updates.
FUNCTION MODES 8
LEDS 9 To obtain the updated documentation for the product that you own, note
PROFIBUS 10 the “Document Code” (Abbreviated written "Doc. Code" on the label on
ETHERNET 10 the product) and download the updated from our web site
USB 11 www.adfweb.com/download/
USE OF COMPOSITOR SW67593 12
NEW PROJECT / OPEN PROJECT 12
SET COMMUNICATION 13 REVISION LIST:
PROFIBUS NETWORK 14
MASTER PROFIBUS OPTIONS 15 Revision Date Author Chapter Description
PROFIBUS DEVICE 16 1.000 26/07/2012 Fl All First release version
- MODULE SELECTION 17 1.010 06/12/2012 Fl All Software changed (v1.000)
- USER PARAMETERS 19 1.011 09/01/2013 Nt All Added new chapters
- MODULE PARAMETERS 21
- CAPABILITIES 22
- OPTIONS 23
OFFSET 24 WARNING:
UPDATE VIA UDP 25
MECHANICAL DIMENSIONS 27 ADFweb.com reserves the right to change information in this manual
ORDER CODE 28 about our product without warning.
ACCESSORIES 28 ADFweb.com is not responsible for any error this manual may contain.
PLC CONFIGURATION 29
DISCLAIMER 33
OTHER REGULATIONS AND STANDARDS 33 TRADEMARKS:
WARRANTIES AND TECHNICAL SUPPORT 34
RETURN POLICY 34 All trademarks mentioned in this document belong to their respective
PRODUCTS AND RELATED DOCUMENTS 34 owners.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 3 of 34
Industrial Electronic Devices

SECURITY ALERT:

GENERAL INFORMATION
To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device are required for
each individual application, legal and safety regulation. The same applies also when using accessories.

INTENDED USE
Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent limit
switches, mechanical interlocks, etc.).

QUALIFIED PERSONNEL
The device can be used only by qualified personnel, strictly in accordance with the specifications.
Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and who
have appropriate qualifications for their job.

RESIDUAL RISKS
The device is state of the art and is safe. The instrument can represent a potential hazard if they are inappropriately installed and operated
by personnel untrained. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is danger for people to serious injury or death and / or the
possibility of damage.

CE CONFORMITY
The declaration is made by us. You can send an email to [email protected] or give us a call if you need it.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 4 of 34
Industrial Electronic Devices

EXAMPLE OF CONNECTION:

Used with only one Ethernet connection.

Used like switch, it allows to connect a second device to the network, without using an external switch; or to connect the device to an Access
Point for connect them to a Wireless network (also internet).

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 5 of 34
Industrial Electronic Devices

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67593-A1

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31
 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 6 of 34
Industrial Electronic Devices

CHARACTERISTICS:

The configurable “EtherNet/IP / PROFIBUS Master - Converter” allows the following characteristics:
Triple isolation between EtherNet/IP /PROFIBUS, EtherNet/IP /Power Supply, PROFIBUS/Power Supply.
Mountable on 35mm Rail DIN;
Power Supply 8...24V AC or 12...35V DC;
Temperature range -40°C to +85°C;
Up to 500 bytes from EtherNet/IP to PROFIBUS (IN);
Up to 500 bytes from PROFIBUS (OUT) to EtherNet/IP ;
Ethernet switch for enter/exit connection.

CONFIGURATION:

You need Compositor SW67593 software on your PC in order to perform the following:
Define the parameter of the PROFIBUS;
Define the parameter of the EtherNet/IP;
Define the PROFIBUS network;
Define which bytes pass from PROFIBUS to EtherNet/IP;
Define which bytes pass from EtherNet/IP to PROFIBUS.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 7 of 34
Industrial Electronic Devices

POWER SUPPLY:

The devices can be powered between a wide range of tensions. For more details see the two tables below.

VAC VDC
Vmin Vmax Vmin Vmax
HD67593-A1 8V 24V 12V 35V

Consumption at 24V DC:

Device W/VA
HD67593-A1 4

Caution: Not reverse the polarity power

HD67593-A1

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 8 of 34
Industrial Electronic Devices

FUNCTION MODES:

The device has got two functions mode depending of the position of the Dip2 of ‘Dip-Switch A’:
The first, with Dip2 in Off position (factory setting), is used for the normal working of the device.
The second, with Dip2 in On position, is used for upload the Project/Firmware.

For the operations to follow for the updating (see ‘UPDATE DEVICE’ section).

According to the functioning mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Warning:
Dip1 of ‘Dip-Switch A’ must be at ON position for working even if the Ethernet cable isn’t inserted.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 9 of 34
Industrial Electronic Devices

LEDS:

The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

ON: Device powered ON: Device powered
1: Power (green)
OFF: Device not powered OFF: Device not powered

Blinks quickly: Boot state

2: Device State (green) Blinks slowly (~1Hz)
Blinks very slowly (~0.5Hz): update in progress

Blinks quickly: PROFIBUS communication with slaves Blinks quickly: Boot state
3: PROFIBUS comm. (yellow)
OFF: No PROFIBUS communication with slaves Blinks very slowly (~0.5Hz): update in progress

ON: Device not able to communicate with at least one

Blinks quickly: Boot state
4: PROFIBUS error (red) PROFIBUS Slave
Blinks very slowly (~0.5Hz): update in progress
OFF: Not Powered

Blinks quickly: Boot state

5: Ethernet1 Rx (green) Blinks when is receiving Ethernet frames
Blinks very slowly (~0.5Hz): update in progress

Blinks quickly: Boot state

6: Ethernet2 Rx (green) Blinks when is receiving Ethernet frames
Blinks very slowly (~0.5Hz): update in progress

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 10 of 34
Industrial Electronic Devices

PROFIBUS:

The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined
like in the right figure.

Here some codes of cables:

Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50
PROFIBUS Cable.

ETHERNET:

The EtherNet/IP connection must be made using Connector3 and/or Connector4 of HD67593-A1 with at least a Category 5E cable. The
maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to
100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is
recommended the use of a cross cable.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 11 of 34
Industrial Electronic Devices

USB:

The USB connection, must be made with a USB cable with a USB Mini B plug.

Note:
The USB port is not used in this moment.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 12 of 34
Industrial Electronic Devices

USE OF COMPOSITOR SW67593:

To configure the Converter, use the available software that runs with
Windows, called SW67593. It is downloadable on the site
www.adfweb.com and its operation is described in this document.
(This manual is referenced to the last version of the software present
on our web site). The software works with MSWindows (MS 2000, XP,
Vista, Seven, 8; 32/64bit).

When launching the SW67593 the right window appears (Fig. 2).

Figure 2: Main window for SW67593

NEW PROJECT / OPEN PROJECT:

The “New Project” button creates the folder which contains the entire device configuration.

A device configuration can also be imported or exported:

To clone the configurations of a programmable “EtherNet/IP / PROFIBUS Master -
Converter” in order to configure another device in the same manner, it is necessary to
maintain the folder and all its contents;
To clone a project in order to obtain a different version of the project, it is sufficient to
duplicate the project folder with another name and open the new folder with the button
“Open Project”.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 13 of 34
Industrial Electronic Devices

SET COMMUNICATION:

This section defines the fundamental communication parameter of two buses, PROFIBUS and EtherNet/IP.

By pressing the “Set Communication” button from the main window for SW67593 (Fig. 2) the window
“Set Communication” appears (Fig. 3).

The window is divided in two sections, one for the PROFIBUS and the other for the EtherNet/IP.

The means of the fields for “PROFIBUS” are:

In the field “ID Dev.” the address of the PROFIBUS side is defined;
In the field “Baud rate” the baud rate for the PROFIBUS side is defined;

The means of the fields for “EtherNet/IP ” are:

In the fields “IP” insert the IP address that you want to give to the Converter;
In the fields “SubNet Mask” insert the SubNet Mask;
In the fields “GATEWAY” insert the default gateway that you want to use. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field “Port” the port used for EtherNet/IP communication is defined. The port has a fixed
value of 44818;
In the field "Number Byte IN" the number of byte from the EtherNet/IP to the Converter is defined
(at maximum it is possible to use 500 byte); Figure 3: “Set Communication”
In the field "Number Byte OUT" the number of byte from the Converter to the EtherNet/IP is window
defined (at maximum it is possible to use 500 byte).

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 14 of 34
Industrial Electronic Devices

PROFIBUS NETWORK:

By pressing the “PROFIBUS Network” button from the main window for SW67593 (Fig. 2) the window “PROFIBUS Network” (Fig. 4)
appears.

In this window is possible to:

Modify the PROFIBUS Master Options (“Master PROFIBUS Options”);
Add a PROFIBUS Slave in the Network of the Master (“Add Slave PROFIBUS”);
Modify a PROFIBUS Slave in the Network (“Modify Slave PROFIBUS”);
Remove a PROFIBUS Slave from the Network (“Remove Slave PROFIBUS”).

Figure 4: “PROFIBUS Network” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 15 of 34
Industrial Electronic Devices

MASTER PROFIBUS OPTIONS:

By pressing the “Master PROFIBUS Options” button from the “PROFIBUS Network” window (Fig. 4) the “PROFIBUS Master Options”
window appears (Fig. 5).

In this window is possible to set the WatchDog Time for the PROFIBUS Slaves.

Figure 5: “PROFIBUS Master Options” window

Note:
Fact1 and Fact2 could be write in decimal o hexadecimal (with prefix “0x” or “$”) and the values must between 1 and 255

Warning:
The WatchDog time must be between 200 and 650250 milliseconds.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 16 of 34
Industrial Electronic Devices

PROFIBUS DEVICE:

By pressing the “Add Slave PROFIBUS” and “Modify Slave PROFIBUS” button (or double click above an existent PROFIBUS Slave) from
the “PROFIBUS Network” window (Fig. 4) the “PROFIBUS Device” window appears (Fig. 6).

In this window is possible to:

Set the PROFIBUS Slave ID (“ID Slave PROFIBUS”);
Select the Modules present
in the PROFIBUS Slave
from the Available Modules
in GSD file (“Module
Selection”);
Modify the User Parameters
(if present) of the
PROFIBUS device (“User
Parameters”);
Modify the Parameters (if
present) of the Module
Selected (“Module
Parameters”);
Watch Features and
Baudrate supported from
the PROFIBUS device
(“Capabilities”);
Select the Sync, Freeze
and Reset of Data Options
(“Options”).

Figure 6: “PROFIBUS Device” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 17 of 34
Industrial Electronic Devices

MODULE SELECTION:

The section “Module Selection” is used to select

which Modules are present in the Slave (Fig. 7).

In this section is possible to:

Check the list of the Modules selected (“Select
Modules”) (Fig. 7, point (1)) and the list of
Modules Available in GSD file (“Available
Modules") (Fig. 7, point (7));
Add a Module from the list of GSD file (Fig. 7,
point (6));
Remove a Module from selected list (Fig. 7,
point (5));
Add all Modules present in the GSD file (Fig.
7, point (4));
Remove all Modules from selected list (Fig. 7,
point (3));
Insert a Module not present in the GSD file
(“Manual Module”) (Fig. 7 point (2)). For
more info see the section “Manual Module”
below;
Enable the read of configuration directly from
the PROFIBUS Slave (“Use module
configuration readed from device”) (Fig 7,
point (8)). If this option is enable the
configuration of the modules is discorded and
the device read the correct configuration
directly to the PROFIBUS slave.

Figure 7: “PROFIBUS Device – Module Selection”

window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 18 of 34
Industrial Electronic Devices

By pressing the “Manual Module” button from the “PROFIBUS Device” window (Fig. 6) the “Add Module Manually” window appears (Fig. 8).

In this window is possible to add a Module manually, i.e. writing the configuration of the module (in hexadecimal).

The means of the fields are:

In the field “Description of Module” a name of the Module is defined;
In the field “Insert the Configuration of Module (HEX)” the
configuration of the module is defined. The configuration must be write
in hexadecimal mode (without prefix “0x” o “$”).

To modify a Module inserted manually, is neccessary to do a double click on

the module to change in the “Select Module” list (Fig. 7, point (1)). It is
possible to change only the module inserted manually.

Note:
The Values inserted in the table must between 00 and FF
Figure 8: “Add/Modify Module Manually” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 19 of 34
Industrial Electronic Devices

USER PARAMETERS:

The section “User Parameters” is used to modify the parameters of the PROFIBUS slave (Fig. 9).

In this section there are:

The List of all Parameters available for the
PROFIBUS device (“User Parameters”) (Fig.
9, point (1));
The Configuration of all parameters in RAW
(“Parameters in RAW (Hex)”) (Fig. 9,
point(2));
The “Use Parameter Inserted Manually”,
enable this option is possible to insert
manually the parameters of Device and also
of the Modules. Using the “Modify User
Parameters Manually” button is possible
to insert/modify the parametrization of the
device (and/or modules). For more info see
below. (Fig. 9, point(3));
The admited value for the selected
parameter. It is possible to select the value
desired and confirm it with the “Apply”
button. If no value appears in this table, the
“Min Value” and “Max Value” are the limit of
the parameter. (Fig. 9, point(4));
The “Apply” button is used to confirm the
new value of the parameter, the “Default”
button is used to load the factory value for
the parameter. In “New Value” edit box it
is possible to set the new value. (Fig. 9,
point(5)).

Figure 9: “PROFIBUS Device – User Parameters” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31
 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 20 of 34
Industrial Electronic Devices

By pressing the “Modify User Parameters Manually” button from the “PROFIBUS Device” window (Fig. 6) the “Add Module Manually”
window appears (Fig. 10).

In this window is possible to add/modify the User and/or Modules Parameters manually, i.e. writing the configuration of the parameters (in
hexadecimal).

The means of the fields are:

In the field “Insert the number of User Parameter” the number
of byte for the parameter have to be inserted;
In the field “Insert the Configuration of Module (HEX)” the
configuration of the User and/or Modules Parameters is defined.
The configuration must be write in hexadecimal mode (without
prefix “0x” o “$”).

Note:
The Values inserted in the table must between 00 and FF

Figure 10: “Add/Modify User Parameters Manually” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 21 of 34
Industrial Electronic Devices

MODULE PARAMETERS:

The section “Module Parameters” is used to modify the parameters of the Modules (Fig. 11).

In this section there are:

The List of all Module selected in the GSD
file (“Available modules”) (Fig. 11, point
(1));
The List of all Parameters available for the
Module selected (“Parameters of module”)
(Fig. 11, point (2));
The Configuration of all parameters in RAW
for the Module selected (“Parameters in
RAW (Hex)”) (Fig. 11, point(3));
The admited value for the selected
parameter. It is possible to select the value
desired and confirm it with the “Apply”
button. If no value appears in this table, the
“Min Value” and “Max Value” are the limit of
the parameter. (Fig. 11, point(4));
The “Apply” button is used to confirm the
new value of the parameter, the “Default”
button is used to load the factory value for
the parameter. In “New Value” edit box it
is possible to set the new value. (Fig. 11,
point(5));

Figure 11: “PROFIBUS Device – Module Parameters” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 22 of 34
Industrial Electronic Devices

CAPABILITIES:

The section “Capabilities” is used only to show which features/baudrates available in the PROFIBUS device. The Green Icon indicate that
capability/baudrate is available, the Red Icon indicate no compatibilities with that capability/baudrate (Fig. 12).

Figure 12: “PROFIBUS Device – Capabilities” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 23 of 34
Industrial Electronic Devices

OPTIONS:

The section “Options” is used to enable some option for each PROFIBUS device (Fig. 13).

The means of the fields are:

In the field “Enable
Sync” the PROFIBUS
Sync command is enable.
This option is enable only
if the “Sync Mode” is
supported by the device
(see Capabilities section
to check it);
In the field “Enable
Freeze” the PROFIBUS
Freeze command is
enable. This option is
enable only if the “Freeze
Mode” is supported by
the device (see
Capabilities section to
check it);
In the field “Reset data
if PROFIBUS master
loses communication
from the slave” is
possible to select to
cancel the data of the
slave if the Master lost
the connection with the
device;
In the field “Reset data
if EtherNet/IP doesn’t Figure 13: “PROFIBUS Device – Options” window
write data with slave
in ... milliseconds” is possible to select to cancel the data sended to the slave PROFIBUS if the Converter don’t receive a EtherNet/IP
frame within the time expressed in the field.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 24 of 34
Industrial Electronic Devices

DEFINE OFFSET:

By pressing the “Define Offset” button from the main window for SW67593
(Fig. 2) the window “Define Offset” (Fig. 14) appears.

In this window is possible to select for each Byte IN and each Byte OUT of
PROFIBUS where the EtherNet/IP information are located.

Note:
If you dont need to have on EtherNet/IP a byte you have to select
None.

Figure 14: “Define Offset” window

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 25 of 34
Industrial Electronic Devices

UPDATE DEVICE VIA UDP:

By pressing the “Update Device via UDP” button it is possible to load the created Configuration
into the device; and also the Firmware, if is necessary.

If you don’t know the actual IP address of the device you have to use this procedure:
Turn off the Device;
Put Dip2 of ‘Dip-Switch A’ at ON position;
Turn on the device
Connect the Ethernet cable;
Insert the IP “192.168.2.205”;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” turn off the Device;
Put Dip2 of ‘Dip-Switch A’ at OFF position;
Turn on the device.

At this point the configuration/firmware on the device is correctly updated.

Figure 15: “Update device” windows

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 26 of 34
Industrial Electronic Devices

If you know the actual IP address of the device you have to use this procedure:
Turn on the Device with the Ethernet cable inserted;
Insert the actual IP of the Converter;
Press the “Ping” button, must appear “Device Found!”;
Press the “Next” button;
Select which operations you want to do;
Press the “Execute update firmware” button to start the upload;
When all the operations are “OK” the device automatically goes at
Normal Mode.

At this point the configuration/firmware on the device is correctly update.

Note:
When you install a new version of the software it is better if the first time you do the update of the Firmware in the HD67593-A1
device.

Note:
When you receive the device, for the first time, you have to update also the Firmware in the HD67593-A1 device.

Warning:
If the Fig. 16 appears when you try to do the Update before require assistance
try these points:
Try to repeat the operations for the updating;
Try with another PC;
Try to restart the PC;
If you are using the program inside a Virtual Machine, try to use in the main
Operating System;
If you are using Windows Seven or Vista or 8, make sure that you have the
administrator privileges;
Figure 16: “Protection” window
Take attention at Firewall lock;
Check the LAN settings.

In the case of HD67593-A1 you have to use the software “SW67593”: www.adfweb.com\download\filefold\SW67593.zip.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 27 of 34
Industrial Electronic Devices

MECHANICAL DIMENSIONS:

Figure 17: Mechanical dimensions scheme for HD67593-A1

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 28 of 34
Industrial Electronic Devices

ORDERING INFORMATIONS:

The ordering part number is formed by a valid combination of the following:

HD67593 – A 1

Connectors Type
1: Removable 5mm Screw Terminal

Enclosure Type
A: 1M, 35mm DIN Rail mounting

Device Family
HD67593: EtherNet/IP / PROFIBUS Master - Converter

Order Code: HD670593-A1 - EtherNet/IP / PROFIBUS Master - Converter

ACCESSORIES:

Order Code: AC34001 - 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V AC
Order Code: AC34002 - 35mm Rail DIN - Power Supply 110V AC 50/60Hz – 12 V AC

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 29 of 34
Industrial Electronic Devices

PLC CONFIGURATION:

The configuration and commissioning of the EtherNet/IP Converter as described on the following pages was accomplished with the help of
the RSLogix 5000-software of Rockwell Automation. In case of using a control system from another supplier please attend to the associated
documentation.
These are the steps to follow:

1) Create a "Generic Ethernet Module" under

the Ethernet section in the I/O Configuration tree.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 30 of 34
Industrial Electronic Devices

2) Edit the settings of the new Generic Ethernet Module. As shown in the
screen shot below, the module was named “HD67593” and the IP-address
assigned is 192.168.1.189.

For the Comm Format “Data – SINT” shall be selected as the data type.

The HD67593-A1 can uses up to 500 bytes for input assembly instance 101 and
500 bytes for output assembly instance 100.

RSLogix 5000 requires a configuration assembly instance. Both modules do not

provide a configuration assembly instance. Therefore it is allowed to select an
instance of 3 and to set the value to zero.

3) The setting of 10msec for the “Requested Packet Interval (RPI)” is adequate but it
is possible to change this value as required. A lower value of 2ms shall not be selected.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 31 of 34
Industrial Electronic Devices

4) After the
configuration is
completed, the controller
tags are created.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 32 of 34
Industrial Electronic Devices

5) With “RSLinks Classic Lite”, after have done a

network scan (RSWho), and finding the EtherNet/IP
device, it is possible to load the EDS file for the
device in order to have the “Module Info” compiled.

Before

After

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 33 of 34
Industrial Electronic Devices

DISCLAIMER

All technical content within this document can be modified without notice. The content of the document content is a recurring audit.
For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal
conditions repairs are charged to the user. ADFweb.com S.r.l. will not be liable for accidental loss of use or inability to use this product, such
as loss of business income. ADFweb.com S.r.l. shall not be liable for consequences of improper use.

OTHER REGULATIONS AND STANDARDS

WEEE INFORMATION
Disposal of old electrical and electronic equipment (as in the European Union and other European countries with separate
collection systems).
This symbol on the product or on its packaging indicates that this product may not be treated as household rubbish. Instead, it
should be taken to an applicable collection point for the recycling of electrical and electronic equipment. If the product is disposed
correctly, you will help prevent potential negative environmental factors and human health, which could otherwise be caused by
inappropriate disposal. The recycling of materials will help to conserve natural resources. For more information about recycling this
product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

RESTRICTION OF HAZARDOUS SUBSTANCES DIRECTIVE

The device respects the 2002/95/EC Directive on the restriction of the use of certain hazardous substances in electrical
and electronic equipment (commonly referred to as Restriction of Hazardous Substances Directive or RoHS).

CE MARKING
The product conforms with the essential requirements of the applicable EC directives.

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31

 User Manual EtherNet/IP / PROFIBUS Master - Converter
Document code: MN67593_ENG Revision 1.011 Page 34 of 34
Industrial Electronic Devices

WARRANTIES AND TECHNICAL SUPPORT:

For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com.
Otherwise contact us at the address [email protected]

RETURN POLICY:

If while using your product you have any problem and you wish to exchange or repair it, please do the following:
Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com. Together with the request, you need to
provide detailed information about the problem.
Send the product to the address provided with the PRN, having prepaid the shipping costs (shipment costs billed to us will not be
accepted).
If the product is within the warranty of twelve months, it will be repaired or exchanged and returned within three weeks. If the product is no
longer under warranty, you will receive a repair estimate.

PRODUCTS AND RELATED DOCUMENTS:

Part Description URL

HD67181 CAN bus Repeater www.adfweb.com?product=HD67181
HD67316 CAN bus Analyzer www.adfweb.com?product=HD67316

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com Phone +39.0438.30.91.31
