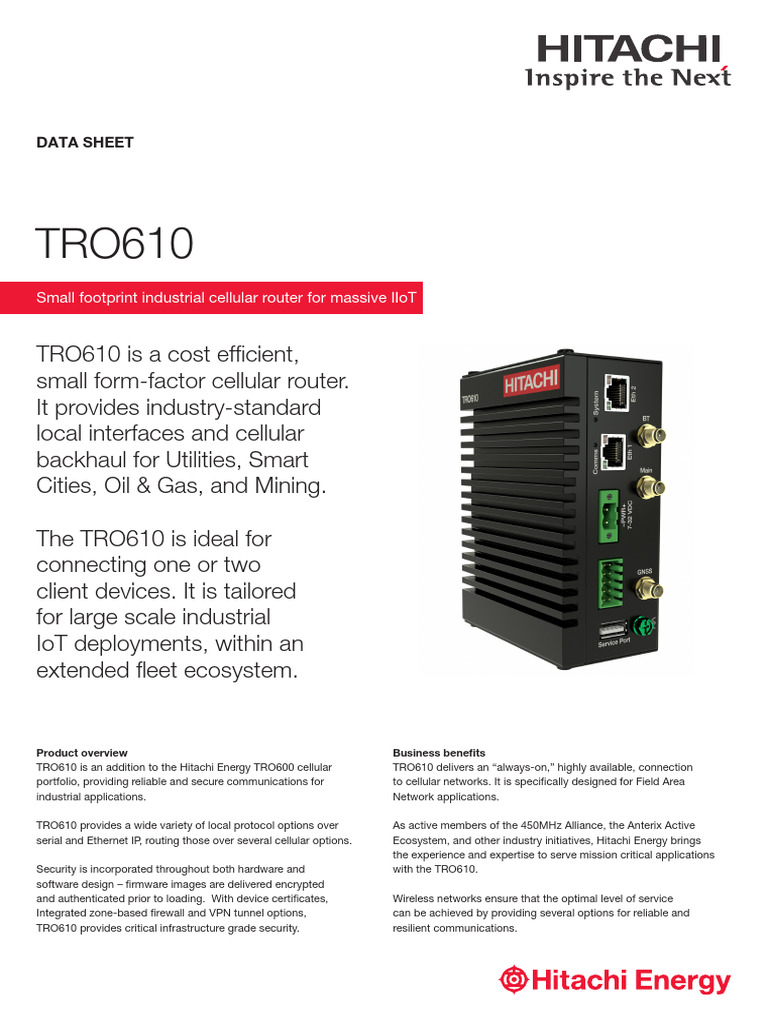

DATA SHEET
TRO610
Small footprint industrial cellular router for massive IIoT
TRO610 is a cost efficient,
small form-factor cellular router.
It provides industry-standard
local interfaces and cellular
backhaul for Utilities, Smart
Cities, Oil & Gas, and Mining.
The TRO610 is ideal for
connecting one or two
client devices. It is tailored
for large scale industrial
IoT deployments, within an
extended fleet ecosystem.
Product overview Business benefits
TRO610 is an addition to the Hitachi Energy TRO600 cellular TRO610 delivers an “always-on,” highly available, connection
portfolio, providing reliable and secure communications for to cellular networks. It is specifically designed for Field Area
industrial applications. Network applications.
TRO610 provides a wide variety of local protocol options over As active members of the 450MHz Alliance, the Anterix Active
serial and Ethernet IP, routing those over several cellular options. Ecosystem, and other industry initiatives, Hitachi Energy brings
the experience and expertise to serve mission critical applications
Security is incorporated throughout both hardware and with the TRO610.
software design – firmware images are delivered encrypted
and authenticated prior to loading. With device certificates, Wireless networks ensure that the optimal level of service
Integrated zone-based firewall and VPN tunnel options, can be achieved by providing several options for reliable and
TRO610 provides critical infrastructure grade security. resilient communications.
Product specifications
Software feature highlights Hardware characteristics
Security Physical characteristics
• Support for X.509 PKI Certificates • Weight excluding antennas and mounting accessories:
• Encrypted device management interfaces 488 g / 17.2 oz
• Role-based access using centralized RADIUS • Dimensions excluding antenna jacks and mounting
authentication or local user database accessories: 120 x 46 x 85 mm / 4.7 x 1.8 x 3.3 in W x H x D
• IKEv2 IPsec VPN (IPv4, IPv6) • Options for DIN-Rail mounting and wall mounting
• AES-128, AES-256 encryption schemes
• SHA-384, SHA-512 hashing algorithms Environmental specifications
• Operating temperature range:
• Integrated Zone-based Firewall and MAC address filtering
-40° to 75° / -40°F to 167°F
• Every software release tested for robustness of the communication
• Storage temperature range:
stack and externally accessible communication interfaces
-40° to 75° / -40°F to 167°F
• 802.1x authentication for Ethernet clients
• Operation and storage humidity range:
5 to 95% relative humidity (non-condensing)
Provisioning support • IP30 rated enclosure: UL579/IEC 60529
• Device management using secure HTTPS web interface
• Shock & vibration: MIL-STD-810G; 514.7
• Central FCAPS, firmware management, low-touch
deployment using Supros
Power
• Input voltage range: 7-32 Volts DC
Monitoring
• Supros, Hitachi Energy’s Network Element Manager
Power consumption
• SNMP
• Syslog TRO610 model IDLE Typical High Max (bootup)
Cellular Only models 1,5 W 2,2 W 3,5 W 4,6 W
Availability Cellular + Bluetooth
• Dual boot partitions models 1,5 W 2,3 W 3,7 W 4,7 W
• Over-the-air firmware upgrades
• Dual SIMs for automatic failover to alternative cellular network Processing environment
• Main CPU: Single core 600 MHz, 32-bit ARM-processor
Routing and IP services • Operating Memory: 1 GB DRAM
• IPv4 and IPv6 • Storage: 4 GB Flash
• Border Gateway Protocol (BGP)
• Generic Routing Encapsulation (GRE) Location (GNSS) receiver
• Network Address Translation (NAT) • Supports GPS (1575.42 MHz), GLONASS (1602 MHz),
• Dynamic Host Configuration Protocol (DHCP) Server Beidou (1561.098 MHz), Galileo (1575.42 MHz),
QZSS (1575.42 MHz)
• Access Control Lists (ACL)
• Acquisition time: 32 sec or less (cold start)
• Raw and interpreted serial data encapsulation in IP
• Location reporting accuracy: < 2 m (50%); < 5 m (90%);
• System time from GPS or from built-in NTP Client
• GNSS antenna connector: SMA Female
• NTP, SNTP server (IPv4, IPv6)
• Port Forwarding
Ethernet services
• Untagged and 802.1q VLAN tagged (access and trunk modes).
Maximum of 32 VLANs
Serial protocols Model D1
• Raw UDP and TCP IP transport • 4G LTE Cat-4, Rel 10
• Interpreted Terminal, Modbus (RTU, ASCII), DNP3, - Supported bands: B1, B2, B3, B4, B5, B7, B8, B12,
PG&E2179 and Mirrored Bits B13, B14, B19, B20, B26, B28
• IEC 101 / IEC 104 conversion • 3G UMTS
- Supported bands: B1, B2, B4, B5, B8, B19
Ethernet ports • 2G GSM/EDGE
• One or two RJ45 10/100/1000BASE-T IEEE 802.3 - Supported bands: B2, B3, B5, B8
- Auto-negotiated duplex mode and speed • Regulatory approvals: FCC, CE, UKCA, GCF
- LEDs for link and activity • Carrier Certifications: see your Account Manager
• Anterix support
Serial ports
• Speeds: 1200, 2400, 4800, 9600, 19200, 38400,
Model D2
57600 or 115200 bps
• 4G LTE Cat-M1 / Cat-NB2 Rel 14
• Parameters: 7 or 8 bits data, Odd/Even/No parity
- Supported bands: B1, B3, B8, B20, B28, B31, B72, B87, B88
• One RS-232 port
• Regulatory approvals: CE, UKCA, GCF
- 3-wire interface: TX, RX and GND connections
• Carrier Certifications: see your Account Manager
• One RS-485 port
• 450MHz support
- 3-wire interface: +, - and GND connections
Analog and digital inputs
Bluetooth radio option B1
• Information from analog and digital inputs is 2.4 GHz Bluetooth radio (future)
delivered by SNMP traps
• One battery voltage monitor input: Certifications and compliance
- Input voltage range: 1-50V DC to common ground • Safety:
- Configurable voltage reporting interval - UL 62368-1
- Configurable critical voltage threshold - CSA 22.2 No. 62368-1
• One contact closure input: - IEC/EN 62368-1
- Input open or closed to common ground • EMC - Electromagnetic Compatibility:
- Configurable reporting for transitions - FCC CFR 47 Part 15
- Industry Canada RSS 247
USB service port - EN 300 328
Secure service port (future). Not for communication purposes. - EN 301 489
- EN 303 413
Cellular radio options - EN 55032
The following cellular radios are available for TRO610. - EN 55035
Refer to ordering information section for ordering numbers. - IEEE 1613 / IEC 61850
Cellular antenna connectors are SMA Female jacks. Refer • Environmental
to the accessories section for remote-mount antenna - EN 61000
options, RF surge protectors and RF cables.
• Industry and carrier certifications for cellular radios are
listed in the cellular radio options section.
Images and Dimensions
Projections
Top View Front View Bottom View – with wall
mount accessory
Isometric View - with Right Side View Back View
wall mount accessory
Outer Dimensions excluding antennas and mounting accessories
Installation Support Highlights
DIN-Rail Mount
option (included)
Wall Mount option
(accessory)
Ordering information
TRO610 Models
Product number Product description
T6100D100D200010 TRO610 Router, LTE Cat-4 / UMTS / GSM EDGE, 1 Eth. - 1xRS232
T6100D1B1D200010 TRO610 Router, LTE Cat-4 / UMTS / GSM EDGE, Bluetooth, 2 Eth, - 2xRS232 or 1xRS232 & 1xRS485
T6100D200D200010 TRO610 Router, LTE Cat-M1 / Cat-NB2, 1 Eth, - 1xRS232
T6100D2B1D200010 RO610 Router, LTE Cat-M1 / Cat-NB2, Bluetooth, 2 Eth. - 2xRS232 or 1xRS232 & 1xRS485
Accessories
Mounting Accessories
Product number Product description
T61-WALLMTKIT1 Two wall mount brackets and four enclosure screws for TRO610
Antennas
Product number Product description
AN02LTE Set of two cellular multiband antennas, 2 dBi omnidirectional, N-male connectors
GNSS active antenna for GPS, Galileo, QZSS, GLONASS, Beidou, 5dBi (antenna), 40dBi (LNA), half-sphere directivity,
ANGPS001 one N-male connector
AN06P2LTE Cellular multiband antenna, 6/8 dBi directional panel, two N-female connectors, articulating mounting kit
153475-00 Antenna 450MHz, 2 dBi omnidirectional, SMA-male, multiband LTE
AN030913 Antenna Bluetooth 2.4Ghz, 5dBi omnidirectional, RP-SMA-male
Remote Antenna Mounting Brackets
Product number Product description
MBKIT004 Antenna mounting bracket kit, 2 holes
MBKIT005 Antenna mounting bracket, 3 holes, 20cm / 6in spacing
Warranty and Maintenance Plans
Hardware and software warranty Complete care maintenance plans
Hardware warranty up to five years from the date of shipment Complete care maintenance plans for software and
of the hardware; return to point of purchase. hardware available.
Software warranty (90) days from the date of shipment For additional details on complete care maintenance
of the hardware. plans, refer to Hitachi Energy wireless standard
hardware and software support agreement.
For additional details on hardware and software warranty,
and how to submit a warranty claim, refer to Hitachi Energy
wireless standard hardware and software support agreement.
