CASE stands for Computer-Aided Software Engineering.

It refers to a set of software tools and methodologies

used by software engineers to assist in the design, development, testing, and maintenance of software applications.
These tools are used to automate and simplify the software development process, making it more efficient and
effective. CASE tools support various stages of the software development life cycle, from planning to deployment, and
can improve collaboration among team members. Overall, computer aided software engineering (CASE) improves the
quality of software and reduces the time required for development.

12.1 CASE AND ITS SCOPE

• A CASE tool can mean, any tool used to automate some activity associated with software development.
• Many CASE tools are now available. Some of these tools assist in phase-related tasks such as specification,
structured analysis, design, coding, testing, etc. and others to non-phase activities such as project
management and configuration management. The primary objectives of using any CASE tools are:
1. To increase productivity.
2. To help produce better quality software at lower cost.

12.2 CASE ENVIRONMENT

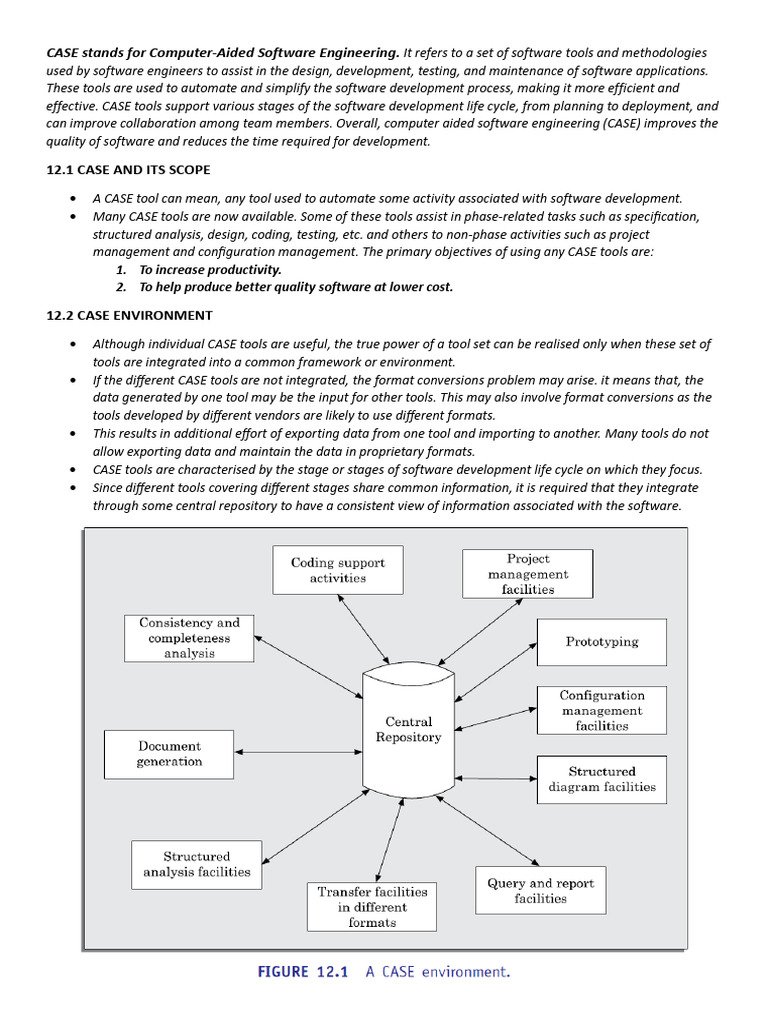

• Although individual CASE tools are useful, the true power of a tool set can be realised only when these set of
tools are integrated into a common framework or environment.
• If the different CASE tools are not integrated, the format conversions problem may arise. it means that, the
data generated by one tool may be the input for other tools. This may also involve format conversions as the
tools developed by different vendors are likely to use different formats.
• This results in additional effort of exporting data from one tool and importing to another. Many tools do not
allow exporting data and maintain the data in proprietary formats.
• CASE tools are characterised by the stage or stages of software development life cycle on which they focus.
• Since different tools covering different stages share common information, it is required that they integrate
through some central repository to have a consistent view of information associated with the software.
 • This central repository is usually a data dictionary containing the definition of all composite and elementary
data items. Thus, a CASE environment facilitates the automation of the step-by-step methodologies for
software development.
• The tools commonly integrated in a programming environment are a text editor, a compiler, and a debugger.
• The standard programming environments such as Turbo C, Visual C++, etc. come equipped with a program
editor, compiler, debugger, linker, etc.
• All these tools are integrated. If you click on an error reported by the compiler, not only does it take you into
the editor, but also takes the cursor to the specific line or statement causing the error.

12.2.1 Benefits of CASE

Several benefits accrue from the use of a CASE environment or even isolated CASE tools. Let us examine some of these
benefits:

• A key benefit arising out of the use of a CASE environment is cost saving through all developmental phases.
Different studies carry out to measure the impact of CASE, put the effort reduction between 30 per cent and
40 per cent.
• Use of CASE tools leads to considerable improvements in quality. This is mainly due to the facts that one can
effortlessly iterate through the different phases of software development, and the chances of human error is
considerably reduced.
• CASE tools help produce high quality and consistent documents. Since the important data relating to a
software product are maintained in a central repository, redundancy in the stored data is reduced, and
therefore, chances of inconsistent documentation is reduced to a great extent.
• CASE tools take out most of the drudgery (dull/bored) in a software engineer’s work. For example, they need
not check meticulously the balancing of the DFDs, but can do it effortlessly through the press of a button.
• Introduction of a CASE environment has an impact on the style of working of a company, and makes it
oriented towards the structured and orderly approach.

12.3 CASE SUPPORT IN SOFTWARE LIFE CYCLE

Let us examine the various types of support that CASE provides during the different phases of a software life cycle.
Some of the possible support that CASE tools usually provide in the software development life cycle are discussed
below.

12.3.1 Prototyping Support

We have already seen that prototyping is useful to understand the requirements of complex software products, to
demonstrate a concept, to market new ideas, and so on. The prototyping CASE tool’s requirements are as follows:

• Define user interaction.

• Define the system control flow.
• Store and retrieve data required by the system.
• Incorporate some processing logic.

A good prototyping tool should support the following features:

• Since one of the main uses of a prototyping CASE tool is graphical user interface (GUI) development, The user
should be allowed to define all data entry forms, menus and controls.
• It should integrate with the data dictionary of a CASE environment.
• If possible, it should be able to integrate with external user defined modules written in C or some popular high
level programming languages.
• The user should be able to define the sequence of states through which a created prototype can run. The user
should also be allowed to control the running of the prototype.
• The run time system of prototype should support mock up run of the actual system and management of the
input and output data.
12.3.2 Structured Analysis and Design
• Several diagramming techniques are used for structured analysis and structured design.
• A CASE tool should support one or more of the structured analysis and design technique.
• The CASE tool should support effortlessly drawing analysis and design diagrams.
• The CASE tool should support drawing complex diagrams and preferably through a hierarchy of levels.
• It should provide easy navigation through different levels and through design and analysis.
• The tool must support completeness and consistency checking across the design and analysis and through all
levels of hierarchy analysis.

12.3.3 Code Generation

More pragmatic support expected from a CASE tool during code generation phase are the following:

• The CASE tool should support generation of module skeletons or templates, The tool should generate records,
structures, class definitions automatically from the contents of the data dictionary in one or more popular
programming languages.
• It should be possible to include copyright message, brief description of the module, author name and the date
of creation in some selectable format.
• It should generate database tables for relational database management systems.
• The tool should generate code for user interface from prototype definition for X window and MS window-
based applications.

12.3.4 Test CASE Generator

The CASE tool for test case generation should have the following features

• It should support both design and requirement testing.

• It should generate test set reports in ASCII format which can be directly imported into the test plan document.

12.4 OTHER CHARACTERISTICS OF CASE TOOLS

12.4.1 Hardware and Environmental Requirements
• In most cases, the existing hardware that would place constraints upon the CASE tool selection.
• Thus, instead of defining hardware requirements for a CASE tool, we need to select the appropriate CASE tool
for the task at hand, based on the existing hardware capabilities.
• Therefore, we have to emphasise on selecting the most optimal CASE tool configuration for a given hardware
configuration.
• The heterogeneous network is one instance of distributed environment, and we choose this for illustration as
it is more popular due to its machine independent features.
• The CASE tool implementation in heterogeneous network makes use of client-server paradigm.
• The multiple clients which run different modules access data dictionary through this server.
• The data dictionary server may support one or more projects. Though it is possible to run many servers for
different projects, but distributed implementation of data dictionary is not common.
• The tool set is integrated through the data dictionary which supports multiple projects, multiple users
working simultaneously and allows to share information between users and projects.
• The data dictionary provides consistent view of all project entities, e.g., a data record definition and its entity-
relationship diagram be consistent.
• The server should depict the per-project logical view of the data dictionary. This means that it should allow
backup/restore, copy, cleaning part of the data dictionary, etc.
• The tool should work satisfactorily for maximum possible number of users working simultaneously.
• The tool should support multi-windowing environment for the users. This is important to enable the users to
see more than one diagram at a time. It also facilitates navigation and switching from one part to the other.
12.4.2 Documentation Support
• The deliverable documents should be organized graphically and should be able to incorporate text and
diagrams from the central repository.
• This helps in producing up-to-date documentation. The CASE tool should integrate with one or more of the
commercially available desk-top publishing packages.
• It should be possible to export text, graphics, tables, data dictionary reports to the DTP package in standard
forms such as PostScript.

12.4.3 Project Management

• It should support collecting, storing, and analysing information on the software project’s progress such as the
estimated task duration, scheduled and actual task start, completion date, dates and results of the reviews.

12.4.4 External Interface

• The tool should allow exchange of information for reusability of design. The information which is to be
exported by the tool should be preferably in ASCII format and support open architecture.
• The data dictionary should provide a programming interface to access information. It is required for
integration of custom utilities, building new techniques, or populating the data dictionary.

12.4.5 Reverse Engineering Support

• The tool should support generation of structure charts and data dictionaries from the existing source codes.

12.4.6 Data Dictionary Interface

• The data dictionary interface should provide view and update access to the entities and relations stored in it.
• It should have print facility to obtain hard copy of the viewed screens. It should provide analysis reports like
cross-referencing, impact analysis, etc. Ideally, it should support a query language to view its contents.

12.4.7 Tutorial and Help

• The application of CASE tool and thereby its success depends on the users’ capability to effectively use all the
features supported.
• Therefore, for the uninitiated users, a tutorial is very important. The tutorial should not be limited to teaching
the user interface part only, but should comprehensively cover the following points:
1. The tutorial should cover all techniques and facilities through logically classified sections.
2. The tutorial should be supported by proper documentation.

12.5 TOWARDS SECOND GENERATION CASE TOOL

An important feature of the second-generation CASE tool is the direct support of any adapted methodology. This
would necessitate the function of a CASE administrator for every organisation, who can tailor the CASE tool to a
particular methodology. In addition, we may look forward to the following features in the second-generation CASE
tool:

Intelligent diagramming support: The fact that diagramming techniques are useful for system analysis and design is
well established. The future CASE tools would provide help to aesthetically and automatically layout the diagrams.

Integration with implementation environment: The CASE tools should provide integration between design and
implementation.

Data dictionary standards: The user should be allowed to integrate many development tools into one environment. It
is highly unlikely that any one vendor will be able to deliver a total solution. Moreover, a preferred tool would require
tuning up for a particular system. Thus, the user would act as a system integrator. This is possible only if some
standard on data dictionary emerges.
Customisation support: The user should be allowed to define new types of objects and connections. This facility may
be used to build some special methodologies. Ideally it should be possible to specify the rules of a methodology to a
rule engine for carrying out the necessary consistency checks.

12.6 ARCHITECTURE OF A CASE ENVIRONMENT

• The architecture of a typical modern CASE environment is shown diagrammatically in Figure 12.2.
• The important components of a modern CASE environment are user interface, tool set, object management
system (OMS), and a repository.
• Let us examine the components of a CASE environment.

User interface

• The user interface provides a consistent framework for accessing the different tools thus making it easier for
the users to interact with the different tools and reducing the overhead of learning how the different tools are
used.

Tool set:

• Tool set is a set of software application programs (CASE tools), which are used to automate SDLC activities.
• CASE tools are used by software project managers, analysts and engineers to develop software system.
• There are number of CASE tools available to simplify various stages of Software Development Life Cycle such
as Analysis tools, Design tools, Project management tools, Database Management tools, Documentation
tools, etc.,
• Use of CASE tools accelerates the development of project to produce desired result and helps to uncover flaws
before moving ahead with next stage in software development.

Object management system and repository

• Different case tools represent the software product as a set of entities such as specification, design, text data,
project plan, etc.
• The object management system maps these logical entities into the underlying storage management system
(repository).
• The commercial relational database management systems are geared towards supporting large volumes of
information structured as simple relatively short records.
• There are a few types of entities but large number of instances. By contrast, CASE tools create a large number
of entities and relation types with perhaps a few instances of each.
• The object management system takes care of appropriately mapping these entities into the underlying
storage management system.
Software maintenance: any changes made to a software product after it has been delivered to the customer is
known as software maintenance. Maintenance is inevitable (necessary) for almost any kind of product. However,
most products need maintenance due to the wear and tear caused by use.

13.1 CHARACTERISTICS OF SOFTWARE MAINTENANCE

Software maintenance is becoming an important activity of a large number of organisations. whenever the support
environment of a software product changes, the software product requires rework to cope up with the newer
environment.

Types of Software Maintenance

There are three types of software maintenance, which are described as follows:

Corrective: Corrective maintenance of a software product is necessary to overcome the failures observed while the
system is in use.

Adaptive: A software product might need maintenance when the customers need the product to run on new
platforms, on new operating systems, or when they need the product to interface with new hardware or software.

Perfective: A software product needs maintenance to support any new features that the users may want it to
support, to change different functionalities of the system according to customer demands, or to enhance the
performance of the system.

13.1.1 Characteristics of Software Evolution

Lehman and Belady studied the characteristics of evolution of several software products [1980]. They expressed their
observations in the form of laws. Their important laws are

Lehman’s first law: A software product must change continually, otherwise it becomes progressively less useful.
This law clearly shows that every product irrespective of how well designed must undergo maintenance. In fact, when
a product does not need any more maintenance, it is a sign that the product is about to be retired/discarded.

Lehman’s second law: The structure of a program tends to degrade as more and more maintenance is carried out
on it. The reason for the degraded structure is that usually maintenance activities result in patch work. members of
the original development team are not part of the maintenance team. Therefore, the maintenance team has a partial
and inadequate understanding of the architecture, design, and code of the software. Therefore, any modifications
tend to be ugly and more complex than they should be.

Lehman’s third law: The rate at which code is written or modified is approximately the same during development
and maintenance. Over a program’s lifetime, its rate of development is approximately constant. The rate of
development can be quantified in terms of the lines of code written or modified. Therefore, this law states that the
rate at which code is written or modified is approximately the same during development and maintenance.

13.1.2 Special Problems Associated with Software Maintenance

Currently, the Software maintenance work is much more expensive than what it should be and takes more time than
required. The reasons for this situation are the following:

• Software maintenance work in organisations is mostly carried out using ad hoc techniques, rather than
systematic and planned activities. The primary reason being that software maintenance is one of the most
neglected areas of software engineering.
• Software maintenance has a very poor image in industry. Therefore, an organisation cannot employ right
engineers to carry out maintenance work. During maintenance it is necessary to thoroughly understand the
work, and must carry out the required modifications and extensions by using experienced employees
• Another problem associated with maintenance work is that many of the software products needing
maintenance are legacy products. The software system having a poor design and documentation can be
considered as a legacy system. legacy systems are poorly documented and unstructured.
13.2 SOFTWARE REVERSE ENGINEERING
• Software reverse engineering is the process of recovering the design and the requirements specification of a
product from an analysis of its code.
• The purpose of reverse engineering is to facilitate maintenance work by improving the understandability of a
system and to produce the necessary documents for a legacy system.
• Reverse engineering is becoming more important, because legacy software products don’t have proper
documentation, and are highly unstructured.
• The first stage of reverse engineering usually focuses on carrying out cosmetic changes to the code to
improve its readability, structure, and understandability, without changing any of its functionalities.
• A way to carry out these cosmetic changes is shown schematically in Figure 13.2

• A program can be reformatted using any of the several available PrettyPrinter programs which layout the
program neatly.
• Assigning meaningful names is important, all variables, data structures, and functions should be assigned
meaningful names wherever possible.
• Complex nested conditions in the program can be replaced by simpler conditional statements.
• After the cosmetic changes have been carried out on a legacy software, the process of extracting the code,
design, and the requirements specification can begin. These activities are schematically shown in Figure 13.1

• To extract the design, a full understanding of the code is needed.

• Some automatic tools can be used to derive the data flow and control flow diagram from the code.
• The structure chart should also be extracted.
• The SRS document can be written once the full code has been thoroughly understood, and the design is
extracted.
13.3 SOFTWARE MAINTENANCE PROCESS MODELS
Before discussing process models for software maintenance, we need to analyse various activities involved in a typical
software maintenance project. The activities involved in a software maintenance project are not unique and depend
on several factors such as:

(i) What is the extent of modification to be required to the product?

(ii) Are the resources available to the maintenance team?
(iii) What are the conditions of the existing product (e.g., how structured it is, how well documented it is, etc.),
(iv) What are the expected project risks, etc.

When the changes needed to a software product are minor and straightforward (for small products), the code can be
directly modified and the changes are appropriately reflected in all the documents.

For complex projects, the software process can be represented by a reverse engineering cycle followed by a forward
engineering cycle with an emphasis on as much reuse as possible from the existing code and other documents.

Based on these, two broad categories of process models are proposed.

First model
• The first model is preferred for projects involving small reworks where the code is changed directly, and the
changes are reflected in the relevant documents later.
• This maintenance process is graphically presented in Figure 13.3. In this approach, the project starts by
gathering the requirements for changes.
• The requirements are next analysed to formulate the strategies to be adopted for code change.
• At this stage, the association of at least a few members of the original development team goes a long way in
reducing the cycle time, especially for projects involving unstructured and inadequately documented code.
• The availability of a working old system to the maintenance engineers at the maintenance site greatly
facilitates the task of the maintenance team as they get a good insight into the working of the old system and
also can compare the working of their modified system with the old system.
• Debugging of the re-engineered system becomes easier as the program traces of both the systems can be
compared to localise the bugs.
Second model
• The second model is preferred for projects where the amount of rework required is significant. This approach
can be represented by a reverse engineering cycle followed by a forward engineering cycle. Such an approach
is also known as software re-engineering. This process model is depicted in Figure 13.4.

• During the reverse engineering, the old code is analysed (abstracted) to extract the module specifications.
• The module specifications are then analysed to produce the design.
• The design is analysed (abstracted) to produce the original requirements specification.
• The change requests are then applied to this requirements specification to arrive at the new requirements
specification. At this point a forward engineering is carried out to produce the new code.At the design,
module specification, and coding a substantial reuse is made from the reverse engineered products.
• An important advantage of this approach is that it produces a more structured design compared to what the
original product had, produces good documentation, and very often results in increased efficiency.
• The efficiency improvements are brought about by a more efficient design. However, this approach is more
costly than the first approach. An empirical study indicates that process 1 is preferable when the amount of
rework is no more than 15 per cent (see Figure 13.5).
Besides the amount of rework, several other factors might affect the decision regarding using process model 1 over
process model 2 as follows:

• Re-engineering might be preferable for products which exhibit a high failure rate.
• Re-engineering might also be preferable for legacy products having poor design and code structure.

13.4 ESTIMATION OF MAINTENANCE COST

We had earlier pointed out that maintenance efforts require about 60 per cent of the total life cycle cost for a typical
software product. However, maintenance costs vary widely from one application domain to another. For embedded
systems, the maintenance cost can be as much as 2 to 4 times the development cost.

Boehm [1981] proposed a formula for estimating maintenance costs as part of his COCOMO cost estimation model.
Boehm’s maintenance cost estimation is made in terms of a quantity called the annual change traffic (ACT). Boehm
defined ACT as the fraction of a software product’s source instructions which undergo change during a typical year
either through addition or deletion.

were,

KLOCadded is the total kilo lines of source code added during maintenance.

KLOCdeleted is the total Kilo lines of source code deleted during maintenance. Thus, the code that is changed, should
be counted in both the code added and code deleted.

KLOCtotal is the total kilo lines of source code of the project.

The annual change traffic (ACT) is multiplied with the total development cost to arrive at the maintenance cost:

Maintenance cost = ACT × Development cost

Most maintenance cost estimation models, however, give only approximate results because they do not consider
several factors such as experience level of the engineers, and familiarity of the engineers with the product, hardware
requirements, software complexity, etc.

Material prepared by APPIREDDY CHENNAKESAVAREDDY, NEWTONS INSTITUTE OF ENGINEERING COLLEGE.

Software Reuse: software products are very expensive. Therefore, software project managers are always worried
about the cost of software development and are desperately looking for ways to cut development cost. A possible
way to reduce development cost is to reuse parts from previously developed software. The software reuse also leads
to higher quality, because reusable components are ensured to have high quality.

14.1 WHAT CAN BE REUSED?

Almost all artifacts(tasks) associated with software development, including project plan and test plan can be reused.
However, the prominent items that can be effectively reused are:

1. Requirements specification
2. Design
3. Code
4. Test cases
5. Knowledge

Knowledge is the most abstract development artifact that can be reused. However, two major difficulties with
unplanned reuse of knowledge is:

(i) a developer experienced in one type of product might be included in a team developing a different type of
software.
(ii) it is difficult to remember complete details of the reusable development knowledge. For this, the reusable
knowledge should be systematically extracted and documented.

14.2 WHY ALMOST NO REUSE SO FAR?

• No attention is paid on how to reuse the components from previously developed systems. Everything is being
built from scratch. The current system falls behind schedule and no one has time to figure out how the
similarity between the current system and the systems developed in the past can be exploited.
• Creation of components that are reusable in different applications is a difficult problem. It is very difficult to
anticipate the exact components that can be reused across different applications.
• Even when the reusable components are carefully created and made available for reuse, programmers prefer
to create their own, because the available components are difficult to understand and adapt to the new
applications.
• The routines of mathematical libraries are being reused very successfully by almost every programmer.
Because everyone has a clear idea about what kind of argument should cosine take, the type of processing to
be carried out and the results returned.

14.3 BASIC ISSUES IN ANY REUSE PROGRAM

The following are some of the basic issues that must be clearly understood for starting any reuse program:

1. Component creation
2. Component indexing and storing
3. Component search
4. Component understanding
5. Component adaptation
6. Repository maintenance

Component creation: For component creation, the reusable components must be identified first. Selecting the right
kind of components which have a potential for reuse is important. domain analysis is a promising technique which
can be used to create reusable components.

Component indexing and storing: Indexing requires classification of the reusable components, so that they can be
easily searched when we are looking for a component for reuse. The components need to be stored in a relational
database management system (RDBMS) or an object-oriented database system (ODBMS) for efficient access when
the number of components becomes large.
Component searching: The programmers need to search for right components from the database, which match their
requirements clearly. To be able to search components efficiently, the programmers require a proper method to
describe the components that they are looking for.

Component understanding: The programmers need to understand the components sufficiently, what the component
does, where it can be reused, then they are able to decide whether they can reuse the component are not. To
facilitate understanding, the components should be well documented and should do something simple.

Component adaptation: Often, the components may need adaptation before they can be reused, since a selected
component may not fit exactly to the problem at hand.

Repository maintenance: once a component repository is created, it requires continuous maintenance. Newly created
components must be entered into the repository. The outdated components might be removed from the repository.

14.4 A REUSE APPROACH

after the complete development of every project, the reusable components must be identified. The reusability of the
identified components must be enhanced and these have to be catalogued into a component library.

14.4.1 Domain Analysis: The aim of domain analysis is to identify the reusable components for a problem domain.
Reuse domain: A reuse domain is a technically related set of application areas, nothing but it’s a pattern of similarity
among the development components of the software product. Examples of domains are accounting software domain,
banking software domain, manufacturing automation software domain, telecommunication software domain, etc.

one needs to be familiar with a network of related domains for successfully carrying out domain analysis.
Domain analysis identifies the objects, operations, and the relationships among them. For example, consider the
airline reservation system, the reusable objects can be seats, flights, airports, crew, meal orders, etc. During domain
analysis, a specific community of software developers get together to discuss community-wide solutions. The actual
construction of the reusable components for a domain is called domain engineering.

Evolution of a reuse domain: The ultimate results of domain analysis is development of problem-oriented languages.
The problem-oriented languages are also known as application generators. Once these application generators are
developed, they form application development standards. The domains are slowly developed; while developing a
domain, it undergoes through various stages, we may distinguish them as:

Stage 1: There is no clear and consistent set of notations. Obviously, no reusable components are available. All
software is written from scratch.
Stage 2: Here, only the experience from similar projects is used in a development effort. This means that there is
only knowledge reuse.
Stage 3: At this stage, the domain is ripe for reuse. The set of concepts are stabilised, and the notations are
standardised. Standard solutions to standard problems are available. There is both knowledge and component reuse.

Stage 4: The domain has been fully explored. The software development for the domain can largely be automated.
Programs are not written in the traditional sense anymore. Programs are written using a domain specific language,
which is also known as an application generator.

14.4.2 Component Classification: Components need to be properly classified in order to develop an effective
indexing and storage scheme.

Prieto-Diaz’s classification scheme Each component is best described using a number of different characteristics or
facets. For example, objects can be classified using the following:

1. Actions they embody

2. Objects they manipulate
3. Data structures used
4. Systems they are part of, etc.

Prieto-Diaz’s faceted classification scheme requires choosing an n-tuple that best fits a component.
14.4.3 Searching:
• The domain repository may contain thousands of reuse items. In such large domains, what is the most
efficient way to search an item that one is looking for?
• A popular search technique that has proved to be very effective is one that provides a web interface to the
repository.
• Using such a web interface, one would search an item using an approximate automated search using key
words, and then from these results, one would look up for a related item.
• we must remember that the items to be searched may be components, designs, models, requirements, and
even knowledge.

14.4.4 Repository Maintenance: Repository maintenance involves entering new items and removing the old items
which are no more necessary and modifying the search attributes of items to improve the effectiveness of search.
Also, the links relating the different items may need to be modified to improve the effectiveness of search.

14.4.5 Reuse without Modifications

• Once the standard solutions have emerged, no modifications to the program parts may be necessary. One
can directly plug in the parts to develop his application.
• Reuse without modification is much more useful than the classical program libraries. These can be supported
by compilers through linkage to run-time support routines (application generators).
• Application generators translate specifications into application programs. The specification usually is written
using 4GL.
• Application generators have been applied successfully to data processing application, user interface, and
compiler development.
• Application generators are less successful with the development of applications with close interaction with
hardware such as real-time systems.

14.5 REUSE AT ORGANISATION LEVEL

• Reusability should be a standard part in all software development activities including specification, design,
implementation, test, etc.
• Ideally, there should be a steady flow of reusable components. In practice, however, things are not so simple.
• Extracting reusable components from projects that were completed in the past is very difficult. Typically, the
original developers are no longer available for consultation.
• Achieving organisation-level reuse requires adoption of the following steps:
1. Assess of an item’s potential for reuse
2. Refine the item for greater reusability
3. Enter the product in the reuse repository

Assessing a product’s potential for reuse:

• Assessment of a components reuse potential can be obtained from an analysis of a questionnaire circulated
among the developers. The programmers working in similar application domain can be used to answer the
questionnaire about the product’s reusability.
• Depending on the answers given by the programmers, either the component be taken up for reuse as it is, (or)
it is modified (or) it is refined before it is entered into the reuse repository, or it is ignored.
• A sample questionnaire to assess a component’s reusability is the following:
1. Is the component’s functionality required for implementation of systems in the future?
2. How common is the component’s function within its domain?
3. Would there be a duplication of functions within the domain if the component is taken up?
4. Is the component hardware dependent?
5. Is the design of the component optimised enough?
6. If the component is non-reusable, then can it be decomposed to yield some reusable components?
7. Can we parametrise a non-reusable component so that it becomes reusable?
Refining products for greater reusability

For a product to be reusable, it must be relatively easy to adapt it to different contexts. Machine dependency must be
abstracted out or localised using data encapsulation techniques.

The following refinements may be carried out:

Name generalisation: The names should be general, rather than being directly related to a specific application.

Operation generalisation: Operations should be added to make the component more general. Also, operations that
are too specific to an application can be removed.

Exception generalisation: This involves checking each component to see which exceptions it might generate. For a
general component, several types of exceptions might have to be handled.

Handling portability problems:

• The programs also often need to call some operating system functionality, and these calls may not be the
same on all machines. Also, programs use some function libraries, which may not be available on all host
machines.
• A portability solution to overcome these problems is shown in Figure 14.1. The portability solution suggests
that rather than call the operating system and I/O procedures directly, abstract versions of these should be
called by the application program.
• All platform-related calls should be routed through the portability interface.
• One problem with this solution is the significant overhead incurred, which makes it inapplicable to many real-
time systems and applications requiring very fast response.

14.5.1 Current State of Reuse

In spite of all the shortcomings of the state-of-the-art reuse techniques, it is the experience of several organisations
that most of the factors inhibiting an effective reuse program are non-technical. Some of these factors are the
following:

1. Need for commitment from the top management.

2. Adequate documentation to support reuse.
3. Adequate incentive to reward those who reuse. Both the people contributing new reusable components and
those reusing the existing components should be rewarded to start a reuse program and keep it going.
4. Providing access to and information about reusable components. Organisations are often hesitant to provide
an open access to the reuse repository for the fear of the reuse components finding a way to their
competitors.
