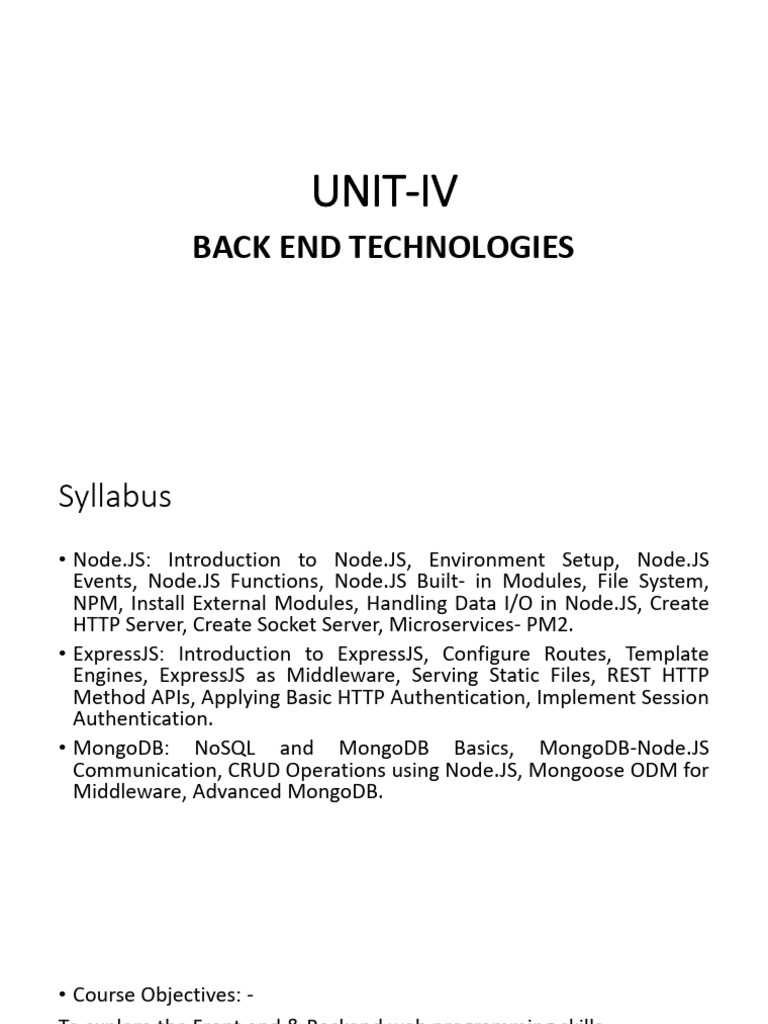

UNIT-IV

BACK END TECHNOLOGIES

Syllabus
• Node.JS: Introduction to Node.JS, Environment Setup, Node.JS
Events, Node.JS Functions, Node.JS Built- in Modules, File System,
NPM, Install External Modules, Handling Data I/O in Node.JS, Create
HTTP Server, Create Socket Server, Microservices- PM2.
• ExpressJS: Introduction to ExpressJS, Configure Routes, Template
Engines, ExpressJS as Middleware, Serving Static Files, REST HTTP
Method APIs, Applying Basic HTTP Authentication, Implement Session
Authentication.
• MongoDB: NoSQL and MongoDB Basics, MongoDB-Node.JS
Communication, CRUD Operations using Node.JS, Mongoose ODM for
Middleware, Advanced MongoDB.
• Course Objectives: -
To explore the Front end & Backend web programming skills.

• Course Outcomes: -
On completion of the course, students will be able to–
CO3: Develop web application with Front End & Back End Technologies.
Node.JS
• NodeJS is an open source server environment.
• Node.js is free.
• Using Node.js we can run JavaScript on the server.
• It runs on various platforms such as Windows, Linux, Unix and
MacOS.
Why Node.js
• Node.js uses asynchronous programming!
• A common task for a web server can be to open a file on the server and
return the content to the client.

• Here is how PHP or ASP handles a file request:

oSends the task to the computer's file system.

oWaits while the file system opens and reads the file.
oReturns the content to the client.
oReady to handle the next request.
Why Node.js
Here is how Node.js handles a file request:

oSends the task to the computer's file system.

oReady to handle the next request.
oWhen the file system has opened and read the file, the server returns
the content to the client.
• Node.js eliminates the waiting, and simply continues with the next
request.
Node.JS Features
Following are some remarkable features of node.js -
1) Non blocking thread execution : Non blocking means while we are
waiting for a response for something during our execution of tasks, we
can continue executing the next tasks in the stack.
2) Efficient : The node.js is built on VS JavaScript engine and it is very
fast in code execution.
3) Open source packages : The Node community is enormous and the
number of permissive open source projects available to help in
developing your application in much faster manner.
Node.JS Features
Following are some remarkable features of node.js -
4) No buffering: The Node.js applications never buffer the data.
5) Single threaded and highly scalable : Node.js uses a single thread
model with event looping. Similarly the non blocking response of
Node.js makes it highly scalable to serve large number of requests.
Handling Data I/O in Node.JS
• Methods of console object
1) console.log([data][, ...]) : It is used for printing to stdout with.
newline. This fuction can take multiple arguments similar to a printf
statement in C.

console1.js
var emp_name = "ABC",
emp_depts = {
dept1:"Sales",dept2:"Accounts"
};
console.log("Name:%s"+"\n"+"Departments:%j",emp_name,emp_depts);
Methods of console object
Methods of console object
2) console.info([data ][, ...]) : This method is similar to console.log.
console2.js
var emp_name = "ABC",
emp_depts = {
dept1:"Sales",dept2:"Accounts"
};
console.info("Name:%s"+"\n"+"Departments:%j",emp_name,emp_depts);
Methods of console object
3) console.error ([data][, ...]) : This method prints to stderr with newline.
console3.js
var code = 401
console.error("Error",code);
Methods of console object
4) console.warn([data][, ...]): This method is similar to console.error()
method.
• Consider following example - in which using the fs module we open a
text file. If the file does not open successfully then console.warn() method
displays the warning message.
console4.js
var fs = require("fs");
fs.open("input.dat","r",function(err,fs){
if(err)
console.warn("Warning message:",err);
else
console.log("File opening successful!");
})
Node.JS Built-in Modules
• Consider modules to be the same as JavaScript libraries.
• A set of functions you want to include in your application.
• Node.js has a set of built-in modules which you can use without any
further installation.
• To include a module, use the require() function with the name of the
module:
var fs = require("fs");
Node.JS Built-in Modules
(1) assert : This module is used during the testing of expressions. If an
expression evaluates to 0 or false, an error is thrown and program gets
terminated.
app1.js Note that as the 10 is not less than 2, the code
var assert = require("assert"); will raise the error named AssertionError
assert(10 < 2);
Node.JS Built-in Modules
(2) cluster : The cluster module helps in creating a child process. Both
the main and child processes can run simultaneously and share the
same server port. For example -
var cluster = require("cluster");
if(cluster.isWorker){
console.log("Child process");
}
else{
console.log("Main process");
cluster.fork();
cluster.fork(); fork(): Creates a new worker, from a master
cluster.fork(); isWorker: Returns true if the current
process is worker, otherwise false
}
Node.JS Built-in Modules
(3) os : The os module provides the information about operating
system of your computer.

var os = require("os");
console.log("Platform on my computer:"+os.platform());
console.log("Architecture of my computer:"+os.arch());
File System
• File system fs is implemented in the node.js using require function.
var fs = require('fs');
• The common operations used with the file system module are -
1. Read Operation
• The read file operation can be performed synchronously or
asynchronously.
• For reading the file synchronously we use readFileSync method. And
for reading the file asynchronously readFile.
• Normally while reading the file using asynchronous form we use
callback function as the last parameter to the readFile function.
File System
• The form of this callback function is ,
function(err, data){
//function body
}
Example code
var fs = require("fs");
fs.readFile("myfile.txt",function(err,data){
if(err)
console.log(err);
console.log(data.toString());
});
File System
myfile.txt
NodeJS is an open source technology for server.
Using Node.js we can run JavaScript on server.
It runs on various platform such as Windows, Linux, Unix and MacOS.
File System
2. Create File Operation
• We can create an empty file using the command open()
• Syntax:
Open(path.flags[,mode],callback)
Where
path : It is the path of the filename.
flag : It indicates, the behaviour on opening a file. That means "r" is open file
for reading, "w" is for writing, "rs'' is for synchronous mode,"r+" or 'w+"
means open a file for both read and write purpose and so on.
mode : It indicates readable or writable mode.
Callback: It is basically a function which has two argµments(err,data)
File System
2. Create File Operation
• Example:
var fs = require("fs");
fs.open("myfile.txt","w",function(err,file){
if(err)
console.log(err)
console.log("File created!");
});
File System
3. Update / Write File Operation
• For writing to the file two operations are used most commonly –
1. appendf ile() and 2. writeFile()
• The appendFile() method is used to write the contents at the end of
the specified file.
var fs = require("fs");
str = "This line is written to the file.";
fs.appendFile("myfile.txt",str,function(err){
if(err)
console.log(err)
console.log("File appended!");
});
File System
3. Update / Write File Operation
• The writeFile() method is used to write the contents to the file.

var fs = require("fs");
str = "This line is replacing the previous contents.";
fs.writeFile("myfile.txt",str,function(err){
if(err)
console.log(err)
console.log("File writing done!");
});
Node.JS Callback Functions
• Callbacks is a function which is usually passed as an argument to
another function and it is usually invoked after some kind of event.
• The callback function is passed as an argument to another function.
When particular event occurs then only it is invoked.
• By the time callback function is executing another task gets executed.
• Hence execution of callbacks is asynchronous execution.
Node.JS Callback Functions
• Step 1 : Create a simple text file named "myfile.txt" as follows –

//myfile.txt

NodeJS is an open source technology for server.

Using Node.js we can run JavaScript on server.
It runs on various platform such as Windows, Linux, Unix and MacOS.
Node.JS Callback Functions
• Step 2 : Create a JavaScript file(.js) that contains the callback function
//callbackDemo.js
var fs = require("fs");
console.log("Serving User1")

fs.readFile('myfile.txt', function (err, data) {

if (err) return console.error(err);
console.log("* Contents of the File are***");
console.log(data.toString());
});
console.log("Serving User2");
console.log("Serving User3");
console.log("Good Byell!");
Node.JS Callback Functions
• Step 2 Output
Node.JS Callback Functions
Program Explanation : In above program, -
1) We have to read a file named myfile.txt, but while reading a file it
should not block the execution of other statements, hence a call back
function is called in which the file is read.
2) By the time file gets read, the remaining two console functions
indicating "Serving user 1" and "Serving user 2" are not blocked, rather
they are executed, once the contents are read in the buffer, then those
contents of the file are displayed on the console.
Node.JS Events
• Event-driven programming is a programming paradigm in which the
flow of the program is determined by events such as user actions
(mouse clicks, key presses), sensor outputs, or messages from other
programs/threads.

Event-Driven Architecture
Node.JS Events
• Every time when useir nteracts with the webpage, event occurs when
user clicks mouse button or presses some key on the keyboard.
• When events are triggered, some functions associated with these
events get executed.
• Event driven programming makes use of the following concepts -
i) When some events occur, an event handler function is called. This is
basically a call back function.
ii) The main program listens every event getting triggered and calls the
associated event handler for that event.
Node.JS Events
Concept of Event Emitter :
• EventEmitter is a class which can be used to raise and handle custom
events.
• The Eventmitter is a module that facilitates communication between
objects.
• The emitter objects performs following tasks -
1) It emits named events.
2) Registers and unregisters listener functions.
Node.JS Events
• Steps for using event handling in Node.js
• Step 1 : Import the 'events' module and create an instance of it using
following code –
var events = require(“events”);
• Step 2 : Then create an instance of EventEmitter() class. This, instance is
created because we have to call on() and emit() functions using this
instance.
• Step 3 : Then define a callback function which should be called on
occurrence of event. This function is also called as event listener funciton.
• Step 4 : Then register the event using on() function. To this function name
of the event and callback function is passed as arguments.
• Step 5 : Finally raise the event using emit() function.
Node.JS Event Example Code
eventDemo.js
// get the reference of events module
var events = require("events");
//create an object of EventEmitter class by using above reference
var em = new events.EventEmitter();
var myfunction = function() {
console.log("When event occurs, My Function is called")
}
//Bind FirstEvent with myfunction
em.on('FirstEvent', myfunction);
// Raising FirstEvent
em.emit('FirstEvent');
Node.JS Event Loop
• Various phases of event loop are -
Node.JS Event Loop
1) Timers : This is the first phase in the event loop. It finds expired timers in
every iteration (also known as Tick) and executes the timers callbacks
created by setTimeout and setlnterval.
2) Pending callbacks : It handles I/O callbacks deferred to the next iteration,
such as handling TCP socket connection error.
3) Idle, prepare : It is used internally.
4) Poll : The Poll phase calculates the blocking time in every iteration to
handle I/O callbacks.
5) Check : This phase handles the callbacks scheduled by setlmmediate(), and
the callbacks will be executed once the Poll phase becomes idle.
6) Close callback : This phase handles callbacks if a socket or handle is closed
suddenly and the 'close' event will be emitted.
NPM
• A package in Node.js contains all the files you need for a module.
• Modules are JavaScript libraries you can include in your project.
• The NPM stands for node package manager.
• NPM consists of two main parts :
1) A CLI (command-line interface) tool for publishing and downloading
packages,
2) An online repository that hosts JavaScript packages.
• NPM gets installed along with the installation of node.js.
Web Module Application
• The web module is mainly controlled by a web server that handles the
requests and provides the responses. These requests and responses are
handled by HTTP(Hyper Text Transfer Protocol) protocol.
• The user submits the request using web browser. Thus the communication
between web server and web browser is handled by HTTP protocol.
• Following steps explain this communication –
- when user submits a request for a web page, he/she is actually demanding
for a page present on the web server.
- when web browser submits the request for a web page, the web server
responds this request by sending back the requested page to the web
browser of the client's machine.
Web Module Application
• step 1 : Web client requests for the
desired web page by providing the IP
address of the website.
• Step 2 : The web server locates the
desired web page on the website and
responds by sending back the
requested page. If the page doesn't
exist, it will send back the appropriate
error page.
• Step 3 : The web browser receives the
page and renders it as required.
Client-Server communication
Web Module Application
• Node.js has a built in module named http which allows us to transfer
data over the Hyper Text Transfer Protocol(HTTP).
• A web server using http module, is as follows -
var http = require("http");
var server = http.createServer(function(request,response){
response.writeHead(200,{"Content-Type":"text/plain"});
response.end("Welcome to this Web Module Application!");
});
server.listen(8082);
console.log("Server is running on port 8082 port...");
Socket Server
• Socket : A socket is basically an endpoint of a two-way
communication link between two programs running on the network.
Typically these programs are Server program and Client program.
• Thus socket is OS-controlled interface into which the applications can
send or receive messages to and fro from another application.
Socket Server
Client Server Communication in node.js :
• Server is a device which has resources and from which the services
can be obtained. For example·: there are various types of servers such
as web server which is for storing the web pages, there are print
servers for managing the printer services or there are database
servers which store the databases.
• Client is a device which wants to get service from particular server.
• First of all server starts and gets ready to receive the client
connections, The server-client communications occurs in following
steps
Client Server Communication in node.js
Client Server
Creates TCP socket. Creates TCP socket.
Client initiates the communication. Creates another socket for listening
client.
Communicate. Accept message from client and
repeatedly communicate.
Close the communication. Close the communication.
Socket Server
• We have two build to node.js programs - One for server and other for
client.
TCP Server Program
• To build the TCP server program we have to follow the steps as given below
Step 1 : We use "net' module by adding following line at the beginning of
both the programs –
var net = require(“net”);
Step 2 : Now we use the createServer() method for creating the stream
based TCP server. For that purpose we have to add following code in the
program.
var server = net.createServer();
Socket Server
Step 3 : We use the event handler on for the server when any client gets
connected to it. In this event handling code we use the socket class. The
attributes remoteAddress and remotePort will return the remote address
and port number of the client which is connected currently to the server.
Step 4 : Then using socket instance we can handle three events such as data,
close and error.
O For data event, the data received from the client is displayed on the
console using cosole.log nethod.
O For close event, the connection closing message is displayed to the client
O If any error occurs during establishment of connection, the error event is
fired, and error message is displayed o the console.
Socket Server
Step 5 : During this entire, client server communication Server must be
in listening mode. This can be done using listen method. To this
method, the port number is passed. The same port number must be
used in the client program, so that both the server and client can
communicate on the same port number.
Server.js
var net = require("net");
var server = net.createServer();

server.on('connection', function(socket){
var clientAddress = socket.remoteAddress+":"+socket.remotePort;
console.log("Connection with the client %s is established!",clientAddress);

socket.on('data',function(mydata){
console.log("\n Data received from client is: %s", mydata.toString());

//sever sending data to the client

socket.write("I am fine");
});
socket.once("close",function(){
console.log("Connection with %s is closed!",clientAddress);
});

socket.on('error',function(err){
console.log("Connection error %s", err.message);
});
});

server.listen(8082, function(){
console.log("Server is listening to %j", server.address()); });
Socket Server
• TCP Client Program
• Following is a client program, in which we are getting some input
from the user through command prompt and sending that data to the
server. For reading the input from keyboard we need to install
readline-sync module. For installation of this module, open the
command prompt. The installation of this module is as follows -
npm install readline-sync;
Socket Server
• To build the TCP client program we have to follow, the steps as given
below -
• Step 1 : We use "net" module by adding following l1ne at the
beginning of the client program.
var net = require(“net”);
• Step 2 : As our server is running on port number 8082 and the
localhost as the host, the client must run on the same for establishing
the communication between server and the client. The instance of
socket class is created and it is named as var client.
const client = new net.Socket();
Socket Server
• Step 3 : Now it is possible to establish a connection with the server
using connect method. For establishing the connection we should
pass the same hostname and port number as parameter.
• Step 4 : Client can send the data to the server using write method.
• Here we are getting the data when user enters some data through
keyboard. For getting the data from the console, we use the readline-
sync module's question method. The required code for this operation
is -
Socket Server
• Step 5: Two more events can be handled by the client program those
are - data and end.
• On the data event, the data received from the server is displayed on
the console window, using console.log
• On the end event, the we can acknowledge the server than now
client is going to end.
client.js
var net = require("net");
var read_line = require("readline-sync");
const PORT = 8082;
const HOST = 'localhost’;

// create a TCP client

const client = new net.Socket();
client.connect(PORT, HOST, function(){
console.log("Connection has been established with server");

//client sending data to server

var mydata = read_line.question("Enter some data for sending it to
server:")
client.write(mydata);
});
client.on("data", function(d){
console.log("Data received from server is: %s",d);
client.end();
});
client.on("end",function(){
console.log('Request is ended!!!');
});
PM2- microservices
• Microservices are architectural approaches which allows the developers to
compartmentalize individual components of a larger application
infrastructure. That means each component in the application can work
independently.
• The developers can upgrade or modify the components without impacting
the larger applications.
• The basic idea behind the creation of microservices is that - Instead of
containing everything in a single unit, the microservices-based application
is broken down into smaller, lightweight pieces based on a logical
construct. The application consists of independent small (micro-) services,
and when we deploy or scale the app, individual services get distributed
within a set.
PM2- microservices
PM2- microservices
• PM2 stands for Process Manager 2. It is a versatile process manager
written in Node.js.
• It is a free open source, efficient and cross platform process -
manager with built in load balancer.
• It is useful for real time app monitoring, efficient management of
microservices and shutdown of applications.
Features of PM2
1) Restarting after crashes PM2 allows to run the process running even after
crashing.
2)Restart persistence : PM2 remembers all the running processes and restart
them after booting.
3) Remote monitoring and management : With PM2 it is possible to keep
track of remotely running processes and these processes can be easily
managed.
4) Performance : Node.js event driven I/O model along with PM12
microservice strategy can handle an extreme amount of load with lesser
response time.
5) Built-in clustering : PM2 handles all the logic internally so there is no need
to make any changes in the code.
6) Log management : PM2 has built-in log management. It collects log data
from your applications and writes it down into a single file.
Syllabus
• Node.JS: Introduction to Node.JS, Environment Setup, Node.JS
Events, Node.JS Functions, Node.JS Built- in Modules, File System,
NPM, Install External Modules, Handling Data I/O in Node.JS, Create
HTTP Server, Create Socket Server, Microservices- PM2.
• ExpressJS: Introduction to ExpressJS, Configure Routes, Template
Engines, ExpressJS as Middleware, Serving Static Files, REST HTTP
Method APIs, Applying Basic HTTP Authentication, Implement Session
Authentication.
• MongoDB: NoSQL and MongoDB Basics, MongoDB-Node.JS
Communication, CRUD Operations using Node.JS, Mongoose ODM for
Middleware, Advanced MongoDB.
ExpressJS
• Express is web application framework used in node.js. It has rich set of
features that help in building flexible web and mobile applications.
• Features of Express
1) Middleware : Middleware is a part of program, that accesses to the
database and respond to client requests.
2) Routing : Express JS provides a routing mechanism so that it is possible to
reach to different web pages using the URLs.
3) Faster Server Side Development : It is very convenient to develop server
side development using Express JS.
4)Debugging: ExpressJs makes debugging easier by providing the debugging
mechanism.
Configure Routes
• Routing is a manner by which an application responds to a client's
request based on particular endpoint. The sample endpoints are,
olocalhost:8082/aboutus
olocalhost:8082/contact
olocalhost:8082/home
• There are various types of requests such as GET, POST, PUT or
DELETE. While handling these requests in your express application,
the request and response parameters can be used along with the
send method.
Configure Routes
app.js
var express = require('express');
var app = express();
app.get('/', function(req, res) {
res.send("Welcome User!!!");
});

//routing to 'about us' page

app.get('/about', function(req, res) {
res.send("This is about us page");
});
//routing to 'contact' page
app.get('/contact', function(req, res) {
res.send("This is displays contact information");
});

var server = app.listen(8082, function(){

console.log("Server started!");
});
Template Engines
• Template engine is a package that renders the data or values in HTML pages.
• The most important feature of template engine is its ability to inject data from
server into ·an HTML template and then send the final html page to the client
side.
• Basically with the help of template engines a variable is created in our server(let
us say in our expressJS script) and then at run time inserted in an html template.
• There are several template engines that work with ExpressJS. Some of the
popularly used template engines are -
- pug(Formerly known as jade) - mustache
- dust - handlebars
- ejs
Template Engines
• Steps to set up and use a template engine in an Express.js
application:
1. Install Express and a Template Engine
npm init -y
npm install express ejs
2. Set Up Express with EJS
Create a basic app.js file for your Express application.

const express = require('express');

const app = express();
const path = require('path');

// Set EJS as the templating engine

app.set('view engine', 'ejs');

// Define the path to the views directory

app.set('views', path.join(__dirname, 'views'));
// Define a route to render a view
app.get('/', (req, res) => {
const data = {
title: 'Hello, Express with EJS!',
message: 'This is a simple example of using EJS template engine.'
};
res.render('index', data); // Render the 'index' view and pass the data
});

// Start the server

app.listen(3000, () => {
console.log('Server is running on http://localhost:3000');
});
3. Create an EJS View
Next, create a folder called views in your project directory, and inside it,
create a file called index.ejs.
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-
scale=1.0">
<title><%= title %></title>
</head>
<body>
<h1><%= title %></h1>
<p><%= message %></p>
</body>
</html>
4. Run the Application
To run the application, execute the following command in your terminal:
node app.js

Now, if you navigate to http://localhost:3000/ in your browser, you should see

the rendered HTML page with the values passed from the server.
ExpressJS as middleware
• Middleware comes in the middle of request and response cycles of
Node.js execution.
• Middleware functions are functions that have access to the request
object (req), the response object (res), and the next function in the
application's request-response cycle.
• The next function is a function in the Express router which, when
invoked, executes the middleware succeeding the current
middleware.
• Middleware functions can perform the following tasks :
o Execute any code.
o Make changes to the request and the response objects.
o End the request-response cycle.
o Call the next middleware in the stack.
• To load the middleware function, call app.use(), specifying the
middleware function.
How Middleware Works in Express.js?
1.Request arrives at the server.
2.Middleware functions are applied to the request, one by one.
3.Each middleware can either:
3. Send a response and end the request-response cycle.
4. Call next() to pass control to the next middleware.

4.If no middleware ends the cycle, the route handler is reached, and a
final response is sent.
Steps to Implement Middleware in Express
Step 1: Initialize the Node.js Project
npm init –y
Step 2: Install the required dependencies.
npm install express
Steps to Implement Middleware in Express
Step 3: Set Up the Express Application
// Filename: index.js
const express = require('express');
const app = express();
const port = process.env.PORT || 3000;

app.get('/', (req, res) => {

res.send('<div><h2>Welcome </h2><h5>Tutorial on Middleware</h5></div>');
});

app.listen(port, () => {
console.log(`Listening on port ${port}`);
});
Step 4: Start the Application:
node index.js
Output:
When you navigate to http://localhost:3000/, you will see:
Serving Static Files
• Static files can be simple html, css or JavaScript files. It is possible to
invoke those files usinge expressJS code.
• For serving the static file, expressJS makes use of app.use() method.
• The app.use() method mounts the middleware express.static for
every request. The express.static middleware is responsible for
serving the static assets of an Express.js application. Inside the
express.static method the path for the desired static file must be
specified.
Example of the express.static() Function
const express = require('express');
const app = express();
const path = require('path');
const PORT = 3000;
// Static Middleware
app.use(express.static(path.join(__dirname, 'public')))
app.get('/', function (req, res, next) {
res.render('home.ejs');
})
app.listen(PORT, function (err) {
if (err) console.log(err);
console.log("Server listening on PORT", PORT);
});
<!DOCTYPE html>
<html>
<head>
<title>express.static() Demo</title>
</head>

<body>
<h2>Greetings </h2>
<img src="Demo.jpg" width="150" height="100" />
</body>
</html>
Note: Demo.jpg is placed in the public folder, as the public folder is now being served as static to
the server.
REST HTTP Method APIs
• REST stands for Representational State Transfer. It is a set of rules that
developers follow while creating their API.
• Each URL made by the client is a request and data sent back to the
client is treated as response.
• A RESTful API uses HTTP methods to interact with resources.
• Common HTTP Methods: GET, POST, PUT, DELETE.
• Setting Up Express.js
• Install Express:
npm init -y
npm install express
• Create a new app.js file and set up the Express server:
const express = require('express');
const app = express();
const PORT = 3000;

app.listen(PORT, () => {
console.log(`Server running on http://localhost:${PORT}`);
});
• Understanding RESTful Methods
• GET: Retrieve data
• POST: Create new data
• PUT: Update existing data
• DELETE: Remove data
Example: GET & POST Routes
// GET all users
app.get('/users', (req, res) => {
res.json(users); // Send all users as JSON
});

// POST a new user

app.post('/users', (req, res) => {
const { name, email } = req.body;
const newUser = { id: users.length + 1, name, email };
users.push(newUser);
res.status(201).json(newUser);
});
Example: PUT & DELETE Routes
// PUT update user by ID
app.put('/users/:id', (req, res) => {
const user = users.find(u => u.id === parseInt(req.params.id));
if (!user) return res.status(404).send('User not found');
const { name, email } = req.body;
if (name) user.name = name;
if (email) user.email = email;
res.json(user);
});
// DELETE user by ID
app.delete('/users/:id', (req, res) => {
const userIndex = users.findIndex(u => u.id ===
parseInt(req.params.id));
if (userIndex === -1) return res.status(404).send('User not found');
const deletedUser = users.splice(userIndex, 1);
res.json(deletedUser[0]);
});
Testing the API

• Use Postman or cURL for testing:

• GET all users:
curl http://localhost:3000/users

• POST a new user:

curl -X POST http://localhost:3000/users -H "Content-Type:
application/json" -d '{"name": "Alice", "email":
"[email protected]"}'
HTTP Status Codes
• 200 OK: Successful GET, PUT, or DELETE requests
• 201 Created: Successful POST request
• 400 Bad Request: Invalid request data
• 404 Not Found: Resource not found
• 500 Internal Server Error: Server-side errors
HTTP Authentication in ExpressJS
• HTTP Authentication is a way to restrict access to a resource by
requiring credentials (username and password).
• Basic Authentication is the simplest form of authentication, where
credentials are sent in the request header.
Basic Authentication Flow
1. Client sends a request to a protected resource.
2. Server responds with a 401 Unauthorized status code.
3. Client sends the Authorization header with the username:password
pair encoded in Base64.
4. Server checks the credentials.
5. If credentials are correct, the server grants access to the resource.
Setting Up Express.js

• Install Express:
npm init -y
npm install express
• Create an app.js file and set up the Express server:
const express = require('express');
const app = express();
const PORT = 3000;

app.listen(PORT, () => {
console.log(`Server running on http://localhost:${PORT}`);
});
Creating the Basic Authentication Middleware
• Middleware checks the Authorization header.
• Decode the credentials from Base64 and compare them with the
stored values.
• If valid, proceed; otherwise, return 403 Forbidden.
const basicAuth = (req, res, next) => {
const authHeader = req.headers['authorization'];

if (!authHeader) {
return res.status(401).send('Access Denied: No Credentials Provided');
}
const base64Credentials = authHeader.split(' ')[1];
const credentials = Buffer.from(base64Credentials, 'base64').toString('utf-8');
const [username, password] = credentials.split(':');
const validUsername = 'admin';
const validPassword = 'password123';
if (username === validUsername && password === validPassword) {
return next();
} else {
return res.status(403).send('Forbidden: Invalid Credentials');
}
};
Applying the Middleware
• Apply the basicAuth middleware to protect specific routes (e.g.,
/secure).

app.use('/secure', basicAuth); // Only routes under "/secure" will require basic

authentication
Example Code - Secure Route
• A route that is protected by Basic Authentication.

app.get('/secure/data', (req, res) => {

res.json({ message: 'This is secure data' });
});
Example Code - Public Route
• A route that does not require authentication.

app.get('/', (req, res) => {

res.send('Welcome to the public page!');
});
Testing the Authentication
• Using cURL:bashCopy
curl -u admin:password123 http://localhost:3000/secure/data
• Using Postman:
oOpen Postman and use Basic Auth in the Authorization tab.
oEnter admin as the username and password123 as the password.
oSend the request and see the response.
Session Authentication
• Session authentication allows users to authenticate with a web server.
• The server stores user data in a session and sends a session ID back to
the client in the form of a cookie.
• Subsequent requests from the client include this session ID to
authenticate the user.
How Session Authentication Works
1. User logs in with username and password.
2. Server creates a session and stores user information.
3. Server sends a session ID to the client in a cookie.
4. Client sends the session ID in future requests.
5. Server authenticates the user based on the session ID.
Setting Up the Express Project
• Install the required dependencies:
npm init -y
npm install express express-session cookie-parser
• Import Required Modules
const express = require('express');
const session = require('express-session');
const cookieParser = require('cookie-parser');
Set Up Middleware
• Use express-session to manage the session:
app.use(session({
secret: 'your-secret-key',
resave: false,
saveUninitialized: false,
cookie: { secure: false }
}));
Simulated User Database
• In a real application, you would connect to a database. Here, we use a
simple object:

const users = {
admin: { username: 'admin', password: 'password123' }
};
Login Route
• Handle POST requests for logging in:
app.post('/login', (req, res) => {
const { username, password } = req.body;
if (users[username] && users[username].password === password) {
req.session.user = { username: users[username].username };
res.send('Login successful! <a href="/protected">Go to protected
page</a>');
} else {
res.status(401).send('Invalid credentials');
}
});
Protected Route
• The /protected route is accessible only to logged-in users:
app.get('/protected', (req, res) => {
if (req.session.user) {
res.send(`<h1>Protected Page</h1><p>Hello,
${req.session.user.username}!</p>`);
} else {
res.status(401).send('You must be logged in to access this page');
}
});
Logout Route
• Destroy the session and log the user out:
app.get('/logout', (req, res) => {
req.session.destroy((err) => {
if (err) {
return res.status(500).send('Could not log out.');
}
res.send('You have been logged out. <a href="/">Go back to
login</a>');
});
});
Example Flow
1. Login: User enters username and password.
2. Create Session: Server creates a session and stores user info.
3. Send Session Cookie: Server sends a session ID to the client as a
cookie.
4. Protected Route: On future requests, the session ID is sent by the
client to authenticate.
Testing the Authentication
1. Login:
• Open the login page (/).
• Enter credentials: admin and password123.
2. Protected Route:
• After login, visit /protected.
• See the protected content if logged in.
3. Logout:
• Click on the logout link to destroy the session.
Syllabus
• Node.JS: Introduction to Node.JS, Environment Setup, Node.JS
Events, Node.JS Functions, Node.JS Built- in Modules, File System,
NPM, Install External Modules, Handling Data I/O in Node.JS, Create
HTTP Server, Create Socket Server, Microservices- PM2.
• ExpressJS: Introduction to ExpressJS, Configure Routes, Template
Engines, ExpressJS as Middleware, Serving Static Files, REST HTTP
Method APIs, Applying Basic HTTP Authentication, Implement Session
Authentication.
• MongoDB: NoSQL and MongoDB Basics, MongoDB-Node.JS
Communication, CRUD Operations using Node.JS, Mongoose ODM for
Middleware, Advanced MongoDB.
NoSQL and MongoDB Basics
• NoSQL stands for not only SQL.
• It is nontabular database system that store data differently than
relational tables. There are various types of NoSQL databases such as
document, key-value, wide column and graph.
• Using NoSQL we can maintain flexible schemas and these schemas
can be scaled easily with large amount of data.
NoSQL and MongoDB Basics
Need :
The NoSQL database technology is usually adopted for following reasons -
1) The NoSQL databases are often used for handling big data as a part of
fundamental architecture.
2) The NoSQL databases are used for storing and modelling structured,
semi-structured and unstructured data.
3) For the efficient execution of database with high availability, NoSQL is
used.
4) The NoSQL database is non-relational, so it scales out better than
relational databases and these can be designed with web applications.
5) For easy scalability, the NoSQL is used.
NoSQL and MongoDB Basics
Features:
1) The NoSQL does not follow any relational model.
2) It is either schema free or have relaxed schema. That means it does not
require specific definition of schema.
3) Multiple NoSQL databases can be executed in distributed fashion.
4) It can process both unstructured and semi-structured data.
5) The NoSQL have higher scalability.
6) It is cost effective.
7) It supports the data in the form of key-value pair, wide columns and
graphs.
MongoDB
• MongoDB is an open source, document based database.
• All the modern applications require Big data, faster development and
flexible deployment. This need is satisfied by the document based
database like MongoDB.
Features of MongoDB
• It is a schema-less, document based database system.
• It provides high performance data persistence.
• It supports multiple storage engines.
• It has a rich query language support.
• MongoDB provides high availability and redundancy with the help of
replication. That means lt creates multiple copies of the data and
sends these copies to a different server so that if one server fails,
then the data is retrieved from another server.
Features of MongoDB
• MongoDB provides horizontal scalability with the help of sharding.
Sharding means to distribute data on multiple servers.
• In MongoDB, every field in the document is indexed as primary or
secondary. Due to which data can be searched very efficiently from
the database.
MongoDB-Node.JS Communication
• For connecting Node.js with MongoDB we need MongoClient. This
can be created using following code.
Connect.js
var MongoClient = require('mongodb'). MongoClient;
var url = "mongodb://localhost:27017/";
//create database
MongoClient.connect(url, function(err, db) {
if (err)
throw err;
var dbo = db.db("studentDB");
console.log("Connected with Database");
});
MongoDB-Node.JS Communication
Program Explanation : in above code,
• First of all, we have to import the module ‘mongodb’ using require.
Thus we are creating MongoDB client.
• Then specify the URL for MongoDB by means of hostname(localhost)
and port number on which MongoDB is running (27017). This is a
path at which we are going to create a database.
• Then we are using connect method by passing the above URL. Inside
this function a database object is created by a database name
“studentDB”.
CRUD Operations using Node.JS
• The CRUD operations are performed in collaboration with Node.js
and MongoDB. The CRUD stands for Create, Read, Update and Delete
operations.
CRUD Operations using Node.JS
• create.js var MongoClient = require('mongodb').MongoClient;
var url = "mongodb://localhost:27017/";
//create database
MongoClient.connect(url, function(err, db) {
if (err) throw err;
var dbo = db.db("studentDB");

dbo.createCollection("Student_Info",function(err, res) {
if(err)
throw err;
console.log("Collection Created")
});
db.close();
});
CRUD Operations using Node.JS
Insertion of Data
We can insert one document or multiple document at a time.
CRUD Operations using Node.JS
insert.js var MongoClient = require('mongodb'). MongoClient;
var url ="mongodb://localhost:27017/";
//Insert
MongoClient.connect(url, function(err, db) {
if (err) throw err;
var dbo = db.db("studentDB");
var mydata = { name: "AAA", city: "Pune" };
dbo.collection("Student_Info").insertOne(mydata,function(err, res) {
if(err)
throw err;
console.log(“One document Inserted!");
db.close();
});
});
CRUD Operations using Node.JS
Read Data
We can read all the documents of the collection using find method.
Following is a simple Node.js code that shows how to read the contents
of the database.
CRUD Operations using Node.JS
display.js var MongoClient = require('mongodb'). MongoClient;
var url ="mongodb://localhost:27017/";
//Read
MongoClient.connect(url, function(err, db) {
if (err) throw err;
var dbo = db.db("studentDB");
var cursor = dbo.collection("Student_Info").find({})
cursor.each(function(err, doc) {
console.log(doc);
db.close();
});
});
CRUD Operations using Node.JS
Updating Data
We can change one or more fields of the document using updateOne
method.
 CRUD Operations using Node.JS
update.js var MongoClient = require('mongodb'). MongoClient;
var url ="mongodb://localhost:27017/";
//Update
MongoClient.connect(url, function(err, db) {
if (err) throw err;
var dbo = db.db("studentDB");
var mydata = {name:”DDD”};
var newdata = {$set:{name:”TTT”, city:”Jaipur”}}
dbo.collection("Student_Info"). updateOne(mydata, newdata, function(err, res) {
if(err) throw err;
console.log(“One document Updated!");
db.close();
});
});
CRUD Operations using Node.JS
Deleting Data
This is the operation in which we are simply deleting the desired
document. Here to delete a single record we have used deleteOne
method.
 CRUD Operations using Node.JS
delete.js
var MongoClient = require('mongodb'). MongoClient;
var url ="mongodb://localhost:27017/";
//Delete
MongoClient.connect(url, function(err, db) {
if (err) throw err;
var dbo = db.db("studentDB");
var mydata = {name:”TTT”};
dbo.collection("Student_Info"). deleteOne(mydata, function(err, res) {
if(err) throw err;
console.log(“One document Deleted!");
db.close();
});
});
Mongoose ODM for Middleware
• ODM stands for Object Data Modelling.
• Mongoose is a MongoDB Object Data Modelling (ODM) tool or library
designed to work in an asynchronous environment with node.js.
• It allows us to connect to the MongoDB database.
• Besides the data modelling in Node.JS Mongoose also provides a layer
of CRUD features on top of MongoDB.
Mongoose ODM for Middleware
• It manages relationships between data, provides schema validation
and is used to translate between objects in code and the
representation of those objects in MongoDB.

Fig. Communication between node.js and MongoDB using mongoose

Advanced MongoDB
• Definition of index : Index is a special data structure that store small
part of collection's data in such a way that we can use it in querying.
• The index store the values of index fields outside the table or
collection and keep track of their location in the disk.
1) Index creation
Syntax for creating index is
db.<collection>.createIndex({KEY:1})
• The key determines the field on the basis of which the index is
created. After the colon the direction of the key(1 or -1) is used to
indicate ascending or descending order.
Advanced MongoDB
1) Index creation
• The MongoDB will generate index names by concatenating the
indexed keys with the direction of each key with underscore as
separator. For example if the index is on the field name and the order
as 1 then the index will be created as name_1.
• We can also use name option to define custom index name while
creating the index.
• For example -
>db.Student_details.createIndex({name:1},{name:’Student’s Names’})
Advanced MongoDB
2) Find Index
• We can find all the available indexes in the MongoDB by using
getIndexes method.
• Syntax
db.<collection>.getIndexes()
• For example -
>db.Student_details.getIndexes()
Advanced MongoDB
3) Drop Index
• To delete an index we use dropIndex method.
• Syntax
db.<collection>.dropIndex(Index Name)
• For example -
>db.Student_details.dropIndex(“Student’s Names”)
Replication
• Replication is process of making data available across multiple data
servers.
• The replication is mainly used for security purpose. In case of server
failure and hardware failure the replication is used to restore the
data.
• The replication in MongoDB is carried out with the help of replica
sets.
• The replica sets are combination of various MongoDB instances
having single primary node and multiple secondary nodes. The
Replication
• The replica sets are combination of various MongoDB instances
having single primary node and multiple secondary nodes. The
secondary node automatically copies the changes made to primary in
order to maintain the data across all servers. Refer Fig.
Replication
• lf the primary node gets failed then the secondary node will take primary
node's role to provide continuous availability of data. In this case the
primary node selection is made by the process called replica set elections.
In this process the most suitable secondary node will be selected as new
primary node.
• Benefits of Replication
1) Replication is used for data availability.
2) It is helpful for handling the situations such as hardware failure and server
crash.
3) It enhances the performance as data is available across multiple machines
and servers.
mapReduce
• Map reduce is a data processing programming model that helps in
performing operations on large data sets and produce aggregate
results.
• Map reduce is used for large volume of data, The syntax for map
reduce is
db.collection.mapReduce(
function() {emit(key, value);), <- map function
function(key, values) {return reduceFunction}, { <- reduce function
out: collection, <- the collection is created in which the result
of mapReduce can be stored
query: document,
sort: document,
limit: number})
mapReduce
Where
1) map Function : It uses emit() function in which it takes two parameters key
and value key. Here the key is on which we make groups (such as group by
name, or age) and the second parameter is on which aggregation is
performed like avg(), sum() is calculated on.
2) reduce Function : This ls a function in which we perform aggregate
functions like avg(), sum()
3) out : It will specify the collection name where the result will be stored.
4) query : We will pass the query to filter the resultset.
5) sort : It specifies the optional sort criteria.
6) limit : It specifies the optional maximum number of documents to be
returned.
mapReduce
Advantages of mapReduce
1) MapReduce allows the developer to store complex result in separate
collection.
2) MapReduce provides the tools to create incremental aggregation
over large collections.
3) It is flexible.
Sharding
• Sharding is a concept in MongoDB, Which splits large data sets into
small data sets across multiple MongoDB instances.
• It is not replication of data, but amassing different data from different
machines.
• Sharding allows horizontal scaling of data stored in multiple shards or
multiple collections. Logically all the shards work as one collection.
Sharding
• Sharding works by creating a cluster of MongoDB instances which is
made up of three components.
oShard : It is a mongodb instance that contains the sharded data. The
combination of multiple shards create a complete data set.
oRouter : This is a mongodb instance which is basically responsible for
directing the commands sent by client to appropriate server.
oConfig server : This is mongodb instance which holds the information
about various mongodb instances which hold the shard data.
