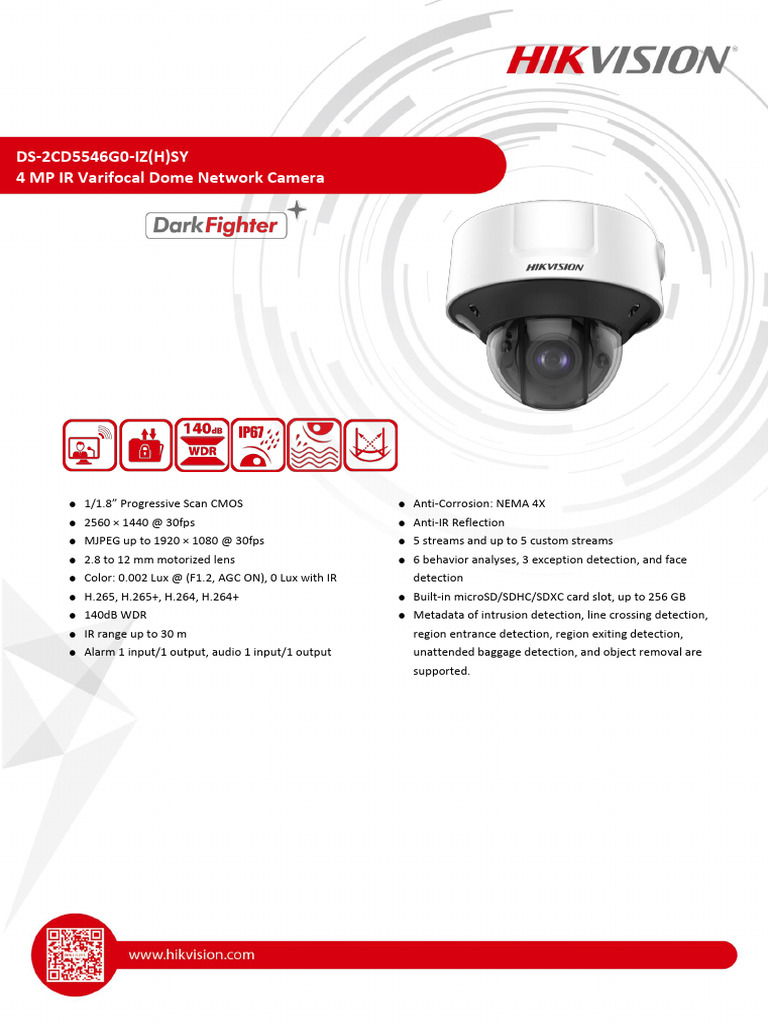

DS-2CD5546G0-IZ(H)SY

4 MP IR Varifocal Dome Network Camera

● 1/1.8” Progressive Scan CMOS ● Anti-Corrosion: NEMA 4X

● 2560 × 1440 @ 30fps ● Anti-IR Reflection
● MJPEG up to 1920 × 1080 @ 30fps ● 5 streams and up to 5 custom streams
● 2.8 to 12 mm motorized lens ● 6 behavior analyses, 3 exception detection, and face
● Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR detection
● H.265, H.265+, H.264, H.264+ ● Built-in microSD/SDHC/SDXC card slot, up to 256 GB
● 140dB WDR ● Metadata of intrusion detection, line crossing detection,
● IR range up to 30 m region entrance detection, region exiting detection,
● Alarm 1 input/1 output, audio 1 input/1 output unattended baggage detection, and object removal are
supported.
Function
Smooth Streaming
Smooth streaming offers solutions to improve the video quality in different network conditions. For example, in poor
network conditions, adapting to the detected real-time network condition, streaming bit rate and resolution are
automatically adjusted to avoid mosaic and lower latency in live view; in multiplayer network conditions, the camera
transmits the redundant data for the self-error correcting in back-end device, so that to solve the mosaic problem because of
the packet loss and error rate.

Metadata
Metadata uses individual instances of application data or the data content. Metadata can be used for third-party application
development.

Power Protection
The camera supports a wide voltage range of 10 VDC to 48 VDC. If the voltage instability occurs, the camera still works
properly. The camera supports reverse polarity protection which can avoid the camera malfunction caused by false
operation.

Anti-Reflection Bubble
This anti-reflection bubble design avoids the IR reflection of the raindrop and dust on the bubble and improves the image
quality.

Anti-Corrosion Coating
The camera adopts high weatherproof and wearproof molding powder that confirms to AAMA2604-02 and Qualicoat (Class2)
specifications, and uses two-layer special spraying technology, so its surface has excellent long-term anti-corrosion
performance and physical protection function. Besides, all the exposed screws use SUS316L material and features high anti-
corrosion performance. Therefore, the whole camera meets anti-corrosion requirements NEMA4X.
Specifications
Camera
Image Sensor 1/1.8ʺ Progressive Scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Slow Shutter Yes
Day & Night IR Cut Filter
WDR 140 dB
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
Lens Type Motorized lens, 2.8 to 12 mm
Aperture F1.2 to 2.5
Focus Auto, semi-auto, manual
Auto-Iris P-iris
FOV Horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°
Lens Mount Integrated

Illuminator
IR Range Up to 30 m
Wavelength 850 nm

Video
Max. Resolution 2560 × 1440
Video Stream 5 defined streams and up to 5 custom stream
50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Main Stream
60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
50Hz: 25fps (704 × 576, 640 × 480)
Sub Stream
60Hz: 30fps (704 × 480, 640 × 480)
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Third Stream
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Fourth Stream
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
50Hz: 25fps (704 × 576, 640 × 480)
Fifth Stream
60Hz: 30fps (704 × 480, 640 × 480)
50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
Custom Stream
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Main stream: H.265+/H.265/H.264+/H.264
Video Compression Sub stream/third stream/fourth stream/fifth stream/custom stream:
H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream support
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 16 Mbps
Scalable Video Coding (SVC) H.264 and H.265 encoding

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3
64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)/
Audio Bit Rate
8-320Kbps(MP3)
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set
Line crossing detection, up to 4 lines configurable
Intrusion detection, up to 4 regions configurable
Region entrance detection, up to 4 regions configurable
Region exiting detection, up to 4 regions configurable
Smart Event
Unattended baggage detection, up to 4 regions configurable
Object removal detection, up to 4 regions configurable
Face detection: detects faces and upload images
Scene change detection, audio exception detection, defocus detection
Motion detection, video tampering alarm, exception (network disconnected, IP
Basic Event
address conflict, illegal login, HDD full, HDD error)
Statistics Counting
Trigger recording: memory card, network storage, pre-record and post-record
Linkage Method Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email
Trigger notification: HTTP, ISAPI, alarm output, Email
Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed region for
Region of Interest
each stream and dynamic face tracking

Image Enhancement BLC, HLC, 3D DNR, Defog, EIS, distortion correction
Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are
Image Setting
adjustable by client software or web browser
Target Cropping Yes
Day/Night Switch Day/Night/Auto/Schedule/Triggered by Alarm In
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
SNR ≥52dB

Network
microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Network Storage Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE,
Protocols
NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Smooth Streaming Yes
 Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
Security
authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP
over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS1.0, TLS1.1
Simultaneous Live View Up to 20 channels
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Client iVMS-4200, Hik-Connect, Hik-Central
Plug-in required live view: IE8+
Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+
Local service: Chrome57.0+，Firefox52.0+

Interface
Audio 1-ch 3.5 mm input (line in), 1-ch 3.5 mm output (line out), mono
Communication Interface 1 RJ45 10M/100M/1000M Ethernet port
Alarm 1 input, 1 output (max. 24 VDC/VAC, 1A max.)
Video Output 1Vp-p composite output (75 Ω/CVBS), only for adjustment
Power Output 12 VDC, max. 200 mA
On-board storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB

General
Firmware Version 5.6.0
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
Web Client Language French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Embedded Open Platform Yes. The camera supports installation and running up to 4 extra applications.
Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks,
General Function
flash log, password reset via e-mail, pixel counter, HTTP listening
Reset Reset via reset button on camera body, web browser and client software
Startup and Operating -IZSY: -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)
Conditions -IZHSY: -40 °C to 65 °C (-40 °F to 149 °F), humidity 95% or less (non-condensing)
Storage Conditions -30 °C to 65 °C (-22 °F to 149 °F), humidity 95% or less (non-condensing)
12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; two-core terminal
Power Supply
block; PoE (802.3at, class 4)
-IZSY:
With extra load: 12 VDC, 1.27 A, max. 15.2 W; PoE (802.3at, 42.5 V to 57 V), 0.36 A to
0.27 A, class 4
Without extra load: 12 VDC, 1.05 A, max. 12.6 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A
to 0.23 A, class 4
Power Consumption and Current -IZHSY:
With extra load: 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3
A, class 4
Without extra load: 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to
0.3 A, class 4
"With extra load" means that an extra device is connected to and powered by the
 camera.
Heater -H: yes
Material Metal
Sustainability PVC FREE
Camera: Φ162 × 140 mm (Φ6.4ʺ × 5.5ʺ)
Dimensions
With package: 251 × 215 × 189 mm (9.9ʺ × 8.5ʺ × 7.4ʺ)
Camera: 1.5kg (3.31 lb.)
Weight
With package: 1.95kg (4.3 lb.)

Approval
47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013,
EMC EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32:
2015, KN 35: 2015
UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am
Safety
1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
Chemistry 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
Ingress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013); Anti-Corrosion:
Protection
NEMA 4X: NEMA 250-2014
* Listed resolutions are only selectable options. It does not mean that all streams can work at their maximum resolution at the
same time.

Available Model
DS-2CD5546G0-IZSY (2.8 to 12 mm), DS-2CD5546G0-IZHSY (2.8 to 12 mm)


Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has MODERATE PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants,
and more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles)
away from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.
Dimension

Accessory

DS-1471ZJ-155-Y DS-1473ZJ-155-Y DS-1475ZJ-Y DS-1476ZJ-Y DS-1227ZJ-DM42

Wall Mount Pendant Mount Vertical Pole Mount Corner Mount In-Ceiling Mount
