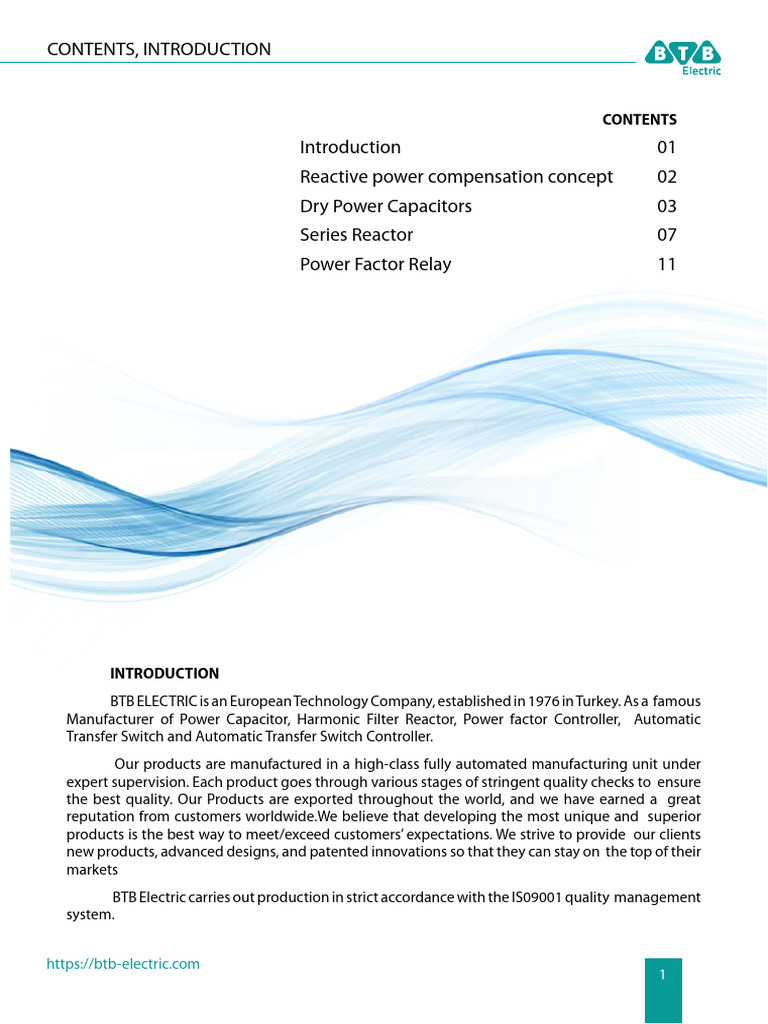

CONTENTS, INTRODUCTION

CONTENTS

Introduction 01
Reactive power compensation concept 02
Dry Power Capacitors 03
Series Reactor 07
Power Factor Relay 11

INTRODUCTION
BTB ELECTRIC is an European Technology Company, established in 1976 in Turkey. As a famous
Manufacturer of Power Capacitor, Harmonic Filter Reactor, Power factor Controller, Automatic
Transfer Switch and Automatic Transfer Switch Controller.
Our products are manufactured in a high-class fully automated manufacturing unit under
expert supervision. Each product goes through various stages of stringent quality checks to ensure
the best quality. Our Products are exported throughout the world, and we have earned a great
reputation from customers worldwide.We believe that developing the most unique and superior
products is the best way to meet/exceed customers’ expectations. We strive to provide our clients
new products, advanced designs, and patented innovations so that they can stay on the top of their
markets
BTB Electric carries out production in strict accordance with the IS09001 quality management
system.

https://btb-electric.com
1
 REACTIVE POWER COMPENSATION CONCEPT

Basic characteristics
Many electrical devices, equipments and systems needs an electromagnetic field for their
standard operation. This physical necessity leads to a consumption of reactive power which is used to
provide basic function but not any active power. It means that transmission and distribution system is
loaded with this reactive power and that’s not an economically effective use and therefore it’s penalized
by electrical utility companies.
The solution is to use local power factor compensation to provide the required rective power
from power capacitors directly to the appliance to avoid undesired load of the mains network.
Calculation table and formula for required reactive power
φ2
Original
cos φ 1 0,90 0,91 0,92 0,93 0,94 0,95 0,96 0,97 0,98 0,99 1,00

0,70 0,54 0,56 0,59 0,62 0,66 0,69 0,73 0,77 0,82 0,88 1,02
0,75 0,40 0,43 0,46 0,49 0,52 0,55 0,59 0,63 0,68 0,74 0,88
0,80 0,27 0,29 0,32 0,35 0,39 0,42 0,46 0,50 0,55 0,61 0,75
0,82 0,21 0,24 0,27 0,30 0,34 0,37 0,41 0,45 0,49 0,56 0,70
0,84 0,16 0,19 0,22 0,25 0,28 0,32 0,35 0,40 0,44 0,50 0,65
0,85 0,14 0,16 0,19 0,22 0,26 0,29 0,33 0,37 0,42 0,48 0,62
0,86 0,11 0,14 0,17 0,20 0,23 0,26 0,30 0,34 0,39 0,45 0,59
0,87 0,08 0,11 0,14 0,17 0,20 0,24 0,28 0,32 0,36 0,42 0,57
0,88 0,06 0,08 0,11 0,14 0,18 0,21 0,25 0,29 0,34 0,40 0,54
0,89 0,03 0,06 0,09 0,12 0,15 0,18 0,22 0,26 0,31 0,37 0,51
0,90 0,03 0,06 0,09 0,12 0,16 0,19 0,23 0,28 0,34 0,48
0,91 0,03 0,06 0,09 0,13 0,16 0,20 0,25 0,31 0,46
0,92 0,03 0,06 0,10 0,13 0,18 0,22 0,28 0,43
0,93 0,03 0,07 0,10 0,14 0,19 0,25 0,40
0,94 0,03 0,07 0,11 0,16 0,22 0,36
0,95 0,04 0,08 0,13 0,19 0,33

Qc Reactive power of the required power capacitor

· · P Active power of the load to be corrected
· K Conversion coefficient
φ2 Original cosφ
CALCULATION EXAMPLE φ1 Target cosφ
Load power P 100 kW
Original cosφ1 0,75 Capacitor reactive power Q C
Target cosφ2 0,95 QC = P · k = 100 · 0,55 = 55 kvar
K coeff. (from table) 0,55

BASIC FORMULAS FOR DETUNED POWER FACTOR CORECTION

UN Uc - Capacitor voltage – rms value of required voltage
UC p of the capacitor. The reactor cause increase of the
1-
100% mains voltage at capacitor.
P - Detuning factor – ratio of reactor inductance
X
P = L .100% and capacitor capacitance reactances
XC
f r - Serie resonance frequency- between reactor and
fr = fN 100% capacitior.
p UN - Nominal (rated) mains voltage
fN - Nominal (rated) mains frequency
https://btb-electric.com
2
DRY Power Capacitors

CAPACITOR DRAWING

44
37

25
28

BTB ELECTRIC DRY BTB ELECTRIC DRY BTB ELECTRIC DRY

POWER CAPACITOR POWER CAPACITOR POWER CAPACITOR

BDC4405I SN: 2009 1234 BDC4410I SN: 2009 1234 BDC4450I SN: 2009 1234

5 kVAr 6 kVAr
4.4 kVAr 5.3 kVAr
4.1 kVAr 5 kVAr
C n: 3x27 µF (-5~+10%) C n: 3x55 µF (-5~+10%) C n: 3x274 µF (-5~+10%)
200

U i : 6/15 kV Temp: -25/D U i : 6/15 kV Temp: -25/D U i : 6/15 kV Temp: -25/D

IEC: 60831-1&2 IEC: 60831-1&2 IEC: 60831-1&2
H

Technology from BTB Electric Technology from BTB Electric Technology from BTB Electric

Made in India Made in India Made in India

16

16

16

M12 M12 M12

63 D D

Fig: A Fig: B Fig:C

https://btb-electric.com
3
 DRY POWER CAPACITORS

General technical parameters

No Specifications Data (BDCxxxxI)

1 Construction Cylindrical
2 External Terminal Box & Casing Finishing Extruded Aluminum Casing
3 Type Dry, Self Healing
4 Dielectric Polypropylene (*)
5 Plate Zinc-Aluminum Alloy
6 Rated Voltage (Un) 230V to 690V
7 Frequency (In) 50/60Hz
8 Connection 3-phase (Internal Delta)
9 Temperature Category - 25°C to +55°C (class D)
10 Max altitude 2000 m
11 Max relative humidity 95%
12 Capacitance Tolerance -5% / +10%
13 Dielectric Loss ≤ 0.2W / kVAR
14 Testing Voltage Between Terminals / Time 2.15 Un / 10s
Testing Voltage Between Terminals And Contain-
15 4kV / 10s
er / Time
1.1 Un ( 8hours in evenry 24hours)
1.15 Un ( 30minutes in evenry 24hours)
16 Maximum Permissible Voltage
1.2 Un ( 5minutes)
1.3 Un ( 1minute)
17 Maximum Permissible Current 1.5 In
18 Maximum inrush current 200 In
Lighting Impulse Test Between Terminal and
19 8kV (Peak)
Container
20 Discharge Resistor | For 05 - 50 kVAR Picture
21 Fastening / Earthing Threaded M12 stud at the bottom (≤ 15Nm)
22 Terminal Arrangements Screw Terminal Top Deck
23 Mounting Position Any Position
24 Statistical Life Expectancy > 130,000 Operating Hours (**)
25 Standards IEC 60831-1/ 2
26 IP Rating IP20
Auto disconnect, when capacitor has trouble
27 Safety Device
(Pressure Active Series lnterruptor)
(*) Metalized Polypropylene film with Zn / Al alloy. Special resisity & profile, special edge - Wave-cut (THD ≤5%)”
(**) Respect the manufacturer’s technique

https://btb-electric.com
4
Dry Power Capacitors

SPECS & SIZE : 230V 50Hz

Rated Rated Dimensions Discharge

Frequency Rated Capacity
Product Code Voltage Current (mm) Resistor Figure
V AC Hz kVAR μF A ØD H kΩ (3 watt)
BDC2305I 230 50 5 3x100 13 75 200 100 Fig A

BDC2310I 230 50 10 3x201 25 85 300 100 Fig C

BDC2315I 230 50 15 3x301 38 100 300 47 Fig C

BDC2320I 230 50 20 3x401 50 116 300 47 Fig C

BDC2325I 230 50 25 3x502 63 136 300 47 Fig C

BDC2330I 230 50 30 3x602 75 136 300 47 Fig C

SPECS & SIZE : 415V, 50HZ

Rated Rated Dimensions Discharge

Frequency Rated Capacity
Product Code Voltage Current (mm) Resistor Figure
V AC Hz kVAR μF A ØD H kΩ (3watt)
BDC4105I 415 50 5 3x31 7 63 200 680 Fig A
BDC4110I 415 50 10 3x62 14 85 200 100 Fig B, C
BDC4115I 415 50 15 3x92 21 85 300 100 Fig B, C
BDC4120I 415 50 20 3x123 28 90 300 100 Fig B, C
BDC4125I 415 50 25 3x154 35 100 300 100 Fig B, C
BDC4130I 415 50 30 3x185 42 116 300 47 Fig B, C
BDC4140I 415 50 40 3x246 56 116 300 47 Fig C
BDC4150I 415 50 50 3x308 70 136 300 47 Fig C

SPECS & SIZE : 440V, 50HZ

Rated Rated Dimensions Discharge

Frequency Rated Capacity
Product Code Voltage Current (mm) Resistor Figure
V AC Hz kVAR μF A ØD H kΩ (3watt)
BDC4405I 440 50 5 3x27 7 63 200 680 Fig A
BDC4410I 440 50 10 3x55 13 75 200 100 Fig B, C
BDC4415I 440 50 15 3x82 20 75 300 100 Fig B, C
BDC4420I 440 50 20 3x110 26 85 300 100 Fig B, C
BDC4425I 440 50 25 3x137 33 90 300 100 Fig B, C
BDC4430I 440 50 30 3x164 39 100 300 47 Fig B, C
BDC4440I 440 50 40 3x219 52 116 300 47 Fig C
BDC4450I 440 50 50 3x274 66 136 300 47 Fig C

https://btb-electric.com
5
 Dry Power Capacitors

SPECS & SIZE : 480V, 50HZ

Rated Rated Dimensions Discharge
Frequency Rated Capacity
Product Code Voltage Current (mm) Resistor Figure
V AC Hz kVAR μF A ØD H kΩ (3watt)
BDC4805I 480 50 5 3x23 6 63 200 680 Fig A
BDC4810I 480 50 10 3x46 12 85 200 100 Fig B, C
BDC4815I 480 50 15 3x69 18 85 300 100 Fig B, C
BDC4820I 480 50 20 3x92 24 90 300 100 Fig B, C
BDC4825I 480 50 25 3x115 30 100 300 100 Fig B, C
BDC4830I 480 50 30 3x138 36 116 300 47 Fig B, C
BDC4840I 480 50 40 3x184 48 116 300 47 Fig C
BDC4850I 480 50 50 3x230 60 136 300 47 Fig C

SPECS & SIZE : 525V, 50HZ

Rated Rated Dimensions Discharge
Frequency Rated Capacity
Product Code Voltage Current (mm) Resistor Figure
V AC Hz kVAR μF A ØD H kΩ (3watt)
BDC5205I 525 50 5 3x19 5 63 200 680 Fig A
BDC5210I 525 50 10 3x38 11 85 200 100 Fig B, C
BDC5215I 525 50 15 3x58 16 85 300 100 Fig B, C
BDC5220I 525 50 20 3x77 22 90 300 100 Fig B, C
BDC5225I 525 50 25 3x96 27 100 300 100 Fig B, C
BDC5230I 525 50 30 3x115 33 116 300 100 Fig B, C
BDC5240I 525 50 40 3x154 44 136 300 100 Fig C
BDC5250I 525 50 50 3x192 55 136 300 47 Fig C

SPECS & SIZE : 690V, 50HZ

Rated Rated Dimensions Discharge
Frequency Rated Capacity
Product Code Voltage Current (mm) Resistor Figure
V AC Hz kVAR μF A ØD H kΩ (3watt)
BDC6905I 690 50 5 3x11 4 68 200 1M Fig A
BDC6910I 690 50 10 3x22 8 90 200 680 Fig B, C
BDC6915I 690 50 15 3x33 13 90 300 100 Fig B, C
BDC6920I 690 50 20 3x45 17 100 300 100 Fig B, C
BDC6925I 690 50 25 3x56 21 116 300 100 Fig B, C
BDC6930I 690 50 30 3x67 25 136 300 100 Fig B, C

https://btb-electric.com
6
sERIES REACTOR

Application
Frequent use of power electronic devices with nonlinear loads leads to harmonic distortion
in electrical system. This nonsinusoidal load causes increase of effective current of power capacitor
and other components of the system as well as the possibility of capacitor resonance with other
inductive loads. Finally it may lead to problems or even failures in the installation. The solution is to
use detuning (filtering) reactors, which creates a series resonant circuit with power capacitors. This
detuned system prevents the installation from resonance effect and also acts as a filter for higher
harmonic content. Usually there is recommended to use detuning reactors for the total voltage
distortion THD-U higher than 3 %
Salient Features
• Special Design with High-Level Saturation
• Superior Performance
• High-Grade Laminations in Magnetic Circuit
• Easy Pad Termination & Mounting
• Low Power Losses
• Protection from Excess Temperature

https://btb-electric.com
7
 sERIES REACTOR

General technical parameters

No. Specifications Data

1 Rated voltage / Maximum Input Voltage 400 - 800 V / 1,1 kV
2 Frequency 50 Hz
3 Rated power 5 - 100kVAR (Ordered for special sizes)
4 Design Three phase, iron core with multi air gap
5 Resonance Frequency 6% - 204Hz / 7% - 189 Hz / 14% - 134Hz

P= 6% of Capacitor Value / BRH3-6

6 Impedance Ratio / Model P= 7% of Capacitor Value / BRH3-7
P= 14% of Capacitor Value / BRH3-14

7 Coil Winding Material Copper[Aluminium on request]

Maximum Current Including Harmonics
8 1.5 Times the Capacitor current
Overload
9 Approximate Losses 15-20W / kVAr (Qc)
10 Tolerance of Inductance +/- 3% at Effective Current (Ieff )
11 Linearity of Inductance 1.75 x Ic
12 Designed Limits for Harmonic Currents I5 = 45%, I7 = 25%, I11 = 12.5%, I13 = 5%
13 Ventilation / IP Class Air-Cooled / IP 00 [ Indoor ]
14 Maximum Reactor Operating Temperature 135°C at ambient temperature 45°C
15 Thermal Ovevrload Protection Built-in thermostat cut off at 135°C
16 Insulation Class Class F (155°C)
17 Max altitude 2000 m
18 Max relative humidity 95%
19 Statistical life expectancy > 200 000 hours
20 Vacuum Impregnation Yes
21 Insulation Strength Testing Voltage 3kV
22 Noise Level Below 55db
23 Duty Cycle Continuous
24 Compliance Standards IEC60076-6

https://btb-electric.com
8
SERIES REACTOR

Detuned Harmonic Filters at 400V network p=7% according to spec EN60076-6

Capacitor Capacitor LC Power Reactor

Dimension Dimension Weight
Product code Power Voltage at 400V Inductance Fixing Holes I rms(A) I lin(A) R(mOhm)
(LxWxH) mm (XxY) mm (kg)
(kVAr) (V) (kVAr) (mH)

BRH3-7/400/5 5 440 5 7.67 180x85x200 125x60 8x12mm 5 8.03 14.17 296.2

BRH3-7/400/10 10 440 10 3.83 180x115x200 125x75 8x12mm 9.5 16.34 29.17 34.7

BRH3-7/400/12.5 12.5 440 12.5 3.07 180x115x200 125x90 8x12mm 10.1 20.39 36.67 34

BRH3-7/400/15 15 440 15 2.56 180x115x200 125x105 8x12mm 11 24.56 43.83 27.9

BRH3-7/400/20 20 440 20 1.92 240x110x215 175x85 8x15mm 14.5 32.63 58.33 14.6

BRH3-7/400/25 25 440 25 1.53 240x120x215 175x100 8x15mm 17 40.78 72.5 13

BRH3-7/400/30 30 440 30 1.28 240x130x215 175x115 8x15mm 20 49.01 87.5 8.5

BRH3-7/400/40 40 440 40 0.96 295x145x260 200x75 8x15mm 24.5 65.35 116.67 6.7

BRH3-7/400/50 50 440 50 0.77 255x155x250 200x125 8x15mm 26.5 81.68 145.83 4.7

BRH3-7/400/60 60 440 60 0.64 295x160x260 200x130 8x15mm 35 98 175 3.4

BRH3-7/400/70 70 440 70 0.54 295x180x260 200x140 8x15mm 41 120 215 2.7

BRH3-7/400/75 75 440 75 0.51 295x190x260 200x155 8x15mm 43 123 220 2.2

BRH3-7/400/80 80 440 80 0.48 350x170x325 250x100 12x20mm 46 130.4 233.33 2.6

BRH3-7/400/90 90 440 90 0.42 350x190x325 250x125 12x20mm 49 160 285 1.9

BRH3-7/400/100 100 440 100 0.38 350x190x325 250x125 12x20mm 50 163 293.33 1.8

Minimum 440V Capacitors should be used with these reactors

Reactor Drawing

https://btb-electric.com
9
 SERIES REACTOR

Detuned Harmonic Filters at 400V network p=14% according to spec EN60076-6

Capacitor Capacitor LC Power Reactor

Dimension Dimension Weight
Product code Power Voltage at 400V Inductance Fixing Holes I rms(A) I lin(A) R(mOhm)
(LxWxH) mm (XxY) mm (kg)
(kVAr) (V) (kVAr) (mH)

BRH3 14/400/5 5 440 5 16.6 180x135x200 125x90 8x12mm 8.5 7.65 11.67 192.7

BRH3 14/400/10 10 440 10 8.3 240x135x260 175x78 8x12mm 9.5 15.4 23.33 88.5

BRH3 14/400/12.5 12.5 440 12.5 6.63 240x134x260 175x78 8x12mm 11.9 19.21 29.25 77.8

BRH3 14/400/15 15 440 15 5.52 240x155x260 175x78 8x12mm 14.0 23.05 35.1 64.8

BRH3 14/400/20 20 440 20 4.15 260x160x247 200x95 8x15mm 21.3 30.8 47.5 28.8

BRH3 14/400/25 25 440 25 3.32 260x180x247 200x125 8x15mm 26.3 38.51 58.5 17.7

BRH3 14/400/30 30 440 30 2.76 300x180x252 200x110 8x15mm 31.5 46.22 70.83 11.7

BRH3 14/400/40 40 440 40 2.07 300x190x252 200x135 8x15mm 35.9 61.63 93.33 10.3

BRH3 14/400/50 50 440 50 1.66 300x200x252 200x145 8x15mm 40.0 77.03 116.67 6.8

BRH3 14/400/60 60 440 60 1.38 360x180x310 250x155 8x15mm 54.0 92.43 141.67 4.6

BRH3 14/400/70 70 440 70 1.18 360x180x310 250x155 8x15mm 65.0 107.83 165.28 3.9

BRH3 14/400/75 75 440 75 1.1 360x193x310 250x175 8x15mm 67.0 115.8 176.67 3.3

BRH3 14/400/80 80 440 80 1.03 360x200x310 250x185 12x20mm 69.0 123.52 201.9 3.09

BRH3 14/400/90 90 440 90 0.92 420x232x358 300x185 12x20mm 70.0 138.96 219.46 2.7

BRH3 14/400/100 100 440 100 0.83 420x232x358 300x185 12x20mm 72.0 154 225 2.1

Minimum 480V Capacitors should be used with these reactors

https://btb-electric.com
10
POWER FACTOR RELAY

PFR 120b Salient Features

• Manual, auto switching control
80b • Automatic C/K and rated step adjustment
• Automatic CT polarity correction
60b • Alarm Relay
• User-friendly setting
96b • Complies with IEC 61000-6-2 standard

Application
Power Factor Controllers are used for measurement and control of power factor control units
for central reactive power compensation.The Power Factor measured by PFR is compared with the
set point values in order to provide necessary compensation, Power Factor Controller switches
capacitor steps ON and OFF automatically. PFR is microcontroller relay, designed for flush mounting
with rear plug-in connectors.In addition it displays the system’s Cosφ,in Automatic Operating Mode,
PFR displays the RMS value of Voltage (V), Current (I), Active Power (W), Reactive Power (kvar) and
Apparent Power (VA) of measuring phase.

https://btb-electric.com
11
 Power factor relay

General technical parameters

Function Specifications Data

Rated Voltage (Un) 240/415V
Operating Voltage Range (0.9-1.1)xUn
Auxiliary Supply
Power Consumption 3VA – 10VA
Rated Frequency 50 Hz / 60 Hz
Rated current 5A
Power Consumption 2VA max
Current Input
Operating Current Range 50 mA-5.5A
Rated Frequency 50 Hz / 60 Hz
6 / 8 / 12 (PFR96b, PFR60b/ PFR80b /
Numbers of outputs
PFR120b)
Output Contact 5 A, 250V (NO Contact)
Expected electrical life > 100000 operations at rated current
Relay Output Expected mechanical life > 5000000 operations
In case of power failure longer than 200
No-Volt Feature msec.all capacitor steps are disconnected
automatically
Alam relay 1 (NO Contact)
Cosφ setting 0.85 (ind.)-1.00
C/k Setting Automatic / 0.02-1.0
CT Value 5-10000/5
Control Range
Time Delay (on, off ) Between 2 sec.-1800 sec
Over Voltage Values 240-275 (265) V/ 410-480 (475)V
Switching Program PS1 – PS5
Ambient Temperature -5°C - 55°C
Humidity 5% - 95% non-condensing
Environmental
Protection Class IP 40
Conditions
Terminal Block Protection Class IP 00
Equipment Protection Class Double Insulation-Class ll
Mounting Panel mounting
Connections Socket terminals with screw
Mechanical Dimension (HxWxD) 143x143x67mm / 96x96x91mm
Switchboard cut-out 139x139mm / 91x91mm
Weight 0.8 kg

https://btb-electric.com
12
Power factor relay

TYPICAL APPLICATION DIAGRAM PFR96B (96X96)

DIMENSIONS ORDERING INFORMATION

MODEL DESCRIPTION
PFR60b - 415 - 50

PFR80b - 415 - 50

PFR120b - 415 - 50
90

PFR96b - 415 - 50

PFR 60b - 220 - 50

PFR 80b - 220 - 50

PFR 120b - 220 - 50

PFR 96b - 220 - 50

PFR 60b - 415 - 60

PFR 80b - 415 - 60

PFR 120b - 415 - 60

PFR 96b - 415 - 60

PFR 60b - 220 - 60

PFR 80b - 220 - 60

PFR 120b - 220 - 60

PFR 96b - 220 - 60

https://btb-electric.com
13
