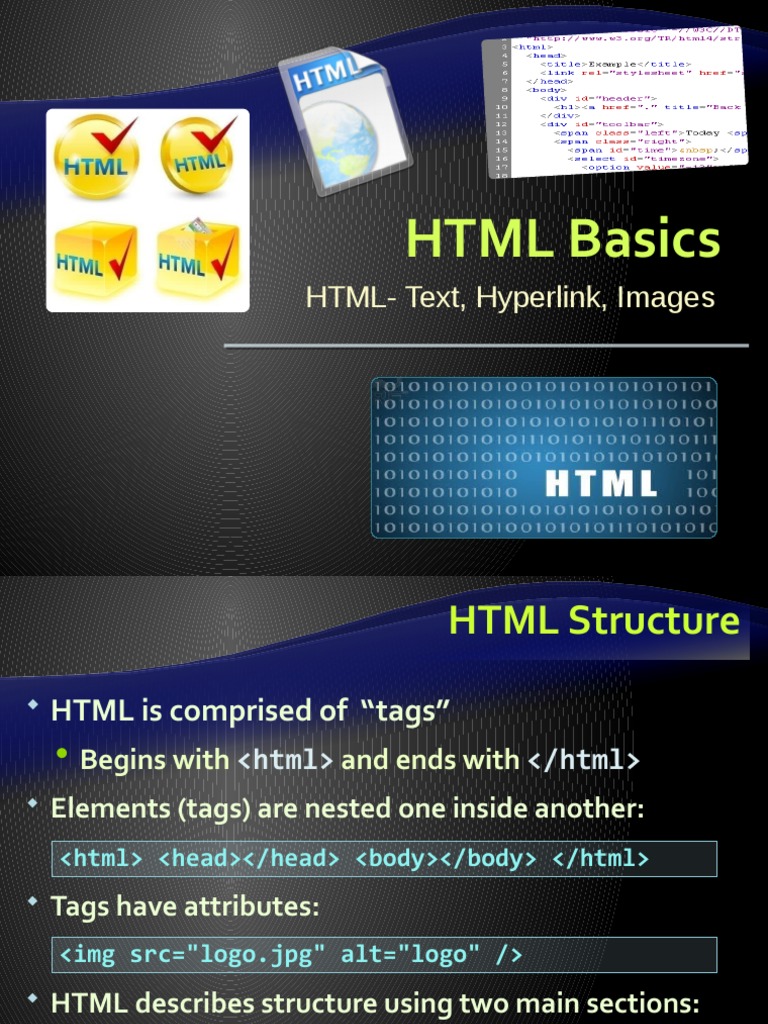

HTML Basics
HTML- Text, Hyperlink, Images
HTML Structure
HTML is comprised of “tags”
Begins with <html> and ends with </html>
Elements (tags) are nested one inside another:
<html> <head></head> <body></body> </html>
Tags have attributes:
<img src="logo.jpg" alt="logo" />
HTML describes structure using two main sections:
<head> and <body>
2
First HTML Page
test.html
<!DOCTYPE HTML>
<html>
<head>
<title>My First HTML Page</title>
</head>
<body>
<p>This is some text...</p>
</body>
</html>
3
First HTML Page: Tags
<!DOCTYPE HTML>
Opening tag
<html>
<head>
<title>My First HTML Page</title>
</head>
<body> Closing tag
<p>This is some text...</p>
</body>
</html>
An HTML element consists of an opening tag, a closing tag
and the content inside.
4
First HTML Page: Header
HTML header
<!DOCTYPE HTML>
<html>
<head>
<title>My First HTML Page</title>
</head>
<body>
<p>This is some text...</p>
</body>
</html>
5
Headings and Paragraphs
Heading Tags (h1 – h6)
<h1>Heading 1</h1>
<h2>Sub heading 2</h2>
<h3>Sub heading 3</h3>
Paragraph Tags
<p>This is my first paragraph</p>
<p>This is my second paragraph</p>
6
Headings and Paragraphs –
Example
headings.html
<!DOCTYPE HTML>
<html>
<head><title>Headings and paragraphs</title></head>
<body>
<h1>Heading 1</h1>
<h2>Sub heading 2</h2>
<h3>Sub heading 3</h3>
<p>This is my first paragraph</p>
<p>This is my second paragraph</p>
<div style="background:skyblue">
This is a div</div>
</body>
</html>
7
Headings and Paragraphs –
Example (2)
headings.html
<!DOCTYPE HTML>
<html>
<head><title>Headings and paragraphs</title></head>
<body>
<h1>Heading 1</h1>
<h2>Sub heading 2</h2>
<h3>Sub heading 3</h3>
<p>This is my first paragraph</p>
<p>This is my second paragraph</p>
<div style="background:skyblue">
This is a div</div>
</body>
</html>
8
The <head> Section
Contains information that doesn’t show
directly on the viewable page
Starts after the <!doctype> declaration
Begins with <head> and ends with </head>
Contains mandatory single <title> tag
Can contain some other tags, e.g.
<meta>
<script>
<style>
<!–- comments -->
9
<head> Section: <title> tag
Title should be placed between <head> and
</head> tags
<title>Telerik Academy – Winter Season 2009/2010
</title>
Used to specify a title in the window title bar
Search engines and people rely on titles
10
<head> Section: <meta>
Meta tags additionally describe the content
contained within the page.
Meta elements are typically used to specify page
description, keywords, author of the document, last
modified, and other metadata.
<meta name="description" content="HTML tutorial"
/>
<meta name="keywords" content="html, web design,
styles" />
<meta name="author" content="Chris Brewer" />
11
<head> Section: <script>
The <script> element is used to embed
scripts into an HTML document
Script are executed in the client's Web browser
Scripts can live in the <head> and in the <body>
sections
Supported client-side scripting languages:
JavaScript (it is not Java!)
VBScript
JScript
12
The <script> Tag – Example
<!DOCTYPE HTML> scripts-example.html
<html>
<head>
<title>JavaScript Example</title>
<script type="text/javascript">
function sayHello() {
document.write("<p>Hello World!</p>");
}
</script>
</head>
<body>
<script type=
"text/javascript">
sayHello();
</script>
</body>
</html>
13
<head> Section: <style>
The <style> element embeds formatting
information (CSS styles) into an HTML page
<html> style-example.html
<head>
<style type="text/css">
p { font-size: 12pt; line-height: 12pt; }
p:first-letter { font-size: 200%; }
span { text-transform: uppercase; }
</style>
</head>
<body>
<p>Styles demo.<br />
<span>Test uppercase</span>.
</p>
</body>
</html>
14
Comments: <!-- --> Tag
Comments can exist anywhere between the
<html></html> tags
Comments start with <!-- and end with -->
<!–- Telerik Logo (a JPG file) -->
<img src="logo.jpg" alt=“Telerik Logo">
<!–- Hyperlink to the web site -->
<a href="http://telerik.com/">Telerik</a>
<!–- Show the news table -->
<table class="newstable">
...
15
<body> Section: Introduction
The <body> section describes the viewable
portion of the page
Starts after the <head> </head> section
Begins with <body> and ends with </body>
<html>
<head><title>Test page</title></head>
<body>
<!-- This is the Web page body -->
</body>
</html>
16
Text Formatting
<b></b> bold
<i></i>
Text italicizedthe text between
formatting tags modify
<u></u> underlined
the opening tag and theSample
<sup></sup> closing tag
superscript
<sub></sub>
Ex. <b>Hello</b> makes
Sample “Hello”
subscript bold
<strong></strong> strong
<em></em> emphasized
<pre></pre> Preformatted text
<blockquote></blockquote> Quoted text block
<del></del> Deleted text – strike through
17
Text Formatting – Example
text-formatting.html
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html>
<head>
<title>Page Title</title>
</head>
<body>
<h1>Notice</h1>
<p>This is a <em>sample</em> Web page.</p>
<p><pre>Next paragraph:
preformatted.</pre></p>
<h2>More Info</h2>
<p>Specifically, we’re using XHMTL 1.0 transitional.<br />
Next line.</p>
</body>
</html>
18
Text Formatting – Example (2)
text-formatting.html
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN"
"http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html>
<head>
<title>Page Title</title>
</head>
<body>
<h1>Notice</h1>
<p>This is a <em>sample</em> Web page.</p>
<p><pre>Next paragraph:
preformatted.</pre></p>
<h2>More Info</h2>
<p>Specifically, we’re using XHMTL 1.0 transitional.<br />
Next line.</p>
</body>
</html>
19
Hyperlinks: <a> Tag
Link to a document called form.html on the
same server in the same directory:
<a href="form.html">Fill Our Form</a>
Link to a document called parent.html on
the same server in the parent directory:
<a href="../parent.html">Parent</a>
Link to a document called cat.html on the
same server in the subdirectory stuff:
<a href="stuff/cat.html">Catalog</a>
20
Hyperlinks: <a> Tag (2)
Link to an external Web site:
<a href="http://www.devbg.org" target="_blank">BASD</a>
Always use a full URL, including "http://", not
just "www.somesite.com"
Using the target="_blank" attribute opens
the link in a new window
Link to an e-mail address:
<a href="mailto:
[email protected]?subject=Bug+Report">
Please report bugs here (by e-mail only)</a>
21
Hyperlinks: <a> Tag (3)
Link to a document called apply-now.html
On the same server, in same directory
Using an image as a link button:
<a href="apply-now.html"><img
src="apply-now-button.jpg" /></a>
Link to a document called index.html
On the same server, in the subdirectory english of
the parent directory:
<a href="../english/index.html">Switch to
English version</a>
22
Hyperlinks and Sections
Link to another location in the same document:
<a href="#section1">Go to Introduction</a>
...
<h2 id="section1">Introduction</h2>
Link to a specific location in another document:
<a href="chapter3.html#section3.1.1">Go to Section
3.1.1</a>
<!–- In chapter3.html -->
...
<div id="section3.1.1">
<h3>3.1.1. Technical Background</h3>
</div>
23
Hyperlinks – Example
hyperlinks.html
<a href="form.html">Fill Our Form</a> <br />
<a href="../parent.html">Parent</a> <br />
<a href="stuff/cat.html">Catalog</a> <br />
<a href="http://www.devbg.org" target="_blank">BASD</a>
<br />
<a href="mailto:
[email protected]?subject=Bug
Report">Please report bugs here (by e-mail only)</a>
<br />
<a href="apply-now.html"><img src="apply-now-button.jpg”
/></a> <br />
<a href="../english/index.html">Switch to English
version</a> <br />
24
Hyperlinks – Example (2)
hyperlinks.html
<a href="form.html">Fill Our Form</a> <br />
<a href="../parent.html">Parent</a> <br />
<a href="stuff/cat.html">Catalog</a> <br />
<a href="http://www.devbg.org" target="_blank">BASD</a>
<br />
<a href="mailto:[email protected]?subject=Bug
Report">Please report bugs here (by e-mail only)</a>
<br />
<a href="apply-now.html"><img src="apply-now-button.jpg”
/></a> <br />
<a href="../english/index.html">Switch to English
version</a> <br />
25
Links to the Same Document –
Example
links-to-same-document.html
<h1>Table of Contents</h1>
<p><a href="#section1">Introduction</a><br />
<a href="#section2">Some background</A><br />
<a href="#section2.1">Project History</a><br />
...the rest of the table of contents...
<!-- The document text follows here -->
<h2 id="section1">Introduction</h2>
... Section 1 follows here ...
<h2 id="section2">Some background</h2>
... Section 2 follows here ...
<h3 id="section2.1">Project History</h3>
... Section 2.1 follows here ...
26
Links to the Same Document –
Example (2)
links-to-same-document.html
<h1>Table of Contents</h1>
<p><a href="#section1">Introduction</a><br />
<a href="#section2">Some background</A><br />
<a href="#section2.1">Project History</a><br />
...the rest of the table of contents...
<!-- The document text follows here -->
<h2 id="section1">Introduction</h2>
... Section 1 follows here ...
<h2 id="section2">Some background</h2>
... Section 2 follows here ...
<h3 id="section2.1">Project History</h3>
... Section 2.1 follows here ...
27
Images: <img> tag
Inserting an image with <img> tag:
<img src="/img/basd-logo.png">
Image attributes:
src Location of image file (relative or absolute)
alt Substitute text for display (e.g. in text mode)
height Number of pixels of the height
width Number of pixels of the width
border Size of border, 0 for no border
Example:
<img src="./php.png" alt="PHP Logo" />
28
29
Images are stored in their own files:
Popular formats include: GIF, JPG, PNG, …
Example: CU_Logo_White_Large.png
The SRC attribute of the IMG tag gives the filename of
the image file.
Relative path: filename is relative to the location of the HTML
document (e.g. in same directory/folder).
<img src=“CU_Logo_White_Large.png”>
Absolute path: filename is an absolute location (e.g. URL or file
system location).
Image Files
Review
Hyperlink Tags
<a href="http://www.telerik.com/"
title="Telerik">Link to Telerik Web site</a>
Image Tags
<img src="logo.gif" alt="logo" />
Text formatting tags
This text is <em>emphasized.</em>
<br />new line<br />
This one is <strong>more emphasized.</strong>
30
some-tags.html
<!DOCTYPE HTML>
<html>
<head>
<title>Simple Tags Demo</title>
</head>
<body>
<a href="http://www.telerik.com/" title=
"Telerik site">This is a link.</a>
<br />
<img src="logo.gif" alt="logo" />
<br />
<strong>Bold</strong> and <em>italic</em> text.
</body>
</html>
31
some-tags.html
<!DOCTYPE HTML>
<html>
<head>
<title>Simple Tags Demo</title>
</head>
<body>
<a href="http://www.telerik.com/" title=
"Telerik site">This is a link.</a>
<br />
<img src="logo.gif" alt="logo" />
<br />
<strong>Bold</strong> and <em>italic</em> text.
</body>
</html>
32
