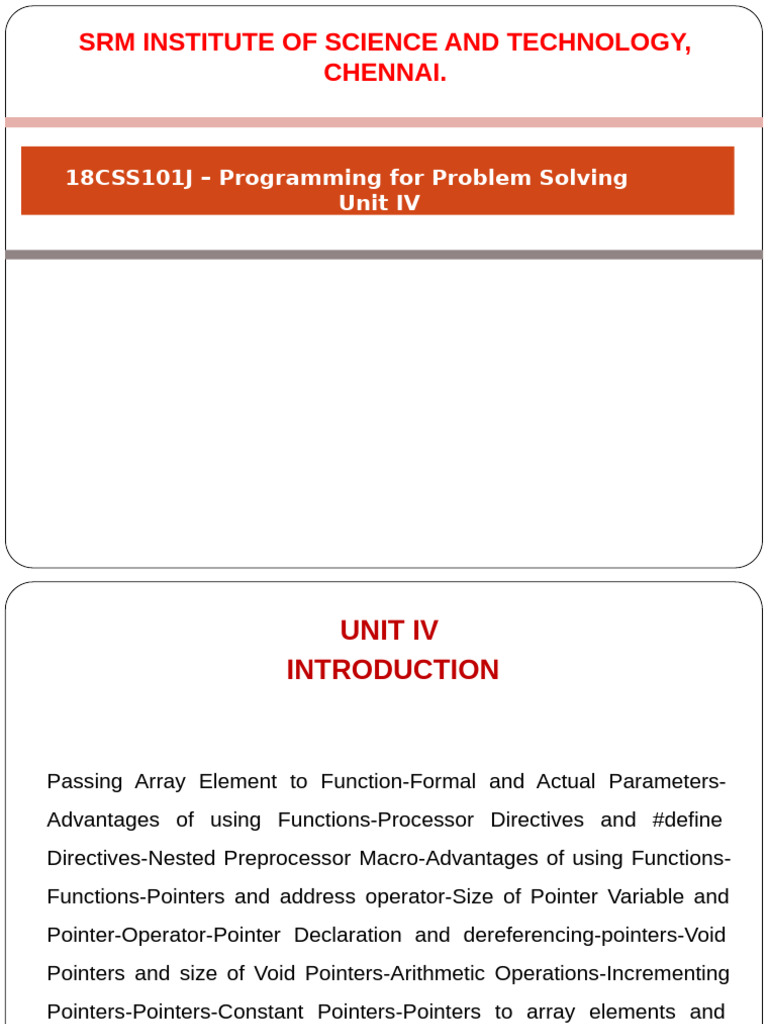

SRM INSTITUTE OF SCIENCE AND TECHNOLOGY,

CHENNAI.

18CSS101J – Programming for Problem Solving

Unit IV
 UNIT IV
INTRODUCTION

Passing Array Element to Function-Formal and Actual Parameters-

Advantages of using Functions-Processor Directives and #define
Directives-Nested Preprocessor Macro-Advantages of using Functions-
Functions-Pointers and address operator-Size of Pointer Variable and
Pointer-Operator-Pointer Declaration and dereferencing-pointers-Void
Pointers and size of Void Pointers-Arithmetic Operations-Incrementing
Pointers-Pointers-Constant Pointers-Pointers to array elements and
strings-Function Pointers-Array of Function Pointers-Accessing Array of
Function Pointers-Null Pointers-Pointers
INTRODUCTION

⚫ Arrays can be passed as a parameter to a function.

⚫ When it is being passed, the name of the array is enough as
an argument instead passing it as an entire array.
⚫ Since the name of the array itself holds the address, no need
to include & in the function call.
⚫ Since it passes address , in case of any modification occurs in
called function automatically reflects back in the calling
function.
⚫ Multidimensional arrays are also allowed to be passed as
arguments to functions.
⚫ The first dimension is omitted when a multidimensional
array is used as a formal parameter in a function.
Formal and Actual Parameters
One-Dimensional Array
⚫ Actual Parameters:
int a[10];
Function call:
add(a);
here,
a is the base address of the array
add is the function

⚫ Formal Parameters:
within the function body
void add(int a[])
{
....
}
int a[] - is a formal parameter, since it is a on dimensional
array size doesn’t matter.
 Formal and Actual Parameters
Two-Dimensional Array
⚫ Actual Parameters:
int a[10][10];
Function call:
add(a);
here,
a is the base address of the array ‘a’ b is
the base address of the array ‘b’ add is
the function
Formal and Actual Parameters One-
Dimensional Array

⚫ Formal Parameters:
within the function
body void add(int a[]
[10])
{
....
}
int a[][10] - is a formal parameter, the first
dimension is omitted only column value is taken
into the account.
Passing Single element

⚫ Example
int a[5]={0,1,2,3,4};
Function call:
add(a[1
]); Here,
add is the function name,
a[1] is the second element of the array, value 1 is
passed to the array.
Adding Constant five to the given array
using functions(One-Dimensional)

⚫Main Function
int main()
{
int a[50],i,n;
scanf(“%d”,&n);
for(i=0;i<n;i++)
scanf(“%d”,
&a[i]);

add(a,n);
for(i=1;i<=n;i++)
printf(“%d\
n”,a[i]);
return 0;
}
Adding Constant five to the given array
using functions(One-Dimensional)

⚫Add Function:
void add(int a[],int n)
{
int r;
for(r=0;r<n;r++)
{
a[r]=a[r]+5;
}
}
Oututput

⚫ Input:
5
2 4 6 8 10

⚫ Output:
7
9
11
13
15
 Main
Function
int main()
{
int num[2][2], i, j;
printf("Enter 4
numbers:\n"); for (i =
0; i < 2; ++i)
{
for (j = 0; j < 2; ++j)
{
scanf("%d", &num[i][j]);
}
}
// passing multi-dimensional array to
displayNumbers function
displayNumbers(num);
return 0;
}
Display Numbers
Function
void displayNumbers(int num[2][2])
{
// Instead of the above line,
// void displayNumbers(int num[][2])
is also valid int i, j;
printf("Displaying:\n");
for (i = 0; i < 2; ++i)
{
for (j = 0; j < 2; ++j)
{
printf("%d\n", num[i][j]);
}
}
}
The advantages of using functions are:

⚫ Divide and conquer

⚫ Manageable program development
⚫ Software reusability
⚫ Use existing functions as building blocks for new
programs
⚫ Abstraction - hide internal details (library
functions)
⚫ Avoid code repetition
 Preprocessor Directives MACROS

⚫ The C preprocessor is a macro processor that is used automatically by the C

compiler to transform your program before actual compilation.

⚫ A macro is a segment of code which is replaced by the value of

macro.

⚫ Macro is defined by #define directive.

⚫ Preprocessing directives are lines in your program that start with #.

⚫ The # is followed by an identifier that is the directive name.

⚫ For example, #define is the directive that defines a macro.

⚫ Whitespace is also allowed before and after the #.

 List of preprocessor directives

#include
#define
#undef
#ifdef
#ifndef
#if
#else
#elif
#endif
#error
#pragma
#include

• The #include preprocessor directive is used to paste code

of given file into current file.

• It is used include system-defined and user-defined header files.

• If included file is not found, compiler renders error. It has

three variants:
#include <file>
• This variant is used for system header files.
• It searches for a file named file in a list of directories
specified by us, then in a standard list of system directories.
#include "file"
⚫ This variant is used for header files of your own program.
⚫ It searches for a file named file first in the current directory, then in
the same directories used for system header files.
⚫The current directory is the directory of the current input file. #include
anything else
⚫ This variant is called a computed #include.
⚫ Any #include directive whose argument does not fit the above two forms
is a computed include.
Macro's (#define)
#define token value There are two types of macros:
1. Object-like Macros
2. Function-like Macros
Object-like Macros
⚫ The object-like macro is an identifier that is replaced by value.
⚫ It is widely used to represent numeric constants.

For example:
#include <stdio.h>
#define PI 3.1415
main()
{
printf("%f",PI);
}
Output:
3.14000
Function-like Macros
• The function-like macro looks like function call.
• For example:#define MIN(a,b) ((a)<(b)?(a):(b))
•Here, MIN is the macro name.
#include <stdio.h>
#define MIN(a,b) ((a)<(b)?(a):(b))
void main()
{
printf("Minimum between 10 and 20 is: %d\n",
MIN(10,20));
}
Output:
Minimum between 10 and 20 is: 10
#undef
⚫ To undefine a macro means to cancel its definition. This is done with
the #undef directive.
Syntax:
#undef token
define and undefine example #include
<stdio.h>
#define PI 3.1415
#undef PI
main()
{ printf("%f",PI); }

Output
Compile Time Error: 'PI' undeclared
#ifdef
The #ifdef preprocessor directive checks if macro is defined by
#define.
If yes, it executes the code.

Syntax:
#ifdef MACRO //code #endif

#ifndef
The #ifndef preprocessor directive checks if macro is not defined by
#define. If yes, it executes the code.

Syntax:
#ifndef MACRO //code #endif
 #if
The #if preprocessor directive evaluates the expression or condition. If condition
is true, it executes the code.
Syntax:
#if expression //code #endif

#else
The #else preprocessor directive evaluates the expression or condition if condition of
#if is false. It can be used
with #if, #elif, #ifdef and #ifndef
directives.

Syntax:
#if expression //if code #else //else code #endif
Syntax with #elif
#if expression //if code #elif expression //elif code #else
//else code #endif
Example
#include <stdio.h>
#include <conio.h>
#define NUMBER 1
void main()
{
#if NUMBER==0
printf("Value of Number is: %d",NUMBER);
#else print("Value of Number is non-zero");
#endif getch();
}

Output
Value of Number is non-zero
#error
⚫ The #error preprocessor directive indicates error.
⚫ The compiler gives fatal error if #error directive is found and
skips further compilation process.

C #error example
#include<stdio.h> #ifndef
MATH_H
#error First include then compile #else
void main(){
float a; a=sqrt(7);
printf("%f",a);
}
#endif
#pragma
⚫ The #pragma preprocessor directive is used to
provide additional information to the compiler.
⚫ The #pragma directive is used by the compiler to offer
machine or operating-system feature.
⚫ Different compilers can provide different usage of
#pragma directive.
Syntax:
#pragma token
Example
#include<stdio.h>
#include<conio.h>
void func() ;
#pragma startup func
#pragma exit func
void main()
{
printf("\nI am in main");
Output
getch(); } I am in func
void func(){
I am in
printf("\nI am in func");
main I am
getch();
} in func
Nested Preprocessor Macros
1. These are Macros having Arguments

2. Every time whenever the macro name is encountered , the

arguments are replaced by the actual arguments from the
program.

3. Macro name within another macro is called Nesting of Macro.

Nested Preprocessor Macros -Example
#include<stdio.h>
#define SQU(x)((x)*x)
#define CUBE(x)(SQU(x)*x)
int main()
{
int x; int y; x = SQU(3); // Argumented Macro
y = CUBE(3); // Nested Macro
printf("\nSquare of 3 : %d",x);
printf("\nCube of 3 : %d",y);
return(0);
}

Output :
Square of 3 : 9
CUBE of 3 : 27
Advantages of Macros
⚫ Time efficiency.
⚫ Not need to pass arguments like
function.
⚫ It's preprocessed.
⚫ Easier to Read

Disadvantages of
Macros
• Very hard to debug in large code.
• Take more memory compare to function
POINTERS
Definition
A pointer is a variable whose value is the
address of another variable, i.e., direct
address of the memory location. This is done
by using unary operator * that returns the
value of the variable located at the address
specified by its operand.
POINTERS
POINTERS
POINTERS
⚫ Syntax
Datatype *pointervariable;

⚫ Syntax Example

1. int *ip; /* pointer to an integer */

2. double *dp; /* pointer to a double */

3. float *fp; /* pointer to a float */
4. char *ch /* pointer to a character */
 POINTERS
Reference operator (&) and
Dereference operator (*)

1.& is called reference operator. It gives the address of

a variable.

2.* is called dereference operator. It gives the value

from the address
Pointer to Pointer

Double (**) is used to denote the double

pointer. Double Pointer Stores the address of
the Pointer
Variable. Conceptually we can have Triple …..
n pointers.
Pointer to Pointer
Example 1

int main()
{
int num = 45 , *ptr ,
**ptr2ptr ; ptr =
&num; //3000
ptr2ptr = &ptr; //4000
printf("%d",**ptr
2ptr); return(0);
}
Output 45
Pointer to Constant
Objects
These type of pointers are the one which cannot
change the value they are pointing to. This means
they cannot change the value of the variable whose
address they are holding.

const datatype *pointername;

(or)
datatype const *pointername;
Example
The pointer variable is declared as a const. We
can change address of such pointer so that it will
point to new memory location, but pointer to such
object cannot be modified (*ptr).
Example
#include <stdio.h>
int main()
{
int a=100;
int b=200;
const int* ptr;
ptr=&a;
ptr=&b;
printf("Value of ptr is :%u",ptr);
return 0;
}
Example
#include <stdio.h>
int main()
{
int a=100;
int b=200;
const int* ptr;
ptr=&a;
ptr=&b;
printf("Value of ptr is :%u",ptr);
return 0;
}
Example
#include <stdio.h>
int main()
{
int a=100;
int b=200;
const int* ptr;
ptr=&b;
*ptr=300;
printf("Value of ptr is :%d",*ptr);
return 0;
}

The above code shows the error "assignment of read-only

location '*ptr'". This error means that we cannot change the
value of the variable to which the pointer is pointing.
Example
Constant Pointers
Constant pointers are the one which cannot
change address they are pointing to. This
means that suppose there is a pointer which
points to a variable (or stores the address of that
variable). If we try to point the pointer to some
other variable, then it is not possible.

int* const
ptr=&variable;
(or)
int *const ptr=&variable // ptr is a constant
pointer to int
Constant Pointers

#include <stdio.h>
int main()
{ main.c: In function ‘main’:
main.c:15:8: error: assignment of read-only variable ‘ptr’
15 | ptr=&a;

int a=1; |^

main.c:16:8: error: assignment of read-only variable ‘ptr’

int b=2; 16 | ptr=&b;

|^

int *const ptr;

ptr=&a;
ptr=&b;
printf("Value of ptr is :%d",*ptr);
return 0;
}
Null pointer

⚫ NULL Pointer is a pointer which is pointing to nothing.

⚫ Pointer which is initialized with NULL value is considered
as NULL pointer.

datatype *pointer_variable=0;

datatype

*pointer_variable=NULL;
 size of
• pointer
Any type of pointer variable takes the same memory bytes
in the memory, because they are used to store the memory
addresses on other type of variables.
/*C program to print size of different types of pointer variables.*/
#include <stdio.h>
int main()
Output
{ size of char pointer: 4
printf("\nsize of char pointer: %d" ,sizeof(char*)); size of int pointer: 4
size of float pointer: 4
printf("\nsize of int pointer: %d" ,sizeof(int*)); size of long int pointer: 4
size of double pointer: 4
printf("\nsize of float pointer: %d" ,sizeof(float*));
printf("\nsize of long int pointer: %d" ,sizeof(long int*));
printf("\nsize of double pointer: %d\n" ,sizeof(double*));
return 0;
}
Exampl
e
Pointer Arithmetic
⚫C allows you to perform some
arithmetic operations on pointers.
⚫Incrementing a pointer
Incrementing a pointer is one which
increases the number of bytes of its
data type.
int *ptr;
int a[]={1,2,3};
ptr=&a;
ptr++;
ptr=&a;
ptr=ptr+1;
Pointer Arithmetic

⚫Decrementing a Pointer

Decrementing a pointer is one which

decreases the number of bytes of its
data type.

Using Unary Operator

int *ptr;
int a[]={1,2,3};
ptr=&a;
ptr--;
 Limitations of Pointer Arithmetic
⚫ Addition of 2 pointers is not allowed

⚫ Addition of a pointer and an integer is commutative ptr+5ó 5+ptr

⚫ Subtraction of 2 pointers is applicable.

⚫ subtraction of a pointer and an integer is not commutative ptr-5≠ 5-ptr.

⚫ Only integers can be added to pointer. It is not valid to add a float or

double value to a pointer.

⚫ A pointer variable cannot be assigned a non address value except zero.

⚫ Multiplication and division Operators cannot be applied on pointers.

⚫ Bitwise operators cannot be applied on pointers.

⚫ A pointer and an integer can be subtracted.

⚫ A pointer and an integer can be added.

Void pointer

1.Void pointer is a generic pointer and can

point to any type of object. The type of
object can be char, int, float or any other
type.
⚫Example
2.A pointer to any type of object can be assigned
to a void pointer.

OUTPUT
3. A void pointer cannot be
dereferenced
Relational operations
⚫A pointer can be compared with a pointer
of same type or zero.
⚫Various relational operators are ==.,!
=,<,<=,>,>=
⚫Ex: float a=1.0,b=2.0,*fptr1,*fptr2;
⚫fptr1=&a;fptr2=&b;

⚫int result;
result=fptr1!=fptr2;
Example
Pointers and Arrays
⚫Pointers and arrays are closely related ,
An array variable is actually just a
pointer to the first element in the array.
⚫Accessing array elements using pointers is
efficient way than using array notation.
⚫When an array is declared, compiler
allocates sufficient amount of memory to
contain all the elements of the array.
⚫Base address i.e address of the first
Pointers and Arrays
Cont…
Suppose we declare an array arr,
int arr[5]={ 1, 2, 3, 4, 5 };Assuming that
the base address of arr is 1000 and each
integer requires two bytes, the five
elements will be stored as follows
Pointers and Arrays
Cont…
⚫ Here variable arr will give the base
address, which is a constant pointer
pointing to the element, arr[0].
⚫Therefore arr is containing the address of
arr[0] i.e 1000. In short, arr has two
purpose- it is the name of an array and it
acts as a pointer pointing towards the first
element in the array.
Pointers and Arrays
Cont…
int
*p; p
= arr;
or
p = &arr[0];
Now we can access every element of array
arr using p++ to move from one
element to another.
Pointers and Arrays
Cont…
⚫ a[0] is the same as *a
⚫a[1] is the same as *(a + 1)
⚫a[2] is the same as *(a + 2)
⚫If pa points to a particular element of an
array, (pa + 1) always points to the next
element, (pa + i) points i elements after pa
and (pa - i) points i elements before.
Example 1
#include<stdio.
h> void main()
{
int a[10],i,n;
printf("Enter
n");
scanf("%d",&n)
;
for(i=0;i<n;i++)
scanf("%d",&a[i]);
for(i=0;i<n;i++)
printf("a[%d]=%d\
n",i,*(a+i));
}
Outp
ut
Enter
n5
123
45
a[0]=
1
a[1]=
2
a[2]=
3
a[3]=
 Pointer to Multidimensional
⚫Array
A multidimensional array is of form, a[i][j]. Lets see how we
can make a pointer point to such an array.

⚫ As we know now, name of the array gives its base address.

In a[i][j], a will give the base address of this array, even
a+0+0 will also give the base address, that is the address
of a[0][0] element.

⚫ Here is the generalized form for using pointer

with multidimensional arrays.

⚫ *(*(a + i) + j) is same as a[i][j].

Pointer to 2D array

Let's declare a 3x3 array.

int arr[3][3];
Let's assume the starting address of the above 2D
array as 1000.
&Arr is a whole 2D array pointer
&Arr is a whole 2D array pointer
&arr is a pointer to the entire 2D(3x3) array.
i.e. (int*)[3][3]
If we move &arr by 1 position(&arr+1), it will point to
the next 2D block(3X3).

In our case, the base address of the 2D array is 1000.

So, &arr value will be 1000.
What will be the value of &arr+1?
In general, for Row x Col array the formula will
be base address + (Row * Col) * sizeof(array
datatype)
In our case, Row = 3, Col = 3, sizeof(int) = 4.
It is base address + (3 * 3)* 4 => 1000 + 36 =>
1036
Arr is a 1D array pointer
Arr is a 1D array pointer

arr is a pointer to the first 1D array. i.e. (int*)[3]

If we move arr by 1 position(arr+1), it will point to
the next 1D block(3 elements).

The base address of first 1D array also 1000. So, arr

value will be 1000.

What will be the value of arr+1?

It will be base address + Row * sizeof(datatype).
1000 + 3 * 4
1012
*Arr is a pointer to the first element of
the 2D array.
*arr is a pointer to the first element of the 2D array.
i.e. (int*) If we move *arr by 1 position(*arr+1), it will
point to the next element.
The base address of the first element also 1000.So,
*arr value will be 1000.
What will be the value of *arr+1?
It will be base address + sizeof(datatype).
1000 + 4
1004
**Arr will be the value of the first
element

Since *arr holds the address of the first element,

**arr will give the value stored in the first element.
If we move **arr by 1 position(**arr+1), the value will
be incremented by 1.
If the array first element is 10, **arr+1 will be 11.
Example
2<stdio.h>
#include

#define ROWS
4
#define
COLS 3 int
main ()
{
int i,j;
// declare 4x3 array
int matrix[ROWS][COLS] =
{{1, 2, 3},
{4, 5,
6},
{7, 8,
9},
{10, 11,
12}};
for (i = 0; i < ROWS; i++)
{
for (j = 0; j < COLS; j++)
{
Outp
ut
1 2 3

4 5 6

7 8 9

10 11 1
2
matrix[0][0] = *(*(matrix))
matrix[i][j] = *((*(matrix)) + (i * COLS + j))
matrix[i][j] = *(*(matrix + i) + j)
matrix[i][j] = *(matrix[i] + j)
matrix[i][j] = (*(matrix + i))[j]
&matrix[i][j] = ((*(matrix)) + (i * COLS + j))
Example 3

void array_of_arrays_ver(int arr[][COLS])

{
int i, j;
for (i = 0; i < ROWS; i++)
{
for (j = 0; j < COLS; j++)
{
printf("%d\t", arr[i][j]);
}
printf("\n");
}
}
void ptr_to_array_ver(int (*arr)[COLS])
{
int i, j;
for (i = 0; i < ROWS; i++)
{
for (j = 0; j < COLS; j++)
{
printf("%d\t", (*arr)[j]);
}
arr++;
printf("\n");
}
}
Outp
ut
Double
Pointer
#include
<stdio.h>
#define ROWS 4
#define COLS 3
int main ()
{
// matrix of 4 rows and 3 columns
int matrix[ROWS][COLS] = {{1, 2, 3},
{4, 5, 6},
{7, 8, 9},
{10, 11, 12}};
int** pmat = (int **)matrix;
printf("&matrix[0][0] = %u\n",
&matrix[0][0]);
printf("&pmat[0][0] = %u\n",
&pmat[0][0]); return 0;
}
Output
&matrix[0][0] =
2675498000

&pmat[0][0] = 1
Passing an array to a
function
⚫ Single element of an array can be passed in similar manner as passing
variable to a function
⚫ C program to pass a single element of an array to
function
#include <stdio.h>
void display(int age)
{
printf("%d", age);
}

int main()
{
int ageArray[] = { 2, 3, 4 };
display(ageArray[2]); //Passing array element ageArray[2] only.

return 0;
}
OUTPUT
4
Passing an entire one-dimensional array to a function

#include<stdio.h>
int total(int[],int);
void main()
{
int a[10],n,sum,i;
printf("Enter n\n");
scanf("%d",&n);
for(i=0;i<n;i++)
scanf("%d",&a[i]);
sum=total(a,n);
printf("Sum=
%d",sum);
}
int total(int a[],int n)
{
int sum=0,i;
for(i=0;i<n;i++)
sum=sum+a[i
]; return sum;
}
 Output
Enter
n

Sum=
15
Passing Multi-dimensional Arrays to
Function
To pass two-dimensional array to a
function as an argument, starting
address of memory area reserved is
passed as in one dimensional array
 Example 4
#include <stdio.h> void displayNumbers(int
void displayNumbers(int num[2][2])
{
num[2][2]); int main()
// Instead of the above line,
{ // void displayNumbers(int num[][2]) is
also valid
int num[2][2], i, j;
int i, j;
printf("Enter 4
printf("Displaying:
numbers:\n"); for (i =
\n"); for (i = 0; i <
0; i < 2; ++i)
2; ++i)
for (j = 0; j < 2; ++j)
for (j = 0; j < 2; ++j)
scanf("%d", &num[i] printf("%d\n",
[j]);
num[i][j]);
// passing multi-dimensional array to
displayNumbers function }
displayNumbers(
num); return 0;
}
Outp
ut 4
Enter
numbers:
1
2
3
4
Displayi
ng: 1
2
3
4
Pointers and Strings
⚫Strings as arrays:In C, the abstract idea
of a string is implemented with just an
array of characters. For example, here is
a string:
⚫char label[] = "Single";What this array looks
like in memory is the following:

S i n g l e \0
Pointers and Strings cont...
⚫ where the beginning of the array is at some location in
computer memory, for example, location 1000.
⚫ A character array can have more characters than the
abstract string held in it, as below:
⚫ char label[10] = "Single"; giving an array that looks like:

S i n g l e \0

⚫ we can access each character in the array using subscript

notation, as in:
printf("Third char is: %c\n", label[2]);
⚫ which prints out the third character, n.
 Disadvantage Of Creating Strings Using
The Character Array
⚫ A disadvantage of creating strings using the
character array syntax is that you must say ahead of time
how many characters the array may hold. For example, in
the following array definitions, we state the number of
characters (either implicitly or explicitly) to be allocated
for the array.
char label[] = "Single"; /* 7 characters
*/ char label[10] = "Single";
⚫ Thus, you must specify the maximum number of
characters you will ever need to store in an array.
⚫ This type of array allocation, where the size of the
array is determined at compile-time, is called static
allocation.
 String as Pointers
⚫ Another way of accessing a contiguous chunk of memory,
instead of with an array, is with a pointer.
⚫ However, pointers only hold an address, they cannot hold all
the characters in a character array.
⚫ This means that when we use a char * to keep track of a
string, the character array containing the string must
already exist (having been either statically- or dynamically-
allocated).
char label[] = "Single";
char label2[10] = "Married";
char *labelPtr;
labelPtr = label;
Example
1#include
<stdio.h> int
main()
{
char *sample = "From whence cometh
my help?n"; while(putchar(*sample+
+))
;
return(0);
}

Output:
Passing Strings
Below is the definition of a function that prints a
label and a call to that function:
void PrintLabel(char the_label[])
{
printf("Label: %s\n", the_label);
}
...
int main(void)
{
char label[] = "Single";
...
PrintLabel(label);
...
}
Passing Strings
Cont...
⚫Since label is a character array, and
the function PrintLabel() expects a
character array, the above makes
sense.
⚫However, if we have a pointer to the
character array label, as in:
char *labelPtr = label;
then we can also pass the pointer to the
function, as in:
⚫PrintLabel(labelPtr);
 Array of
⚫Pointers
Pointers are very helpful in handling character
array with rows of varying length.
char *name[3]={ "Adam", "chris", "Deniel" };
//Now see same array without using pointer
char name[3][20]= { "Adam", "chris", "Deniel" };
Example 1
#include
<stdio.h>
#define SIZE 3
int main()
{
char president[SIZE]
[8] = { "Clinton",
"Bush",
"Obama
"
};
int x,index;
for(x=0;x<SIZE;x+
+)
{
index = 0;
while(president[x][index] !=
'\0')
{
putchar(president[x] Output:
[index]);
index++;
}
ClintonnBushnOba
putchar('n');
}
man
return(0);
}
 Function Pointers
⚫In C, like normal data pointers (int *, char *,
etc), we can have pointers to functions.
⚫Initialization
return_type
function_pointer(argu)=&function_nam
e void (*fun_ptr)(int) = &fun;
⚫Function Definition
void fun(int a)
{
printf("Value of a is %d\n", a);
}
 Exampl
e1
#include<std
io.h> void
fun(int a)
{
printf("a=%d\
n",a);
}
void main()
{ Output:
void (*fun1)
a=15
(int)=&fun;
Function Pointers Cont...
If we remove bracket, then the expression
“void (*fun_ptr)(int)”
becomes
“void *fun_ptr(int)”
which is declaration of a function that returns void pointer.
Interesting facts
⚫ Unlike normal pointers, a function pointer points to code,
not data. Typically a function pointer stores the start of
executable code.
⚫ Unlike normal pointers, we do not allocate de-
allocate memory using function pointers.
⚫ A function’s name can also be used to get functions’
address.
Passing Function Pointer as an
argument
#include<stdio.
h>
void
fun1(void(*test)
())
{
int
a=20;
test(a)
;
}
void
void test(int a)
main() Output:
{
printf("a=%d\
fun1(&te
n",a);
st); a=20
}
Array of Function
Pointer
#include<stdio void main()
.h> void {
add(int a,int b) void (*fun[])
{ (int,int)={add,sub,mul}
;
printf("add=%d\
int ch;
n",a+b); int a,b;
} printf("Enter a and
void sub(int a,int b) b\n"); scanf("%d
{ %d",&a,&b);
printf("sub=%d\ printf("Enter the
n",a-b); operation\n");
} scanf("%d",&
void mul(int a,int b) ch); if(ch>2)
{ printf("Wrong
Input\n"); else
printf("mul=%d\
(*fun[ch])(a,b);
n",a*b); }
}
Output
Enter a
and b 4
5
Enter the
operation 2
mul=20
Structures created and accessed using
pointers
⚫Structures can be created and
accessed using pointers. A pointer
variable of a structure can be created
as below:
struct name
{
member1;
member2;
..
};
int main()
{
struct name *ptr;
}
Here, the pointer variable of type struct
name is created.
Accessing structure's member through
pointer

A structure's member can be

accessed through pointer in two
ways:

1. Referencing pointer to another

address to access memory

2. Using dynamic memory allocation

Referencing pointer to another
address to access the memory
Consider an example to access structure's member through pointer.
#include <stdio.h>
typedef struct person
{
int age;
float
weight;
};
int main()
{
struct person *personPtr, person1;
personPtr = &person1; // Referencing pointer to memory address
of person1 printf("Enter integer: ");
scanf("%d",&(*personPtr).a
ge); printf("Enter number:
");
scanf("%f",&(*personPtr).w
eight); printf("Displaying:\
n");
printf("age=%d\nweight=%f",(*personPtr).age,
(*personPtr).weight); return 0;
}
Output
Enter
integer: 3
Enter
number: 6
Displaying:
age=3
weight=6.00
0000
 -
>
⚫ Using -> operator to access
structure pointer member.
⚫ Structure pointer member can also be
accessed using -> operator.
⚫ (*personPtr).age is same as personPtr->age
⚫ (*personPtr).weight is same as personPtr-
>weight
 Accessing structure member through
pointer using dynamic memory allocation

⚫To access structure member using

pointers, memory can be allocated
dynamically using malloc() function
defined under "stdlib.h" header file.
⚫Syntax to use malloc()
ptr = (cast-type*) malloc(byte-size)
 Exampl
e1
#include
<stdio.h>
for(i = 0; i < num; ++i)
{
#include printf("Enter name, age and weight
<stdlib.h> of the person respectively:\n");
struct person { scanf("%s%d%f", &(ptr+i)->name,
int age; &(ptr+i)->age, &(ptr+i)->weight);
float weight; }
char
name[30];
printf("Displaying Infromation:\
}; n"); for(i = 0; i < num; ++i)
int main() printf("%s\t%d\t%.2f\n", (ptr+i)-
{ >name, (ptr+i)->age, (ptr+i)-
struct person >weight);
*ptr; int i, num; return 0;
printf("Enter number of persons: "); }
scanf("%d", &num);
ptr = (struct person*)
malloc(num * sizeof(struct
person));
// Above statement allocates the
memory for n structures with pointer
personPtr pointing to base address */
Self-Referential Structure

⚫A self referential structure is used to

create data structures like linked lists,
stacks, etc. Following is an example of
this kind of structure:
struct struct_name
{
datatype
datatypename;
struct_name *
pointer_name;
};
 Self-Referential Structure Cont...
⚫A self-referential structure is one of the data
structures which refer to the pointer to
(points) to another structure of the same
type.
⚫For example, a linked list is supposed to be a
self-referential data structure. The next node
of a node is being pointed, which is of the
same struct type. For example,

typedef struct
listnode { void
*data;
struct listnode *next;
Self-Referential Structure Cont...

typedef struct
listnode { void
*data;
struct listnode
*next;
} linked_list;

Data Data Data
