Connect nodes at same level
Last Updated :
23 Jul, 2025
Given a binary tree, the task is to connect the nodes that are at the same level. Given an addition nextRight pointer for the same.Initially, all the next right pointers point to garbage values, set these pointers to the point next right for each node.
Examples:

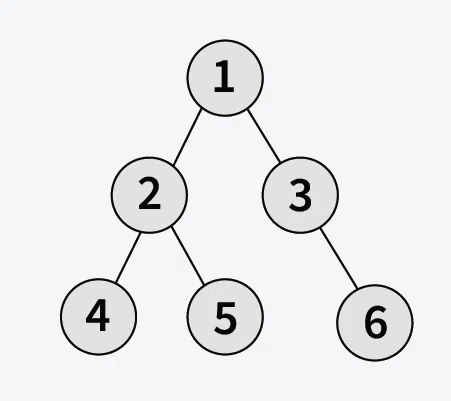

Input:
Output:
Explanation: The above tree represents the nextRight pointer connected the nodes that are at the same level.
[Expected Approach - 1] Using Level Order Traversal - O(n) Time and O(n) Space
This idea is to use level order traversal to connect nodes at the same level. A NULL is pushed after each level to track the end of the level. As nodes are processed, each node's nextRight pointer is set to the next node in the queue. If a NULL is encountered and the queue isn't empty, another NULL is added to mark the end of the next level. This ensures that all nodes at the same level are linked. Please refre to Connect Nodes at same Level (Level Order Traversal) for implementation.
[Expected Approach - 2] Using Pre-Order Traversal - O(n) Time and O(n) Space
This approach works only for Complete Binary Trees. In this method we set nextRight in Pre Order manner to make sure that the nextRight of parent is set before its children. When we are at node p, we set the nextRight of its left and right children. Since the tree is complete tree, nextRight of p's left child (p->left->nextRight) will always be p's right child, and nextRight of p's right child (p->right->nextRight) will always be left child of p's nextRight (if p is not the rightmost node at its level). If p is the rightmost node, then nextRight of p's right child will be NULL.
Follow the below steps to Implement the idea:
- Set root ->nextRight to NULL.
- Call for a recursive function of root.
- If root -> left is not NULL then set root -> left -> nextRight = root -> right
- If root -> right is not NULL then
- If root -> nextRight is not NULL set root -> right -> nextRight = root -> nextRight -> left.
- Else set root -> right -> nextRight to NULL.
- recursively call for left of root
- recursively call for right of root
Below is the Implementation of the above approach:
C++
// C++ Program to Connect nodes at same level
#include <bits/stdc++.h>
using namespace std;
class Node {
public:
int data;
Node *left;
Node *right;
Node *nextRight;
Node(int val) {
data = val;
left = nullptr;
right = nullptr;
nextRight = nullptr;
}
};
// Set next right of all descendants of root.
// Assumption: root is a complete binary tree
void connectRecur(Node *root) {
if (!root)
return;
// Set the nextRight pointer for root's left child
if (root->left)
root->left->nextRight = root->right;
// Set the nextRight pointer for root's right child
// root->nextRight will be nullptr if root is the
// rightmost child at its level
if (root->right)
root->right->nextRight =
(root->nextRight) ? root->nextRight->left : nullptr;
// Set nextRight for other nodes
// in pre-order fashion
connectRecur(root->left);
connectRecur(root->right);
}
// Sets the nextRight of root and calls connectRecur()
// for other nodes
void connect(Node *root) {
// Set the nextRight for root
root->nextRight = nullptr;
// Set the next right for rest of the
// nodes (other than root)
connectRecur(root);
}
// Function to store the nextRight pointers in
// level-order format and return as a vector of strings
vector<string> getNextRightArray(Node *root) {
vector<string> result;
if (!root)
return result;
queue<Node *> q;
q.push(root);
q.push(nullptr);
while (!q.empty()) {
Node *node = q.front();
q.pop();
if (node != nullptr) {
// Add the current node's data
result.push_back(to_string(node->data));
// If nextRight is nullptr, add '#'
if (node->nextRight == nullptr) {
result.push_back("#");
}
// Push the left and right children to
// the queue (next level nodes)
if (node->left)
q.push(node->left);
if (node->right)
q.push(node->right);
}
else if (!q.empty()) {
// Add level delimiter for the next level
q.push(nullptr);
}
}
return result;
}
int main() {
// Constructed binary tree is
// 10
// / \
// 8 2
// /
// 3
Node *root = new Node(10);
root->left = new Node(8);
root->right = new Node(2);
root->left->left = new Node(3);
connect(root);
vector<string> output = getNextRightArray(root);
for (const string &s : output) {
cout << s << ' ';
}
cout << endl;
return 0;
}
// Java Program to Connect Nodes
// at same Level
class Node {
int data;
Node left;
Node right;
Node nextRight;
Node(int val) {
data = val;
left = null;
right = null;
nextRight = null;
}
}
class GfG {
// Sets the nextRight of root and calls
// connectRecur() for other nodes
static void connect(Node root) {
// Set the nextRight for root
root.nextRight = null;
// Set the next right for rest of the
// nodes (other than root)
connectRecur(root);
}
// Set next right of all descendants of root.
// Assumption: root is a complete binary tree
static void connectRecur(Node root) {
if (root == null) return;
// Set the nextRight pointer for root's left child
if (root.left != null)
root.left.nextRight = root.right;
// Set the nextRight pointer for root's right child
// root.nextRight will be null if root is the
// rightmost child at its level
if (root.right != null)
root.right.nextRight =
(root.nextRight != null) ? root.nextRight.left : null;
// Set nextRight for other nodes in pre-order fashion
connectRecur(root.left);
connectRecur(root.right);
}
// Function to store the nextRight pointers in level-order format
// and return as a list of strings
static java.util.List<String> getNextRightArray(Node root) {
java.util.List<String> result = new java.util.ArrayList<>();
if (root == null) return result;
java.util.Queue<Node> queue = new java.util.LinkedList<>();
queue.offer(root);
queue.offer(null);
while (!queue.isEmpty()) {
Node node = queue.poll();
if (node != null) {
// Add the current node's data
result.add(Integer.toString(node.data));
// If nextRight is null, add '#'
if (node.nextRight == null) {
result.add("#");
}
// Push the left and right children to the
// queue (next level nodes)
if (node.left != null) queue.offer(node.left);
if (node.right != null) queue.offer(node.right);
} else if (!queue.isEmpty()) {
// Add level delimiter for the next level
queue.offer(null);
}
}
return result;
}
public static void main(String[] args) {
// Constructed binary tree is
// 10
// / \
// 8 2
// /
// 3
Node root = new Node(10);
root.left = new Node(8);
root.right = new Node(2);
root.left.left = new Node(3);
connect(root);
java.util.List<String> output = getNextRightArray(root);
for (String s : output) {
System.out.print(s + " ");
}
System.out.println();
}
}
# Python Program to Connect Nodes at same Level
class Node:
def __init__(self, val):
self.data = val
self.left = None
self.right = None
self.nextRight = None
# Forward declaration of connectRecur
def connectRecur(root):
if not root:
return
# Set the nextRight pointer for root's left child
if root.left:
root.left.nextRight = root.right
# Set the nextRight pointer for root's right child
# root.nextRight will be None if root is the
# rightmost child at its level
if root.right:
root.right.nextRight = root.nextRight.left \
if root.nextRight else None
# Set nextRight for other nodes in pre-order fashion
connectRecur(root.left)
connectRecur(root.right)
# Sets the nextRight of root and calls
# connectRecur() for other nodes
def connect(root):
# Set the nextRight for root
root.nextRight = None
# Set the next right for rest of the
# nodes (other than root)
connectRecur(root)
# Function to store the nextRight pointers
# in level-order format and return as a list
# of strings
def getNextRightArray(root):
result = []
if not root:
return result
queue = [root, None]
while queue:
node = queue.pop(0)
if node is not None:
# Add the current node's data
result.append(str(node.data))
# If nextRight is None, add '#'
if node.nextRight is None:
result.append("#")
# Push the left and right children to the
# queue (next level nodes)
if node.left:
queue.append(node.left)
if node.right:
queue.append(node.right)
elif queue:
# Add level delimiter for the next level
queue.append(None)
return result
if __name__ == "__main__":
# Constructed binary tree is
# 10
# / \
# 8 2
# /
# 3
root = Node(10)
root.left = Node(8)
root.right = Node(2)
root.left.left = Node(3)
connect(root)
output = getNextRightArray(root)
for s in output:
print(s, end=' ')
print()
// C# Program to Connect Nodes at same Level
using System;
using System.Collections.Generic;
class Node {
public int data;
public Node left;
public Node right;
public Node nextRight;
public Node(int val) {
data = val;
left = null;
right = null;
nextRight = null;
}
}
class GfG {
// Sets the nextRight of root and calls
// connectRecur() for other nodes
static void connect(Node root) {
// Set the nextRight for root
root.nextRight = null;
// Set the next right for rest of the nodes
// (other than root)
connectRecur(root);
}
// Set next right of all descendants of root.
// Assumption: root is a complete binary tree
static void connectRecur(Node root) {
if (root == null)
return;
// Set the nextRight pointer for root's left child
if (root.left != null)
root.left.nextRight = root.right;
// Set the nextRight pointer for root's right child
// root.nextRight will be null if root is the
// rightmost child at its level
if (root.right != null)
root.right.nextRight = (root.nextRight != null)
? root.nextRight.left
: null;
// Set nextRight for other nodes in
// pre-order fashion
connectRecur(root.left);
connectRecur(root.right);
}
// Function to store the nextRight pointers in
// level-order format and return as a list of strings
static List<string> getNextRightArray(Node root) {
List<string> result = new List<string>();
if (root == null)
return result;
Queue<Node> queue = new Queue<Node>();
queue.Enqueue(root);
queue.Enqueue(null);
while (queue.Count > 0) {
Node node = queue.Dequeue();
if (node != null) {
// Add the current node's data
result.Add(node.data.ToString());
// If nextRight is null, add '#'
if (node.nextRight == null) {
result.Add("#");
}
// Push the left and right children to the
// queue (next level nodes)
if (node.left != null)
queue.Enqueue(node.left);
if (node.right != null)
queue.Enqueue(node.right);
}
else if (queue.Count > 0) {
// Add level delimiter for the next level
queue.Enqueue(null);
}
}
return result;
}
static void Main(string[] args) {
// Constructed binary tree is
// 10
// / \
// 8 2
// /
// 3
Node root = new Node(10);
root.left = new Node(8);
root.right = new Node(2);
root.left.left = new Node(3);
connect(root);
List<string> output = getNextRightArray(root);
foreach(string s in output) {
Console.Write(s + " ");
}
Console.WriteLine();
}
}
// JavaScript Program to Connect
// Nodes at same Level
class Node {
constructor(val) {
this.data = val;
this.left = null;
this.right = null;
this.nextRight = null;
}
}
// Forward declaration of connectRecur
function connectRecur(root) {
if (!root) return;
// Set the nextRight pointer for root's left child
if (root.left)
root.left.nextRight = root.right;
// Set the nextRight pointer for root's right child
// root.nextRight will be null if root is the
// rightmost child at its level
if (root.right)
root.right.nextRight =
root.nextRight ? root.nextRight.left : null;
// Set nextRight for other nodes in pre-order fashion
connectRecur(root.left);
connectRecur(root.right);
}
// Sets the nextRight of root and calls
// connectRecur() for other nodes
function connect(root) {
// Set the nextRight for root
root.nextRight = null;
// Set the next right for rest of the
// nodes (other than root)
connectRecur(root);
}
// Function to store the nextRight pointers
// in level-order format and return as an array
// of strings
function getNextRightArray(root) {
const result = [];
if (!root) return result;
const queue = [root, null];
while (queue.length > 0) {
const node = queue.shift();
if (node !== null) {
// Add the current node's data
result.push(node.data.toString());
// If nextRight is null, add '#'
if (node.nextRight === null) {
result.push("#");
}
// Push the left and right children to the
// queue (next level nodes)
if (node.left) queue.push(node.left);
if (node.right) queue.push(node.right);
} else if (queue.length > 0) {
// Add level delimiter for the next level
queue.push(null);
}
}
return result;
}
// Constructed binary tree is
// 10
// / \
// 8 2
// /
// 3
const root = new Node(10);
root.left = new Node(8);
root.right = new Node(2);
root.left.left = new Node(3);
connect(root);
const output = getNextRightArray(root);
console.log(output.join(' '));
Time Complexity: O(n) where n is the number of Node in Binary Tree.
Auxiliary Space: O(n)
Why this method doesn't work which are not Complete Binary Trees?
Let us consider following tree as an example:
In Method 2, we set the nextRight pointer in pre order fashion. When we are at node 4, we set the nextRight of its children which are 8 and 9 (the nextRight of 4 is already set as node 5). nextRight of 8 will simply be set as 9, but nextRight of 9 will be set as NULL which is incorrect. We can't set the correct nextRight, because when we set nextRight of 9, we only have nextRight of node 4 and ancestors of node 4, we don't have nextRight of nodes in right subtree of root.
Related article:
Connect Nodes at Same Level
Similar Reads
Connected component definition & meaning in DSA Connected component in an undirected graph refers to a group of vertices that are connected to each other through edges, but not connected to other vertices outside the group. For example in the graph shown below, {0, 1, 2} form a connected component and {3, 4} form another connected component. Exam
1 min read
Connecting all Cities With Minimum Cost Given n cities labeled 1 to n and an array of connections[] where connections[i] = [xi, yi, costi] represent that the cost of connecting city xi and city yi (bidirectional connection) is costi. The task is to find the minimum cost to connect all the cities with at least one path between each pair. I
10 min read
Computer Network - Cheat Sheet A computer network is an interconnected computing device that can exchange data and share resources. These connected devices use a set of rules called communication protocols to transfer information over physical or wireless technology. Modern networks offer more than just connectivity. Enterprises
15+ min read
Project Idea | We-Connect Project Title: We Connect (Write your way.) Introduction: It is a question-and-answer site where questions are asked, answered, people, write their experiences, and provide a way to connect to various people via Facebook and Linkedin, and organized by its community of users. We Connect require users
1 min read
Differences between Point-to-Point and Multi-point Communication In this section, we shall see the differences between Point-to-Point and Multi-point Communication. In point-to-point communication, there is a dedicated link between two nodes, and in multi-point communication, the link is provided at all times for sharing the connection among nodes. Now, the diffe
2 min read
Differences between Point-to-Point and Multi-point Communication In this section, we shall see the differences between Point-to-Point and Multi-point Communication. In point-to-point communication, there is a dedicated link between two nodes, and in multi-point communication, the link is provided at all times for sharing the connection among nodes. Now, the diffe
2 min read
