PySpark Join Types - Join Two DataFrames

Last Updated : 16 Jun, 2025
Comments
Improve
Suggest changes
Like Article
Like
Report

In PySpark, joins combine rows from two DataFrames using a common key. Common types include inner, left, right, full outer, left semi and left anti joins. Each type serves a different purpose for handling matched or unmatched data during merges. The syntax is:

dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"type")

where,

  • dataframe1 is the first dataframe
  • dataframe2 is the second dataframe
  • column_name is the column which are matching in both the dataframes type is the join type we have to join

Create the first dataframe for demonstration:

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate() # Init SparkSession

d = [["1", "sravan", "company 1"],
        ["2", "ojaswi", "company 1"],
        ["3", "rohith", "company 2"],
        ["4", "sridevi", "company 1"],
        ["5", "bobby", "company 1"]]

cols = ['ID', 'Name', 'Company']
df = spark.createDataFrame(d, cols)
df.show()

Output

Create second dataframe for demonstration:

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate() # Init SparkSession

d1 = [["1", "45000", "IT"],
         ["2", "145000", "Manager"],
         ["6", "45000", "HR"],
         ["5", "34000", "Sales"]]

cols = ['ID', 'salary', 'department']
df1 = spark.createDataFrame(d1, cols)

df1.show()

Output

Inner join

This will join the two PySpark dataframes on key columns, which are common in both dataframes. Syntax:

dataframe1.join(dataframe2,dataframe1.column_name == dataframe2.column_name,"inner")

Example:

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('join_example').getOrCreate()

# first DataFrame
d1 = [("1", "sravan", "company 1"),
      ("2", "ojaswi", "company 1"),
      ("3", "rohith", "company 2"),
      ("4", "sridevi", "company 1"),
      ("5", "bobby", "company 1")]
cols1 = ['id', 'name', 'company']
df1 = spark.createDataFrame(d1, cols1)

# second DataFrame
d2 = [("1", "45000", "IT"),
      ("2", "145000", "Manager"),
      ("6", "45000", "HR"),
      ("5", "34000", "Sales")]
cols2 = ['id', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.id == df2.id, "inner").show()

Output

Full Outer Join

This join joins the two dataframes with all matching and non-matching rows, we can perform this join in three ways. Syntax:

  • outer: dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"outer")
  • full: dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"full")
  • fullouter: dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"fullouter")

Example 1: Using outer keyword

In this example, we are going to perform outer join based on the ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# first dataframe data
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
cols1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, cols1)

# second dataframe data
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
cols2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.ID == df2.ID, "outer").show()

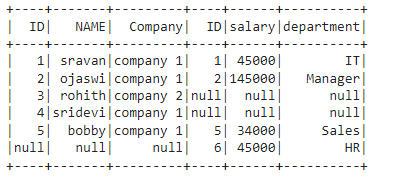

Output

Example 2: Using full keyword

In this example, we are going to perform outer join using full keyword based on ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# first dataframe data
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
cols1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, cols1)

# second dataframe data
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
cols2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.ID == df2.ID, "full").show()

Output

Example 3: Using fullouter keyword

In this example, we are going to perform outer join using full outer based on ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# First dataframe data
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
cols1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, cols1)

# Second dataframe data
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
cols2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.ID == df2.ID, "fullouter").show()

Output

Left Join

Here this join joins the dataframe by returning all rows from the first dataframe and only matched rows from the second dataframe with respect to the first dataframe. We can perform this type of join using left and leftouter. Syntax:

  • left: dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"left")
  • leftouter: dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"leftouter")

Example 1: Perform left join

In this example, we are going to perform left join using the left keyword based on the ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# First dataframe data
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
cols1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, cols1)

# Second dataframe data
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
cols2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.ID == df2.ID, "left").show()

Output

Example 2: Perform leftouter join

In this example, we are going to perform left join  using leftouter keyword based on the ID column in both dataframes

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# first dataframe
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
cols1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, cols1)

# second dataframe
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
cols2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.ID == df2.ID, "leftouter").show()

Output

Right Join

Here this join joins the dataframe by returning all rows from the second dataframe and only matched rows from the first dataframe with respect to the second dataframe. We can perform this type of join using right and rightouter. Syntax:

  • right: dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"right")
  • rightouter: dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"rightouter")

Example 1: Perform right join

In this example, we are going to perform right join using the right keyword based on ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# Data for left dataframe
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
cols1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, cols1)

# Data for right dataframe
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
cols2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.ID == df2.ID, "right").show()

Output

Example 2: Perform rightouter join

In this example, we are going to perform the right join using rightouter keyword based on the ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# first dataframe data and columns
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
col1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, col1)

# second dataframe data and columns
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
col2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, col2)

df1.join(df2, df1.ID == df2.ID, "rightouter").show()

Output

Leftsemi join

This join will all rows from the first dataframe and return only matched rows from the second dataframe. Syntax:

dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"leftsemi")

Example: In this example, we are going to perform leftsemi join using leftsemi keyword based on the ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# employee data
d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
cols1 = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(d1, cols1)

# salary & department data
d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
cols2 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(d2, cols2)

df1.join(df2, df1.ID == df2.ID, "leftsemi").show()

Output

LeftAnti join

This  join returns only columns from the first dataframe for non-matched records of the second dataframe. Syntax:

dataframe1.join(dataframe2,dataframe1.column_name ==  dataframe2.column_name,"leftanti")

Example: In this example, we are going to perform leftanti join using leftanti keyword based on the ID column in both dataframes.

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
col1 = ['ID', 'NAME', 'COMPANY']
df1 = spark.createDataFrame(d1, col1)

d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
col2 = ['ID', 'SALARY', 'DEPT']
df2 = spark.createDataFrame(d2, col2)

df1.join(df2, df1.ID == df2.ID, "leftanti").show()

Output:

SQL Expression

We can perform all types of the above joins using an SQL expression, we have to mention the type of join in this expression. To do this, we have to create a temporary view. Syntax:

dataframe.createOrReplaceTempView("name")

where

  • dataframe is the input dataframe
  • name is the view name

Now we can perform join on these views using spark.sql().Syntax:

spark.sql("select * from dataframe1, dataframe2 where dataframe1.column_name == dataframe2.column_name ")

where,

  • dataframe1 is the first view dataframe
  • dataframe2 is the second view dataframe
  • column_name is the column to be joined

Example 1: In this example, we are going to join two dataframes based on the ID column.

Python
import pyspark
from pyspark.sql import SparkSession
spark = SparkSession.builder.appName('sparkdf').getOrCreate()

d1 = [["1", "sravan", "company 1"],
      ["2", "ojaswi", "company 1"],
      ["3", "rohith", "company 2"],
      ["4", "sridevi", "company 1"],
      ["5", "bobby", "company 1"]]
col1 = ['ID', 'NAME', 'COMPANY']
df1 = spark.createDataFrame(d1, col1)

d2 = [["1", "45000", "IT"],
      ["2", "145000", "Manager"],
      ["6", "45000", "HR"],
      ["5", "34000", "Sales"]]
col2 = ['ID', 'SALARY', 'DEPT']
df2 = spark.createDataFrame(d2, col2)

# Create temp views
df1.createOrReplaceTempView("student")
df2.createOrReplaceTempView("department")

# SQL join on ID
spark.sql("""
    SELECT * FROM student
    JOIN department
    ON student.ID = department.ID
""").show()

Output

We can also perform the above joins using this SQL expression. Syntax:

spark.sql("select * from dataframe1 JOIN_TYPE dataframe2 ON dataframe1.column_name == dataframe2.column_name ")

where, JOIN_TYPE refers to above all types of joins

Example 2: Perform inner join on ID column using expression

Python
import pyspark
from pyspark.sql import SparkSession

spark = SparkSession.builder.appName('sparkdf').getOrCreate()

# employee data
data = [["1", "sravan", "company 1"],
        ["2", "ojaswi", "company 1"],
        ["3", "rohith", "company 2"],
        ["4", "sridevi", "company 1"],
        ["5", "bobby", "company 1"]]
cols = ['ID', 'NAME', 'Company']
df1 = spark.createDataFrame(data, cols)

# salary data
data1 = [["1", "45000", "IT"],
         ["2", "145000", "Manager"],
         ["6", "45000", "HR"],
         ["5", "34000", "Sales"]]
cols1 = ['ID', 'salary', 'department']
df2 = spark.createDataFrame(data1, cols1)

# create temp views
df1.createOrReplaceTempView("student")
df2.createOrReplaceTempView("department")

# SQL inner join on ID
spark.sql("SELECT * FROM student INNER JOIN department ON student.ID == department.ID").show()

Output


Next Article
Company Preparation

S
sravankumar_171fa07058
Improve
Article Tags :
Practice Tags :

Similar Reads

We use cookies to ensure you have the best browsing experience on our website. By using our site, you acknowledge that you have read and understood our Cookie Policy & Privacy Policy
Lightbox
